electrical center b2c

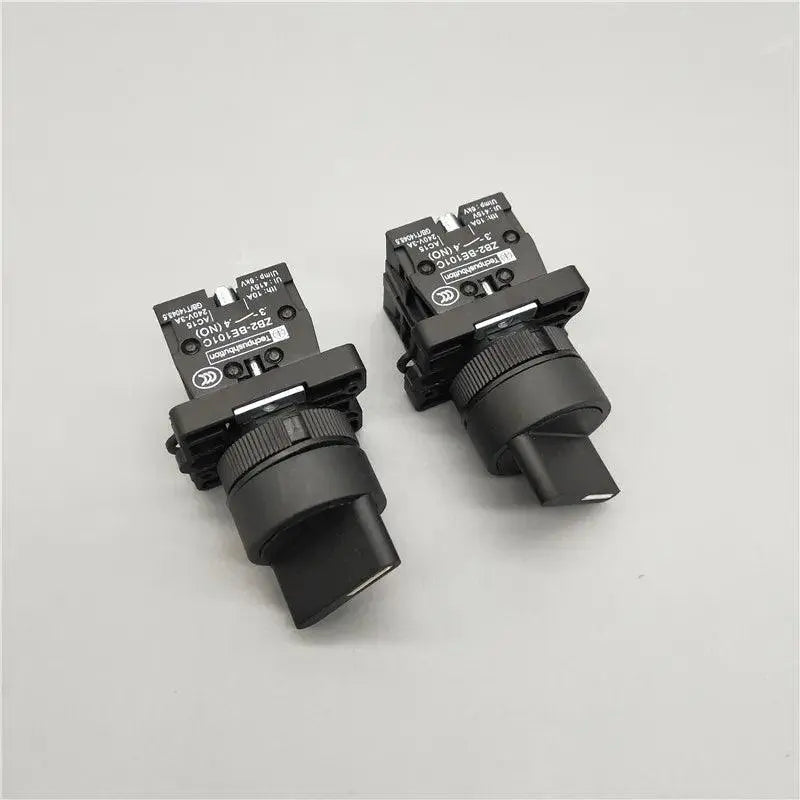

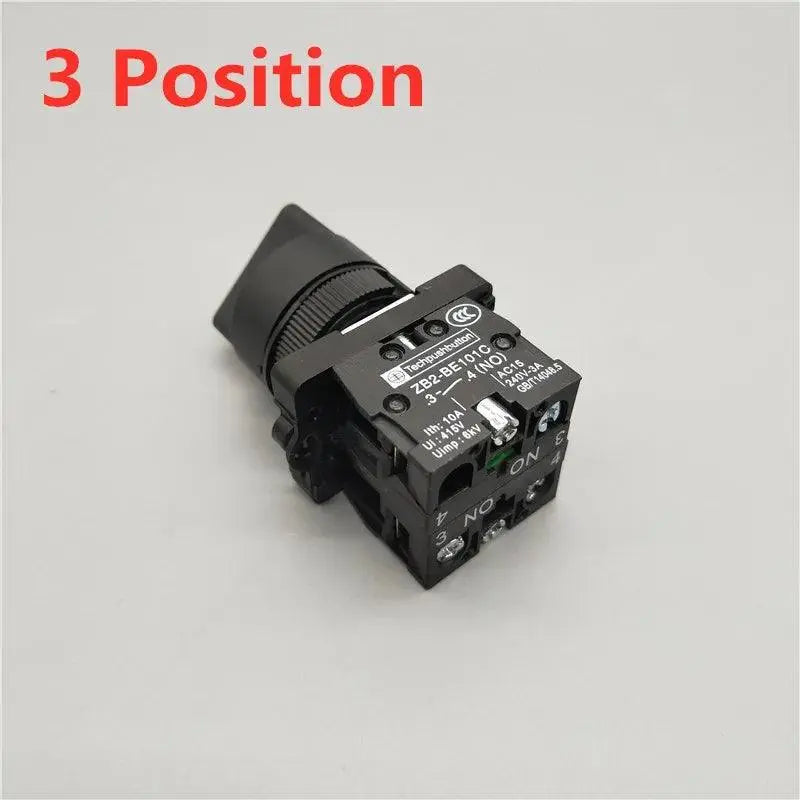

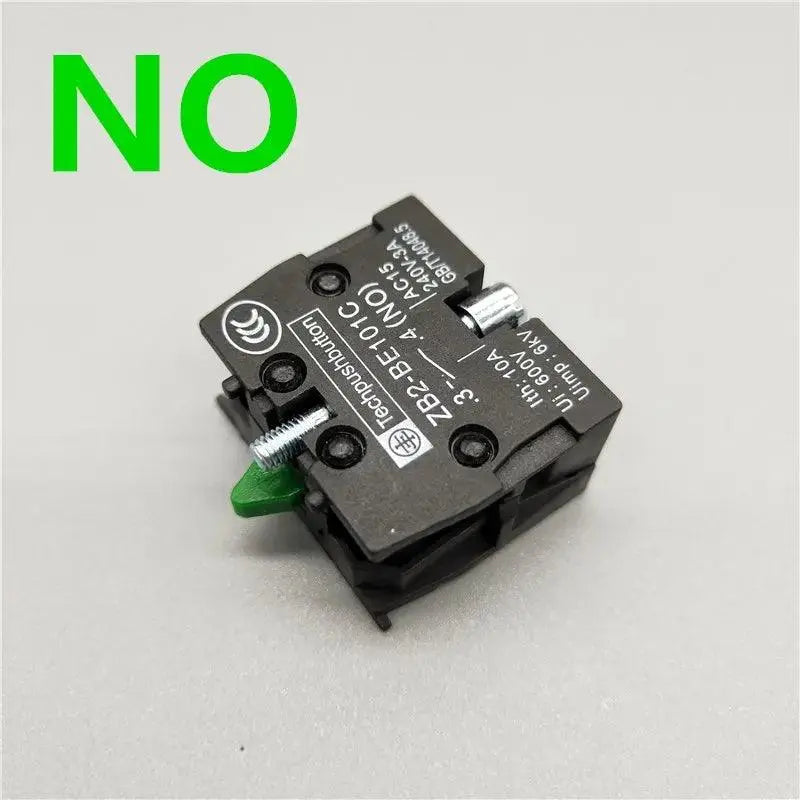

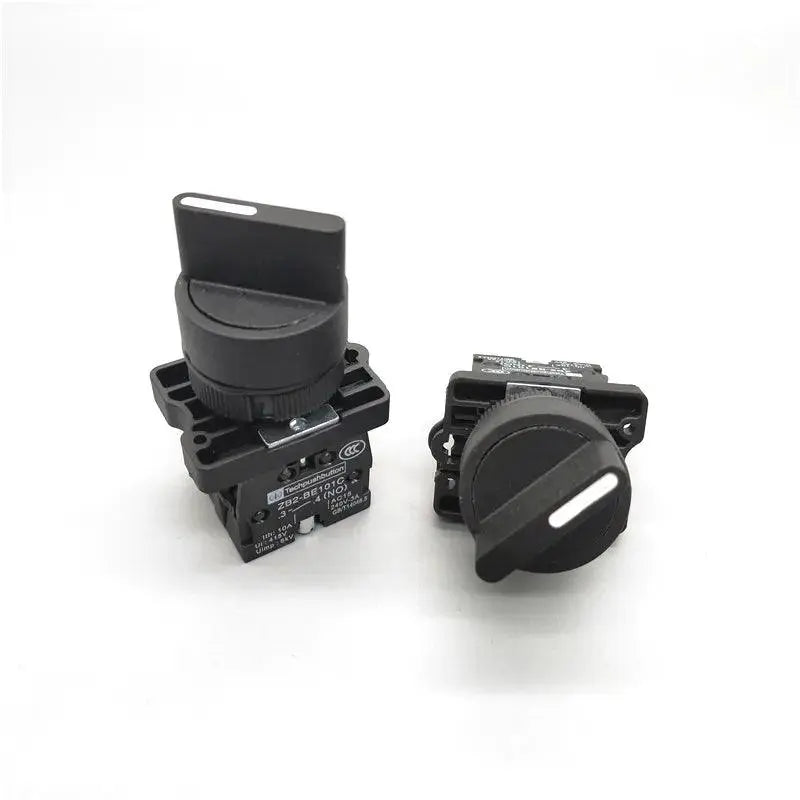

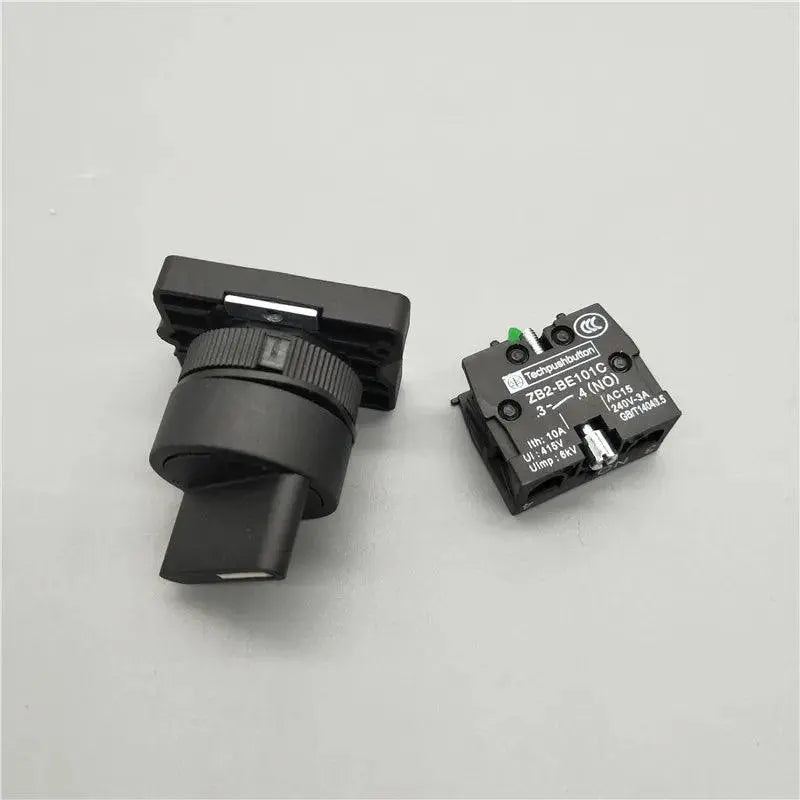

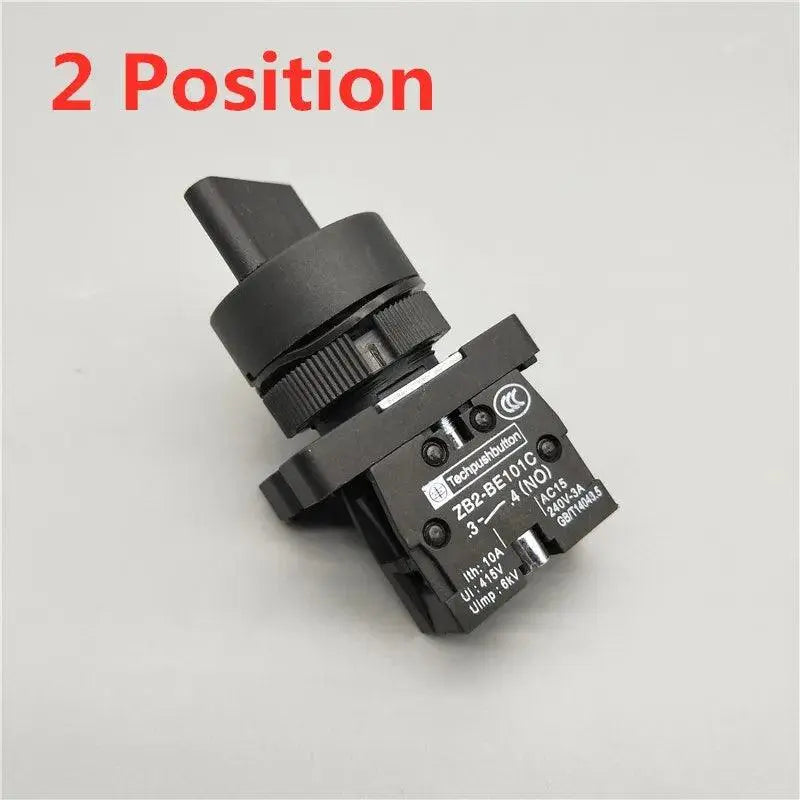

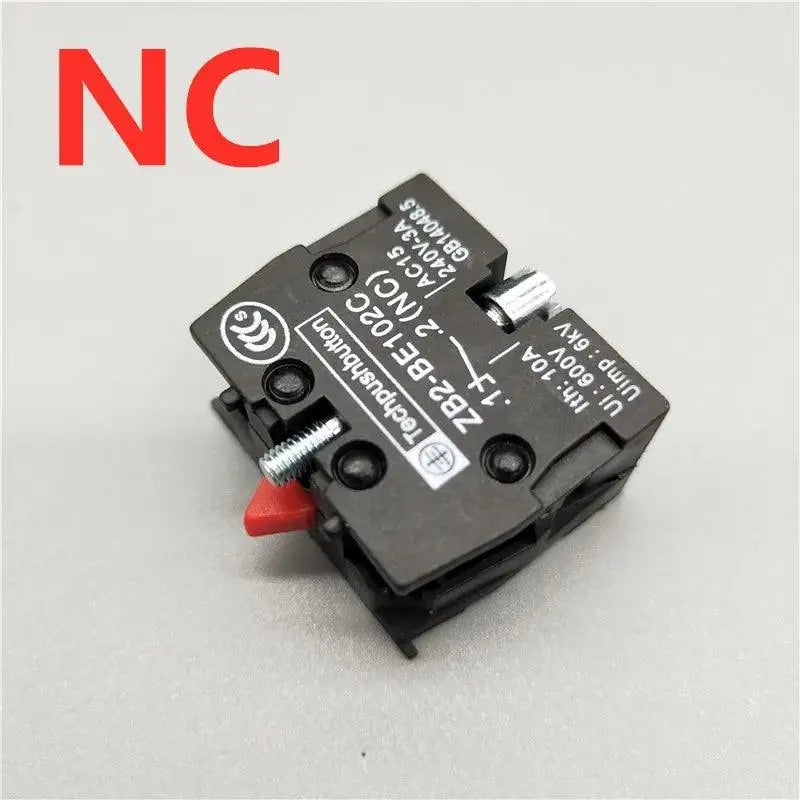

XB2-ED21 XB2-ED25 XB2-ED33 XB2-ED33 2/3 Positions 1N0/1NC&1NO/2NO Latching Self-Locking /Momentary Selector Push Button Switch

Regular price $6.96 USD
Regular price $6.60 USD Sale price $6.96 USD
Sale Sold out
Shipping calculated at checkout.
Color
Voltage

Key Features of The XB2-ED21 Push Button Switch.

SPECIFICATIONS

Origin: Mainland China

Current: 10A

Material: Plastic

Item Type: Switches

Switch Type: Touch On/Off Switch

Certification: RoHS

Certification: CE

Certification: CCC

Certification: ROHS

Is Smart Device: YES

Features: On-Off On-Off-Off

Warranty: 2 year

Model Number: XB2-ED2 XB2-ED3

XB2 pushbutton  switch

 1 Basic spec code: 22mm
2 Protection grade: IP40, IP65
3.Electrical durability: 50 x 104
4.CE,CCC certification

Application:

 XB2 series pushbutton switches are used in industrial controlling circuits of AC 50Hz or 60Hz, rated operational voltage up to 380V and below, DC operational voltage up to 220V and below for controlling in magnetic starter, contactor, relay and other electrical circuits. The buttons with indication conform with the standard of GB14048.5-2001.


Main Technical Parameter


Ambient Temperature:

-5+40

Relative Humidity:

45%85%

Contact Resistance:

≤50mΩ

Electrical Life

5.0x105

Withstanding Voltage

2500V, 1min

Protection Degree

IP40

Rated Insulation Voltage, Ui

660V

Conventional Thermal Current, Ith

10A

Rated Operational Voltage, Ue

380V

220V

110V

48V

24V

Rated Operational Current, Ie

AC-15

2.5A

4.5A

6A

8A

-

DC-13

-

0.3A

0.6A

1.3A

2.5A











Rated Voltage

Voltage Input Directly

Resistance

Transformer

Lamp-House

6V

12V

24V

48V

110V

220V

380V

220V

220V

380V

LED Lamp

-

-

-

-

-

Neon Lamp

-

-

-

-

-

-

Incandecent Lamp

-

The XB2-ED21 Push Button Switch is an innovative solution designed to enhance usability and control in various machines and equipment. The latching self-locking /momentary selector feature offers versatility and adaptability to different operational settings because it allows users to easily switch between two or three positions.


This unique characteristic of the XB2-ED21 Switch, combined with its latching self-locking and momentary functions, makes it a user-friendly tool for various industrial applications. Not only does it function seamlessly, but it also provides a high level of flexibility and control.


The overall design and quality of the XB2-ED21 Switch is robust and built to last, providing long-term reliability in various environments and situations. So whether you're operating heavy machinery or utilizing it in a domestic setting, it's a trustworthy option.
