Wifi module RS232 RS485 data interface STA AP internet type serial AT director
SPECIFICATIONS

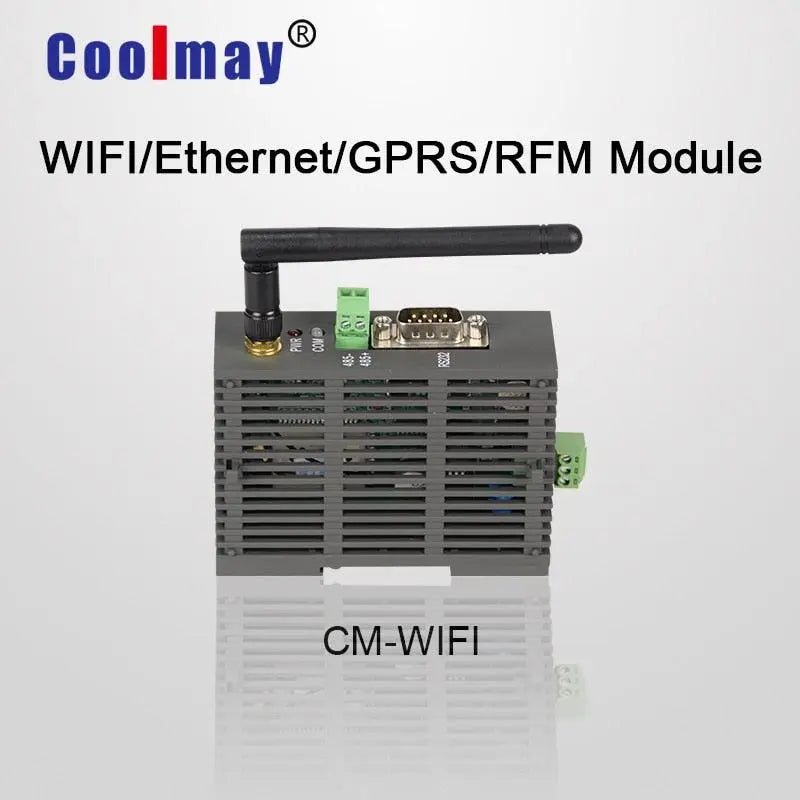

Coolmay Wifi module RS232 RS485 data interface STA AP internet type serial AT director
Motor Type: AC Motor
Model Number: CM-WIFI
Brand Name: Coolmay
Artical |
CM-WIFI |
CM-GPRS |
CM-NET |
CM-WIFI-2NET |
CX-4G |
Installation |
Standard guide rail’s installation,can be installed on NS35\7.5or NS32 guide slot |
||||
Dimension |
90*60*32mm |
65*90*36mm |
|||
Wiring way |
Power and RS232/485 adopts pluggble terminals |
||||
Frequency range |
2.412GHz-2.484GHz |
850/900/1800/1900MHz GSM |
120MHz |
2.412GHz-2.484GHz |
5 modes, 12 channels |
Network standards |
802.11 b/g/n |
GSM/GPRS/EDGE |
LAN ethernet:10/100Mbps |
802.11 b/g/n |
TDD-LTE/FDD-LTE WCDMA/TD-SCDMA/GSM/GPRS/EDGE |
Data interface |
RS232、RS485 |
RS232、RS485 |
RS232、RS485 |
RS232、RS485 300bps-460800bps |
RS232、RS485 300-230400bps |
Network type |
STA/AP/STA+AP |
GSM/GPRS/EDGE |
10/100Mbps network port |
Station/AP mode |
TDD-LTE/FDD-LTE WCDMA/ |
Network protocal |
IPv4,TCP/UDP/HTTP |
TCP/UDP/DNS/HTTP |
IPv4,TCP/UDP |
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP |
TCP/UDP/DNS/HTT |
User Configuration |
Web page/Serial port AT command |
Serial port AT command,network AT instruction,short message AT instruction |
Configuration software/ Web page |
Web server/network AT instruction |
Serial port AT command,network AT instruction,short message AT instruction |
Transmit power |
300-460800bps |
2400-921600bps |
300-460800bps |
300-230400bps |
|
Detail info |
<CM-WIFI user manual><CM-GPRS user manual><CM-NET Ethernet Module user manual><CM-WIFI-2NET user manual><CX-4G user manual> <Visual serial port CM-VCOM> <CM-GPRS module setting software><CM-NET module setting software><CX-4G module setting software> |
