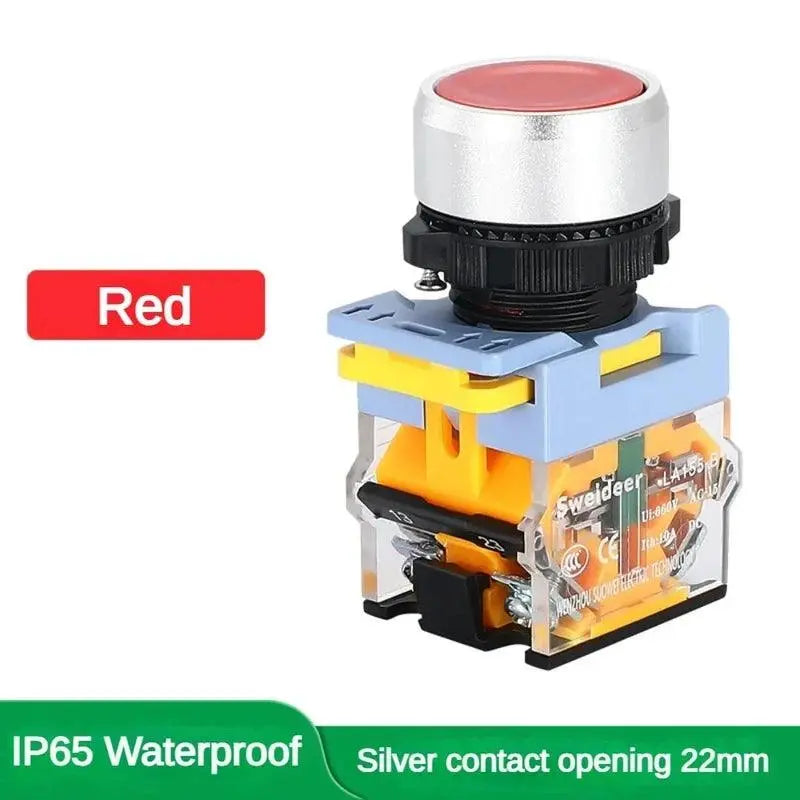

Waterproof Push Button Switch 22mm Momentary Reset Self Locking Power Button Switch 10A 1NO 1NC Red Green Yellow Blue White
Discover the Durability of Red Green Yellow Blue White Switch
SPECIFICATIONS
Brand Name: sweideer
Origin: Mainland China
Current: 10A
Features: Waterproof
Material: ALLOY
Item Type: SWITCHES
Warranty: 1 Year
Switch Type: Push Button Switch
Certification: ce
Model Number: Push Button Switch
Is Smart Device: no
Opening diameter: 22MM
Contact material: Silver contact
Button contact: 1NO,1NC,1NO1NC ,2NO,2NC
Color: red/green/blue/white/yellow
Product Specification
Product name: Push Button Switch
Contact material: Silver contact
Rated current: 10A
Opening diameter: 22MM
Button contact: 1NO,1NC,1NO1NC,2NO,2NC
Operation mode: Momentary self-reset / fixed self-locking
Button color: Red Yellow Blue Green White Black
Product model: LA155-B1
Waterproof grade: IP65
Package Content
1pc Push Button Switch
Contact modular combination
NO(normally open) and NC(normally closed ) contact can replace and add at any time .
It can hold 1-6 pcs Contact modules at most.
NO(Normally open contact ): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press power off.
Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
Self locking: When pressed, the button locks;when pressed again, the button bounces back.
Experience the unmatched quality of our Red Green Yellow Blue White Switch. This 22mm momentary reset self-locking power button switch is designed to withstand tough conditions thanks to its waterproof design. With a maximum load of 10A and 1NO 1NC, this switch is incredibly reliable and ensures optimal performance.
Our Red Green Yellow Blue White Switch comes in different vibrant colors including red, green, yellow, blue, and white. These not only add aesthetic value but also help in color coding for different functionalities. This makes it an excellent choice for controlling various electronic devices.
In addition, the momentary reset feature of this switch allows it to bounce back to its initial state after being pressed. This feature, coupled with its self-locking ability, ensures your devices remain safe from unexpected power surges. Furthermore, both these unique features make this switch an ideal choice for those looking for both functionality and safety.
What sets our Red Green Yellow Blue White Switch apart is its robust build. The waterproof and dust-resistant feature ensures that the switch remains in pristine condition, regardless of the environment it's put in. So whether you need a sturdy switch for your outdoor appliances or your indoor devices, our switch is the perfect fit for you!
