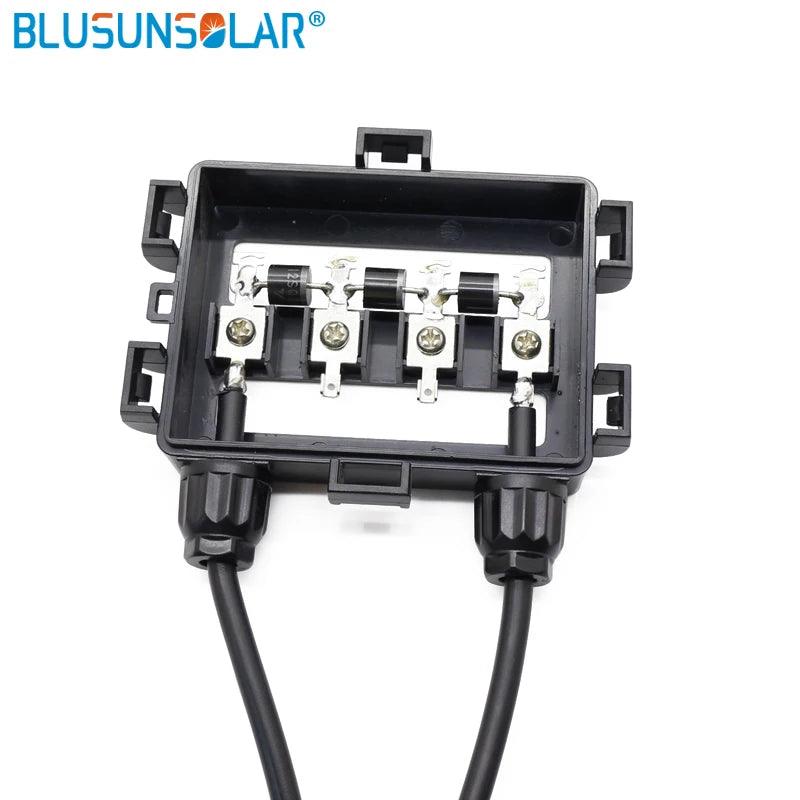

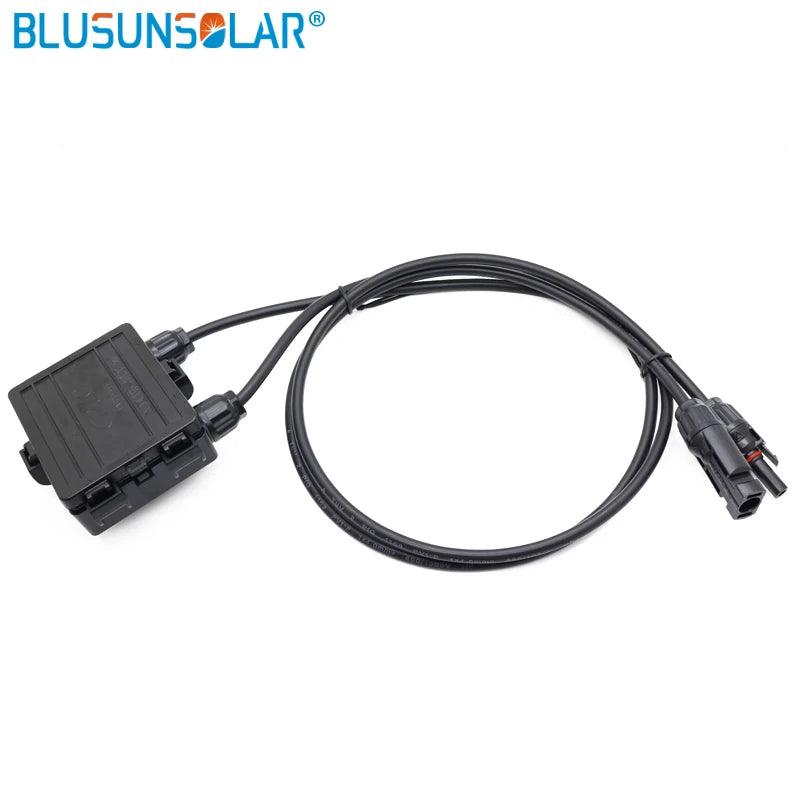

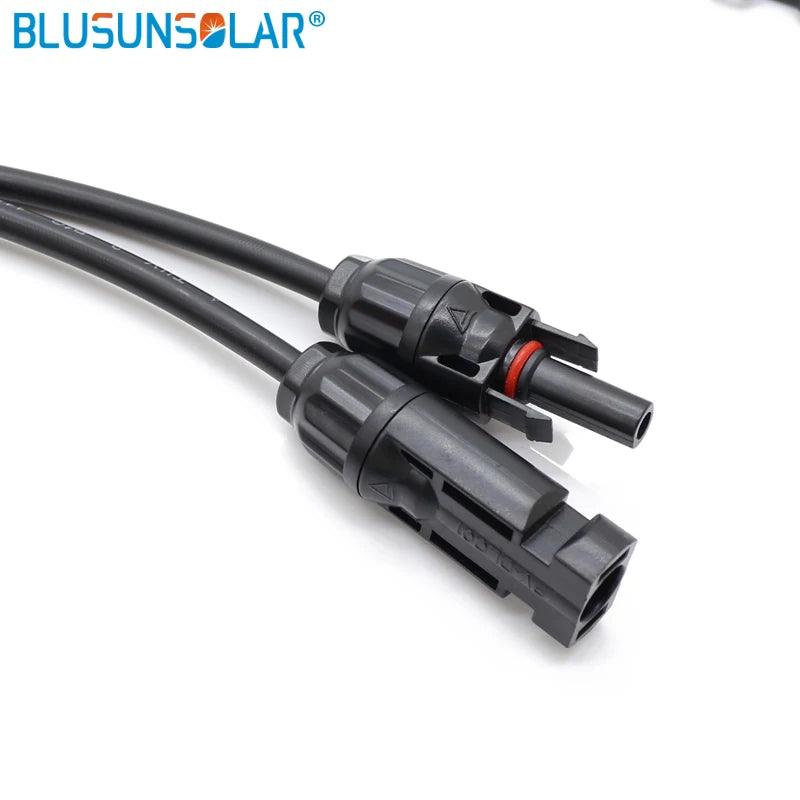

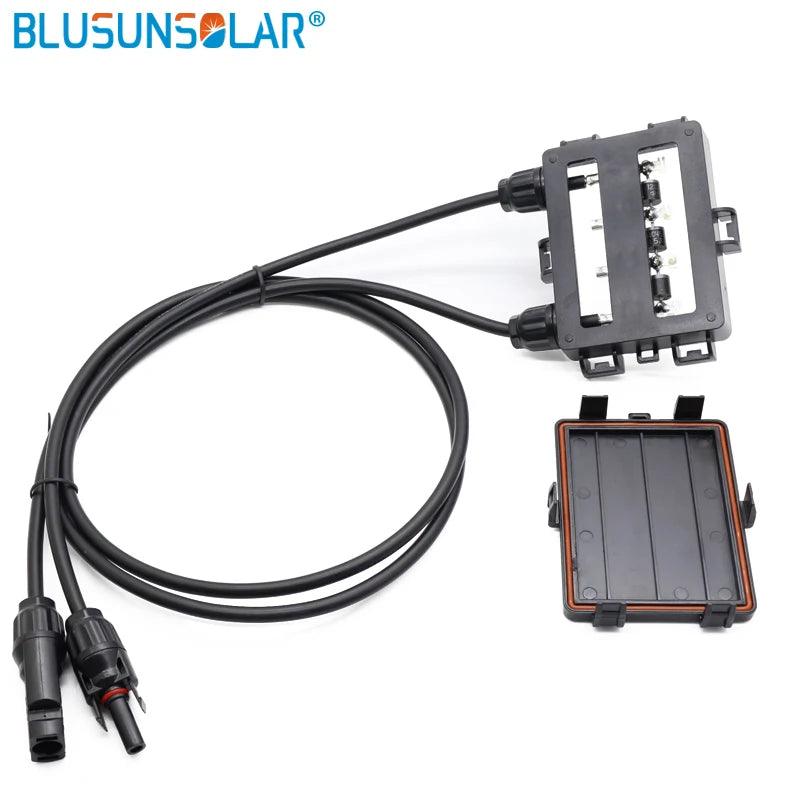

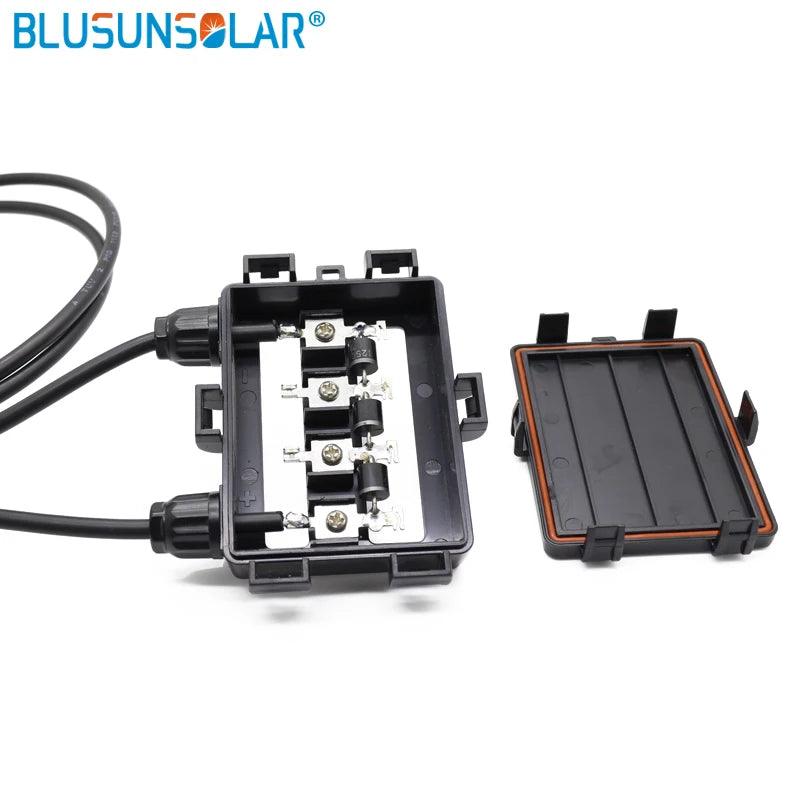

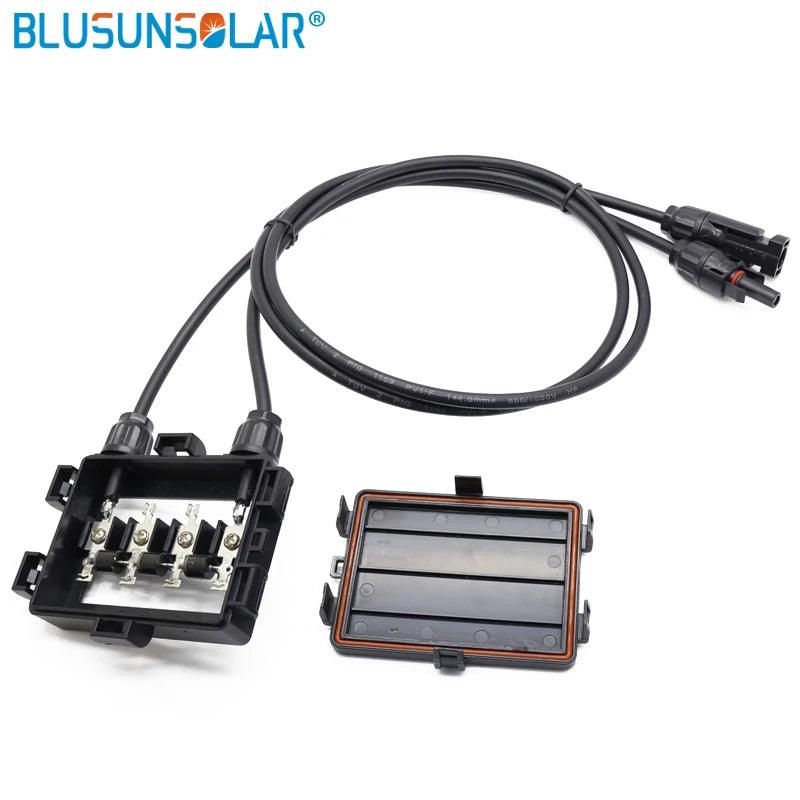

Waterproof IP65 4 Way PV Solar Junction Box for Solar Panel with 4.0mm2 Cable and 3 Diodes 15A

Regular price $15.35 USD
Regular price $17.72 USD Sale price $15.35 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

Waterproof IP65 4 Way PV Solar Junction Box for Solar Panel with 4.0mm2 Cable and 3 Diodes 15A

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: 4 way pv junction box

Certification: CE

Amount of Rails: 4 rail terminals

Rated Voltage: TUV 1000V DC

Rated Current: 8A

Proof Voltage: TUV 6000V AC(1Min) / UL 2200V DC (1Min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Protection Degree: IP65

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

5 pcs/lot Waterproof IP65 4 Way PV Solar Junction Box

for Solar Panel with 4.0mm2 Cable and 4 Diodes



Max Voltage:1000V

Junction box Current:3-15A

Temperature Rane:-40~+85

Protection:Class 2

Waterproof:IP65

Flame class:UL94V-0

Box material:PPO

Joining of ribbon:soldering

Use for solar panel:60W-80W

Product No.

DLC608

Amount of rails

4 rail terminals

Rated Voltage

TUV 1000V DC

Rating current

8A

Cable size

4.0mm

Pin OD

4.0mm

Proof voltage

TUV 6000V AC(1Min) / UL 2200V DC (1Min)

Pollution degree

2

Protection class

Class II

Contact Material

Copper, tin plated

Contact resistance

≤5mΩ

Protection degree

IP 65

Withdrawal Force

≥50N

Temperature Range

-40~+85

Flame Class

UL94V-0
