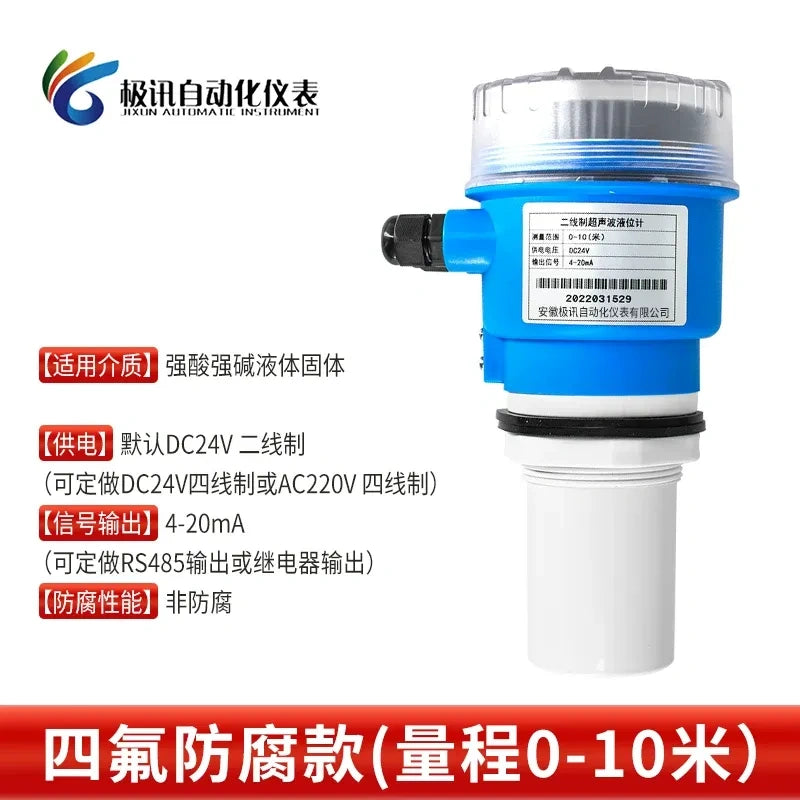

  • Ultrasonic Level Sensor with measuring range 0-10 meter ,dc24v Anti-corrosive Ultrasonic Level Sensor ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor used for Strong acid and strong alkali liquids and solids liquid
  • Ultrasonic Level Sensor with measuring range 0-20 meter ,dc24v Explosion-proof Ultrasonic Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor used for diesel explosion liquid
  • Ultrasonic Level Sensor ,Liquid Level Transmitter ,4-20mA Level Meter ,Non Contact Level Sensor ,Industrial Level Transmitter ,Explosion Proof Level Sensor ,Anti Corrosive Level Meter ,Split Level Meter ,Integrated Level Transmitter ,Water Tank Level Sensor
  • Ultrasonic Level Sensor ,Liquid Level Transmitter ,4-20mA Level Meter ,Non Contact Level Sensor ,Industrial Level Transmitter ,Explosion Proof Level Sensor ,Anti Corrosive Level Meter ,Split Level Meter ,Integrated Level Transmitter ,Water Tank Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-2 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-3 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-4 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor

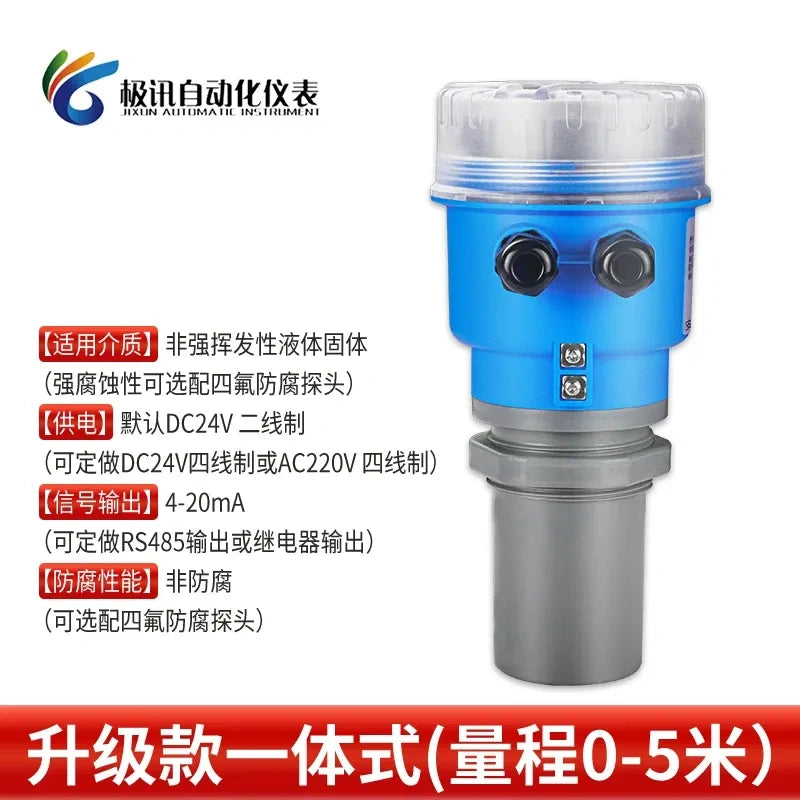

  • Ultrasonic Level Sensor with measuring range 0-5 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-6 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-7 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-8 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-9 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-10 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-15 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor
  • Ultrasonic Level Sensor with measuring range 0-20 meter ,dc24v Liquid Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor

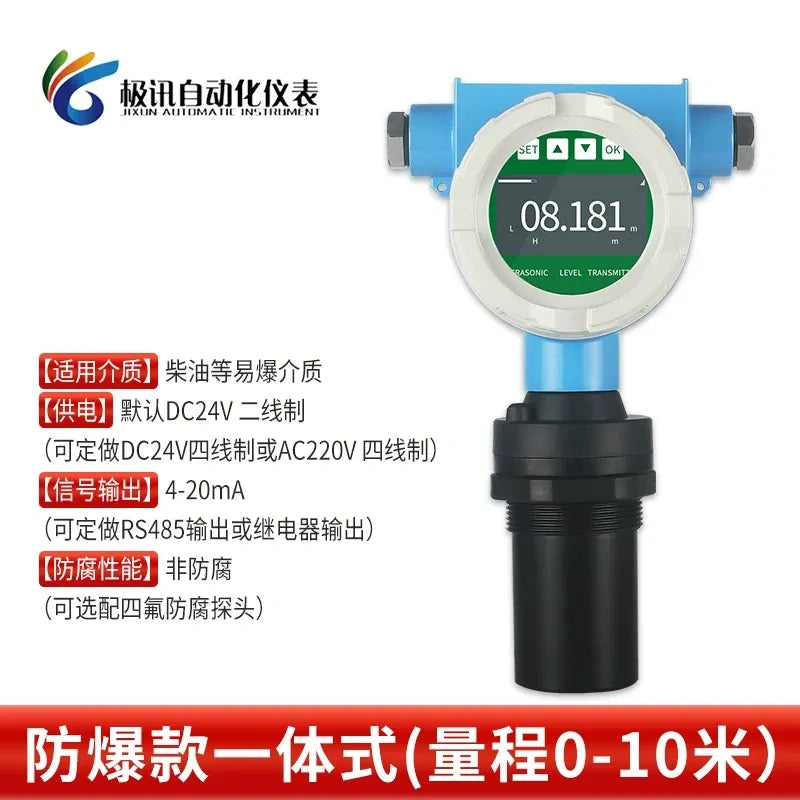

  • Ultrasonic Level Sensor with measuring range 0-10 meter ,dc24v Explosion-proof Ultrasonic Level Transmitter ,2-wire 4-20mA Level Meter ,Non Contact Level Sensor used for diesel explosion liquid

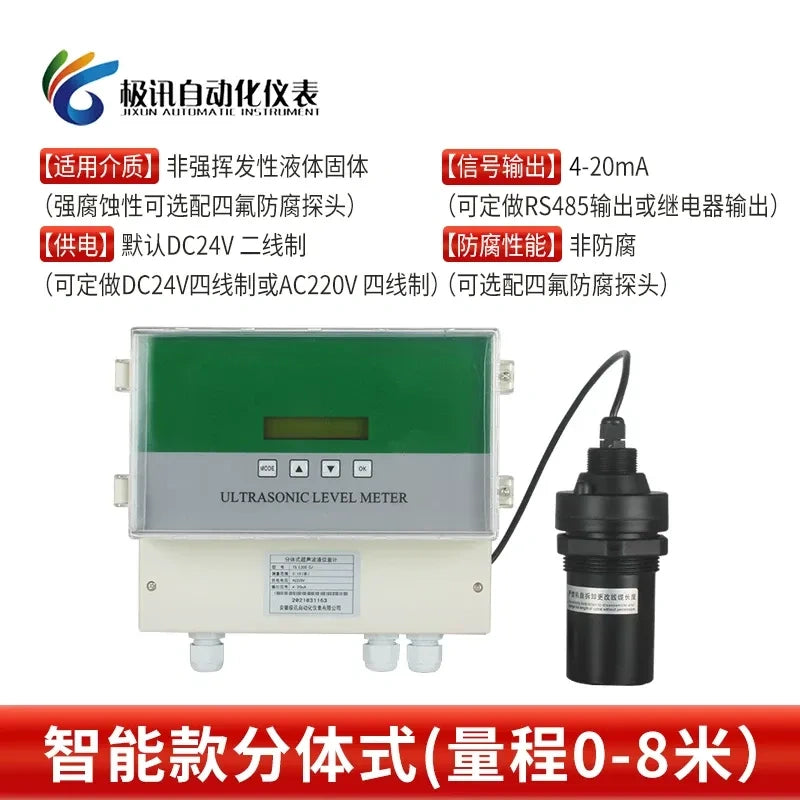

  • Split-type Ultrasonic Level Meter

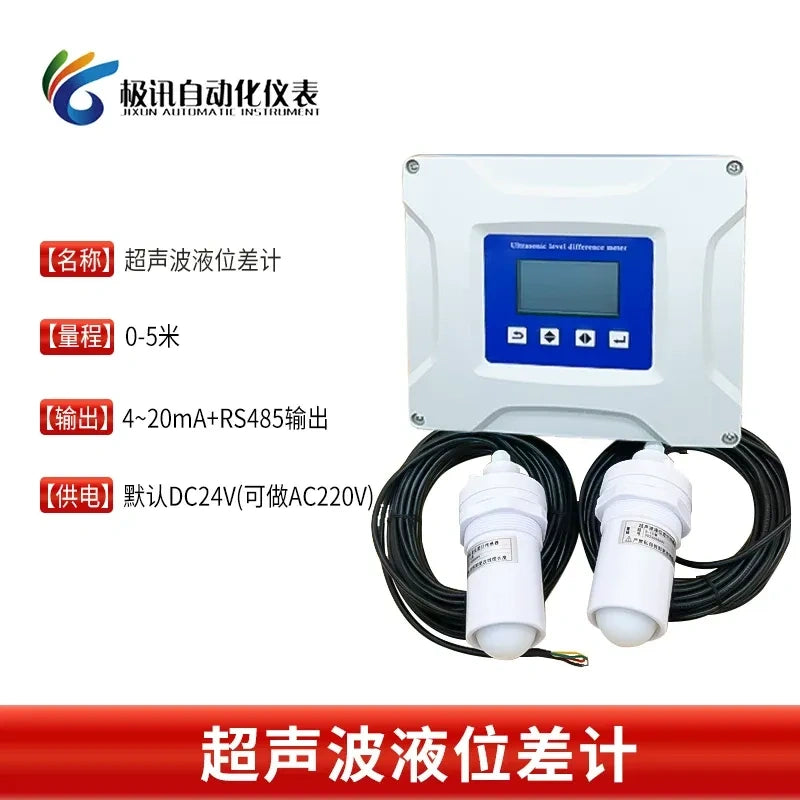

  • Ultrasonic Level Difference Meter
1 9

electrical center b2c

Ultrasonic Liquid Level Sensor 4-20mA, 0-20m Range Non-Contact Level Transmitter

$165.60 USD
$165.60 USD
Sale Sold out
Shipping calculated at checkout.
Measuring Range
Power Supply
Model Options&Output Signal

Ultrasonic Liquid Level Sensor 4-20mA, 0-20m Range Non-Contact Level Transmitter for Water Tank, Sewage, Industrial Use

This ultrasonic level transmitter uses non-contact ultrasonic technology to measure liquid/solid levels without direct contact. It features high accuracy (±0.5% FS), automatic temperature compensation, and IP65 protection, making it suitable for sewage tanks, acid/alkali solutions, and industrial silos. Available in integrated, split, anti-corrosive, and explosion-proof versions with 4-20mA output, it works seamlessly with PLC and industrial control systems.

  • Integrated Type: Integrated Ultrasonic Level Transmitter with LCD Display, 4-20mA DC24V, 0-10m Range
  • Split Type: Split Ultrasonic Level Meter with Digital Controller, Non-Contact Level Sensor for Industrial Tanks
  • Anti-corrosive Type: Anti-corrosive Ultrasonic Level Sensor for Acid/Alkali Liquid, 0-10m 4-20mA
  • Explosion-proof Type: Explosion-proof Ultrasonic Level Transmitter for Flammable Liquids, IP65 0-20m Range

Specification

Key Value
Product Name Ultrasonic Liquid Level Sensor / Transmitter
Model Options Integrated Type / Split Type / Anti-corrosive Type / Explosion-proof Type
Measuring Range 0-1m / 0-2m / 0-3m / 0-4m / 0-5m / 0-6m / 0-7m / 0-8m / 0-9m / 0-10m / 0-15m / 0-20m (customizable)
Output Signal 4-20mA (2-wire) / RS485 / Modbus
Power Supply DC 24V
Accuracy ±0.5% FS (error ≤ 2.5cm at 5m range)
Resolution 1mm
Dead Zone 0.35m ~ 0.6m
Operating Temperature -20°C ~ +60°C
Pressure Atmospheric pressure
Protection Grade IP65
Display LCD digital display (on integrated/split models)

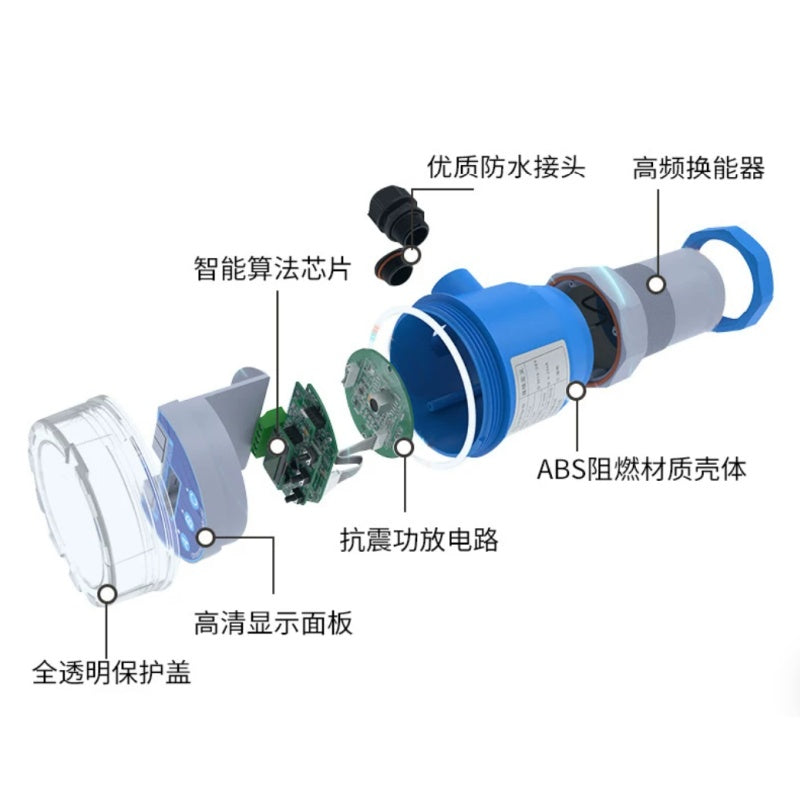

Material ABS flame-retardant housing, optional anti-corrosive/explosion-proof versions
Features Automatic temperature/sound speed compensation, multi-speed response, anti-interference circuit, non-contact measurement
Applications

Sewage tanks, acid/alkali solutions, industrial tanks, rivers, reservoirs, silos

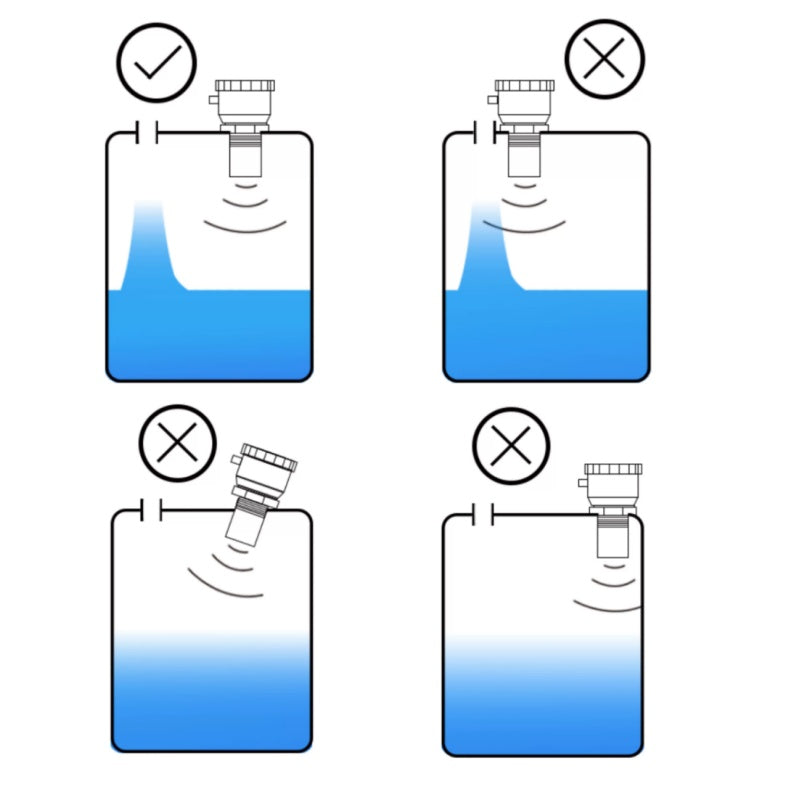

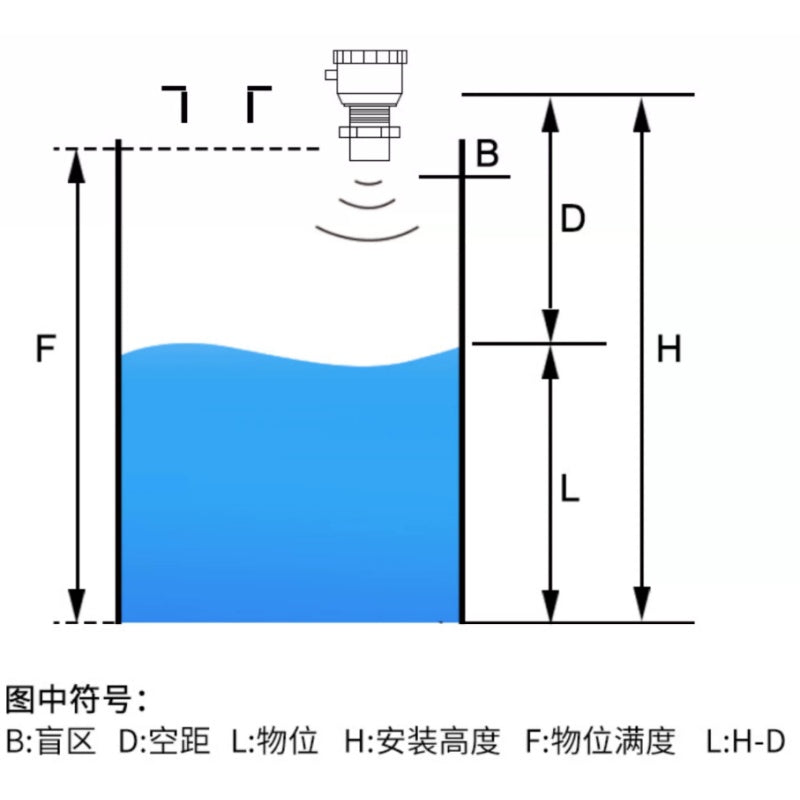

Mounting Method

Installation Notes:

  • The reference plane for measurement is the lower edge of the sensor.

  • The upper limit of the level must not enter the measurement blind zone.

  • When measuring side levels, the feed inlet must be avoided.

  • When installed outdoors, it is best to provide rain and sun protection.

Reference Table for Range Upper Limit and Distance from Wall

(For complex working conditions, the distance from the wall should also be increased accordingly)

Range Upper Limit

Distance from Wall

Range Upper Limit

Distance from Wall

5m

0.5m

10m

1.0m

15m

1.5m

20m

2.0m
