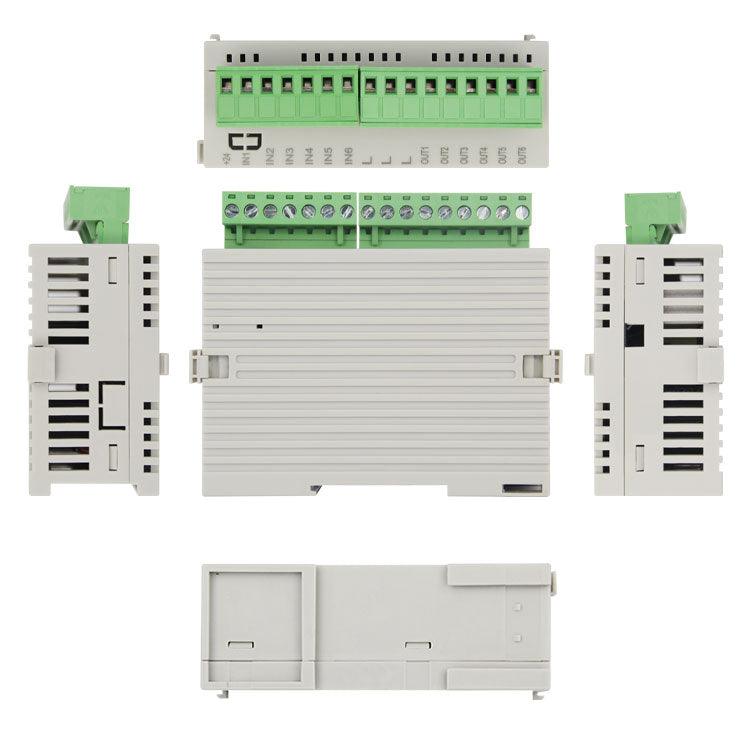

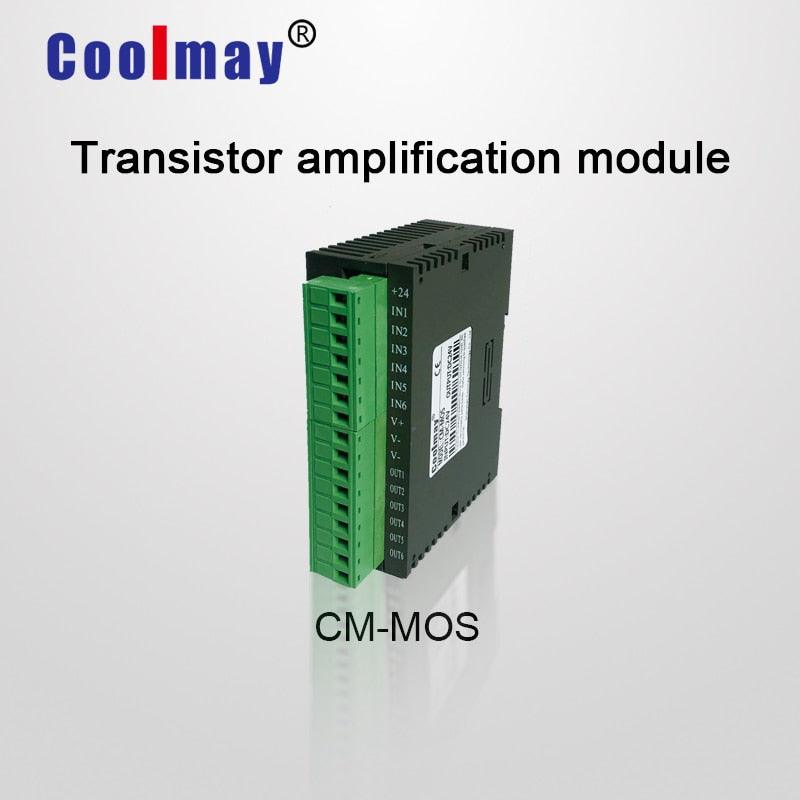

Transistor Amplifier module CM-MOS

$40.16 USD
$70.00 USD $40.16 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Transistor Amplifier module CM-MOS

Range : 430-450Mhz

Output type: NPN

Output points: 6I/6O

Motor Type: AC Motor

Model Number: CM-MOS

Installation : Standard rail , NS35/7.5

Input voltage: 88-264VAC or 125-373VDC

Input type: NPN

Dimension : 89.5*79*32.5mm

Connection mode: 5.08 pluggable terminal

Brand Name: Coolmay

Transistor Amplifier module CM-MOS

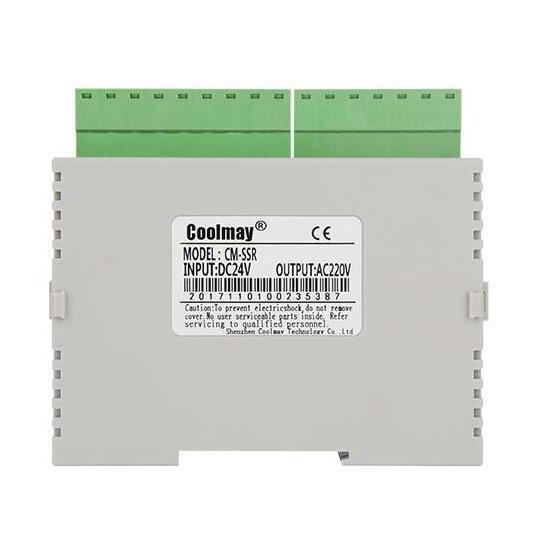

The Coolmay CM-SSR amplifier board converts the PLC's low-power output signal into optocoupler and converts it into a high-power output control signal, and then drives the high-power load such as the motor and solenoid valve to protect the PLC.

This product is compact in structure, stable in performance, easy to use, non-contact switch, response time as low as milliseconds, no switching times, long service life, can directly replace traditional relays, reducing maintenance time and reducing costs.


Features:

1, with opto-isolator, isolation and protection of PLC output contacts
2, compact structure, easy to install; help reduce the size of the control box, reduce costs
3, input with indicator light, is conducive to debugging
4, with standard rail card installation, easy to install
5, input and output side arrangement, with pluggable terminals, easy to route and install maintenance
6, small size, beautiful appearance
7, stable performance, durable, strong anti-interference ability
8, the output current is large
Parameters


Artical

Amplification module

CM-MOS

CM-SSR

CM-REY

Transistor amplification module

Solid state

amplification module

Intermediate

amplifier module




Multi function Amplifier module CM-REY

Multi function Amplifier module CM-REY

Multi function Amplifier module CM-REY

Installation

Standard guide rail’s installation,can be installed on NS35\7.5or NS32 guide slot

Dimension

89.5*79*32.5mm

Connection mode

5.08 pluggable terminal

Input voltage

88-264VAC or 125-373VDC( withstand 300VAC surge input for 5s without damage)

Input type

NPN

Working voltage

DC12~30V

AC100~250V

DC/AC0~250V

Output current

5A

5A

15A

Max. Output current

10A

10A

16A

Output method

MOS

Zero-crossing trigger

Relay tip

Output points

6I/6O

Output type

NPN

Protection method

optoelectronic isolation,FWD protction

optoelectronic isolation,RC absorption circuit

Relay-isolated, 400V piezoresistor

Detail info refer

to

< Coolmay Amplifier User Manual>
