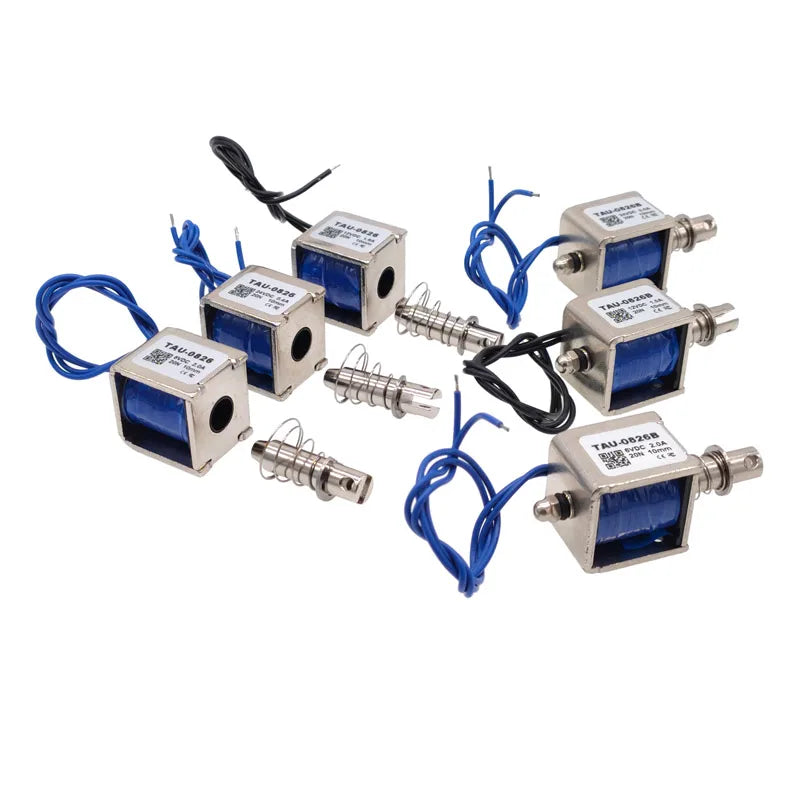

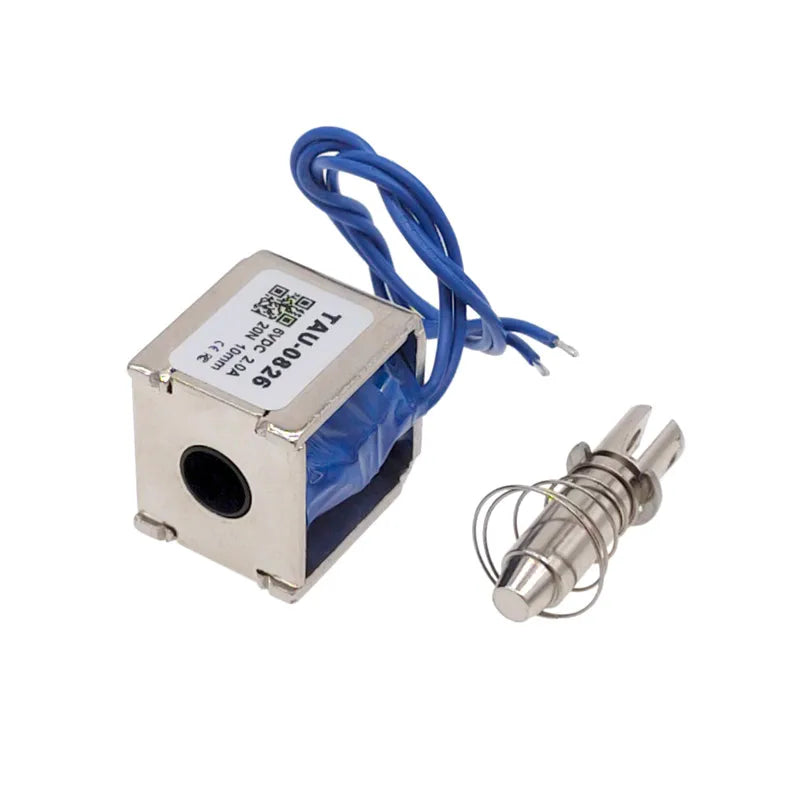

TAU-0826B Electric Magnet 2kg/20N 0826 Stroke 10mm 6V Pull Push 24V 12V Solenoid Electromagnet

$9.18 USD

~~$12.63 USD~~ $9.18 USD

Sale Sold out

Shipping calculated at checkout.

Color 0826 6V 0826 12V 0826B 12V 0826B 24V 0826 24V 0826B 6V

Product variants

Quantity

Added ✓

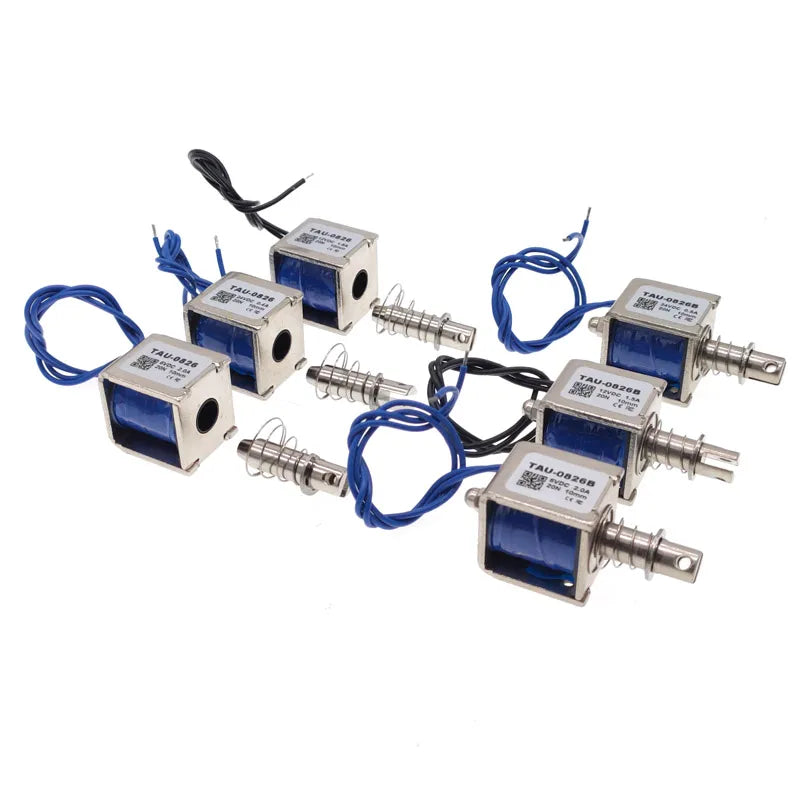

`TAU-0826B solenoid, 0826 electromagnet, 20N push pull solenoid, 10mm stroke solenoid, dc6v linear solenoid, dc12v solenoid actuator, dc24v electromagnet`

`spring reset solenoid, cabinet electric lock solenoid, automation electromagnet`

Brand Name: CNMAWAY

Certification: NONE

High-concerned chemical: none

Model Number: TAU-0826/0826B

Origin: Mainland China

Shape: Strip

Dear friends:

The electromagnet only suitable for intermittent work, such as 1 seconds on and 1 seconds off. It's okay to work like this all day.

All of the electromagnet will raise the temperature when it's worked,don't worry, the temperature rises to a certain temperature, it will be stable.Of course,fast cooling environment is more conducive to service life.

Happy shopping!

_________________________________________________________________________________

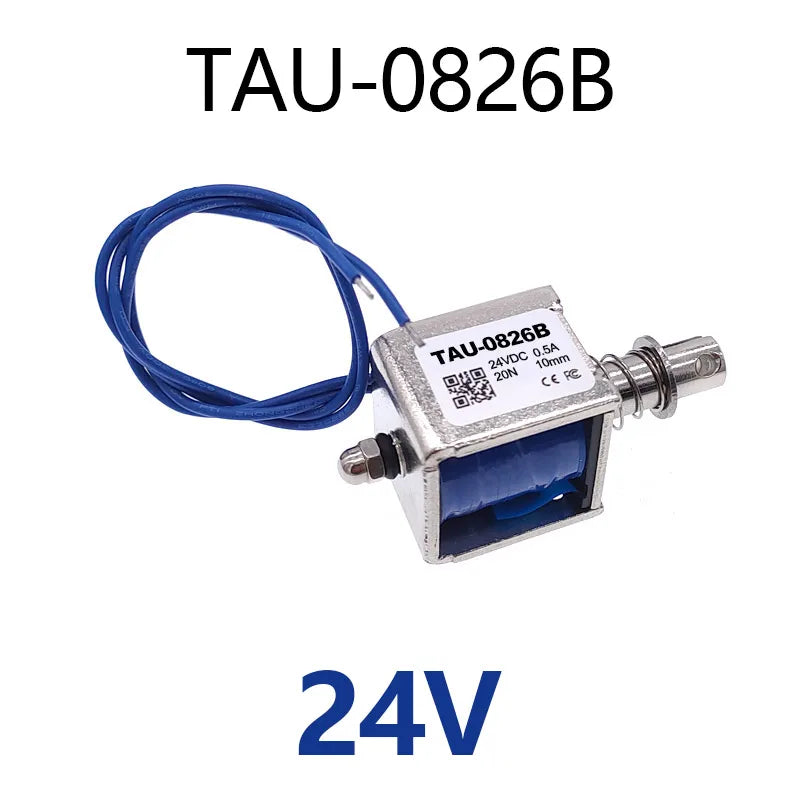

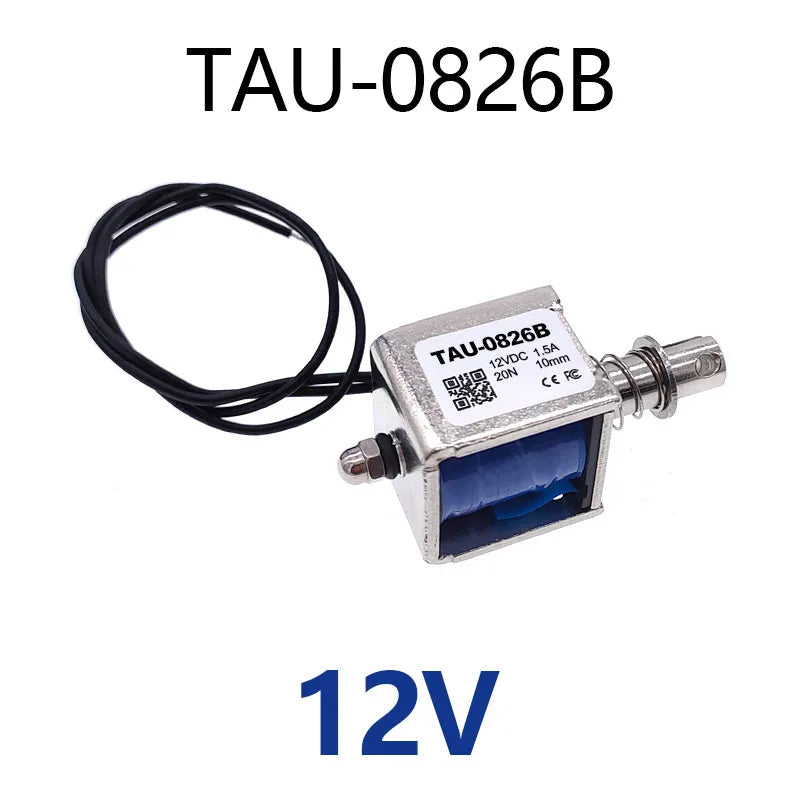

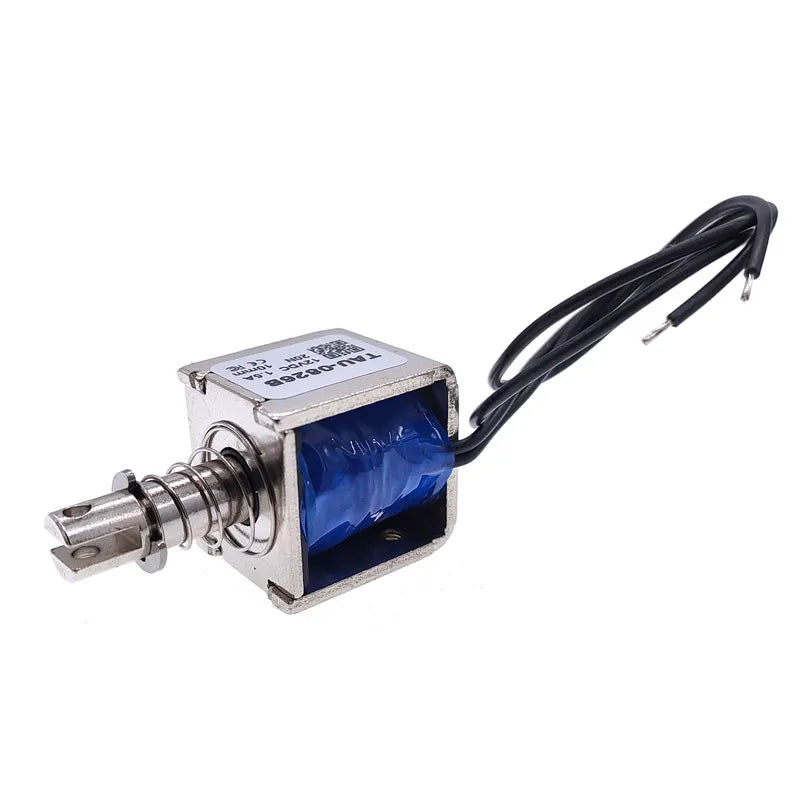

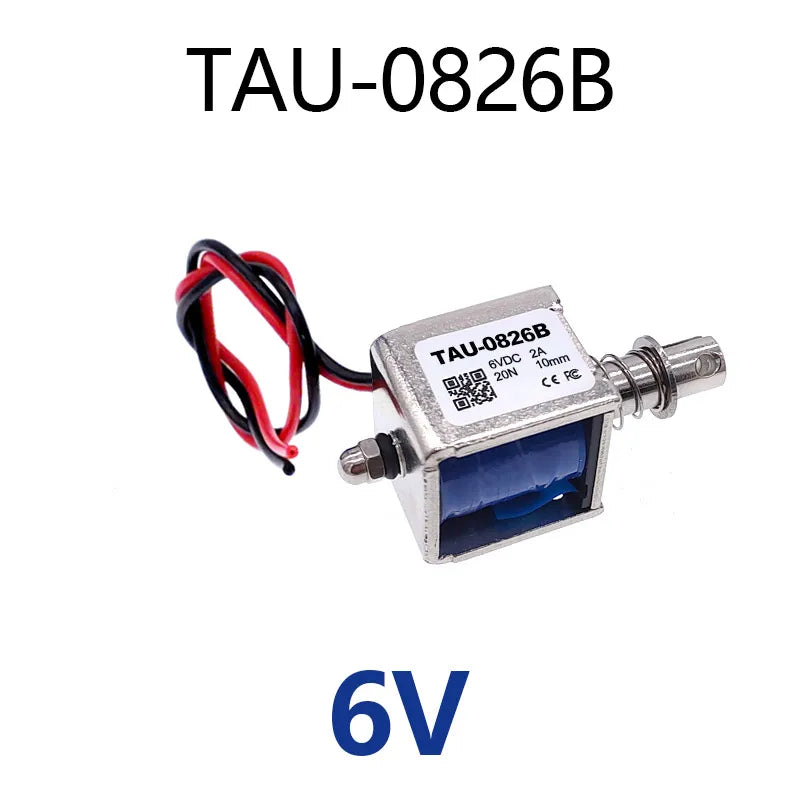

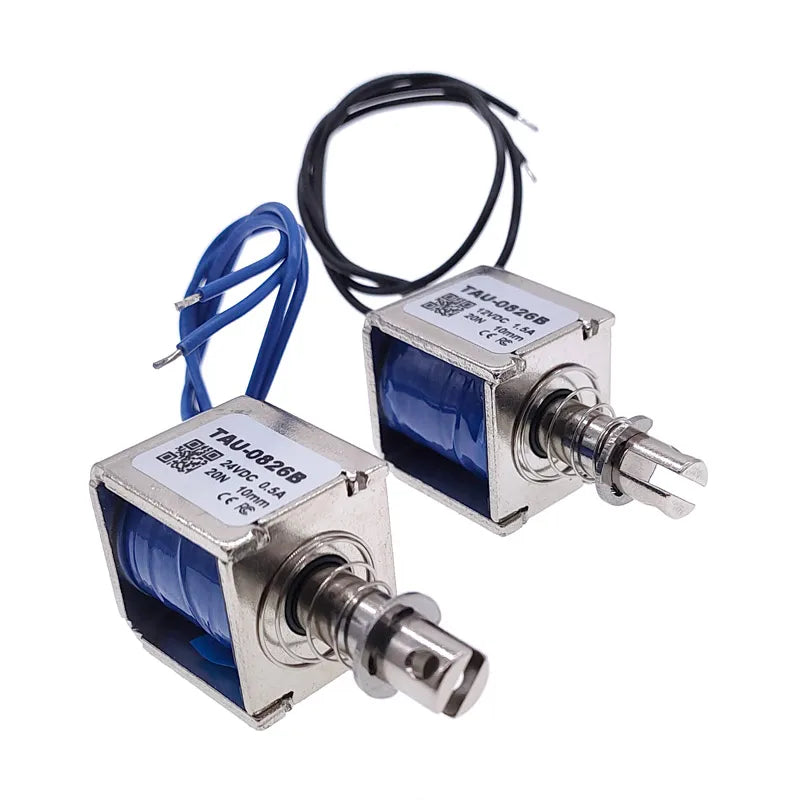

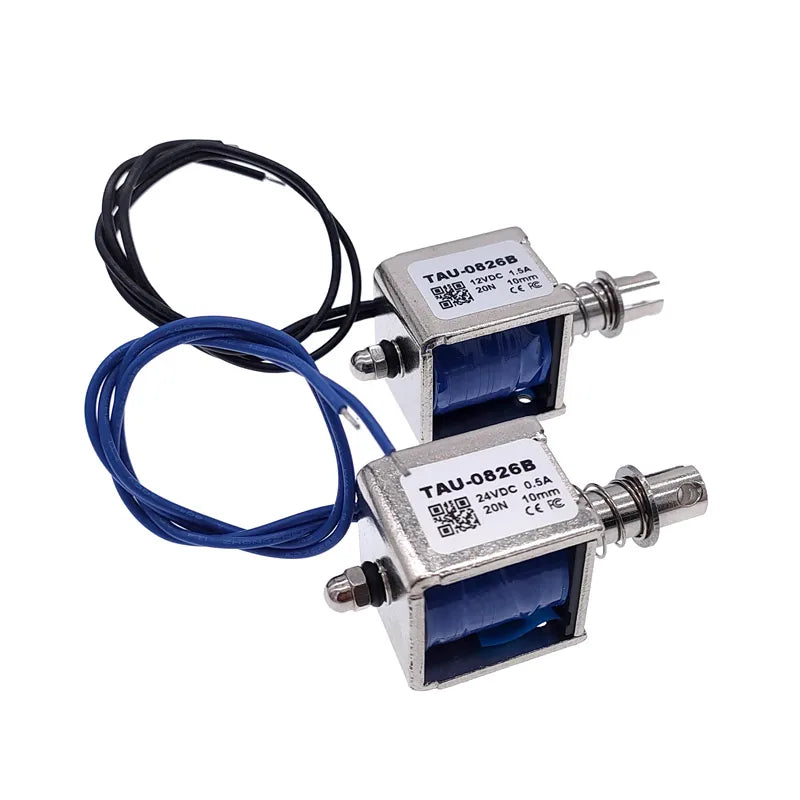

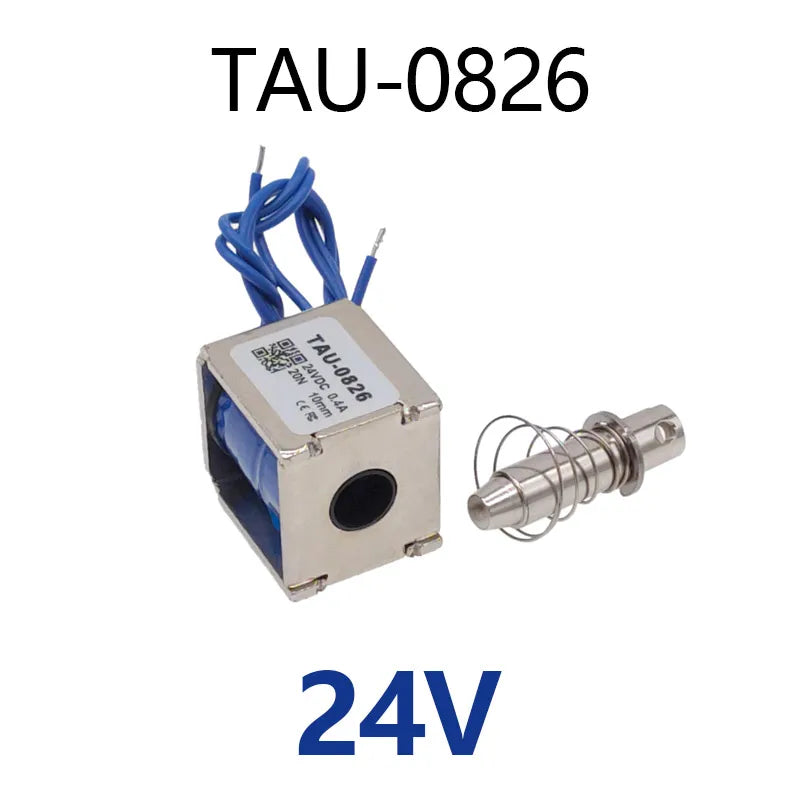

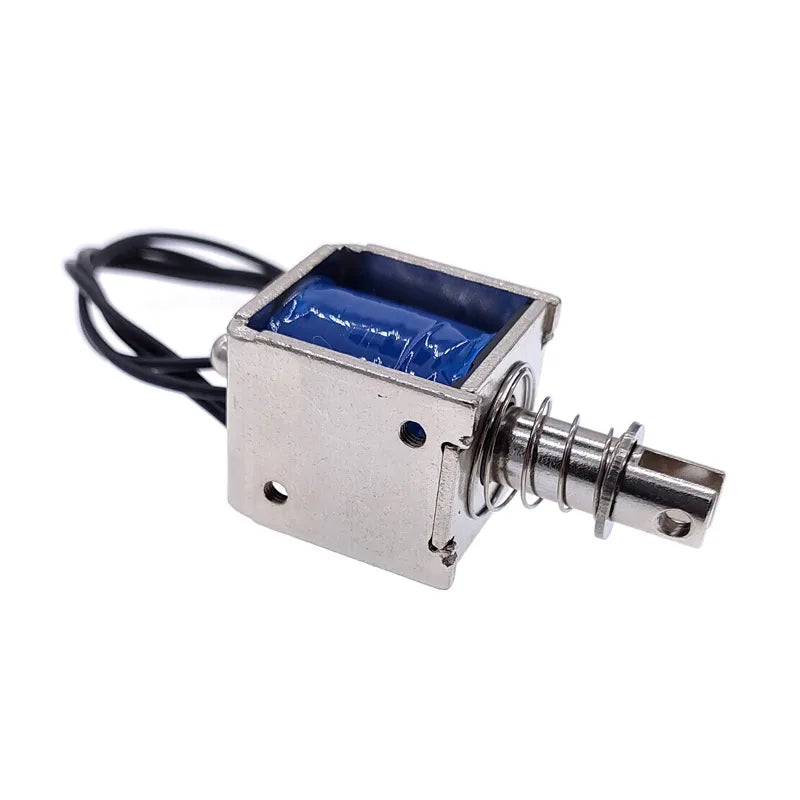

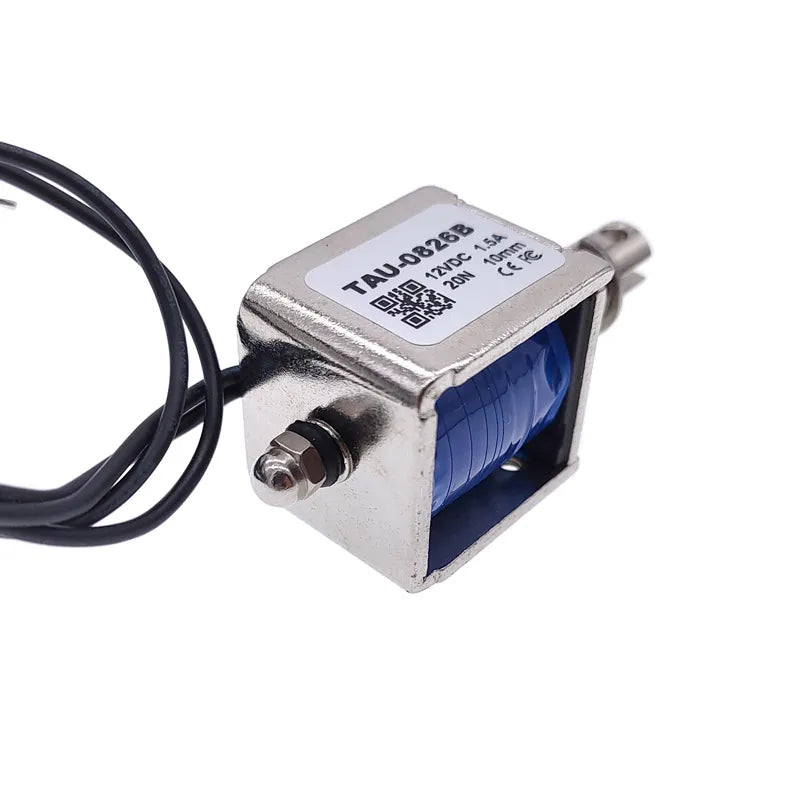

Model:TAU-0826B

type:Push & Pull

Voltage:6VDC/12VDC/24VDC

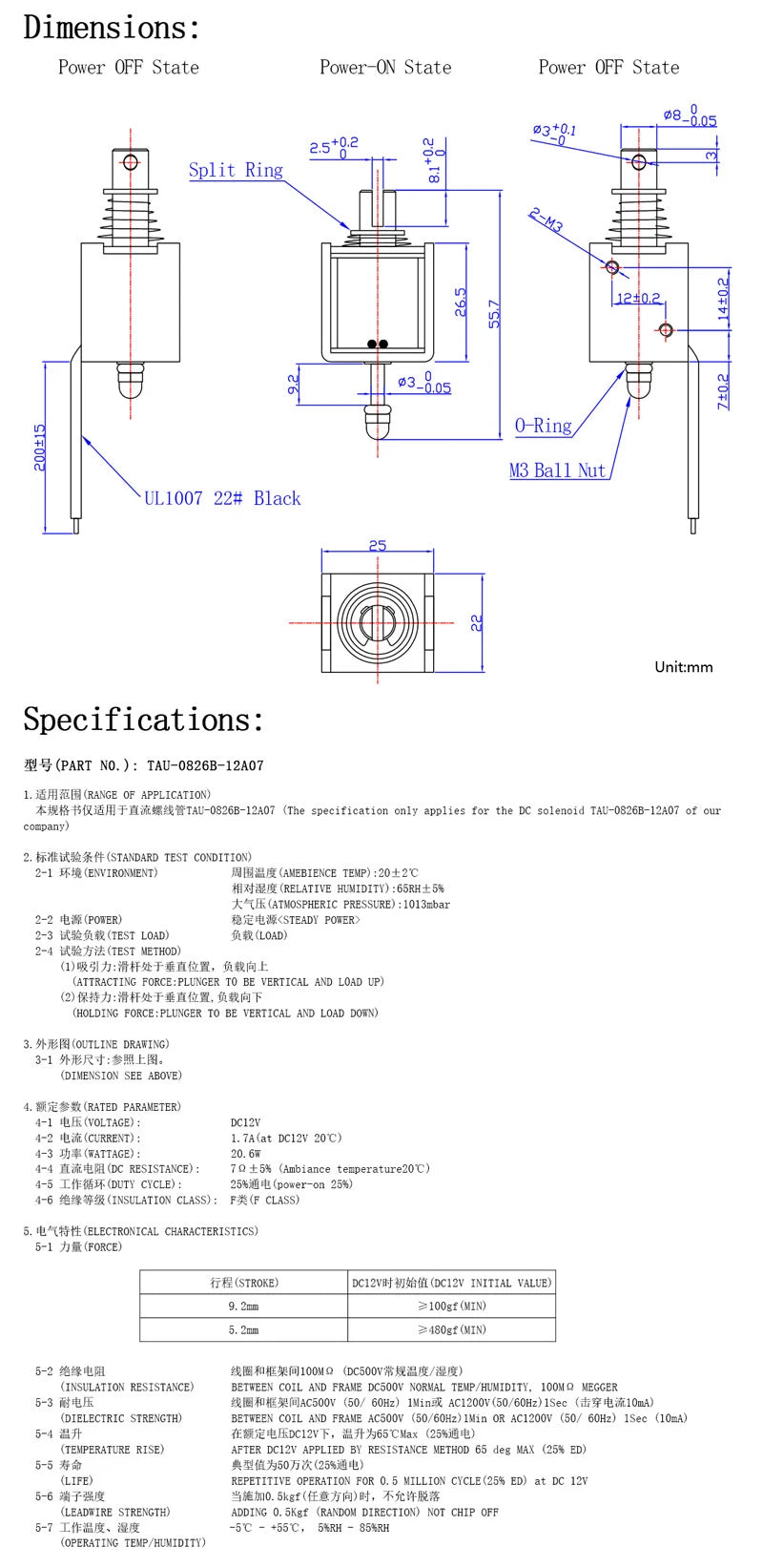

Size:22*25*26(mm)

weight:76g

Current:6VDC/2A; 12VDC/1.5A; 24VDC/0.5A

Travel distance:10mm

Specification

Attribute	Value
Product Name	TAU-0826 / TAU-0826B Spring Reset Push-Pull Solenoid Electromagnet
Model	TAU-0826, TAU-0826B
Rated Voltage	DC 6V, DC 12V, DC 24V
Pull/Push Force	20N (2kg)
Stroke	10 mm
Working Type	Push-pull, built-in return spring
Feature	Compact frame, two-wire wiring, intermittent duty, metal frame
Application	Electric lock, vending machine, sorting mechanism, small automation equipment

FAQ

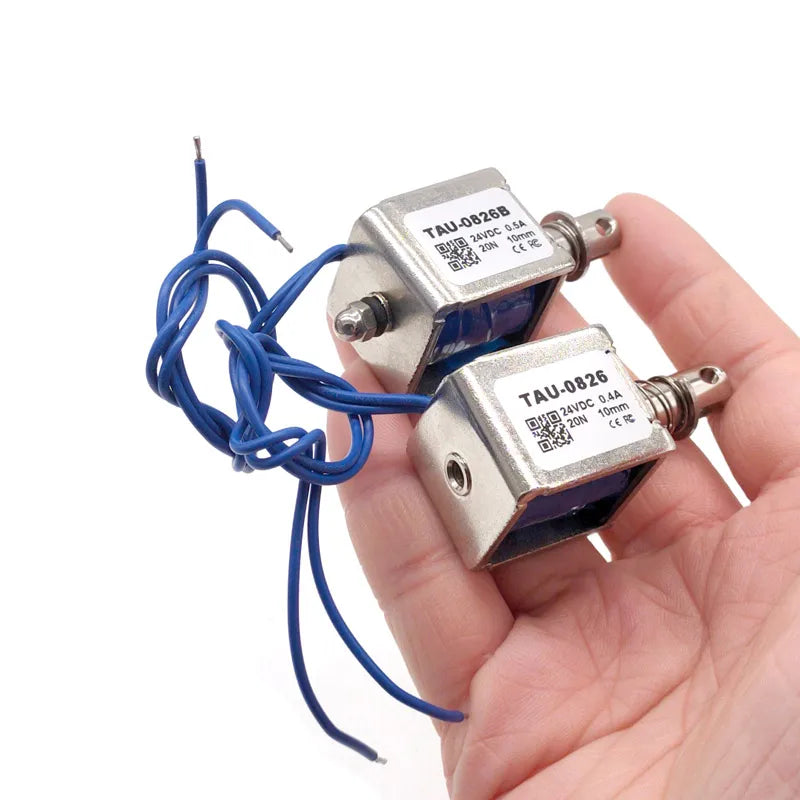

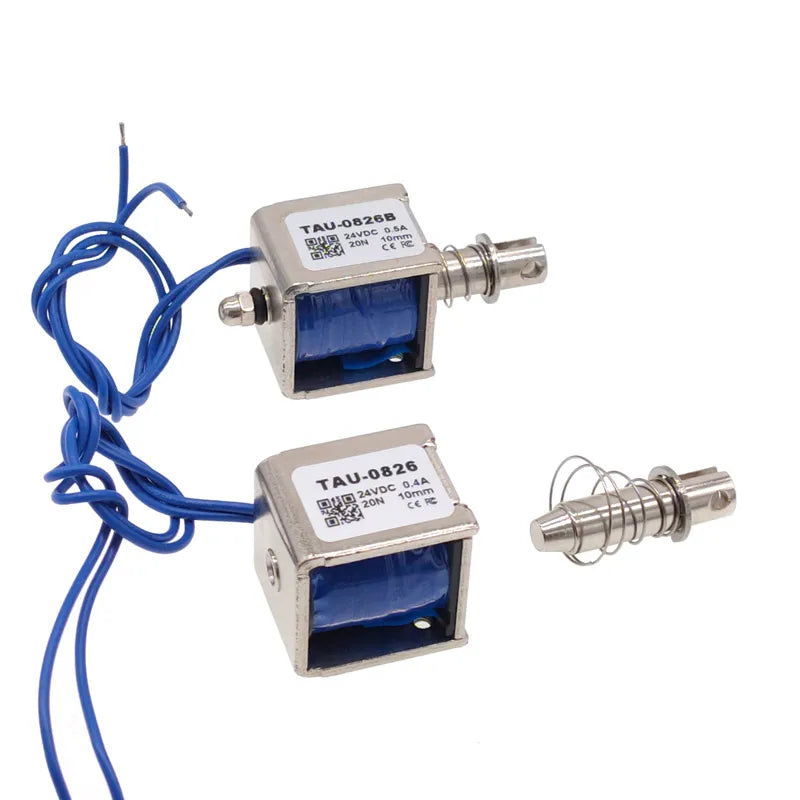

Q1: What is the difference between 0826 and 0826B?
A1: They share the same force and stroke; the suffix B stands for a slight structural difference on the mounting bracket.

Q2: Is it spring return?
A2: Yes, it has an internal spring. It resets automatically once power cuts off.

Q3: Can it run continuously?
A3: It is for intermittent use. Long continuous power supply will overheat and burn the coil.

Q4: What is the rated force?
A4: 20 Newton (approx 2 kg).

Widely used in automation equipment, such as Game machine, Slot machine, The ticket machine, The cash register, Automatic office equipment etc.
