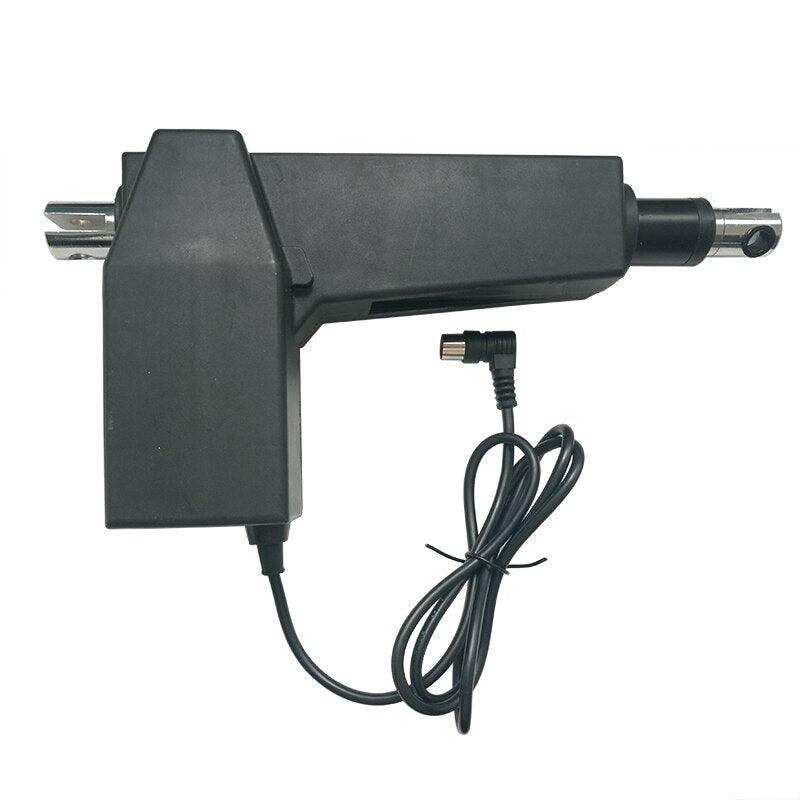

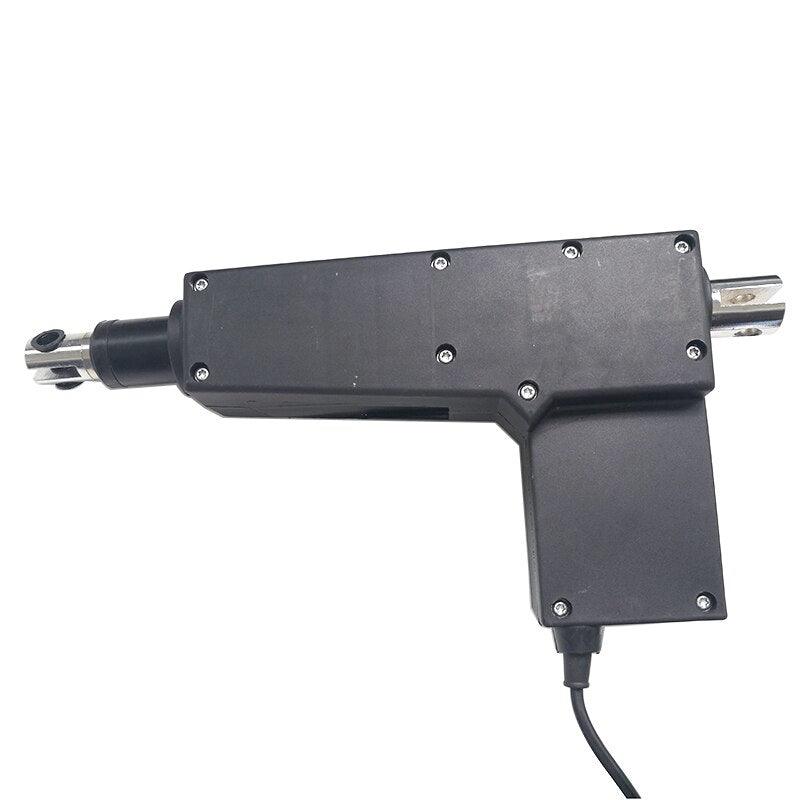

Stroke 450mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N push pull force hospital ICU electric chair bed

Regular price $125.40 USD
Regular price $162.00 USD Sale price $125.40 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Stroke 450mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N push pull force hospital ICU electric chair bed

Usage: electric chair bed

Type: Gear Motor

Torque: Stroke 450mm

Protect Feature: Drip-proof

Output Power: other

Model Number: Stroke 450mm

Efficiency: IE 2

Continuous Current(A): other

Construction: Permanent Magnet

Commutation: Brush

Certification: ce

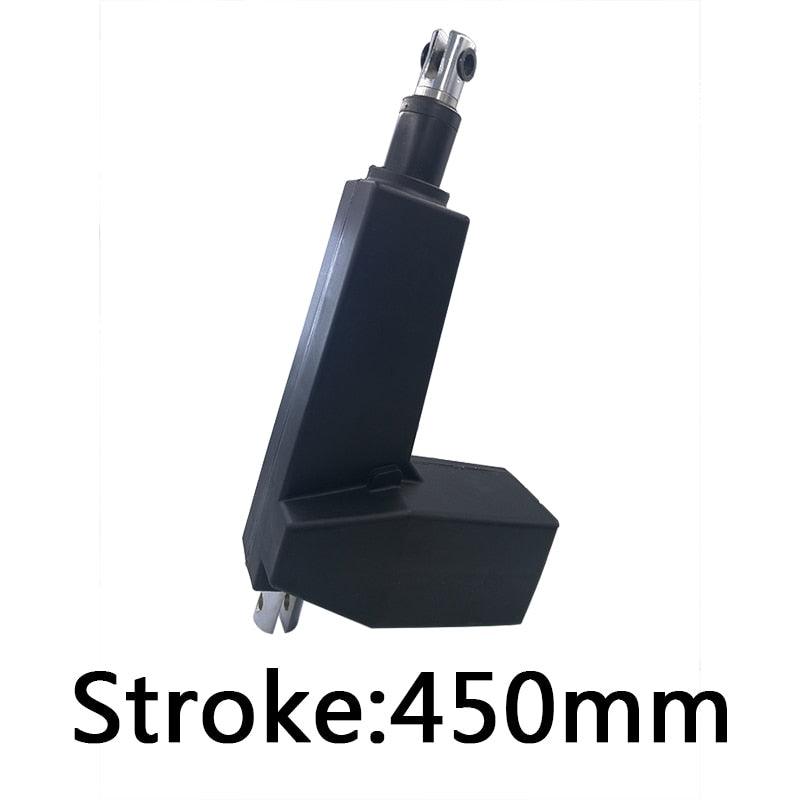

Stroke:

50mm 100mm 150mm200mm250mm 300mm350mm400mm450mm500mm


Input                                      12V/24V

Limited switch                        Built-in

Color                                      Black

Operation temperature           -26 ~ +65 degree

IP class options                      IP54

***********************************************************

8000N  linear actuator reference

Push force

Pull force

Speed(no load)

8000N

6000N

7-10   mm.s

6000N

4500N

12-14 mm.s

4000N

3000N

16-18 mm.s

2000N

1500N

24-26 mm.s


The self-locking force of the linear actuator is about 80%

***********************************************************


L min=175+Stroke (S)

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch.

Stroke means the movement length of linear actuator

Lmax=L (min)+Stroke(S)

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch.
