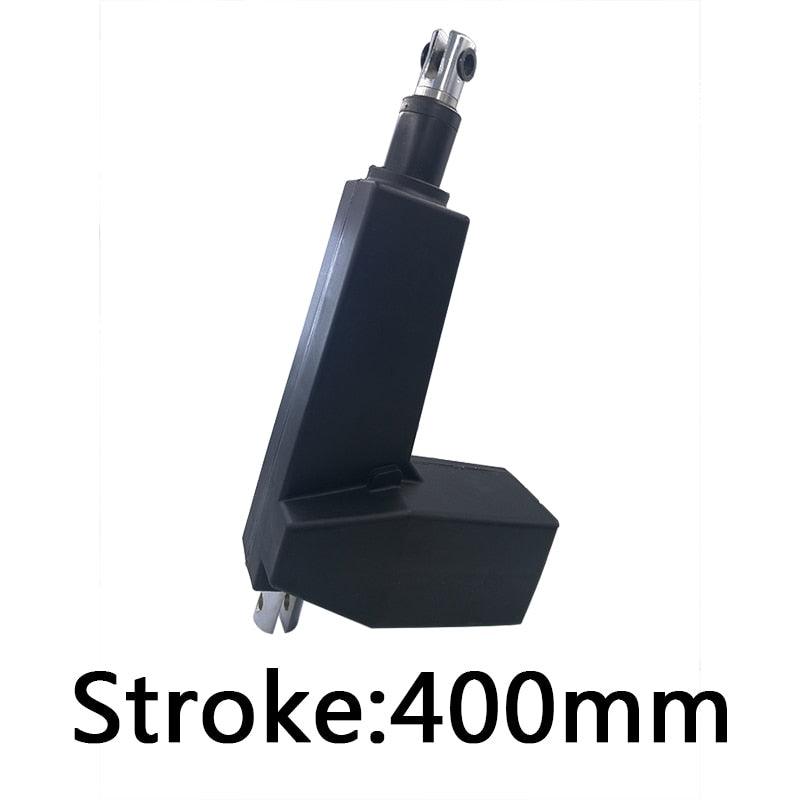

Stroke 400mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N
SPECIFICATIONS
Stroke 400mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N push pull force hospital ICU electric chair bed
Usage: Home Appliance,hospital ICU electric chair bed
Type: Gear Motor
Torque: Stroke 400mm
Protect Feature: Drip-proof
Output Power: other
Model Number: Stroke 400mm
Efficiency: IE 2
Continuous Current(A): other
Construction: Permanent Magnet
Commutation: Brush
Certification: ce
Stroke:
50mm 100mm 150mm200mm250mm 300mm350mm400mm450mm500mm
Input 12V/24V
Limited switch Built-in
Color Black
Operation temperature -26 ~ +65 degree
IP class options IP54
***********************************************************
8000N linear actuator reference:
Push force |
Pull force |
Speed(no load) |
8000N |
6000N |
7-10 mm.s |
6000N |
4500N |
12-14 mm.s |
4000N |
3000N |
16-18 mm.s |
2000N |
1500N |
24-26 mm.s |
The self-locking force of the linear actuator is about 80%
***********************************************************
L min=175+Stroke (S)
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch.
Stroke means the movement length of linear actuator
Lmax=L (min)+Stroke(S)
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch.
