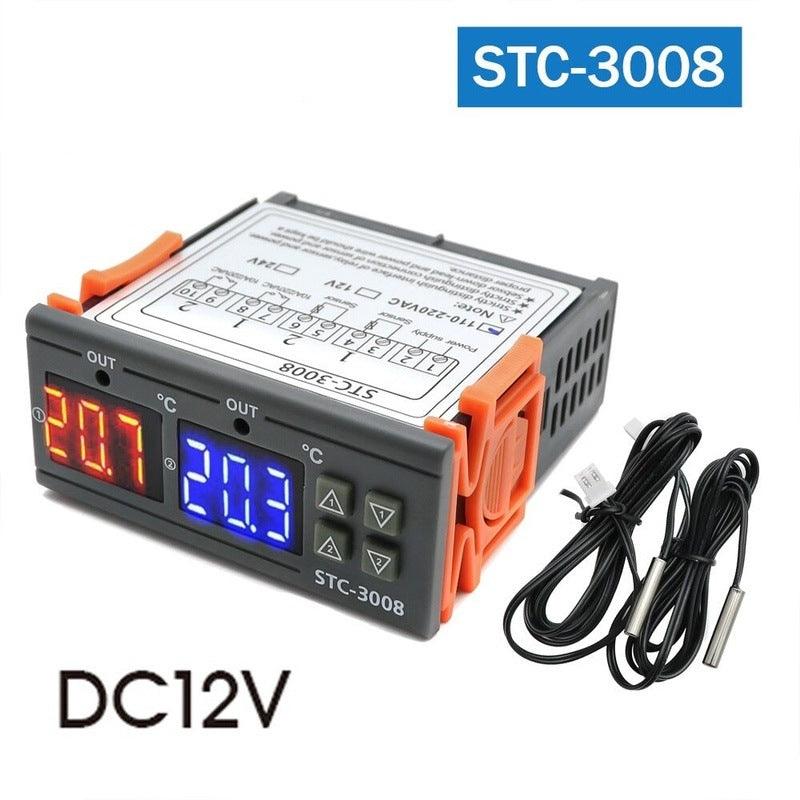

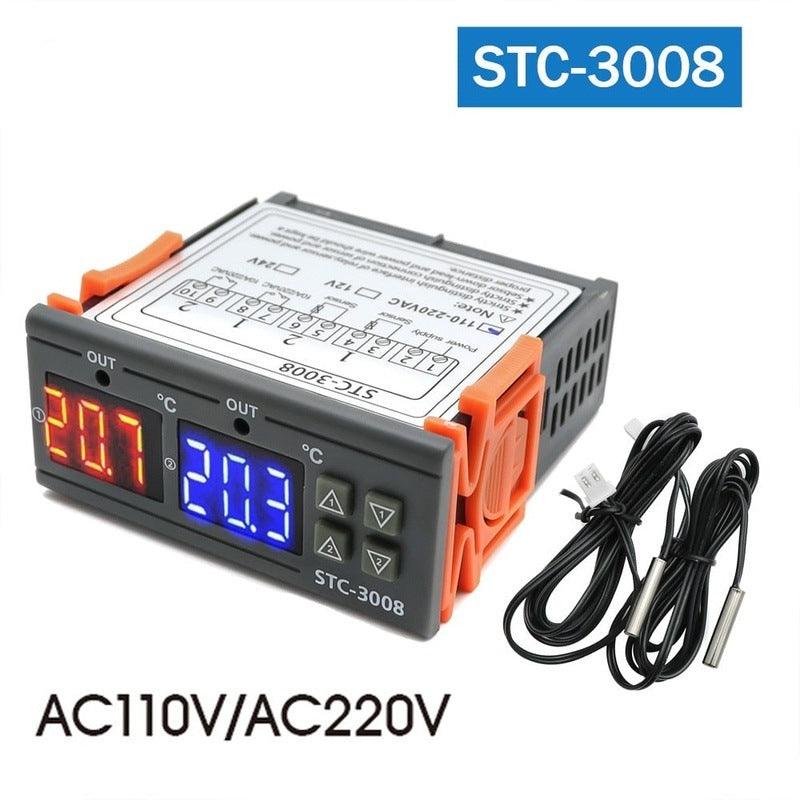

STC-3008 Dual Digital Temperature Controller Two Relay Output DC12V DC 24V AC220V Thermoregulator Thermostat With Heater Cooler

$13.36 USD
$8.82 USD $13.36 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

STC-3008 Dual Digital Temperature Controller Two Relay Output DC12V DC 24V AC220V Thermoregulator Thermostat With Heater Cooler

Theory: Temperature Controller

Style: Standing and Wall Hanging

Style: Embedded

Power Type: Charger

Model Number: STC-3008

Max Measuring Temperature: 100°C - 119°C

Is Smart Device: NO

Display Type: DIGITAL

Display Size: 1.9 Inches & Under

Cable Length: 1M

Description:
Alarm when temperature exceeds temperature limit or when sensor error.
Refrigerating control output delay protection;
Temperature calibration;
Control temperature by setting the temperature setting value and the difference value;
Switch the modes between cool and heat;

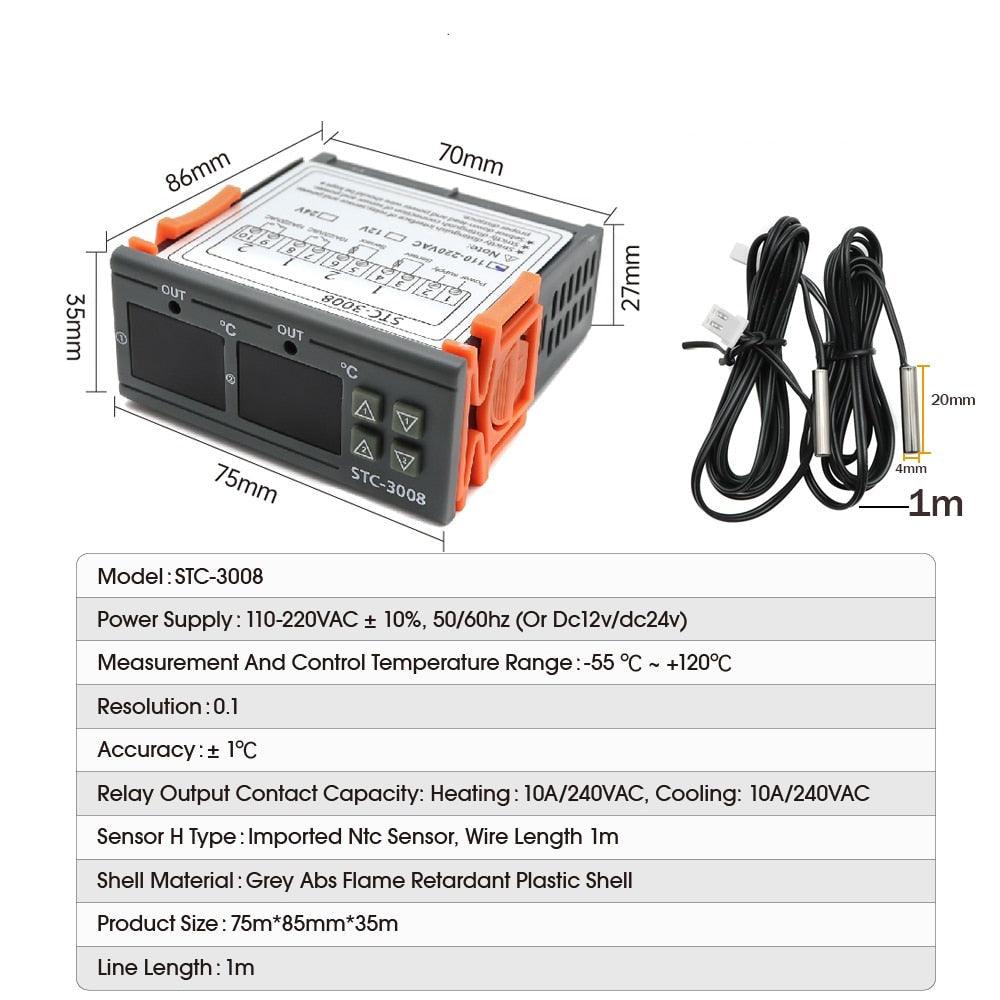

Technical Parameters:

Storage temperature: -30-75 Celsius
Ambient temperature: 0-60 Celsius
Relay contact capacity: Cool (10A/240VAC); Heat (10A/240VAC)
Sensor: NTC sensor
Power consumption: <3w
Power supply: DC 12V DC 24V AC 110-220V
Sensor error delay: 1 minute
Accuracy: 0.1 Celsius
Temperature measuring range: -55-120 Celsius

How to restore factory Settings
Press the "Down 1" and "Down 2" button at the same time,  the factory setting is restored

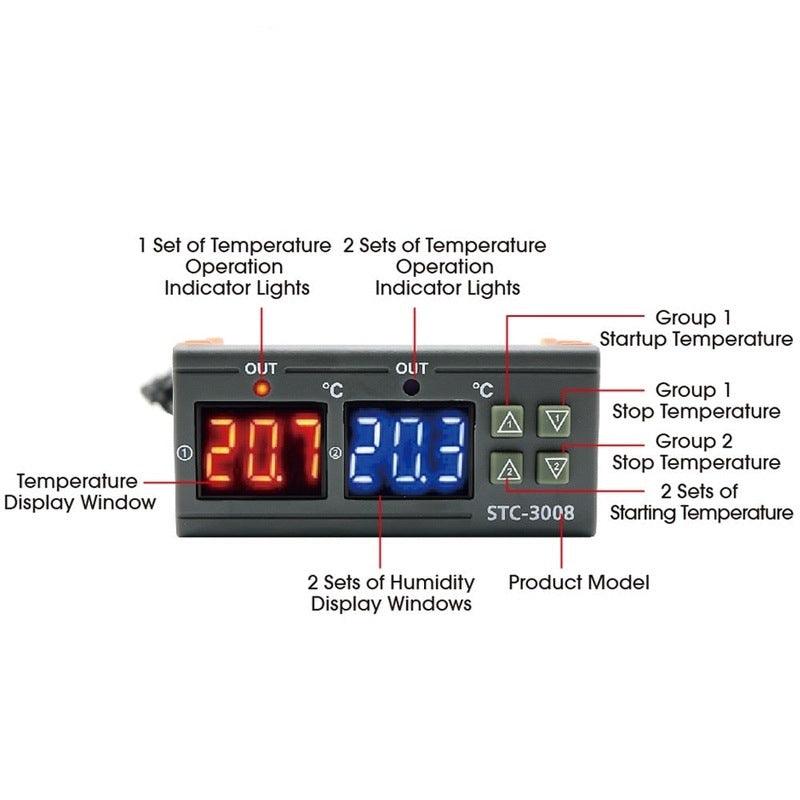

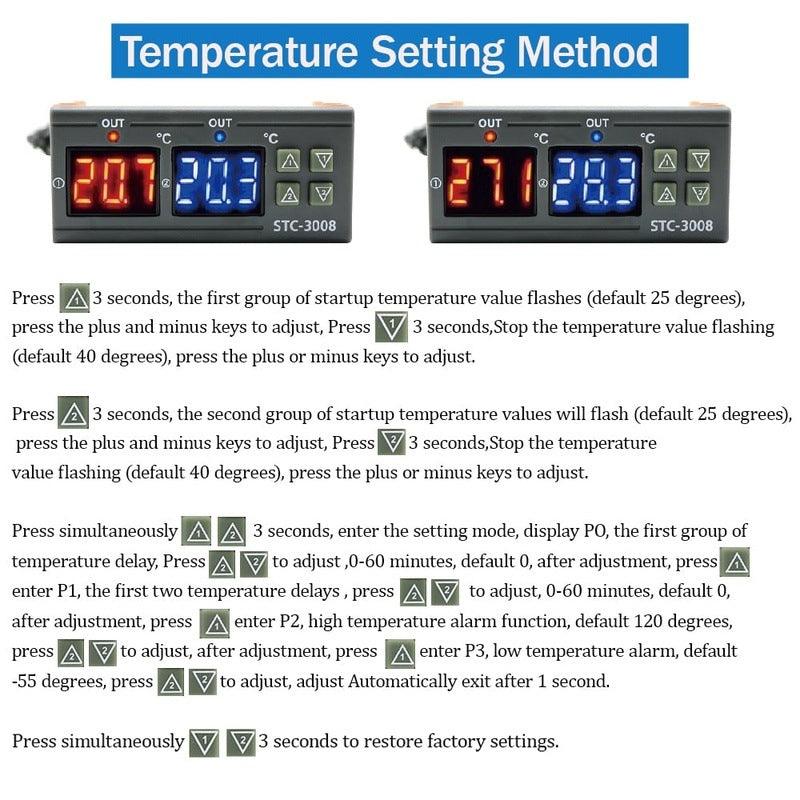

Press the button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the up and down keys

Set the stop temperature:

Press the "up" button once to display the starting temperature. Long press the "up" button for about 3 seconds,The required temperature can be set by the up and down keys
Set start up temperature:

Code

Function

Set Range

Default

P0

Compressor 1 delay time

0-60min

0min

P1

Compressor 2 delay time

0-60min

0min

P2

High temperature alarm value

55-120 ° C

120 ° C

P3

Low temperature alarm value

55-120 ° C

-55 ° C


Press "Up 1" Button & "Up 2"Button at the same time to setting mode
