SSR-25DA SSR-40DA SSR SSR 10A 40A 60A 80A 100A Solid State Relay

SPECIFICATIONS

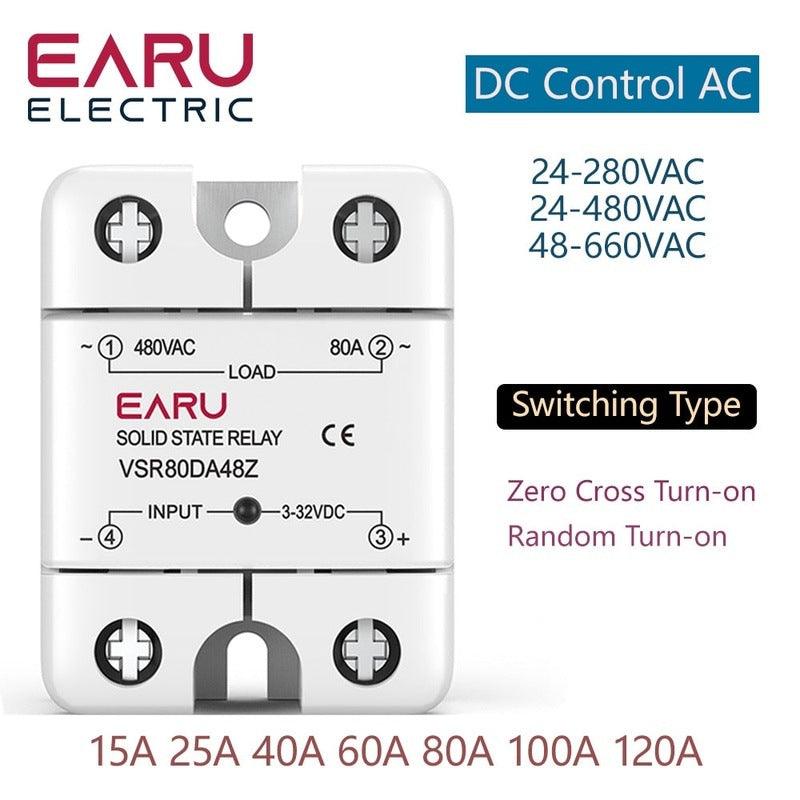

SSR-25DA SSR-40DA SSR SSR 10A 40A 60A 80A 100A Solid State Relay Module DC3-32V Input AC24-480V Output PID Temperature Control

Usage: Protective

Usage: General Purpose

Theory: Solid State Relay

Texture of Material: Metal base plate

Protect Feature: Epoxy

Power Source: DC/AC

Output: 24-280VAC/24-480VAC/48-660VAC

Origin: Mainland China

Model Number 6: SSR 120DA

Model Number 5: SSR 100DA

Model Number 4: SSR 80DA

Model Number 3: SSR 60DA

Model Number 2: SSR 40DA

Model Number 1: SSR 25DA

Model Number: SSR 15DA

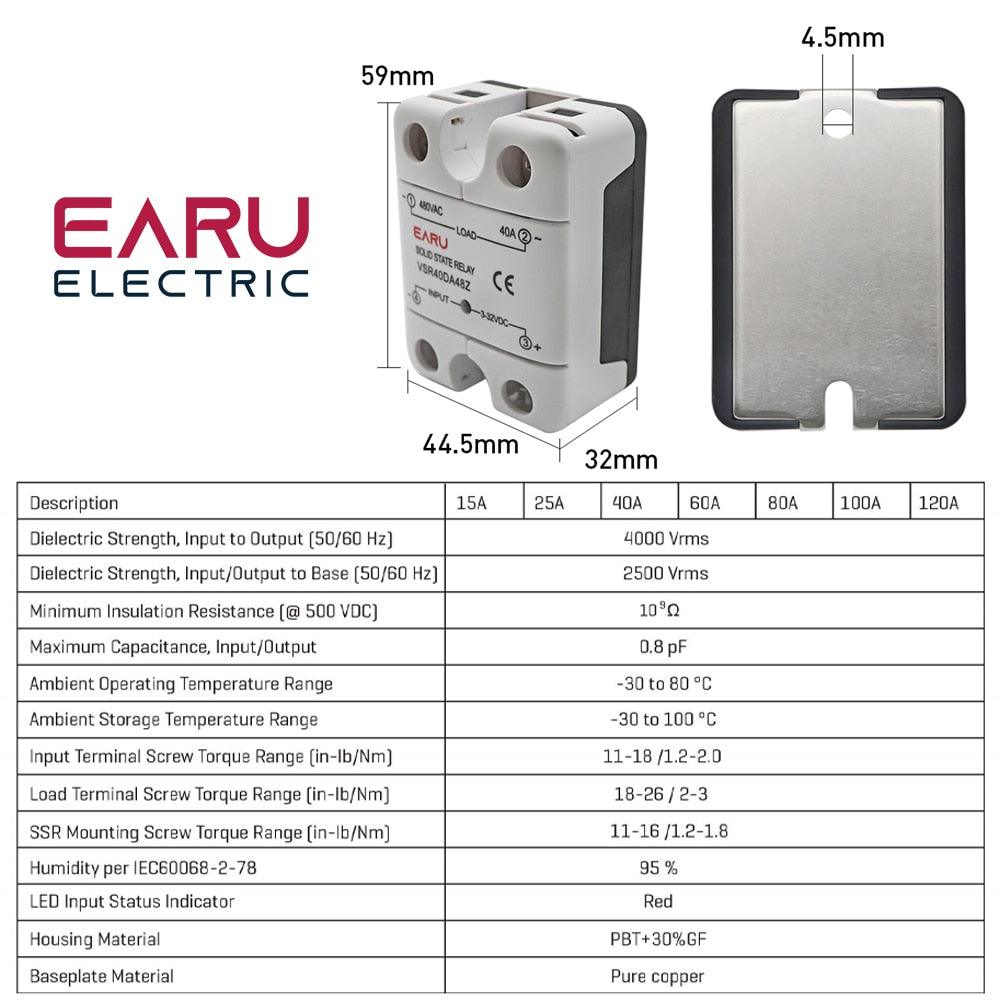

Maximum Capacitance, Input Output: 0.8 pF

LED lnput Status Indicator: Red

Input: 3-32V/DC

Housing Material: PBT+30%GF

Dielectric Strength,Input/Output to Base [50/60 Hz]: 2500 Vrms

Dielectric Strength, Input to Output[50/60 Hz]: 4000 Vrms

Contact Load: High Power

Certification: CE

Brand Name: EARUELETRIC

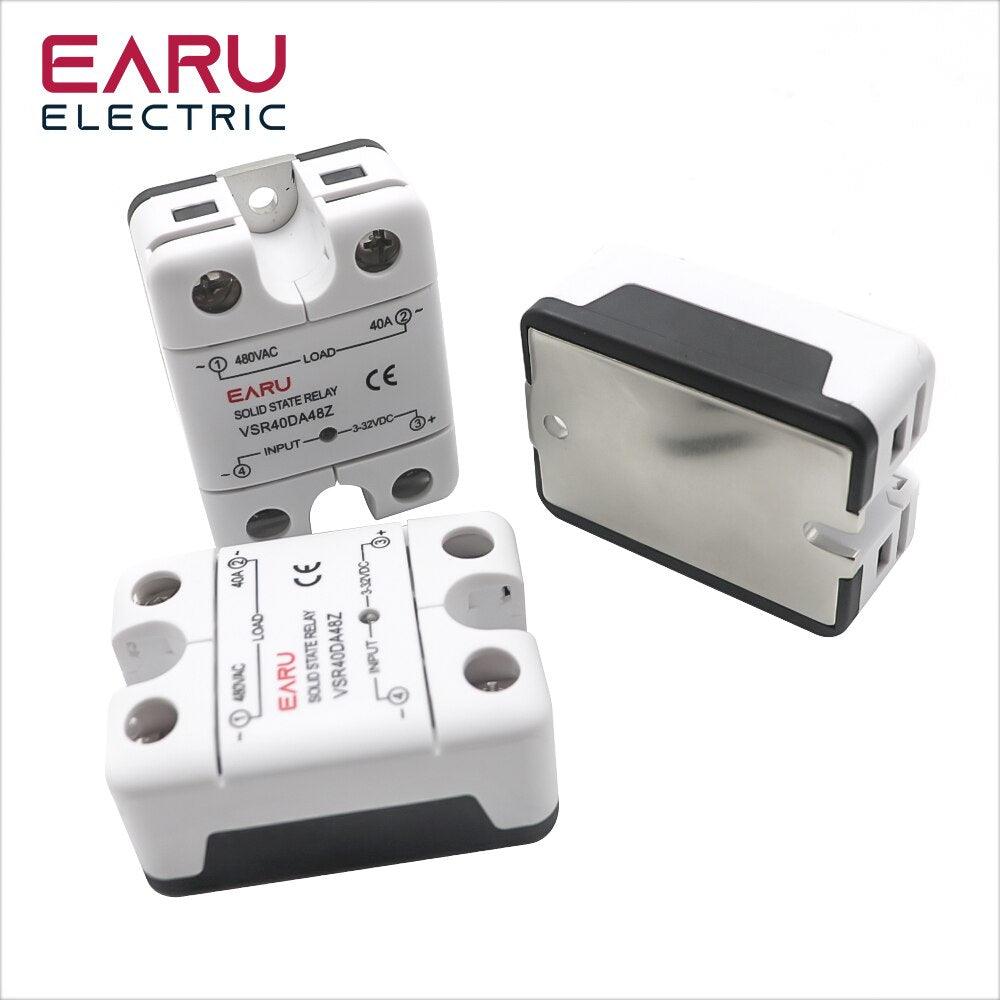

Baseplate Material: Pure copper

Ambient Operating Temperature Range: -30℃-80℃

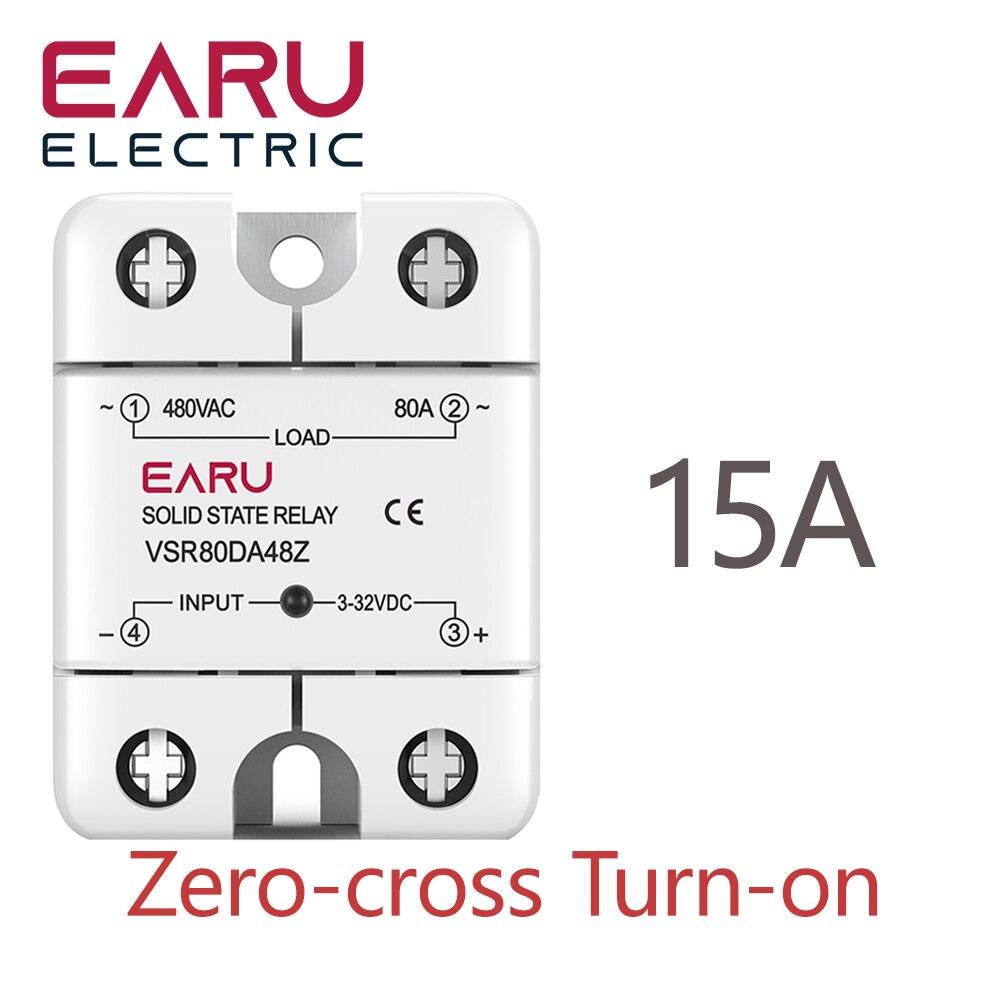

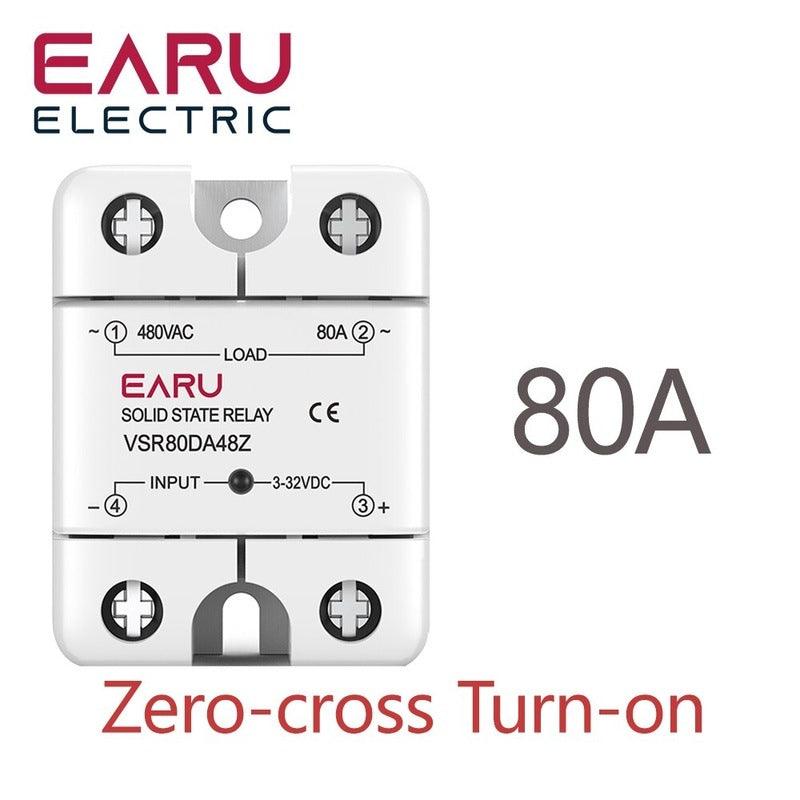

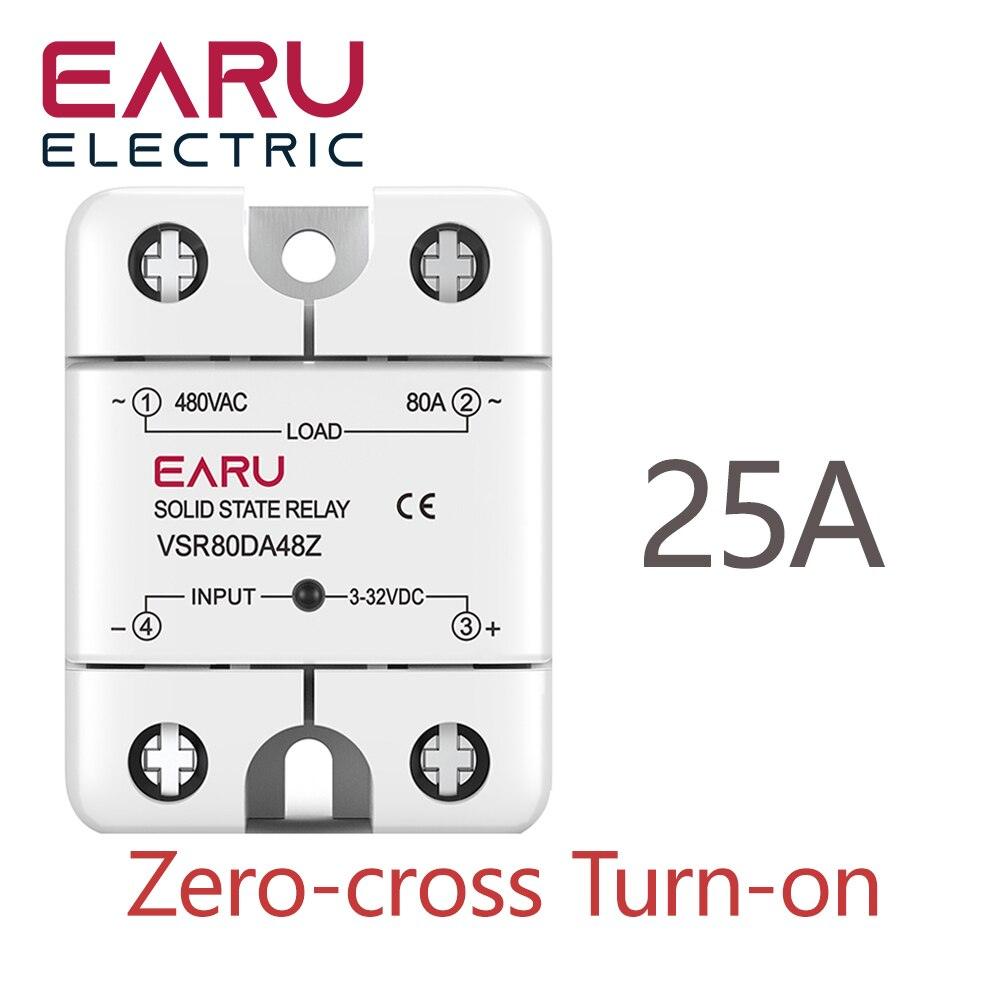

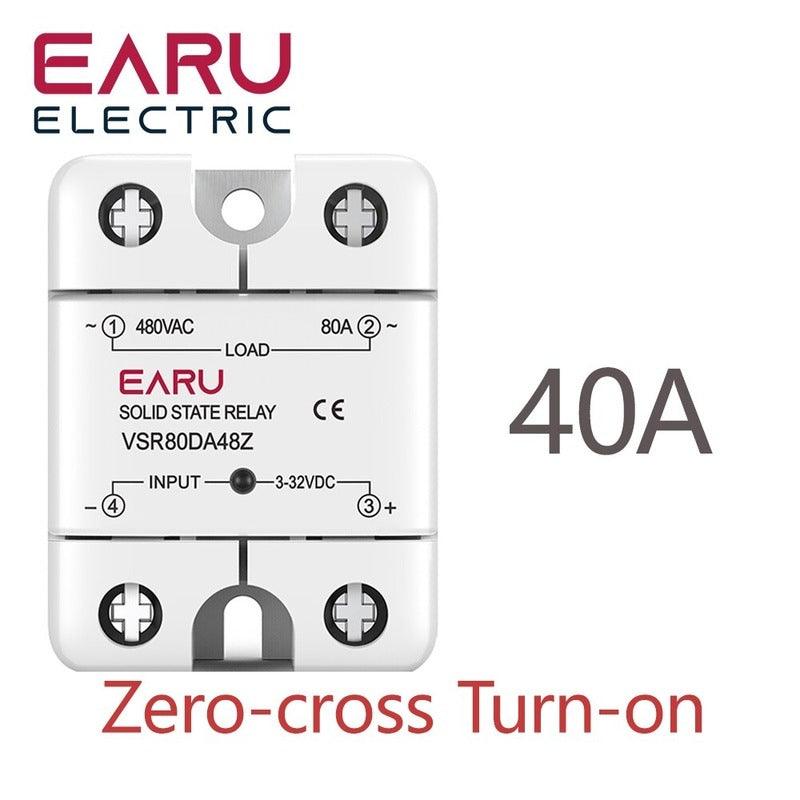

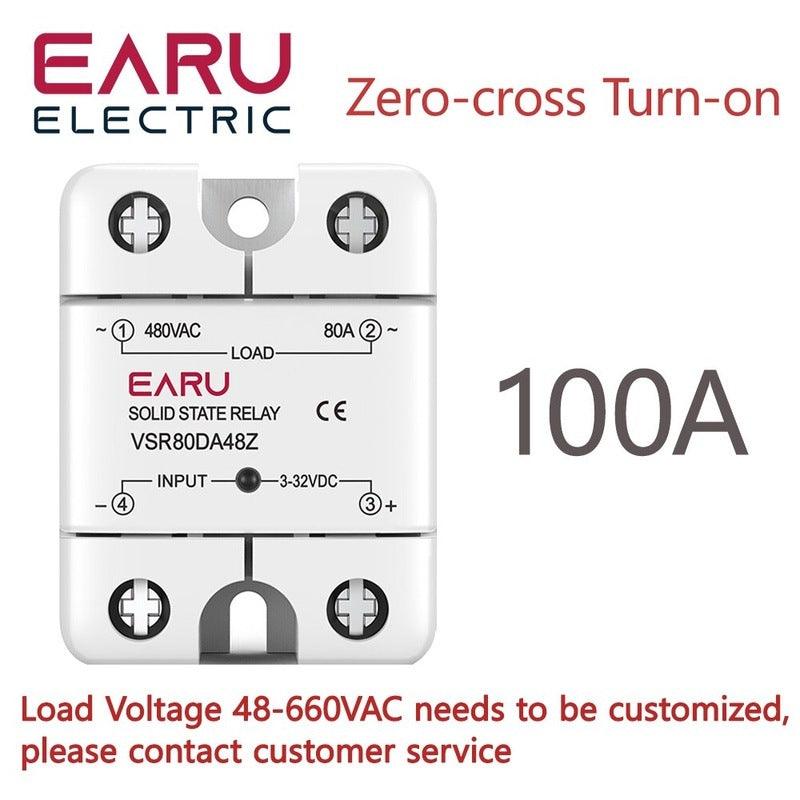

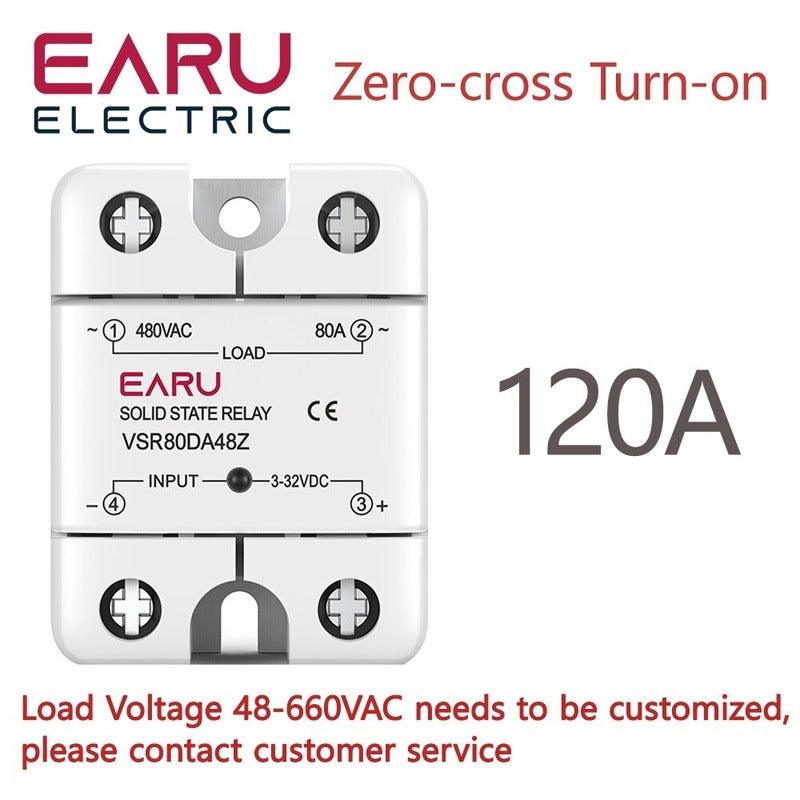

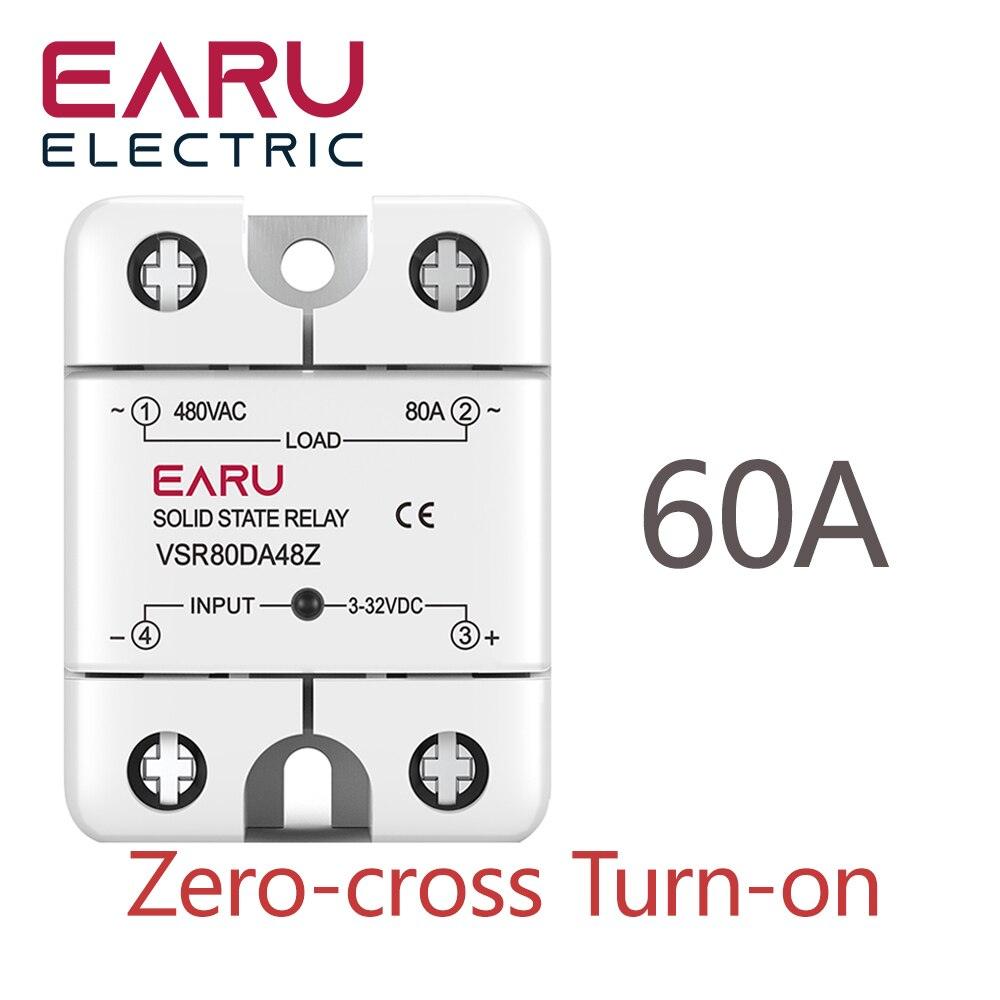

Zero-cross Turn-on SSR :"switch" switching (in terms of "switch" switching function, it is equivalent to ordinary relay or contactor) (zero-cross can only "switch" but not "voltage regulation").

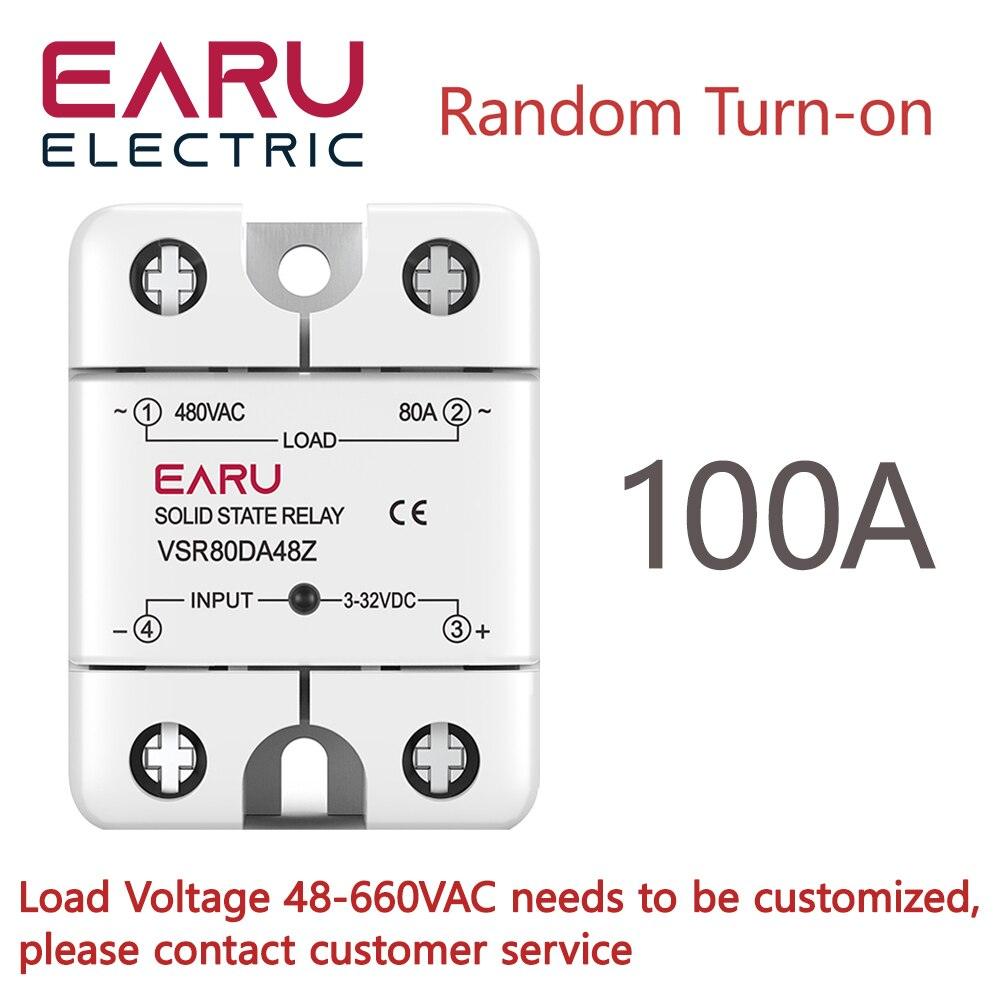

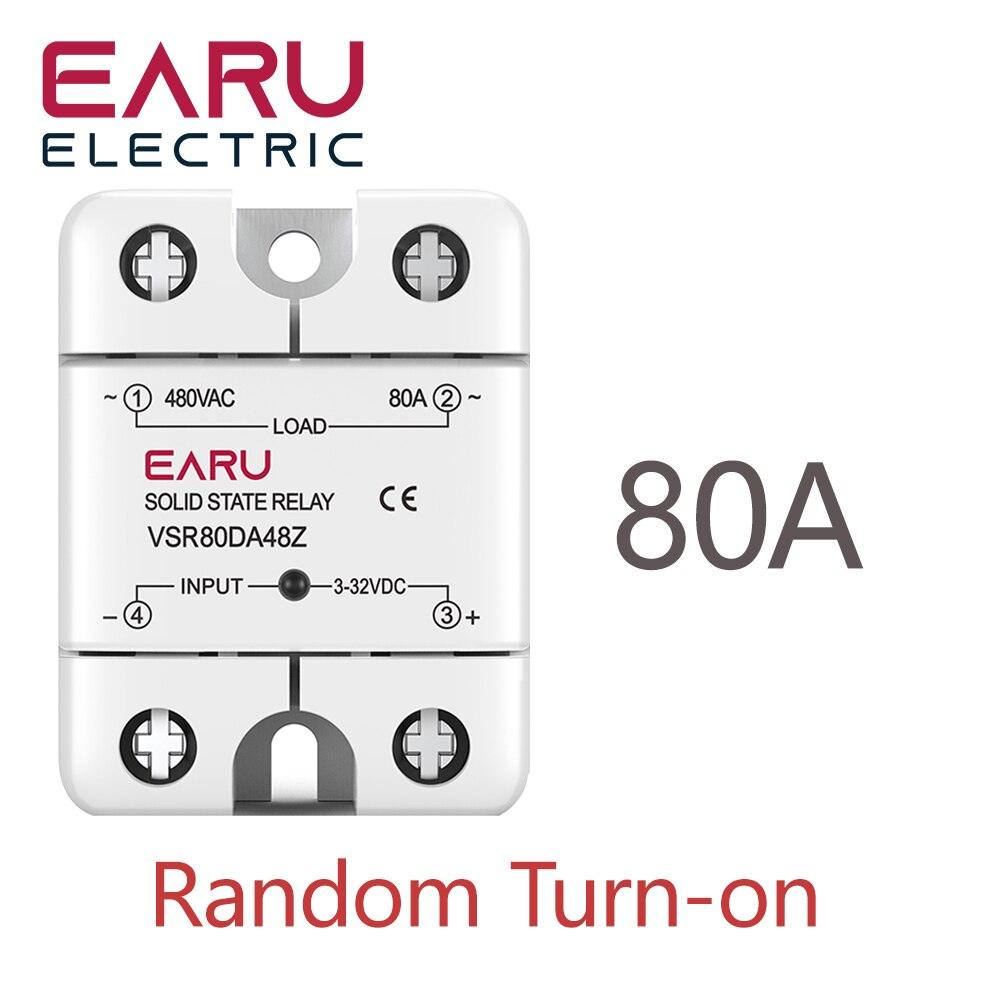

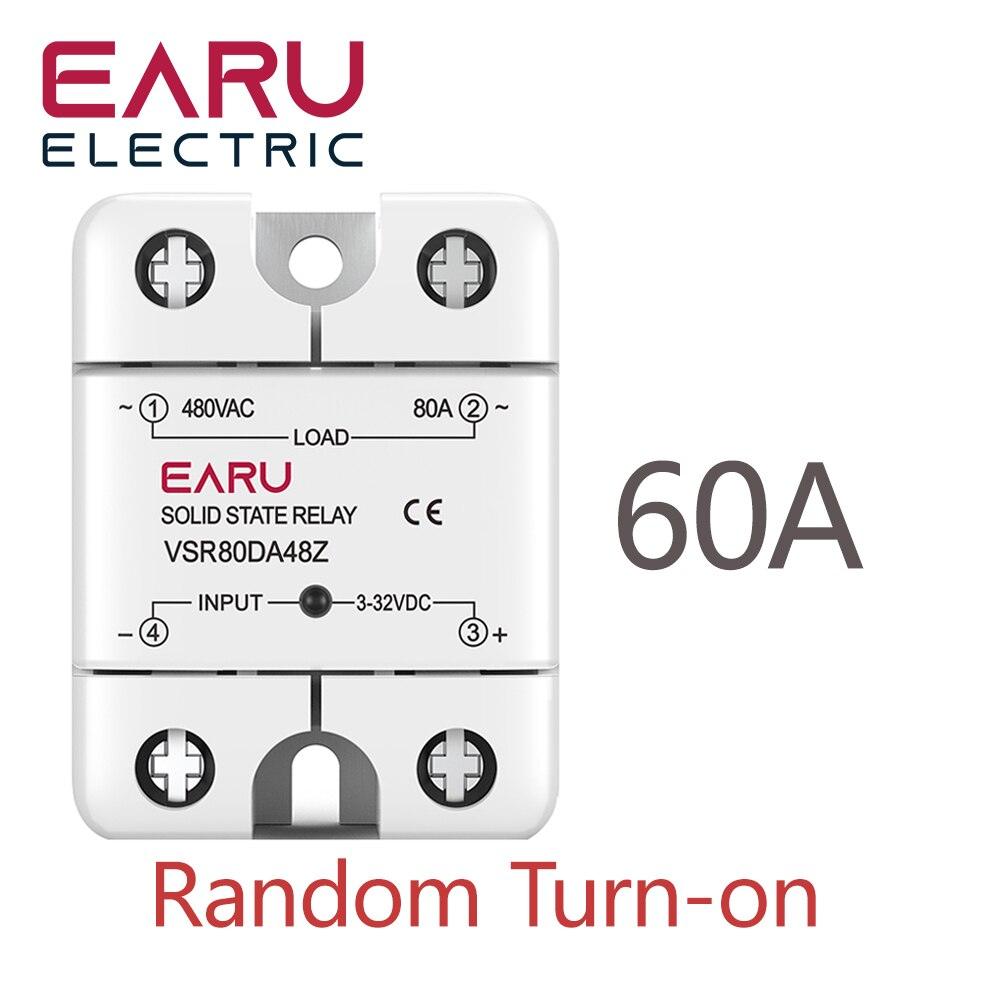

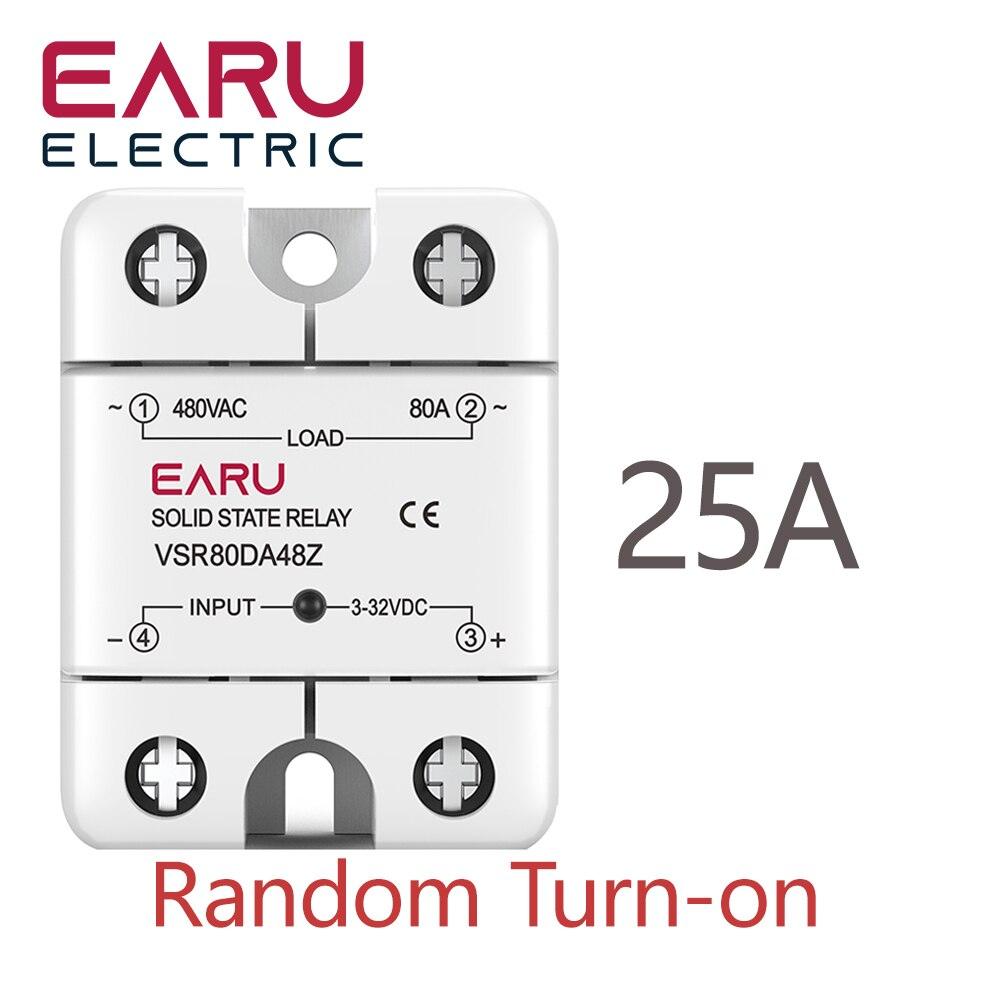

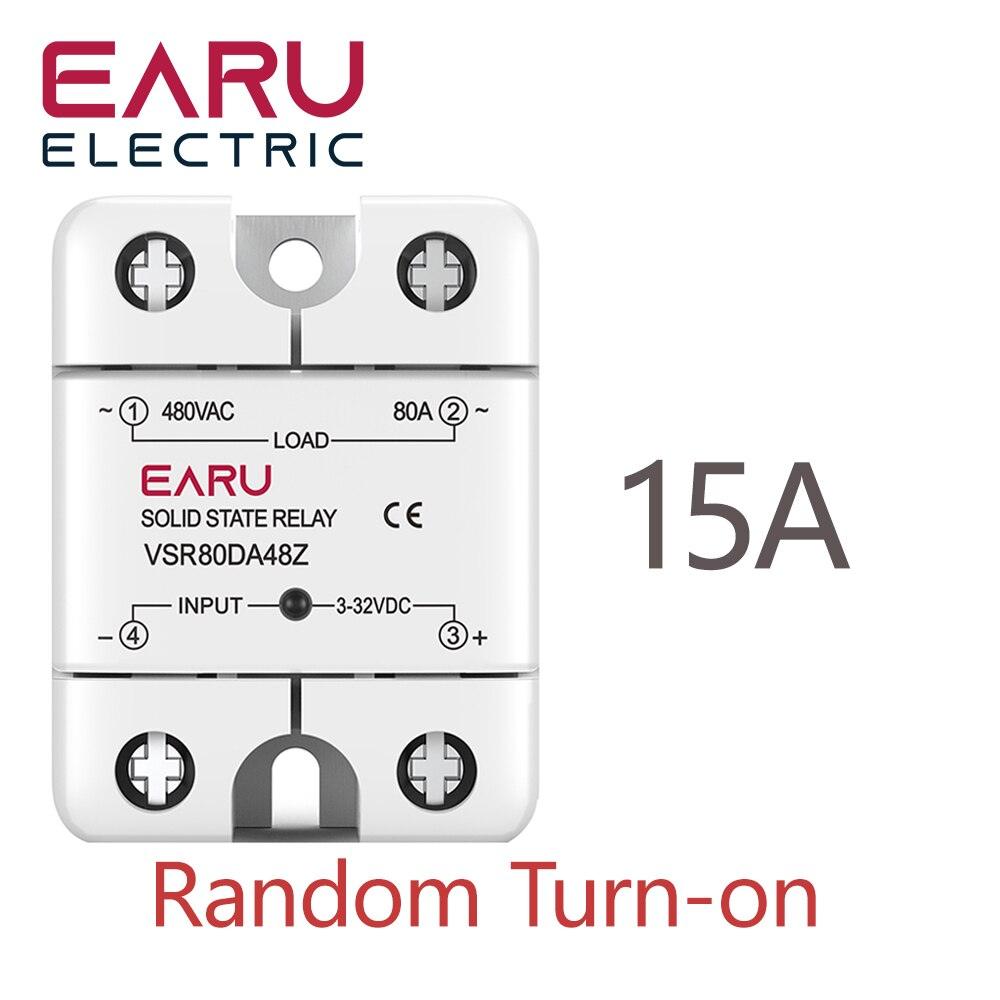

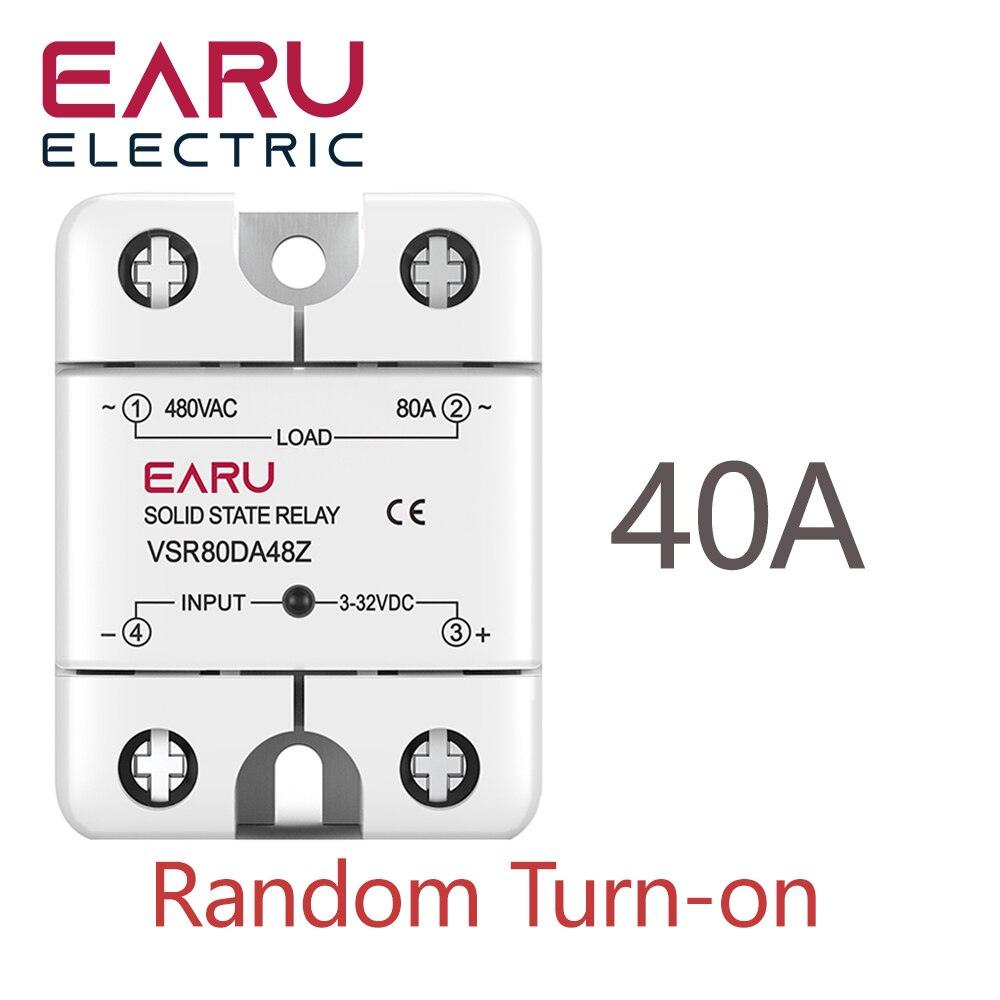

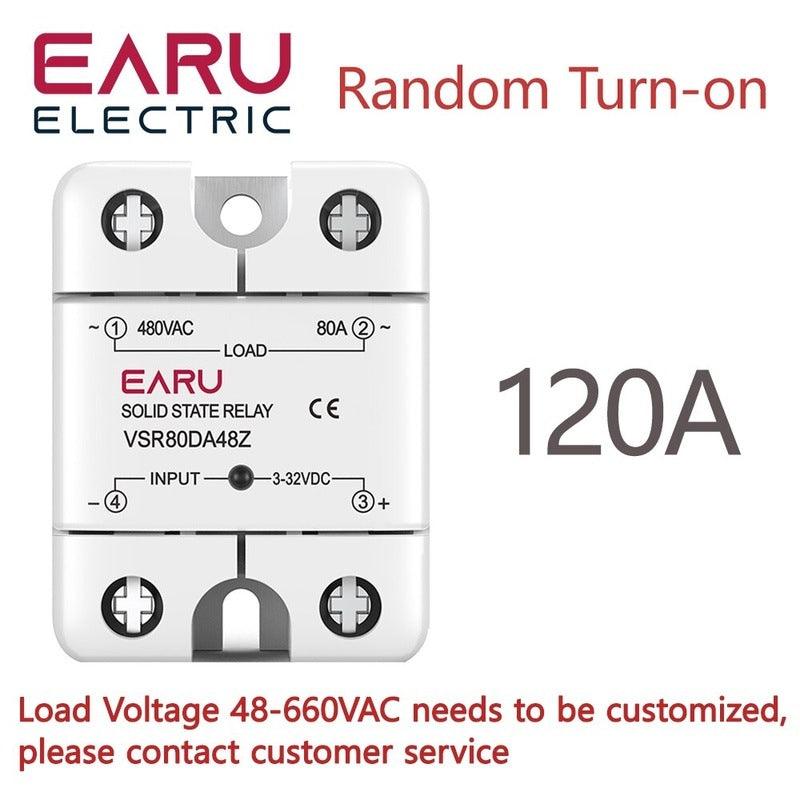

Random Turn-on SSR: is mainly used for "chopper voltage regulation" < but random SSR control signal must be synchronous with the power grid and the rising edge can change in the range of 0°-180° square wave signal to achieve voltage regulation, single voltage signal or 0-5V analog signal can not make it voltage regulation. From the point of view of "voltage regulation" function, random SSR is completely different from ordinary relay or contactor). It must be emphasized that all kinds of voltage regulating modules or solid-state relayed devices as output contacts are thyristor, and they all rely on changing the thyristor conduction Angle to achieve the purpose of "voltage regulation", so the output voltage waveform of "missing Angle" sine wave is different from the autovoltage regulator
