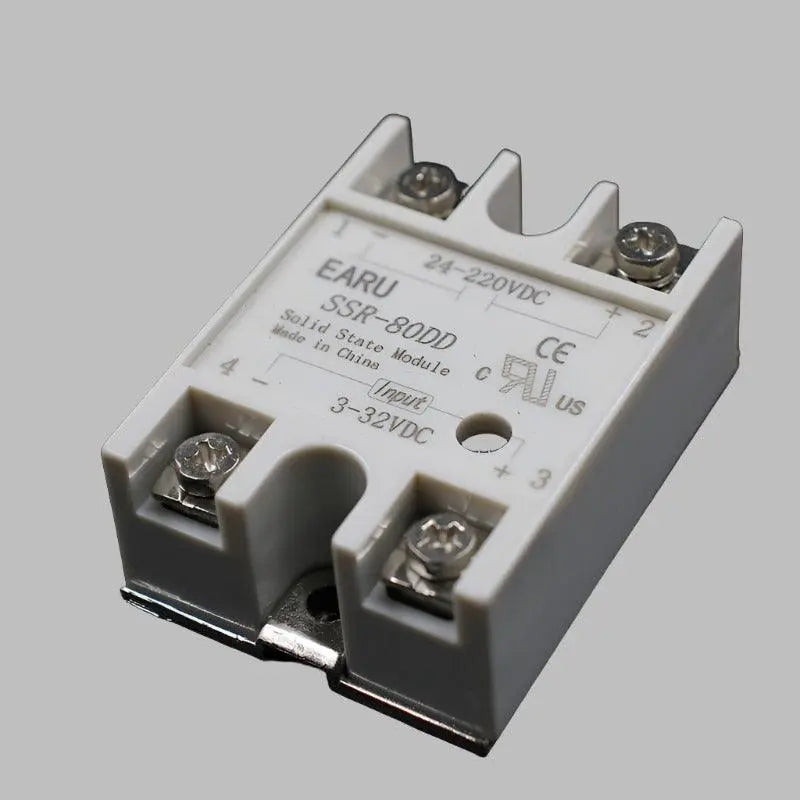

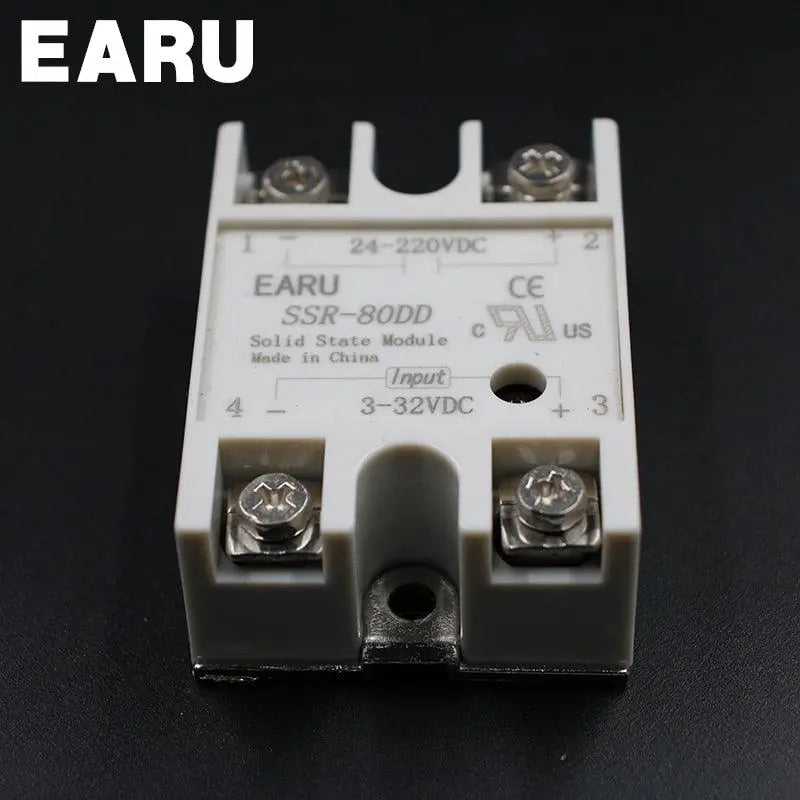

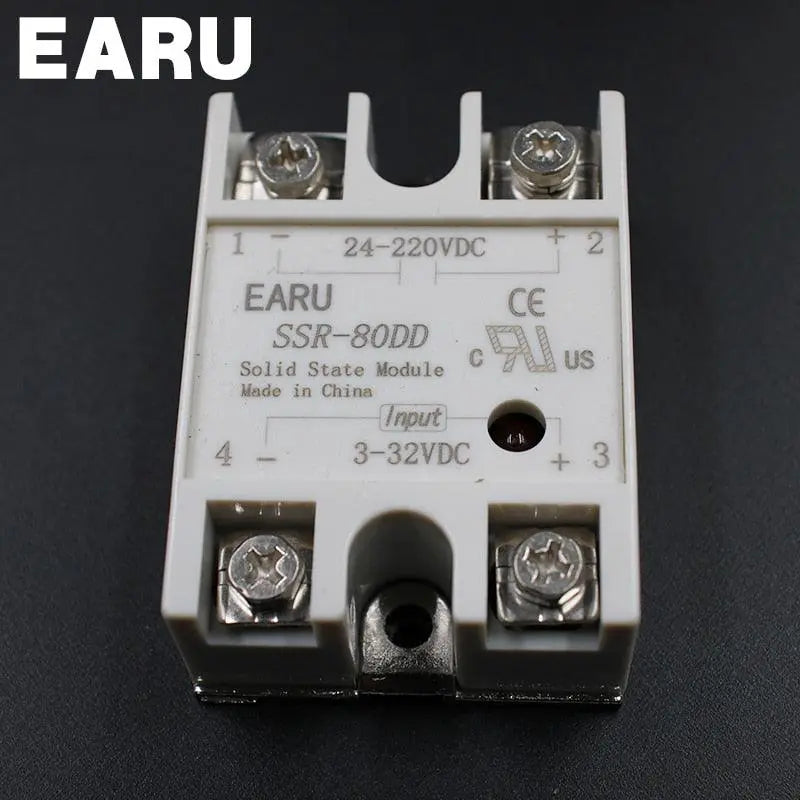

1 pcs Solid State Relay SSR-80DD 80A 3-32V DC Input TO 24-220V DC
Couldn't load pickup availability
SPECIFICATIONS
1 pcs Solid State Relay SSR-80DD 80A 3-32V DC Input TO 24-220V DC SSR
80DD SSR-80 DD Industry Control Factory Wholesale Hot
Usage: General Purpose
Unit Type: piece
Theory: Solid State Relay
Size: Subminiature
Protect Feature: Sealed
Package Weight: 0.130kg (0.29lb.)
Package Size: 12cm x 6cm x 10cm (4.72in x 2.36in x 3.94in)
Model Number: SSR-80DD
Contact Load: Low Power
Brand Name: EARUELETRIC
Please choose the correct current accoding to the following principles.
Current of Equipment/Ratio= Current of SSR
Current of SSR*Ratio=Current of Equipment
(The ratio depends on the type of your equipment)
Resistive load: 60% Inductive load: 60%
During the use of SSR, it will give out a lot of heat, so in order to extend the life of your SSR,
please load your SSR with Radiator if the current is over 10A, also if the current is over 60A,
a cooling fan is necessary.
| Product Name | Solid State Relay |
| Type | SSR-80DA |
| Material | Metal, Plastic, Electric Parts |
| Rated Current | 80A |
| Rated Voltage | 250VAC |
| Input | 3-32VDC |
| Output | 24-380VAC |
| Mounting Hole Size | Small Dia: 4mm/ 0.16", Big: 7 x 4.3mm/ 0.27" x 0.16"(L*W) |
| Relay Size | 6.4 x 4.5 x 2.3cm/ 2.5" x 1.8" x 0.9" (L*W*T) |
| Main Color | Silver Tone, Gray |
| Weight | 112g |
| Package Content | 1 x Solid State Relay |

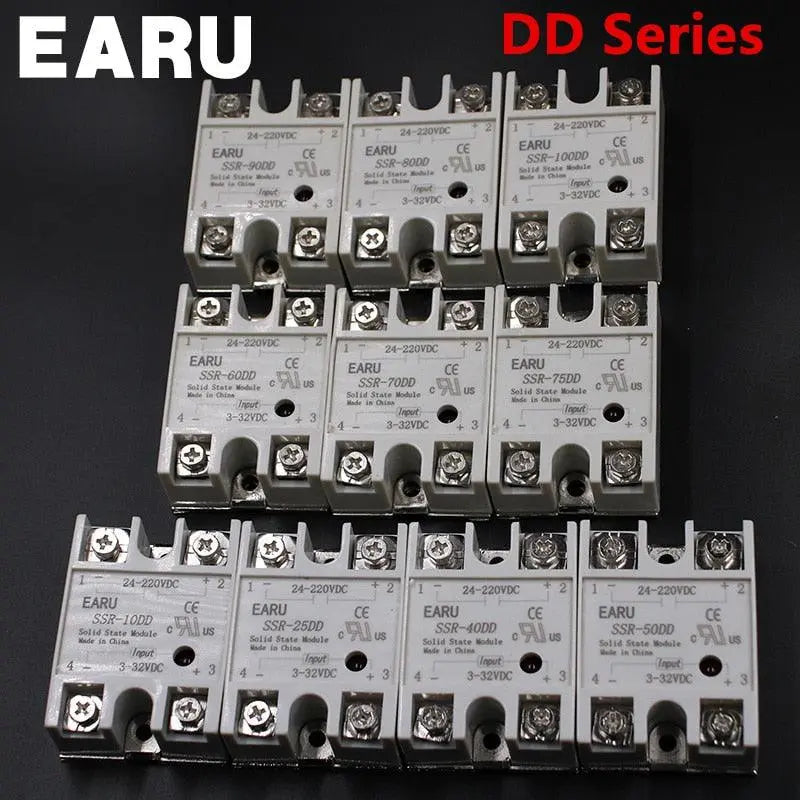

| You can choose other models SSR in the following list. | ||||||||||
| Type | Amper | |||||||||
| DA | 10A | 25A | 40A | 50A | 60A | 70A | 75A | 80A | 90A | 100A |
| AA | 10A | 25A | 40A | 50A | 60A | 70A | 75A | 80A | 90A | 100A |
| DD | 10A | 25A | 40A | 50A | 60A | 70A | 75A | 80A | 90A | 100A |
| VA | 10A | 25A | 40A | 50A | 60A | 70A | 75A | 80A | 90A | 100A |
| DA-H | 10A | 25A | 40A | 50A | 60A | 70A | 75A | 80A | 90A | 100A |
| AA-H | 10A | 25A | 40A | 50A | 60A | 70A | 75A | 80A | 90A | 100A |
