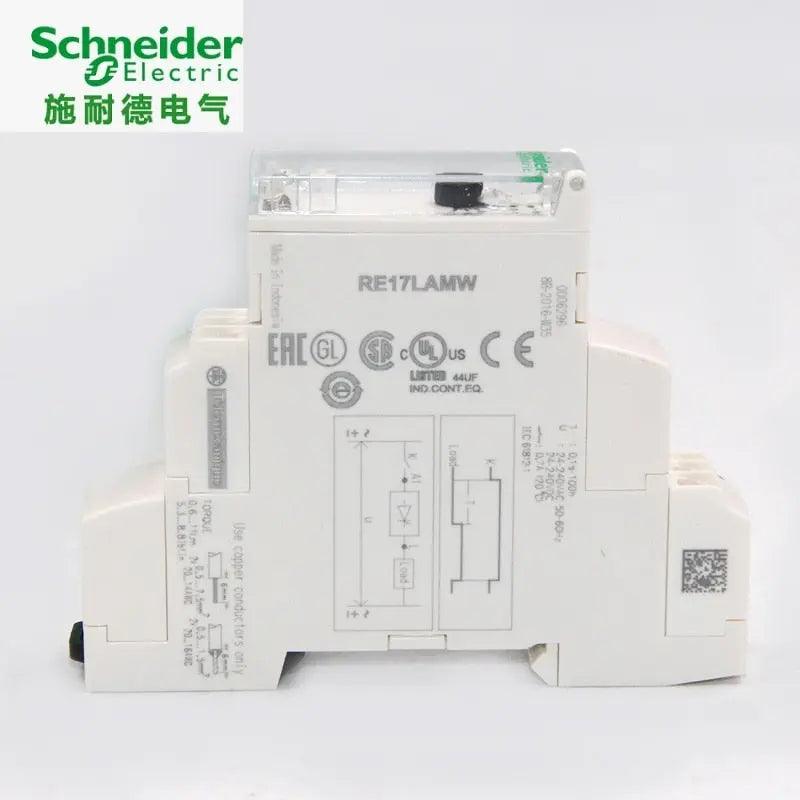

Schneider RE17LAMW On-Delay Relay

$65.79 USD
$79.78 USD $65.79 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

Schneider RE17LAMW/RE17RAMU/RE17RCMU/RE17RLMU Time Relay, 0.02s-100h Adjustable, 24-240V Universal Voltage, Industrial Timer

Product Description

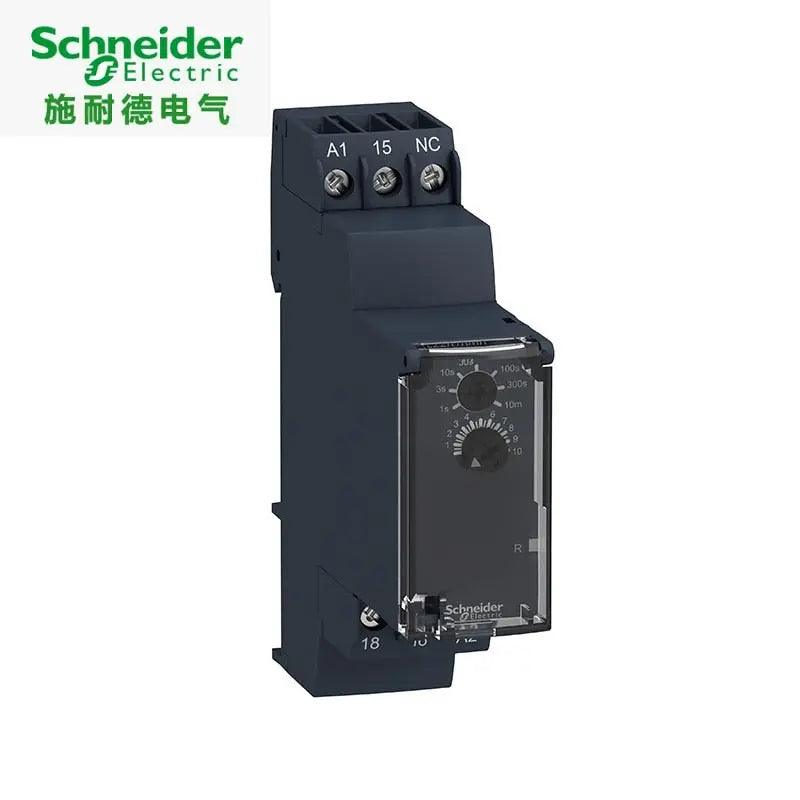

The Schneider RE17 Series Harmony Compact Time Delay Relay is a versatile, DIN rail-mountable timer relay designed for industrial automation and control systems. With universal voltage compatibility, multiple timing functions, and adjustable ranges, it provides reliable timing control for motor control, lighting, and process automation applications.

✅ Core Features by Model

Model Primary Functions Key Details

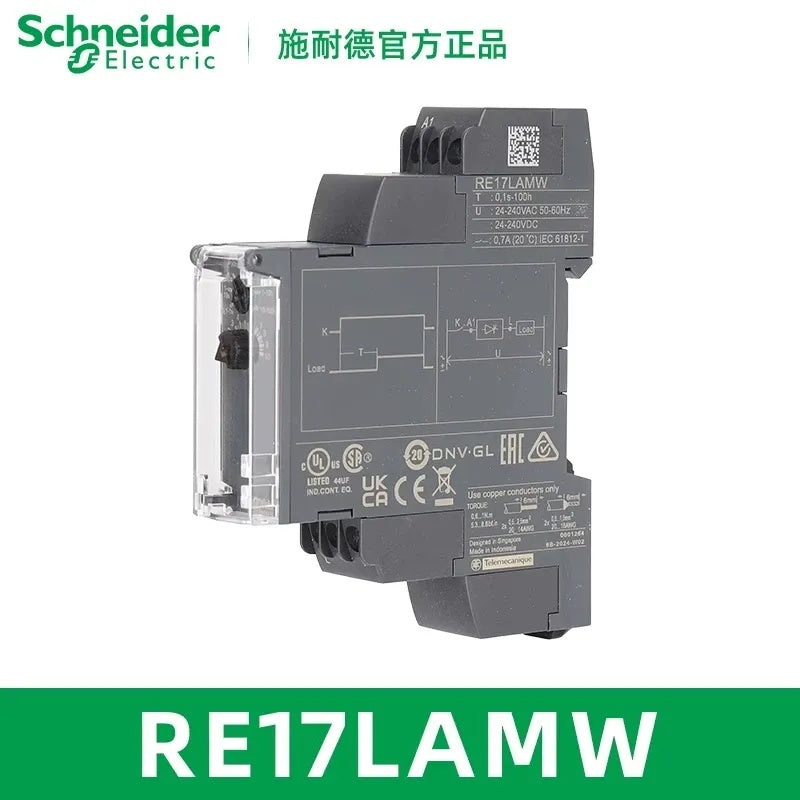

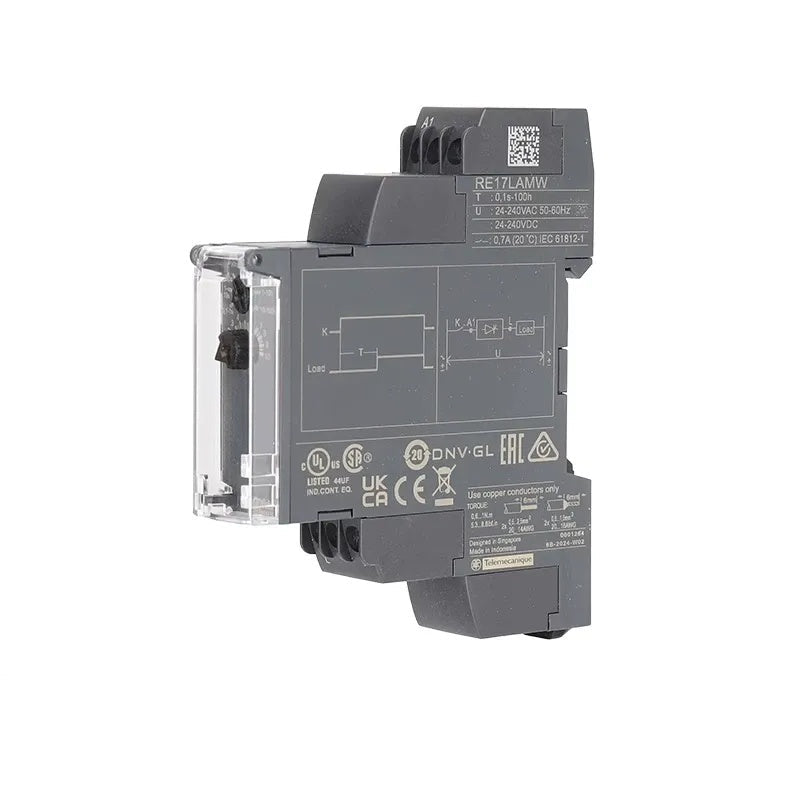

RE17LAMW Power-On Delay (On-Delay) Delays relay operation after power-up; adjustable time range

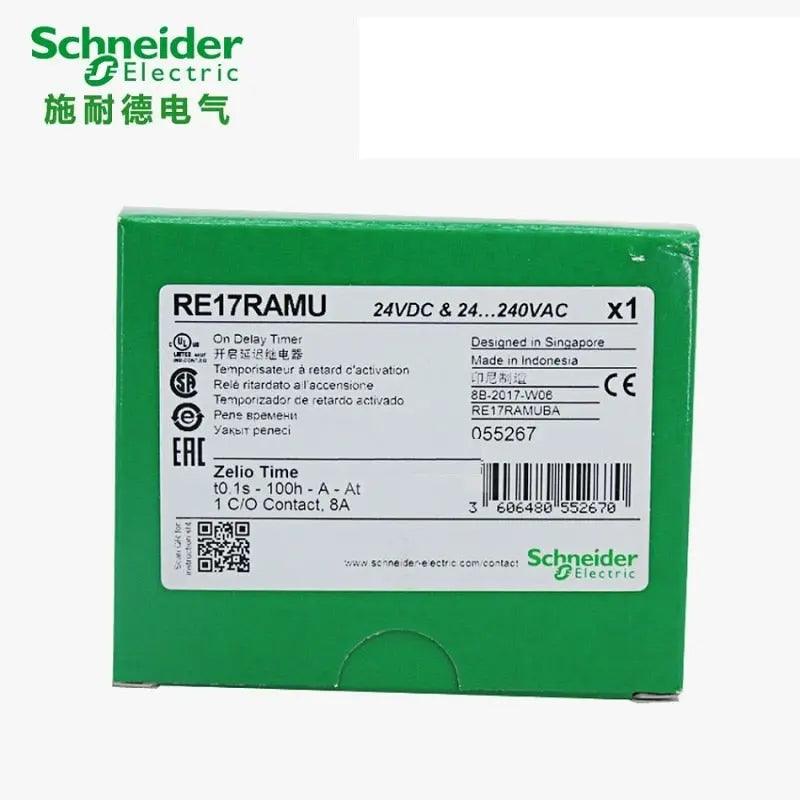

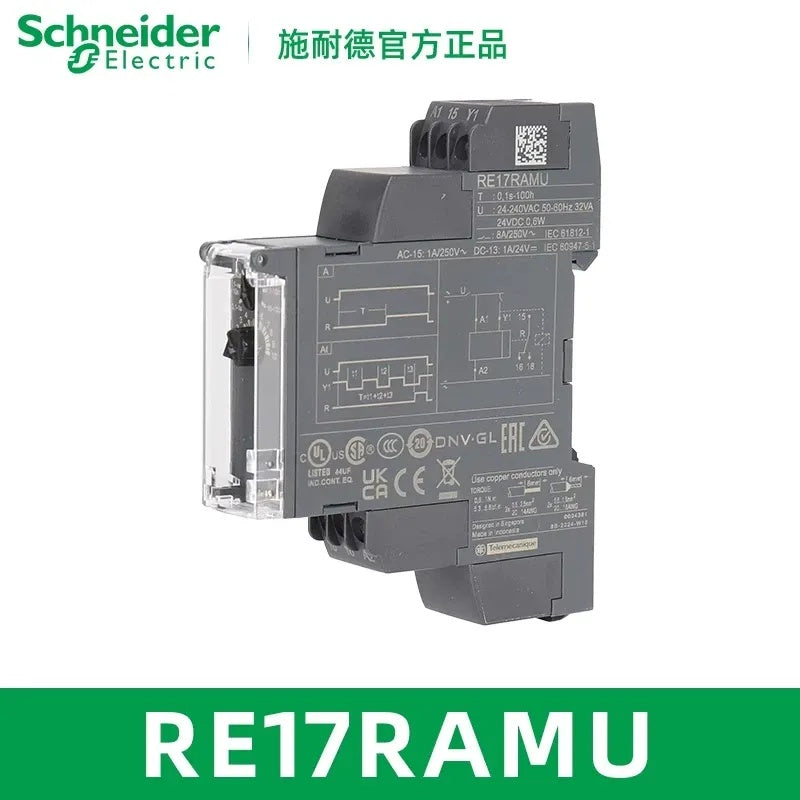

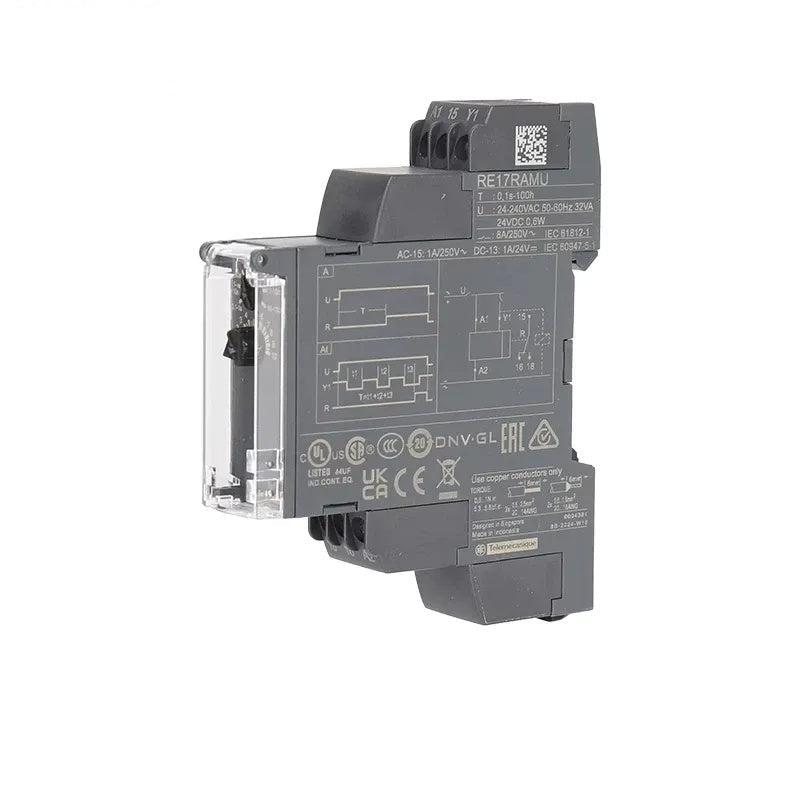

RE17RAMU Power-On Delay (On-Delay) Standard on-delay function for general timing applications

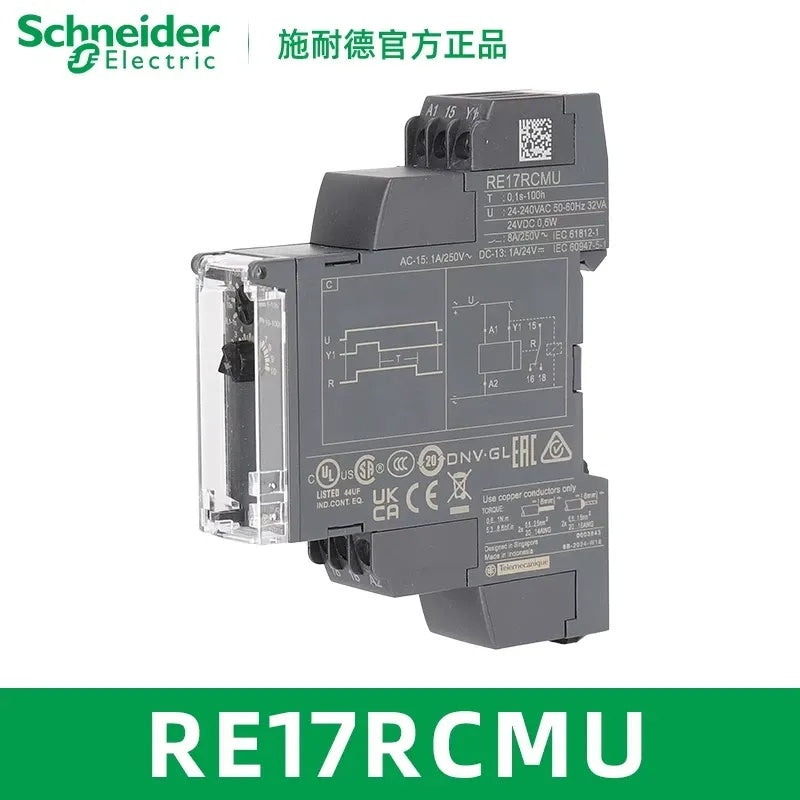

RE17RCMU Power-Off Delay (Off-Delay) Keeps relay energized for a set time after power loss

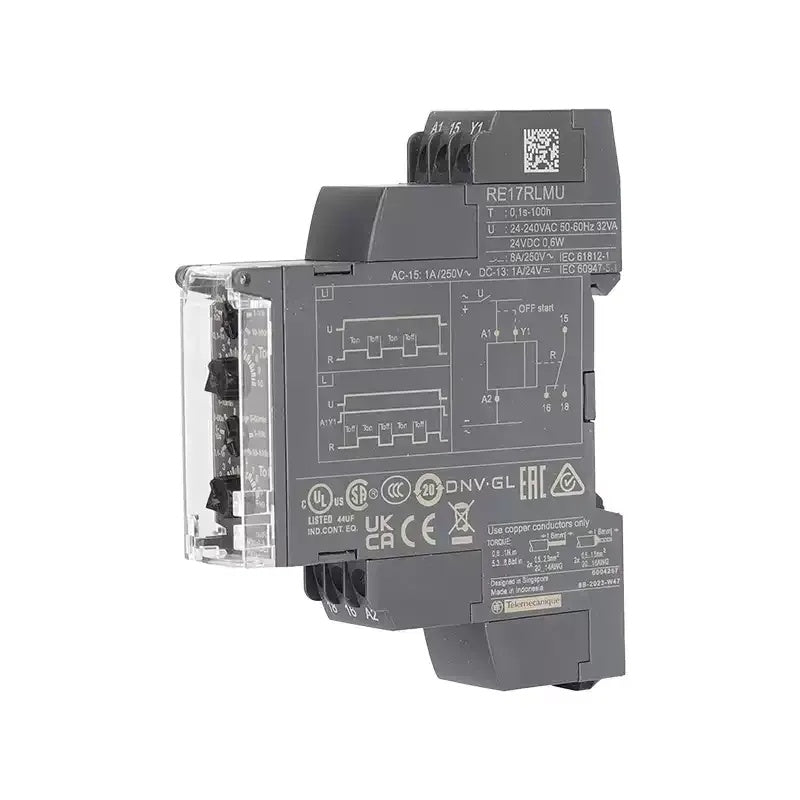

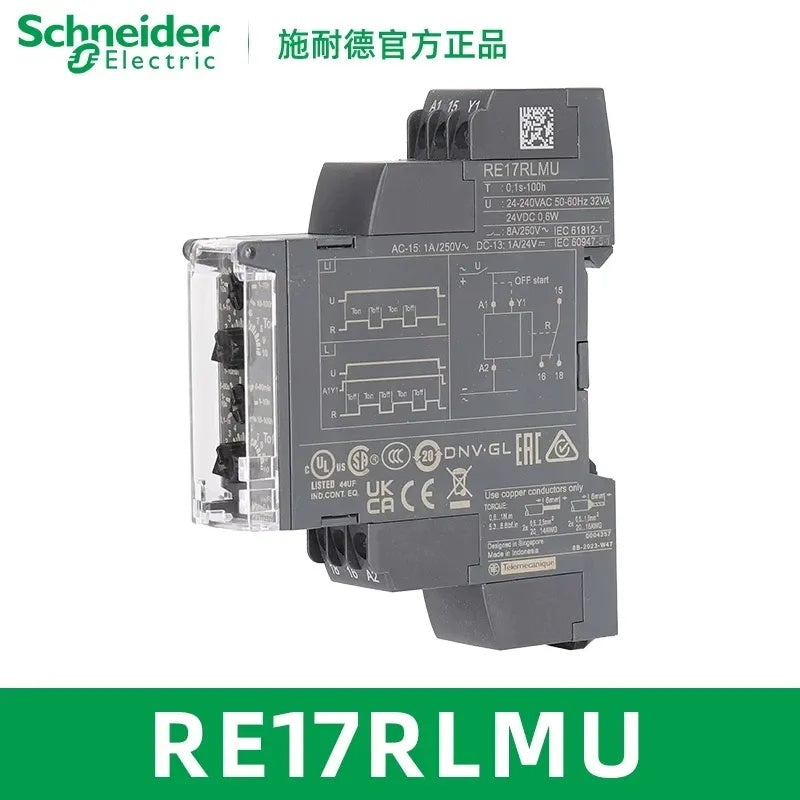

RE17RLMU Asymmetric Flashing Generates asymmetric on/off cycles for lighting/signaling



✅ Common Features

Universal Voltage Input: 24-240V AC/DC wide-range input, compatible with global power grids.

  • Multiple Adjustable Time Ranges: Covers 0.02s to 100h (ranges: 1s/10s/1min/10min/1h/10h/100h) to suit diverse timing needs.

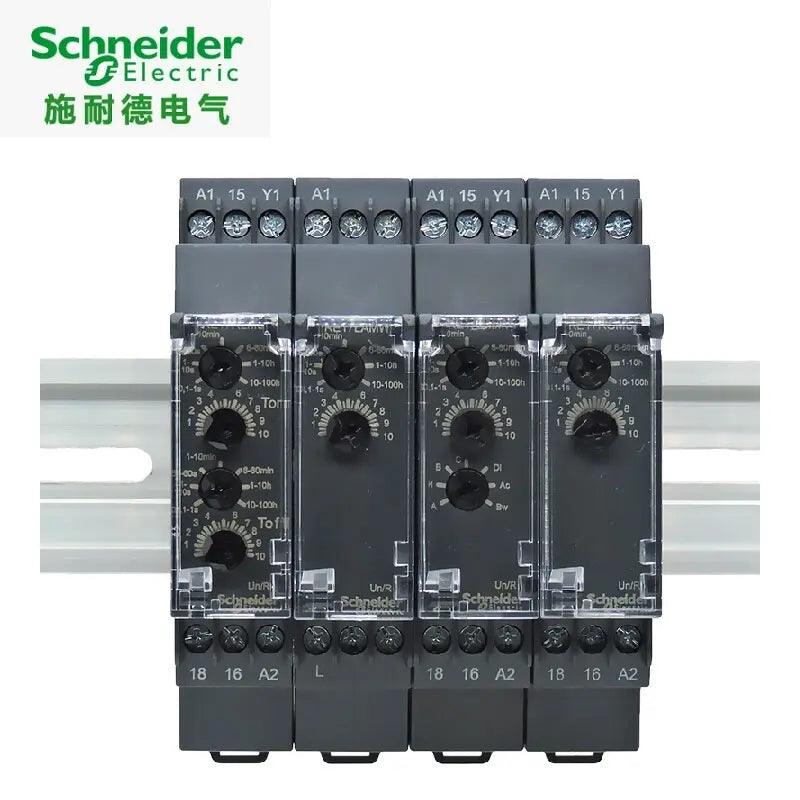

  • Compact DIN Rail Design: Space-saving form factor for easy installation in standard control cabinets.
  • Clear LED Indicators: Visual status feedback for power and relay operation.

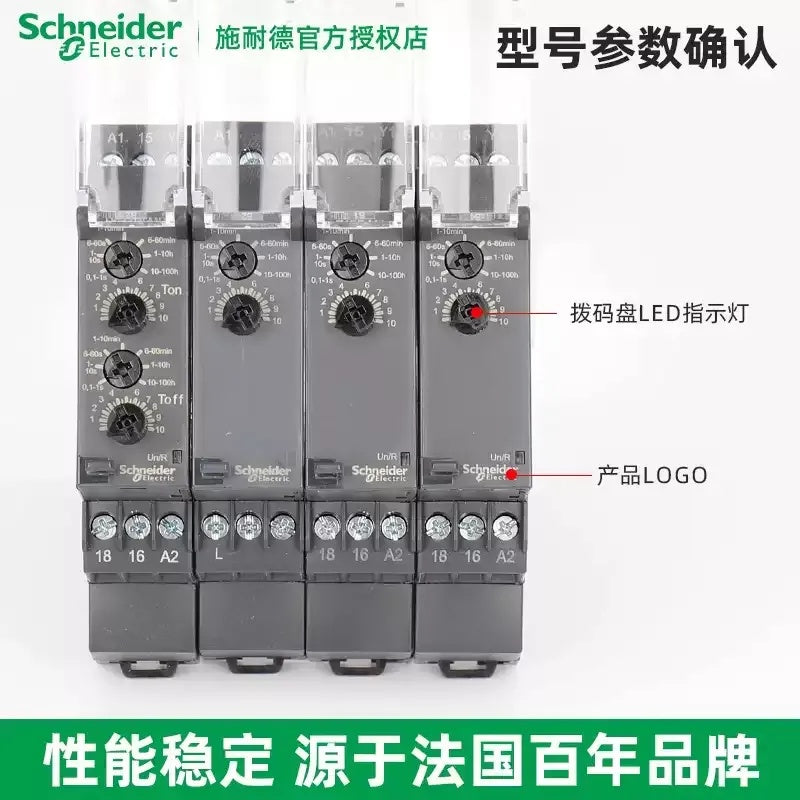

  • Easy Configuration: Front-panel adjustment knobs for simple setup and calibration.
  • Industrial-Grade Reliability: Compliant with IEC 61812-1 standards, with certifications including UL, CSA, and CE.

✅ Applications

  • Motor soft-start control
  • Lighting control and flashing signals
  • Pump and irrigation system timing
  • HVAC fan and system control
  • PLC function expansion and simple automation cycles

DATA SHEET

字段 英文属性值
Product Type Time Delay Relay / Compact Timer Relay / Industrial Control Relay
Brand Schneider Electric
Series RE17 Series
Models RE17LAMW, RE17RAMU, RE17RCMU, RE17RLMU
Functions On-Delay (Power-On Delay), Off-Delay (Power-Off Delay), Asymmetric Flashing
Input Voltage 24-240V AC/DC (Universal)
Time Ranges 0.02s ~ 100h (Adjustable ranges: 1s, 10s, 1min, 10min, 1h, 10h, 100h)
Mounting Type DIN Rail Mount
Features Universal Voltage, Adjustable Timing, LED Status Indicators, Compact Design
Application Scenarios Motor Control, Lighting Control, HVAC Systems, Pump/Irrigation Control, PLC Expansion
