Schneider Surge Protective Device (SPD)
Regular price
$29.80 USD
Regular price
$544.90 USD
Sale price
$29.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

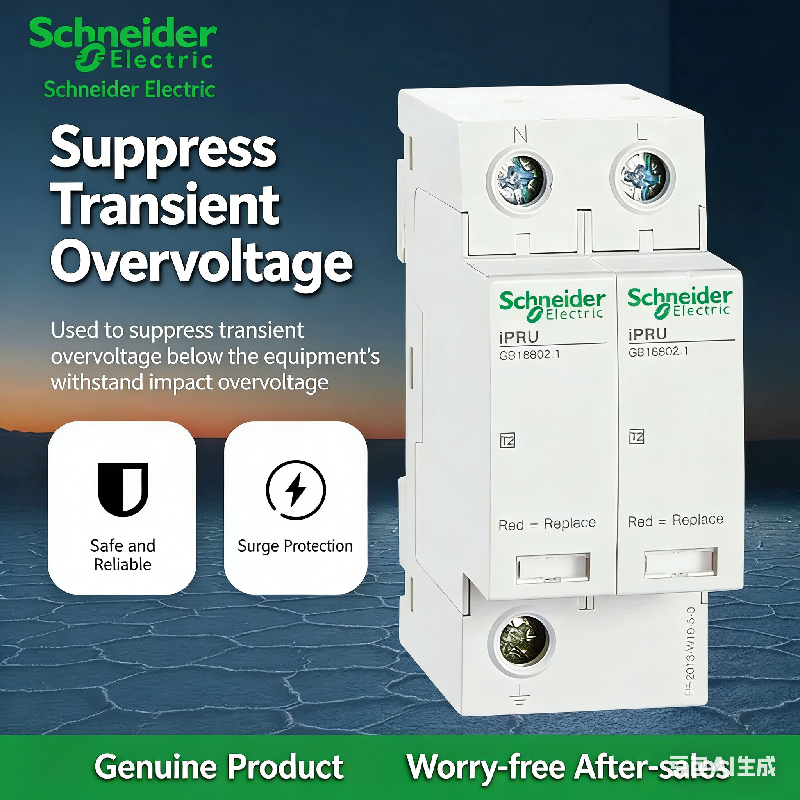

Schneider iPRU 40kA / PRD 60kA / iST 40kA Surge Protective Device, T2 Class, 1P+N/3P+N, DIN Rail Mount, AC 230/400V Lightning Arrester
Product Description
The Schneider iPRU/PRD/iST Series Surge Protective Devices (SPDs) are high-performance T2-class lightning arresters designed to protect electrical equipment from transient overvoltages caused by lightning strikes and switching surges. Available in pluggable (iPRU/PRD) and fixed (iST) versions, with a wide range of discharge currents (10-120kA) and pole configurations (1P+N/3P+N), they provide reliable surge protection for residential, commercial, and industrial applications.
✅ Core Features by Series

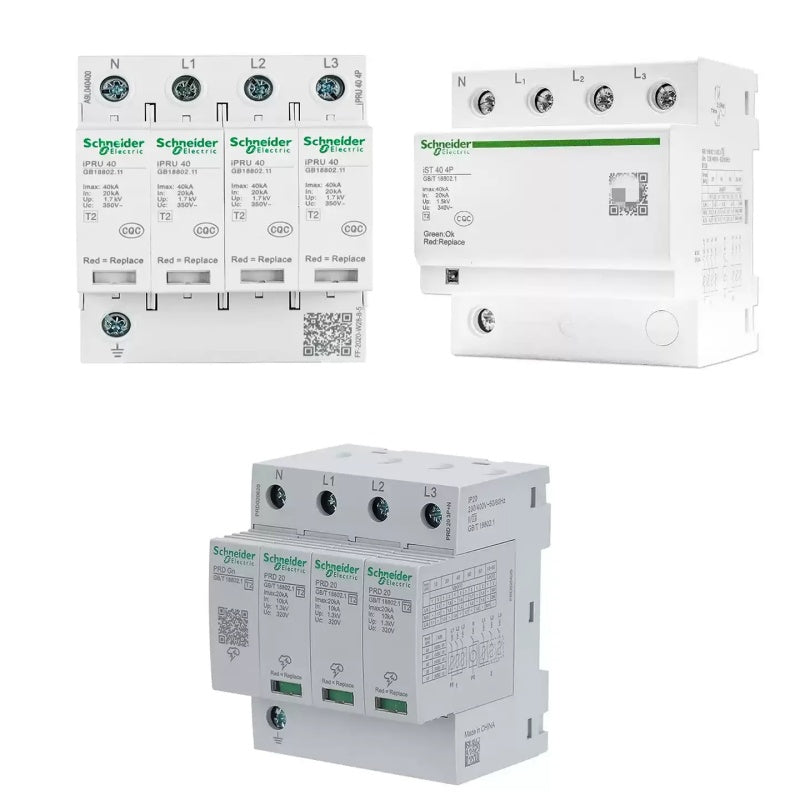

| Series | Type | Discharge Current Range | Key Features |
|---|---|---|---|
| iPRU | Pluggable T2 | 10/20/40/65/80/100/120kA | Removable modules for easy replacement, visual status indicator |
| PRD | Pluggable T2 | 15/20/40/60/80/100kA | High surge capacity, compact design for distribution boards |
| iST | Fixed T2 | 20/40/65kA | Cost-effective fixed design, reliable performance for standard applications |
✅ Common Features
- T2 Class Protection: Compliant with IEC 61643-11, providing secondary surge protection for AC power systems.
- Wide Voltage Compatibility: Suitable for 220/380V AC single-phase and three-phase systems.

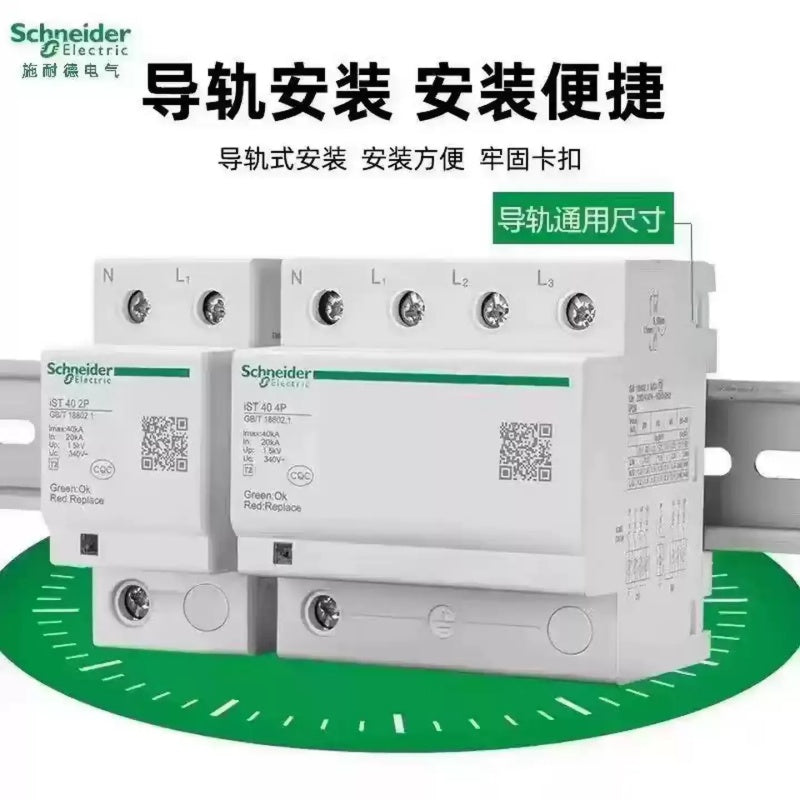

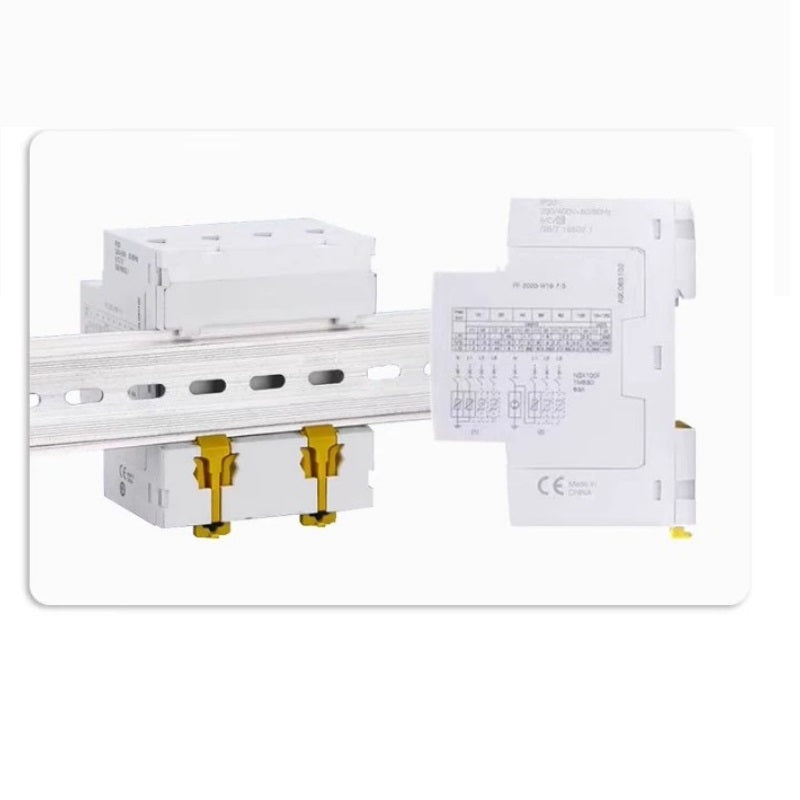

- DIN Rail Mount: Compact design for installation on standard 35mm DIN rails in distribution panels.
- Visual Status Indicator: Color-coded window (white=normal, red=fault) for quick condition monitoring.
- Removable Modules (iPRU/PRD): No need to disconnect wiring to replace faulty modules, reducing maintenance time.
- PC Flame-Retardant Housing: Durable, fire-resistant casing for enhanced safety in harsh environments.
✅ Applications
- Residential and commercial building power distribution systems
- Industrial machinery and control panel protection
- Server rooms, communication equipment, and sensitive electronics
- HVAC systems, lighting circuits, and general power distribution
- Construction sites, factories, and high-rise buildings
DATA SHEET
| 字段 | 英文属性值 |
|---|---|
| Product Type | Surge Protective Device (SPD) / Lightning Arrester / Surge Suppressor |
| Brand | Schneider Electric |
| Series | iPRU Series, PRD Series, iST Series |
| Models | iPRU 10/20/40/65/80/100/120kA; PRD 15/20/40/60/80/100kA; iST 20/40/65kA |
| Protection Class | T2 Class (Secondary Surge Protection) |
| Discharge Current (Imax) | 10kA, 20kA, 40kA, 60kA, 65kA, 80kA, 100kA, 120kA |
| Pole Configurations | 1P+N, 3P+N |
| Rated Voltage | 220V/380V AC |
| Mounting Type | DIN Rail Mount (35mm) |
| Features | Pluggable Modules (iPRU/PRD), Visual Fault Indicator, Flame-Retardant Housing |
| Standards | IEC 61643-11, GB/T 18802.1, CQC Certified |
| Application Scenarios | Residential Buildings, Commercial Facilities, Industrial Plants, Server Rooms, Power Distribution Systems |
