Schneider Surge Protective Device (SPD)

Name: Schneider Surge Protective Device (SPD)
Brand: electrical center b2c
SKU: Schneider Surge Protector SPD 1P+N / iPRU Series 10kA (Pluggable T2)
Price: 29.8 USD
Availability: InStock

$29.80 USD

~~$544.90 USD~~ $29.80 USD

Sale Sold out

Shipping calculated at checkout.

Poles Number 1P+N 3P+N

Product variants

Quantity

Schneider iPRU 40kA / PRD 60kA / iST 40kA Surge Protective Device, T2 Class, 1P+N/3P+N, DIN Rail Mount, AC 230/400V Lightning Arrester

Product Description

The Schneider iPRU/PRD/iST Series Surge Protective Devices (SPDs) are high-performance T2-class lightning arresters designed to protect electrical equipment from transient overvoltages caused by lightning strikes and switching surges. Available in pluggable (iPRU/PRD) and fixed (iST) versions, with a wide range of discharge currents (10-120kA) and pole configurations (1P+N/3P+N), they provide reliable surge protection for residential, commercial, and industrial applications.

✅ Core Features by Series

Series	Type	Discharge Current Range	Key Features
iPRU	Pluggable T2	10/20/40/65/80/100/120kA	Removable modules for easy replacement, visual status indicator
PRD	Pluggable T2	15/20/40/60/80/100kA	High surge capacity, compact design for distribution boards
iST	Fixed T2	20/40/65kA	Cost-effective fixed design, reliable performance for standard applications

✅ Common Features

T2 Class Protection: Compliant with IEC 61643-11, providing secondary surge protection for AC power systems.
Wide Voltage Compatibility: Suitable for 220/380V AC single-phase and three-phase systems.

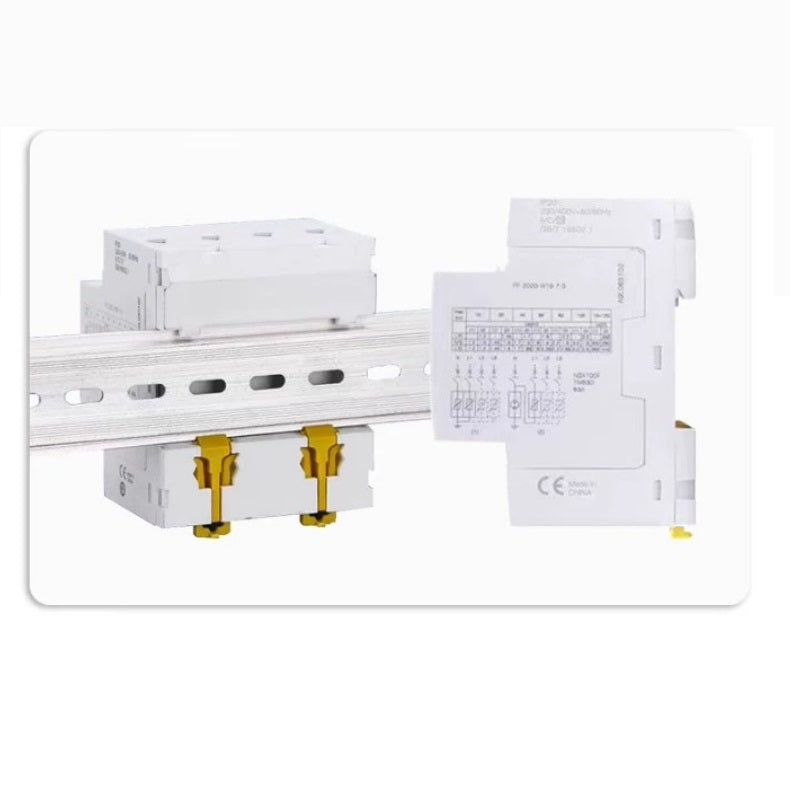

DIN Rail Mount: Compact design for installation on standard 35mm DIN rails in distribution panels.
Visual Status Indicator: Color-coded window (white=normal, red=fault) for quick condition monitoring.
Removable Modules (iPRU/PRD): No need to disconnect wiring to replace faulty modules, reducing maintenance time.
PC Flame-Retardant Housing: Durable, fire-resistant casing for enhanced safety in harsh environments.

✅ Applications

Residential and commercial building power distribution systems
Industrial machinery and control panel protection
Server rooms, communication equipment, and sensitive electronics
HVAC systems, lighting circuits, and general power distribution
Construction sites, factories, and high-rise buildings

DATA SHEET

字段	英文属性值
Product Type	Surge Protective Device (SPD) / Lightning Arrester / Surge Suppressor
Brand	Schneider Electric
Series	iPRU Series, PRD Series, iST Series
Models	iPRU 10/20/40/65/80/100/120kA; PRD 15/20/40/60/80/100kA; iST 20/40/65kA
Protection Class	T2 Class (Secondary Surge Protection)
Discharge Current (Imax)	10kA, 20kA, 40kA, 60kA, 65kA, 80kA, 100kA, 120kA
Pole Configurations	1P+N, 3P+N
Rated Voltage	220V/380V AC
Mounting Type	DIN Rail Mount (35mm)
Features	Pluggable Modules (iPRU/PRD), Visual Fault Indicator, Flame-Retardant Housing
Standards	IEC 61643-11, GB/T 18802.1, CQC Certified
Application Scenarios	Residential Buildings, Commercial Facilities, Industrial Plants, Server Rooms, Power Distribution Systems

iPRU Series（Pluggable T2 ）ITEM NO.

Option Value	Model	Typical Part Number (3P+N, 350V)
iPRU Series 10kA (Pluggable T2)	iPRU 10r	A9L010601
iPRU Series 20kA (Pluggable T2)	iPRU 20r	A9L020601
iPRU Series 40kA (Pluggable T2)	iPRU 40r	A9L040601
iPRU Series 65kA (Pluggable T2)	iPRU 65r	A9L065601
iPRU Series 80kA (Pluggable T2)	iPRU 80r	A9L080601
iPRU Series 100kA (Pluggable T2)	iPRU 100r	A9L100601
iPRU Series 120kA (Pluggable T2)	iPRU 120r	A9L120601

PRD Series（Pluggable T2 ）ITEM NO.

Option Value	Model	Typical Part Number (3P+N, 350V)
PRD Series 15kA (Pluggable T2)	PRD 15	PRD3PN15 / A9L15601
PRD Series 20kA (Pluggable T2)	PRD 20	PRD3PN20 / A9L20601
PRD Series 40kA (Pluggable T2)	PRD 40	PRD3PN40 / A9L40601
PRD Series 60kA (Pluggable T2)	PRD 60	PRD3PN60 / A9L60601
PRD Series 80kA (Pluggable T2)	PRD 80	PRD3PN80 / A9L80601
PRD Series 100kA (Pluggable T2)	PRD 100	PRD3PN100 / A9L100601
