Schneider Old type LC1D Series Contactor (9A-95A)
Regular price
$28.52 USD
Regular price
$33.00 USD
Sale price
$28.52 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

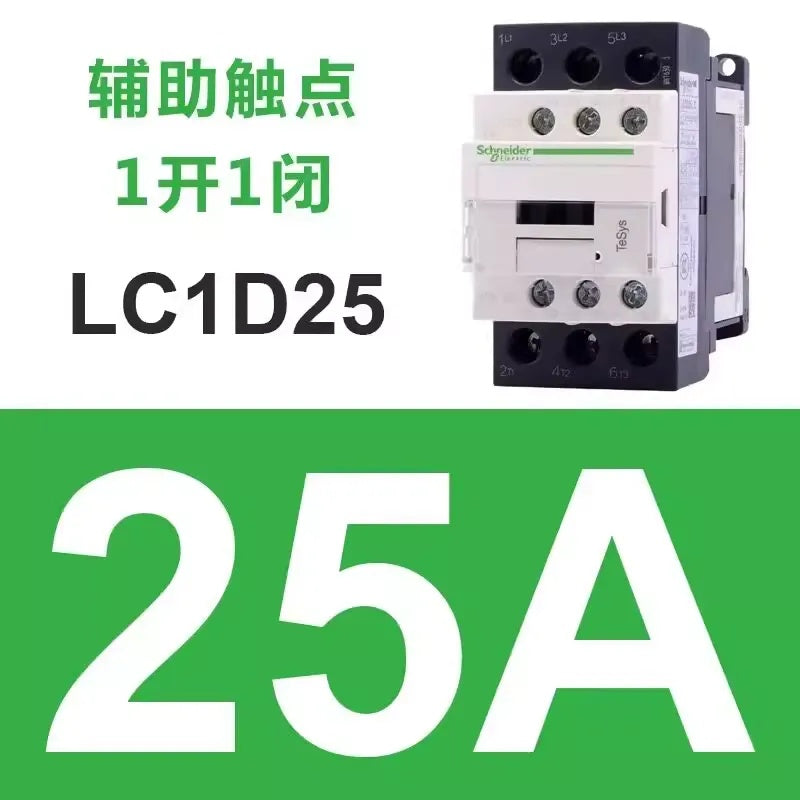

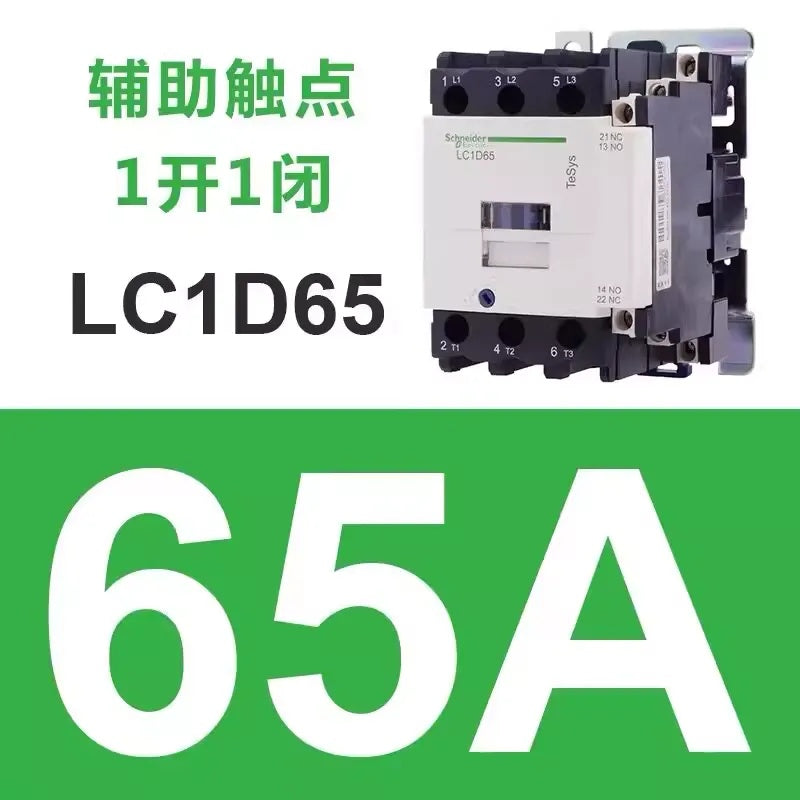

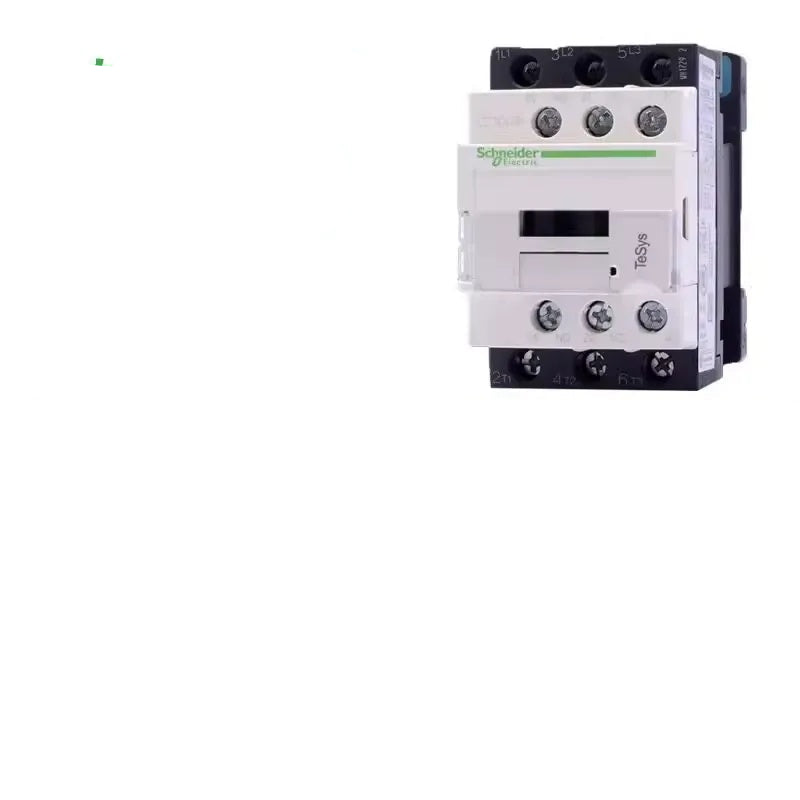

Schneider TeSys LC1D AC Contactor 9A-95A, 3-Pole, Thermal-Magnetic, DIN Rail Mount for Motor & Load Control
1. 核心概述 (Overview)
The Schneider Electric TeSys LC1D Series AC contactors are high-performance, industry-standard electromagnetic contactors designed for reliable switching and control of motors, lighting, heaters, and other electrical loads in industrial, commercial, and residential applications. Covering rated currents from 9A to 95A, this series offers versatile AC coil voltage options (24V/36V/48V/110V/220V/380V) to meet diverse system requirements, making it ideal for motor starting/stopping, circuit switching, and automation control systems.
2. 关键特性 (Key Features)
- Wide Current Range: Models spanning LC1D09 (9A) to LC1D95 (95A), suitable for small to medium motor loads and power distribution, with 3-pole normally open main contacts.

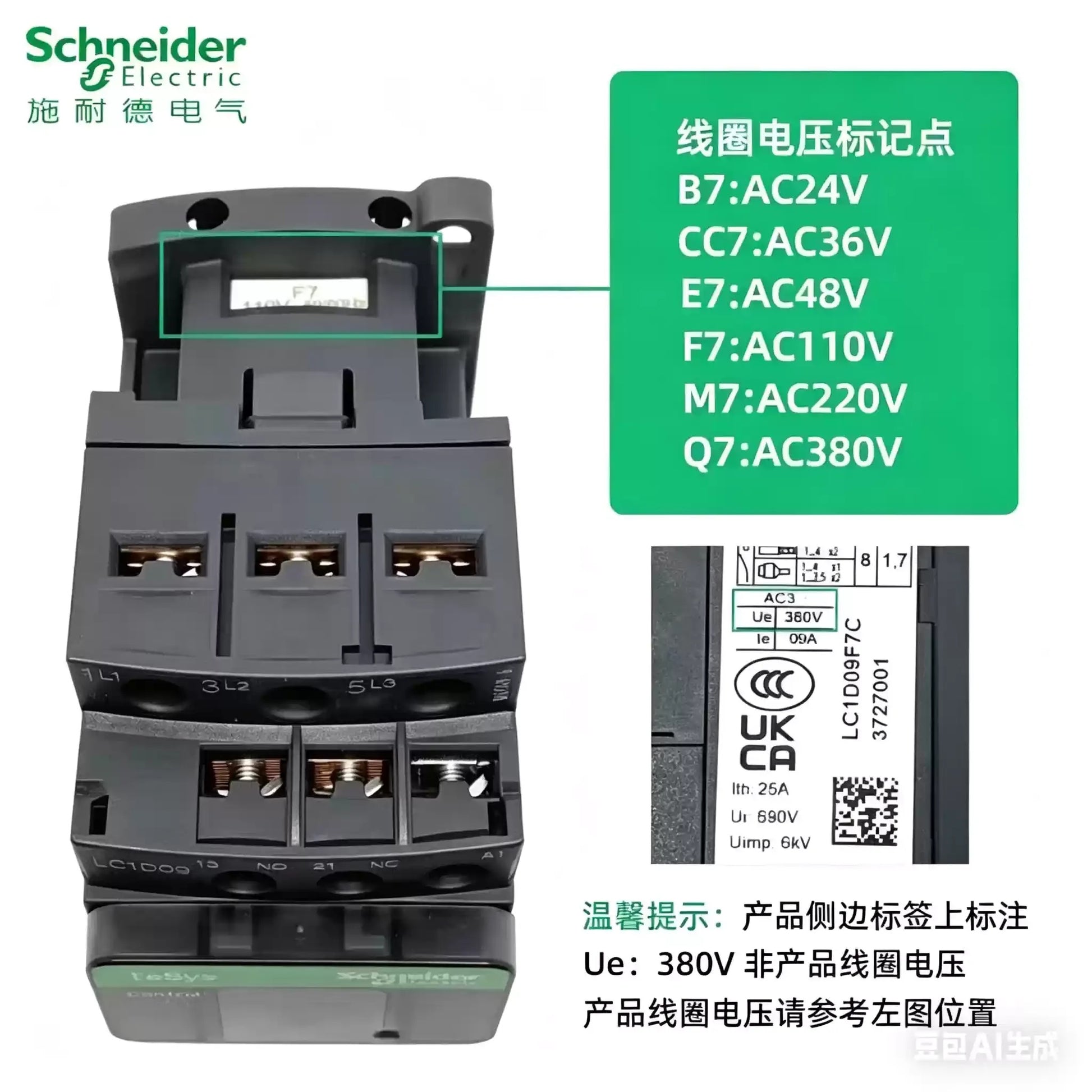

- Multi-Voltage Coil Options: Supports AC coil voltages including B7C (AC24V), CC7C (AC36V), E7C (AC48V), F7C (AC110V), M7C (AC220V), and Q7C (AC380V), compatible with global control system standards.
- Integrated Auxiliary Contacts: Equipped with standard 1 normally open + 1 normally closed (1NO+1NC) auxiliary contacts for status feedback and interlocking circuits.
- High Breaking Capacity: Robust silver alloy contacts provide excellent conductivity and arc resistance, ensuring reliable switching under AC-3 (motor) and AC-1 (resistive) load conditions.
- IEC/GB Certified: Compliant with IEC 60947-4-1 and GB 14048.4 standards, meeting global safety and performance benchmarks with CE/CCC certifications.
- Compact & Durable Design: Space-saving form factor with high-grade flame-retardant housing, resistant to high temperatures, vibration, and mechanical wear for long service life.
- Easy Installation: Standard DIN rail mounting with screw-fixed terminals, simplifying installation and wiring in control panels.
3. 型号解析 (Model Decoding)
表格
| Model Code | Core Interpretation |
|---|---|
LC1D |
Schneider TeSys D Series AC Contactor |
09/12/18/25/32/38/40/50/65/80/95 |
Rated operational current (AC-3 category) |
B7C/CC7C/E7C/F7C/M7C/Q7C |
AC coil voltage (e.g., M7C = AC220V, Q7C = AC380V) |
4. 典型应用 (Applications)
- Industrial motor control (direct-on-line starting, reversing, star-delta control)
- Commercial building HVAC systems, lighting, and power distribution
- Automation control panels and PLC-based systems
- Pump, fan, and conveyor motor control
- Renewable energy (solar inverter, wind turbine) circuit switching
- Water treatment, metallurgy, and chemical processing equipment
DATA SHEET
| Attribute | Value |
|---|---|
| Brand | Schneider Electric |
| Series | TeSys LC1D Series |
| Product Type | AC Contactor / Electromagnetic Contactor |
| Rated Current (AC-3) | 9A, 12A, 18A, 25A, 32A, 38A, 40A, 50A, 65A, 80A, 95A |
| Coil Voltage (AC) | 24V, 36V, 48V, 110V, 220V, 380V |
| Main Contacts | 3-Pole Normally Open (3NO) |
| Auxiliary Contacts | 1NO + 1NC (Standard) |
| Rated Operational Voltage (Ue) | AC 400V/690V |
| Utilization Category | AC-1 (Resistive Load), AC-3 (Induction Motor) |
| Mounting Type | DIN Rail / Screw Mount |
| Standards Compliance | IEC 60947-4-1, GB 14048.4, EN 60947-4-1 |
| Certifications | CE, CCC, RoHS |
| Contact Material | Silver Alloy |
| Application | Motor Control, Power Switching, Industrial Automation, HVAC, Pump & Fan Control, Water Treatment, Metallurgy |
