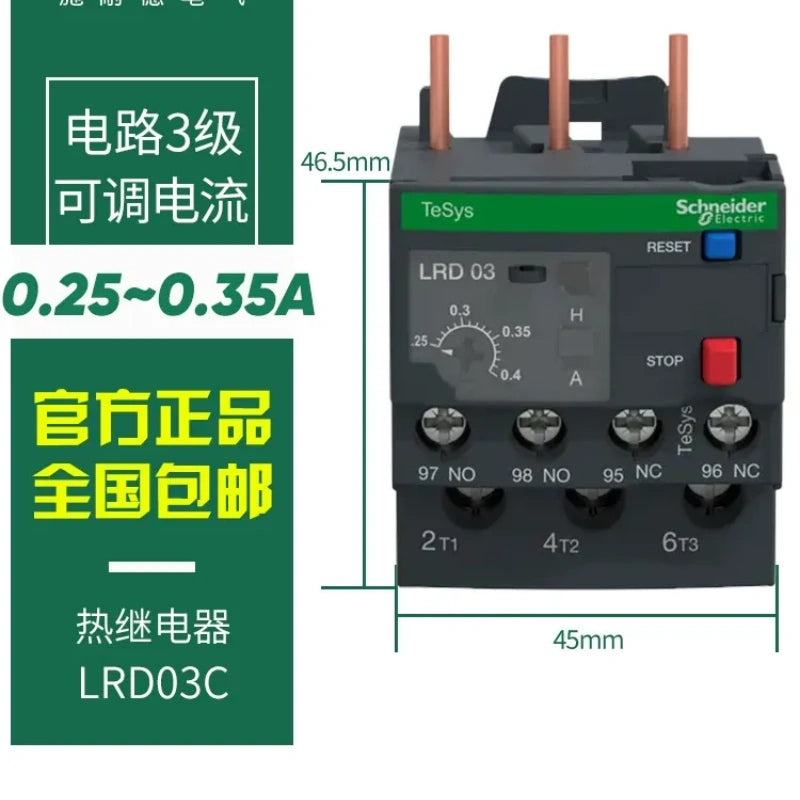

  • Schneider thermal overload relay, LRD relay, LRD03C
  • Schneider- LRD Series Thermal Overload Relays - TeSys - electrical center b2c
  • Schneider- LRD Series Thermal Overload Relays - TeSys - electrical center b2c
  • Schneider- LRD Series Thermal Overload Relays - TeSys - electrical center b2c
  • Schneider- LRD Series Thermal Overload Relays - TeSys - electrical center b2c
  • Schneider- LRD Series Thermal Overload Relays - TeSys - electrical center b2c
  • Schneider- LRD Series Thermal Overload Relays - TeSys - electrical center b2c
  • Schneider- LRD Series Thermal Overload Relays - TeSys - electrical center b2c
  • Schneider thermal overload relay, LRD relay, LRD04C
  • Schneider thermal overload relay, LRD relay, LRD05C

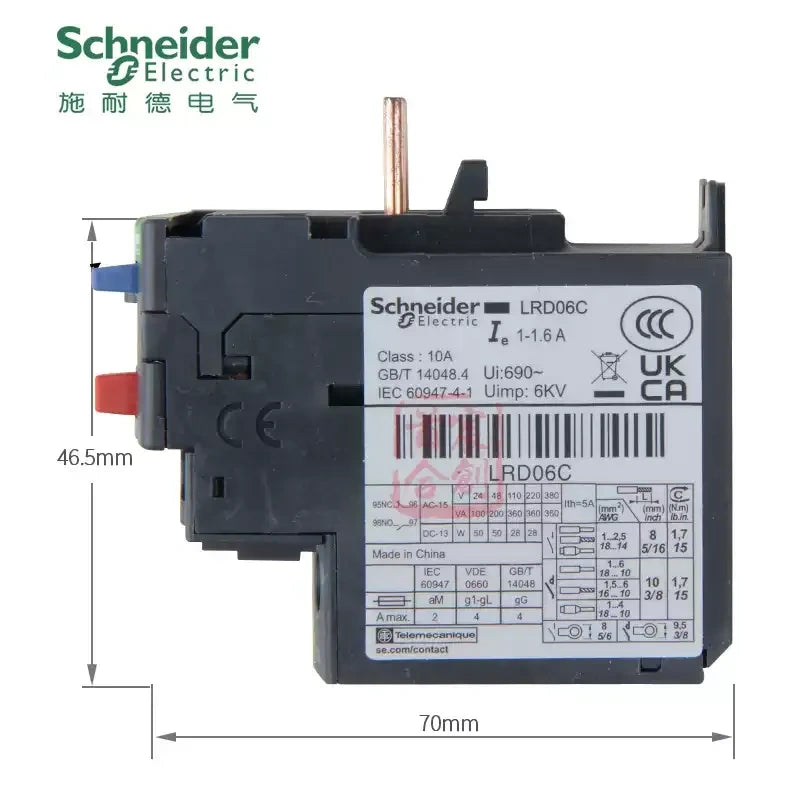

  • Schneider thermal overload relay, LRD relay, LRD06C

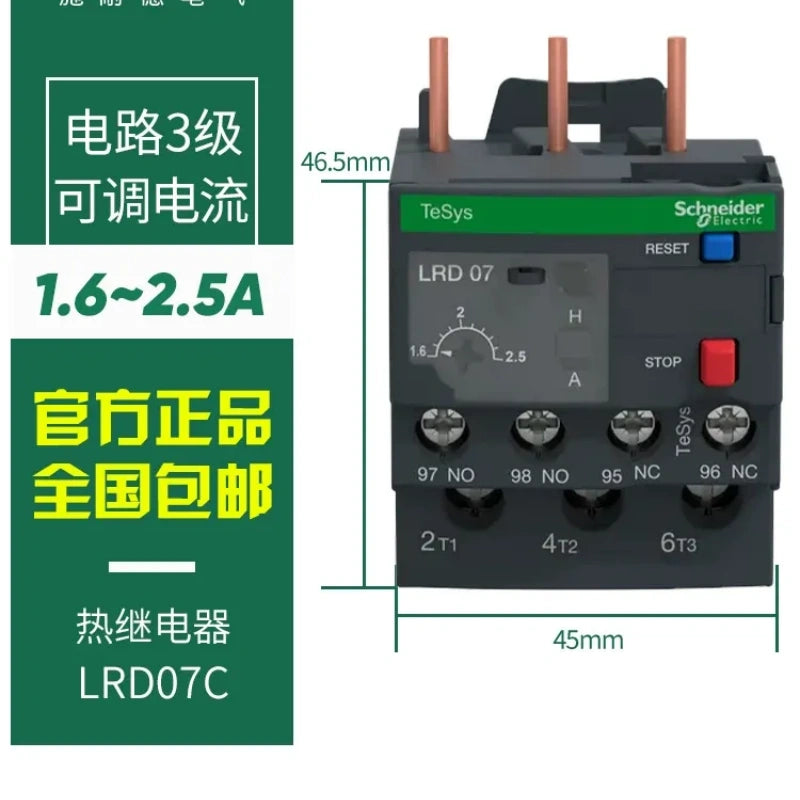

  • Schneider thermal overload relay, LRD relay, LRD07C
  • Schneider thermal overload relay, LRD relay, LRD21C
  • Schneider thermal overload relay, LRD relay, LRD22C

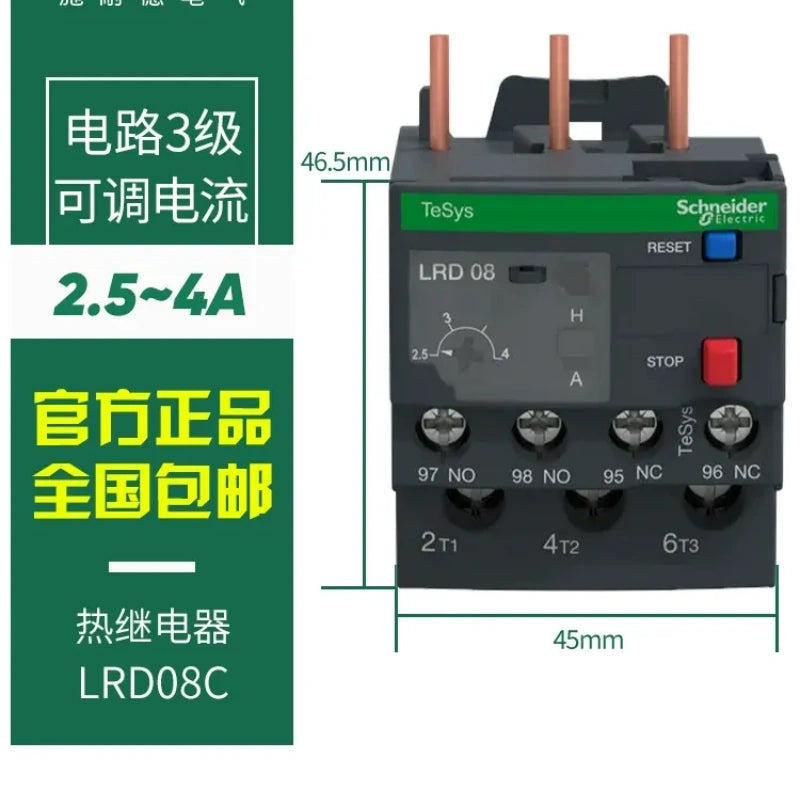

  • Schneider thermal overload relay, LRD relay, LRD08C
  • Schneider thermal overload relay, LRD relay, LRD32C

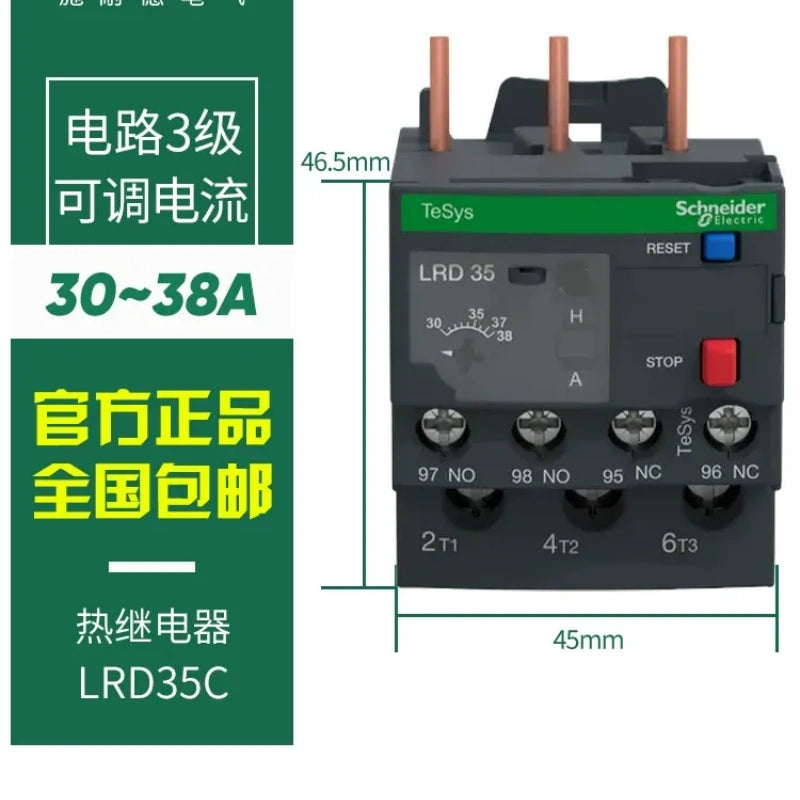

  • Schneider thermal overload relay, LRD relay, LRD35C
  • Schneider thermal overload relay, LRD relay, LRD3353C
  • Schneider thermal overload relay, LRD relay, LRD3355C
  • Schneider thermal overload relay, LRD relay, LRD3357C
  • Schneider thermal overload relay, LRD relay, LRD3359C
  • Schneider thermal overload relay, LRD relay, LRD3361C

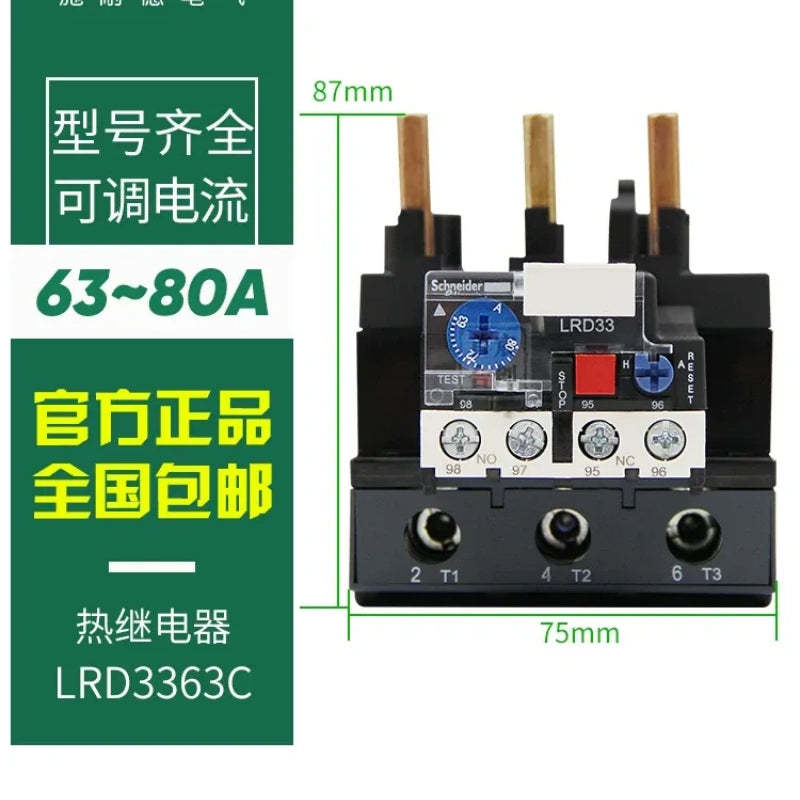

  • Schneider thermal overload relay, LRD relay, LRD3363C

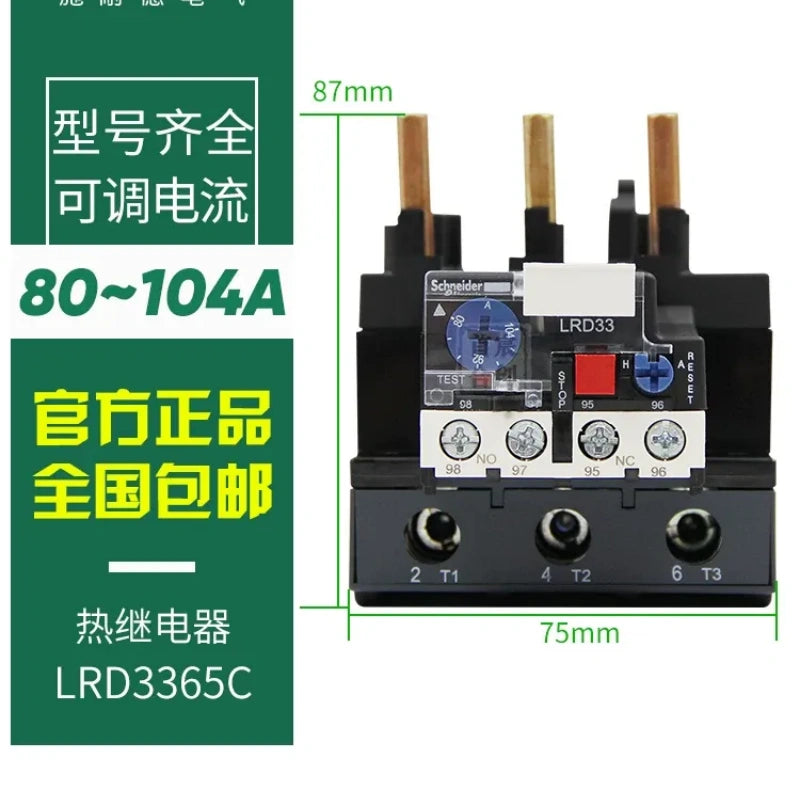

  • Schneider thermal overload relay, LRD relay, LRD3365C
  • Schneider thermal overload relay, LRD relay, LRD10C
  • Schneider thermal overload relay, LRD relay, LRD12C
  • Schneider thermal overload relay, LRD relay, LRD14C
  • Schneider thermal overload relay, LRD relay, LRD16C
  • Schneider thermal overload relay, LRD relay, LAD7B06C
  • Schneider thermal overload relay, LRD relay, LRD01C
1 14

electrical center b2c

Schneider- LRD Series Thermal Overload Relays 0.1A-104A

$36.20 USD
$36.20 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

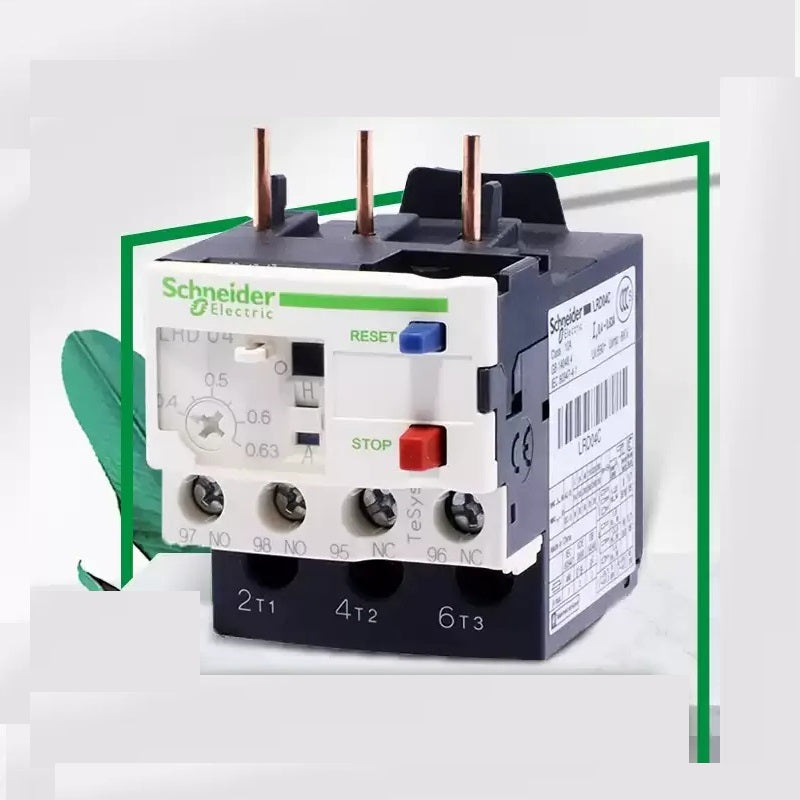

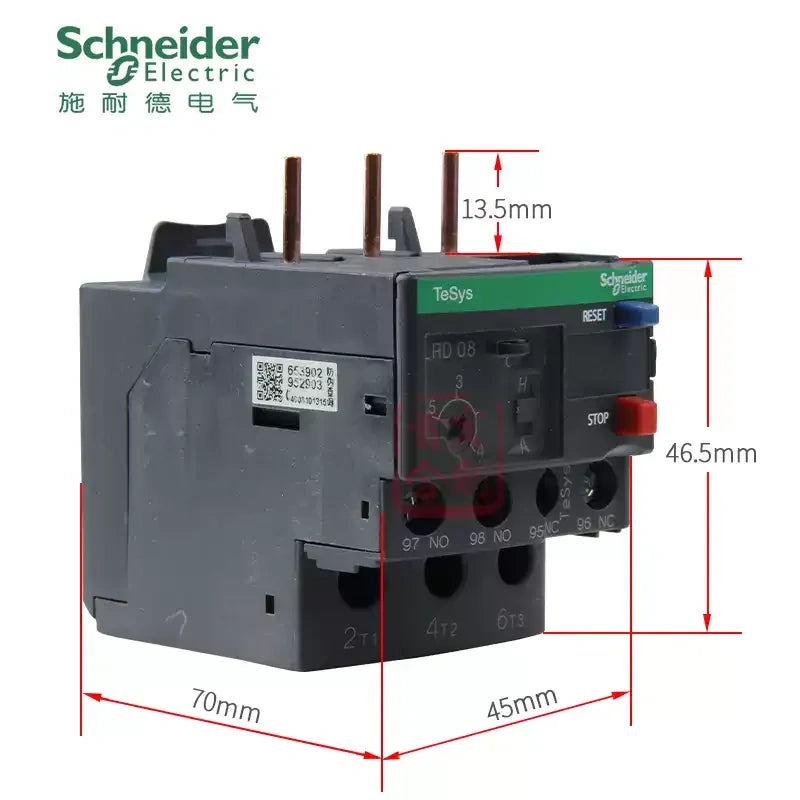

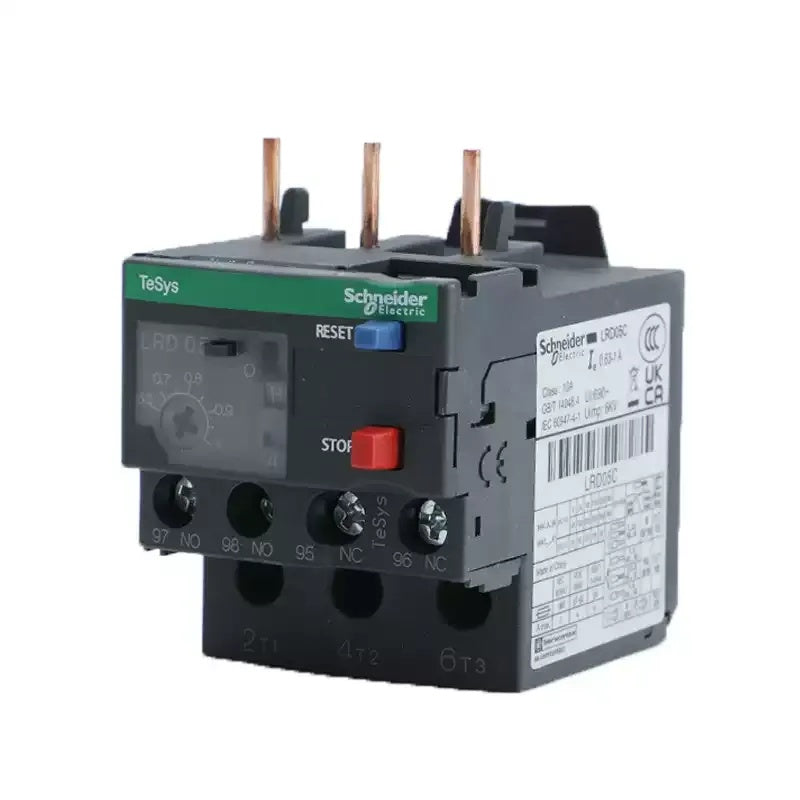

Schneider LRD Thermal Overload Relay, for LC1D Contactor, 0.1A-104A, 3-Pole, 690V Motor Overload Protection Relay



Product Description


Product Name: Schneider LRD Thermal Overload Relay

Brand: Schneider Electric

Compatible Contactors: LC1-D09 ~ D38

Poles: 3-Pole

Rated Voltage: 690V

Adjustable Current Range: 0.1A ~ 104A (Multiple models available)

Trip Class: 10A

Operating Mode: Continuous duty

Temperature Compensation: -20°C ~ 60°C

Mounting: Combined with contactor or standalone mounting

Features:

  • Genuine Schneider Electric quality, reliable thermal protection for motors against overload and phase loss.
  • Wide adjustable current range (0.1A to 104A) to match various motor power ratings.
  • 3-pole design with accurate tripping characteristics to prevent motor damage from overheating.
  • Temperature compensation ensures stable performance across -20°C to 60°C environments.

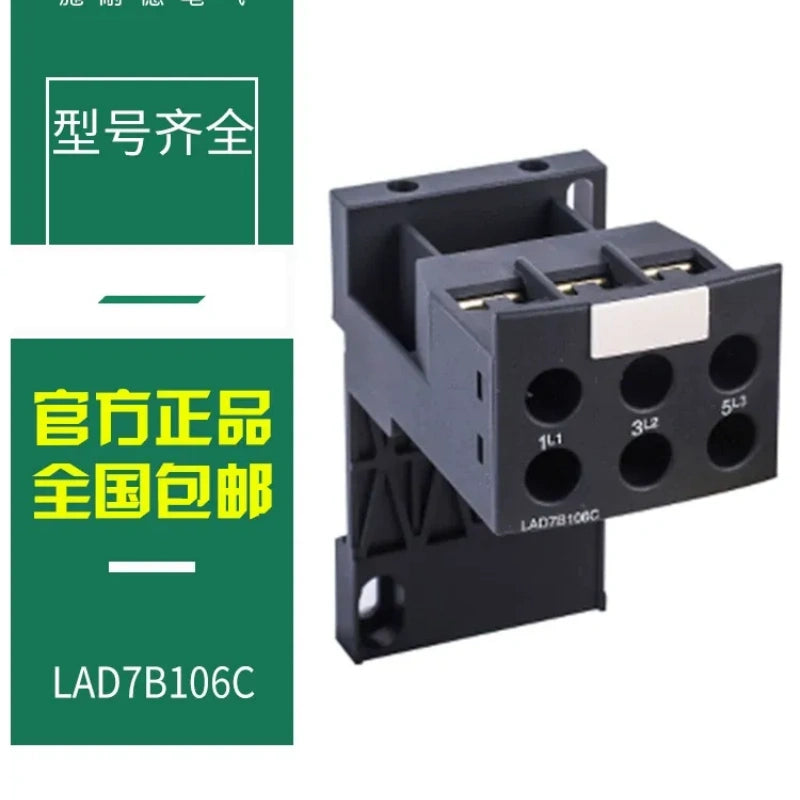

  • Directly mountable to LC1D series contactors for compact installation, or use with LAD7B106C adapter for standalone use.
  • Compliant with international standards, suitable for industrial automation and motor control applications.

Applications:

Motor overload protection, pump control, conveyor systems, HVAC equipment, industrial machinery, and automation control panels.

DATA SHEET

Attribute English
Brand Schneider Electric
Product Type Thermal Overload Relay
Series LRD Series
Compatible Contactor LC1D Series (LC1-D09~D38)
Poles 3-Pole
Rated Voltage 690V
Current Range 0.1A-104A (Models: LRD01C, LRD02C, ..., LRD3365C)
Trip Class 10A
Operating Temperature -20°C ~ 60°C
Mounting Type Contactor Mounted / DIN Rail Mounted (with adapter)
Function Motor Overload & Phase Loss Protection
Certification CE / RoHS
