Schneider LC1-D Series Contactor Coil
Regular price
$16.75 USD
Regular price
Sale price
$16.75 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

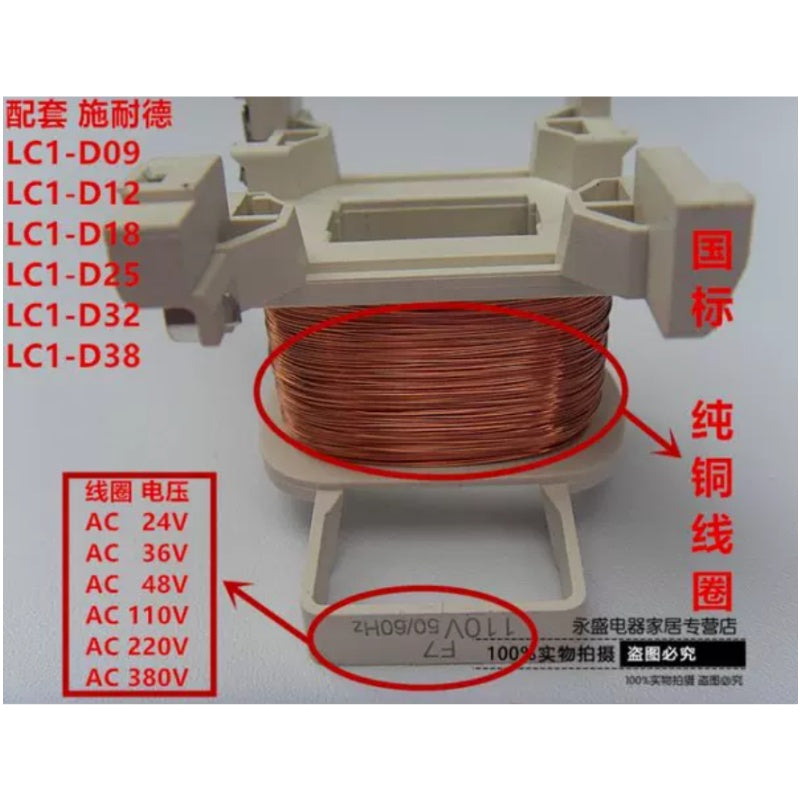

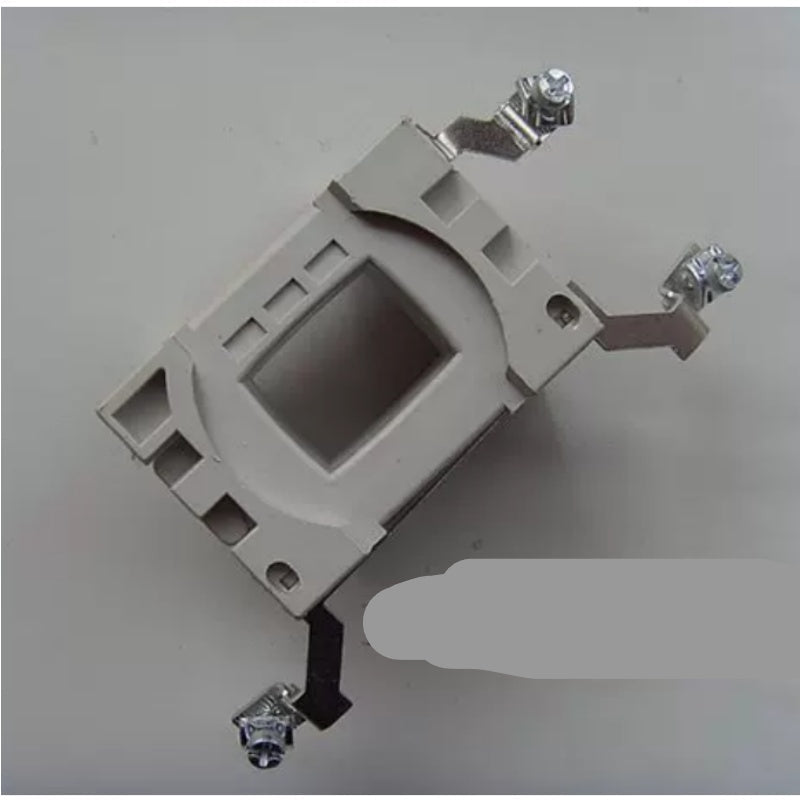

Replacement AC Contactor Coil for Schneider LC1-D09-D12/D18/D25/D32/D38/D40/D50/D65/D80/D95, 24V/36V/48V/110V/220V/380V
1. 核心概述 (Overview)
This replacement contactor coil is designed for Schneider Electric LC1-D9~38, LC1-D40, LC1-D50, LC1-D65, LC1-D80, and LC1-D95 series contactors. Made with high-purity copper wire, it provides stable and reliable operation for your Schneider contactors, available in a full range of AC voltages including 24V, 36V, 48V, 110V, 220V, and 380V. Ideal for repairing or replacing damaged coils in industrial control panels, motor control circuits, and automation systems.
2. 关键特性 (Key Features)
- Full Compatibility: Fits perfectly with Schneider LC1-D9~38,LC1-D40, LC1-D50, LC1-D65, LC1-D80, and LC1-D95 contactors (older generation models).
- Multi-Voltage Options: Supports common AC coil voltages: 24V, 36V, 48V, 110V, 220V, and 380V, meeting diverse control system requirements.
- Pure Copper Construction: High-quality copper wire ensures low resistance, high conductivity, and stable magnetic pull-in performance, reducing overheating and coil burnout risks.
- IEC/Standard Compliance: Manufactured to meet industry safety standards, matching the original coil’s performance specifications.
- Easy Installation: Direct replacement for the original coil, no modifications required, enabling quick and simple on-site maintenance.
- Durable & Reliable: Robust construction with high-temperature-resistant insulation, suitable for continuous operation in industrial environments.
3. 型号解析 (Model Decoding)
| Specification | Core Interpretation |
|---|---|
Compatible Models |
Schneider LC1-D9-38, LC1-D40, LC1-D50, LC1-D65, LC1-D80, LC1-D95 contactors |
AC Coil Voltages |
24V, 36V, 48V, 110V, 220V, 380V (50/60Hz) |
Material |
Pure Copper Wire with High-Temperature Insulation |
4. 典型应用 (Applications)
- Repairing Schneider LC1-D series contactors in motor control circuits
- Industrial automation control panels and PLC systems
- HVAC and building equipment control systems
- Water treatment, conveyor, and pump control applications
- Commercial and industrial power distribution equipment
DATA SHEET
| Attribute | Value |
|---|---|
| Brand | Compatible with Schneider Electric |
| Product Type | Contactor Replacement Coil |
| Compatible Contactors | Schneider LC1-D9-38, LC1-D40, LC1-D50, LC1-D65, LC1-D80, LC1-D95 |
| Available Coil Voltages | AC24V, AC36V, AC48V, AC110V, AC220V, AC380V (50/60Hz) |
| Coil Material | Pure Copper Wire with High-Temperature Insulation |
| Frequency | 50/60Hz |
| Mounting Type | Direct Fit for LC1-D Series Contactors |
| Standards Compliance | IEC 60947-4-1, GB 14048.4 |
| Application | Contactor Repair, Motor Control, Industrial Automation, HVAC, Power Distribution |
