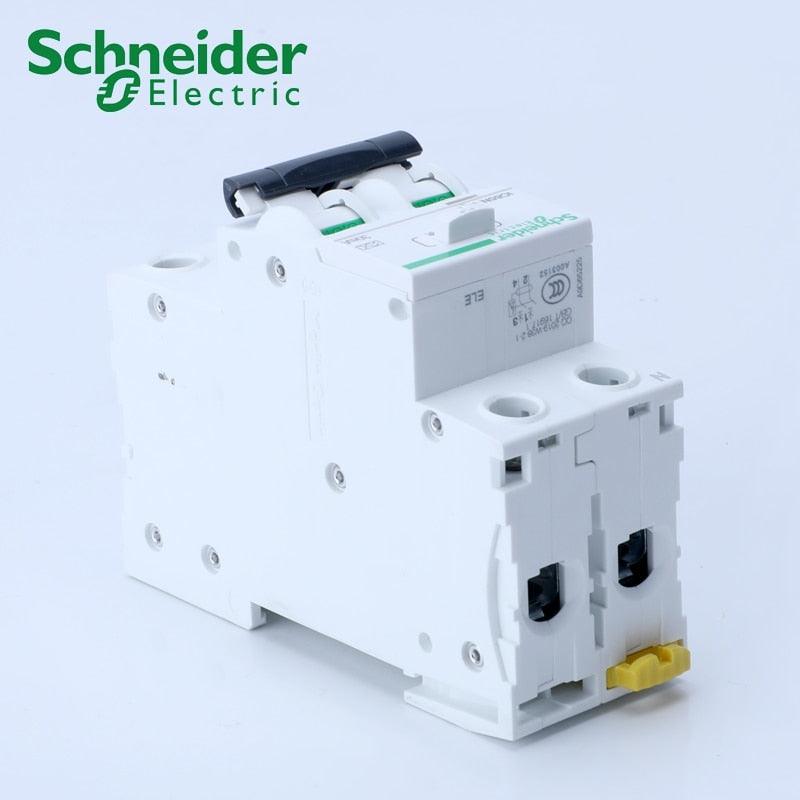

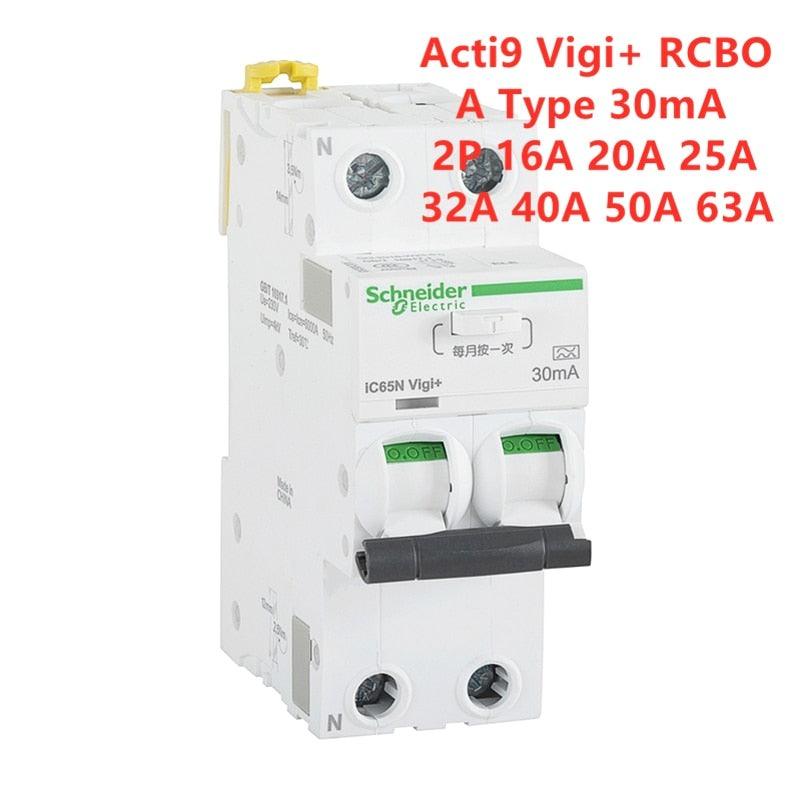

• Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type Residual Current Breaker with Overcurrent Protection.schneider rcbo
  • Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type Residual Current Breaker with Overcurrent Protection.

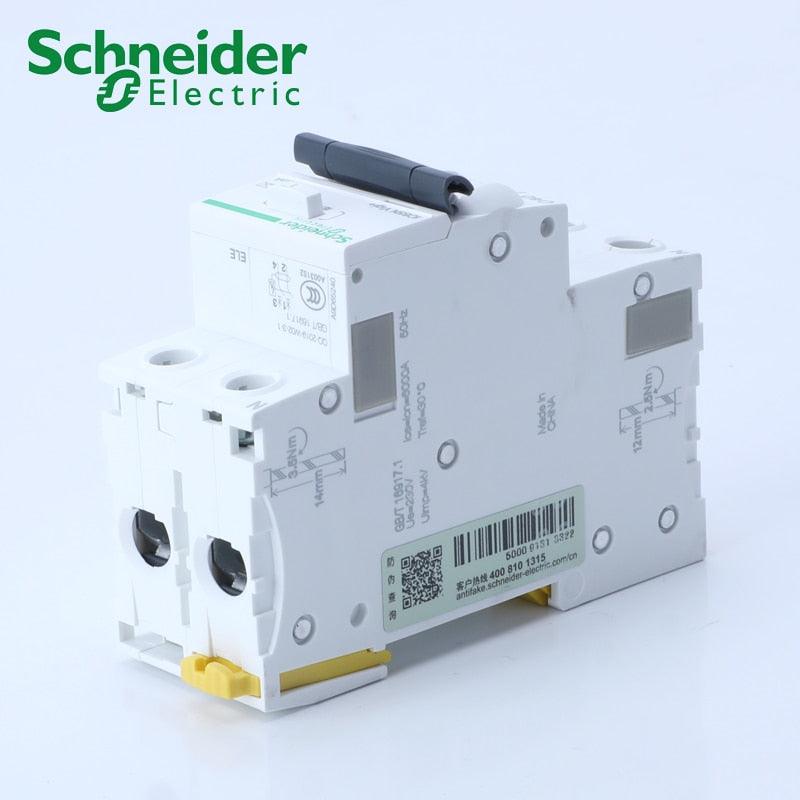

  • Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type Residual Current Breaker with Overcurrent Protection.

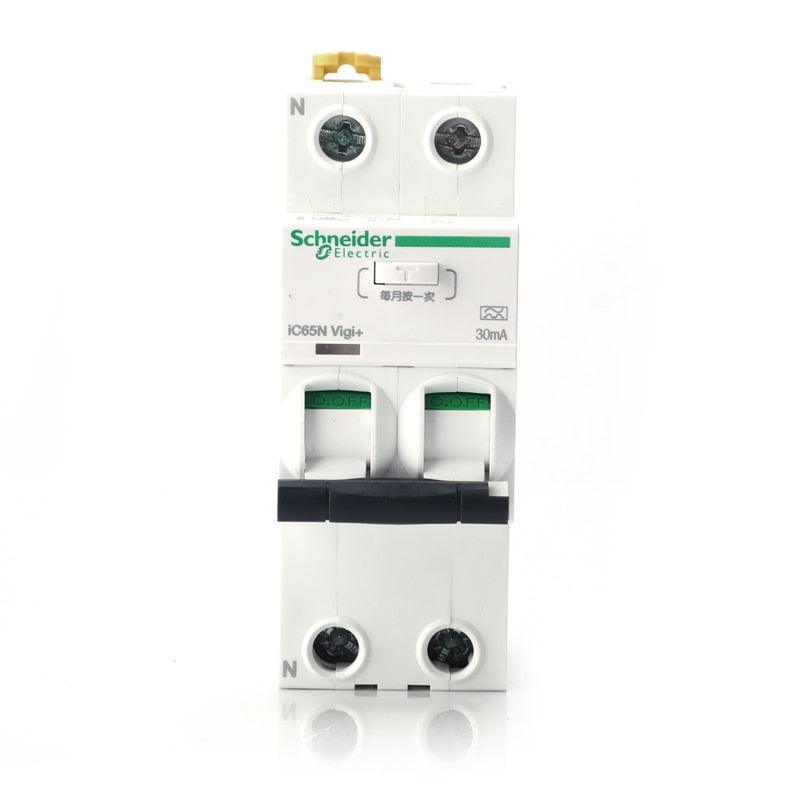

  • Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type Residual Current Breaker with Overcurrent Protection.

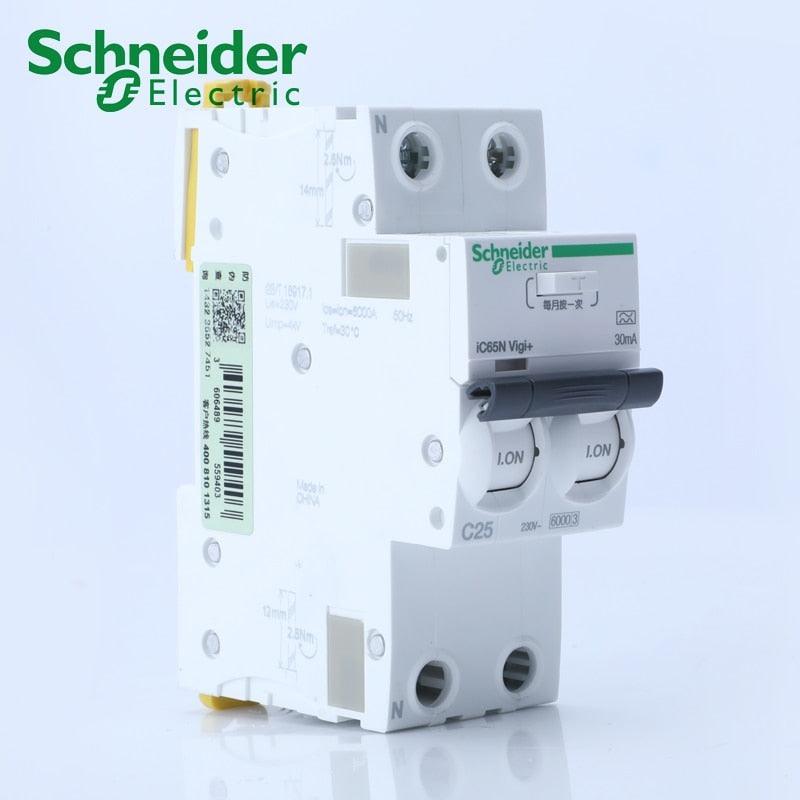

  • Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type Residual Current Breaker with Overcurrent Protection.

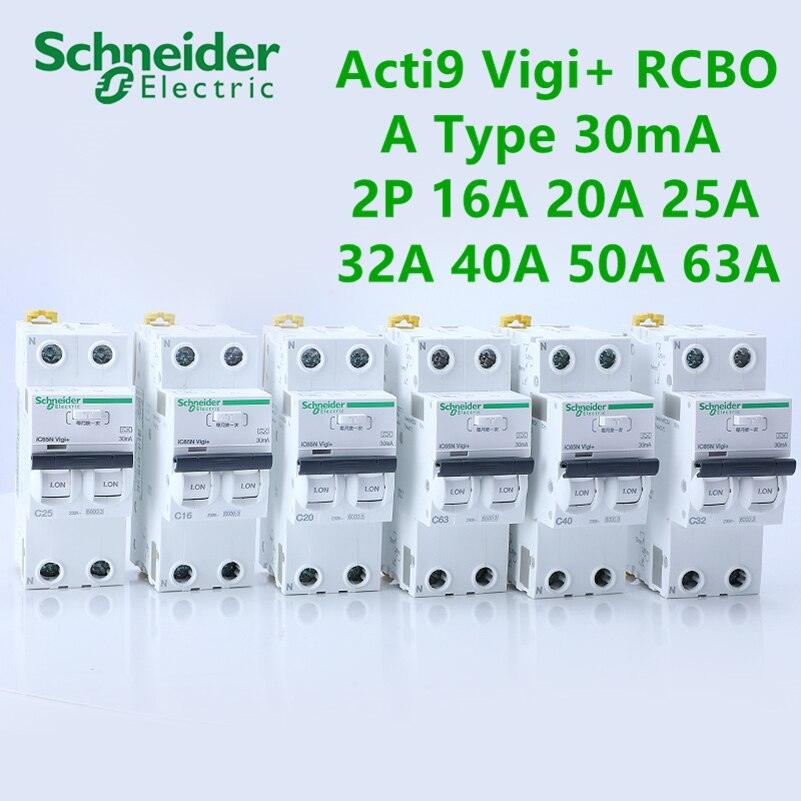

  • Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type Residual Current Breaker with Overcurrent Protection.schneider acti 9 rcbo
1 7

electrical center b2c

Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type

$62.78 USD
$62.78 USD
Sale Sold out
Shipping calculated at checkout.
Poles Number
Rated Current

schneider rcbo

schneider acti 9 rcbo

Schneider Electric Acti9 Vigi+ RCBO 2P 30mA A Type Residual Current Breaker with Overcurrent Protection 16/20/25/32/40/50/63A

Product Basic Info
  • Brand: Schneider Electric
  • Series: Acti9 Vigi+
  • Model: iC65N Vigi+ RCBO (A9D652xx)
  • Product Type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
  • Poles: 2P (2 Pole)
  • Rated Current (In): 16A / 20A / 25A / 32A / 40A / 50A / 63A
  • Rated Voltage (Ue): 230V AC, 50/60Hz
  • Frequency: 50/60 Hz
Protection & Tripping
  • Leakage Sensitivity (IΔn): 30mA
  • Leakage Type: Type A (pulsating DC + AC leakage)
  • Tripping Curve: C Curve (5–10 In magnetic trip)
  • Trip Speed: Instantaneous
  • Breaking Capacity (Icn): 6kA (EN/IEC 61009-1)
  • Limiting Class: Class 3
Construction & Installation
  • Mounting: 35mm DIN Rail
  • Module Width: 4 modules (≈36mm, 9mm pitch)
  • Dimensions (H×W×D): 87 × 36 × 73.5 mm
  • Insulation Voltage (Ui): 500V AC
  • Impulse Withstand (Uimp): 4kV
  • Protection Degree: IP20 (IP40 in enclosure)
  • Operating Temperature: -25°C ~ +60°C (Type A)
Standards & Approvals
  • Compliance: EN/IEC 61009-1, GB/T 16917.1
  • Functions: Overload, short-circuit, earth leakage protection
Part Number Examples (2P 30mA Type A, C Curve)
  • 16A: A9D65216
  • 20A: A9D65220
  • 25A: A9D65225
  • 32A: A9D65232
  • 40A: A9D65240
  • 50A: A9D65250
  • 63A: A9D65263
