Schneider Electric

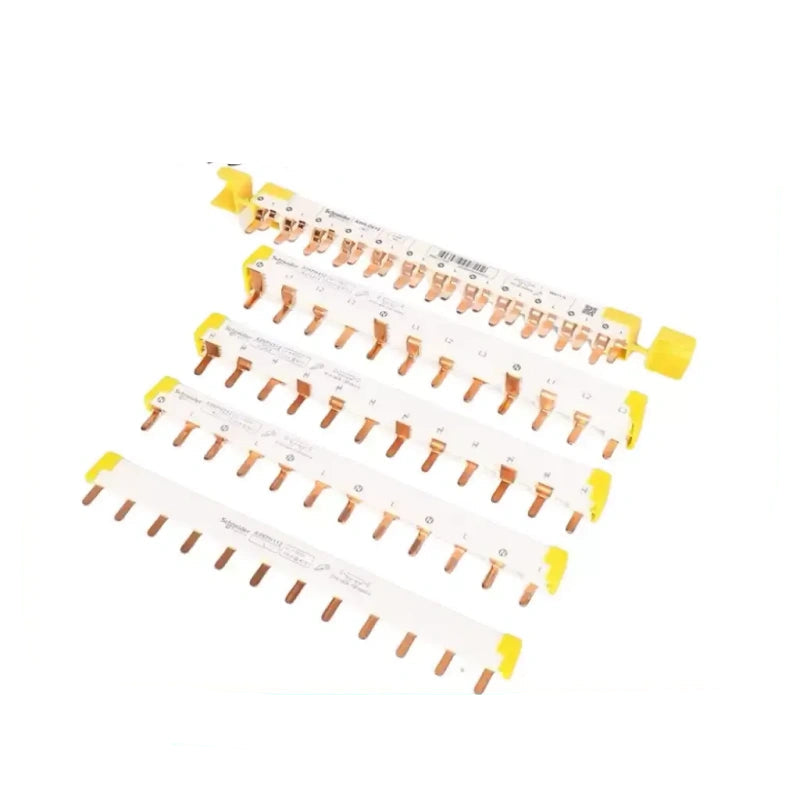

Schneider Electric Acti 9 Series Comb Busbar

$19.90 USD
$19.90 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.
Product Basic Info
  • Brand: Schneider Electric
  • Series: Acti9 A9X / A9H Busbar Accessories
  • Product Type: Comb-type Busbars (Terminal Blocks) + End Caps + Insulated Connectors
  • Poles: 1P / 2P / 3P / 4P / 1P+N
  • Cross-Section Sizes: 12×18mm / 24×18mm
  • Color: Yellow / White

Busbar Specifications

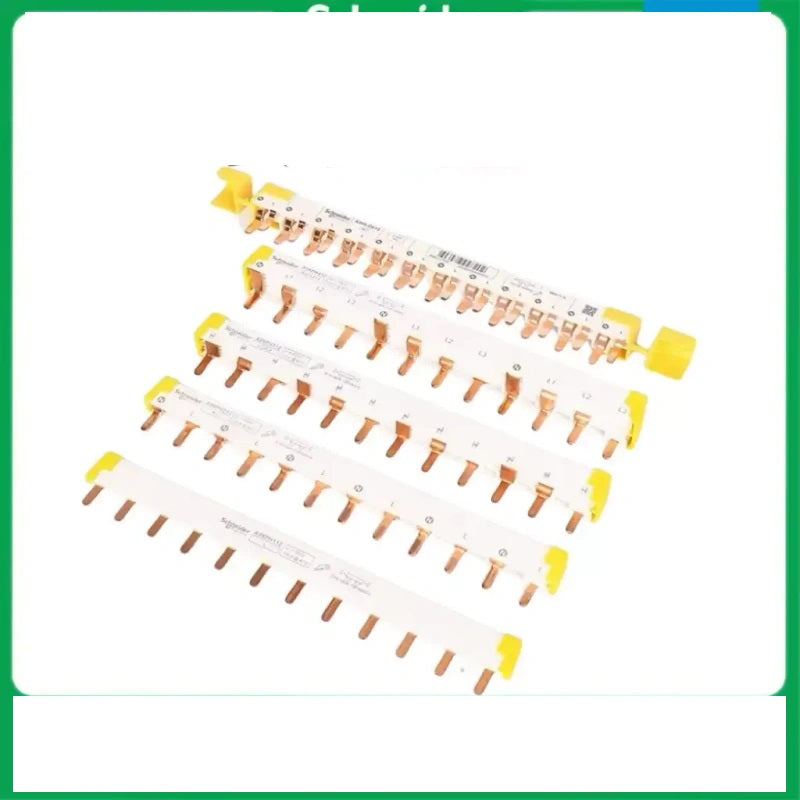

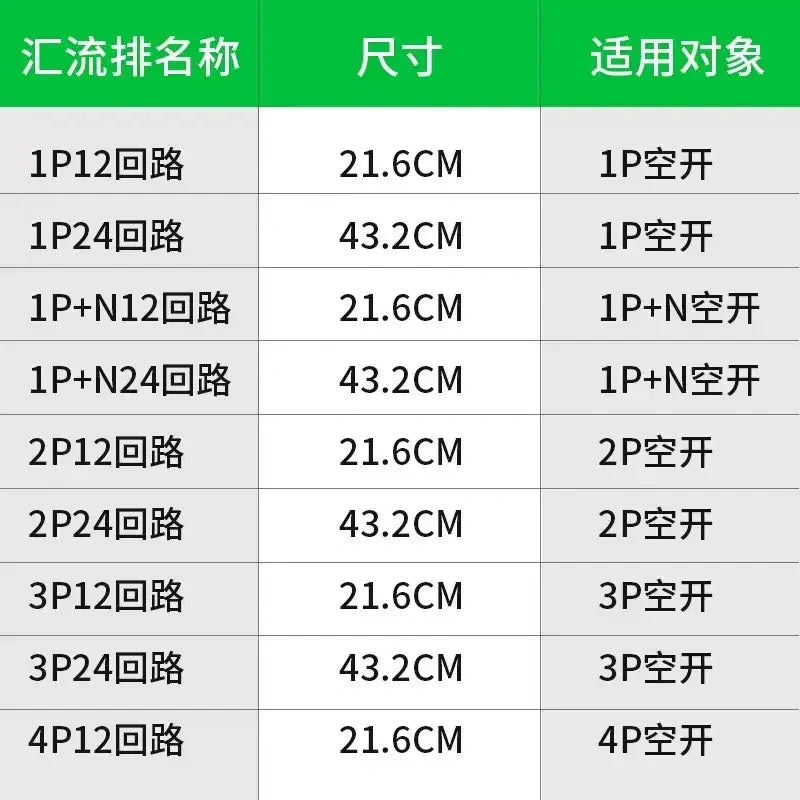

Part Number Type Poles Size Application

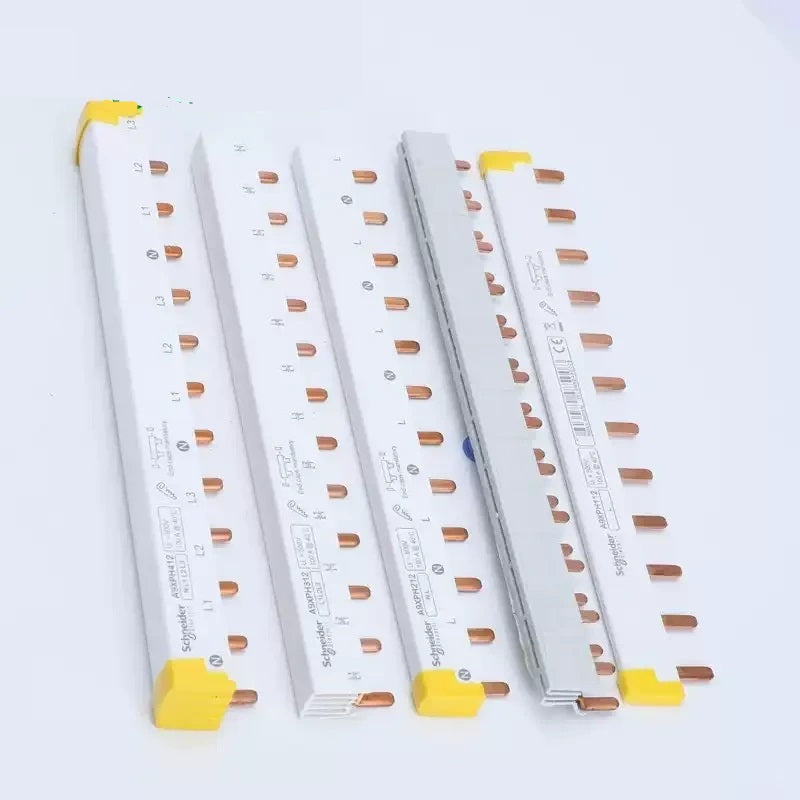

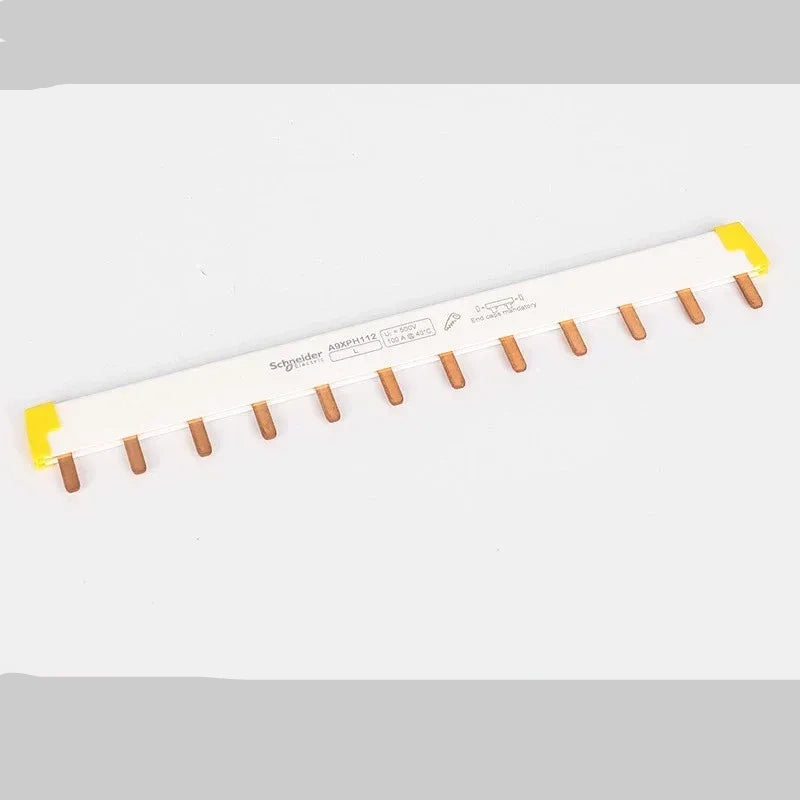

A9XPH112 Comb Busbar 1P 12×18mm For 1P MCB/RCBO

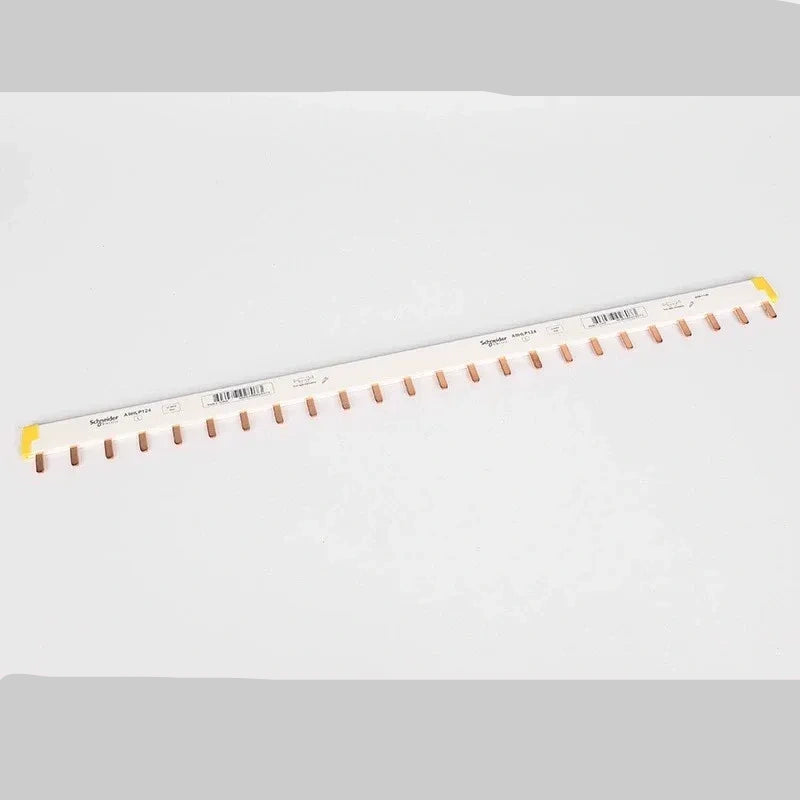

A9HLP124 Comb Busbar 1P 24×18mm For 1P MCB/RCBO (higher capacity)

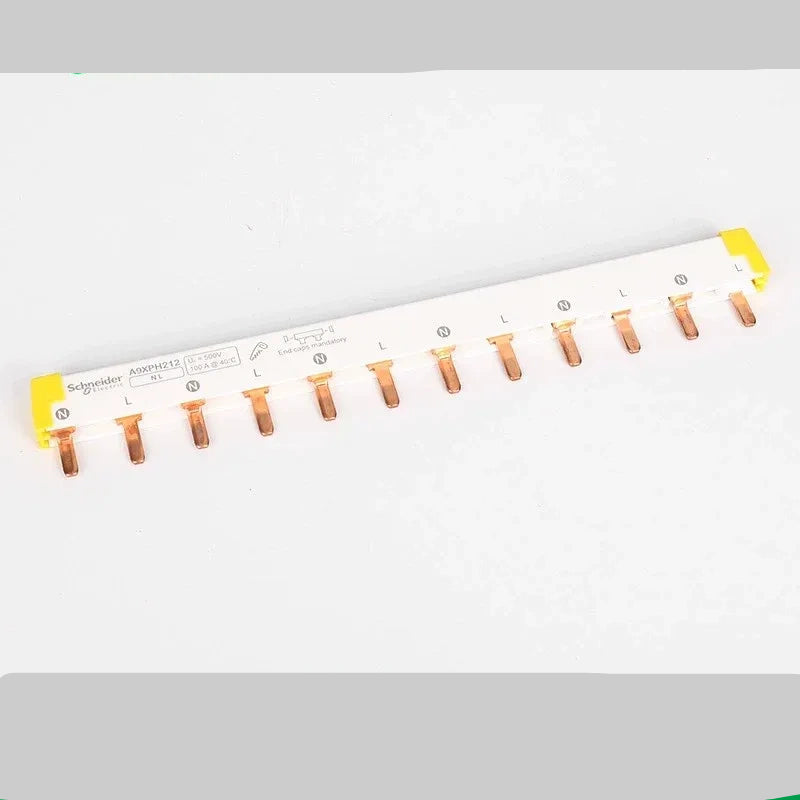

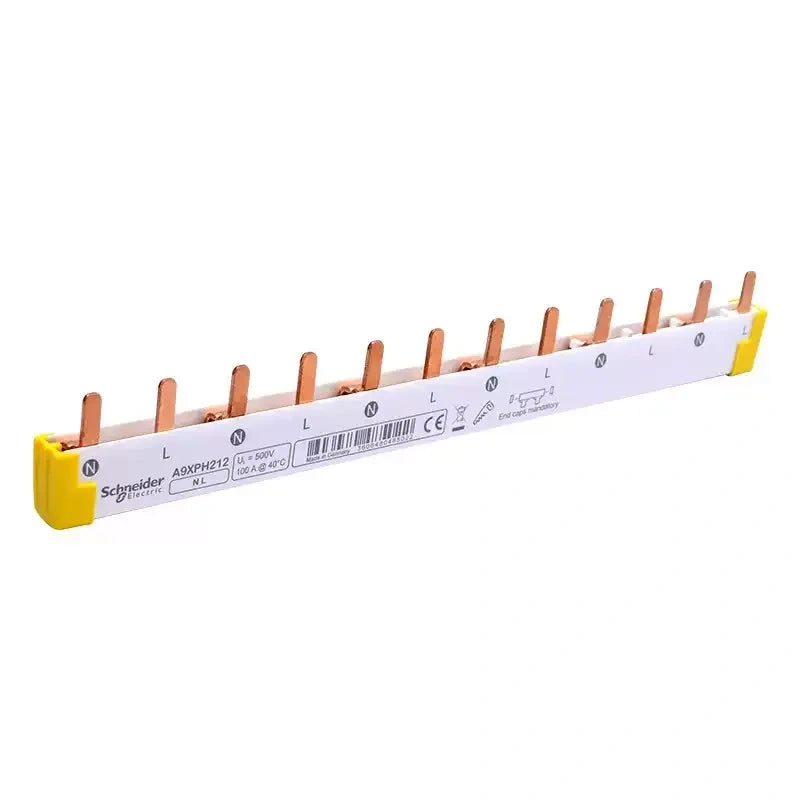

A9XPH212 Comb Busbar 2P 12×18mm For 2P MCB/RCBO

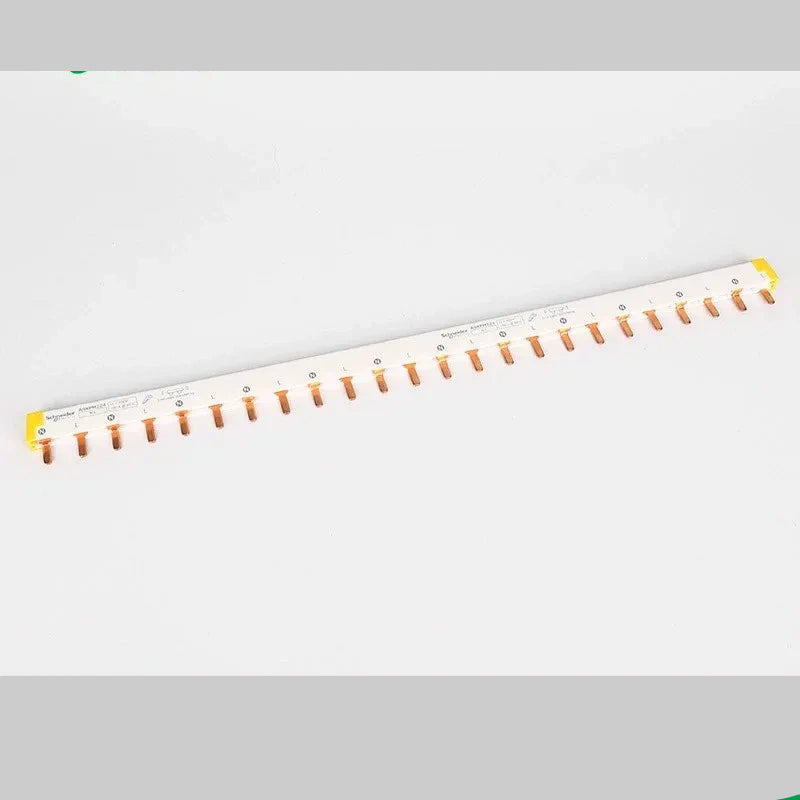

A9XPH224 Comb Busbar 2P 24×18mm For 2P MCB/RCBO (higher capacity)

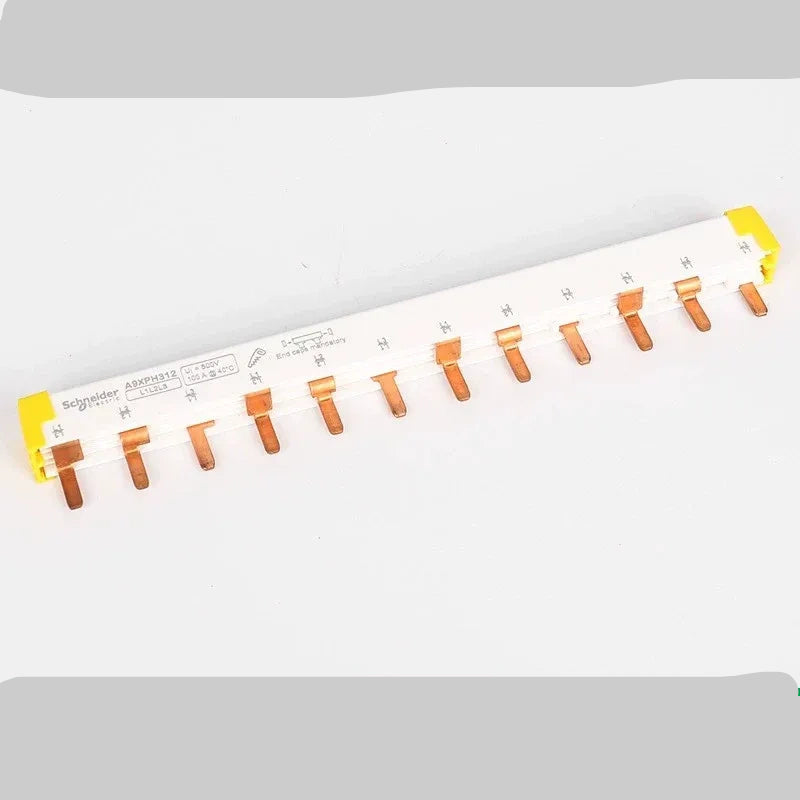

A9XPH312 Comb Busbar 3P 12×18mm For 3P MCB/RCBO

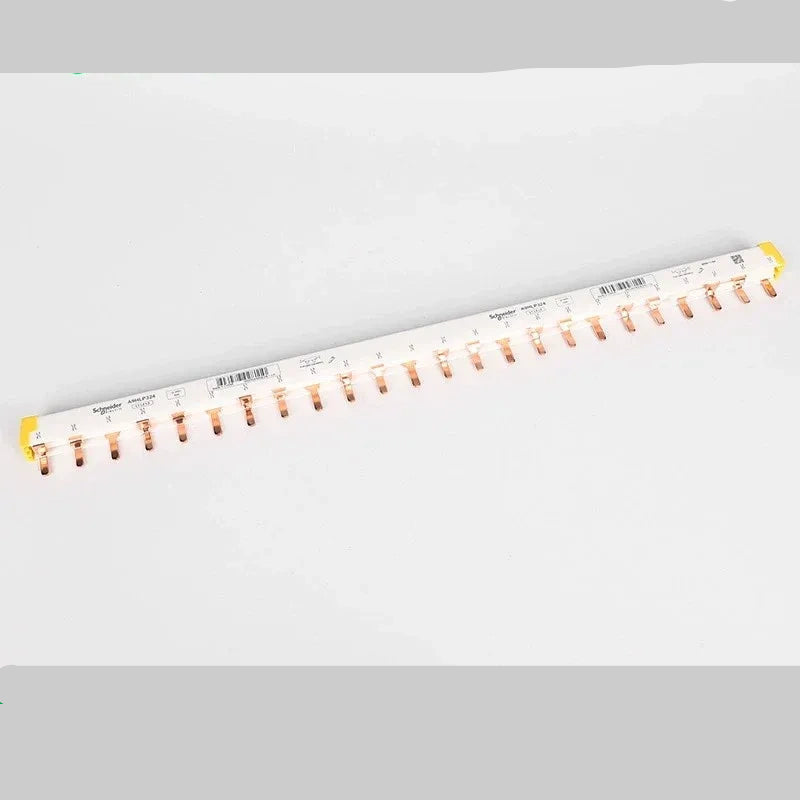

A9HLP324 Comb Busbar 3P 24×18mm For 3P MCB/RCBO (higher capacity)

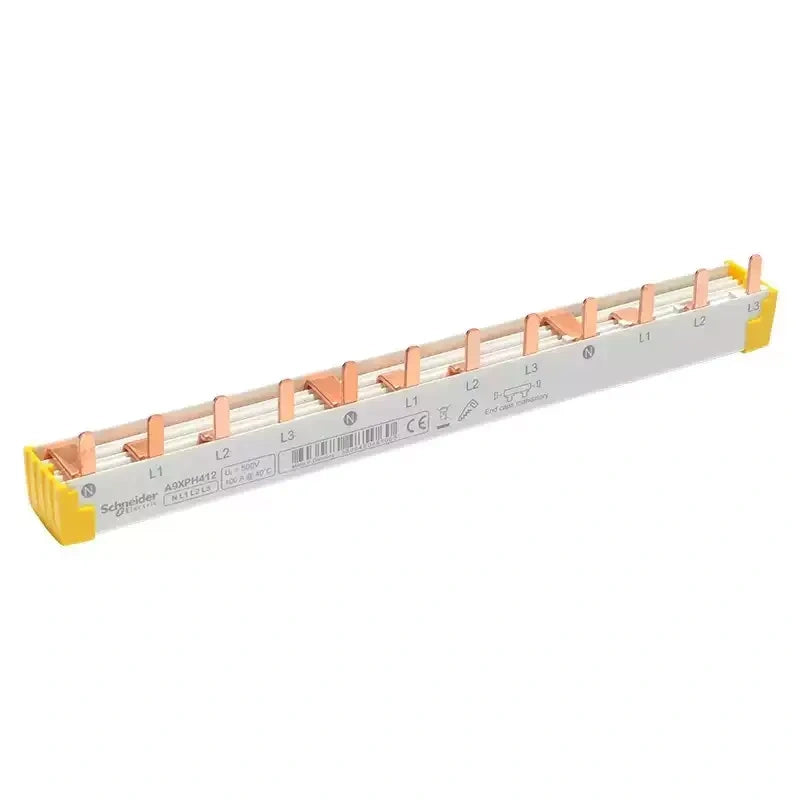

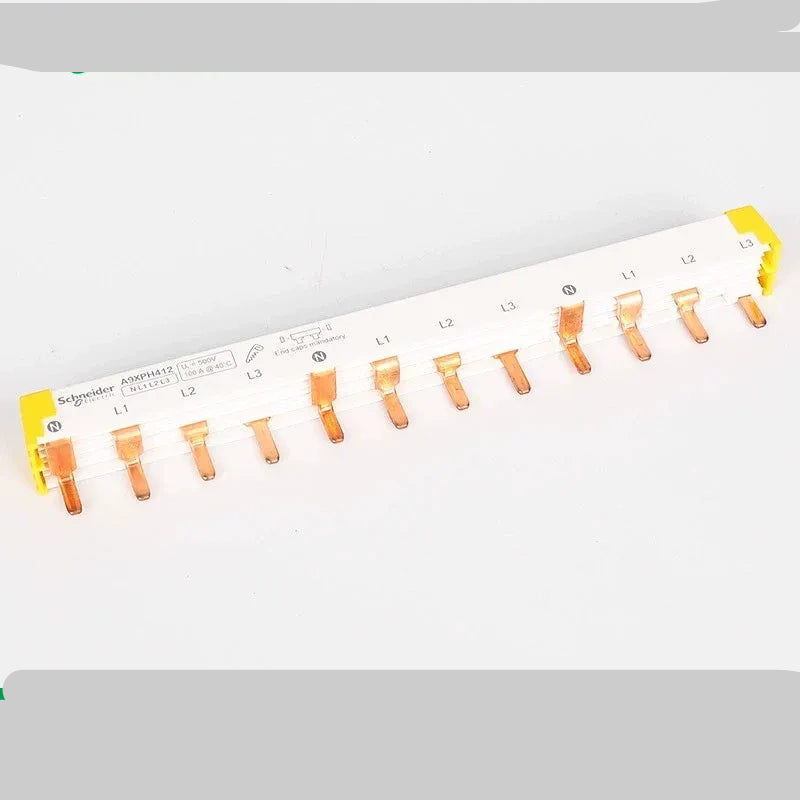

A9XPH412 Comb Busbar 4P 12×18mm For 4P MCB/RCBO

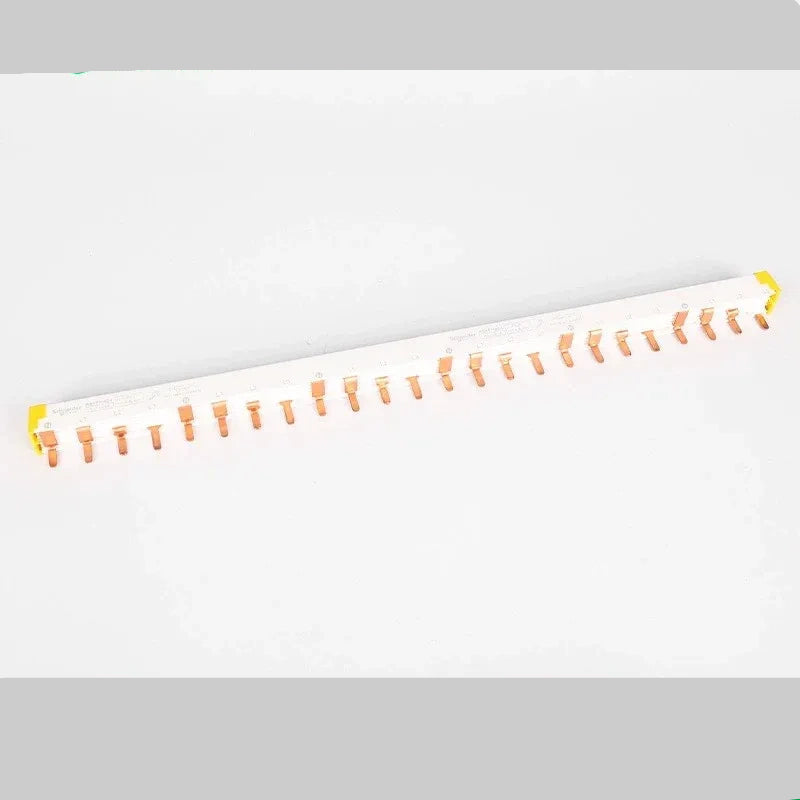

A9XPH424 Comb Busbar 4P 24×18mm For 4P MCB/RCBO (higher capacity)

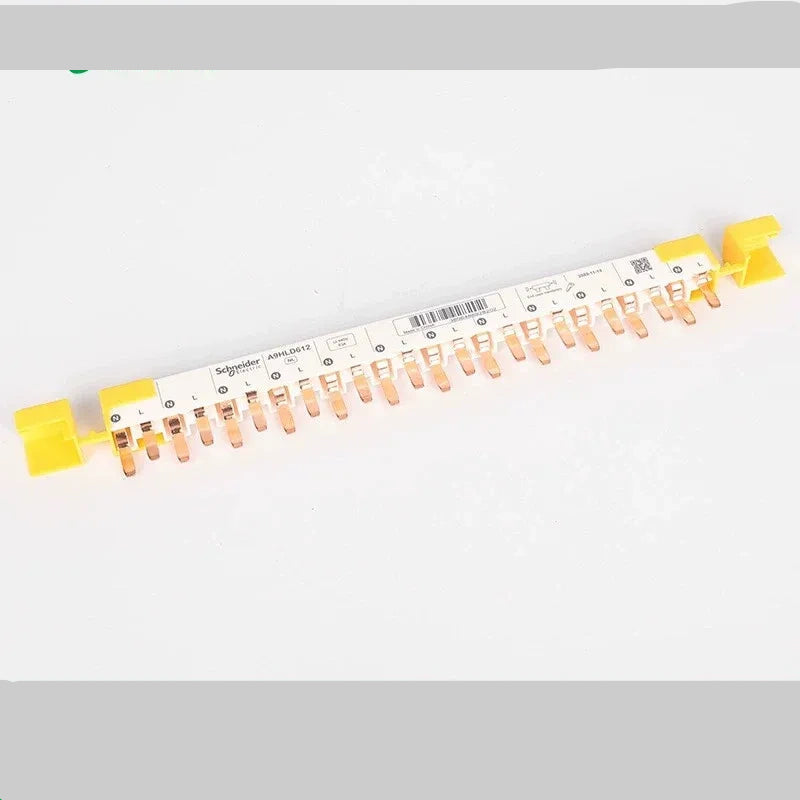

A9HLD612 Comb Busbar 1P+N 12×18mm New style 1P+N double in/out

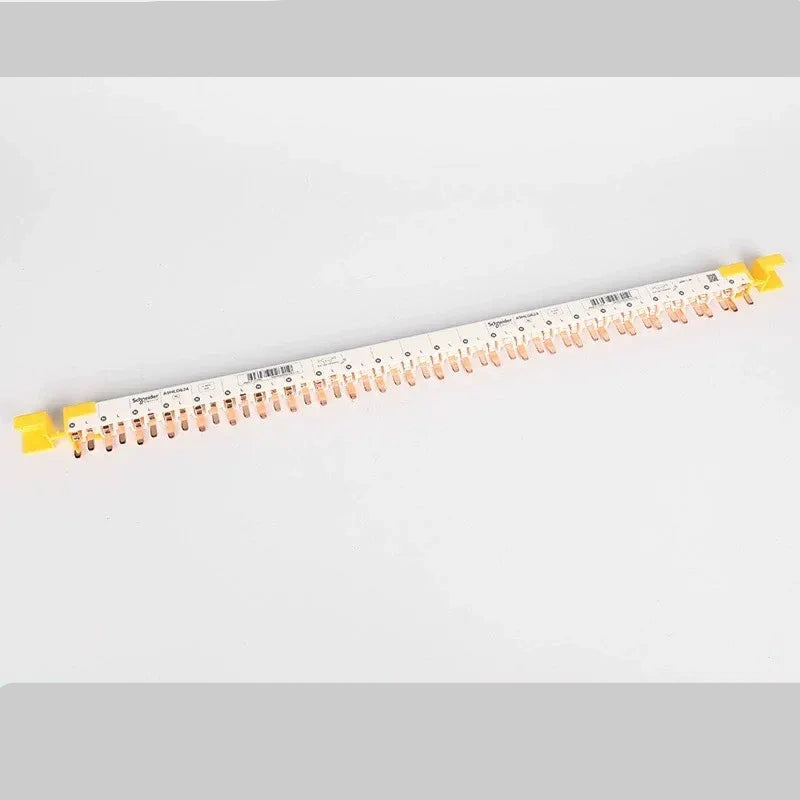

A9HLD624 Comb Busbar 1P+N 24×18mm New style 1P+N double in/out (high)



End Cap Specifications

Part Number Type Poles Quantity/Pack

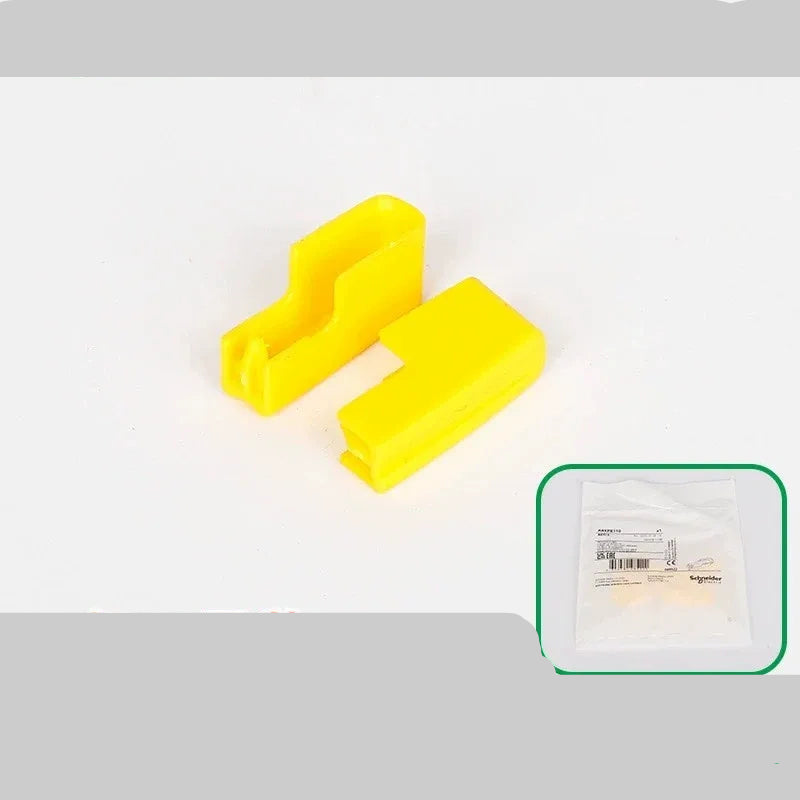

A9XPE110 Busbar End Cap 1P 10 pcs/pack

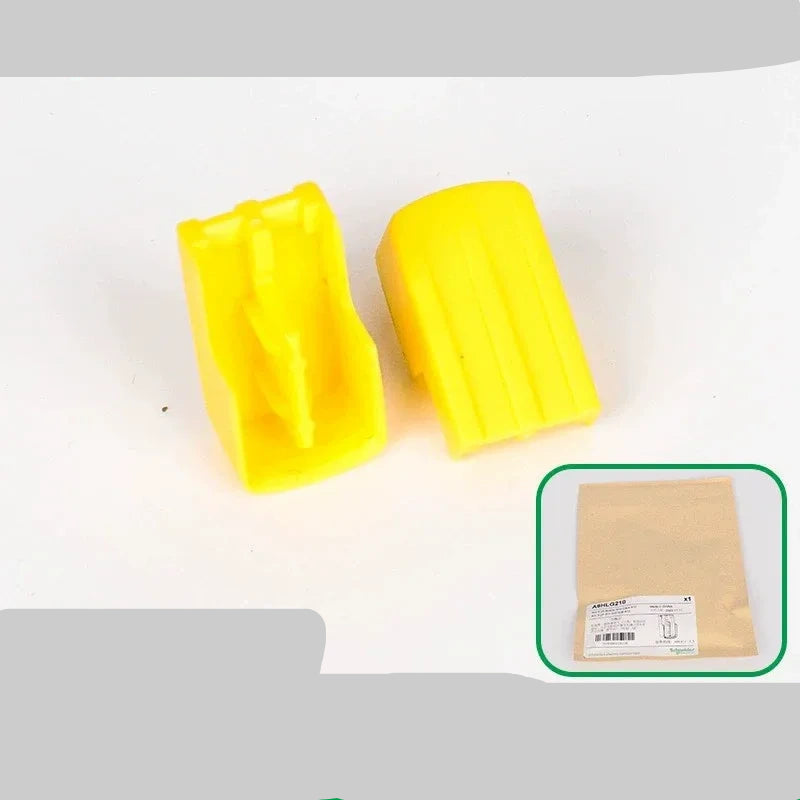

A9HLG210 Busbar End Cap 2P 10 pcs/pack

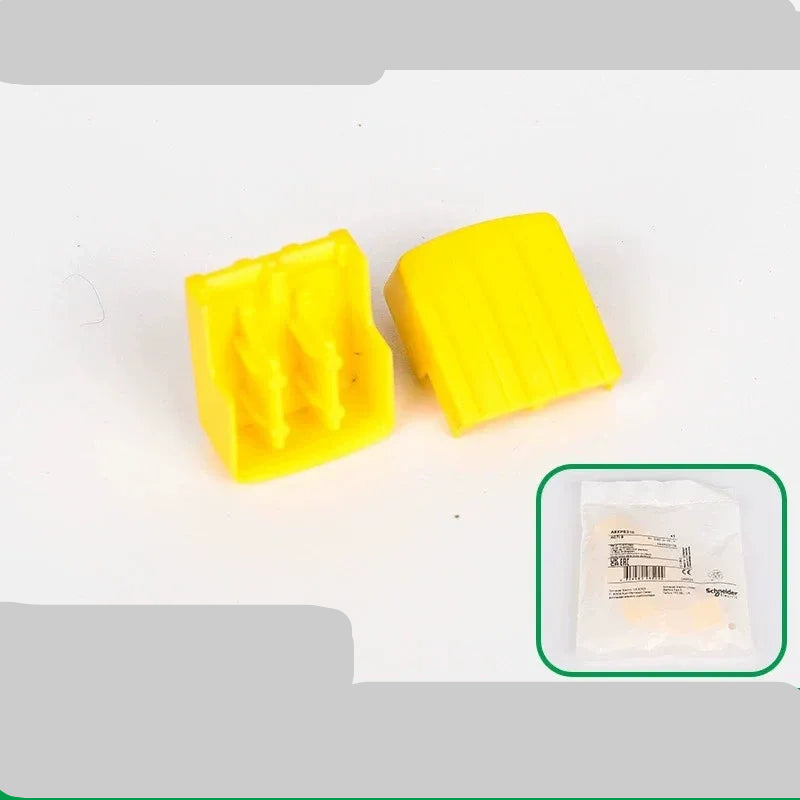

A9XPE310 Busbar End Cap 3P 10 pcs/pack

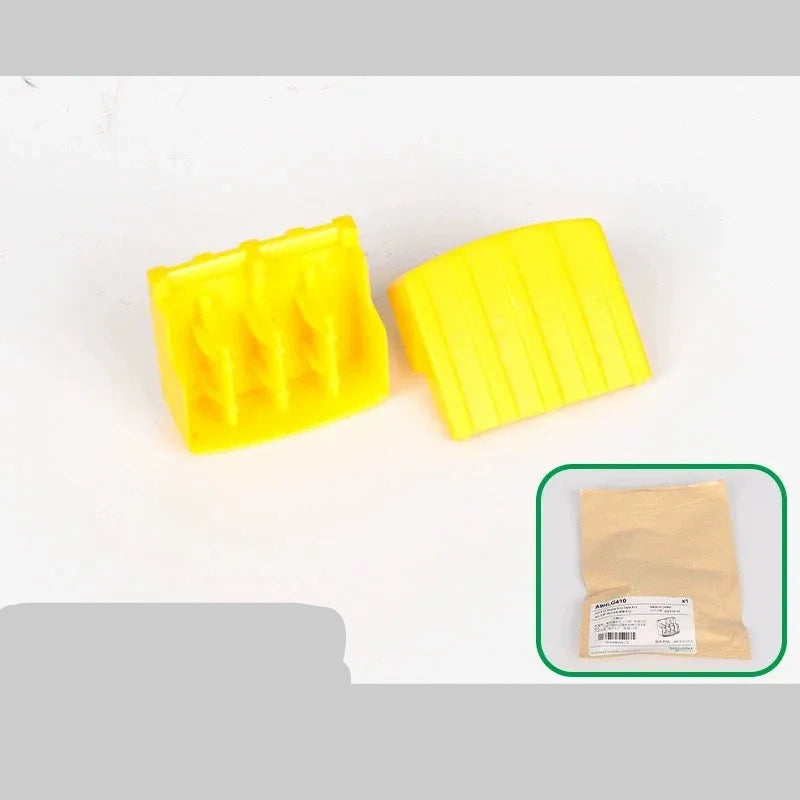

A9HLG410 Busbar End Cap 4P 10 pcs/pack



Connector Specifications

Part Number Type Quantity/Pack

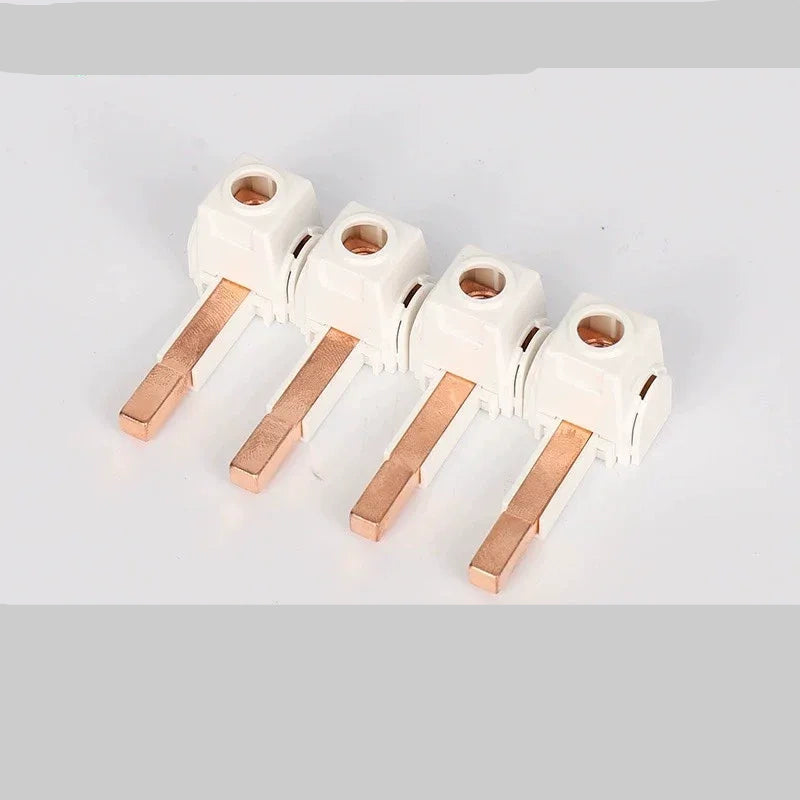

A9HLDM04 Insulated Connector 4 pcs/pack



General Technical Parameters
  • Material: Copper busbar with PVC insulation
  • Insulation Class: Class B
  • Rated Voltage: 400V AC
  • Rated Current: Up to 63A (12×18mm) / up to 100A (24×18mm)
  • Operating Temperature: -5°C ~ +60°C
  • Mounting: Compatible with standard 35mm DIN rail
  • Compliance: IEC/EN 60947-7-1
Core Features
  • Compact comb-type design simplifies multi-pole circuit connections
  • Available in 1P/2P/3P/4P/1P+N configurations for various applications
  • End caps ensure safe insulation of unused terminals
  • Insulated connectors provide secure, shock-proof wiring
  • Compatible with Schneider Acti9 series MCB/RCBO/RCCB devices
