SPECIFICATIONS

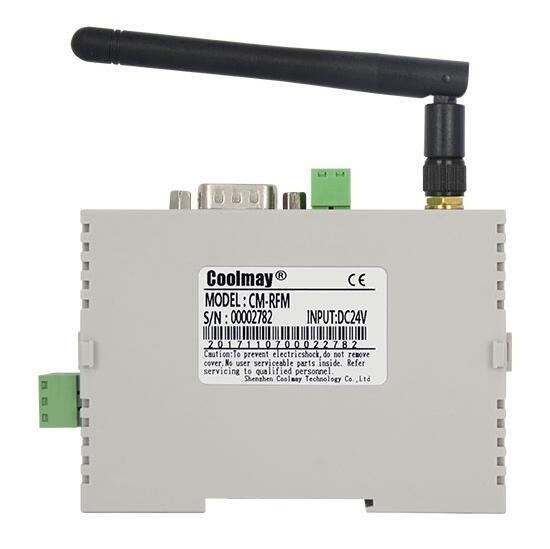

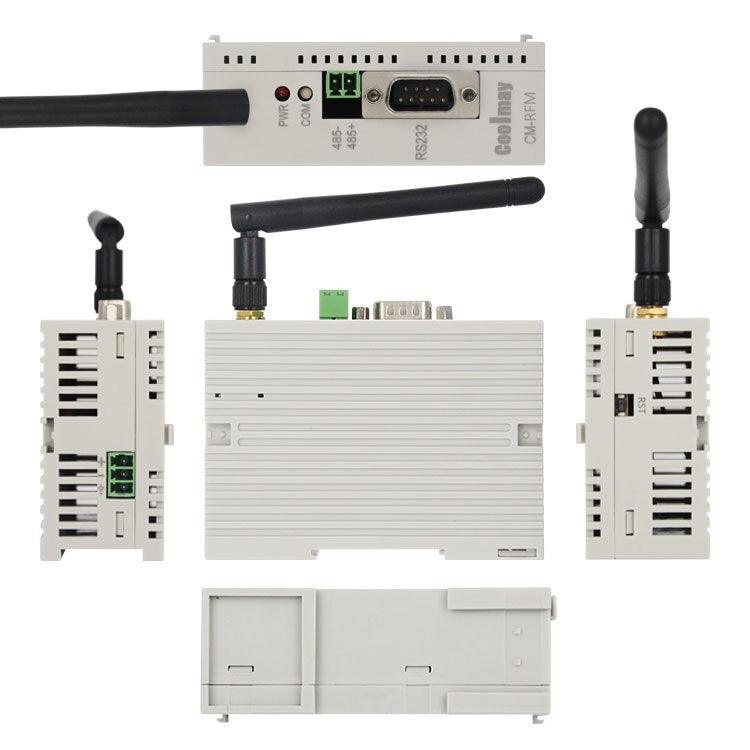

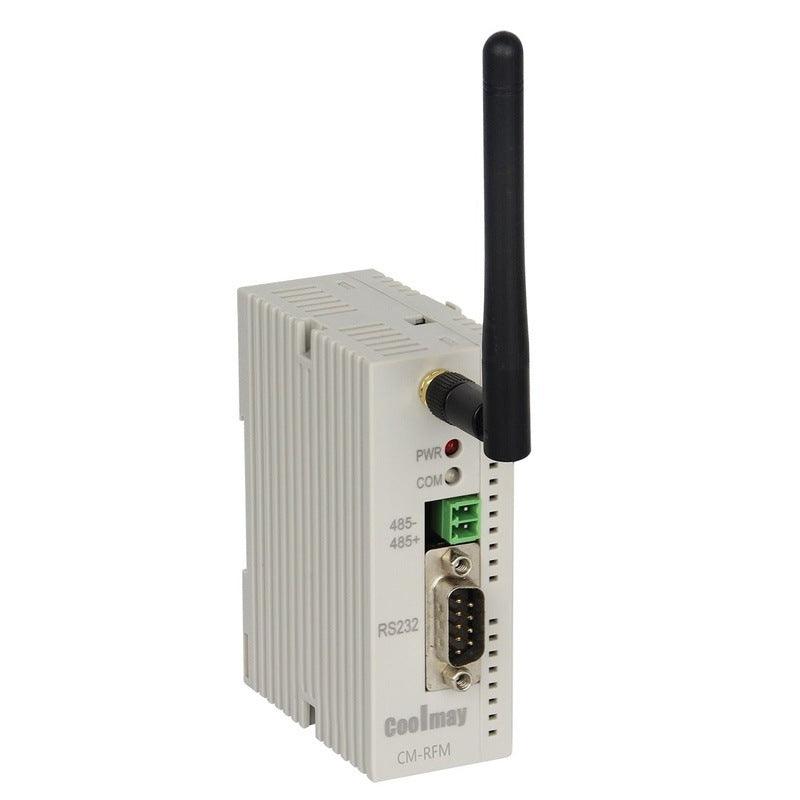

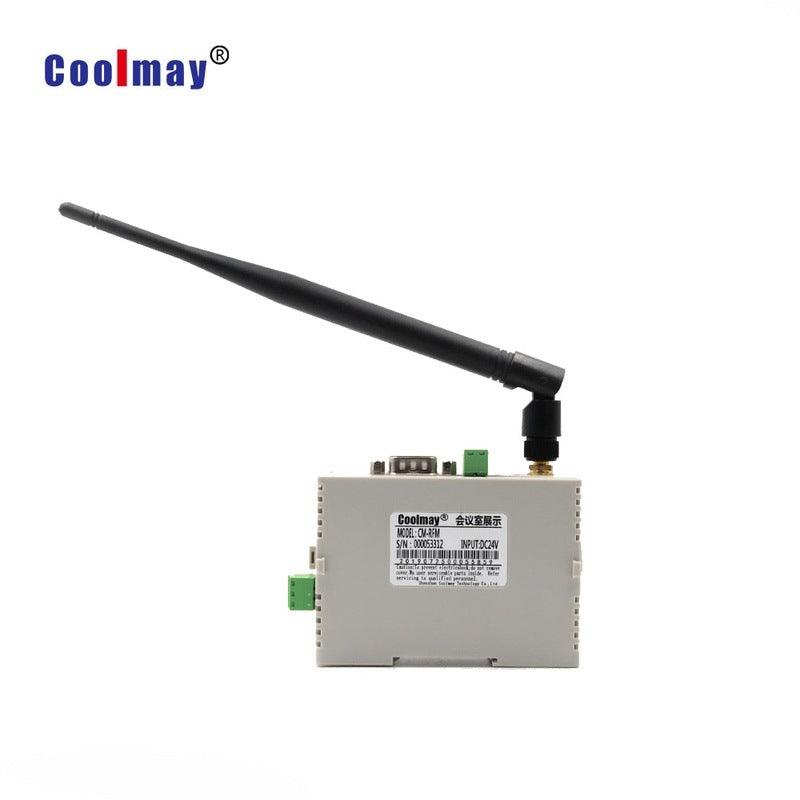

Radio frequency module CM-RFM for plc automation industrial
Wiring method: Pluggable terminals
Transmission rate: 1-100Kbps
Transmission power: Maximum 20dBm(100mw), 9 adjustable power available to choose
Transmission distance: 1-2kilometers @10kbps,20dBm, open sapce
Serial port speed: up to 115200bps
Receiver sensitivity: -114dBm(@10Kbps,dev=25kHz,BER<0.1%)
Origin: CN(Origin)
Motor Type: AC Motor
Modulation way: GFSK
Model Number: CM-RFM
Frequency Range: 430-450Mhz
Channel spacing: 150kHz
Certification: CE
Cache space: Dual-256bytes
Brand Name: Coolmay
Applicatio: Together with plc
Radio frequency module CM-RFM for plc automation industrial
Features:
1. Highly integrated half-duplex micro-power wireless data high-performance RF module, serial device can be easily realized in a long distance and more
Serial port device/computer (host computer) communication;
2. Completely replace the wired cable, which can realize communication between serial device (PLC/HMI/meter, etc.) and computer (host computer) or serial device;
3. Cross-regional connection, easy to control remote serial devices (PLC/HMI/meters, etc.) at home or in the company, avoiding troubles;
4. This product is more convenient to use with the Coolmay PLC/PLC integrated machine (can be controlled by mobile APP).
