PWM DC Brushed Motor Speed Controller Dimmer Module 1.8V~90V 2A~60A
Regular price
$12.30 USD
Regular price
$17.10 USD
Sale price
$12.30 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
PWM DC Brushed Motor Speed Controller Dimmer Module 1.8V~90V 2A~60A Variable Speed Regulator for DC Motor, LED Light Strip, Aquarium Water Pump with Optional Digital Display
Product Overview

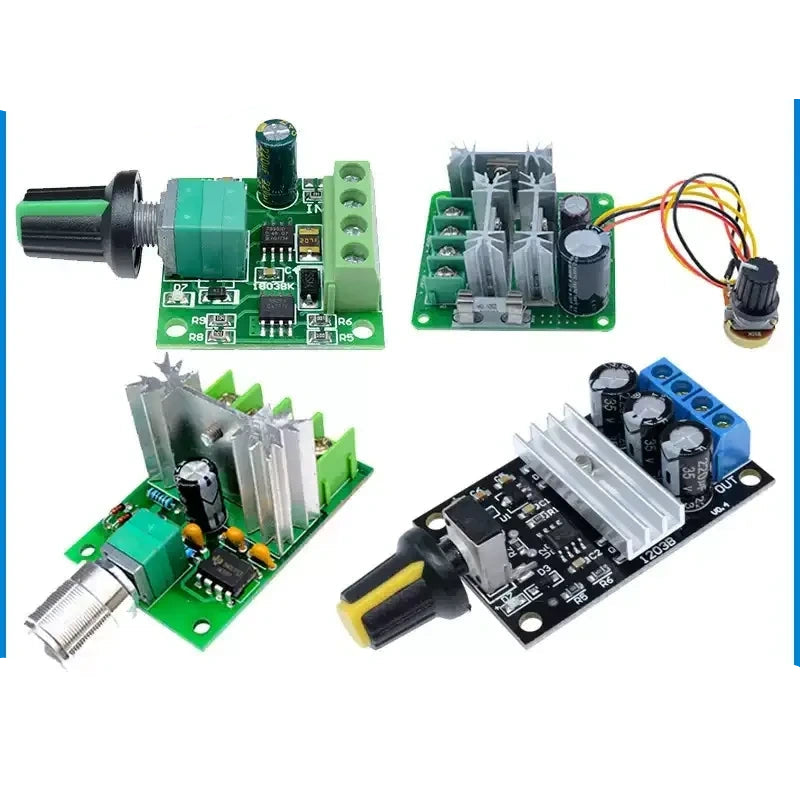

This series PWM DC speed control modules cover wide voltage range from DC1.8V~90V and rated current from 2A up to 60A, multiple specifications for diversified application. It works perfectly for brushed DC motor speed regulation as well as LED strip brightness dimming, aquarium water pump flow control, fan speed adjustment. Part versions adopt current-limiting control mode, some models equip digital display to real-time show duty cycle. Built-in linear rotary potentiometer with optional power on/off switch, stepless adjustable output from 0%~100% duty cycle.
Core Features
- Wide voltage coverage: DC1.8V/6V/9V/12V/24V/28V/30V/36V/50V/60V/90V optional
- Current options: 2A/3A/3.5A/6A/8A/15A/20A/30A/40A/60A available, part models with continuous & peak current parameter
- Two control type: Voltage regulation / Current limiting regulation (marked version only for current control, cannot be used as voltage regulator)
- Optional digital display function for real-time duty cycle reading
- Wide application: Brushed DC motor, LED light strip, cooling fan, aquarium water pump, small DC equipment dimming & speed control
- Reverse polarity protection available on partial models to avoid damage from wrong positive/negative wiring
Important Notice
??? Not compatible with BLDC brushless motor, brushless cooling fan
Full Spec List:

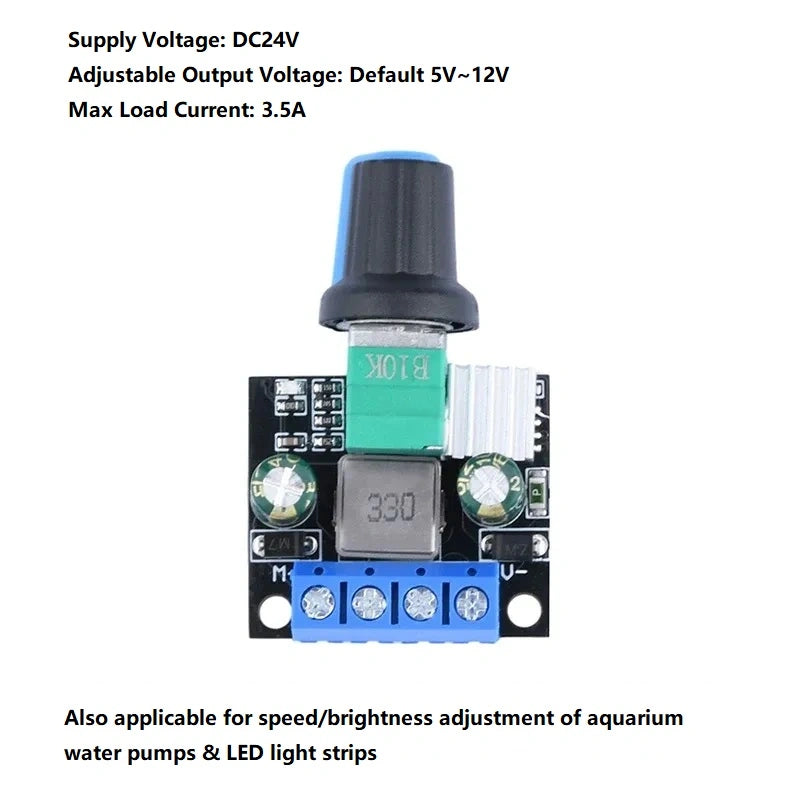

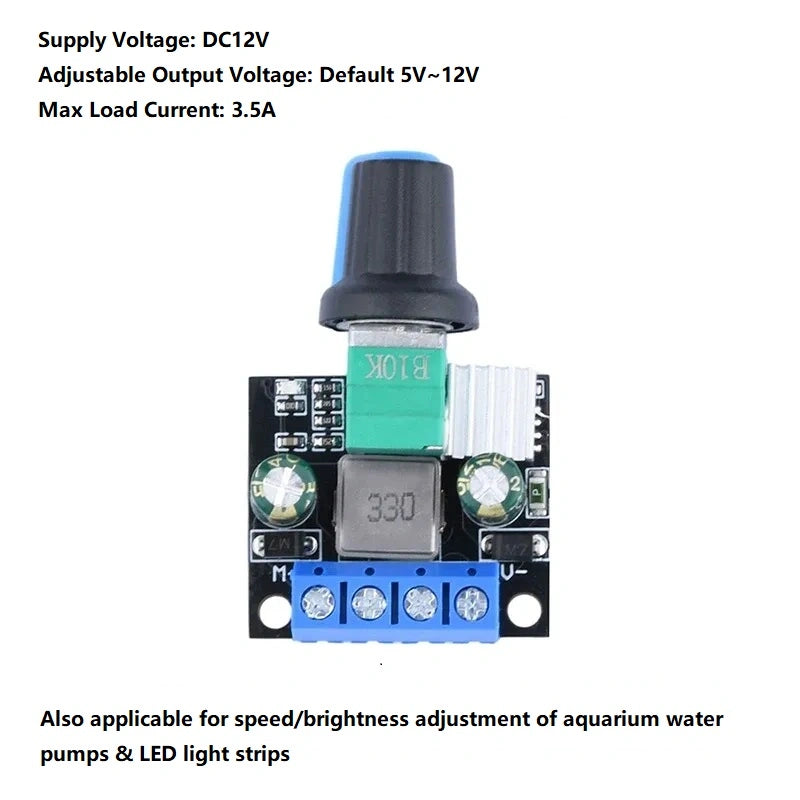

- 3.5A DC12V | 3.5A DC24V

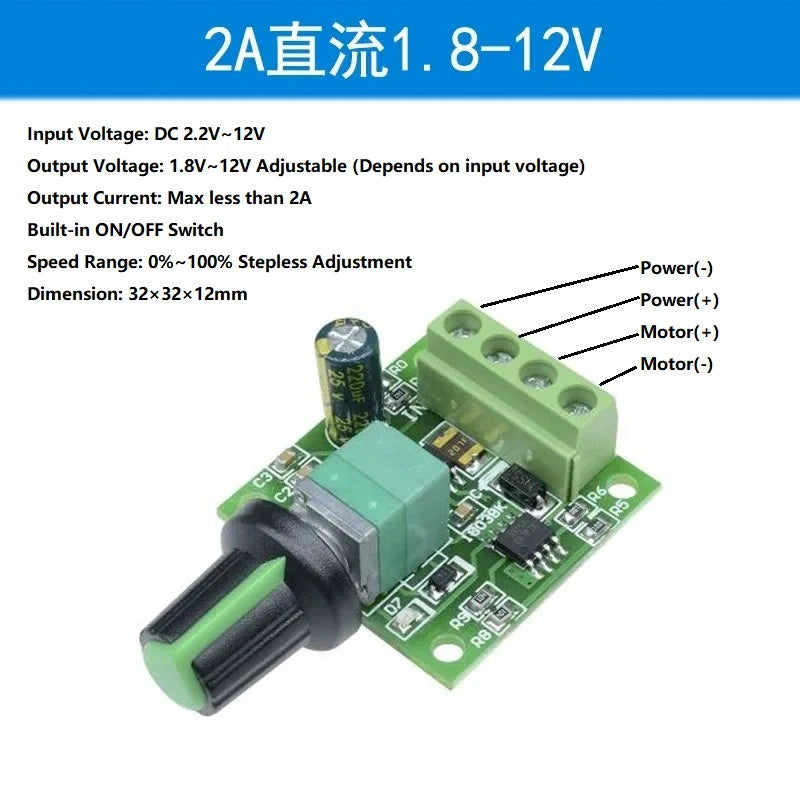

- 2A DC1.8~12V(Recommended)

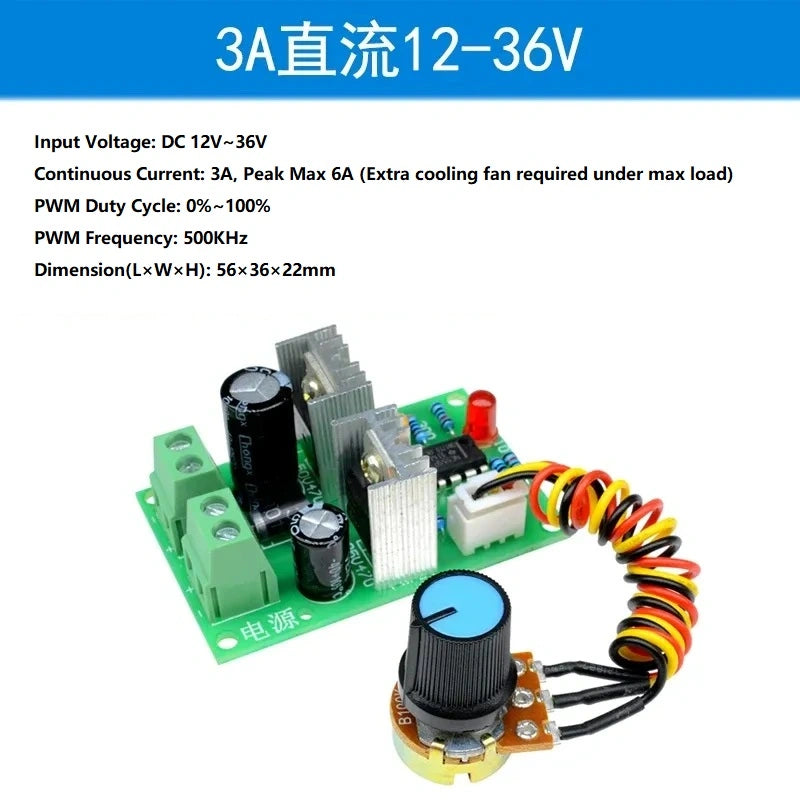

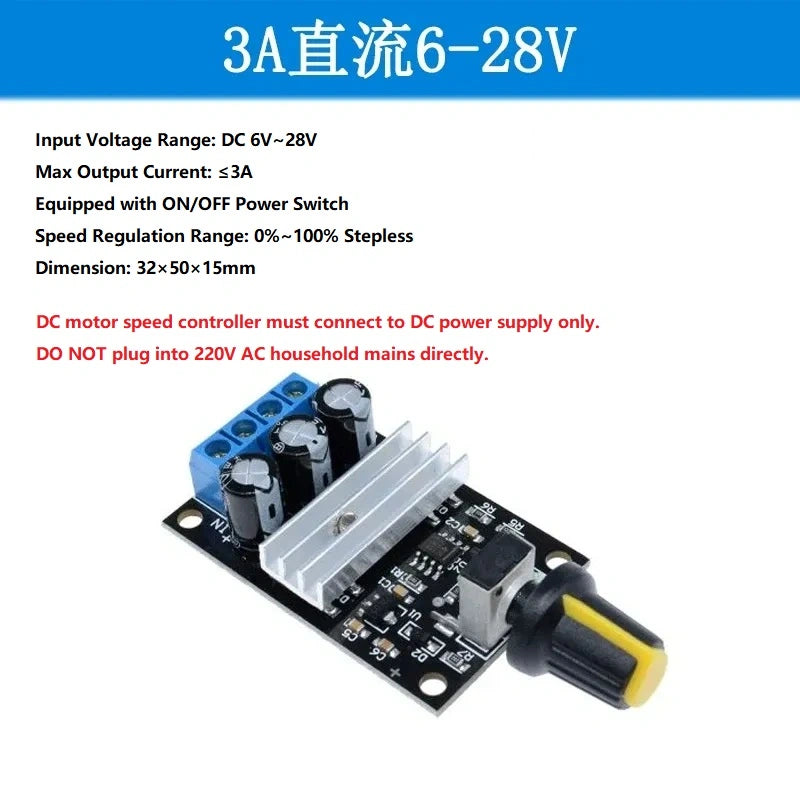

- 3A DC12~36V | 3A DC6~28V

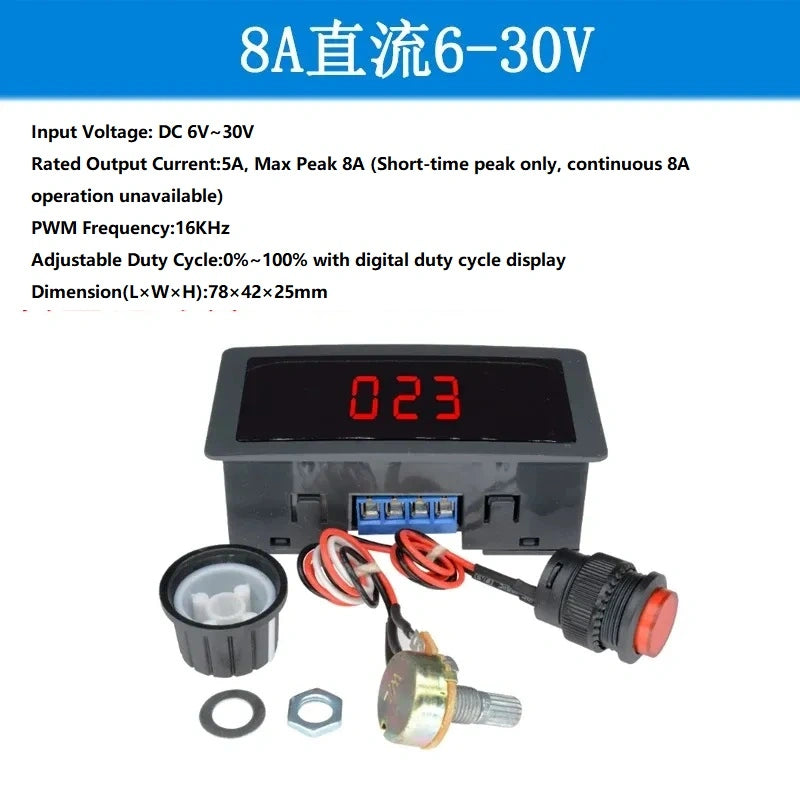

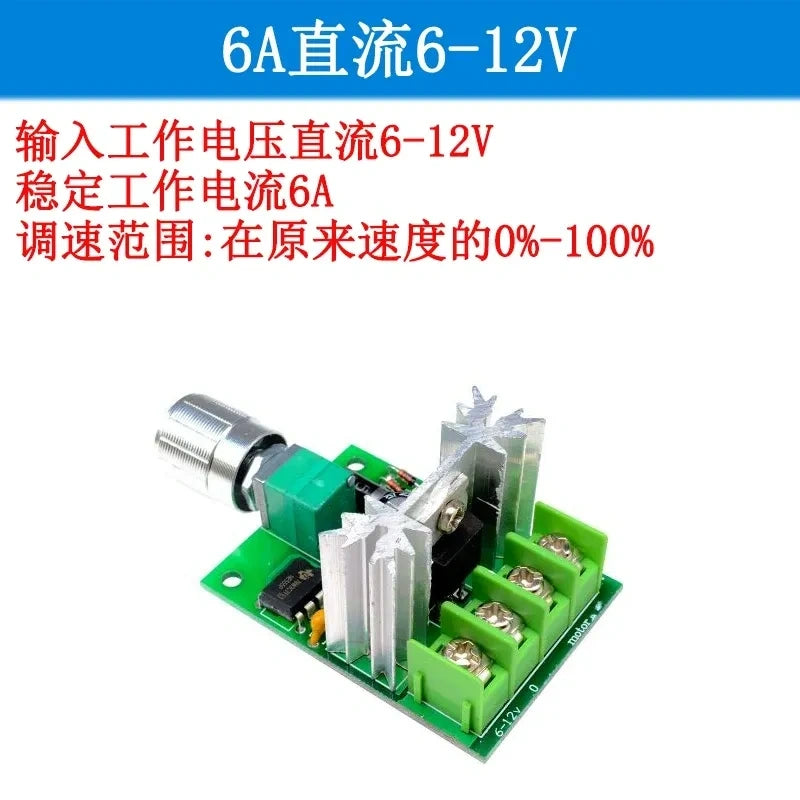

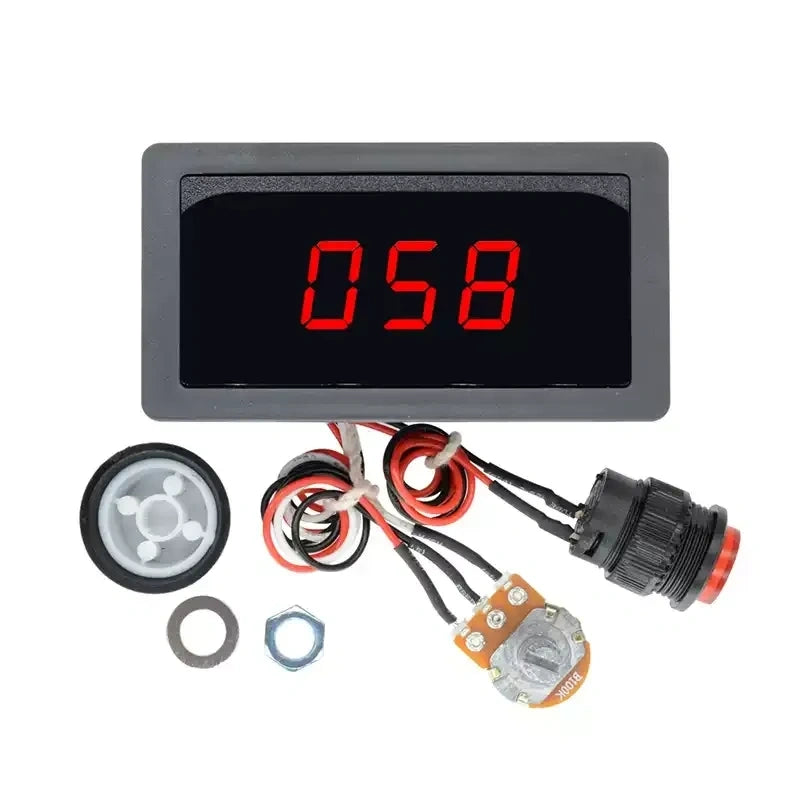

- 6A DC6~12V | 8A DC6~30V(Digital Display Version)

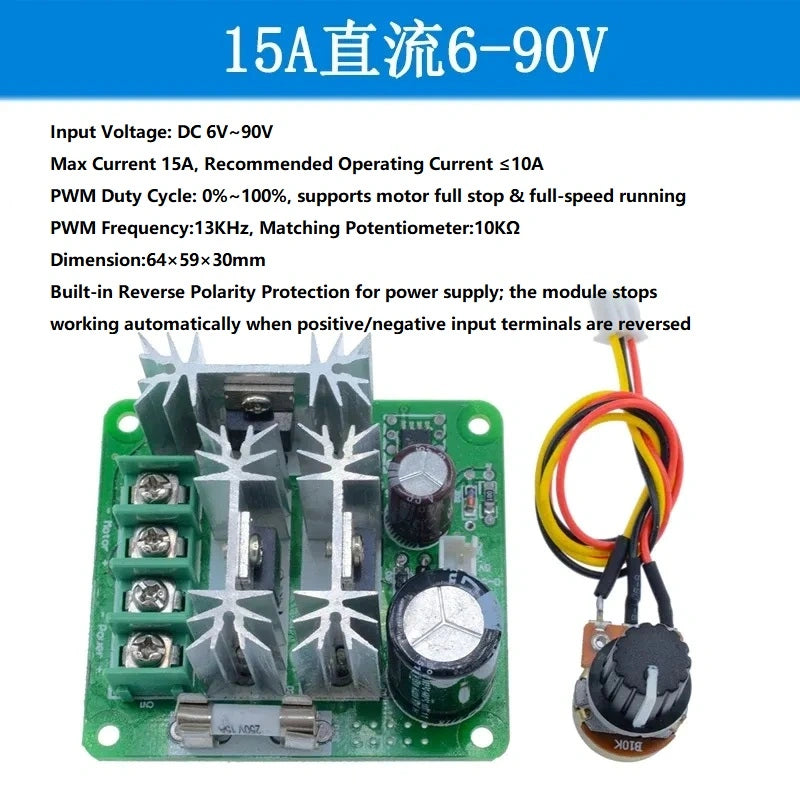

- 15A DC6~90V (Reverse Polarity Protection Built-in)

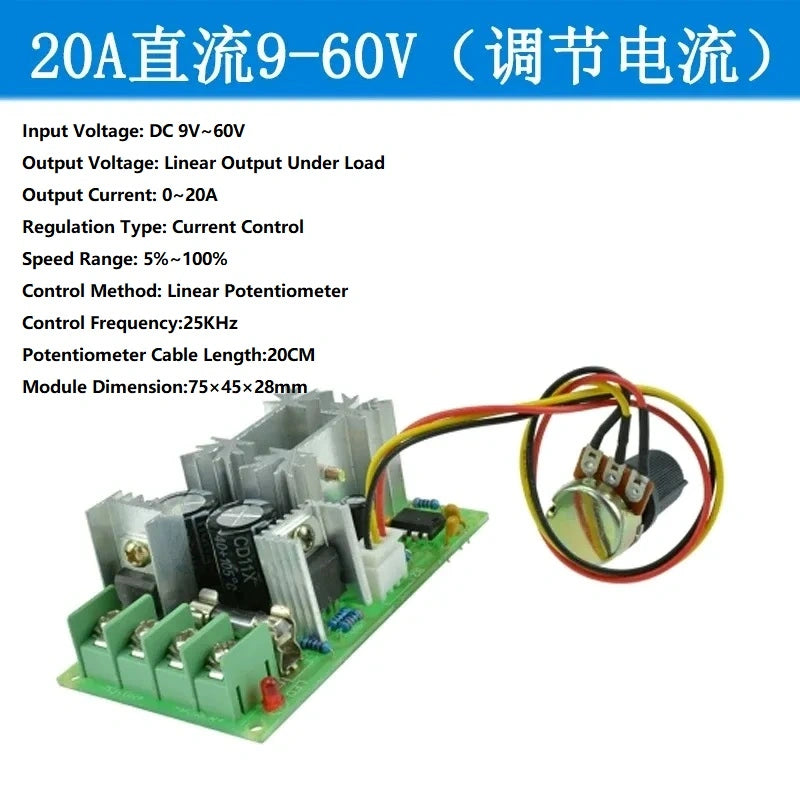

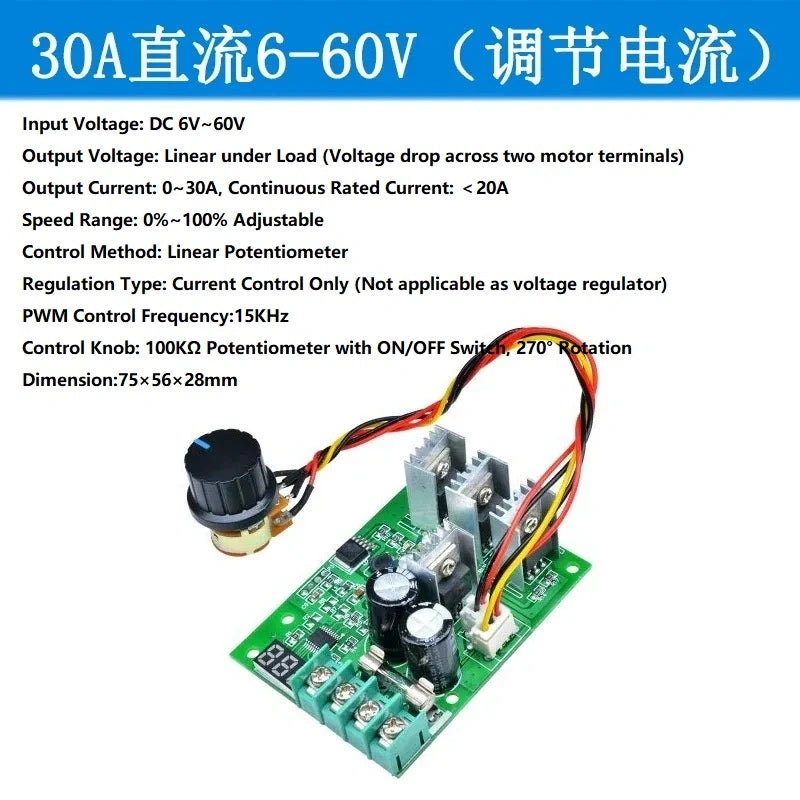

- 20A DC9~60V Current Control Only |30A DC6~60V Current Control Only

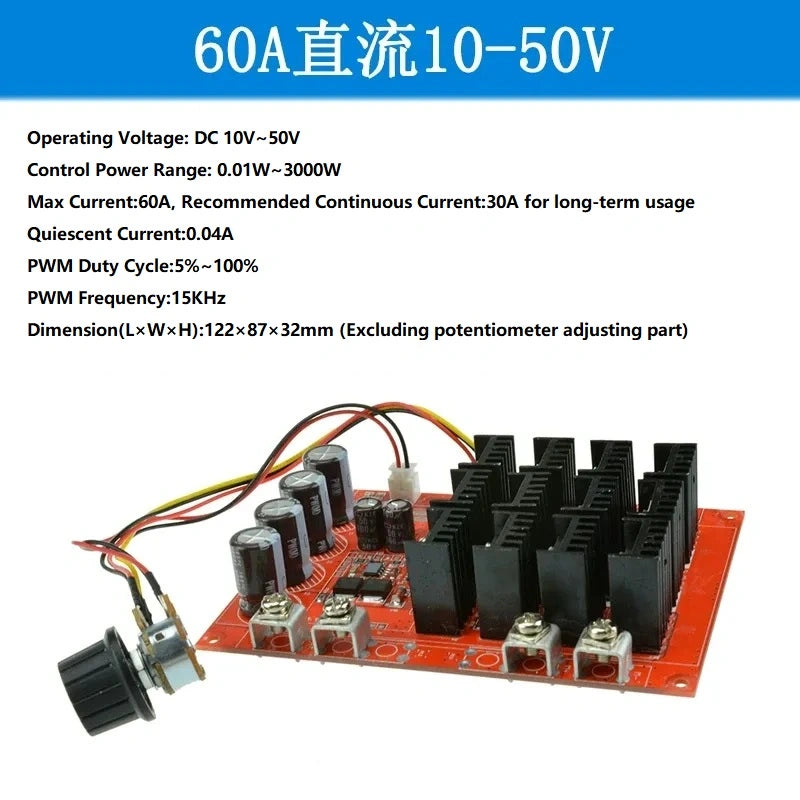

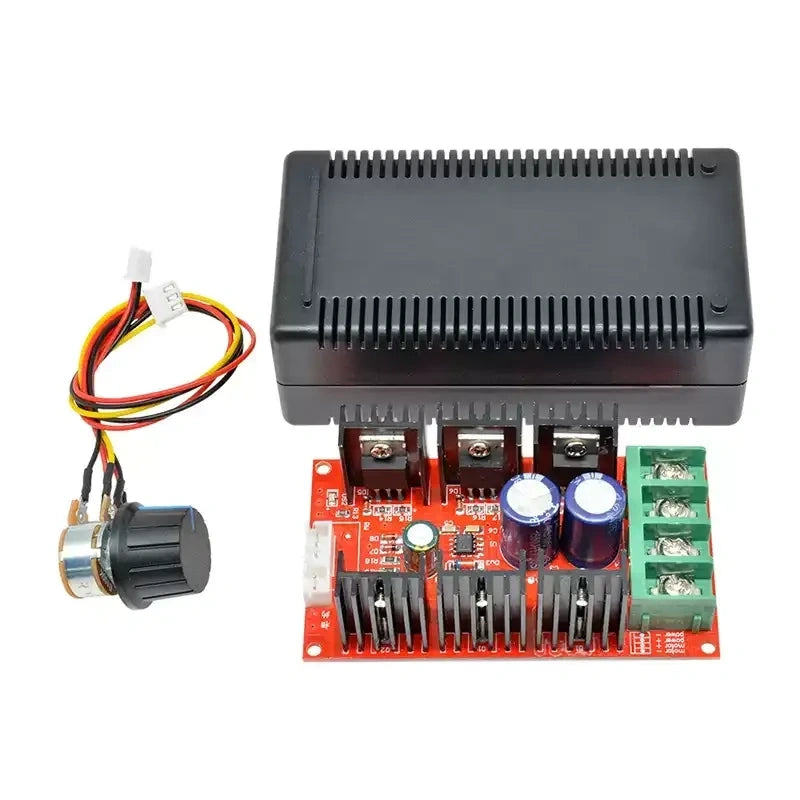

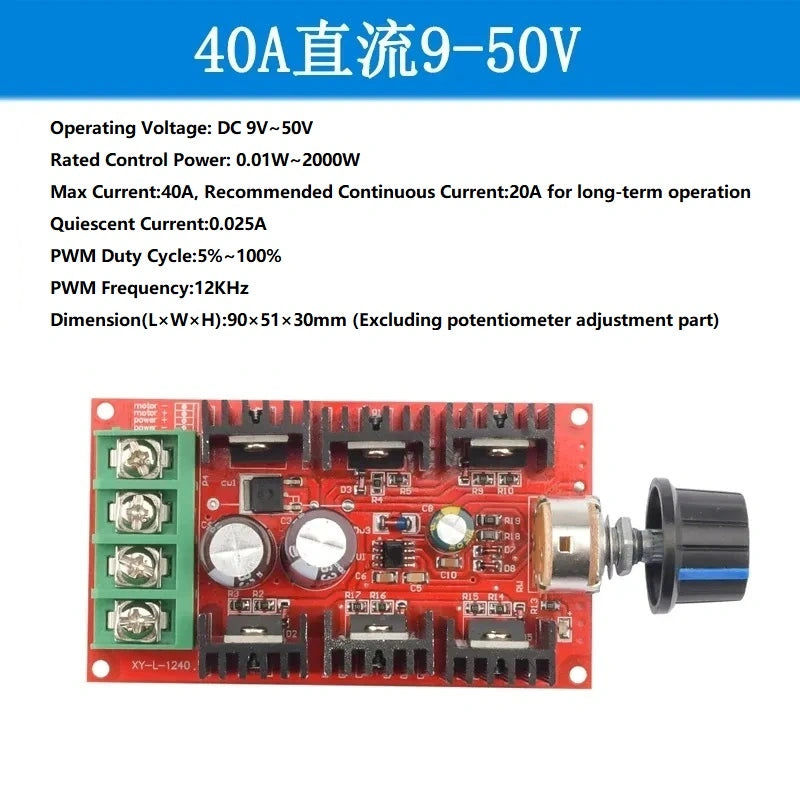

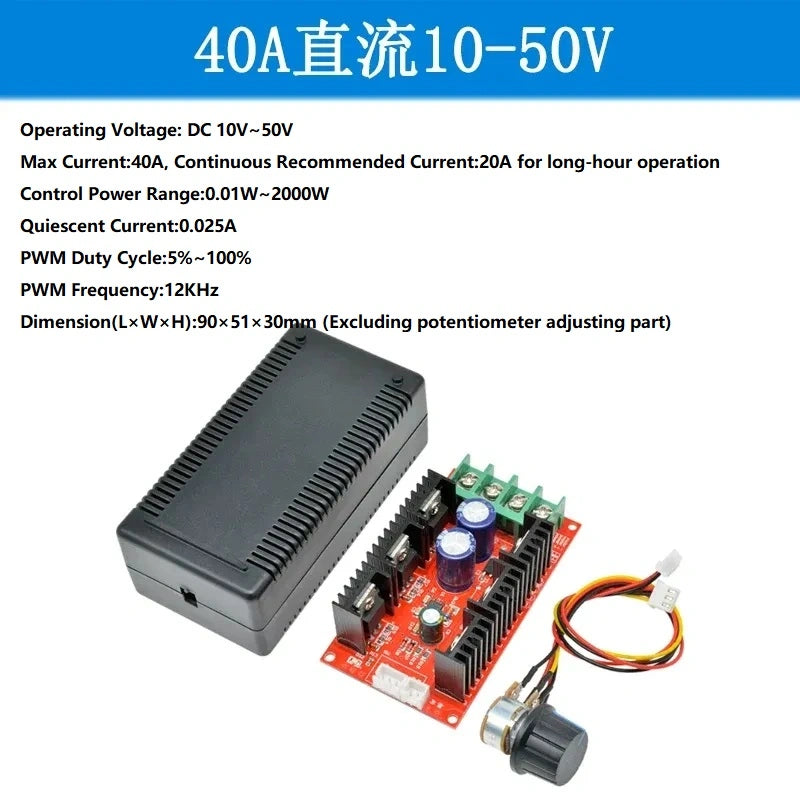

- 40A DC10~50V / 40A DC9~50V |60A DC10~50V High Power Version
DATA SHEET
| Attribute Name | Content |
|---|---|
| Product Name | PWM DC Motor Speed Controller & LED Dimmer Module |
| Model Series | Multi-spec:2A/3A/3.5A/6A/8A/15A/20A/30A/40A/60A |
| Input Voltage | DC1.8V~90V(1.8/6/9/12/24/28/30/36/50/60/90V Optional) |
| Rated Current | 2A~60A various rating, part with peak current parameter |
| Control Mode | PWM Regulation, Voltage Control / Current-limiting Control(Selectable Spec) |
| Duty Cycle Range | 0%~100% Stepless Adjustable |
| Control Element | Linear Rotary Potentiometer, Optional ON/OFF Switch |
| Optional Function | Digital Display for Duty Cycle / Reverse Polarity Protection |
| Applicable Load | Brushed DC Motor, LED Strip, DC Fan, Aquarium Water Pump |
| Restriction | Not for Brushless DC Motor & Brushless Fan |
| Application Scene | Equipment Speed Control, LED Dimming, Aquarium, DIY Electronic Project |
