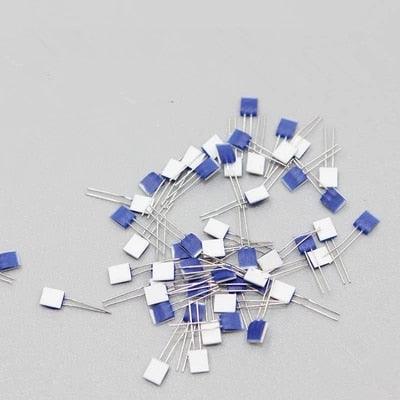

PT100 temperature sensor, platinum resistance PT1000, temperature measuring range - 70~500 degrees Celsius, heraeus Germany's
Couldn't load pickup availability
SPECIFICATIONS
PT100 temperature sensor, platinum resistance PT1000, temperature measuring range - 70~500 degrees Celsius, heraeus Germany's
Usage: Industrial
Unit Type: piece
Theory: Temperature Sensor
Style: Embedded
Package Weight: 0.03kg (0.07lb.)
Package Size: 16cm x 8cm x 5cm (6.30in x 3.15in x 1.97in)
Model Number: PT1000
Max Measuring Temperature: 120°C & Above
Display Type: DIGITAL
Display Size: 1.9 Inches & Under
M-series PRTDs are designed for large volume applications where long term stability,interchangeability andaccuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC,Energy management, Medical and Industrial equipment.
|
Nominal Resistance R0 |
Tolerance DIN EN 60751 1996-07 |
Tolerance DIN EN 60751 2009-05 |
|
100 Ohm at 0° |
Class C |
F 0.1 |
|
Class A |
F 0.15 |
|
|
Class B |
F 0.3 |
|
|
Class 2B |
F 0.5 |
|
|
1000 Ohm at 0° |
Class C |
F 0.1 |
|
Class A |
F 0.15 |
|
|
Class B |
F 0.3 |
|
|
Class 2B |
F 0.5 |
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Temperature range: 70° to +500° (continuous operation)(temporary use to 550°possible)
Tolerance Class B/D: -70° to +500°
Tolerance Class A: -50° to +300°
Tolerance Class C: 0° to +150°
(Temperature range: -70~600°-----Buy here -70~850°------Buy here -196~150°-----Buy here )
Temperature coefficient: TC = 3850 ppm/K
Leads: Pt clad Ni- wire
Recommended connection technology:
Welding, Crimping and Brazing
Lead lengths (L): A/B/C:10mm ±1mm
2B:5mm ± 0.5mm
Long-term stability: Max. R0 drift 0.04% after 1000h at 500°
Vibration resistance: At least 40g acceleration at 10 to 2000 Hz, depends on installation
Shock resistance: At least 100g acceleration with 8ms half sine wave, depends on installation
Environmental conditions: Unhoused for dry environments only
Insulation resistance: ＞100 MΩ at 20°; ＞2 MΩ at 500°
Self heating: 0.6 K/mW at 0°
Response time: Water current (v= 0.4m/s): t0.5 = 0.04s
t0.9 = 0.12s
Air stream (v= 2m/s): t0.5 = 2.2s
t0.9 = 7.0s
Measuring current: 100Ω: 0.3 to 1.0 mA
1000Ω: 0.1 to 0.3 mA (self heating has to be considered)
Note Other tolerances, values of resistance and wirelengths are available on request.
PT500B-series PRTDs are designed for large volume applications where long term stability, interchangeability andaccuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC,Energy management, Medical and Industrial equipment.
|
Nominal Resistance R0 |
Tolerance DIN EN 60751 1996-07 |
Tolerance DIN EN 60751 2009-05 |
|
500 Ohm at 0° |
Class B |
F 0.3 |
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Temperature range: 70° to +500° (continuous operation)(temporary use to 550°possible)
Tolerance Class B: -70° to +500°
Temperature coefficient: TC = 3850 ppm/K
Leads: Pt clad Ni- wire
Recommended connection technology:
Welding, Crimping and Brazing
Lead lengths (L): 10mm ±1mm
Long-term stability: Max. R0 drift 0.04% after 1000h at 500°
Vibration resistance: At least 40g acceleration at 10 to 2000 Hz, depends on installation
Shock resistance: At least 100g acceleration with 8ms half sine wave, depends on installation
Environmental conditions: Unhoused for dry environments only
Insulation resistance: ＞100 MΩ at 20°; ＞2 MΩ at 500°
Self heating: 0.4 K/mW at 0°
Response time: Water current (v= 0.4m/s): t0.5 = 0.05s
t0.9 = 0.15s
Air stream (v= 2m/s): t0.5 = 3.0s
t0.9 = 10.0s
Measuring current: 500Ω: 0.1 to 0.7 mA
