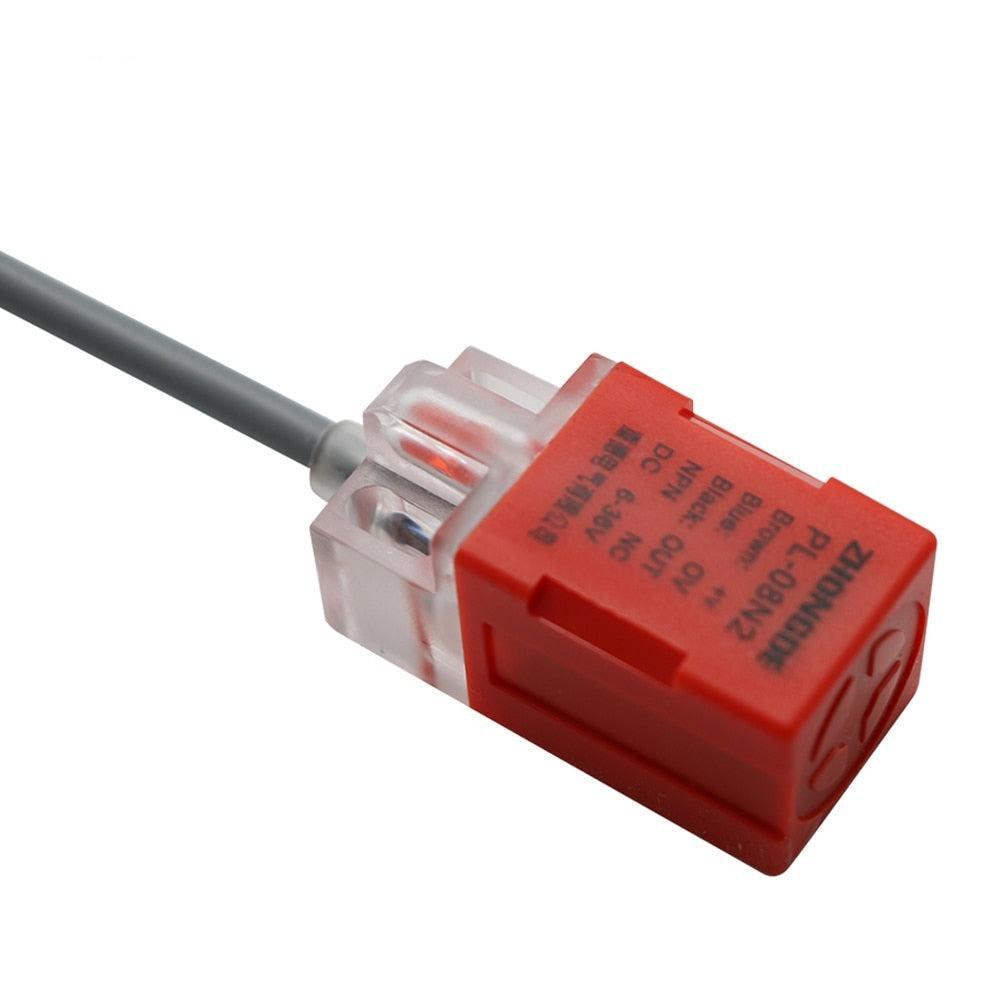

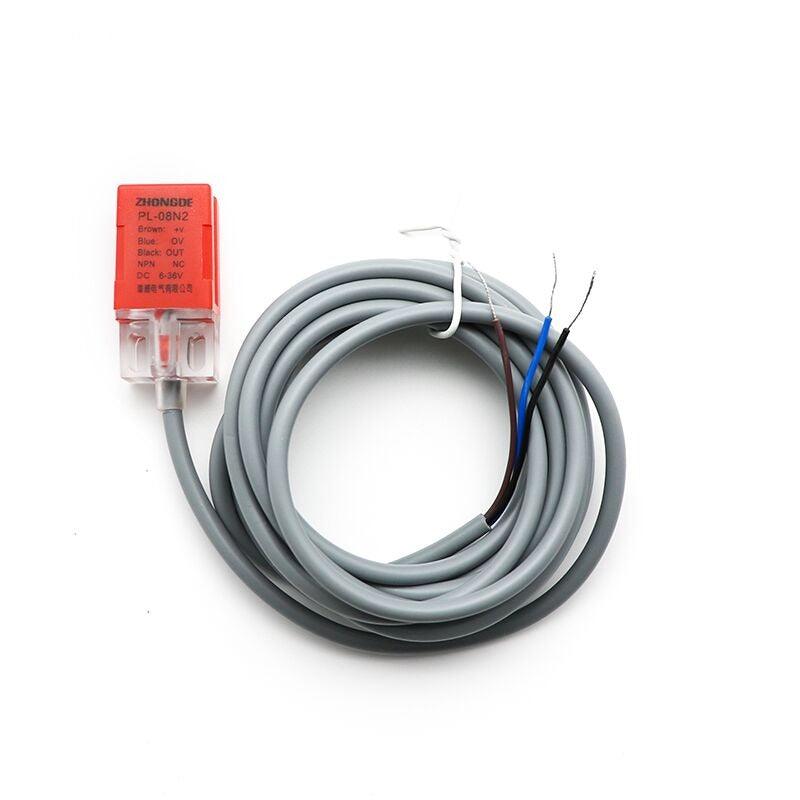

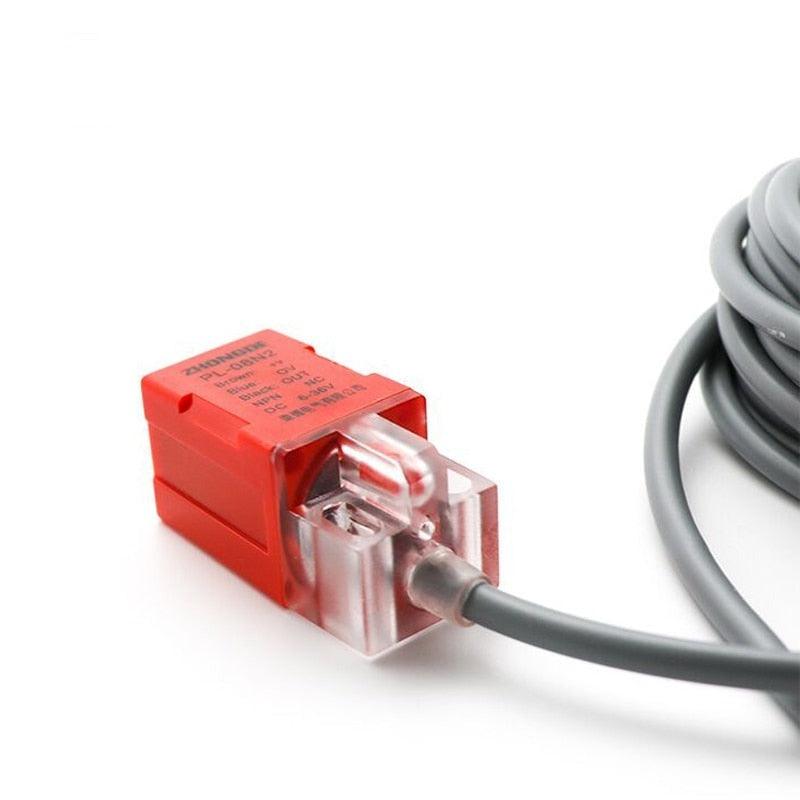

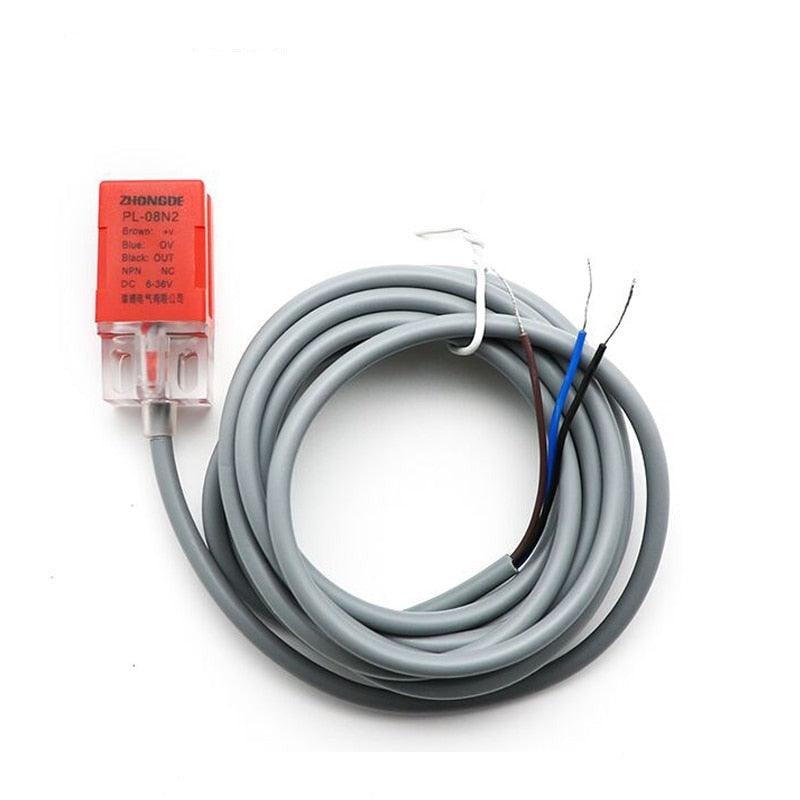

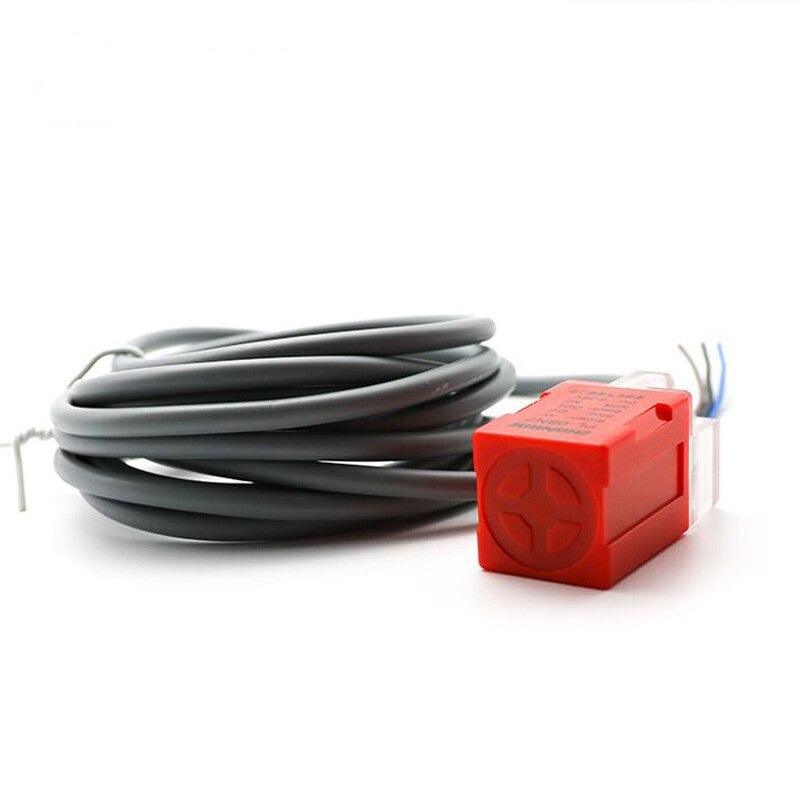

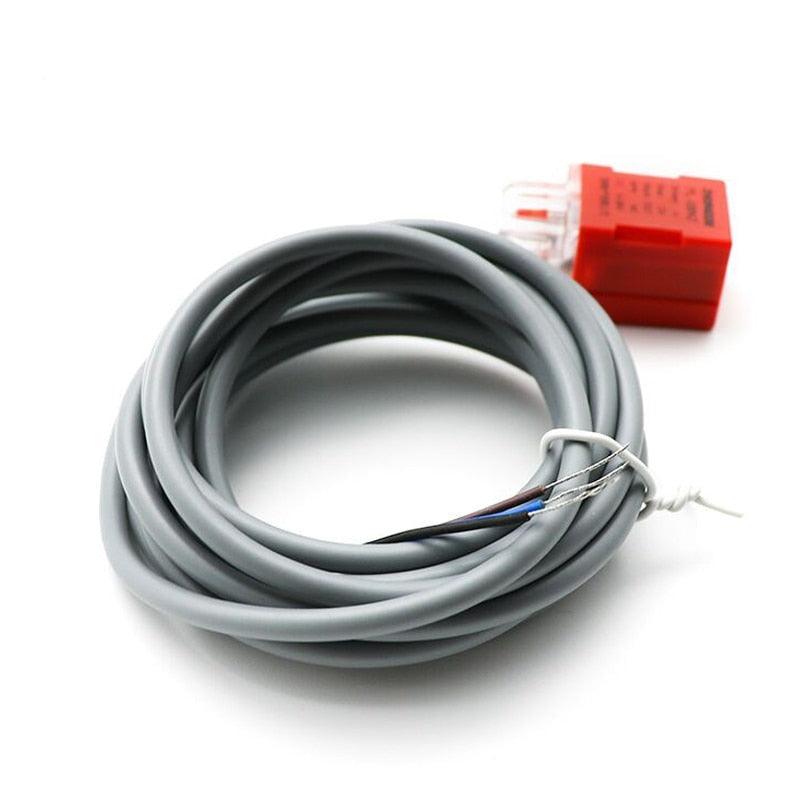

PL-08N2 Square Proximity Switch Inductive Sensor Metal Switch Three-wire NPN Normally Closed DC 6V 36V

SPECIFICATIONS

PL-08N2 Square Proximity Switch Inductive Sensor Metal Switch Three-wire NPN Normally Closed DC 6V 36V

Wire length: 1.5m

Voltage: DC6-36V

Model Number: PL-08N2

Material: acrylic

Item Type: Switches

Is Smart Device: NO

Detection distance: 8mm

Product Information

Model:PL-08N2

Wire length:1.5m

Detection distance :8mm

Size:17*17*35mm
Voltage:DC6-36V

Detected object :Metal( The lower the iron content, the closer the induction distance.)

IP67 Protective Structure

Detection distance description:The inductive proximity switch detects only metals.Different metal, different detection distance, for pure iron .The induction surface should be cleaned regularly to avoid affecting the induction performance.

NPN NC: It means that the black line is the output negative voltage signal under normal condition. When the object is detected, the output signal is disconnected.
