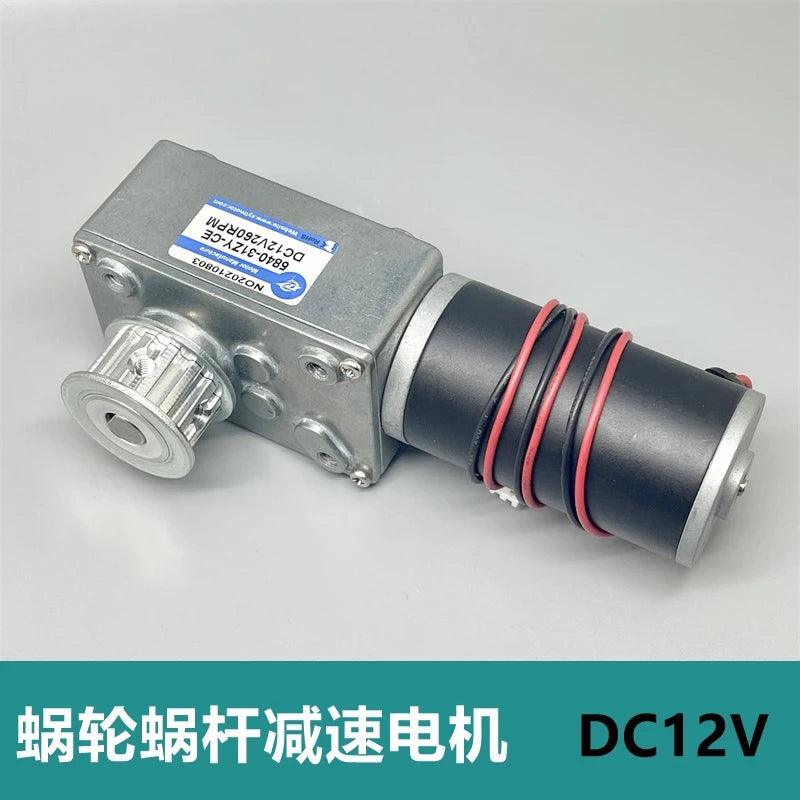

New High Torque Worm Gear Right Angle Reduction Motor 5840-31ZY DC 12V 260rpm Speed Regulation/Positive And Negative Rotation

Model: 5840-31ZY-CE

Product name: worm gear reducer

Rated voltage: 12V DC

No load current: about 0.3A

Rated speed: 260 rpm

Acceleration ratio: about 1:31

Rated load torque: 5Kg. cm

Locked rotor torque: 25Kg. cm

Weight: about 360 g (including synchronous wheel)

Features: all metal gear, large torque, support forward and reverse rotation and speed regulation

Scope of use: printing machine tools, CNC machine tools, food packaging, automation industry, textile machinery, etc

Worm and worm reduction motors are in new stock, but there is no information when they arrive. Please forgive me if there is something wrong with the details.

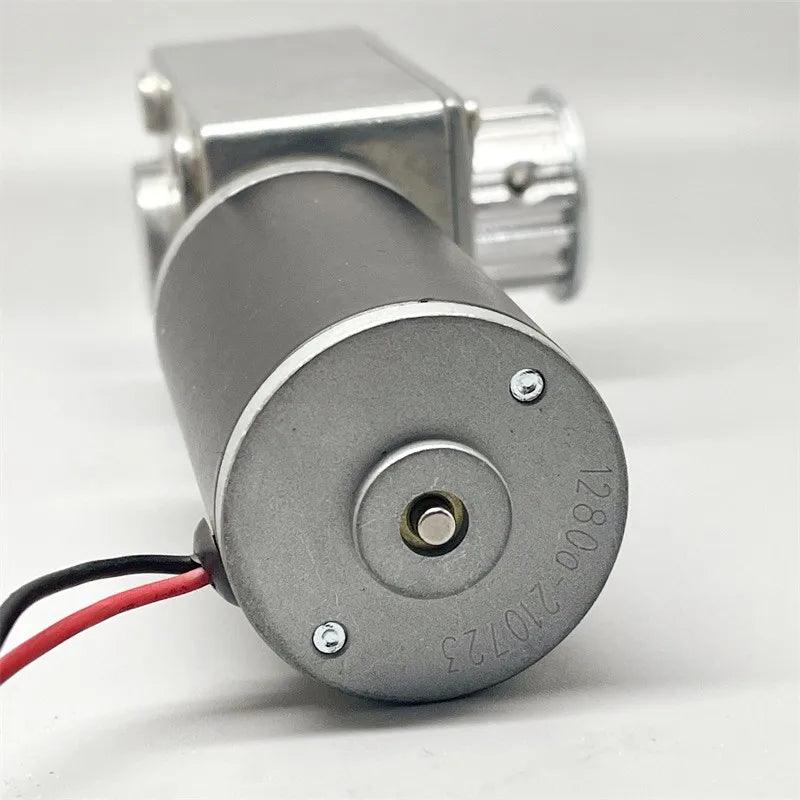

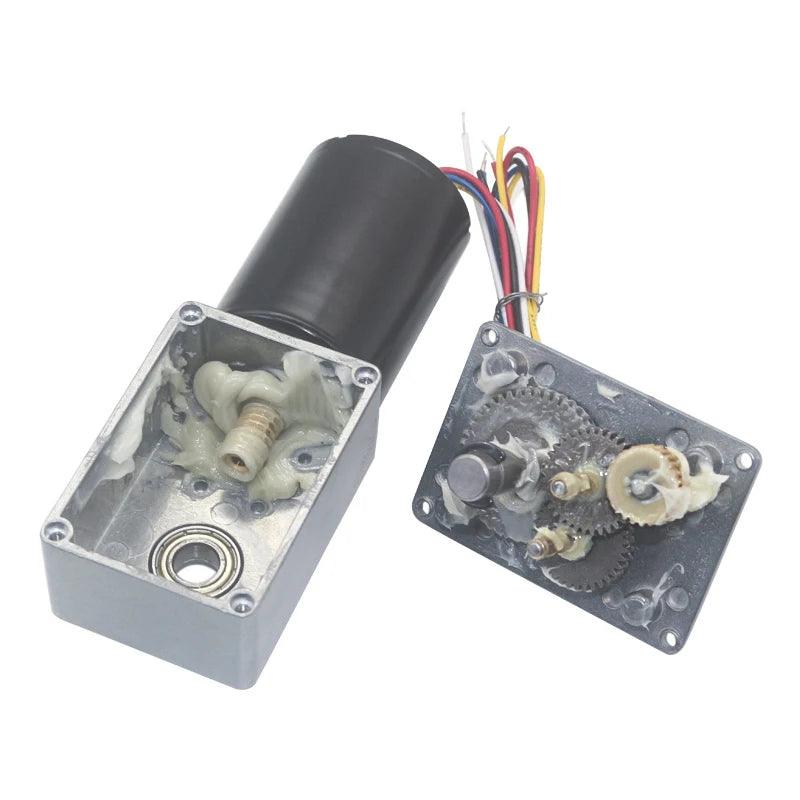

The motor is a steel tube motor with a diameter of 31 mm and a length of 57 mm. The gear box is an all metal gear 5840 reduction box, and the output shaft is equipped with double ball bearings. The motor is full of materials and exquisite workmanship,

With self-locking capability, it is commonly used in smart home such as window opener and curtain machine.

The goods arrived without the original packaging. Each reducer motor is covered with a foam bag, which is well preserved.

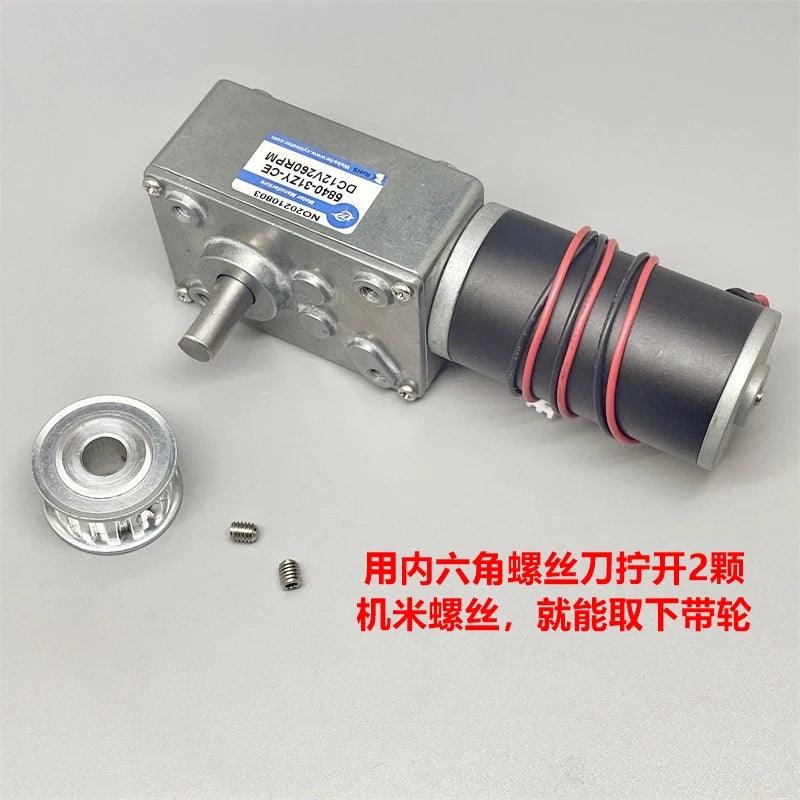

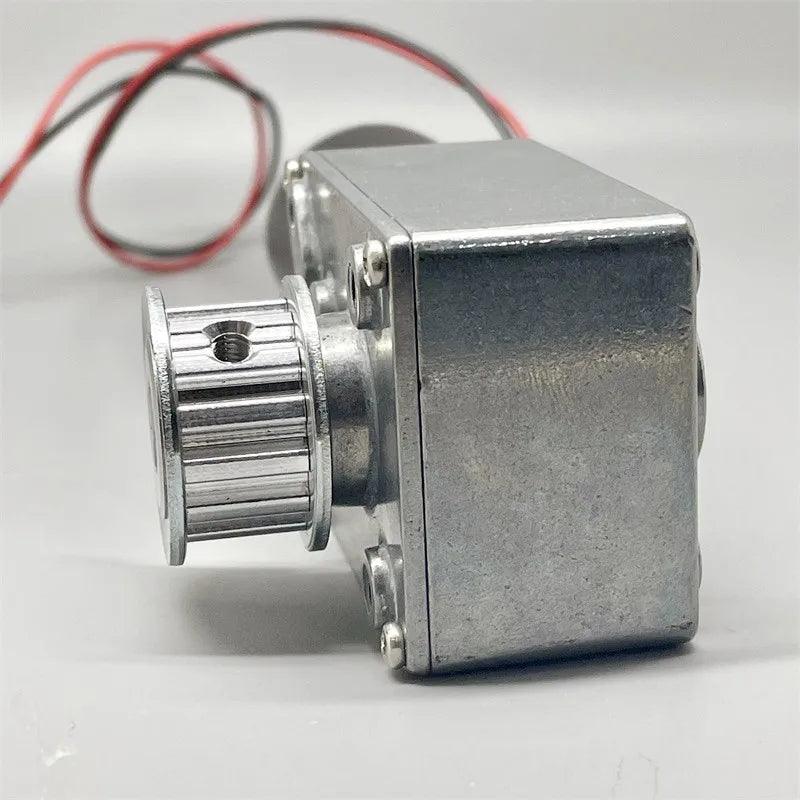

The reduction motor is equipped with a synchronous pulley, which is fixed with two metric screws,

Customers can choose,

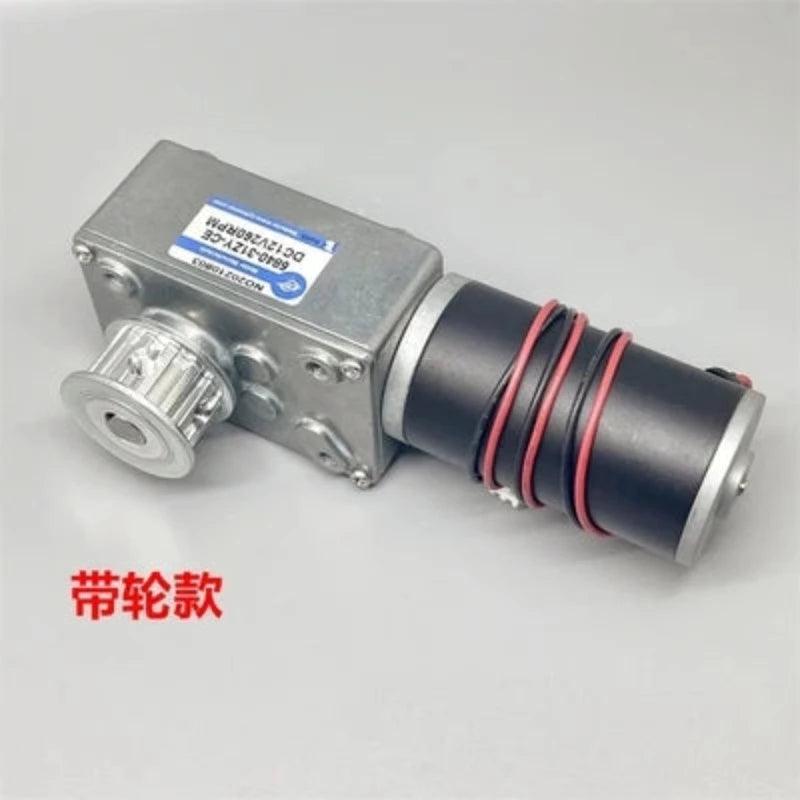

Belt pulley type: ship a belt pulley reduction motor;

Optical shaft type: the shopkeeper takes out the pulley and delivers an optical shaft type reduction motor,

Attached with upper pulley and machine screw
