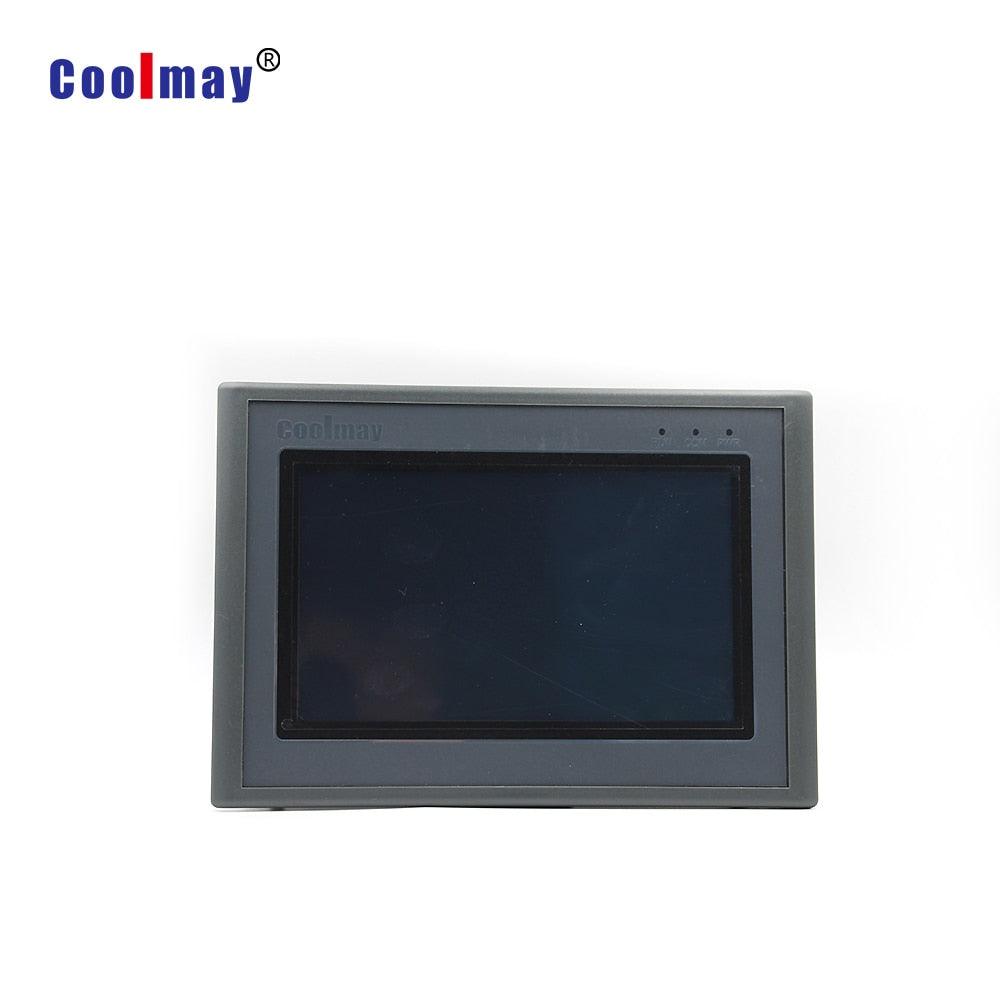

MT6070H-W 7 Inch TFT True Color 800*480 Pixels HMI Touch Panel with Ethernet Port
SPECIFICATIONS
Coolmay MT6070H-W 7 Inch TFT True Color 800*480 Pixels HMI Touch Panel with Ethernet Port
cut-out size: 194*138mm
USB: Yes
Touch: resistive panel
Resolution: 800*480
ROM: 128MB
RAM: 64MB
Origin: CN(Origin)
Model Number: MT6070H-W
Ethernet port: yes
Dimension: 212*148*40mm
Concumption: 200mA*24V

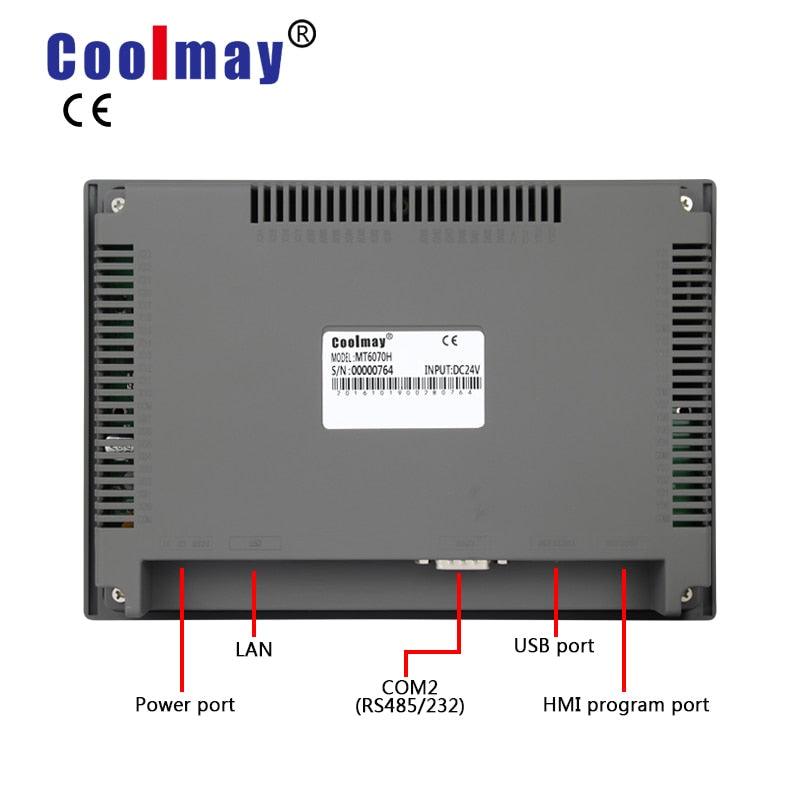

Com Port: RS232+RS485
Brand Name: Coolmay
Application: Milling Machine
The package will include
* 1 set of device (grey color) and cables
* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.
Note:
(1) The device includes functions below

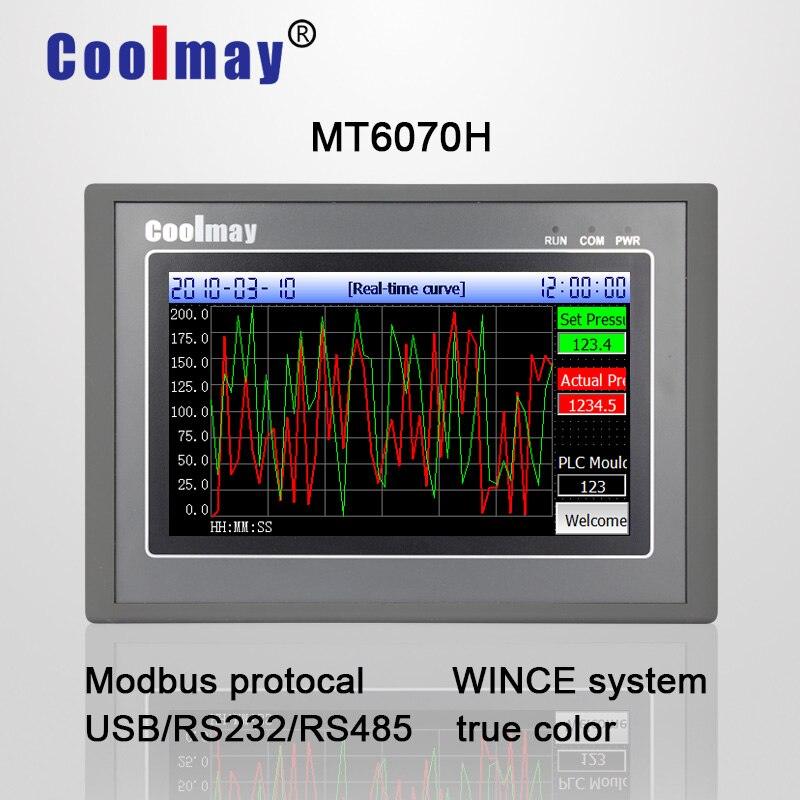

· 7 inch color touchscreen with Ethernet port
· RS232, RS485 port
· Support modbus, free port and common PLC communication protocol
(2) 1 set of cables is free of charge. Please order in our store for additional cables.
Specifications of MT6070H
Dimension |
212*148*40mm |
Cutout size |
194*138mm |
Display size |
154*87mm |
Weight(kg) |
Appox. 0.54 kg |
Display |
7” TFT |
Resolution (pixels) |
800*480 |
Brightness |
300cd/m² |
Contrast ratio |
400:1 |
Backlight |
LED |
Backlight time |
60,000 h |
Display color |
65536 true colors |
Touch type |
4-wire resistive panel |
ROM |
128MB |
RAM |
64MB |
CPU |
ARM9 core 400MHz |
Operating system |
WINCE 5.0 |
USB port |
USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.) |
Download port |
Yes (Type B male port cable for program download) |
Ethernet port |
Optional |
COM port |
1 RS232 and 1 RS485 |
Protocol |
Support MODBUS, free port and common PLC communication Protocol |
Audio |
Optional |
Calendar |
Yes |
Input Voltage |
Default as DC12~24±10%V |
Consumption |
200mA*24V |
Protection Class |
IP65 (front panel) |
Temperature |
Ambient environment: 0~50℃ | Storage environment: -20~70℃ |
Humidity |
20%~90% RH |
Certification |
CE |
