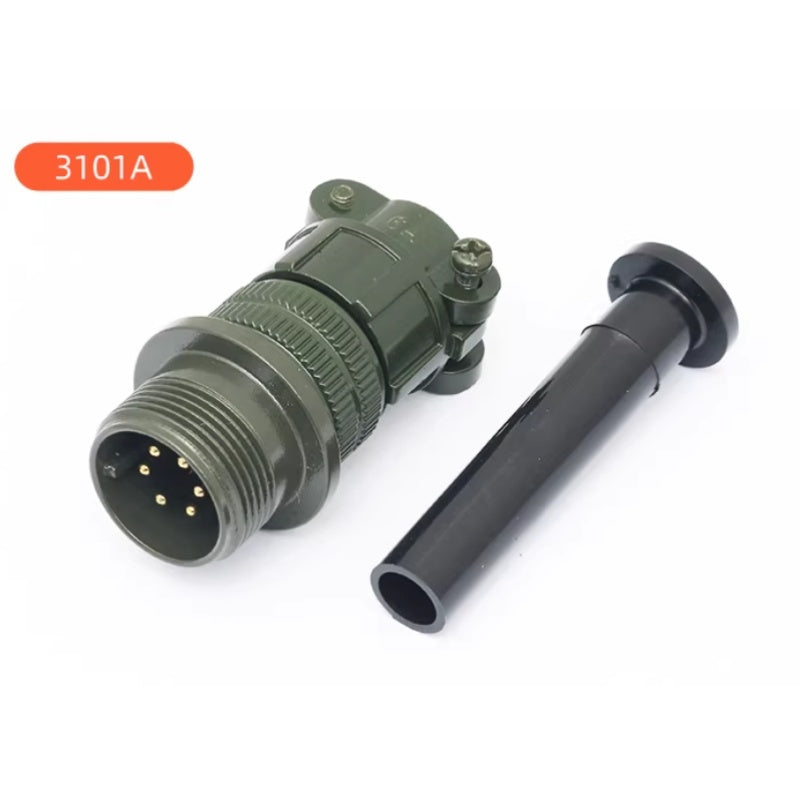

MIL-C-5015 Aviation Connector 14S Series

$19.60 USD
$4.03 USD $19.60 USD
Sale Sold out
Shipping calculated at checkout.
Number of Contacts
Contact Type
Shell Type

MIL-C-5015 14S Series Connector Kit: 3106 Straight, 3106 Elbow, 3102 Square Flange, 3101 Round, 3100 Square Docking, Waterproof Multi-Pin Connector

Product Description

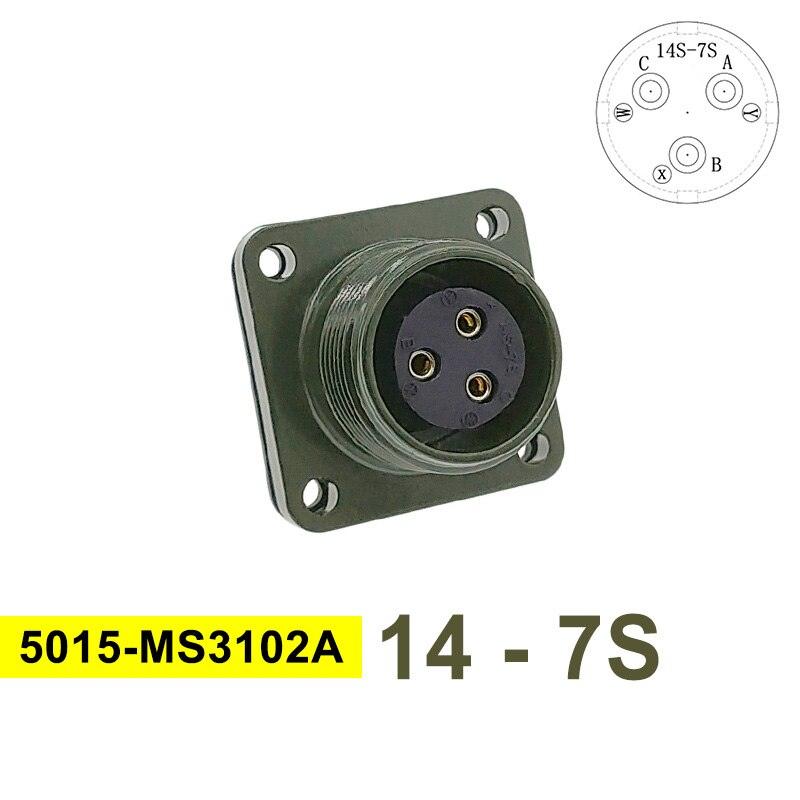

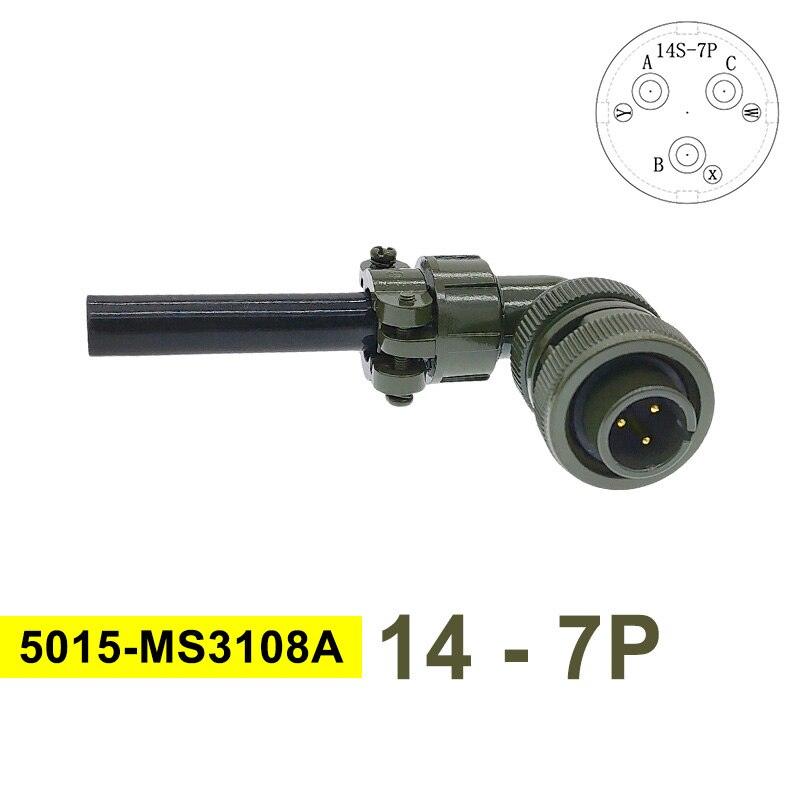

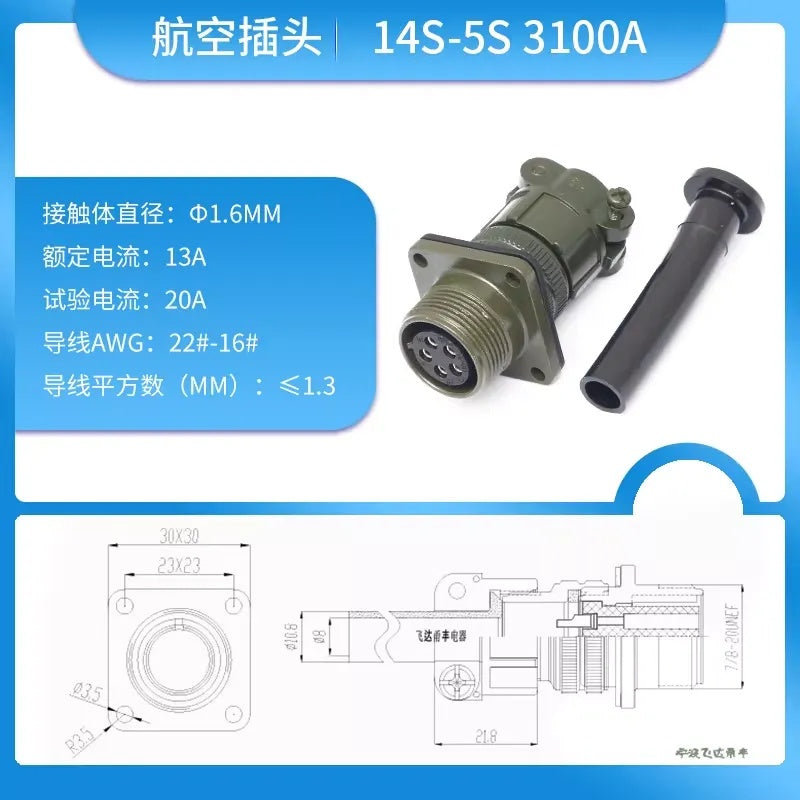

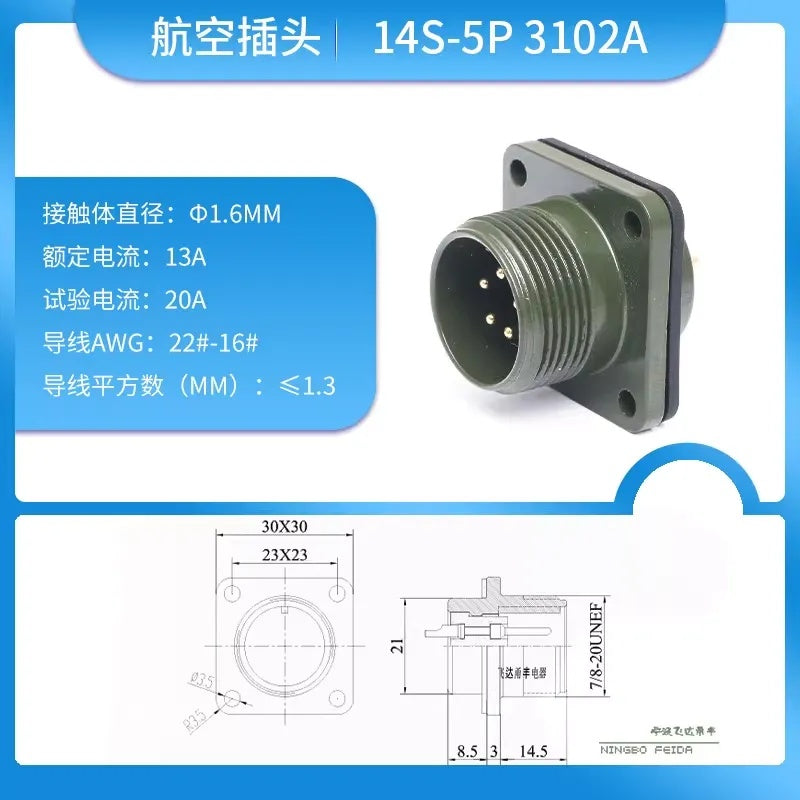

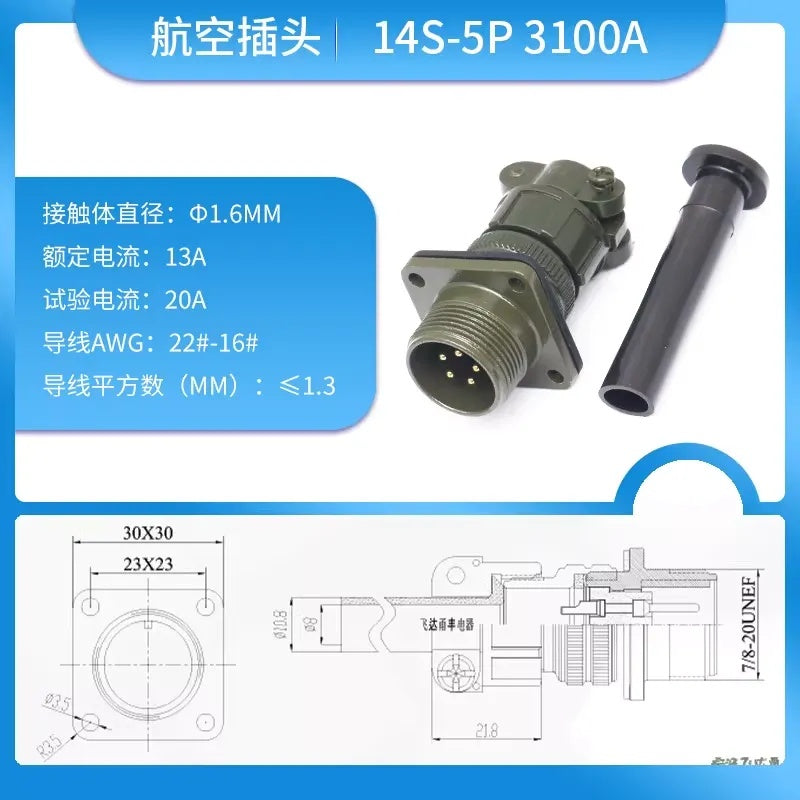

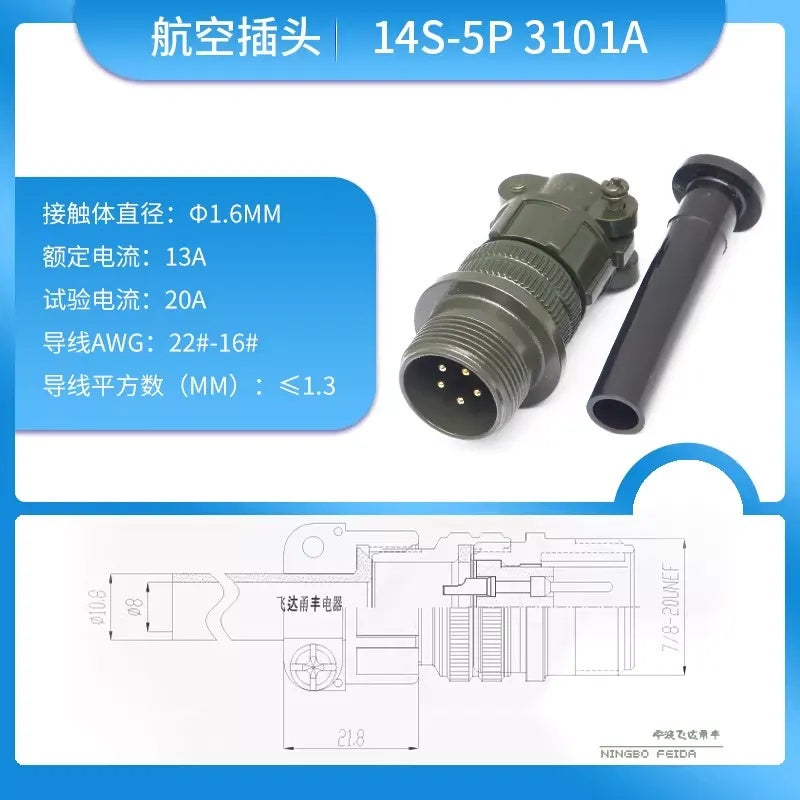

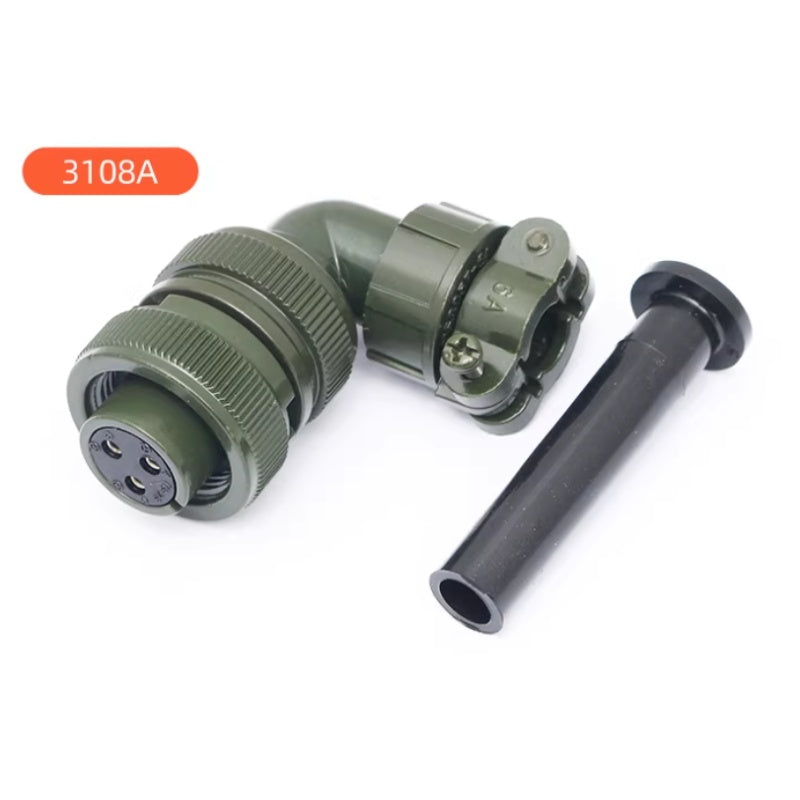

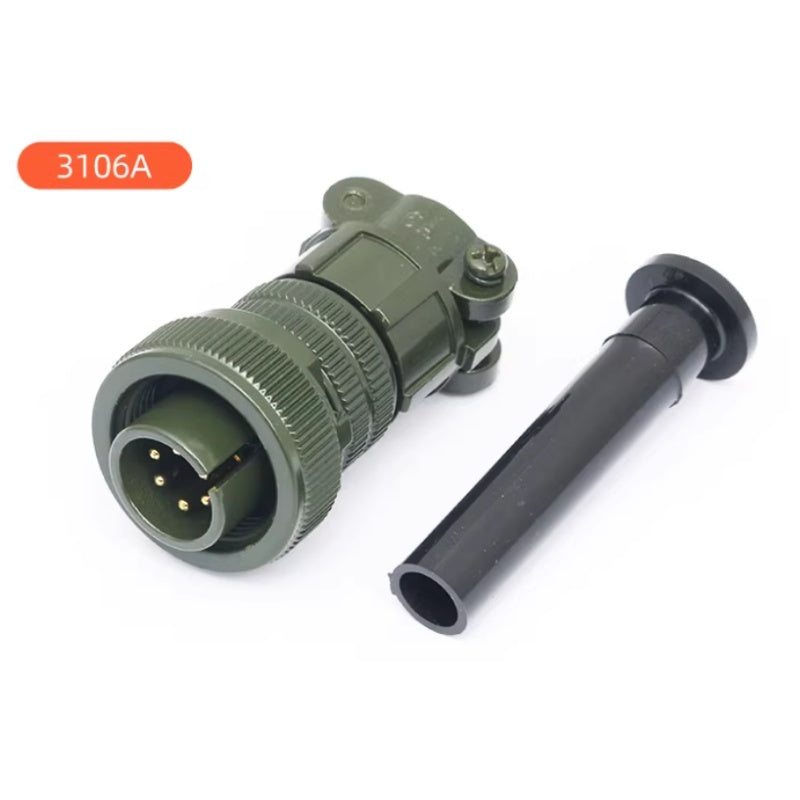

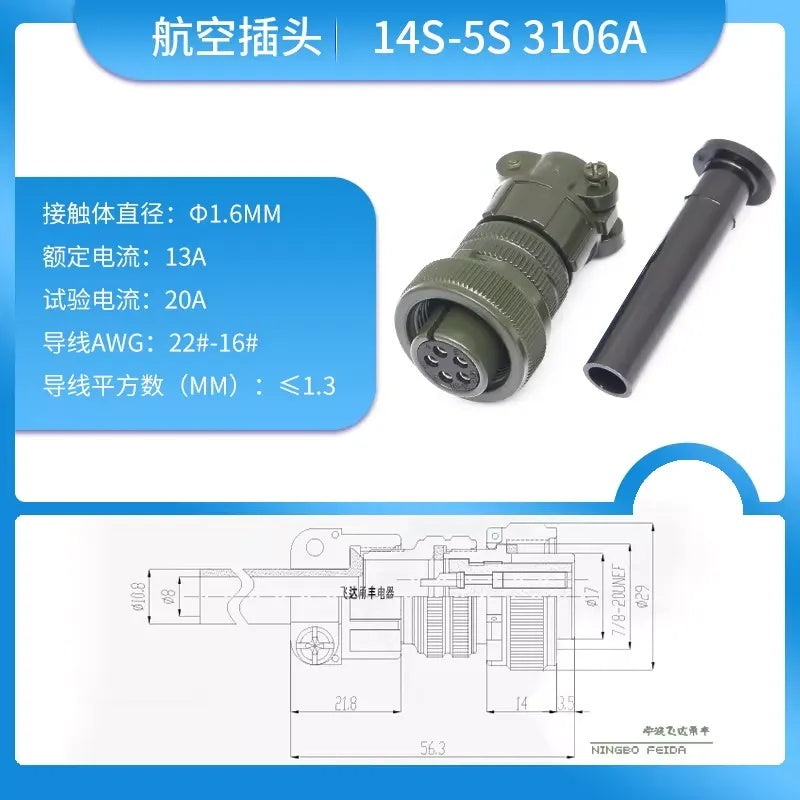

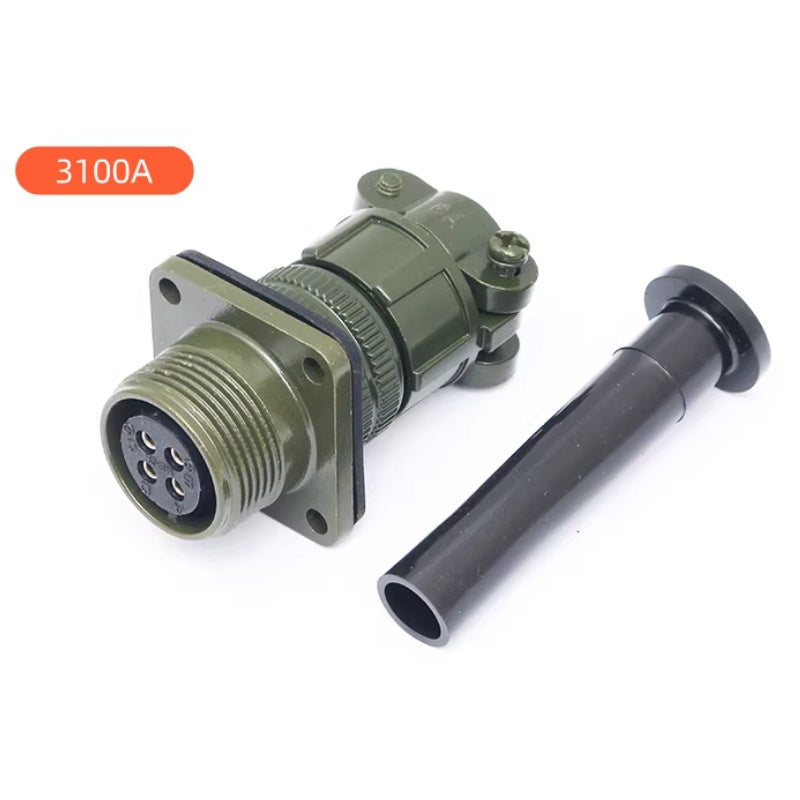

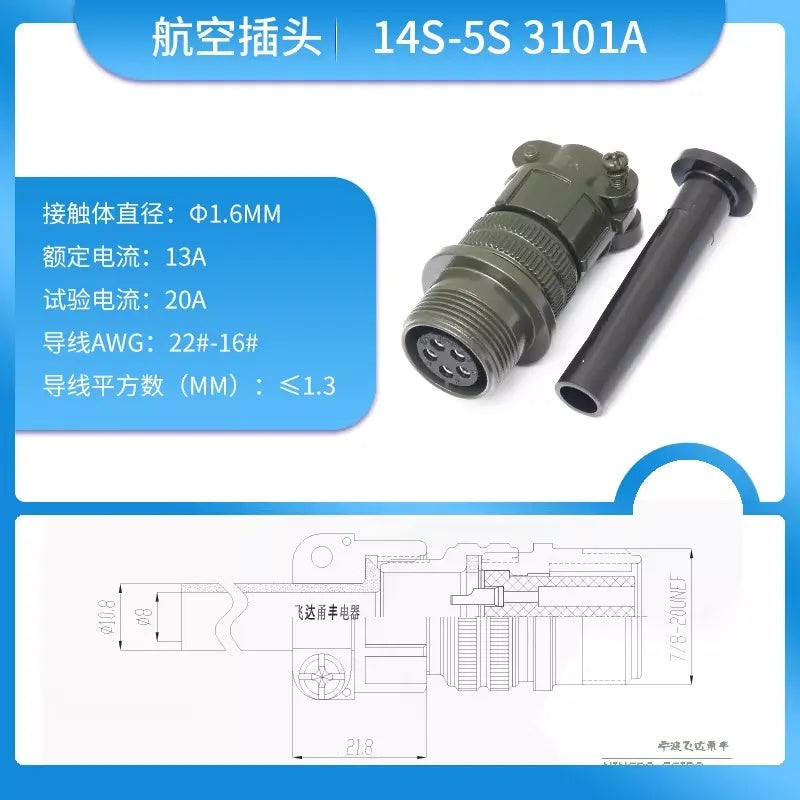

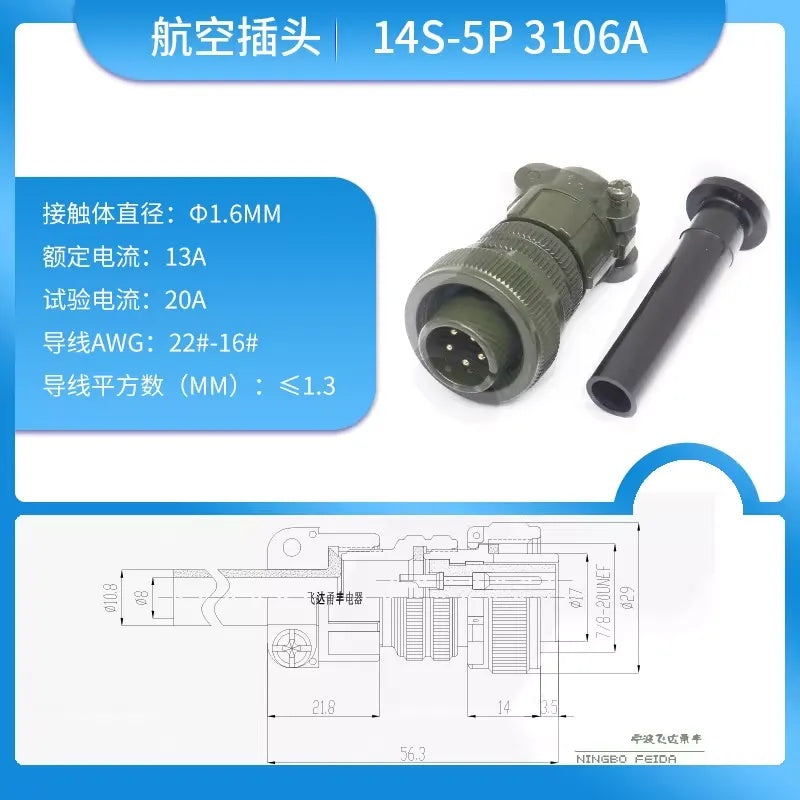

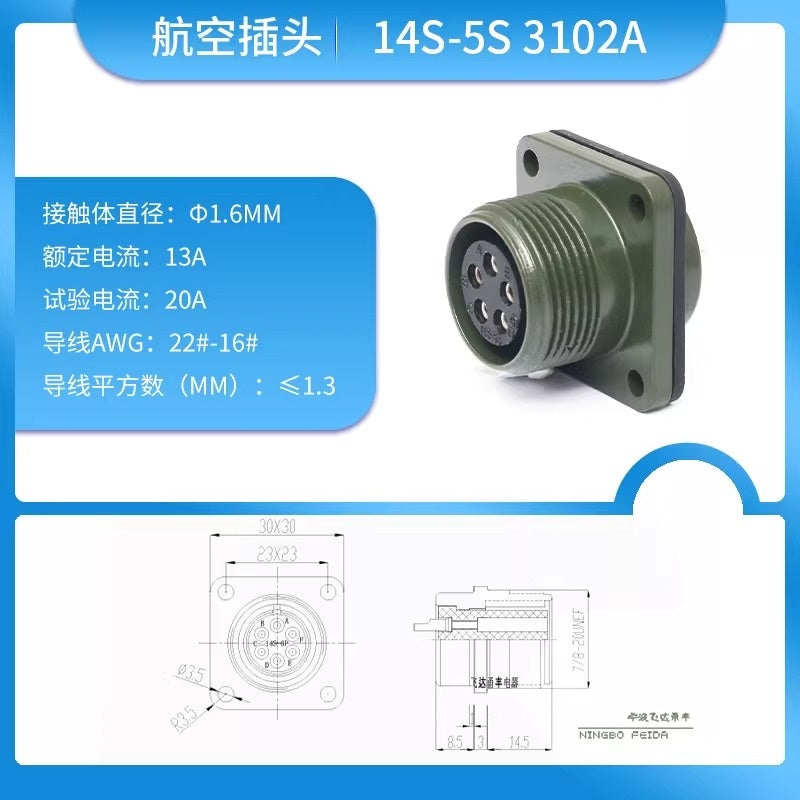

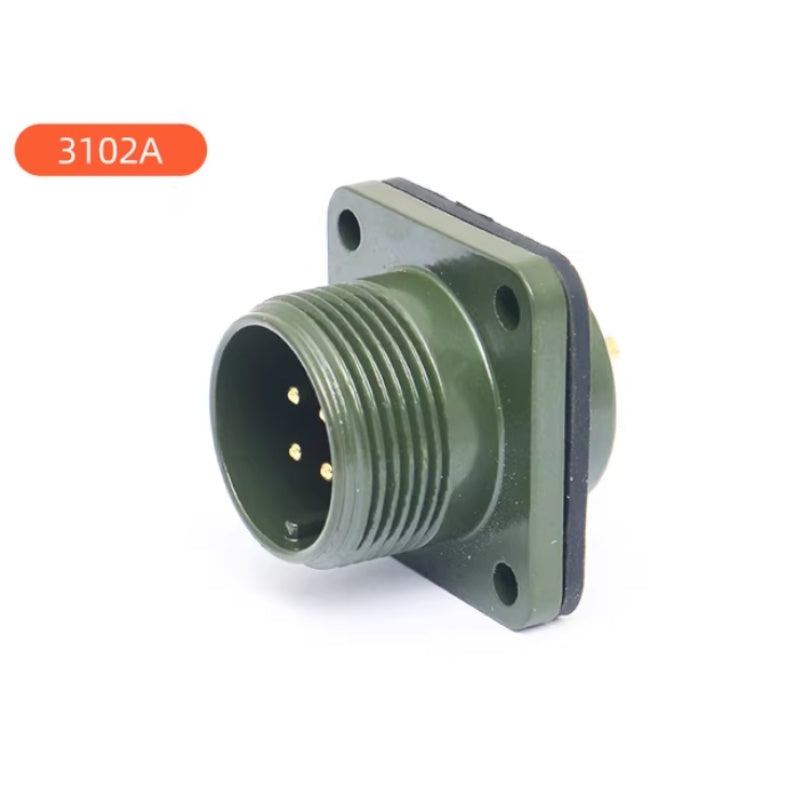

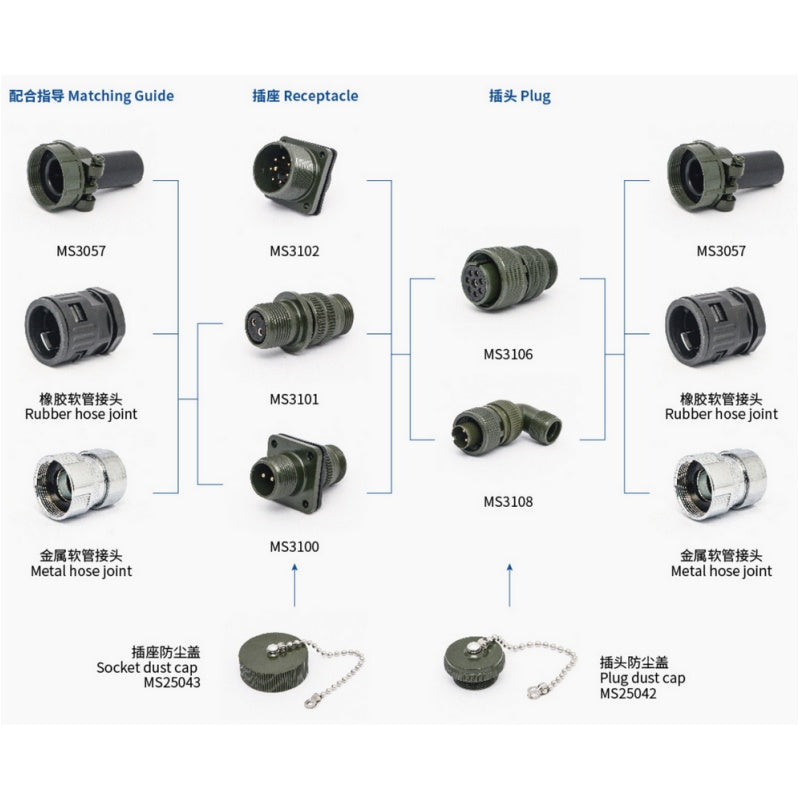

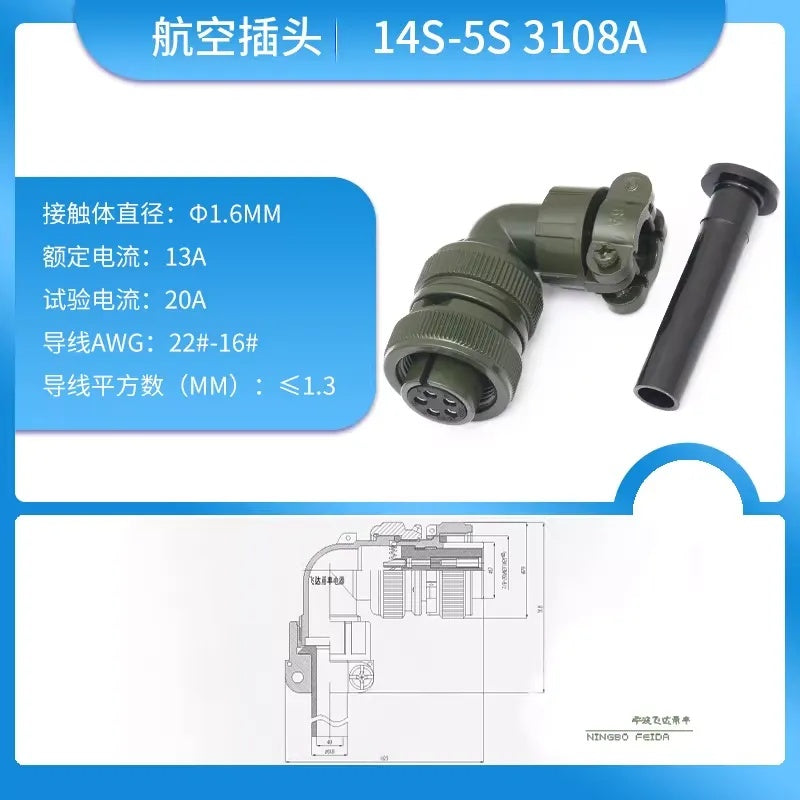

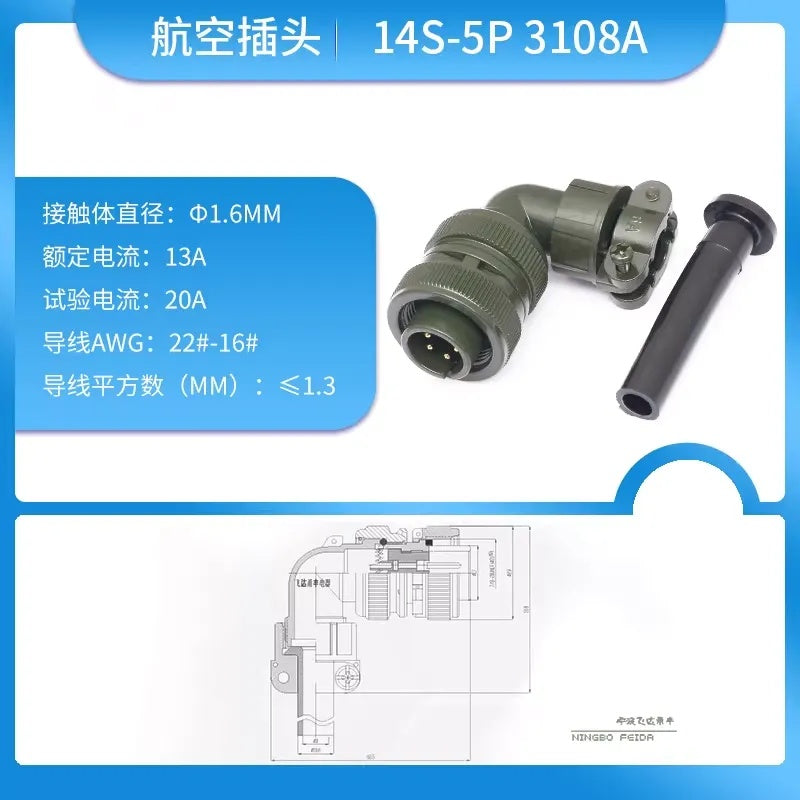

This MIL-C-5015 14S series multi-piece connector kit includes 3106 straight plug, 3106 elbow plug(90 degree), 3102 square flange mount, 3101 round docking mount, and 3100 square docking mount. Built to military standard MIL-C-5015, it features IP67 waterproof, dustproof, and corrosion-resistant performance for harsh environments.

Gold or silver-plated copper contacts ensure low resistance, high conductivity, and stable signal/power transmission. The threaded locking structure provides strong anti-vibration and anti-loosening performance. The aluminum alloy shell and high-temperature TPU insulation offer excellent durability and mechanical strength.

Suitable for industrial automation, marine equipment, automotive wiring, robotics, heavy machinery, and military-grade wiring harness applications.



DATA SHEET

中文属性 English Attribute Value
产品名称 Product Name MIL-C-5015 14S Series Waterproof Multi-Core Connector Kit
标准 Standard MIL-C-5015 Military Specification
型号系列 Model Series 3106 Straight / 3106 Elbow / 3102 Square Flange / 3101 Round Docking / 3100 Square Docking

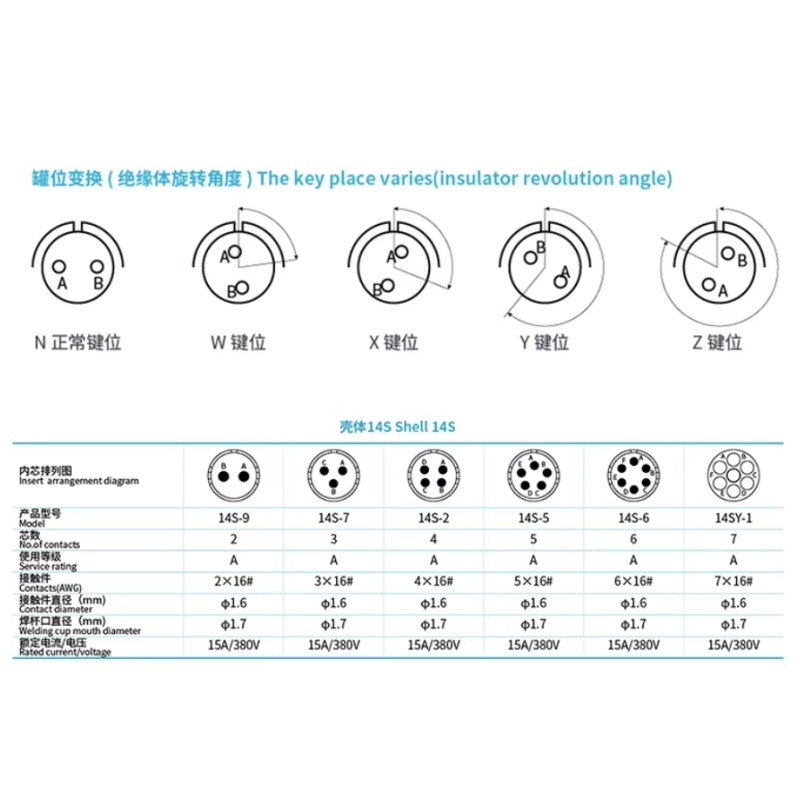

芯数 Pin Count 2,3,4,5,6,7,12,16,20,22,28,32 Pin
外壳尺寸 Shell Size 14S
防护等级 Protection Level IP67 Waterproof, Dustproof, Corrosion Resistant
连接方式 Mating Style Thread Locking, Male-Female Docking
触点材质 Contact Material Gold-Plated / Silver-Plated Copper Alloy
外壳材质 Housing Material Aluminum Alloy
绝缘材质 Insulator Thermoplastic Urethane (TPU)
额定电流 Rated Current 5A – 30A (by pin size)
额定电压 Rated Voltage AC 380V / DC 500V
工作温度 Operating Temperature -40°C to +125°C
插拔寿命 Durability ≥500 Mating Cycles
应用 Application Industrial Automation, Marine, Automotive, Robotics, Military Wiring Harness
