Miniature Electric Actuators Rod 12V 24V Stroke 10mm-150mm Actuator with Controller Power Adapter Remote Controll

Miniature Electric Actuators Rod, pen type electric actuator with controller

WXL-A3 Miniature Electric Linear Actuator 12V/24V Micro Telescopic Push Rod

Product Description

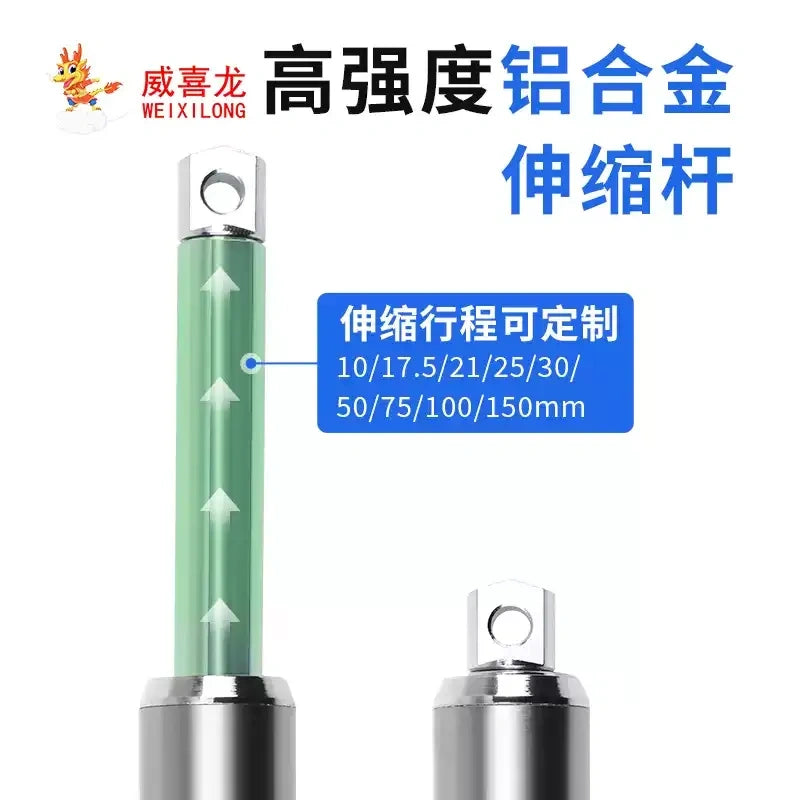

This WXL-A3 series miniature pen-style electric linear actuator features compact size with strong thrust, built with all-metal precision copper components and metal gears for long service life under continuous load. The housing combines stainless steel and aluminum alloy; the high-precision telescopic rod adopts high alloy steel, anti-corrosion and durable.

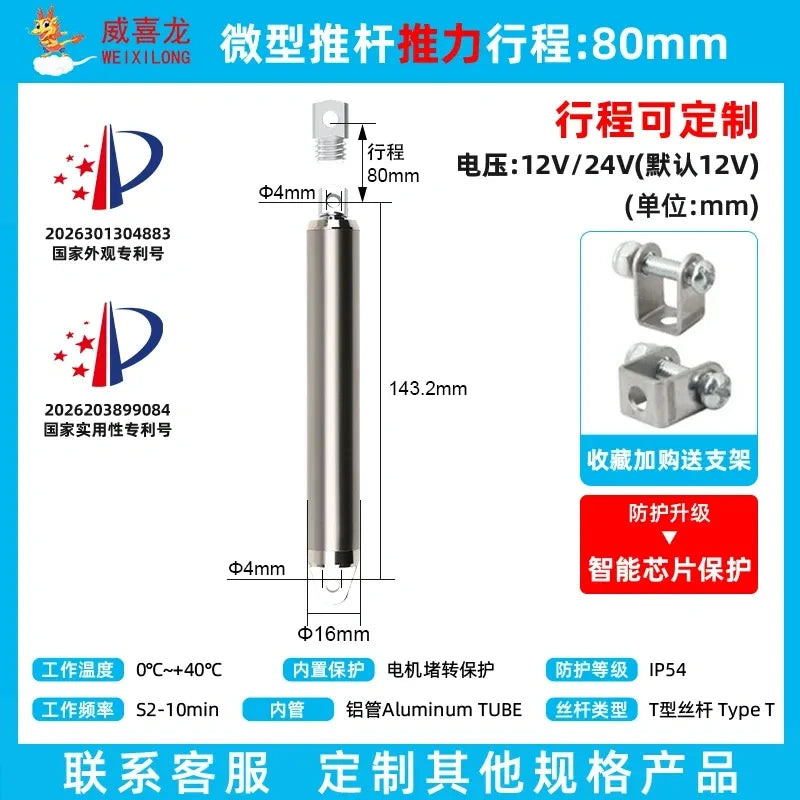

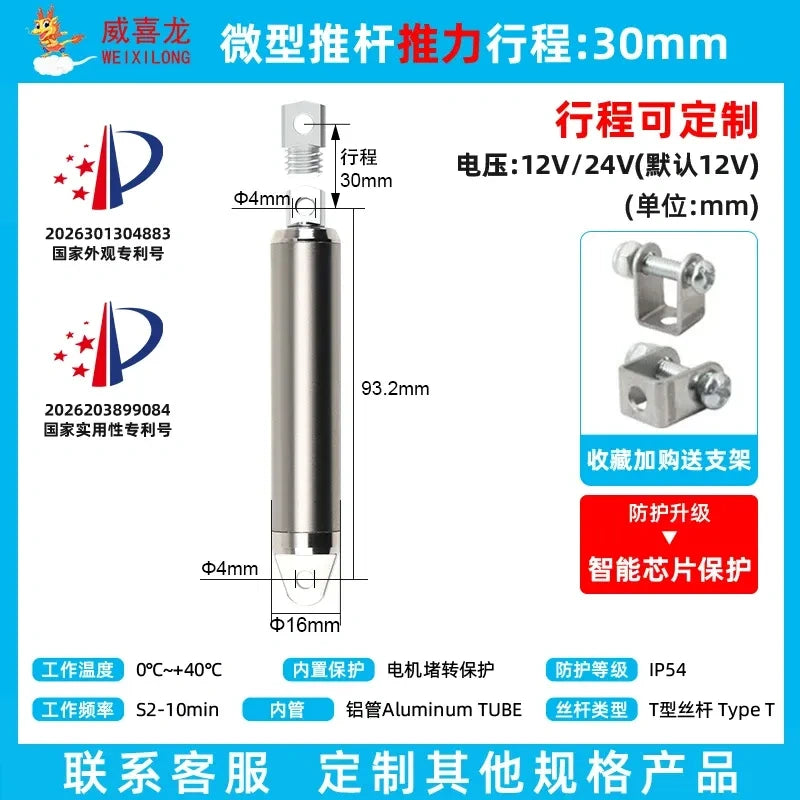

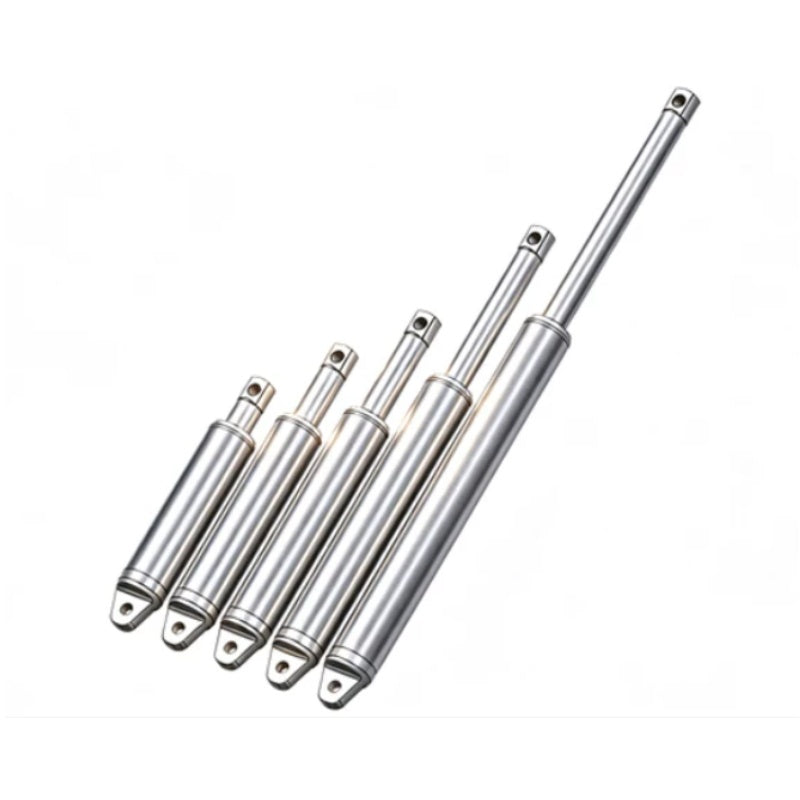

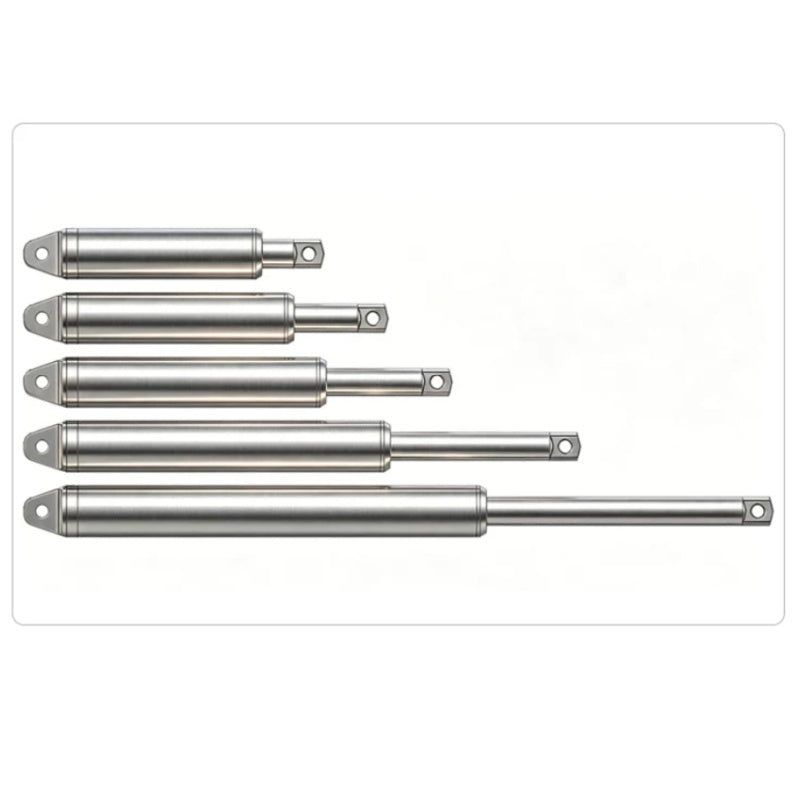

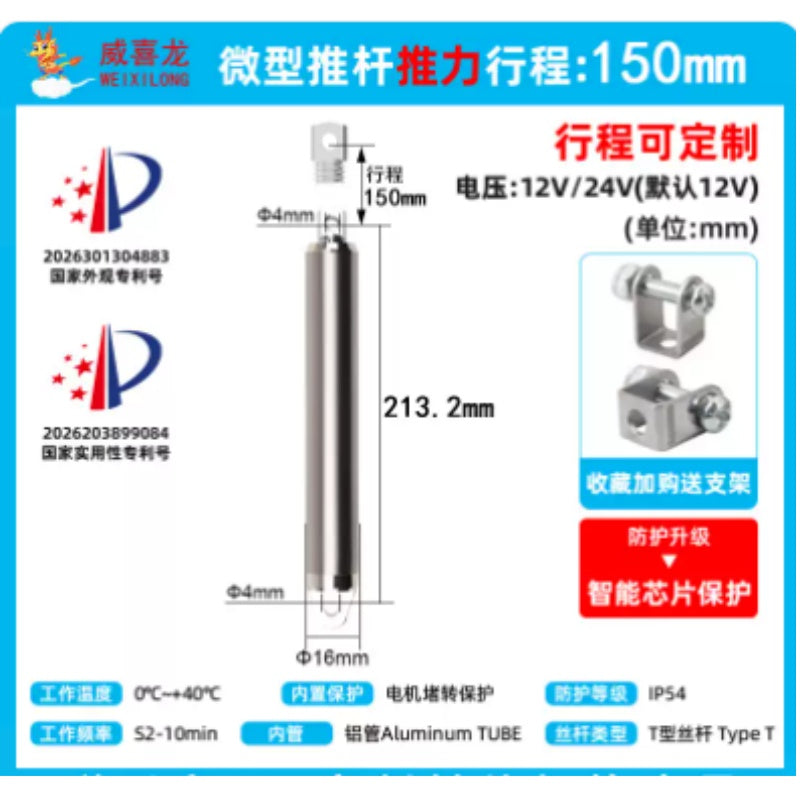

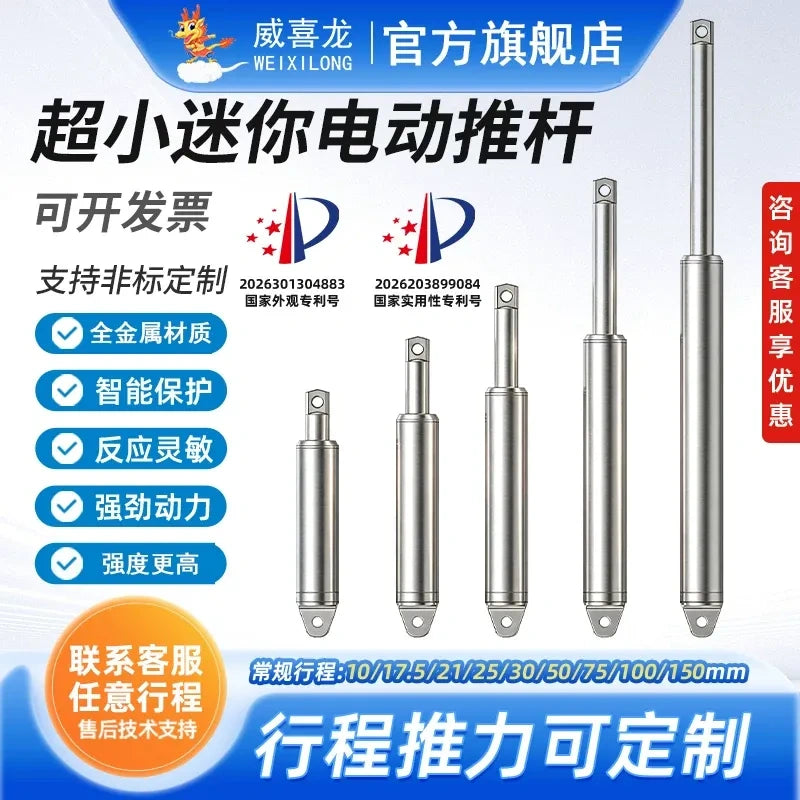

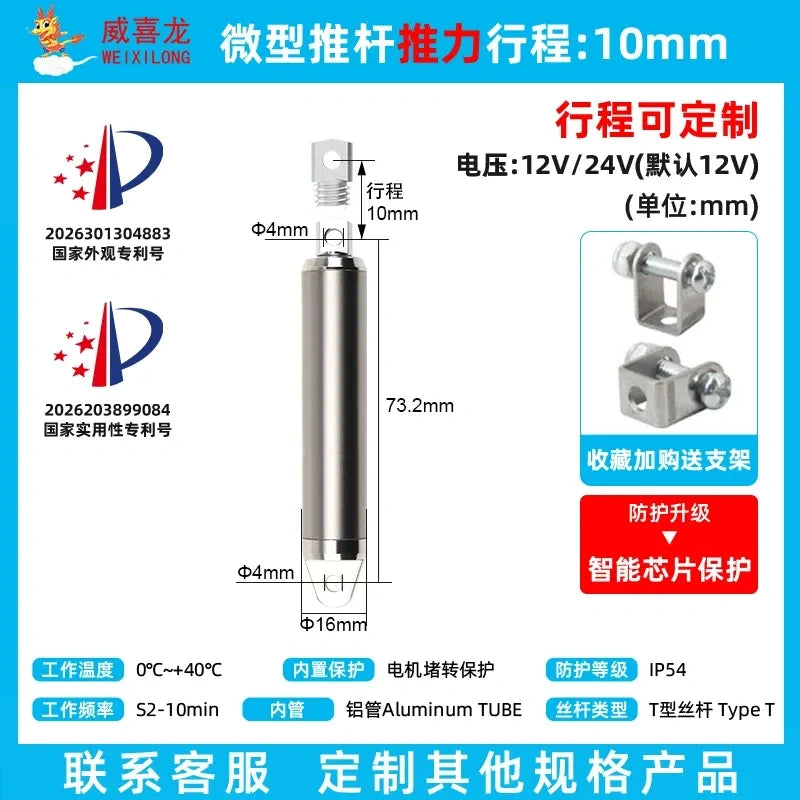

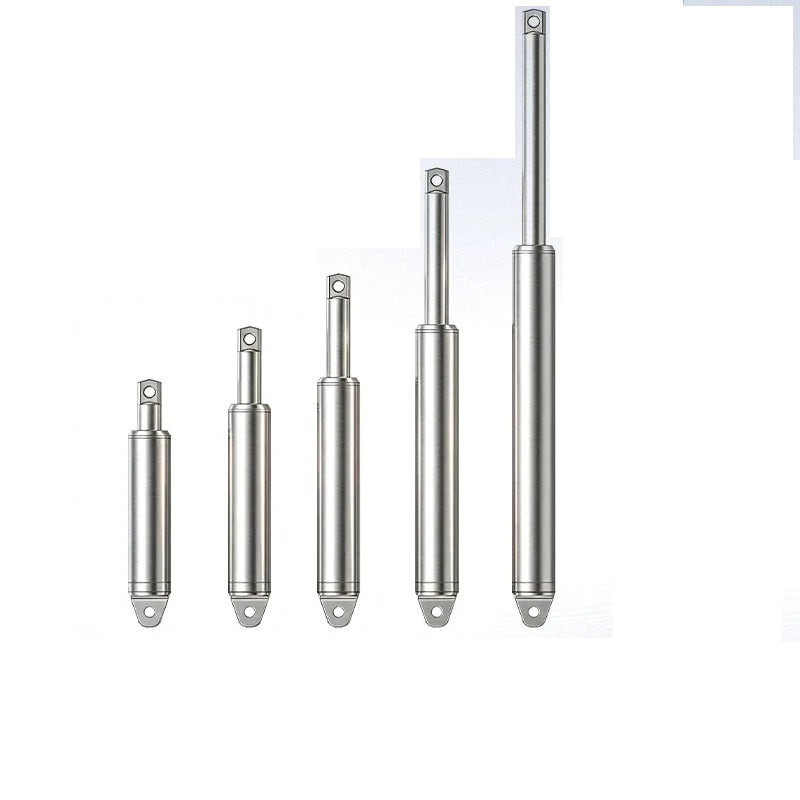

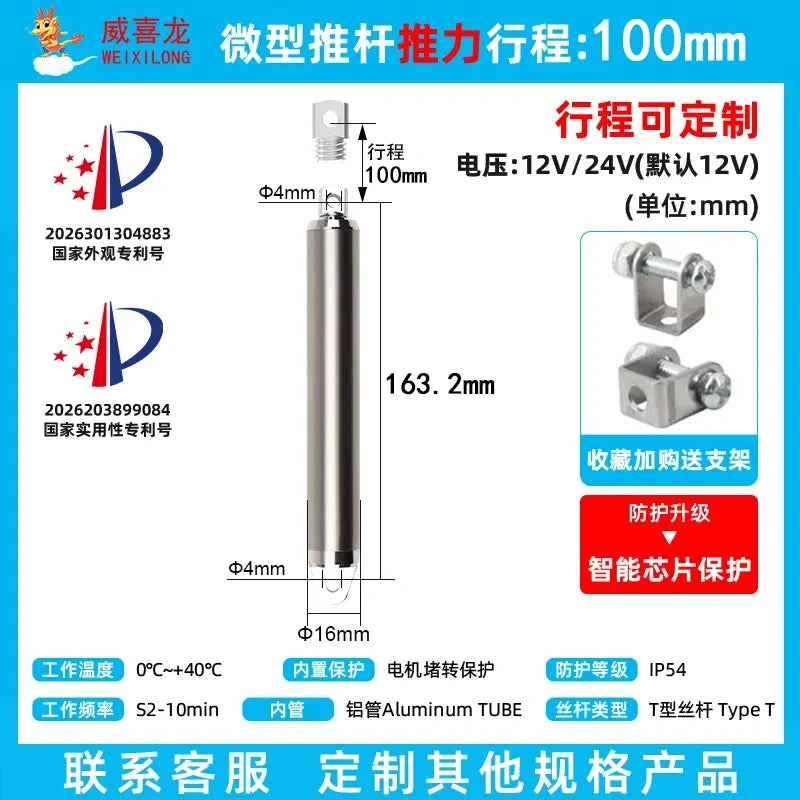

It runs smoothly with low noise ≤52dB, built-in limit switch, power on to extend, reverse polarity to retract, auto power-off once reaching stroke end. Available voltage: DC12V / DC24V, rated current 0.25A. Multiple stroke options:10/20/30/50/80/100/150mm, longer stroke customizable.

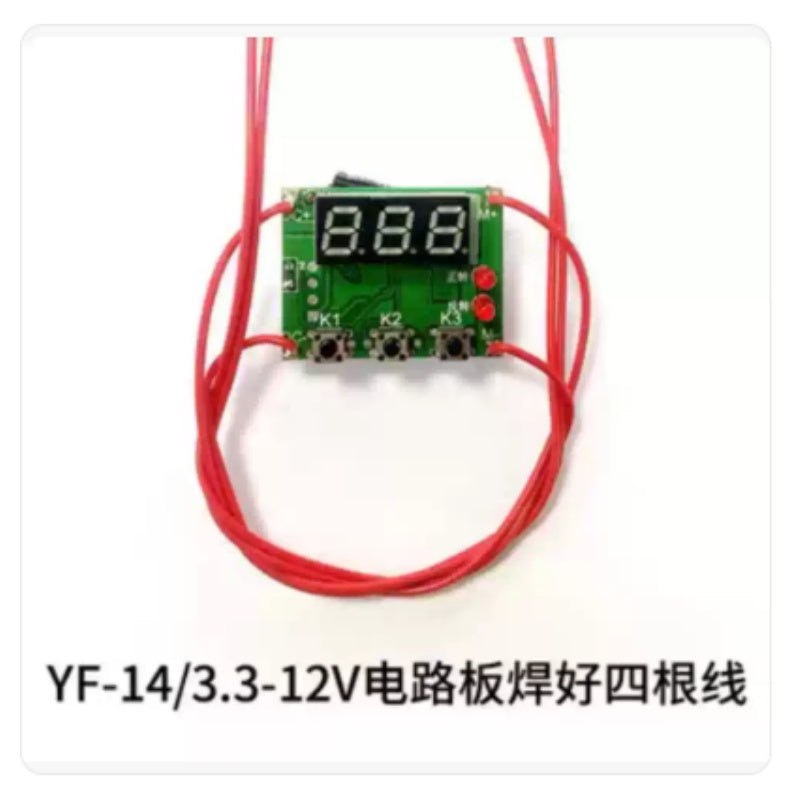

Diverse control options: manual wired switch, wireless remote controller, timing cycle board, PLC/MCU connection, mobile APP remote control and more. Widely used in vending machines, rehabilitation manipulators, automation machinery, assembly robots, medical, food and automotive equipment.

Note: It is brushed DC motor, service life up to 30,000 cycles, duty cycle 10% (work 2 minutes, rest 18 minutes), 1-year warranty.

Attribute Table

FAQ

Q1: What voltage options are available for this mini linear actuator?

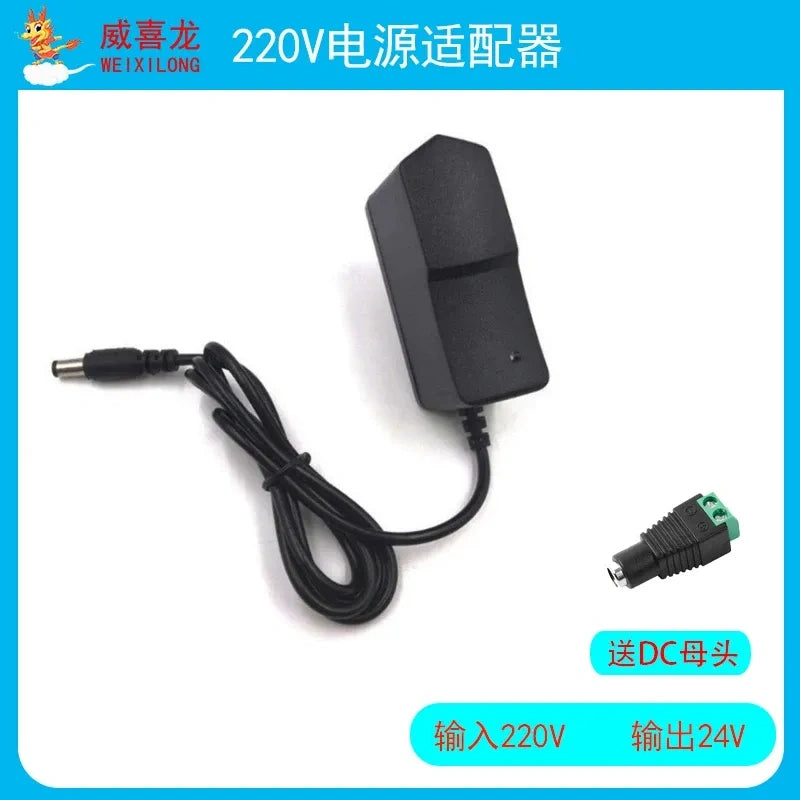

A1: DC12V and DC24V are standard options. We also have 220V power adapters for you to choose as accessory.

Q2: Can I customize the stroke length?

A2: Yes. Standard strokes range from 10mm to150mm, longer stroke can be customized upon request.

Q3: What is the duty cycle of this actuator?

A3: Duty cycle is 10%. It can continuously work for 2 minutes, then needs 18 minutes rest to avoid overheating. Total service life can reach 30,000 cycles under proper use.

Q4: How to control the extension and retraction?

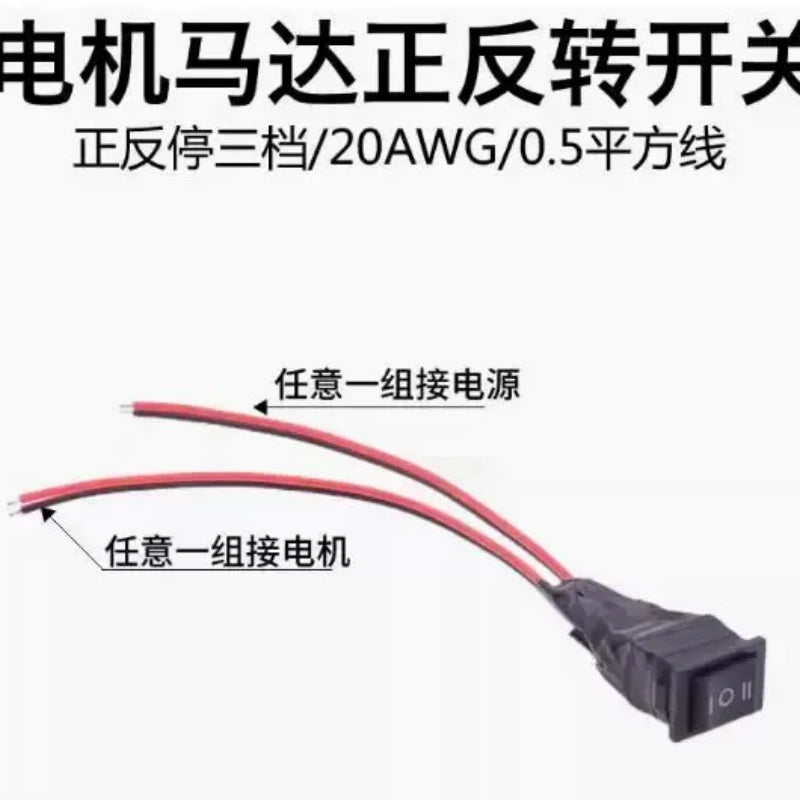

A4: Reverse the positive and negative wire polarity to change movement direction. Red wire for positive, black wire for negative to extend; swap wires to retract. It has built-in limit switch to cut off power automatically when it reaches full stroke. Multiple optional controllers: wired manual switch, wireless remote, timing cycle board, PLC, mobile APP control.

Q5: What is the noise level while running?

A5: Running noise ≤52dB, low noise and stable operation.

Q6: What material is the push rod and housing?

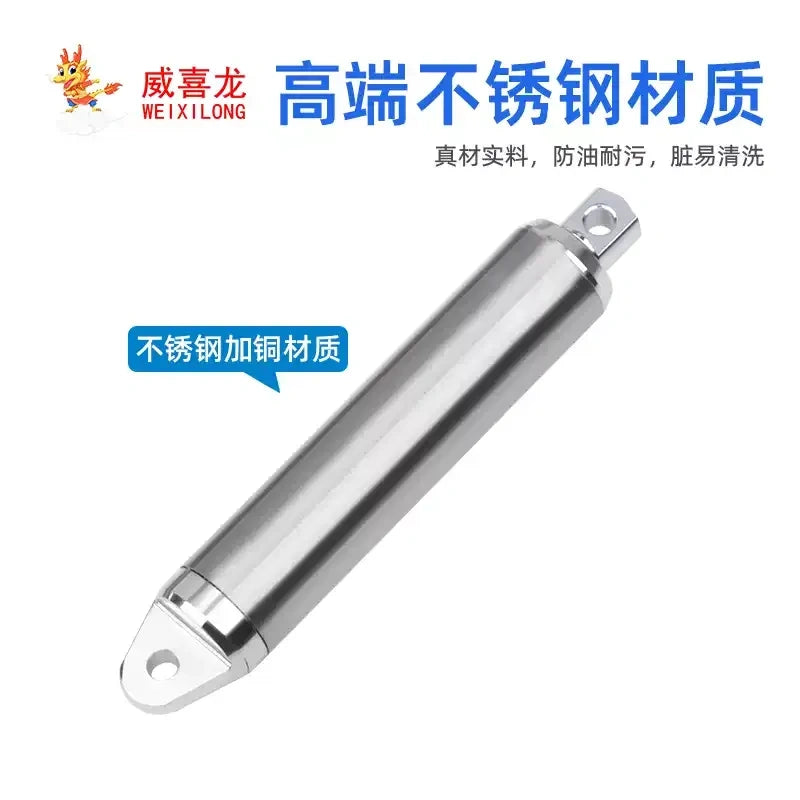

A6: Outer housing: stainless steel + aluminum alloy. Telescopic rod is high alloy steel, corrosion resistant. Internal metal gears ensure long heavy-load lifespan.

Q7: What applications can this miniature electric actuator be used for?

A7: Suitable for vending machines, rehabilitation manipulators, automation machines, assembly robots, medical, food processing and automotive small automation projects.

Q8: Does this product come with power supply or controller?

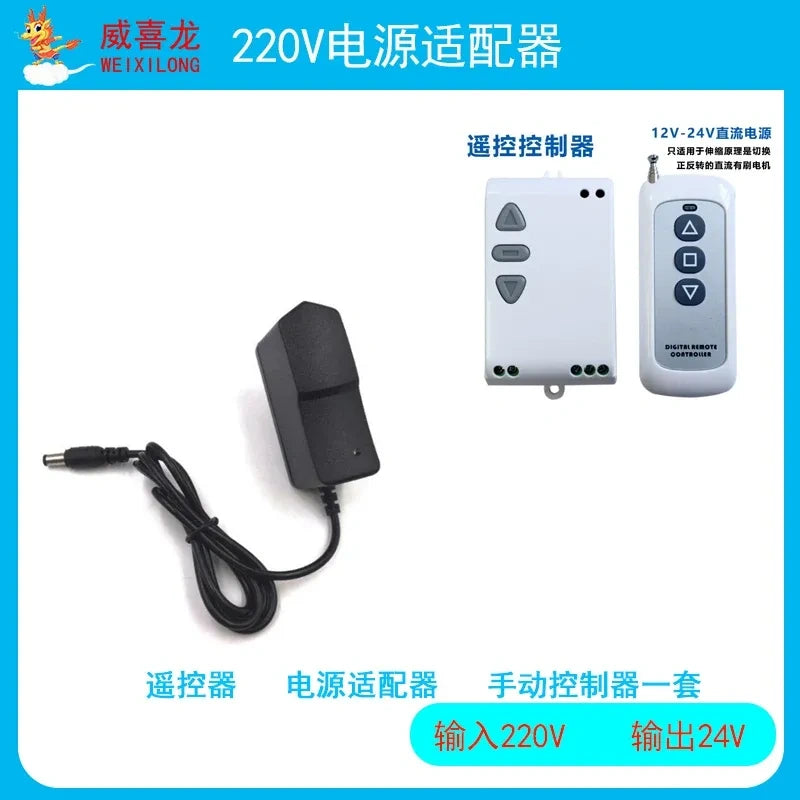

A8: The base actuator only includes motor rod. Power supply, manual switch, remote controller, timing board are separate optional accessories.

Q9: What thrust and speed options I can pick?

A9: Multiple variants: 12V:30mm/s 20N(2KG);15mm/s 50N(5KG);8mm/s70N(7KG);4mm/s150N(15KG) 24V:30mm/s30N(3KG);15mm/s60N(6KG);8mm/s120N(12KG);4mm/s200N(20KG)
