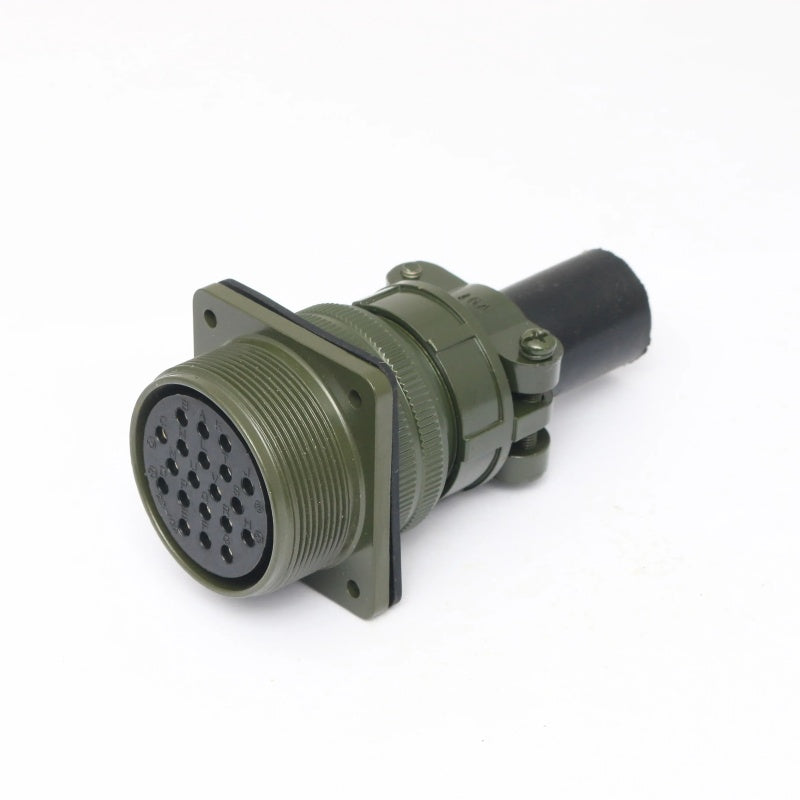

MIL-C-5015 28S Aviation Connector
Regular price
$24.20 USD
Regular price
$8.28 USD
Sale price
$24.20 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

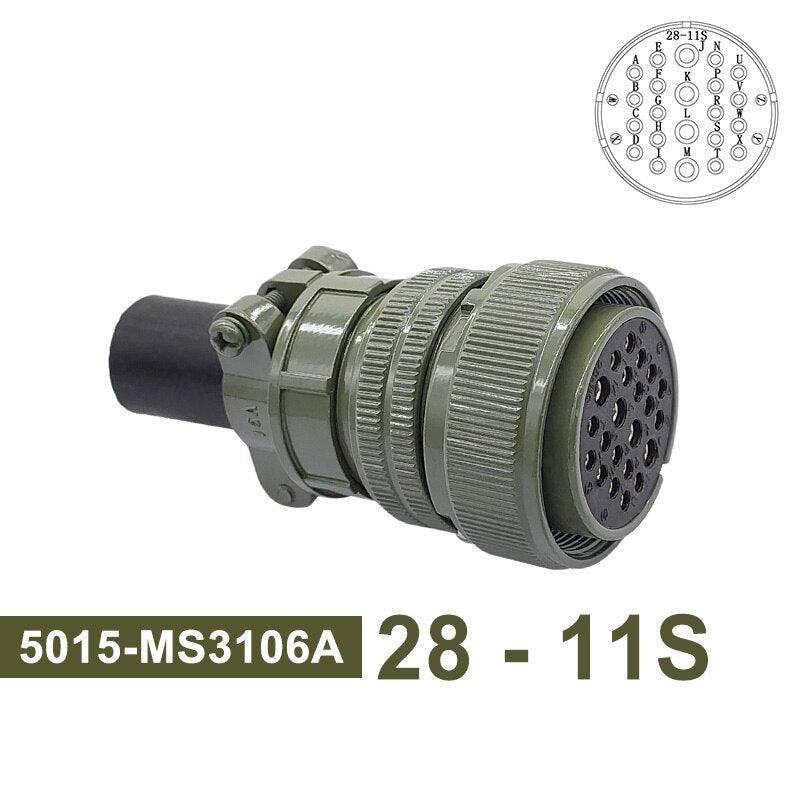

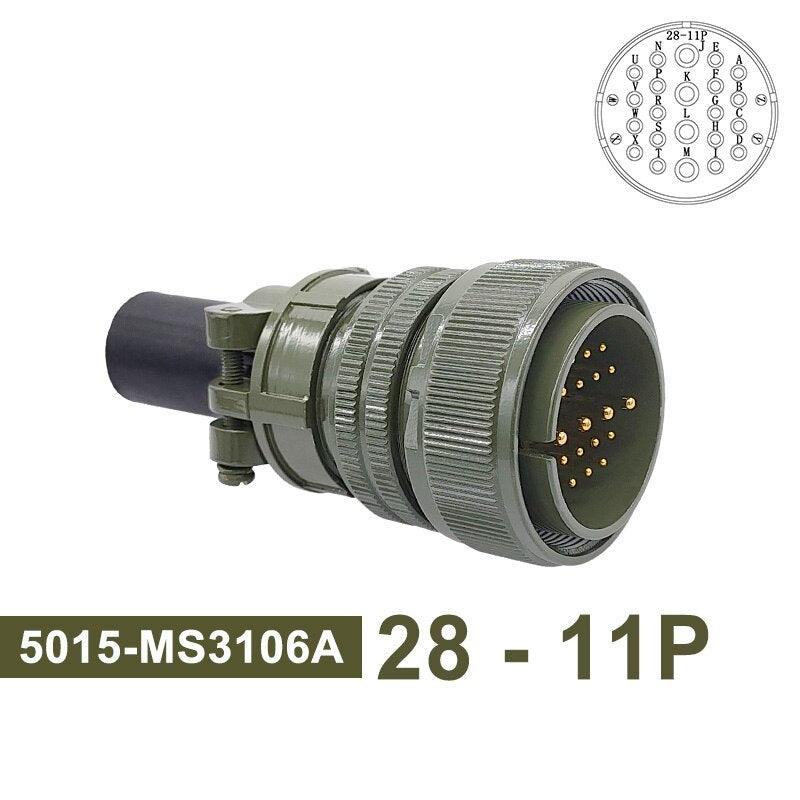

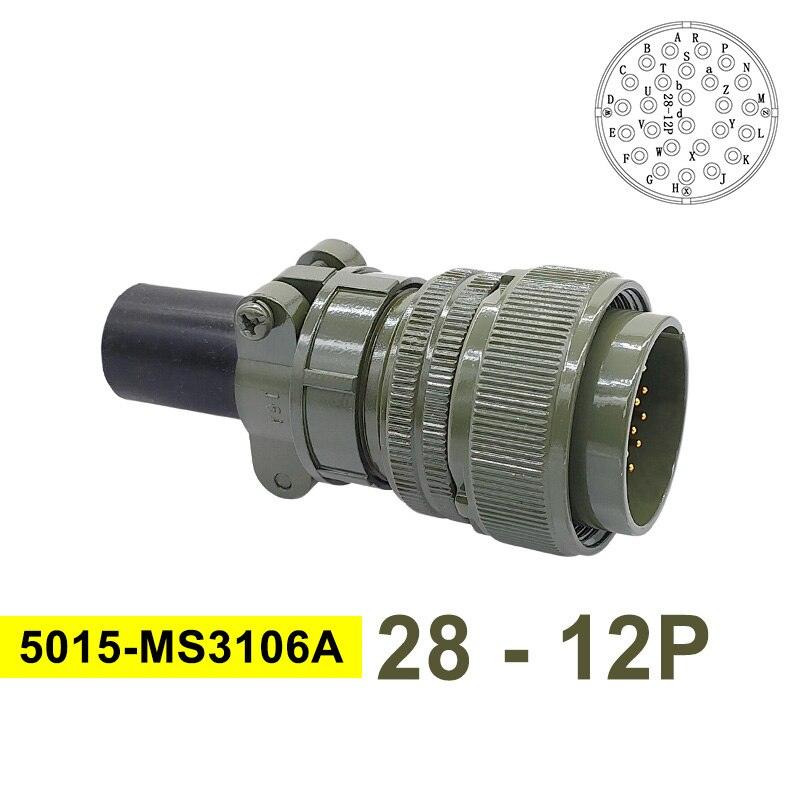

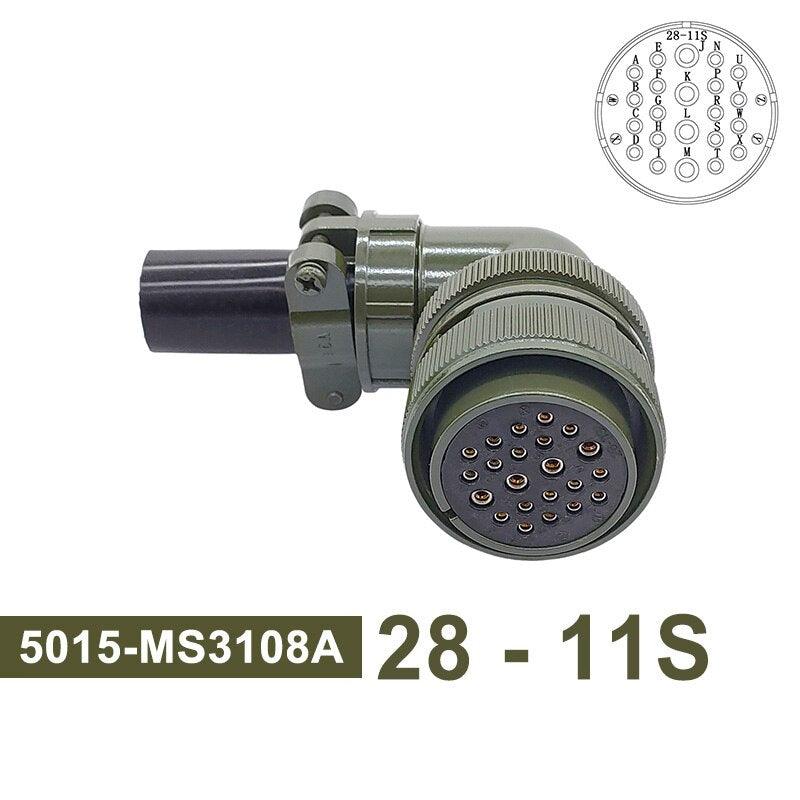

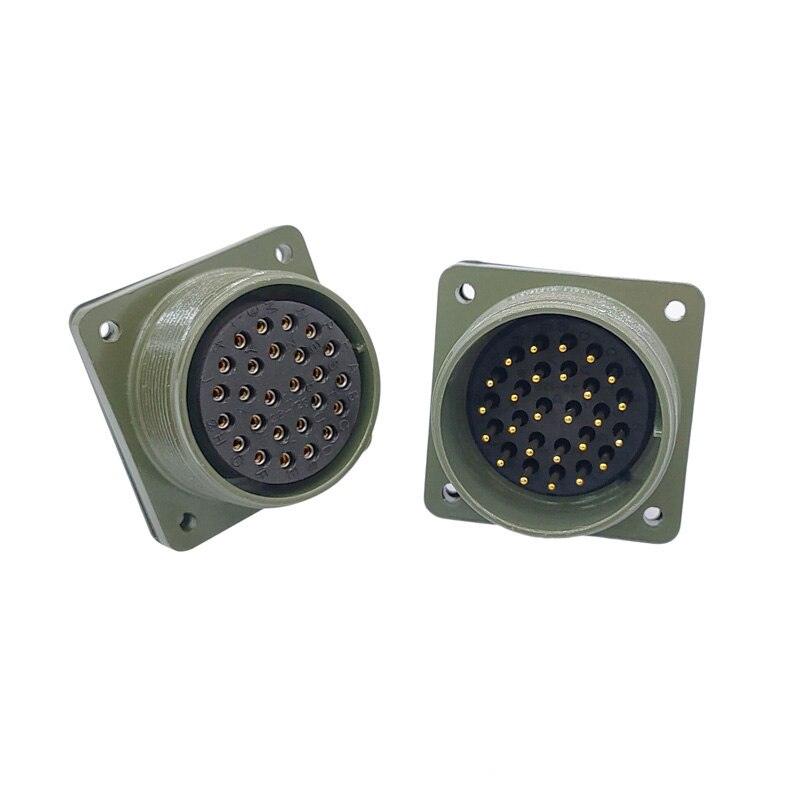

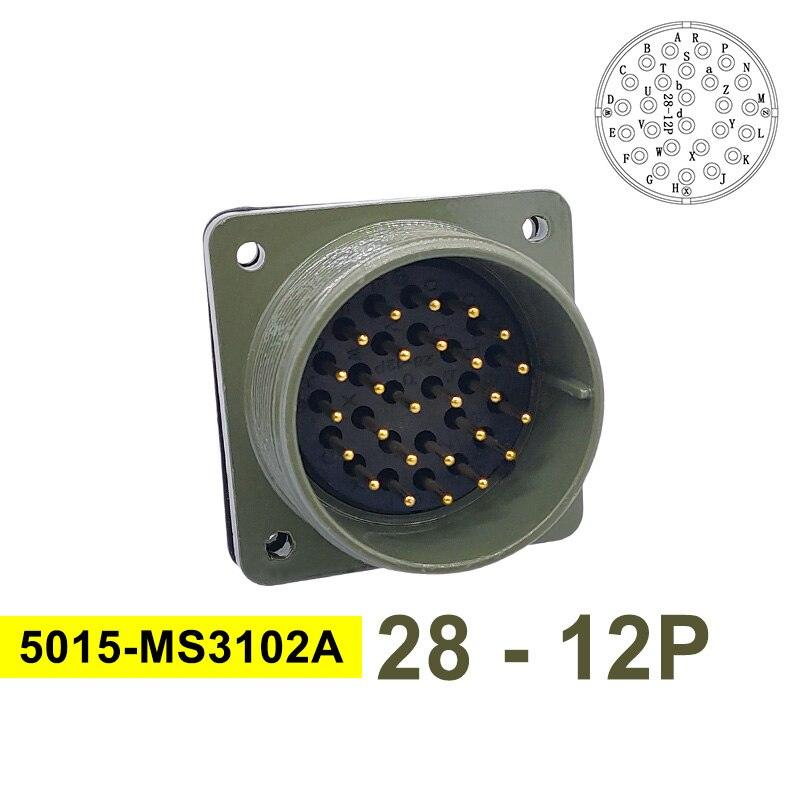

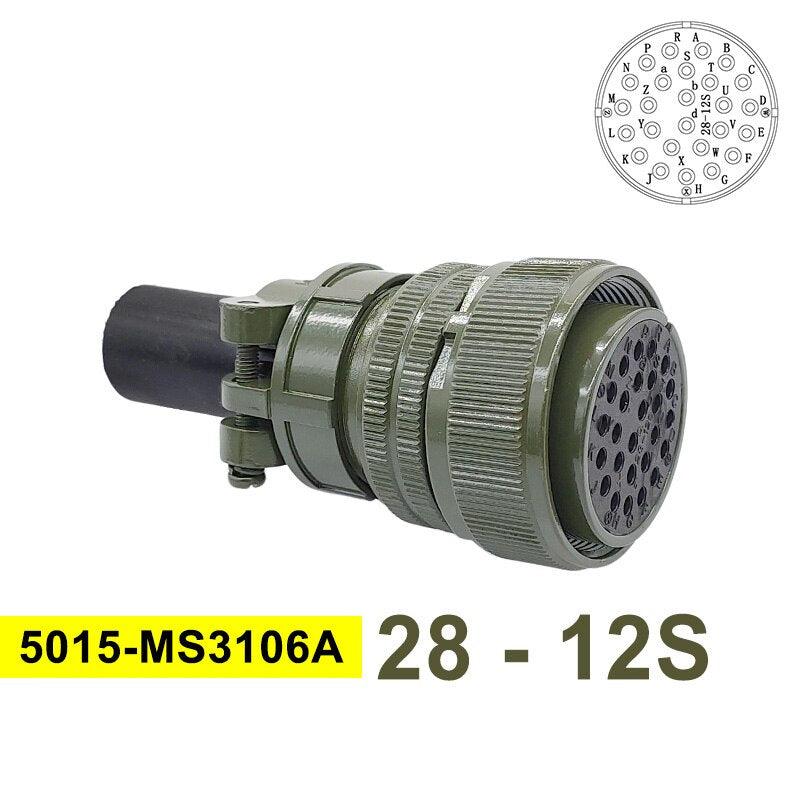

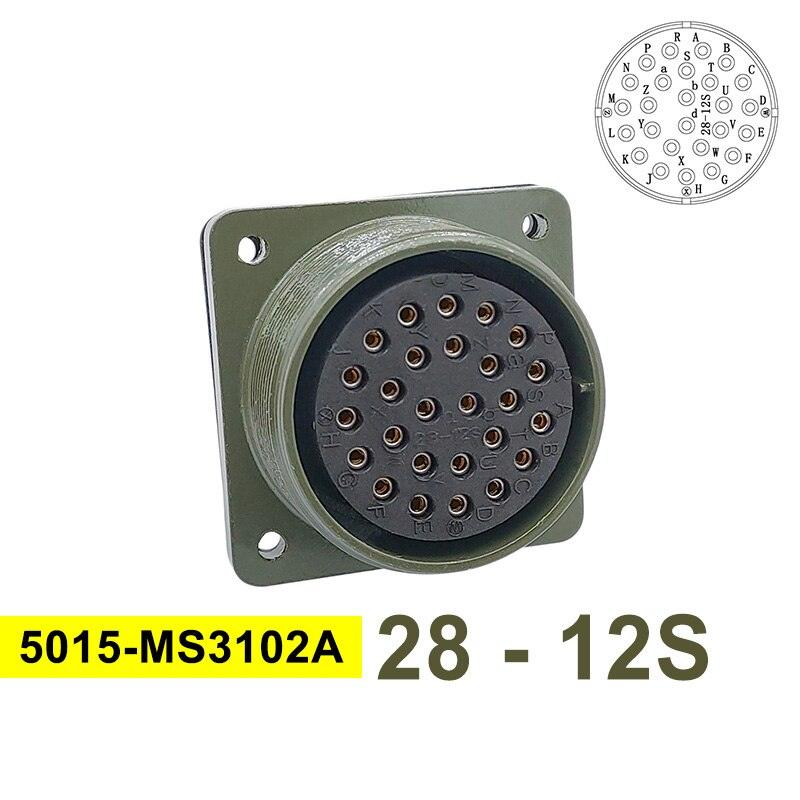

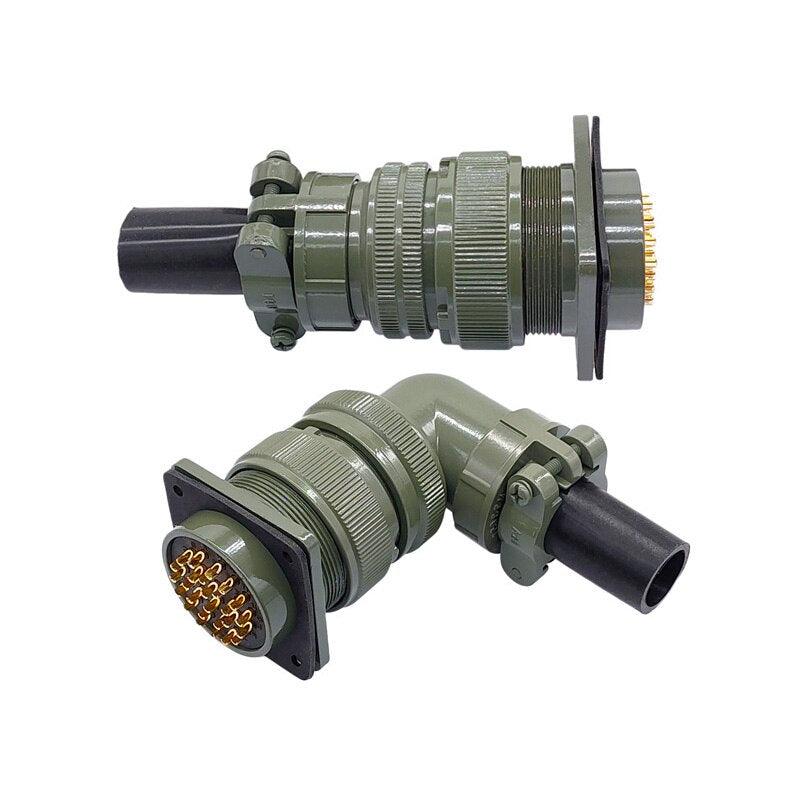

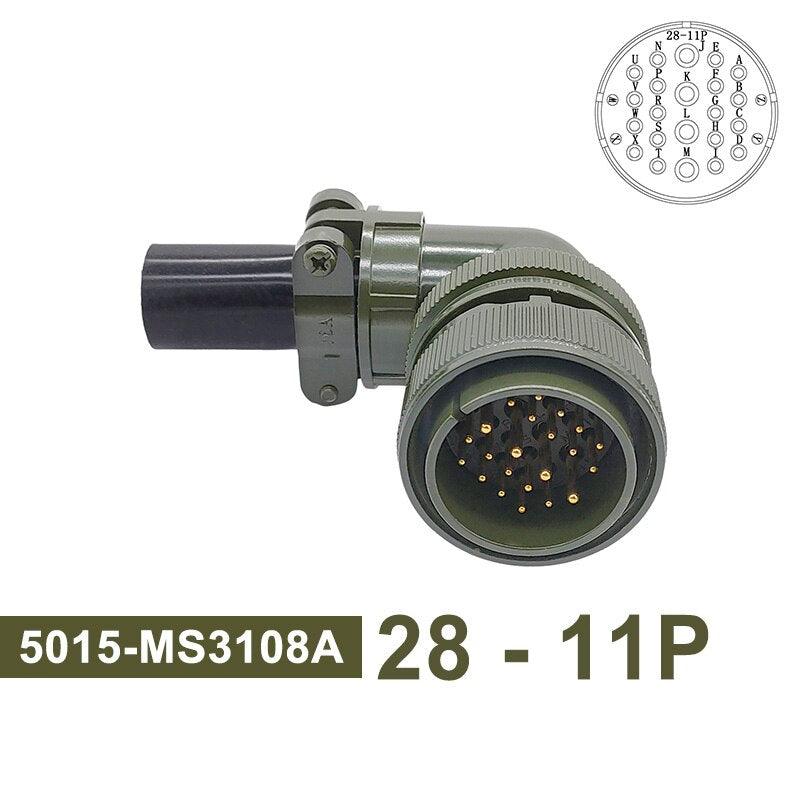

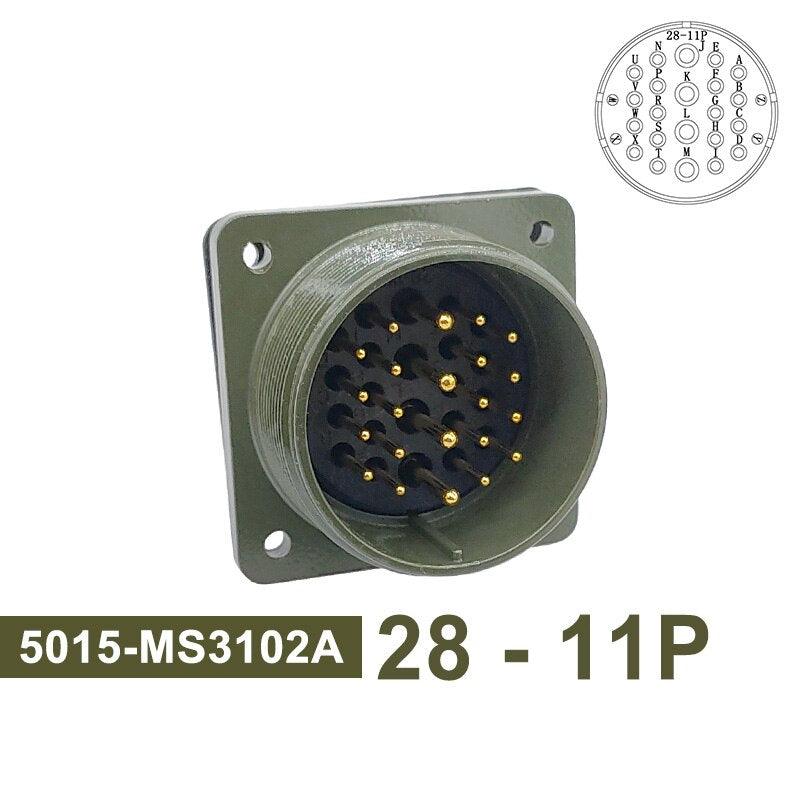

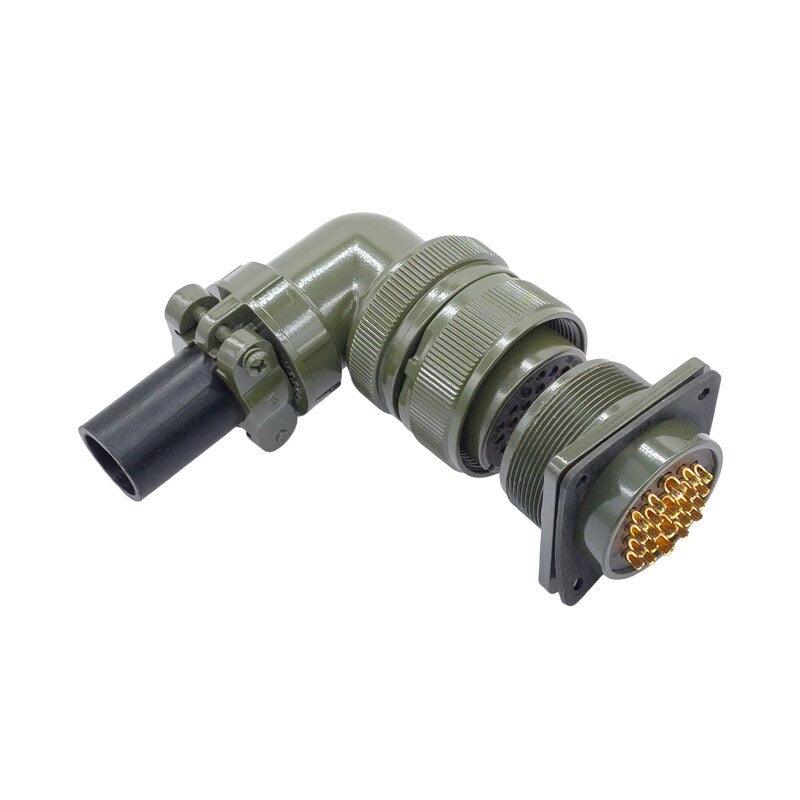

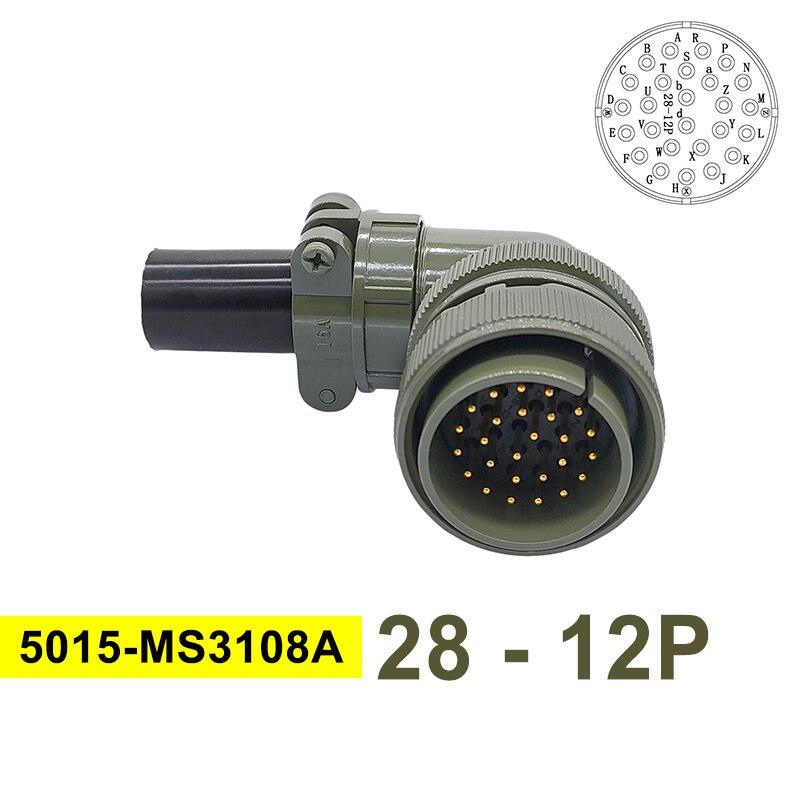

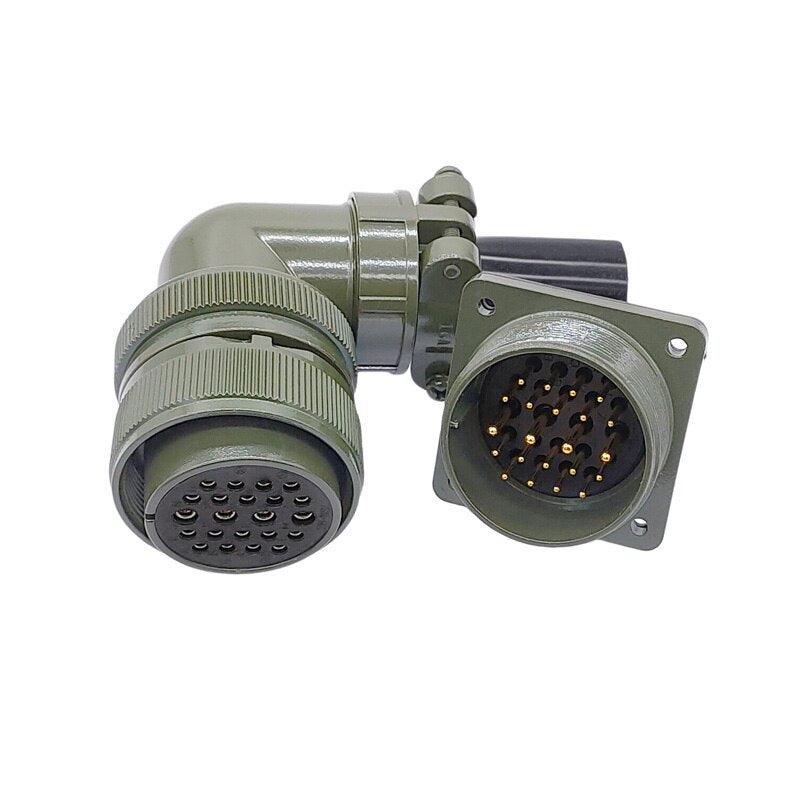

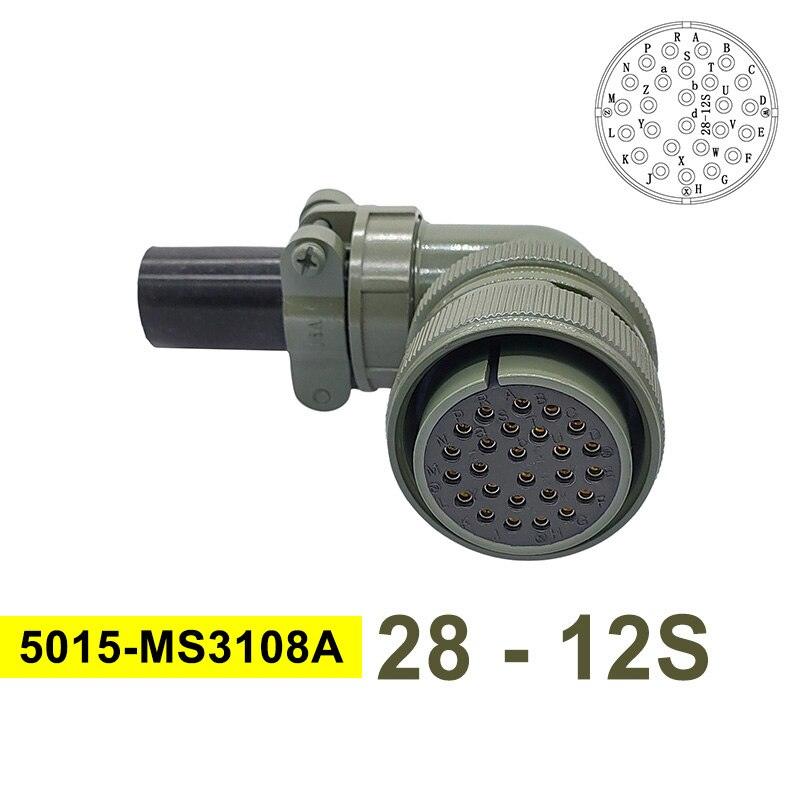

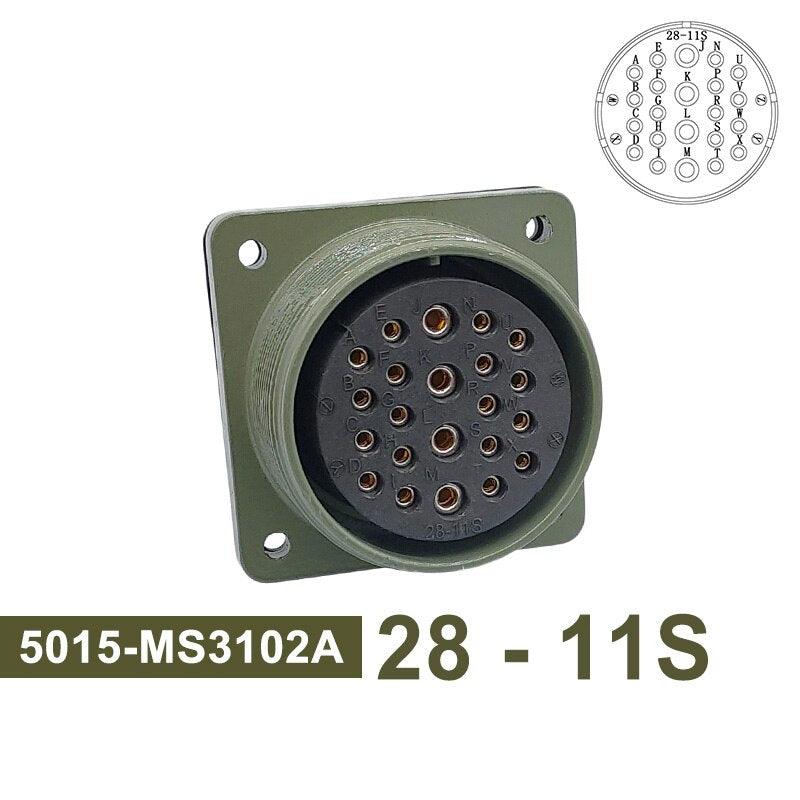

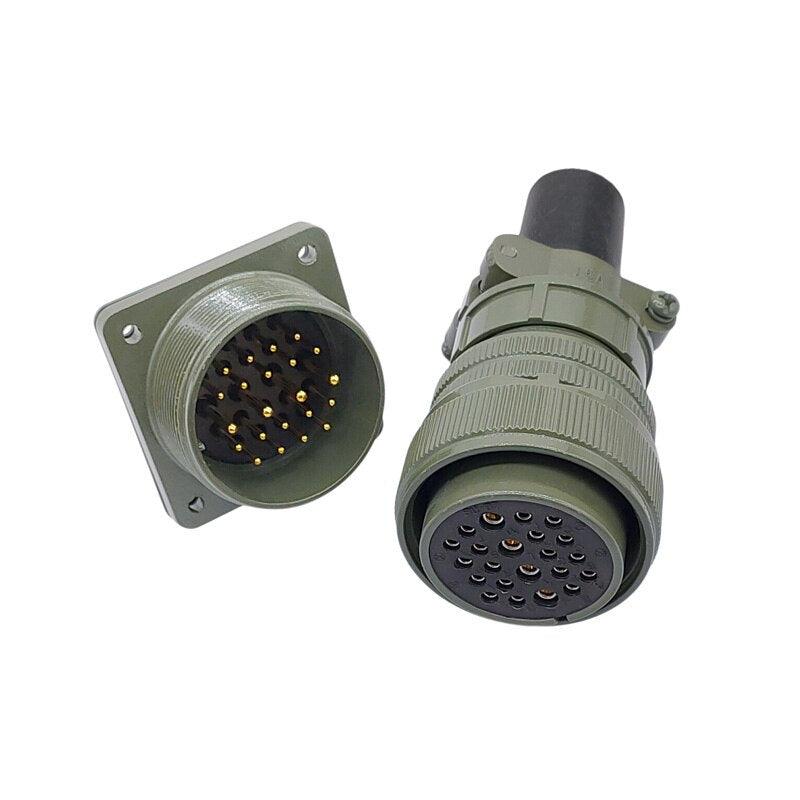

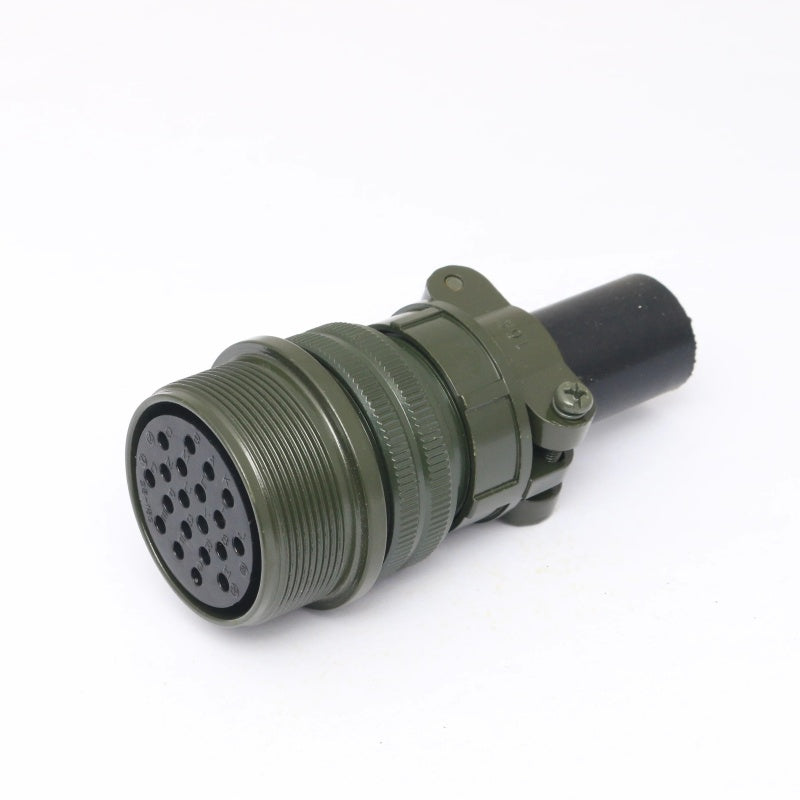

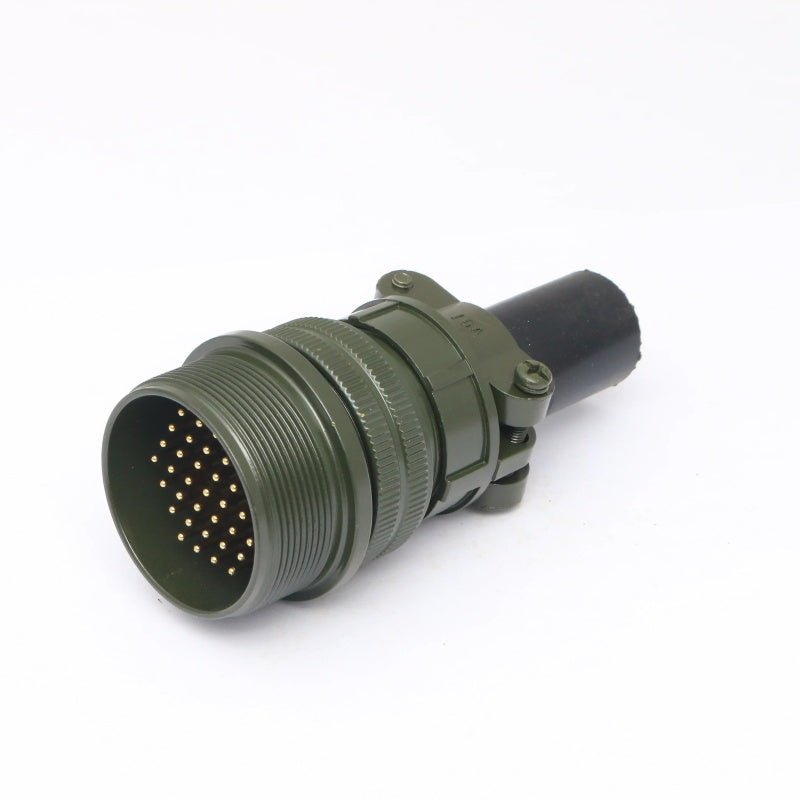

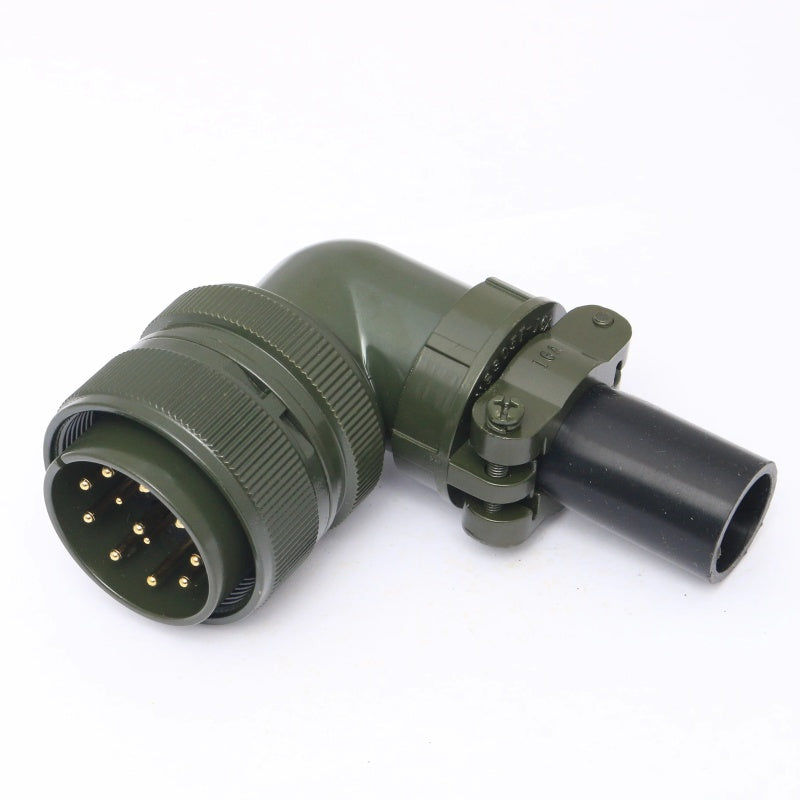

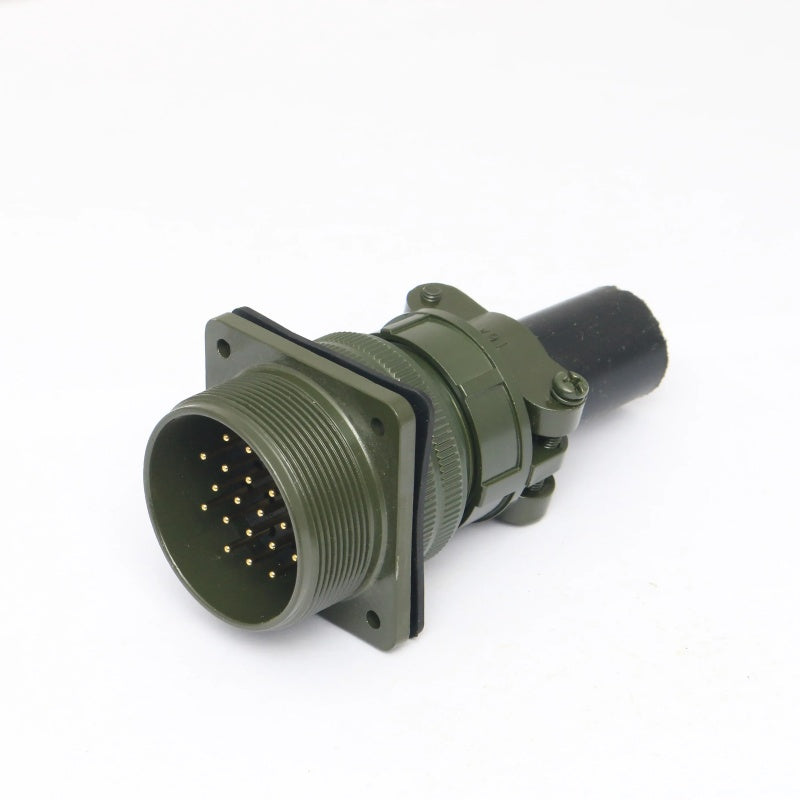

MIL-C-5015 28S Aviation Connector, 3-37 Pin, IP67 Waterproof, Male Female Docking
Product Overview
The MIL-C-5015 (MIL-SPEC 5015) 28S series circular aviation connector is a high-reliability industrial electrical connection solution, fully compliant with strict US Military Standard specifications. Manufactured by Yongfeng (Feida Yongfeng), this connector covers a full range of pin counts from 3 to 37, with options for high-current (up to 46A) and high-density multi-core signal transmission. Featuring IP67 dustproof and waterproof protection, gold/silver-plated copper contacts, and a secure threaded locking mechanism, it delivers stable, long-lasting performance for industrial automation, aerospace, marine, and automotive applications, making it ideal for heavy machinery, control systems, and wiring harnesses.

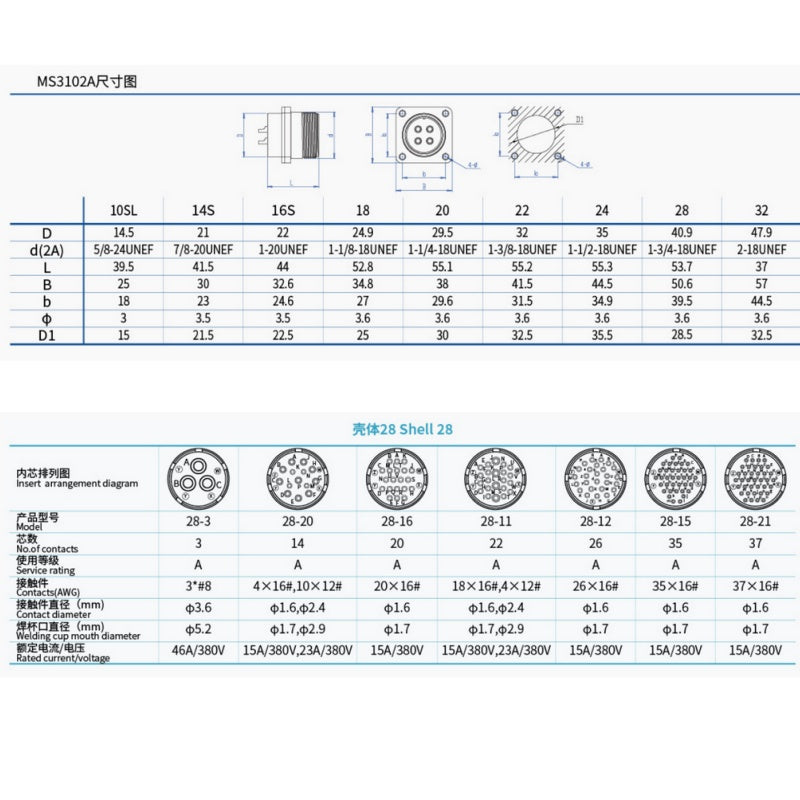

Key Specifications
| Item | Details |
|---|---|
| Standard | MIL-C-5015 (US Military Standard / MIL-SPEC 5015) |
| Series / Shell | 28S Series, 28S Shell Size |
| Pin Count | 3, 14, 20, 22, 26, 35, 37 Pin |
| Rated Current/Voltage | 46A/380V (3P), 15A/380V,23A/380V (14P/22P), 15A/380V (20P/26P/35P/37P) |
| Contact Material | Gold/Silver-Plated Copper (Low Contact Resistance, Anti-Oxidation) |
| Contact Diameter | φ3.6mm (8#), φ2.4mm (12#), φ1.6mm (16#) |
| Solder Cup Diameter | φ5.2mm, φ2.9mm, φ1.7mm |
| Insulator Material | High-Temperature Resistant TPU/Rubber |
| Housing Material | Lightweight, High-Strength Aluminum Alloy |
| Protection | IP67 (Dustproof, Waterproof, Corrosion Resistant) |
| Mating Type | Threaded Locking (Anti-Vibration, Secure Connection) |
| Termination | Solder |
| Mating Life | 500 Cycles |
| Operating Temperature | -40°C ~ +70°C |
| Certification | CE |
