MIL-C-5015 10SL Aviation Connector

$19.60 USD
$3.31 USD $19.60 USD
Sale Sold out
Shipping calculated at checkout.
Number of Contacts
Contact Type
Shell Type

MIL-C-5015 10SL Aviation Connector, 2/3 Pin, IP67 Waterproof, Male Female Docking

Product Overview

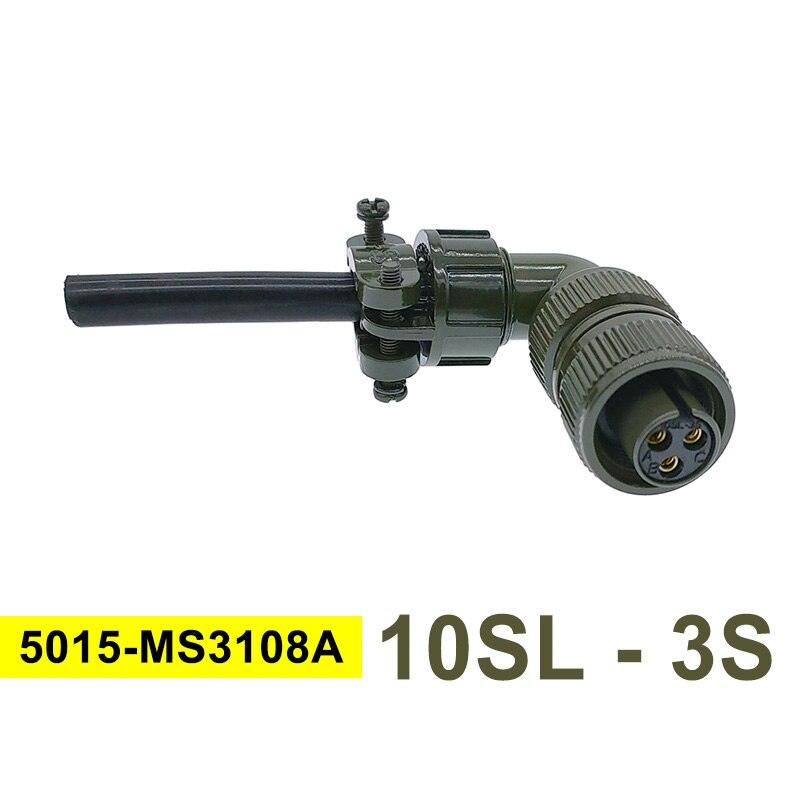

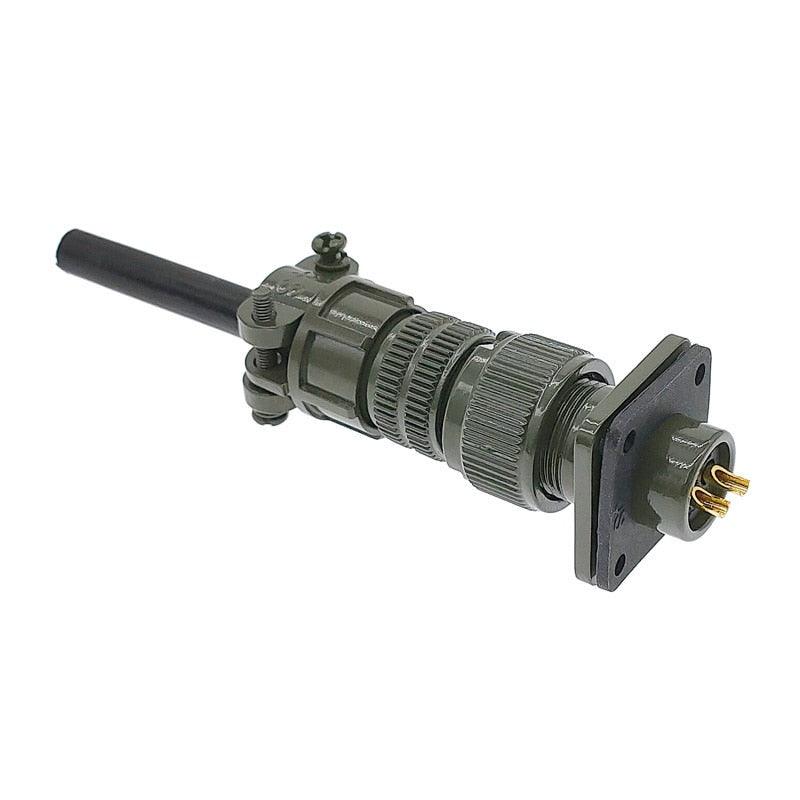

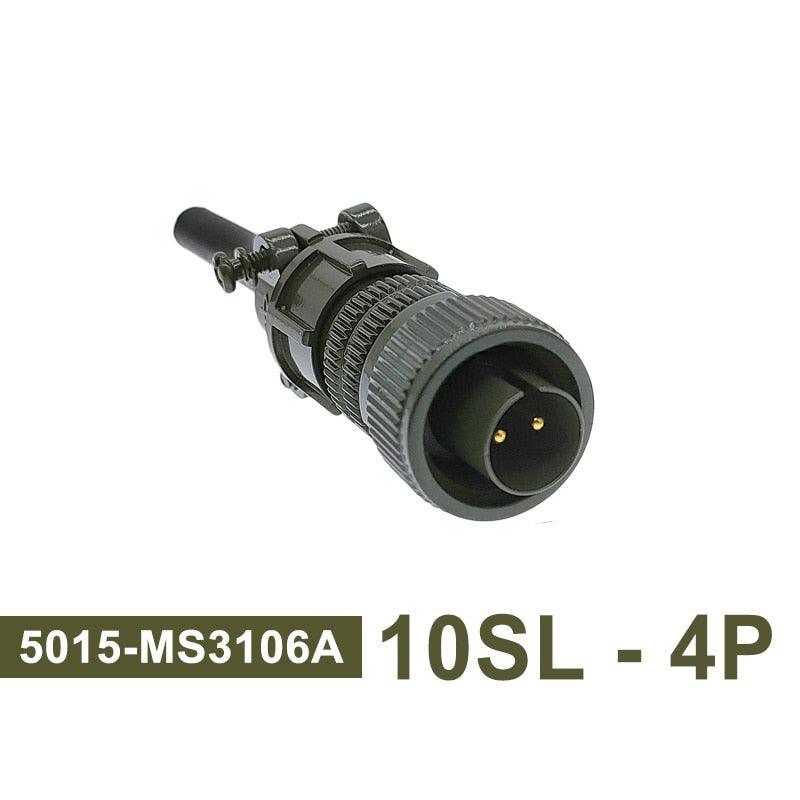

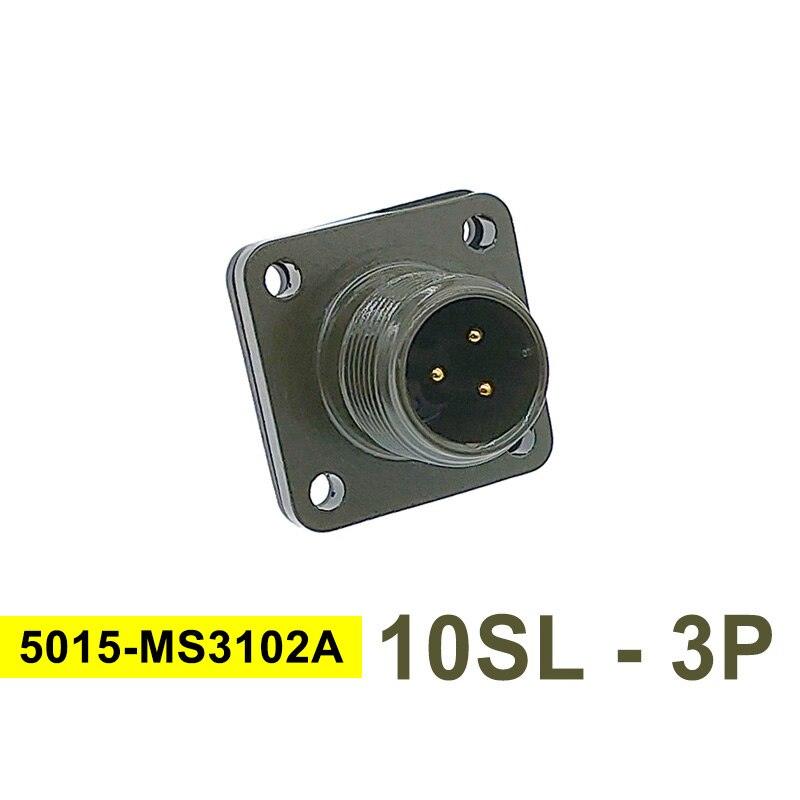

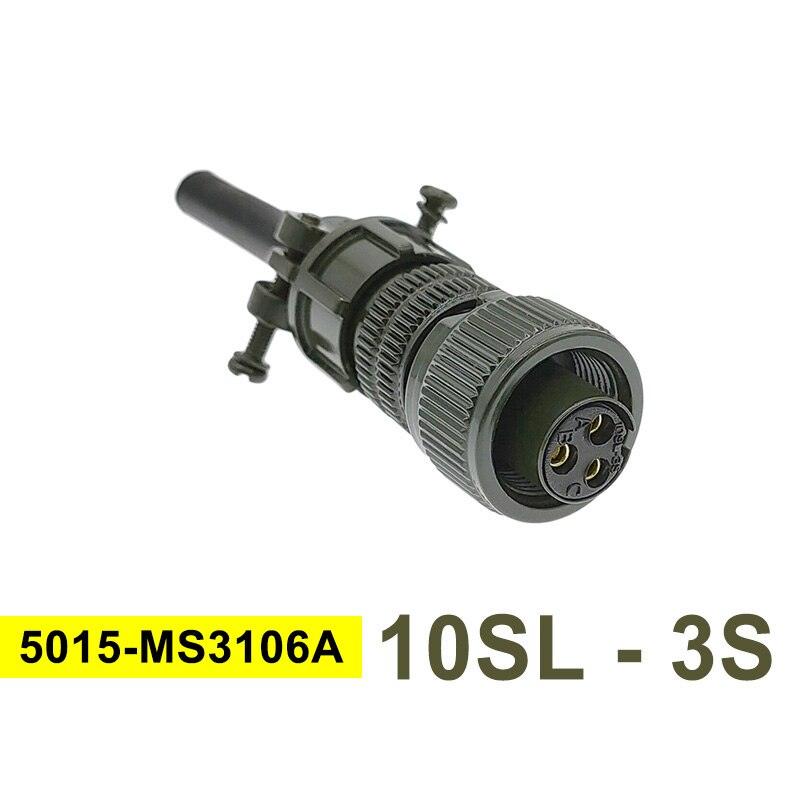

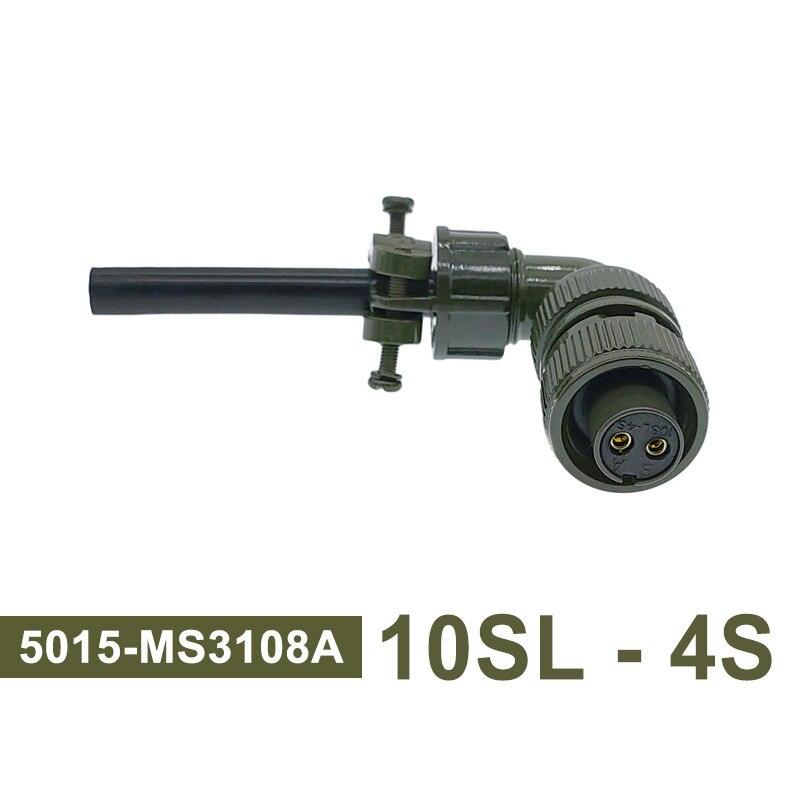

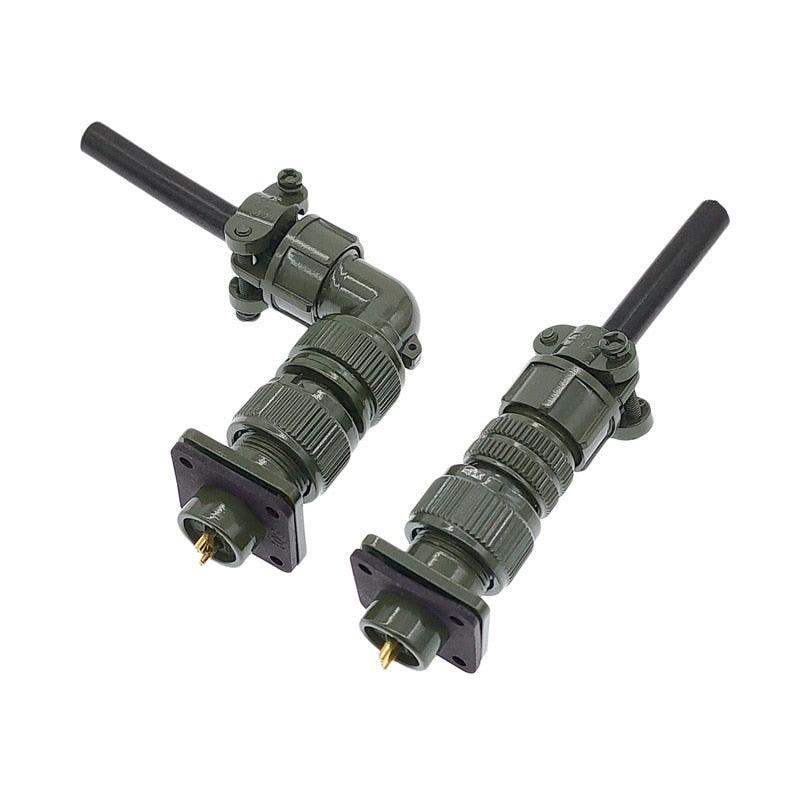

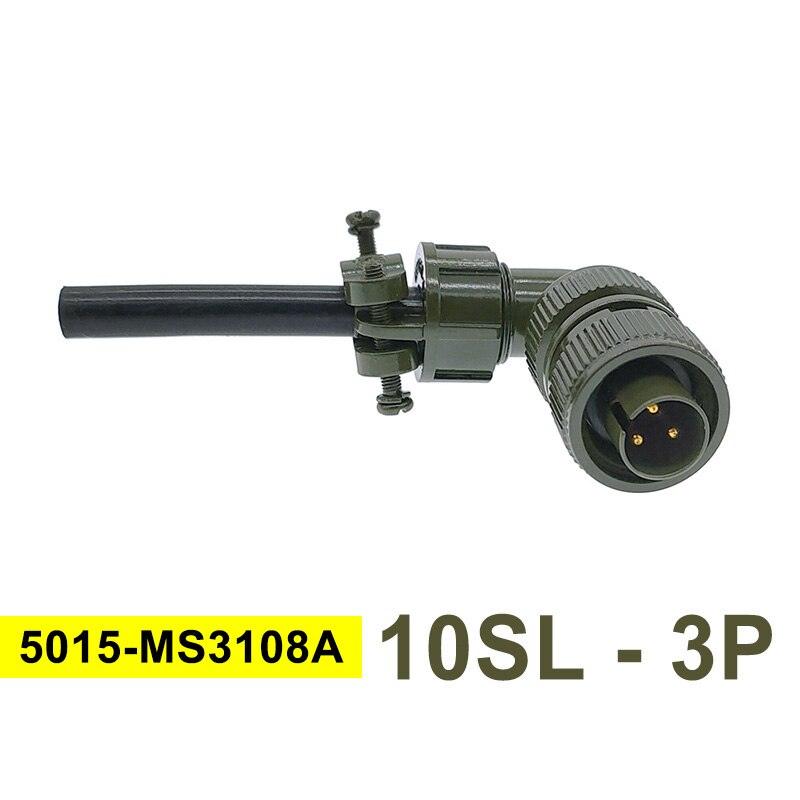

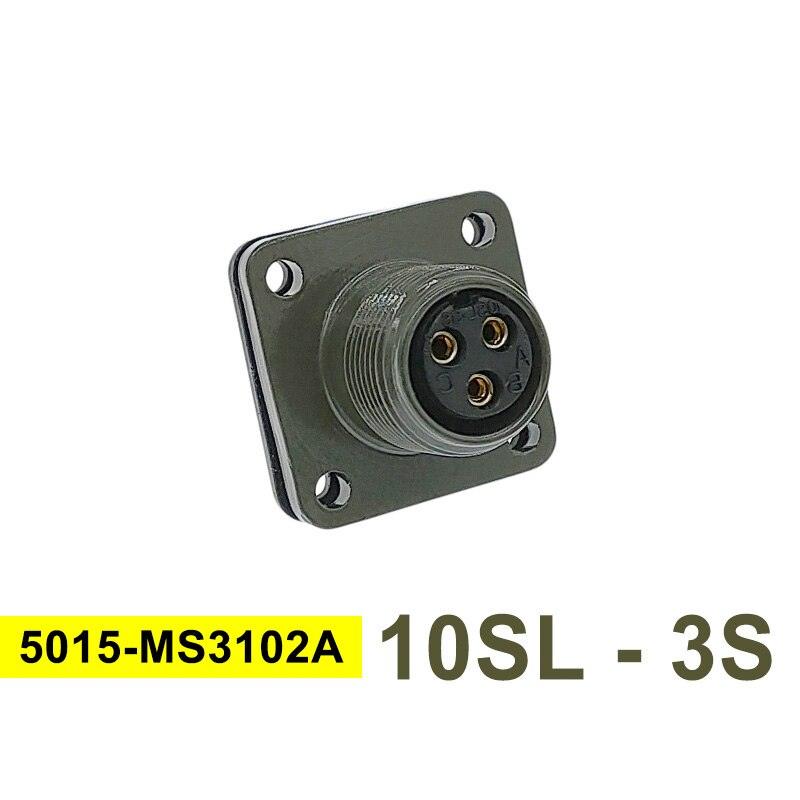

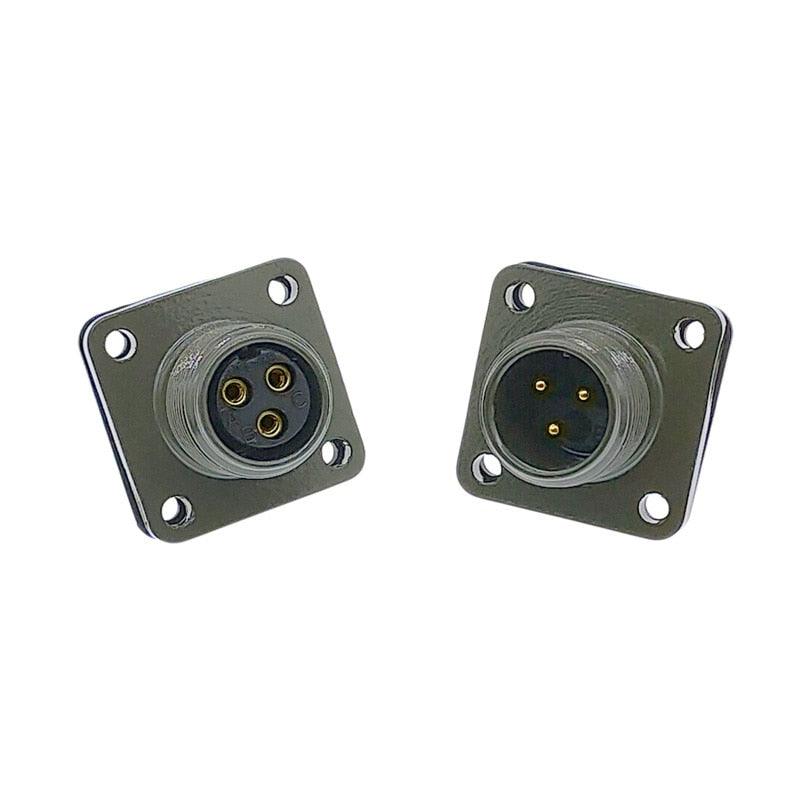

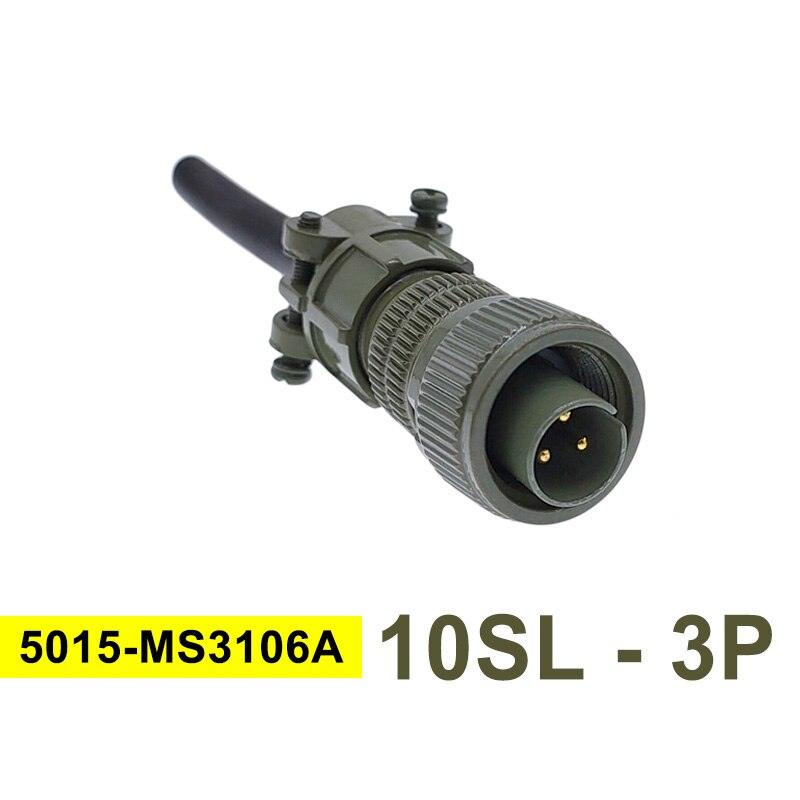

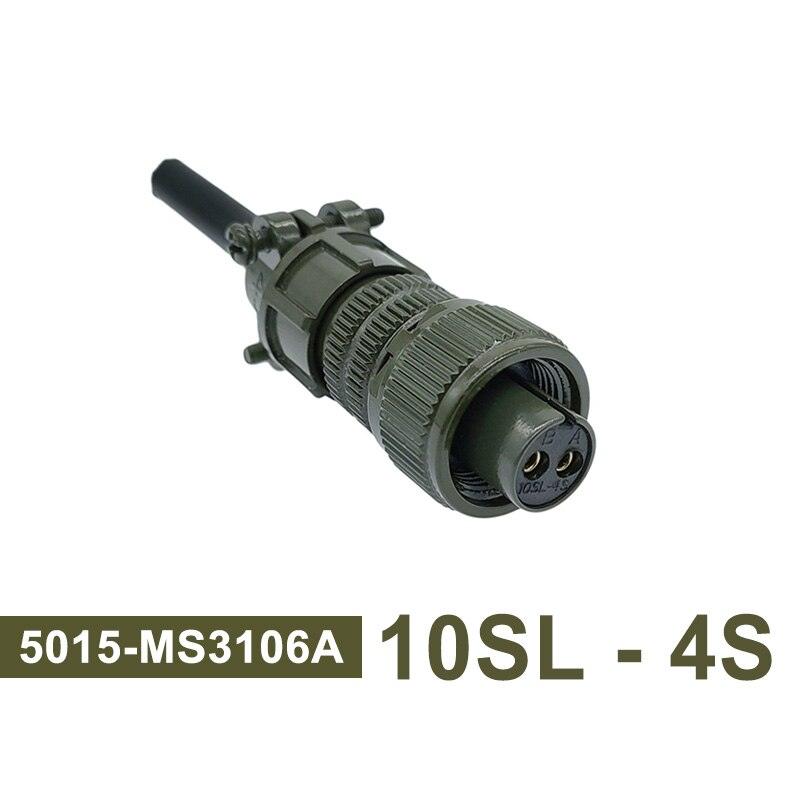

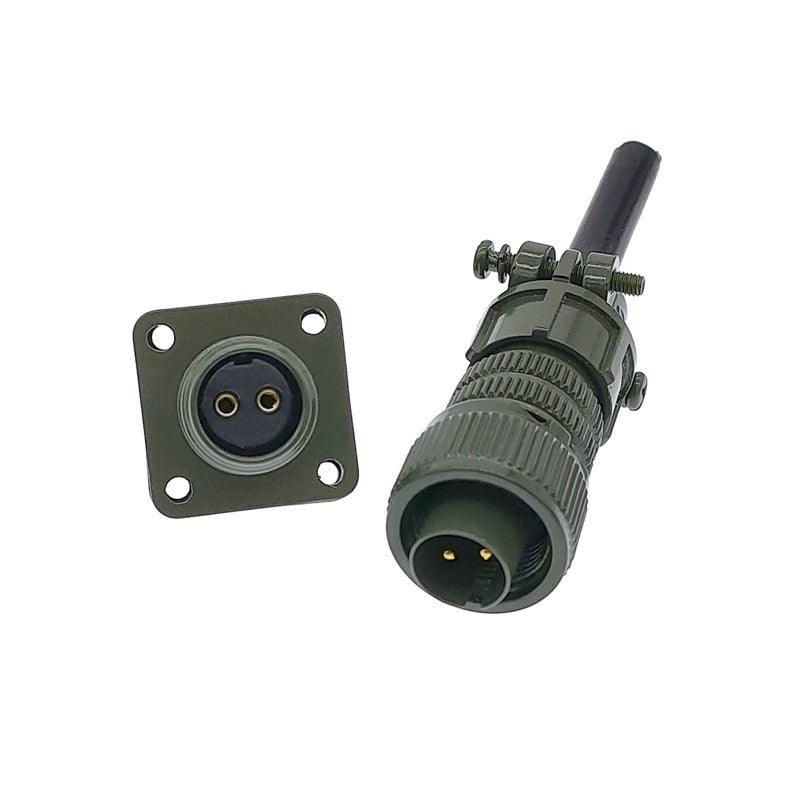

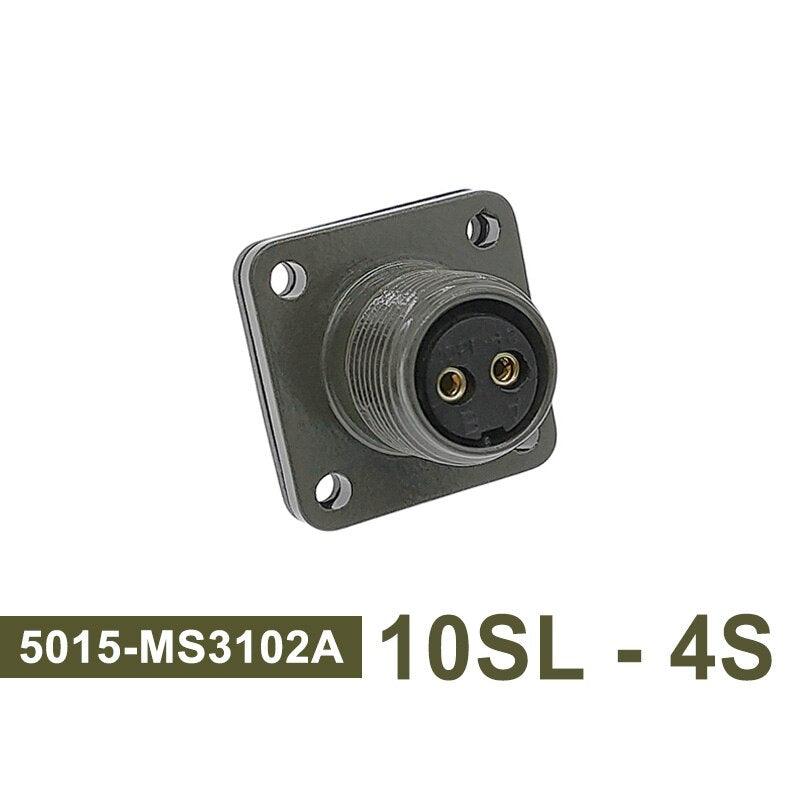

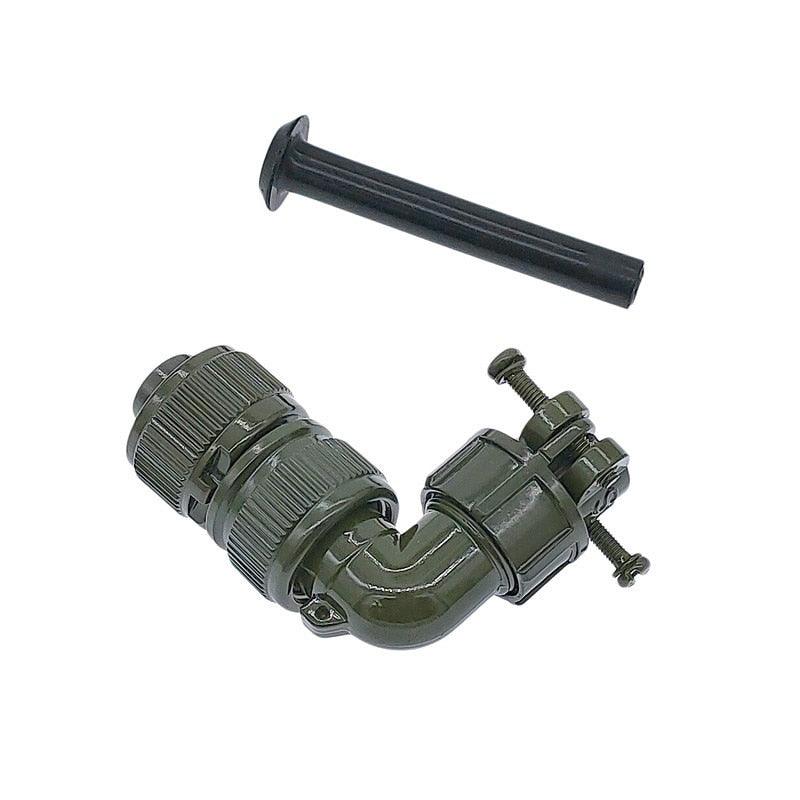

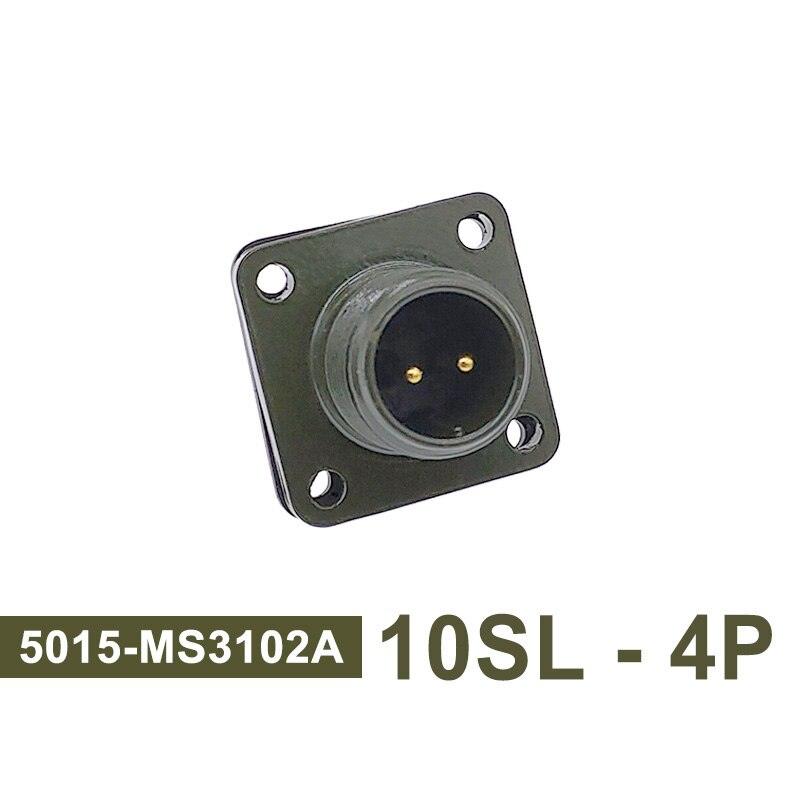

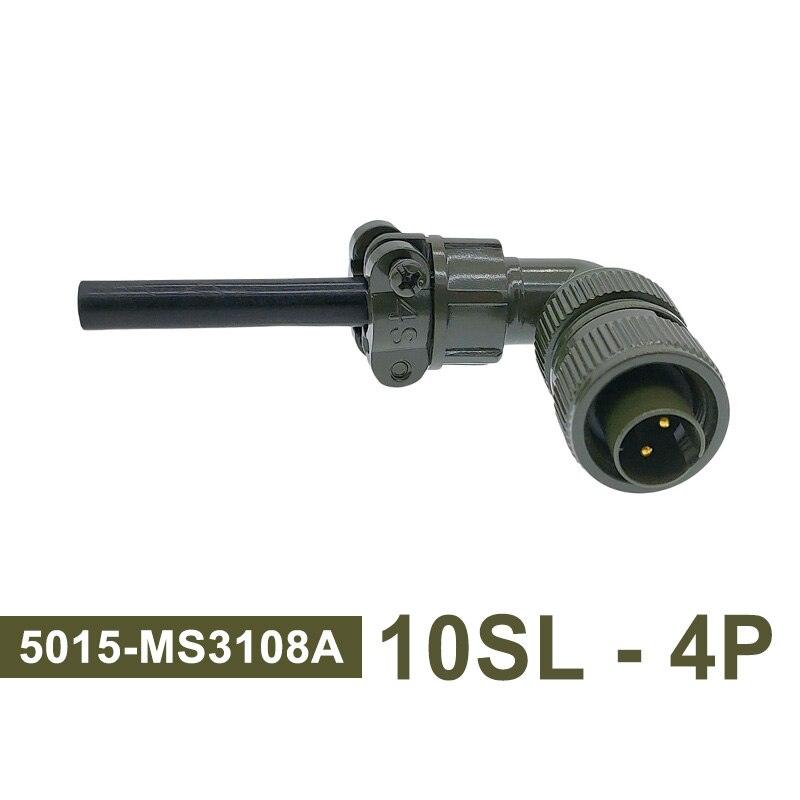

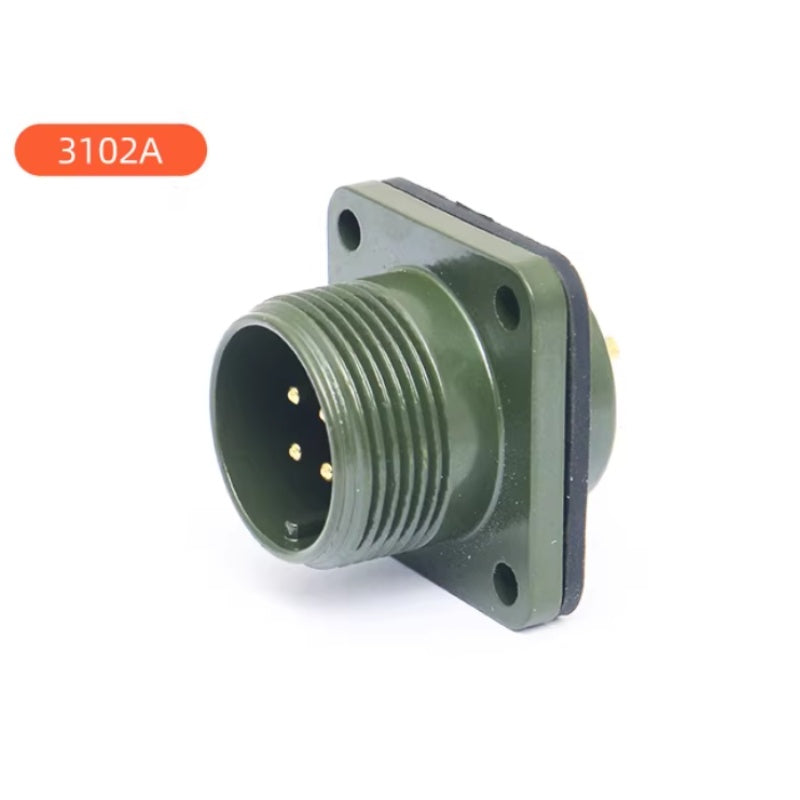

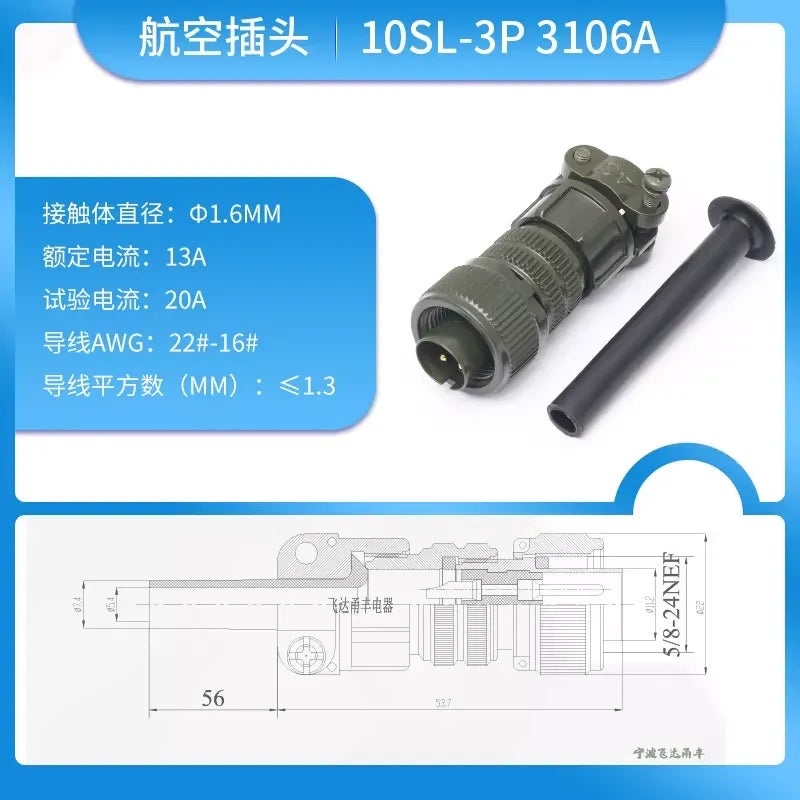

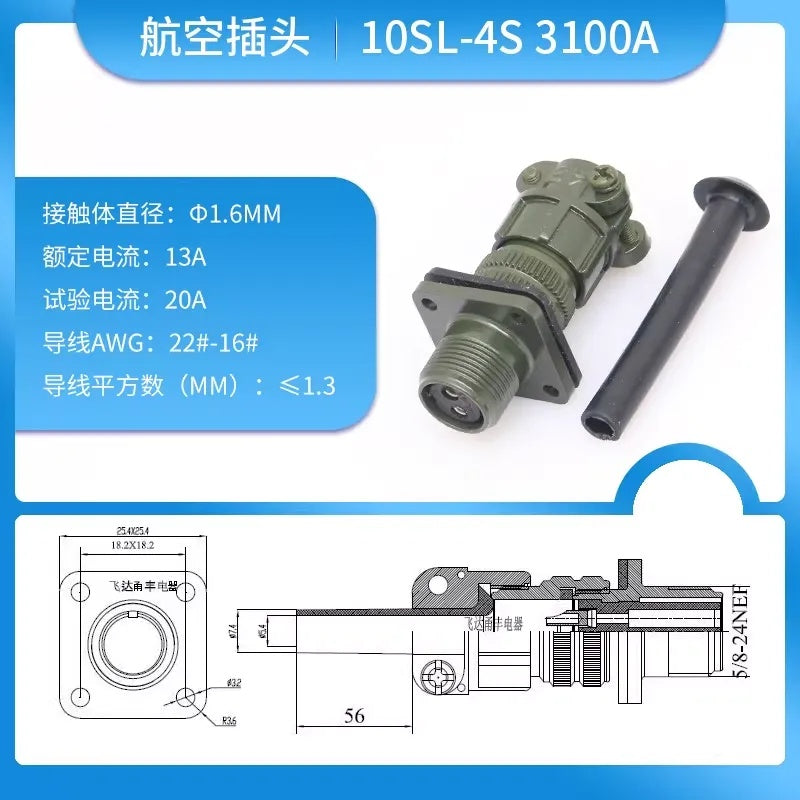

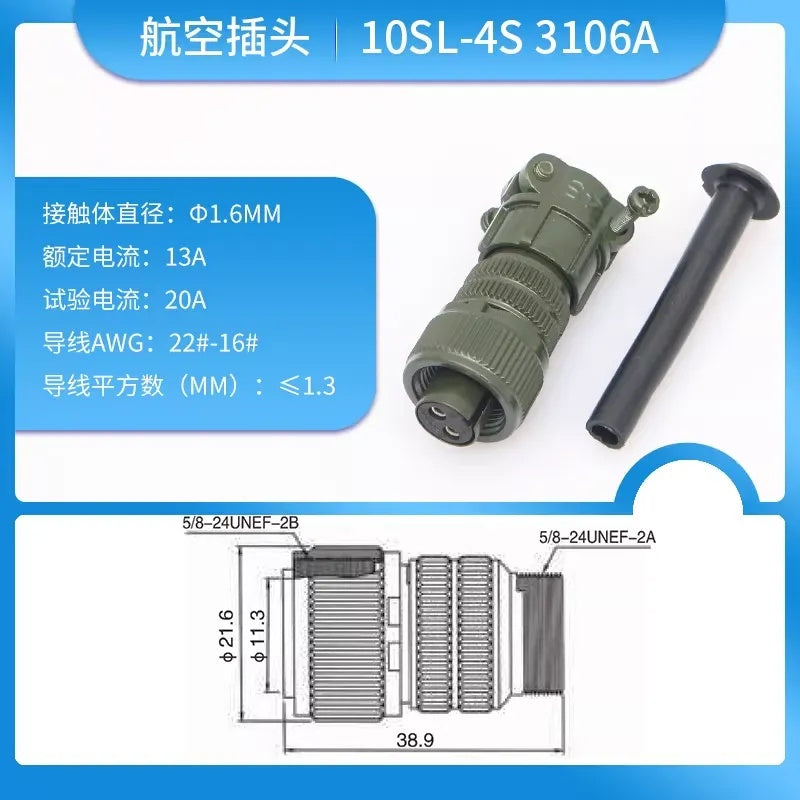

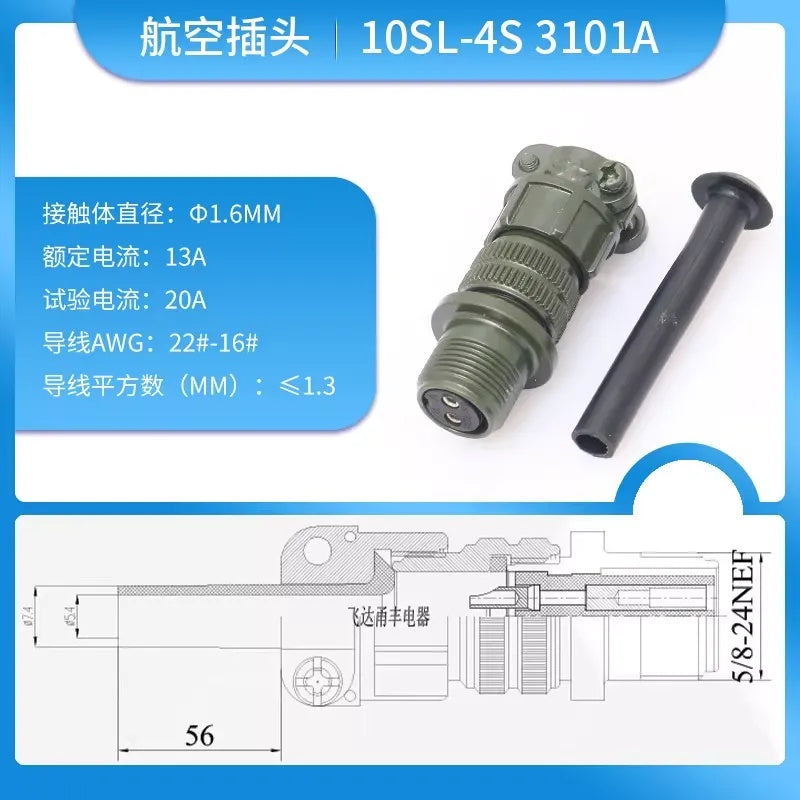

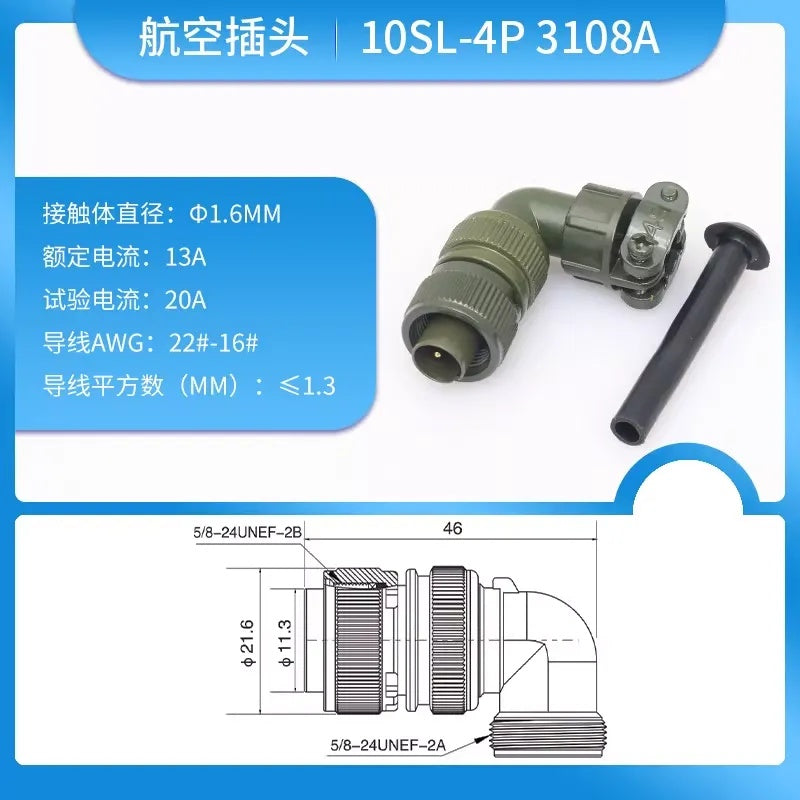

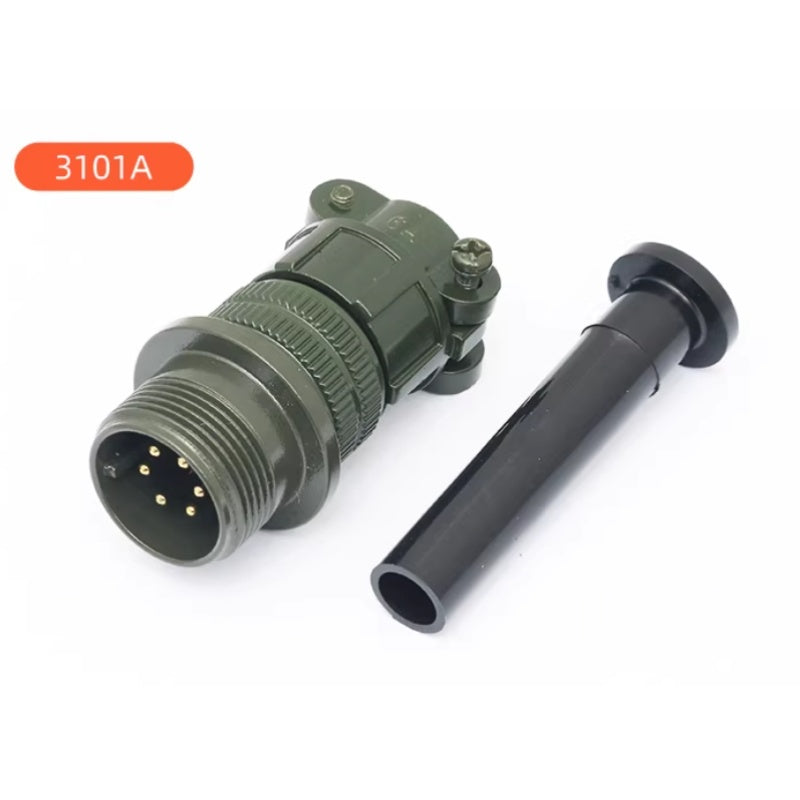

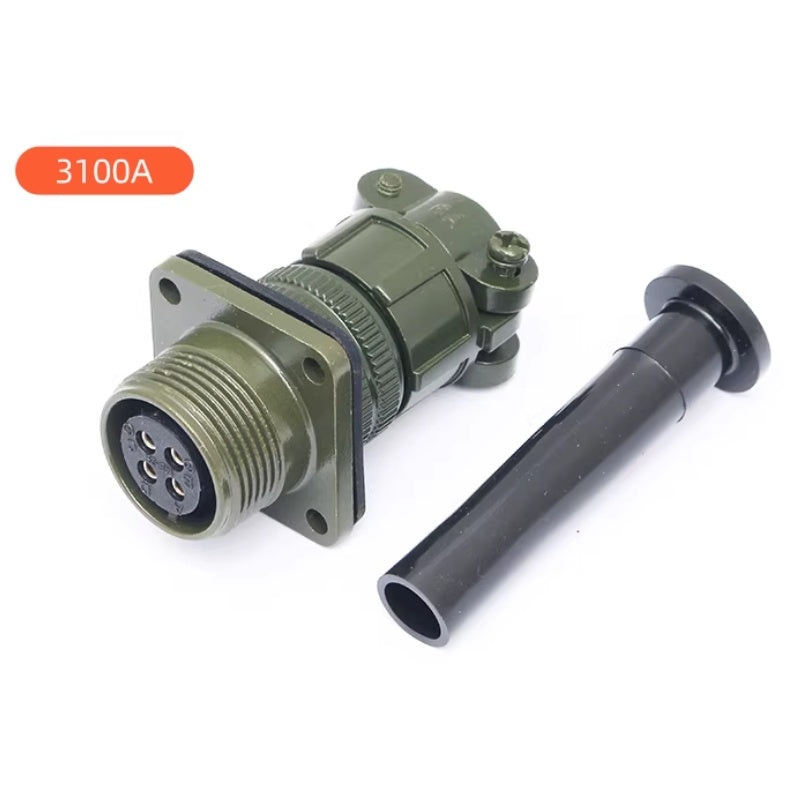

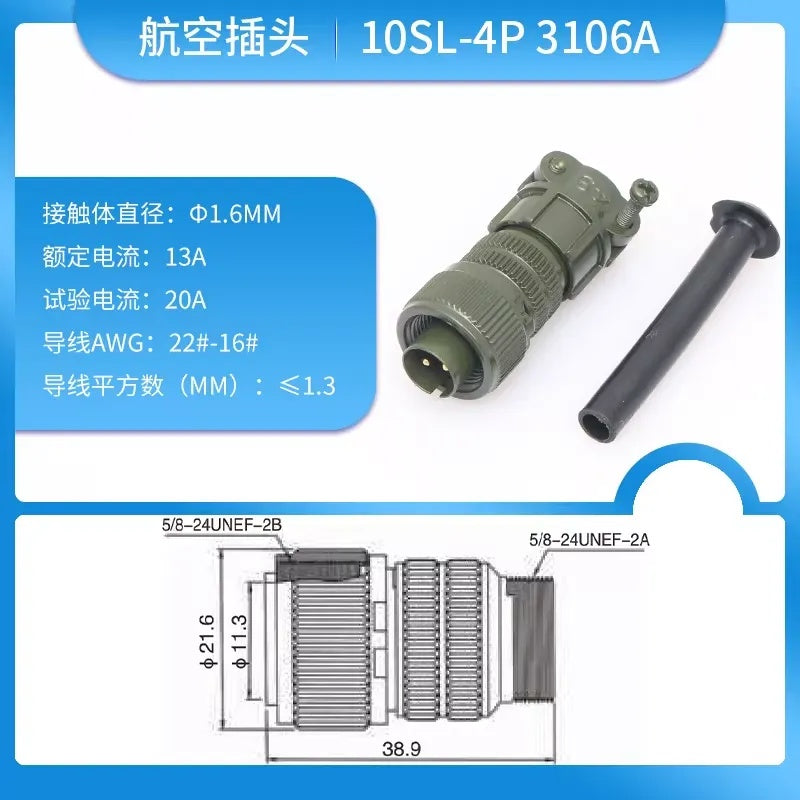

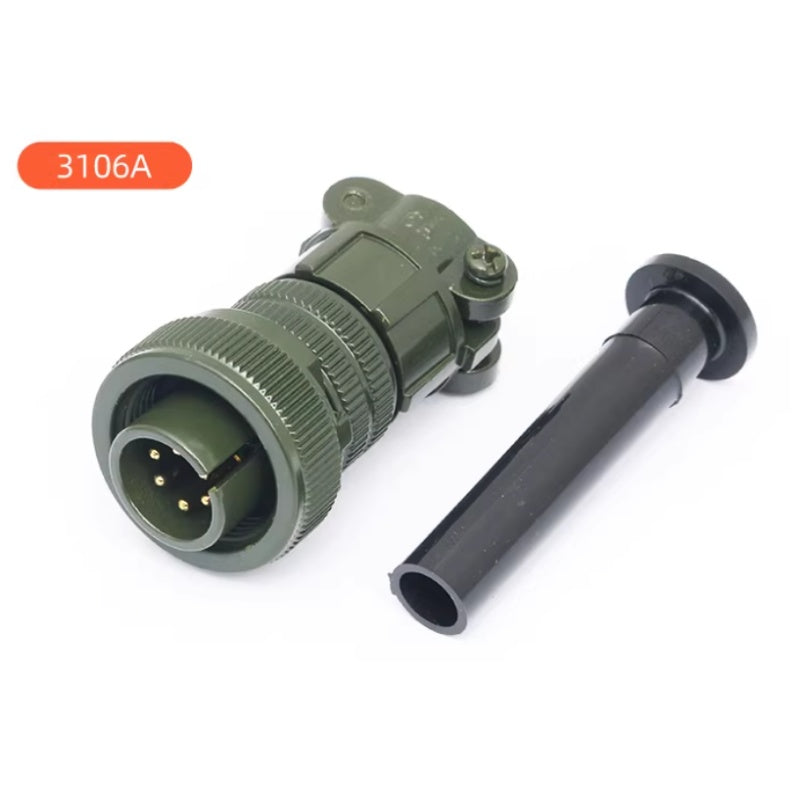

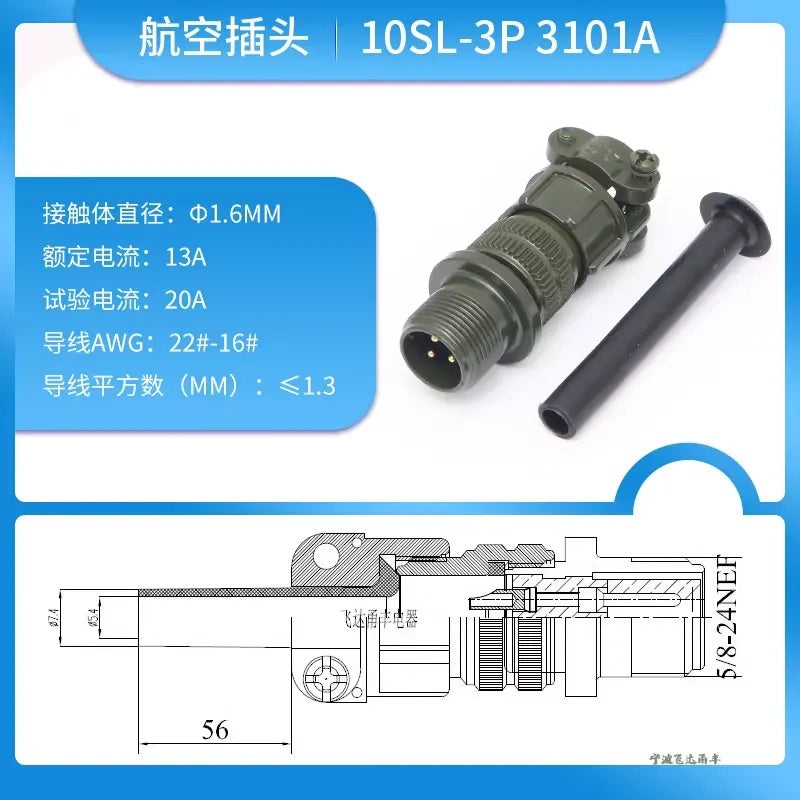

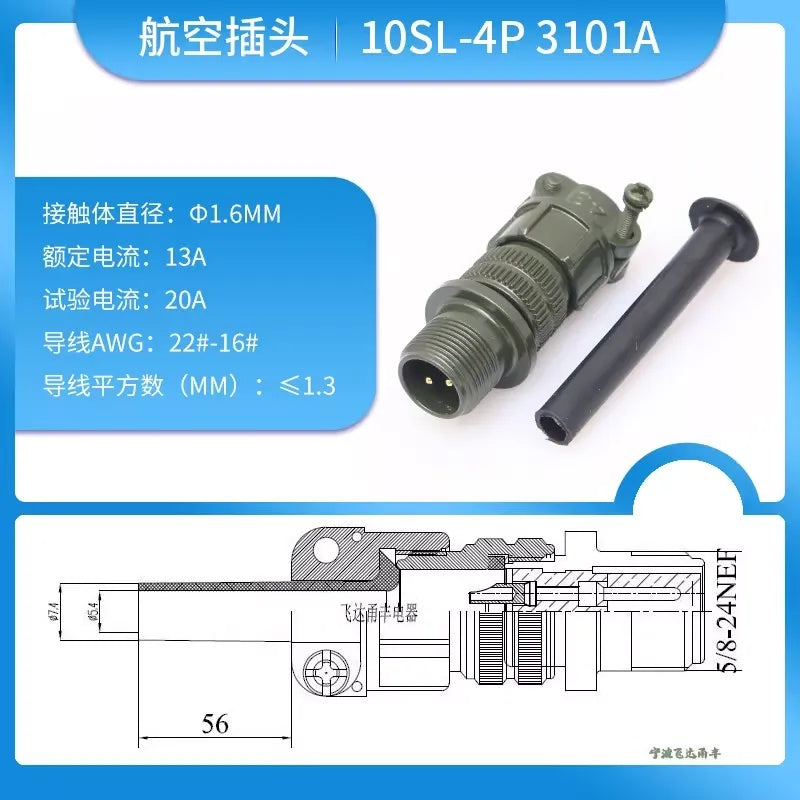

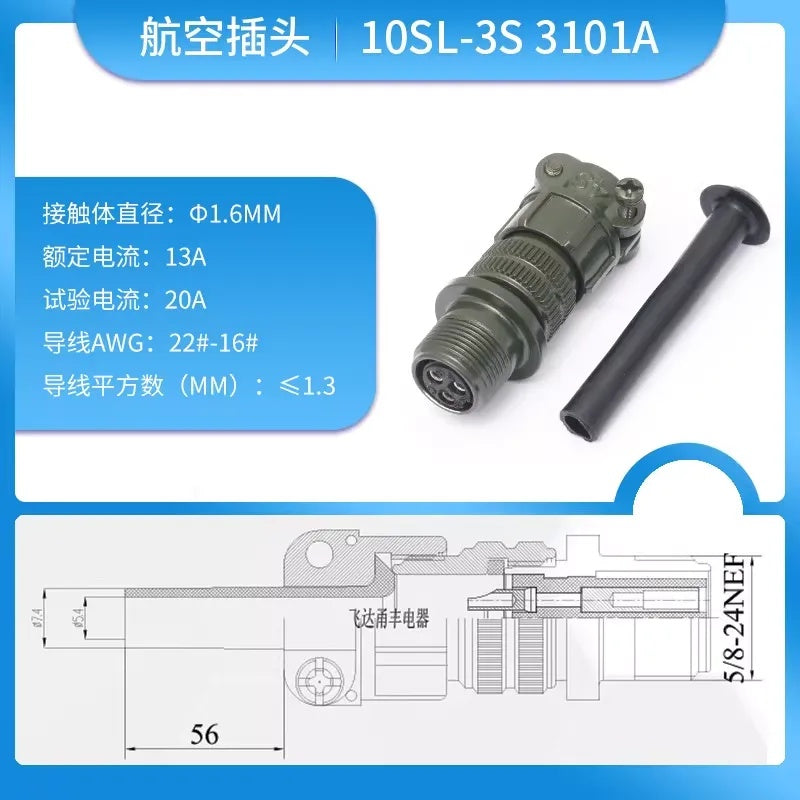

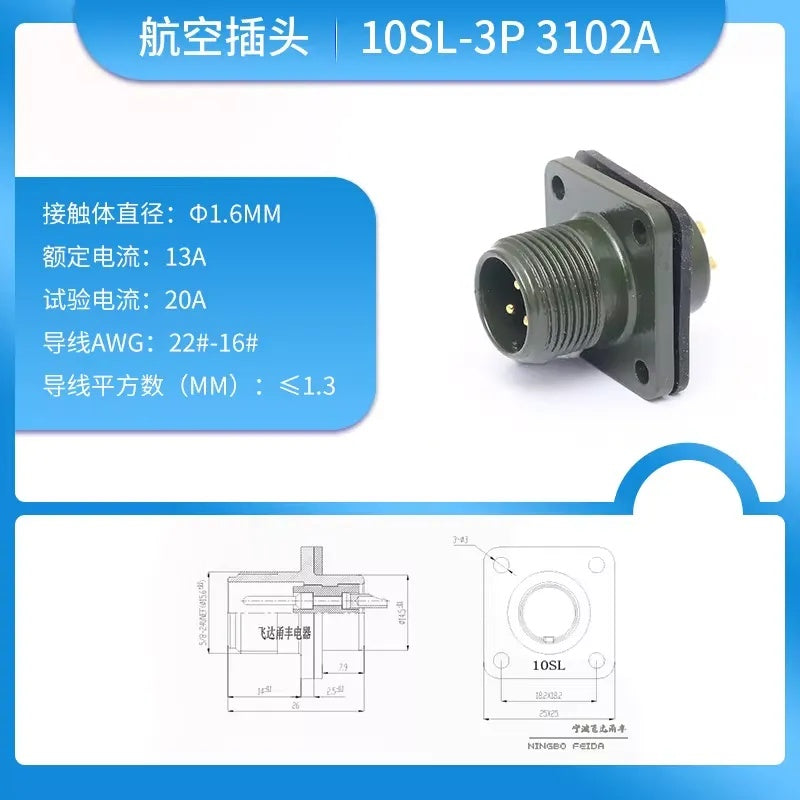

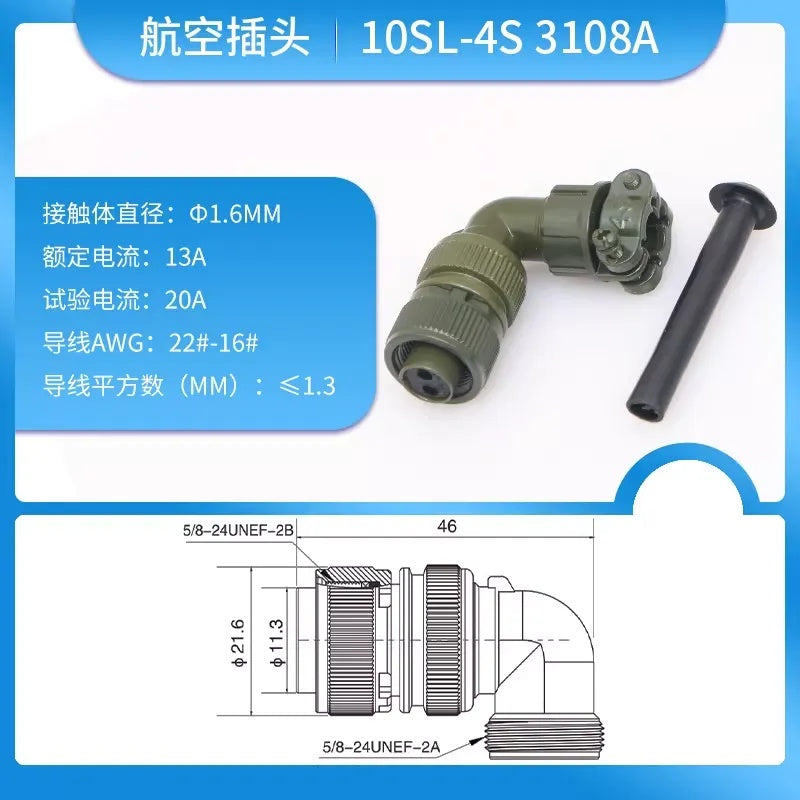

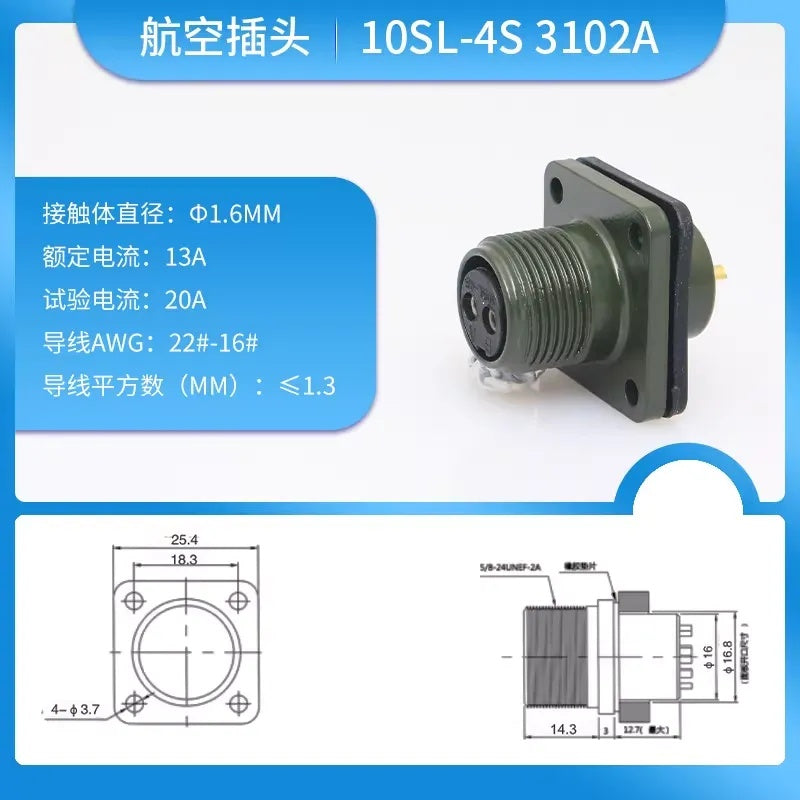

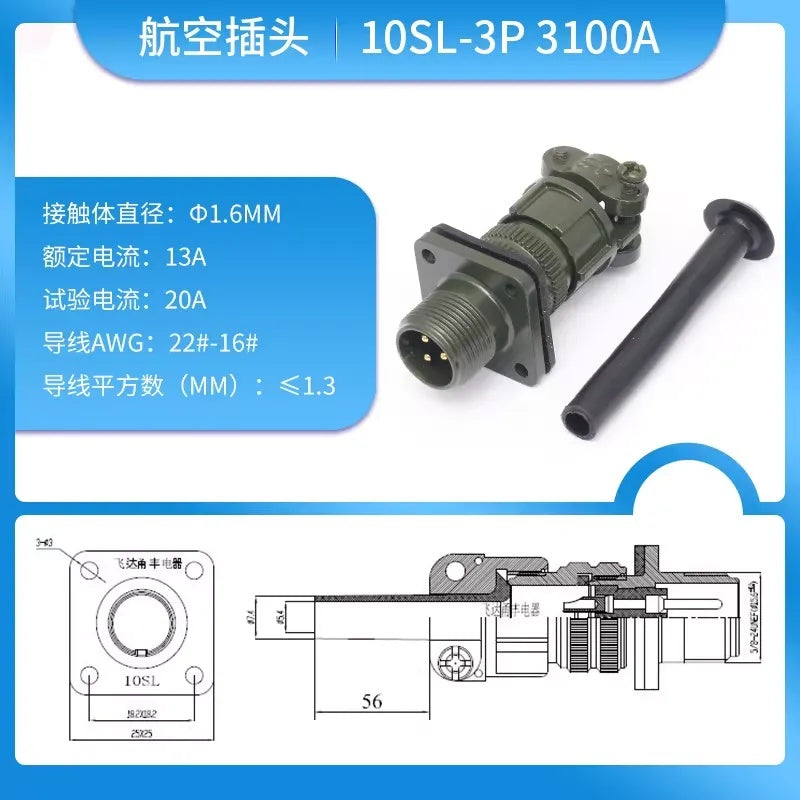

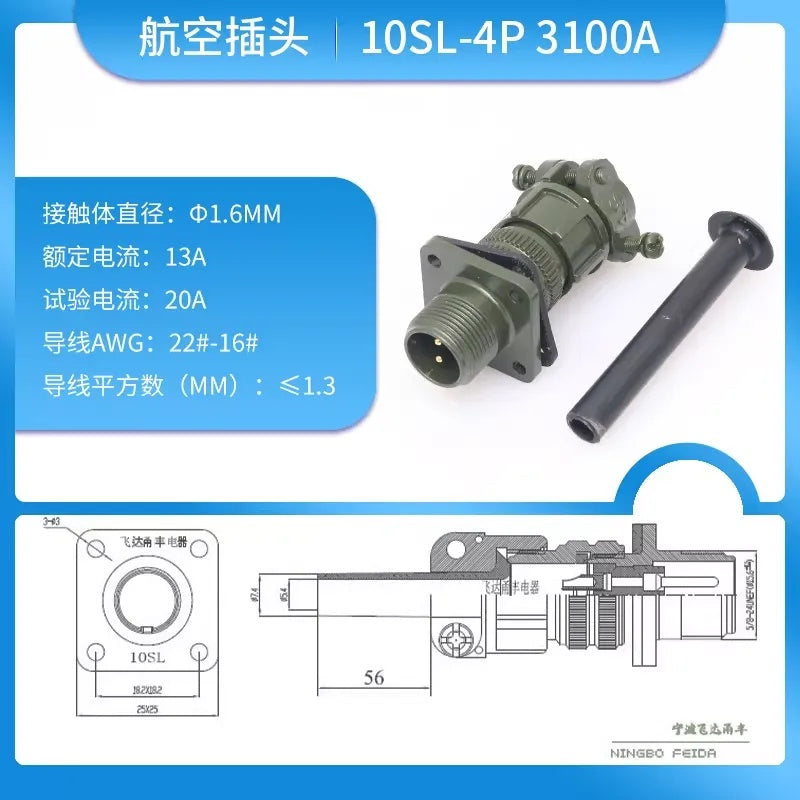

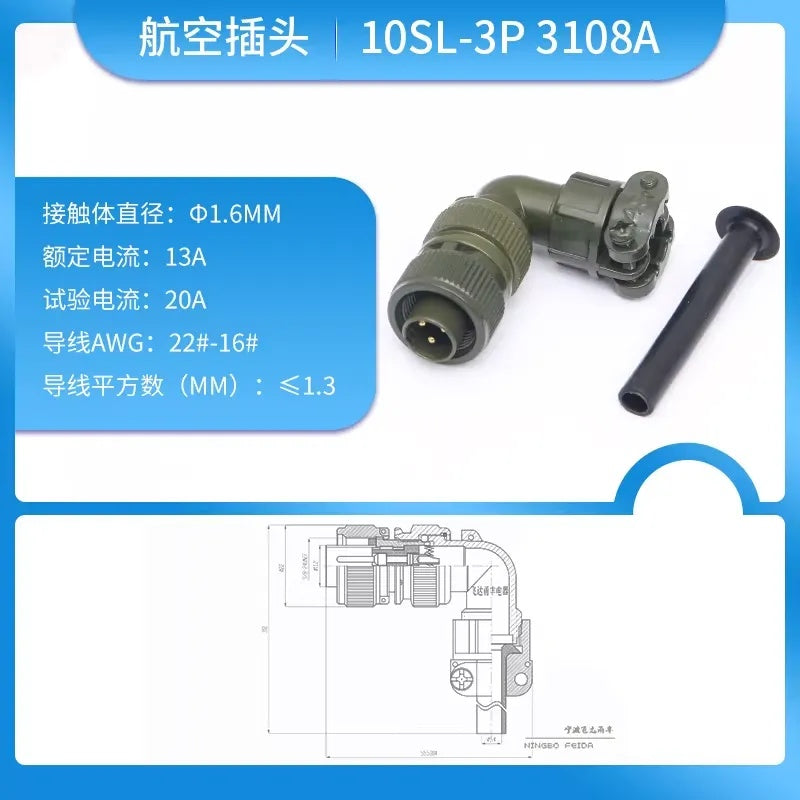

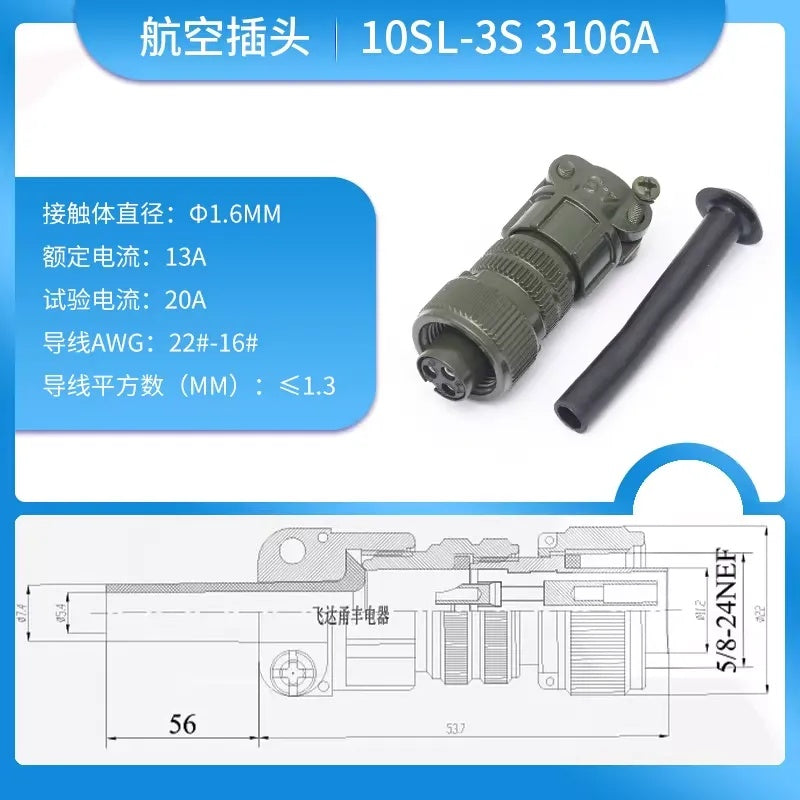

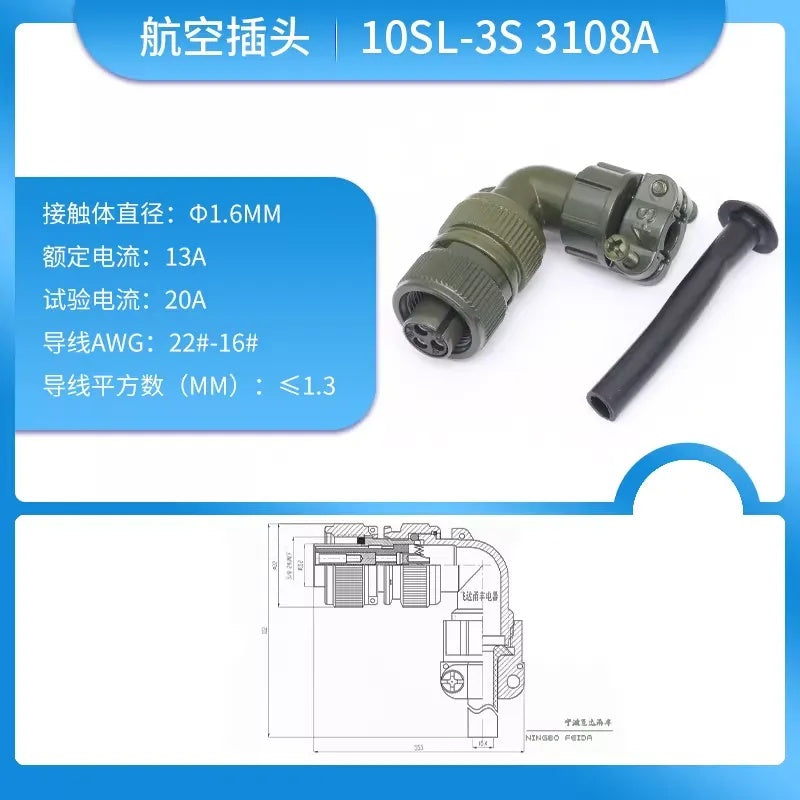

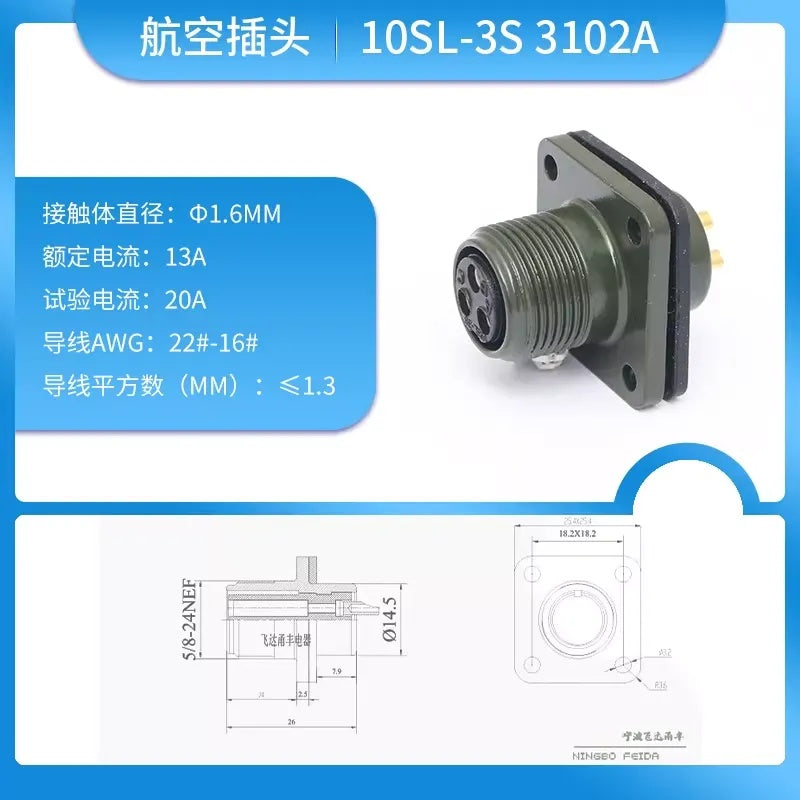

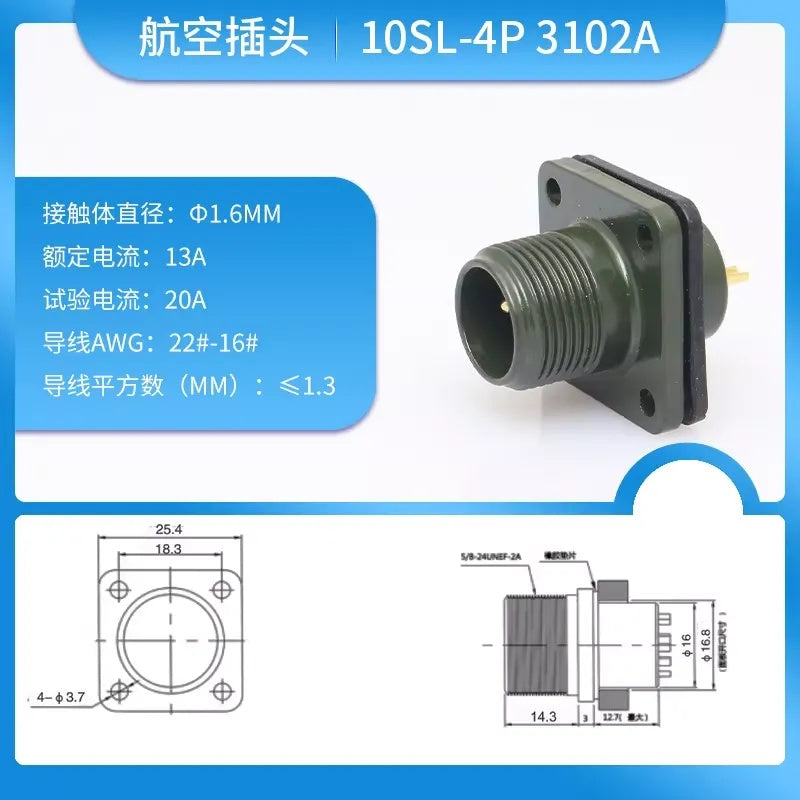

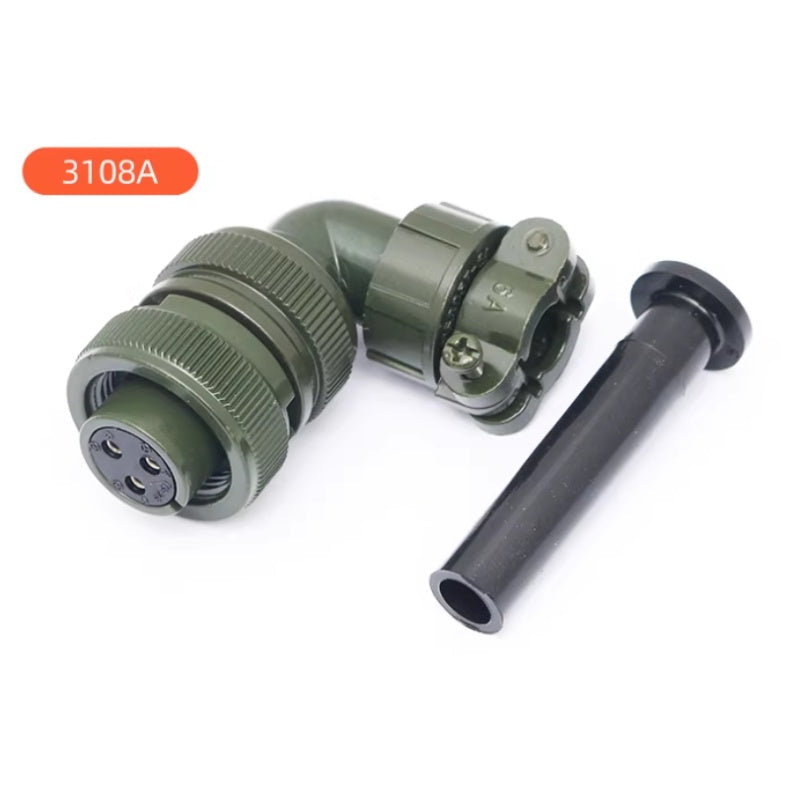

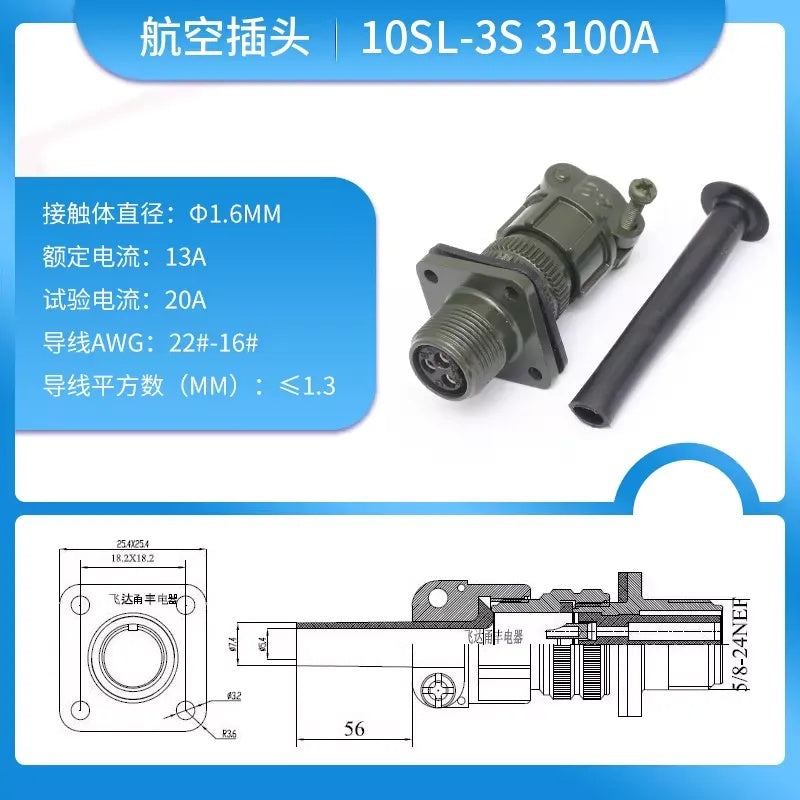

The MIL-C-5015 10SL series aviation connector is a high-reliability industrial electrical connection solution, fully compliant with US Military Standard MIL-C-5015. Designed and manufactured by Yongfeng (Feida Yongfeng), this connector is available in 2-pin (10SL-4) and 3-pin (10SL-3) configurations, with a full range of mounting options: 3106 straight plug, 3108 90° elbow plug, 3102 square flange receptacle, 3101 round docking receptacle, and 3100 square docking receptacle. Featuring IP67 dustproof and waterproof protection, gold-plated copper contacts, and a secure threaded locking mechanism, it delivers stable signal and power transmission in harsh industrial, aerospace, and marine environments.

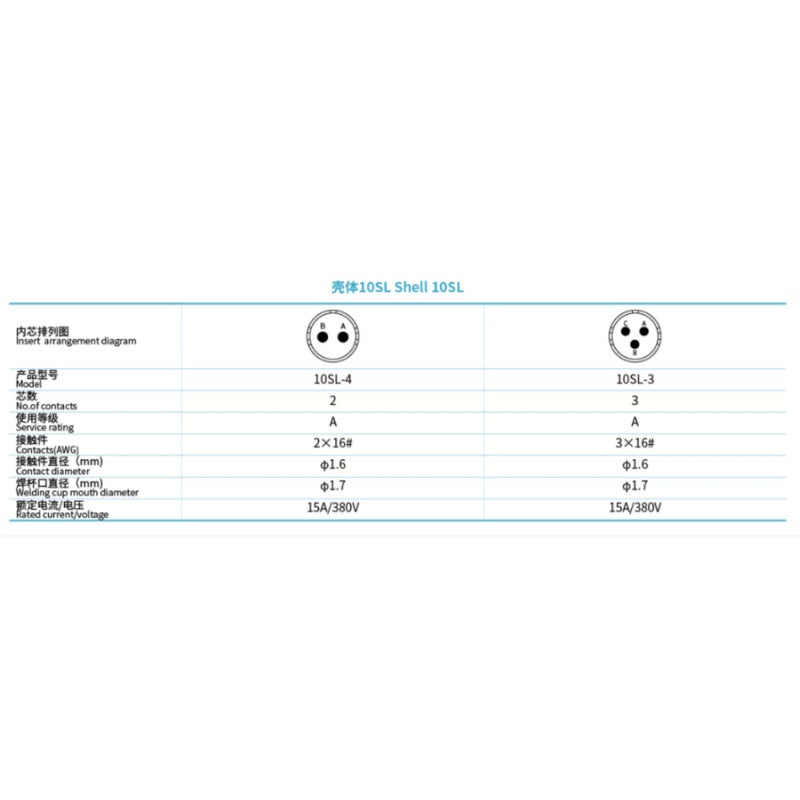

DATA SHEET

中文属性 英文属性（工业标准） PARAMETER
产品名称 Product Name MIL-C-5015 10SL Series Waterproof Circular Aviation Connector
品牌 Brand Yongfeng (Feida Yongfeng)
产品型号 Model Number 10SL-4 (2Pin), 10SL-3 (3Pin), 3106 Straight Plug, 3108 Elbow Plug, 3102 Square Flange Receptacle, 3101 Round Docking Receptacle, 3100 Square Docking Receptacle
系列标准 Standard Series MIL-C-5015 (US Military Standard)
芯数 Pin Configuration 2 Pin, 3 Pin
额定电流 / 电压 Rated Current/Voltage 15A / 380V AC
防护等级 Protection Rating IP67 (Dustproof & Waterproof, Corrosion Resistant)
接插方式 Mating Type Threaded Locking (Circular Thread Interface)
接线方式 Termination Solder
插拔寿命 Mating Cycle 500 Times
工作温度 Operating Temperature -40°C ~ +70°C
外壳材质 Housing Material Aluminum Alloy
绝缘材质 Insulator Material Rubber (High Temperature Resistant)
触点材质 Contact Material Gold-Plated Copper (High Conductivity, Anti-Oxidation)
认证标准 Certification CE
应用场景 Application Industrial Automation, Aerospace, Marine, Automotive, Sensor Signal Transmission
