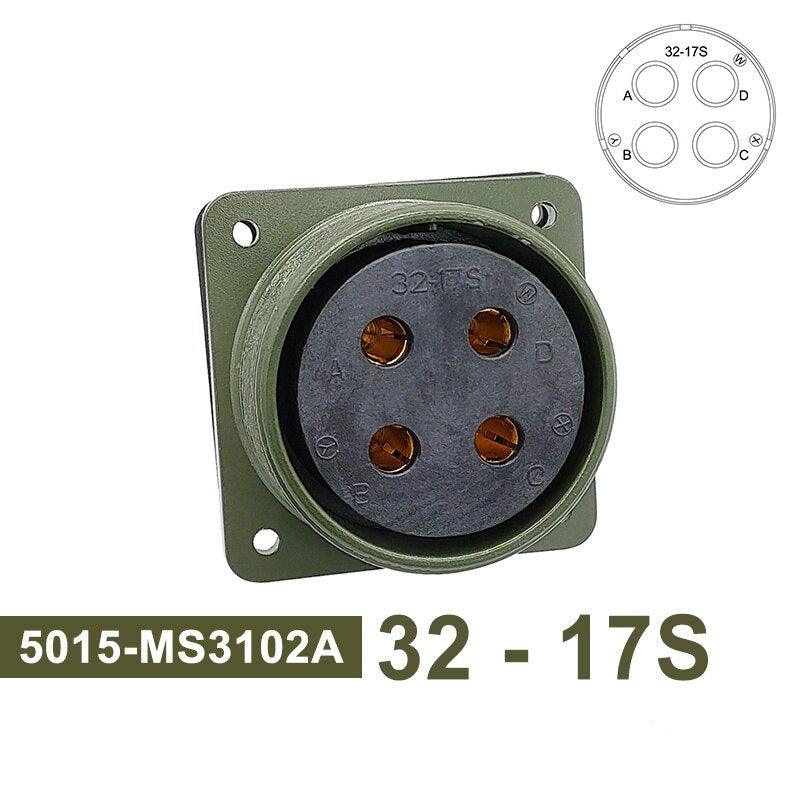

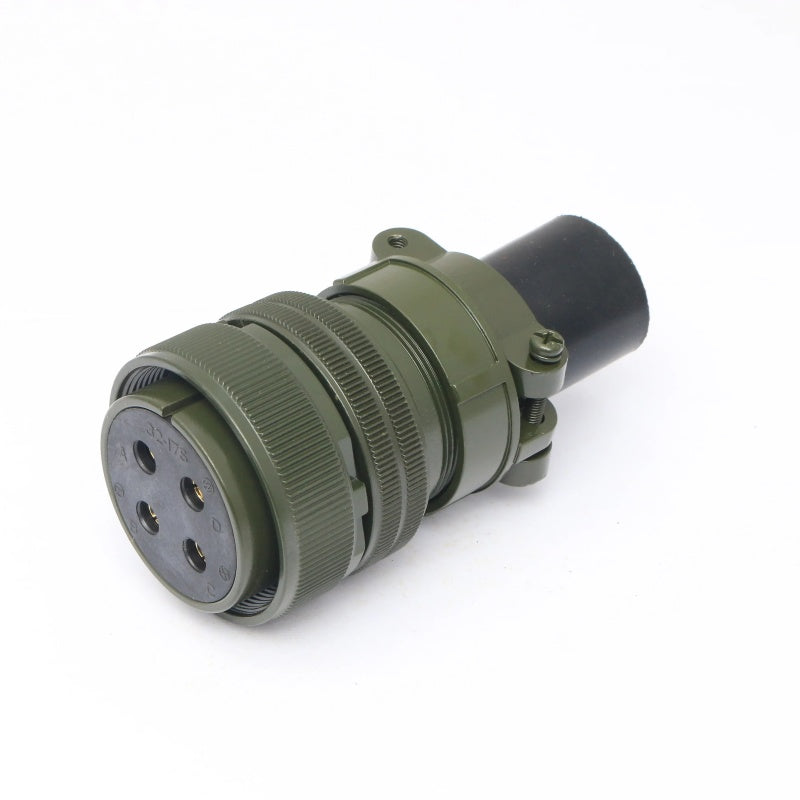

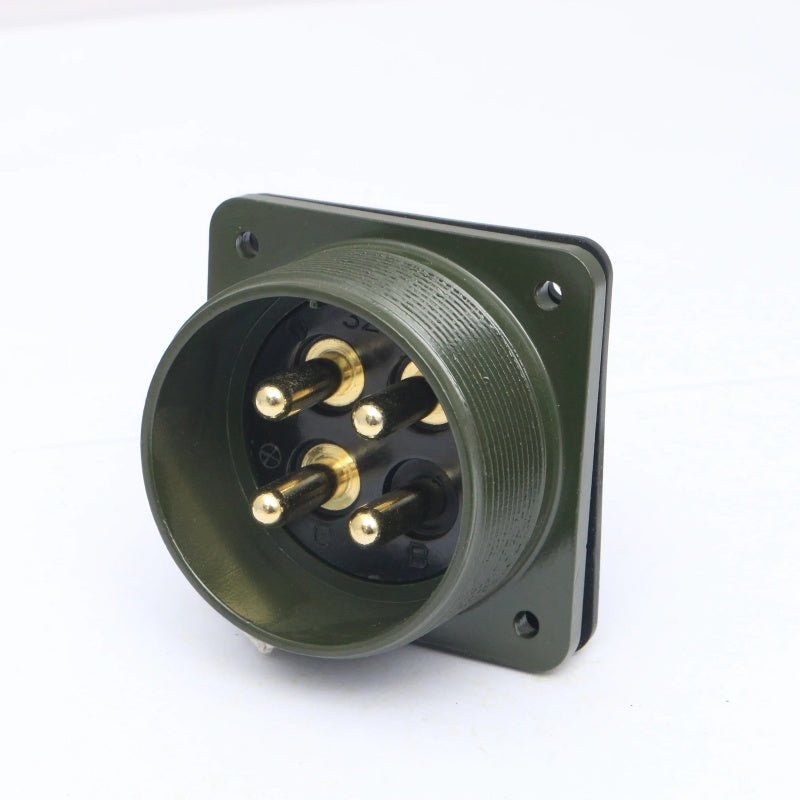

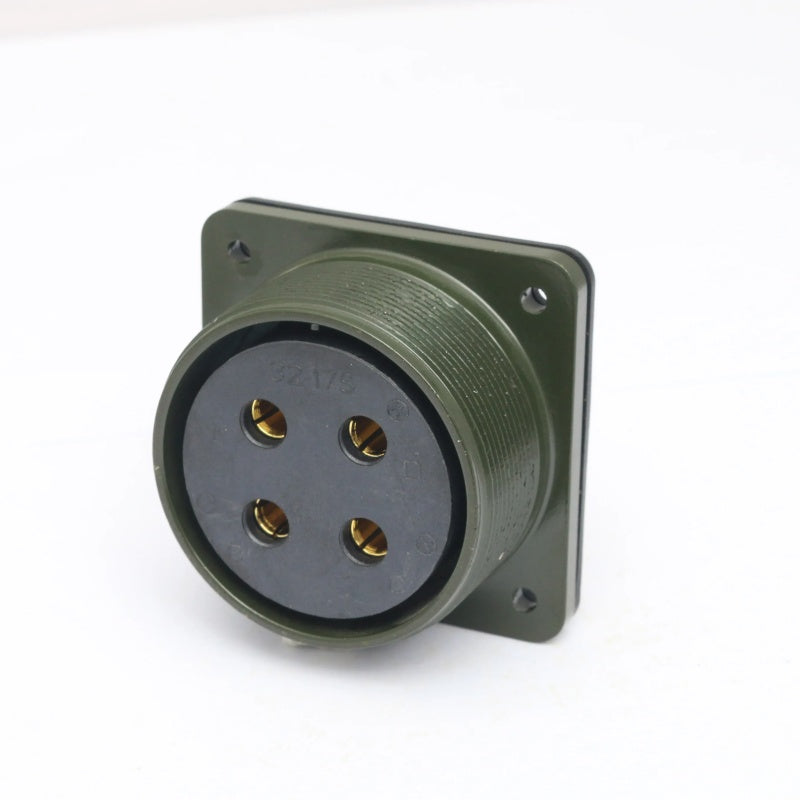

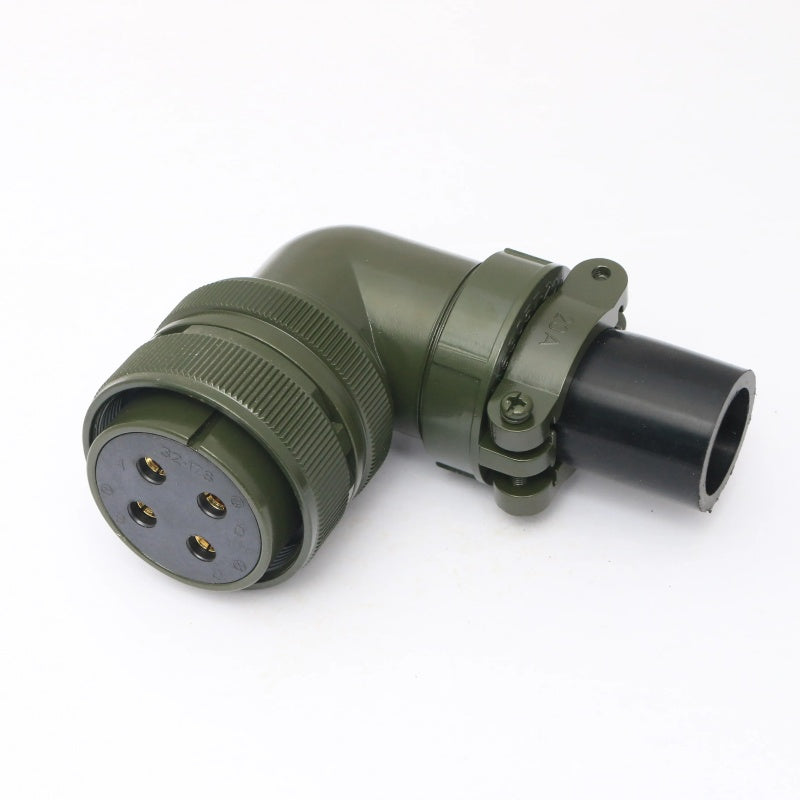

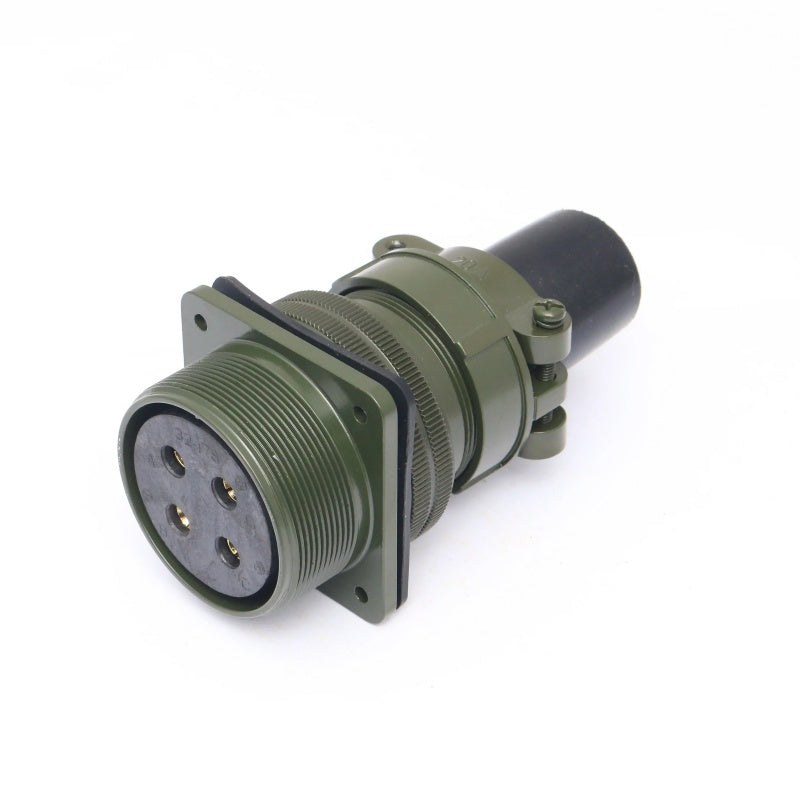

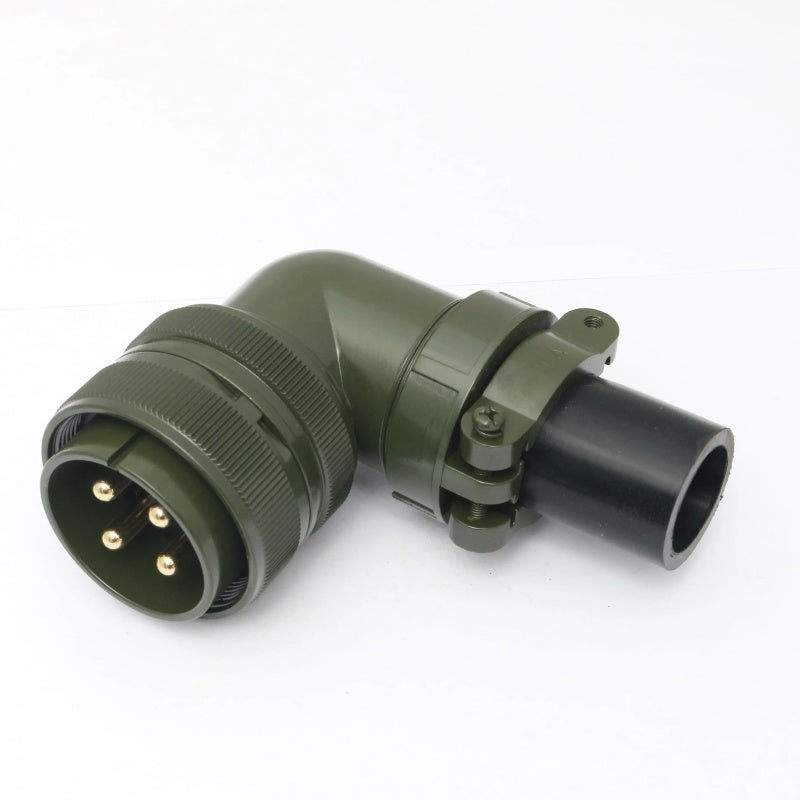

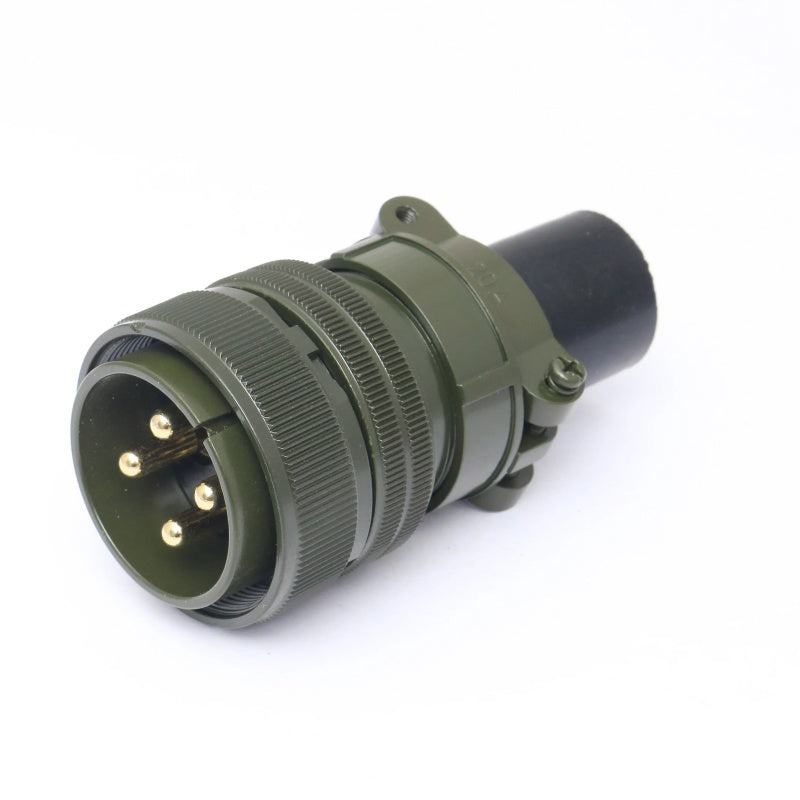

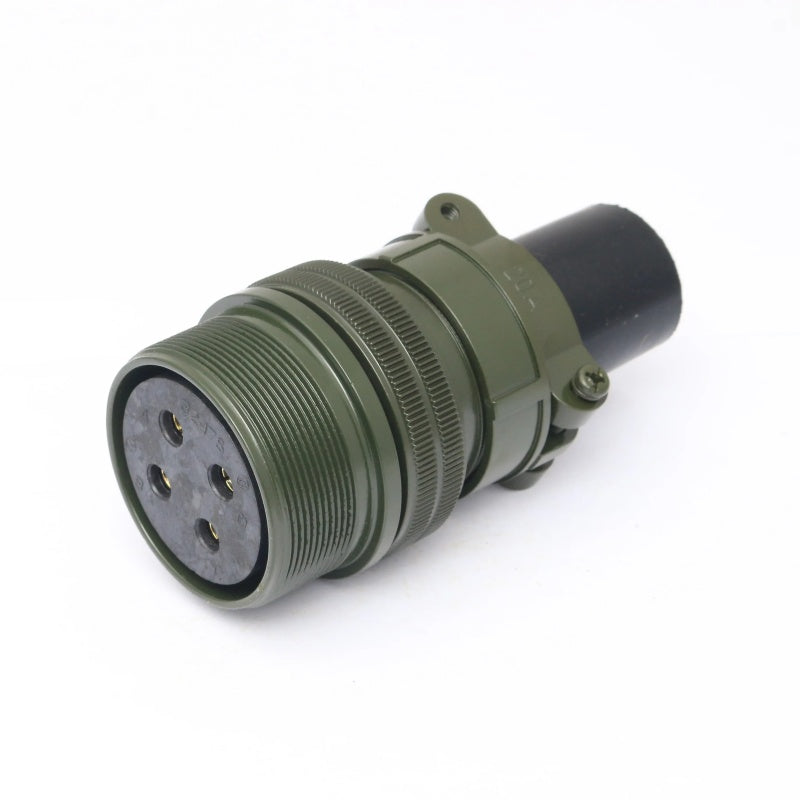

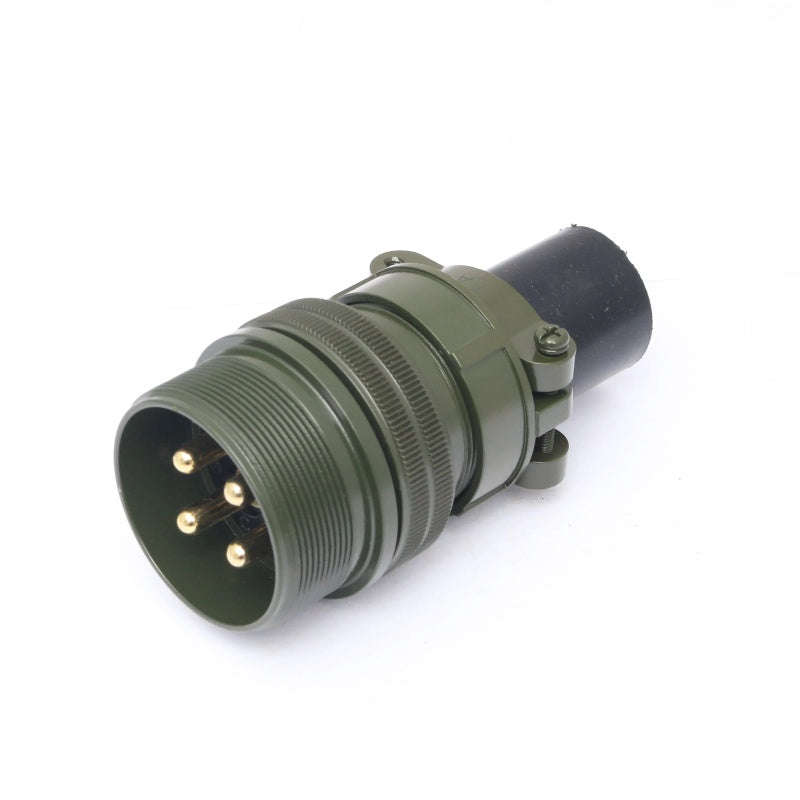

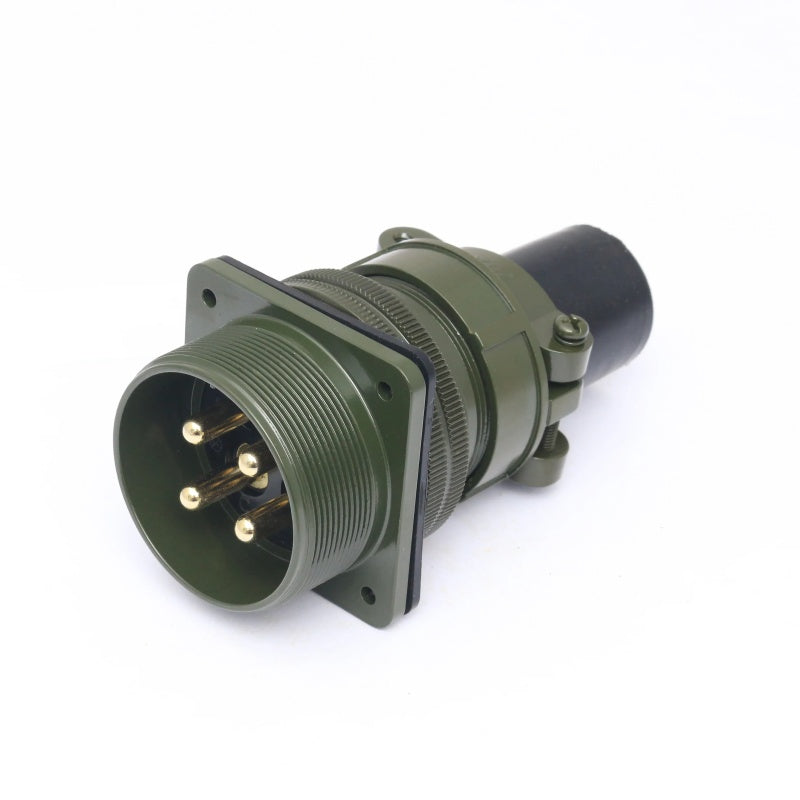

MIL-C-5015 32S Aviation Connector, 4 Pin, 80A 380V, Heavy-Duty Power Plug
Product Overview
The MIL-C-5015 32S (Model 32-17) series aviation connector is a heavy-duty, high-reliability electrical connection device designed to meet strict US Military Standard (MIL-C-5015) specifications. Manufactured by Yongfeng (Feida Yongfeng), this connector features a robust 4-pin (4×4#) contact configuration and is capable of handling up to 80A at 380V AC, making it ideal for high-current power transmission applications. With its waterproof IP67 rating, corrosion-resistant aluminum alloy housing, and premium plated contacts, it ensures stable performance in harsh industrial, marine, and aerospace environments. The secure threaded locking mechanism prevents disconnection under vibration, while the large solder cup (φ7.6mm) accommodates thick wire gauges for efficient power flow.

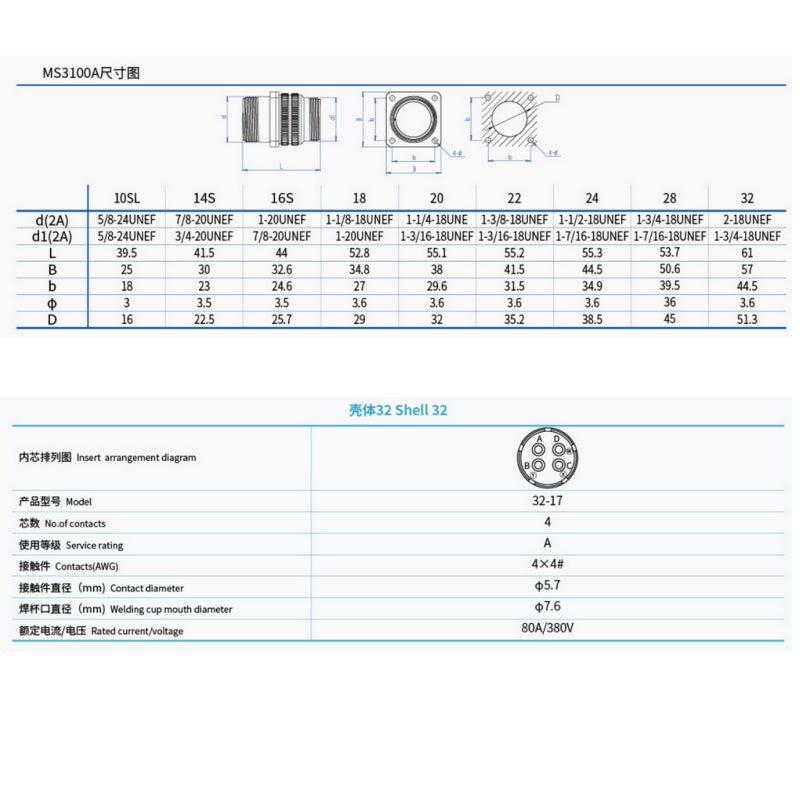

Key Specifications
| Item | Details |
|---|---|
| Standard | MIL-C-5015 (US Military Standard) |
| Shell Size | 32S (Large Heavy-Duty Series) |
| Model | 32-17 |
| Pin Count | 4 Pin (4×4# Contacts) |
| Rated Current/Voltage | 80A / 380V AC |
| Contact Details | Contact Diameter: φ5.7mm, Contact AWG: 4# |
| Solder Cup | φ7.6mm (Suitable for Large Wire Harnesses) |
| Locking Mechanism | Threaded Coupling (Anti-Vibration, Anti-Loosening) |
| Termination | Solder (Weld Type) |
| Protection Level | IP67 (Waterproof, Dustproof, Oil Resistant) |
| Operating Temp | -40°C to +70°C |
| Materials | Aluminum Alloy Shell, TPU/Rubber Insulator, Gold/Silver-Plated Copper Contacts |
