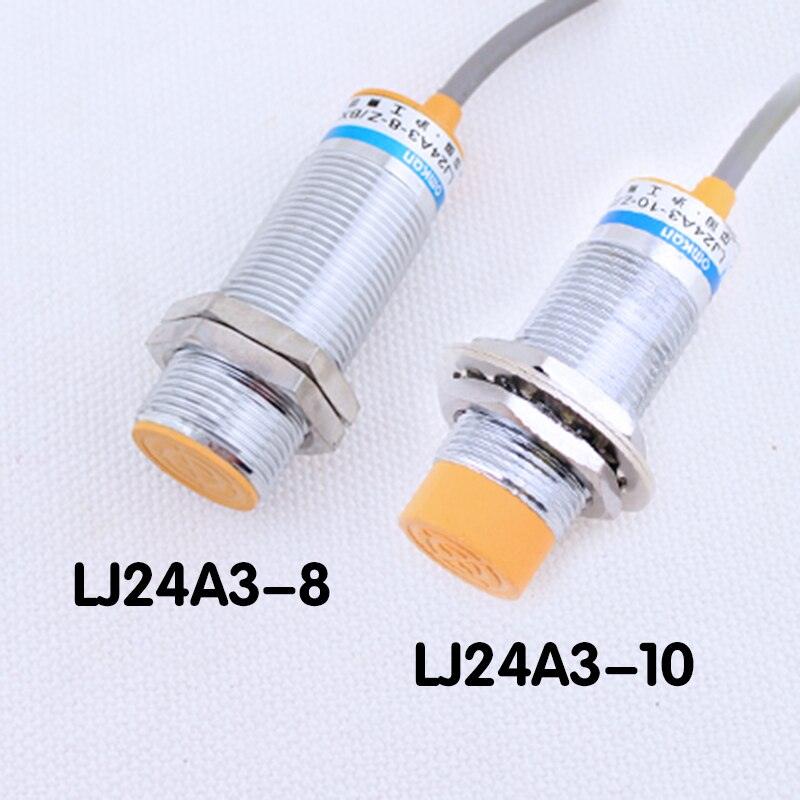

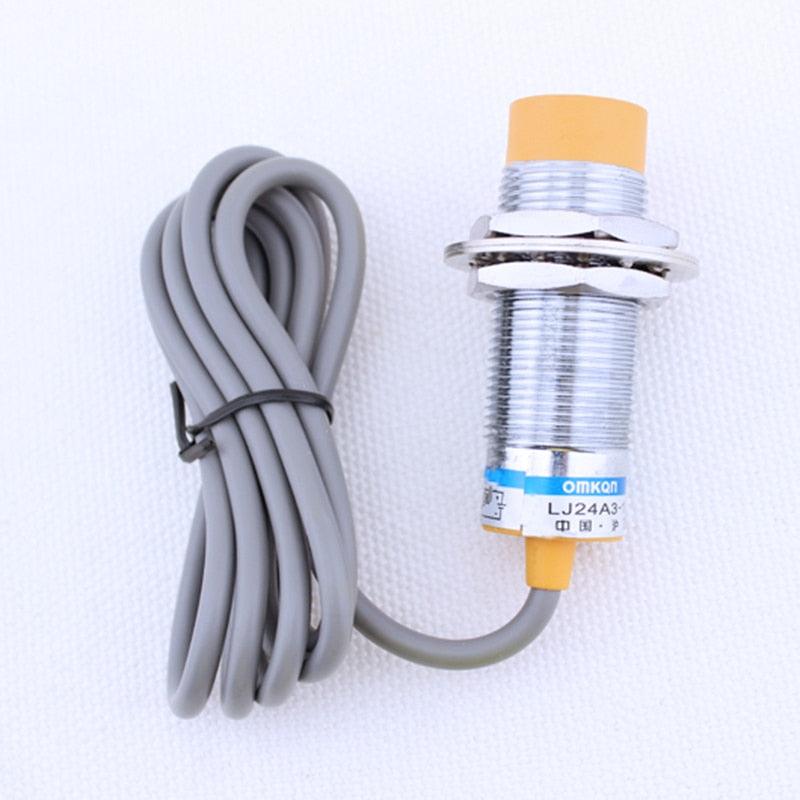

M24 8mm 10mm DC6~36V Cylinder Inductive Proximity Sensor Switch LJ24A3-8(10)

SPECIFICATIONS

M24 8mm 10mm DC6~36V Cylinder Inductive Proximity Sensor Switch

LJ24A3-8(10)-Z/BX/AX/CX/BY/AY/CY/EX/DX

2/3/4-wire PNP/NPN NO NC

Wire:: 2/3/4-Wire type

Warranty: 1Y

Voltage:: DC6~36V

The diameter: 24mm

Switch Type:: PNP/NPN NO/NC

Switch Type: Proximity Switch

Product Name:: Proximity Sensor switch

Origin: CN(Origin)

Model Number: LJ24A3-8(10)-Z/BX/AX/CX/BY/AY/CY/EX/DX

Material: Copper

Item Type: Switches

Features: Proximity Sensor switch

Detecting distance:: 8mm/10mm

Current: 200mA

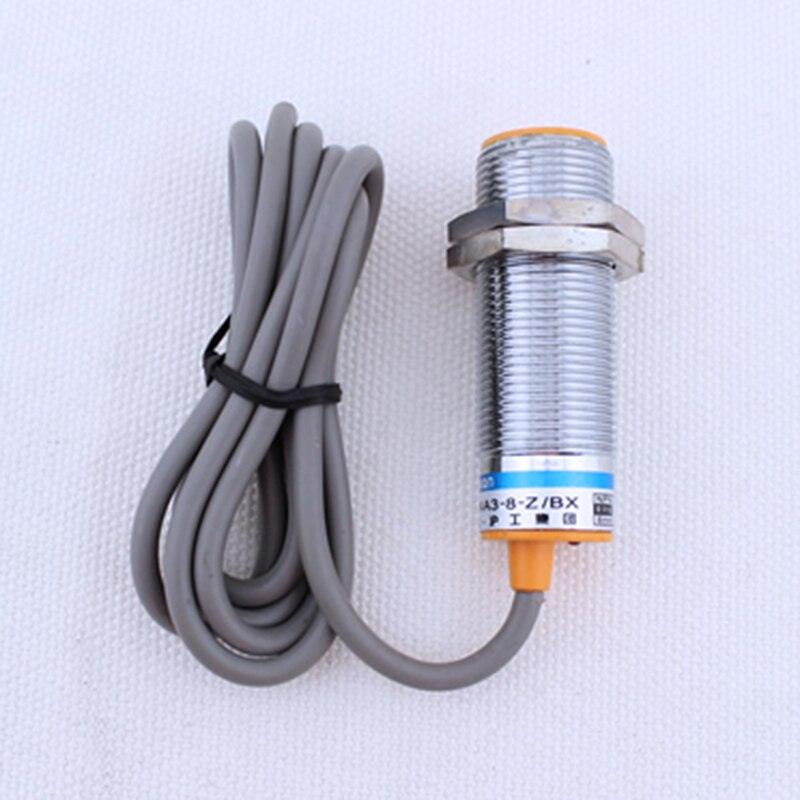

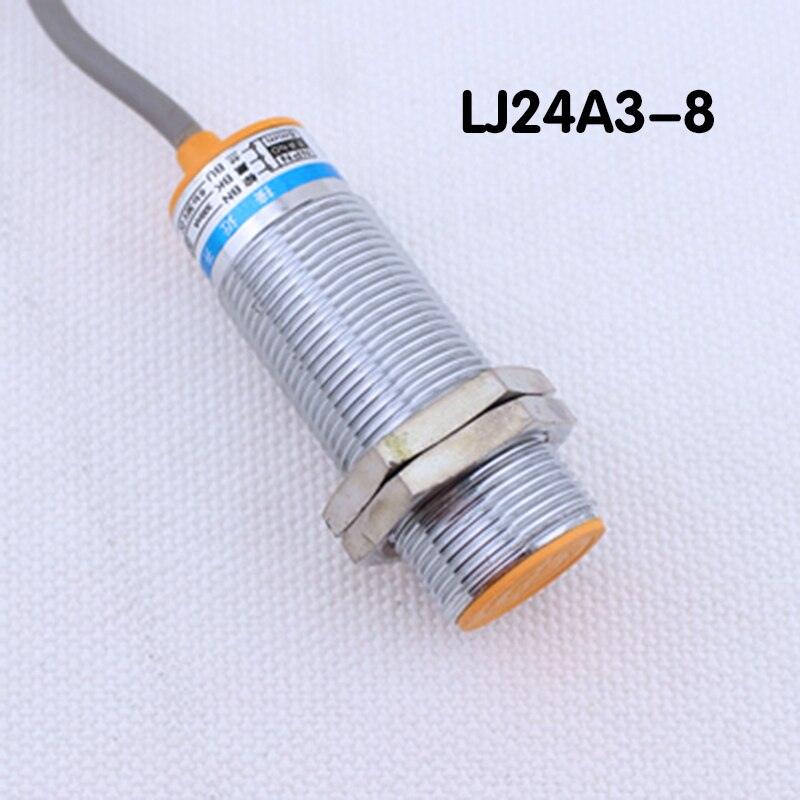

LJ24A3-8-Z/BX: DC NPN 3-wire Normally Open 24mm diameter ; 8mm detection distance
LJ24A3-8-Z/AX: DC NPN 3-wire Normally Close 24mm diameter ; 8mm detection distance
LJ24A3-8-Z/CX: DC NPN 4-wire Normally Open and Normally Close 24mm diameter ; 8mm detection distance
LJ24A3-8-Z/BY: DC PNP 3-wire Normally Open 24mm diameter ; 8mm detection distance
LJ24A3-8-Z/AY: DC PNP 3-wire Normally Close 24mm diameter ; 8mm detection distance
LJ24A3-8-Z/CY: DC PNP 4-wire Normally Open and Normally Close 24mm diameter ; 8mm detection distance
LJ24A3-8-Z/EX: DC Two-wire Normally Open 24mm diameter ; 8mm detection distance
LJ24A3-8-Z/DX: DC Two-wire Normally Close 24mm diameter ; 8mm detection distance

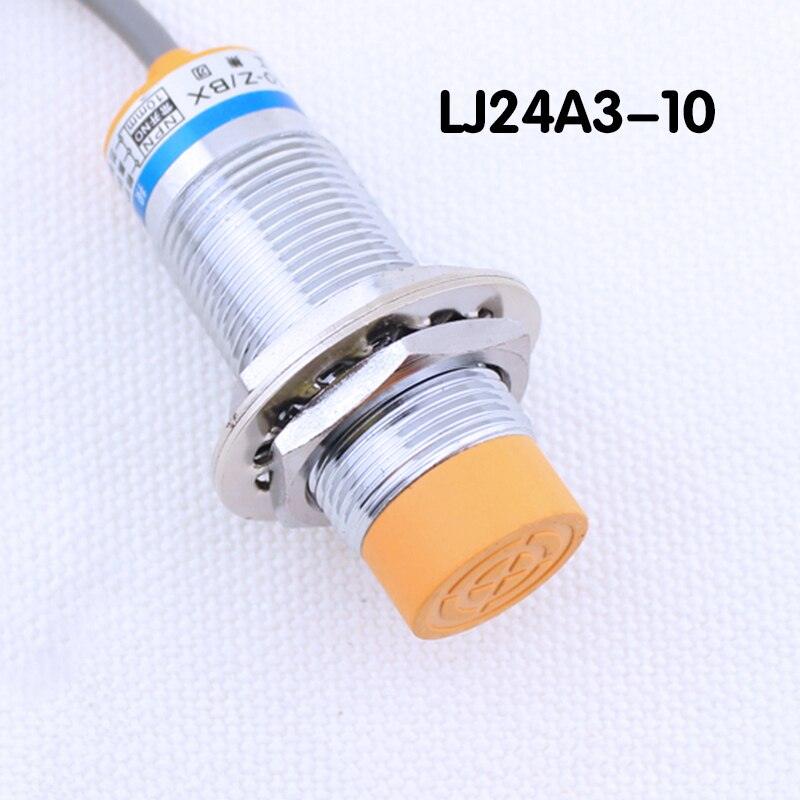

LJ24A3-10-Z/BX: DC NPN Normally Open 3-wire type 24mm diameter ; 10mm detection distance
LJ24A3-10-Z/AX: DC NPN Normally Close 3-wire type 24mm diameter ; 10mm detection distance
LJ24A3-10-Z/CX: DC NPN 4-wire Normally Open and Normally Close 24mm diameter ; 10mm detection distance
LJ24A3-10-Z/BY: DC PNP Normally Open 3-wire  type 24mm diameter ; 10mm detection distance
LJ24A3-10-Z/AY: DC PNP Normally Close 3-wire type  24mm diameter ; 10mm detection distance
LJ24A3-10-Z/CY: DC PNP 4-wire Normally Open and Normally Close 24mm diameter ; 10mm detection distance
LJ24A3-10-Z/EX: DC Two-wire Normally Open 24mm diameter ; 10mm detection distance
LJ24A3-10-Z/DX: DC Two-wire Normally Close 24mm diameter ; 10mm detection distance
