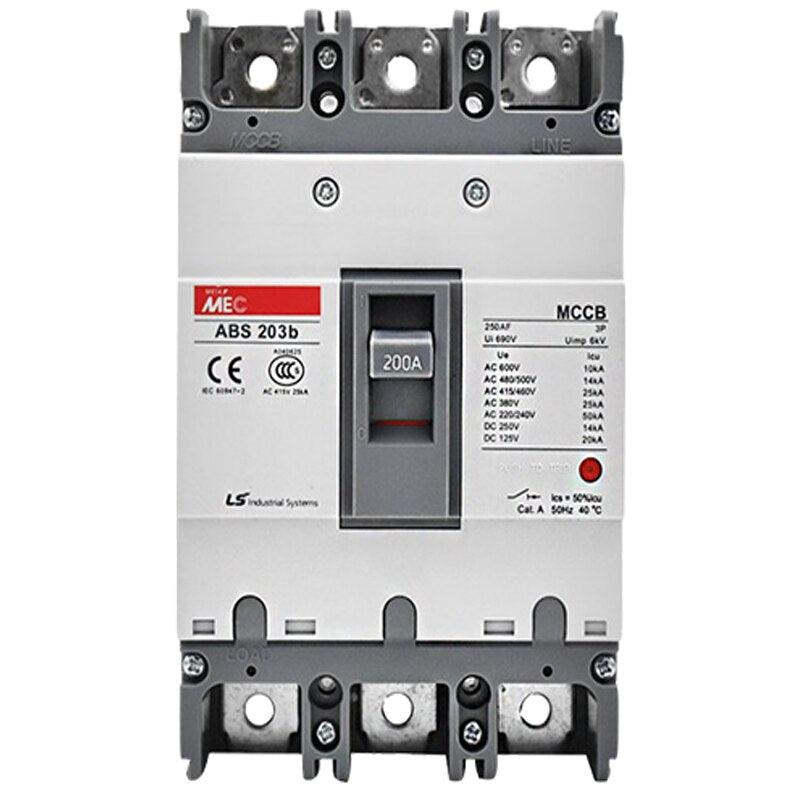

  • MEC 3P Moulded Case Circuit Breaker ABS203b 125A 150A 175A 200A 225A 250A LS ELECTRIC MCCB.
1 8

electrical center b2c

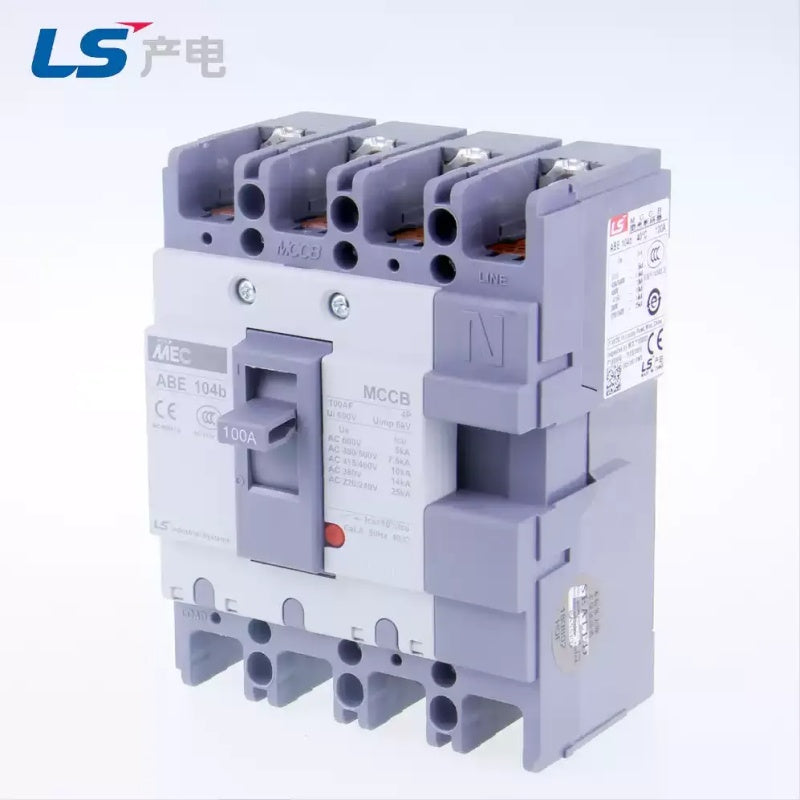

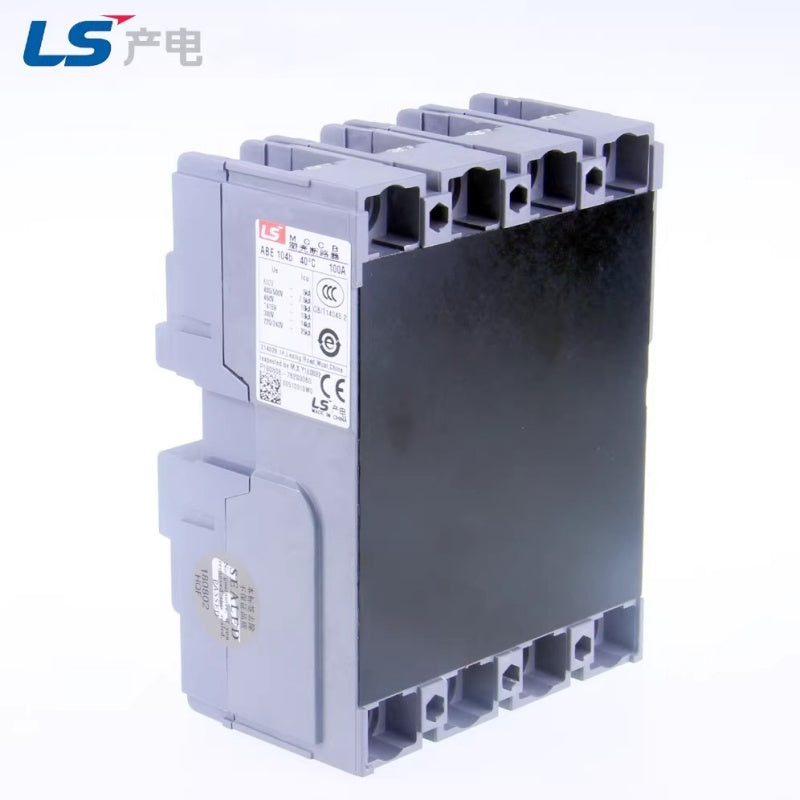

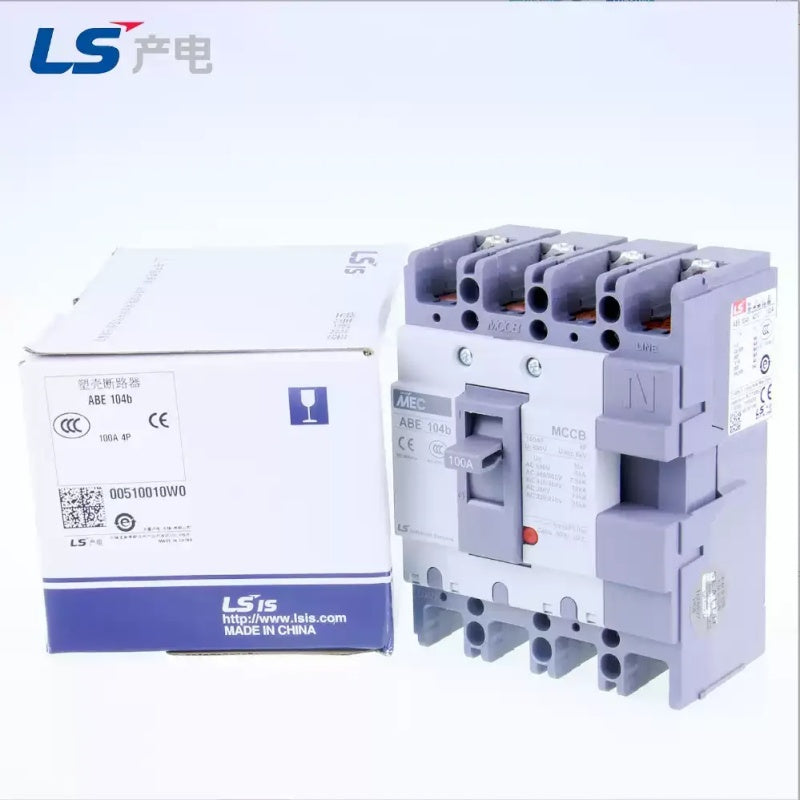

LS ABE Series 4P MCCB (60A-400A)

$73.50 USD
$73.50 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

LS ABE MCCB 4P 60A-400A | ABE104B/204B/404B Meta-MEC Molded Case Circuit Breaker, Thermal Magnetic Trip, 4 Pole Low Voltage Protection

1. 核心概述 (Overview)


The LS Electric Meta-MEC ABE Series 4-pole (4P) Molded Case Circuit Breakers (MCCBs) are designed for reliable, cost-effective low-voltage circuit protection in commercial, industrial, and residential applications requiring neutral line protection. Covering rated currents from 60A to 400A, this series provides comprehensive overload and short-circuit protection for three-phase four-wire power distribution systems.

2. 关键特性 (Key Features)


  • 4-Pole Design: Full 4-pole configuration for complete protection of phase lines and neutral line, ideal for TN-S and TT distribution systems.
  • Wide Current Range: Models spanning ABE104B (60-100A), ABE204B (125-225A), to ABE404B (250-400A), covering common load requirements.
  • Thermal-Magnetic Trip Mechanism: Dual protection against overloads (thermal) and short circuits (magnetic) for enhanced safety.
  • IEC/EN Compliant: Certified to IEC 60947-2 / GB 14048.2 standards, meeting global safety and performance benchmarks.
  • Compact & Standardized Form Factor: Industry-standard mounting dimensions simplify installation and integration into control panels.
  • High Breaking Capacity: Short-circuit interrupting ratings up to 85kA (model-dependent), suitable for various system fault current levels.
  • Neutral Protection Options: Optimized for three-phase four-wire systems to protect against neutral line faults.

3. 型号解析 (Model Decoding)

Model Code Interpretation
ABE LS Meta-MEC Economy MCCB Series
104B/204B/404B Frame size (100A/200A/400A rated frame) + 4P pole configuration
60A~400A Rated operational current (In)



4. 典型应用 (Applications)

  • Three-phase four-wire power distribution panels and switchboards
  • Commercial building electrical systems with neutral protection requirements
  • Industrial machinery and motor control centers (MCCs)
  • Renewable energy (solar/wind) distribution circuits
  • Residential and commercial backup power systems

DATA SHEET

Attribute Value
Brand LS Electric / LS 产电
Series Meta-MEC ABE Series
Product Type Molded Case Circuit Breaker (MCCB)
Pole Count 4 Pole (4P)
Rated Current (In) 60A, 75A, 100A, 125A, 150A, 175A, 200A, 225A, 250A, 300A, 350A, 400A
Frame Sizes 104B, 204B, 404B
Trip Type Thermal-Magnetic Fixed Trip
Rated Voltage (Ue) AC 400V / 690V
Breaking Capacity (Icu) 5kA to 85kA (Model-dependent)
Standards Compliance IEC 60947-2, GB 14048.2, EN 60947-2
Application Power Distribution, Motor Protection, 3-Phase 4-Wire Systems, Industrial/Commercial
Mounting Type Standard Panel Mount
Certifications CE, CCC (where applicable)
