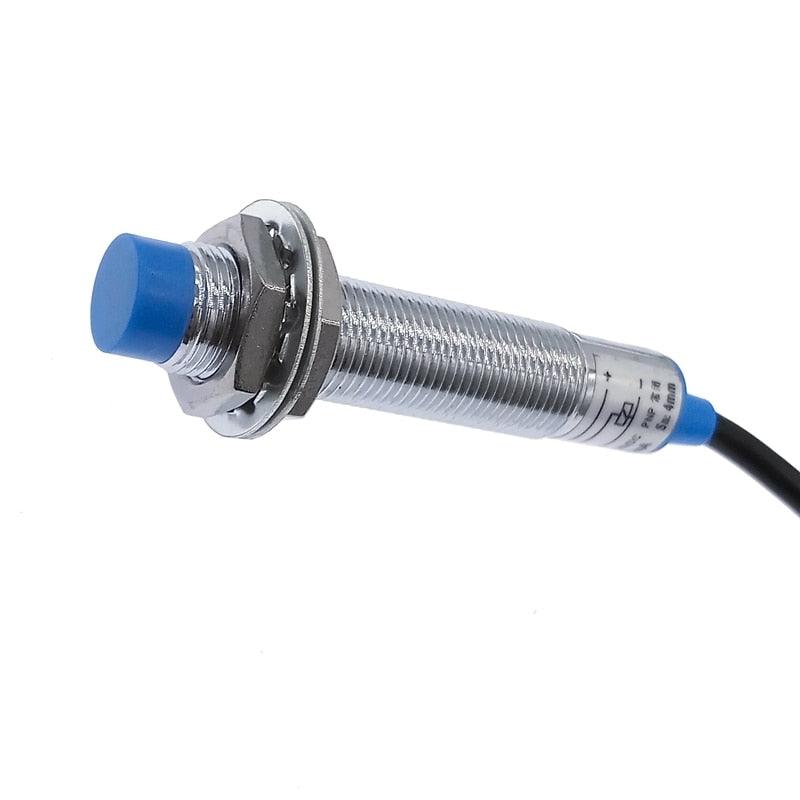

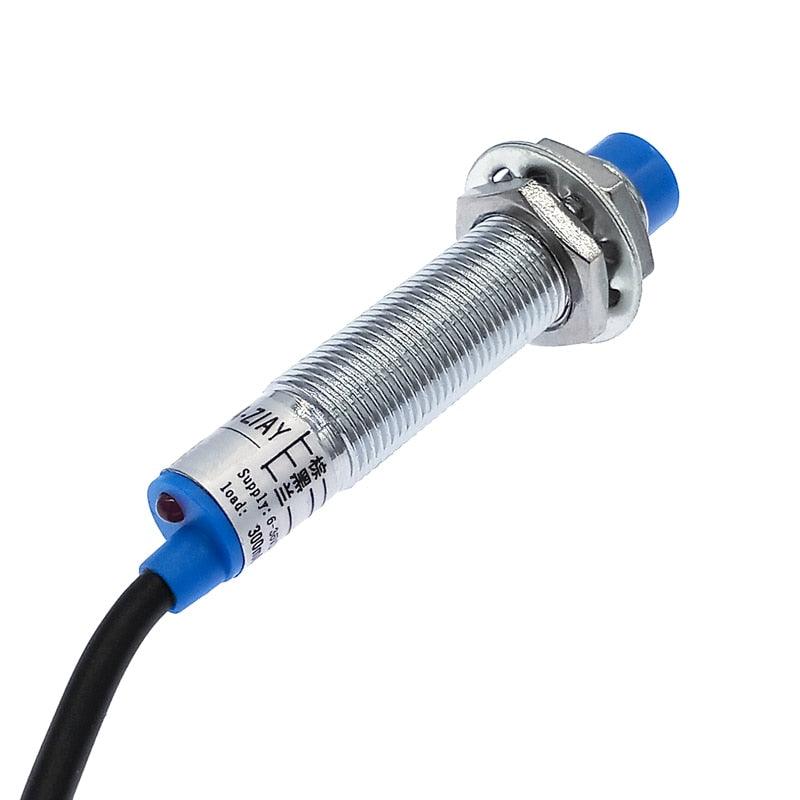

LJ12A3-4 inductive proximity switch npn/pnp sensor NO NC /4mm detection distance

SPECIFICATIONS

LJ12A3-4 BX BY AX AY inductive proximity switch

lj12a3-4-z/bx npn lj12a3-4-z/ax

pnp sensor NO NC DC5~36V

4mm detection distance

Wire:: 3-Wire type

Warranty: 1Y

Voltage:: 5~36V DC(9V 12V 18V 24V 36V)

The diameter: 12mm

Switch Type:: PNP/NPN NO/NC

Switch Type: Proximity Switch

Product Name:: Proximity Sensor switch

Origin: CN(Origin)

Model Number: LJ12A3-4-Z/BY/AY/BX/AX

Material: Alloy

Item Type: Switches

Is Smart Device: Yes

Features: Proximity Sensor switch

Detecting distance:: 0~4mm

Current: 100A

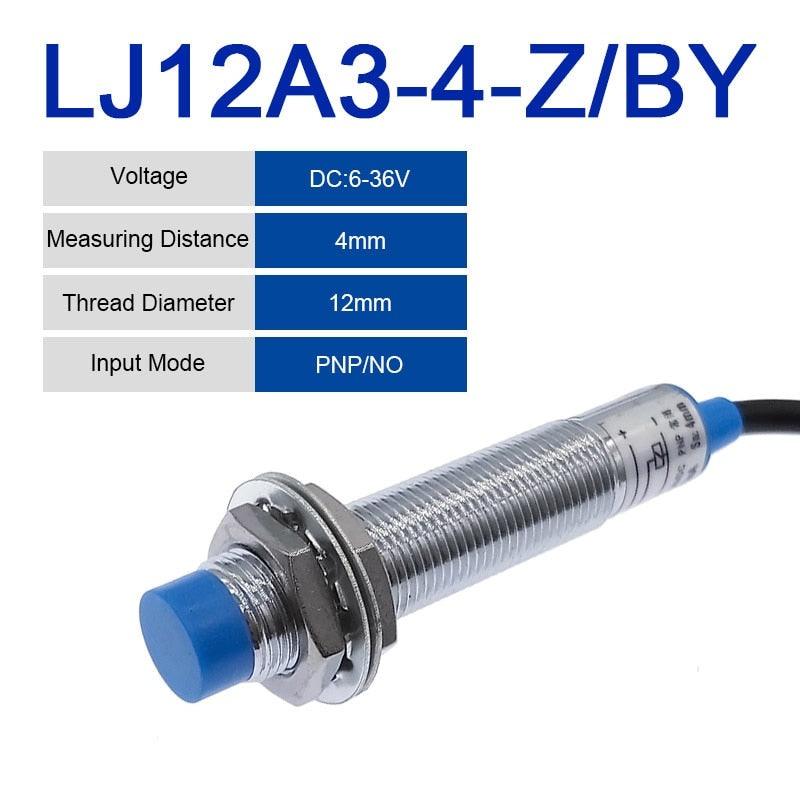

LJ12A3-4-Z/BY:  PNP NO 3-Line DC type 12mm diameter ; 4mm detection distance

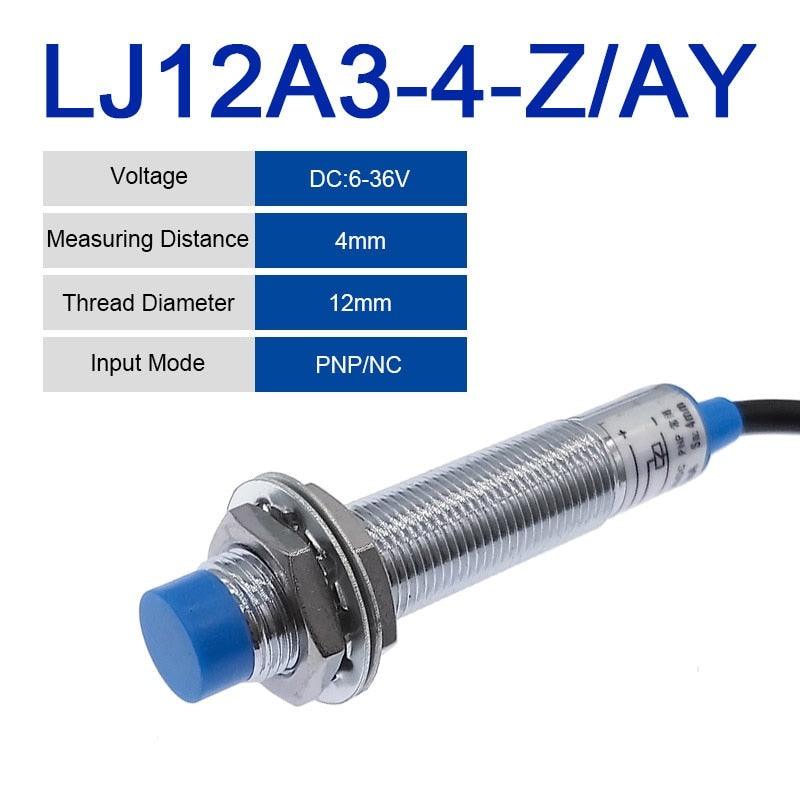

LJ12A3-4-Z/AY:  PNP NC 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/BX:  NPN NO 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/AX:  NPN NC 3-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/CX:  NPN NO+NC 4-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/CY:  PNP NO+NC 4-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/EX:  NO 2-Line DC type 12mm diameter ; 4mm detection distance

LJ12A3-4-Z/DX:  NC 2-Line DC type 12mm diameter ; 4mm detection distance

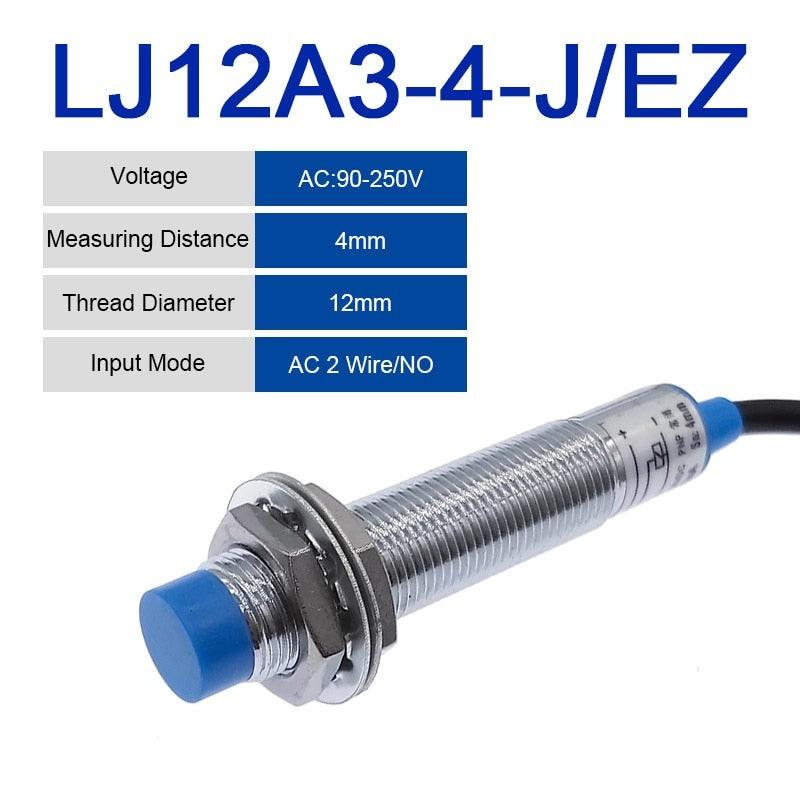

LJ12A3-4-J/EZ:  NO 2-Line AC type 12mm diameter ; 4mm detection distance

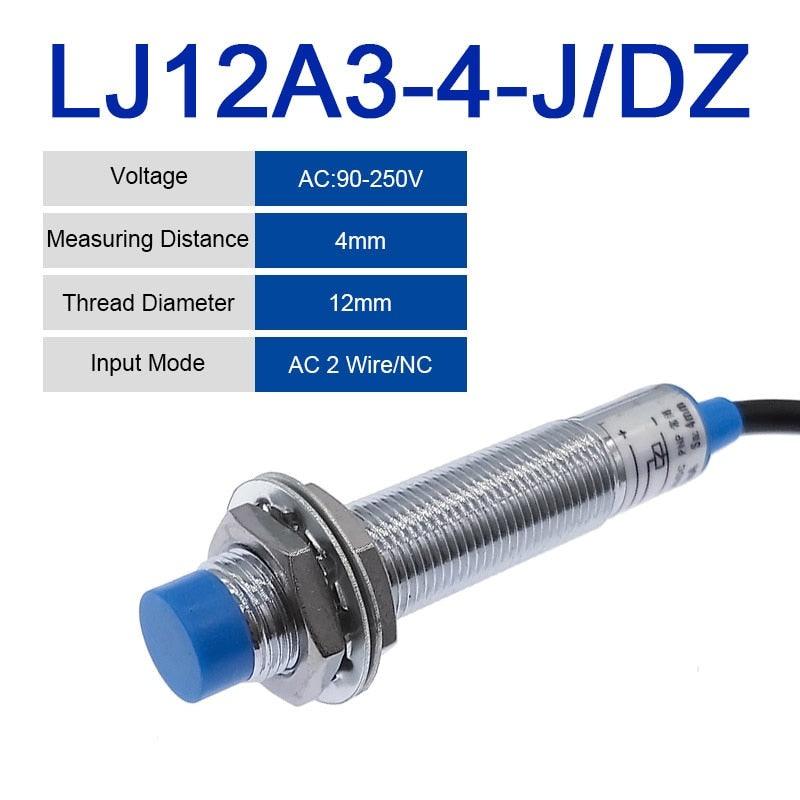

LJ12A3-4-J/DZ:  NC 2-Line AC type 12mm diameter ; 4mm detection distance
