Linear Actuator 20N DC 12V Lifter Telescopic Rod 25mm 50mm 75mm 100mm 150mm Switch
Regular price
$78.56 USD
Regular price
$65.86 USD
Sale price
$78.56 USD
Unit price
per
SPECIFICATIONS
Linear Actuator 20N DC 12V Lifter Telescopic Rod 25mm 50mm 75mm 100mm 150mm Switch Pause Remote Controller Micro Lineal Actuador
Brand Name: HYSMOTOR
Certification: CCC
Origin: Mainland China
Commutation: Brush
Type: Gear Motor
Protect Feature: Totally Enclosed
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
The actuators emit a low noise volume so it won’t distract from the overall effect of your design. Rated IP65 so you can install it in a wide variety of environments without worry about damage from water or dust. Built-in limit switches with stall protection makes it easy to install and set up instantly.
Small electric linear actuators are convenient for creating customized automation in homes, offices, vehicles, yachts, RV’s, aircraft, robotics, VR experience simulators, RC/radio control vehicles, multi-copter drones, as well as artistic installations, medical applications and more.
Whatever your design needs are, the micro linear actuator is streamlined for the perfect fit.
Parameters

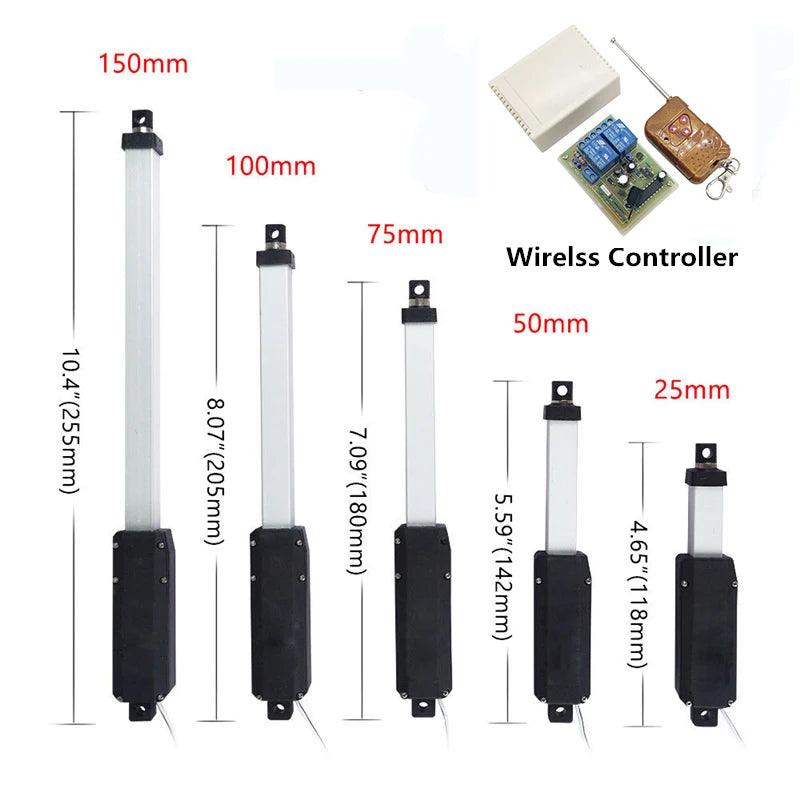

Stroke: 1-6" (25mm-150mm)
Force: 4.4 lbs
Speed: 0.51”/sec
Input Voltage: 12V DC
Duty Cycle: 10%
Noise: db<65
Protection class: IP65
Operational Temperature: +5ºC ~ +40ºC
Limit switches: Built-in; Non-adjustable
Housing Material: ABS and Aluminum
Inner Tube: Stainless Steel
Gear Box: All Metal
Note:Pls contact me if you do not know the wiring method
1) This product is a wireless transmission signal, non-directional, can pass through the wall
2)Working voltage : DC 12V/24V
3) Working frequency: 433MHz-315MHZ
4) Remote control distance: open space without interference load test 100 meters (radio products practical application vary depending on the environment from the remote control, the gap is very large, which have strict requirements careful to buy!)
5) Load types: for electric burglar alarm, remote control electric windows, signal control, industrial control, motor reversing, lifting equipment and other control circuitry. Remote control switch module relay contact Independent output, Very suitable for direct control of various types of load
6) Receiving sensitivity:> - 105dB
7)The relay contact capacity: 10A 250VAC | 10A 30VDC
8) Control mode: Work mode: M4 (Jog: Press grimdeath outputs, let go to stop output), L4 (interlock: Road at the same time there can be only one output), T4 (self-locking: Road mutual independent output, independently of each other, click the output and click stops output)
Tips: Remote control buttons Press only one button can not hold down two or more keys simultaneously, otherwise it will affect the normal work interfere with each other.
9) Output: relay common / normally open / normally closed (flexible application can control a variety of load voltage)
10) Encoding: fixed code (welding yards) motherboard and pin remote control codes need to correspond to the state are: high, low, left floating.

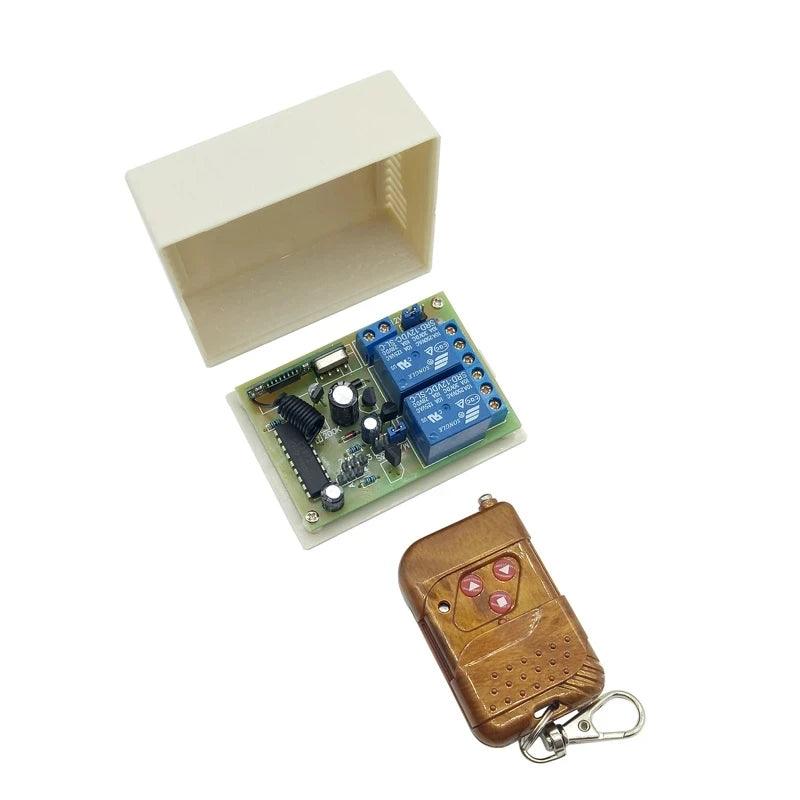

11) Configure Explanation: Remote Control + Receiver + shell (1set)
