LD28 IP68 Waterproof Connector Plug Back Nut/Square/Docking 2 3 4 Pin

$13.78 USD
$13.78 USD
Sale Sold out
Shipping calculated at checkout.
Color
Connector Type
Pins

SPECIFICATIONS

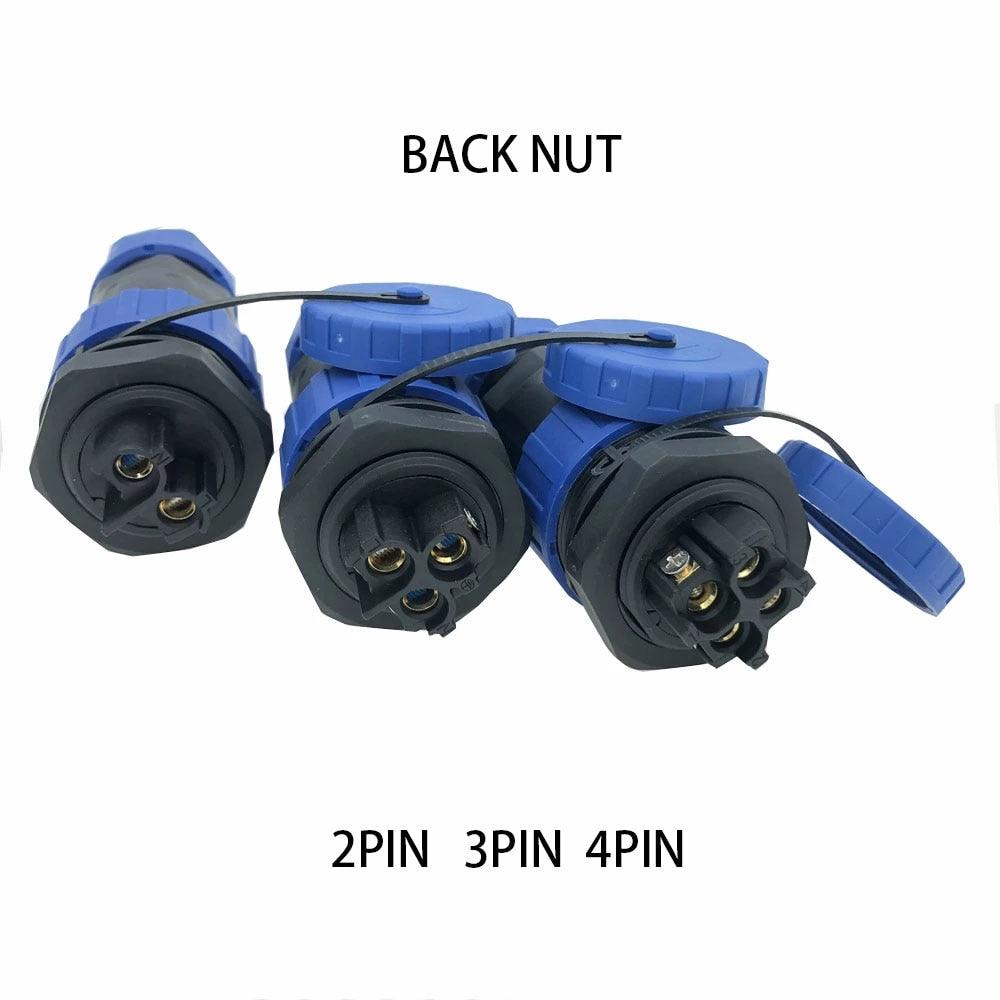

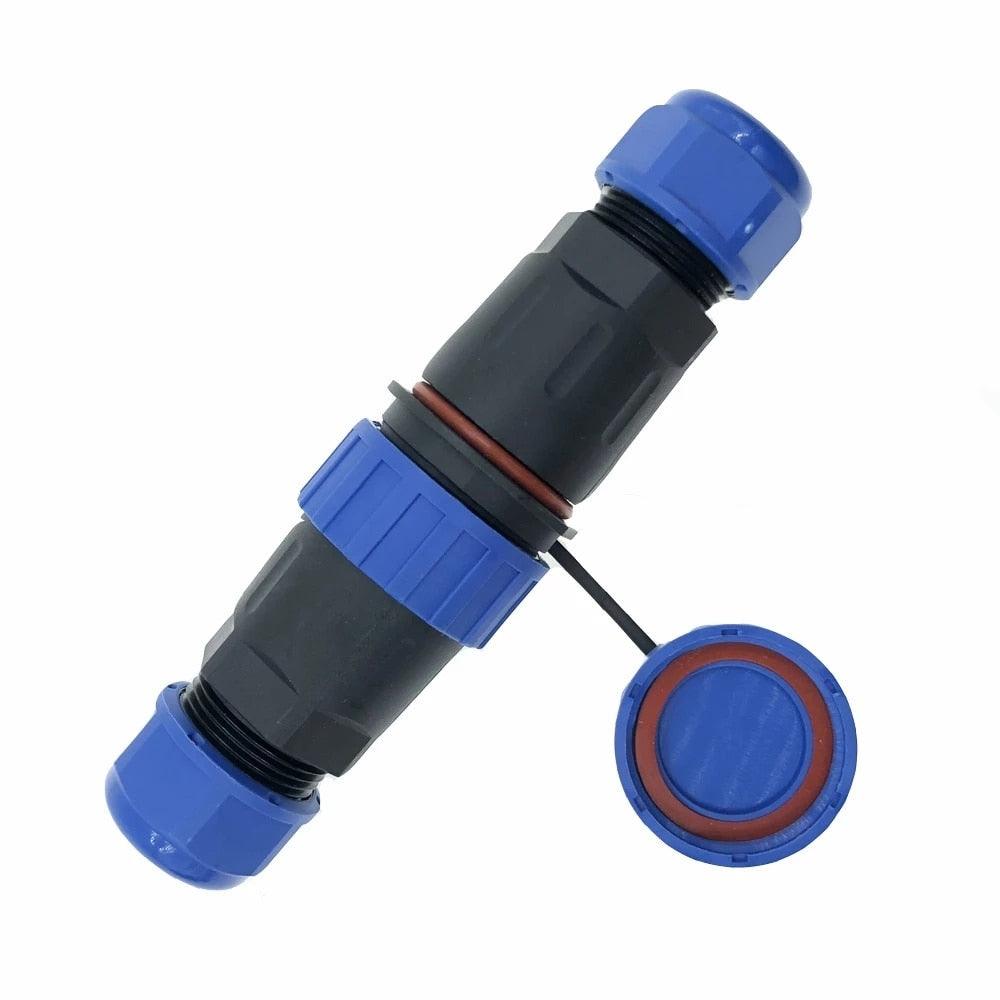

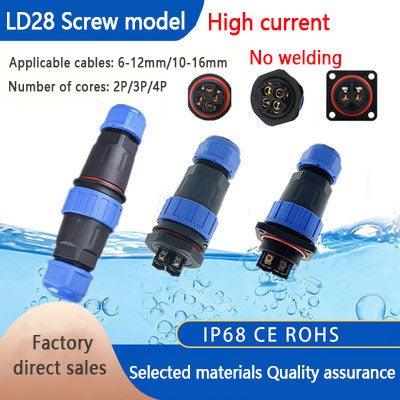

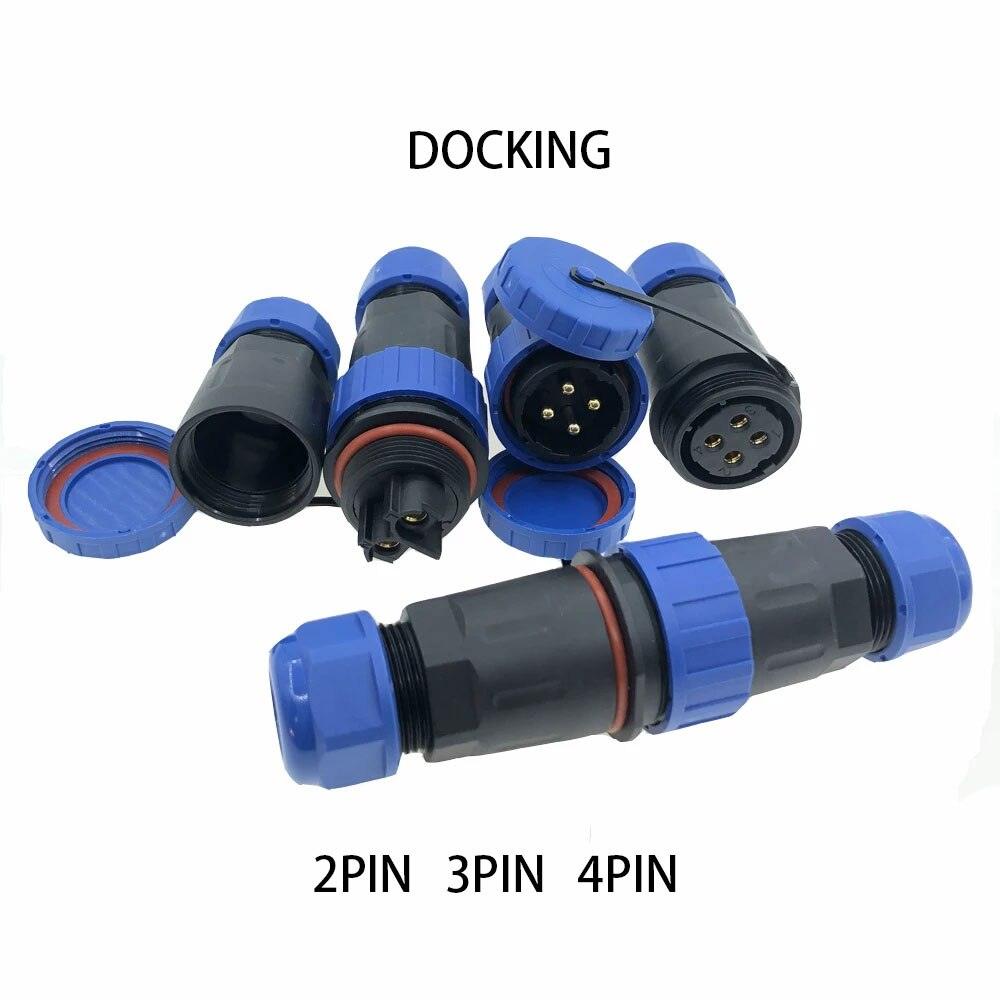

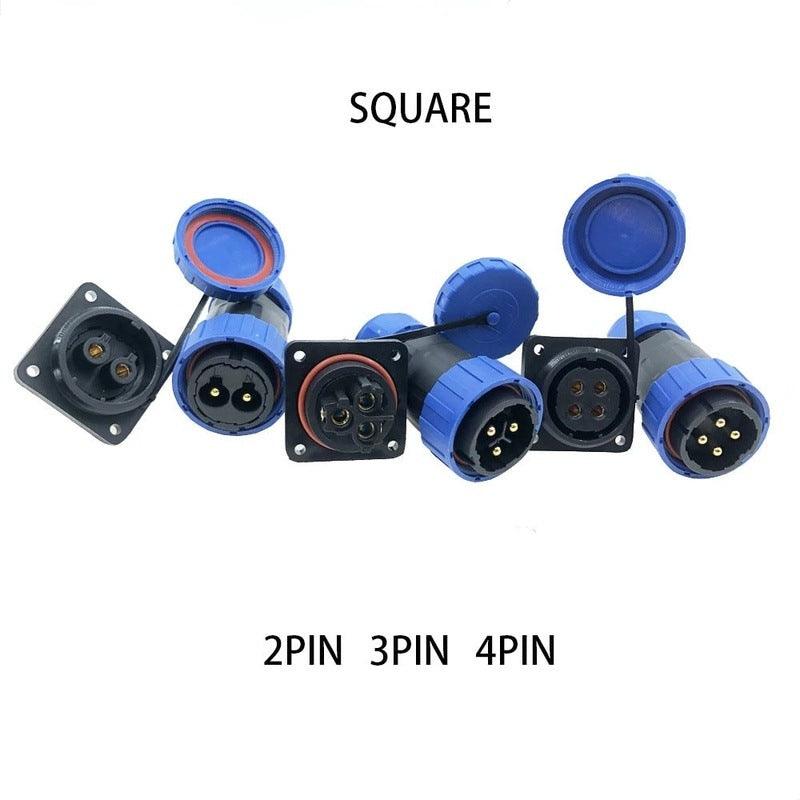

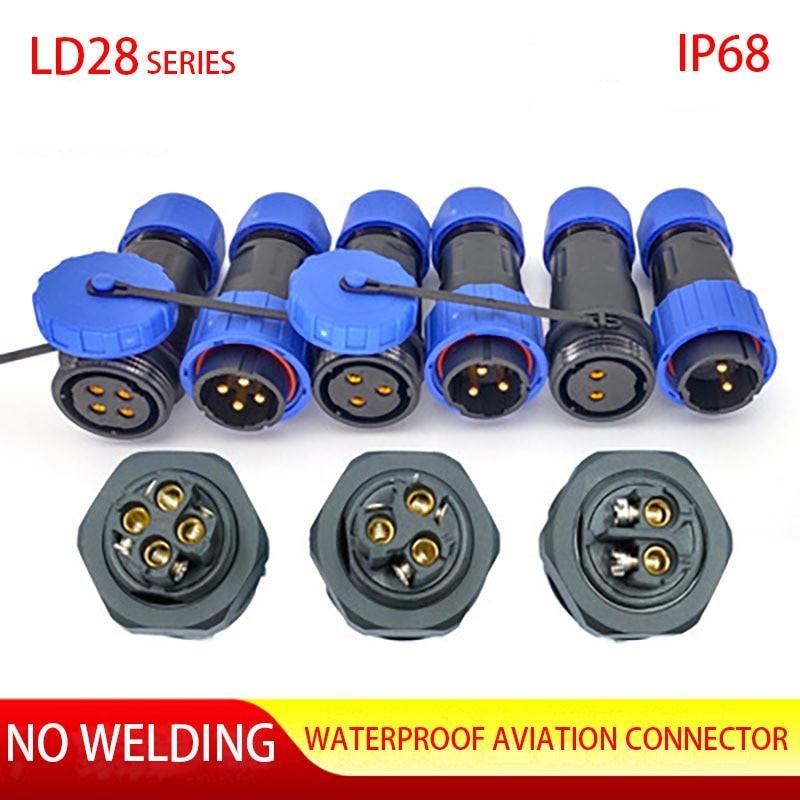

LD28 IP68 Waterproof Connector Plug Back Nut/Square/Docking Optionl

2 3 4 Pin optional

Screw Crimping Without Welding Connector

waterproof level: IP68

Rated voltage: 250A

Rated current: 45A

Product number: LD28

Origin: CN(Origin)

Model Number: LD28

Certification: CE

Specification parameter
Connector Type: LD28 series
Pin Quantity: 2/3/4 Pin
Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper
Sealing ring: silica gel
Rated current: 45A
Rated voltage: 250V
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68

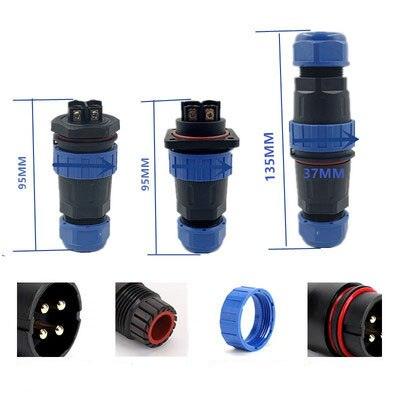

Applicable wire diameter: diameter 6-12/10-16mm
Mechanical life: more than 500 times
Package (Set): 1 x Connector
