L02 PLC Modules Transistor Relay Output Module 8/16/32 Channel Quick Wiring

SPECIFICATIONS

PLC Programmable Logic Modules Transistor Relay Output Module

8/16/32 Channel Quick Wiring

Power Supply: DC

Origin: CN(Origin)

Motor Type: Stepper Motor

Model Number: L02

Certification: CE

Brand Name: Coolmay

Please select L02 modules as per your requirements. If questions, please feel free to contact us.

From #001 to #005 are Coolmay L02 series modules, which can be only used together with Coolmay L02 Host PLC.

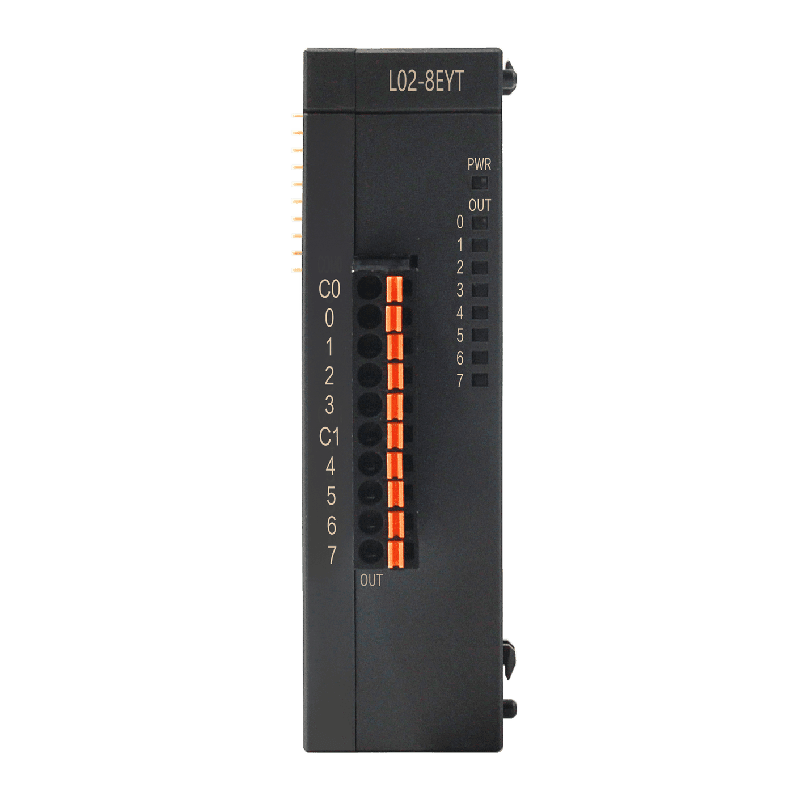

#001 L02-8EYT:

30VDC, 0.5A/point, 8DO, transistor outputs, push-type terminals

#002 L02-8EYR:

220VAC/30VDC, 2A/point, 8DO, relay outputs, push-type terminals

#003 L02-16EYT:

30VDC, 0.5A/point, 16DO, transistor outputs, push-type terminals

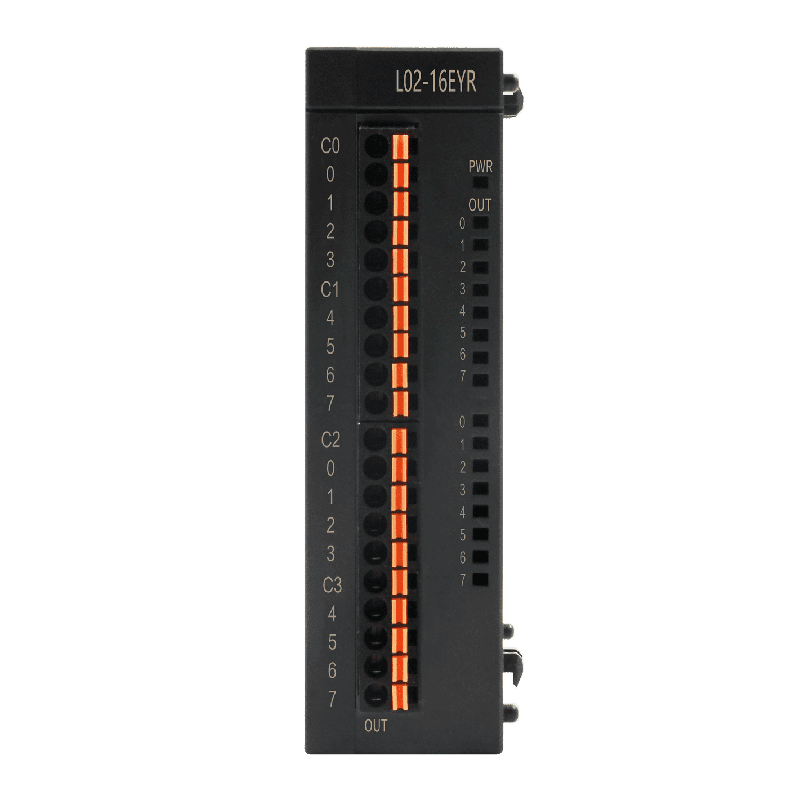

#004 L02-16EYR:

220VAC/30VDC, 2A/point, 16DO, relay outputs, push-type terminals

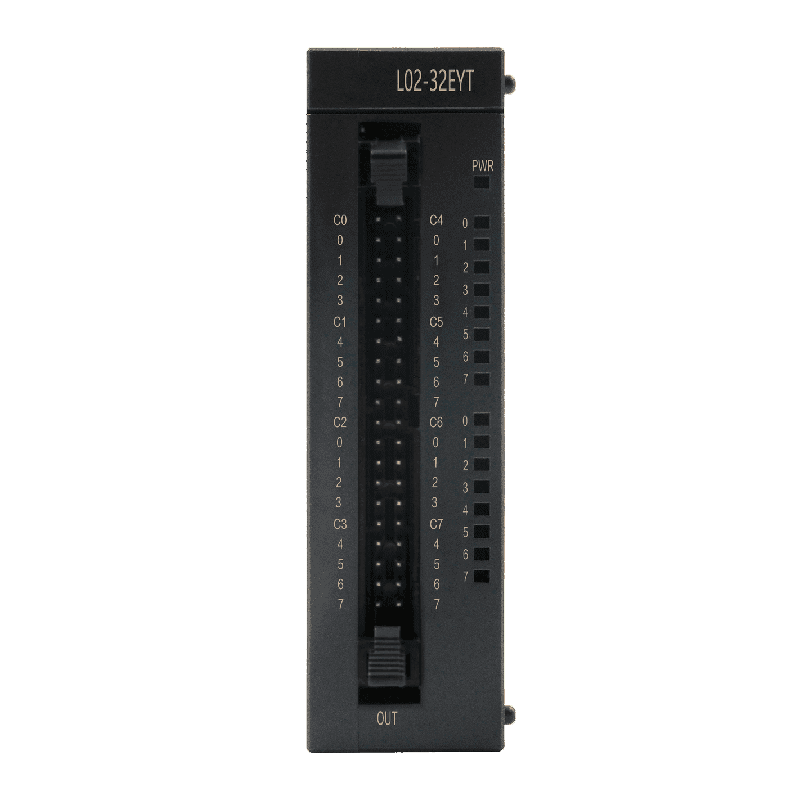

#005 L02-32EYT:

30VDC, 0.5A/point, 32DO, transistor outputs, horn terminal block

#006 L02-16EYP:

220VAC/30VDC, 0.5A/point, 16DO, transistor and PNP outputs, push-type terminals
