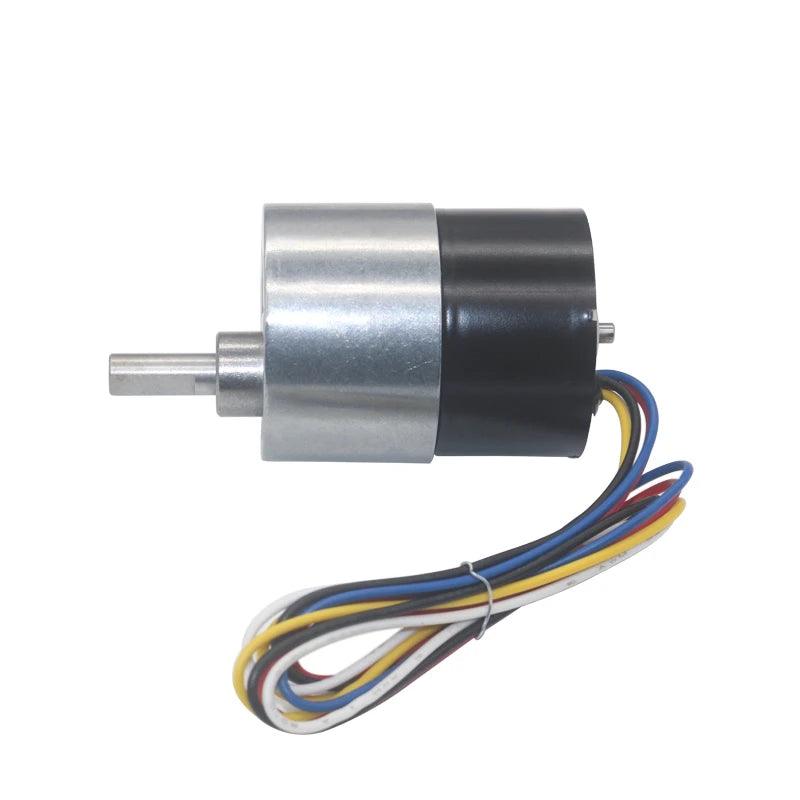

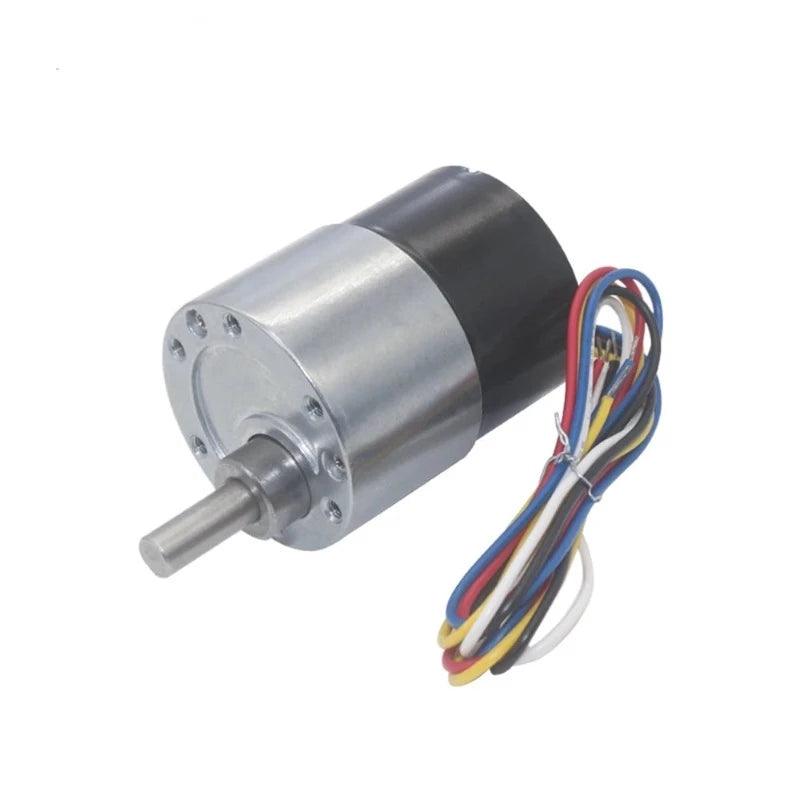

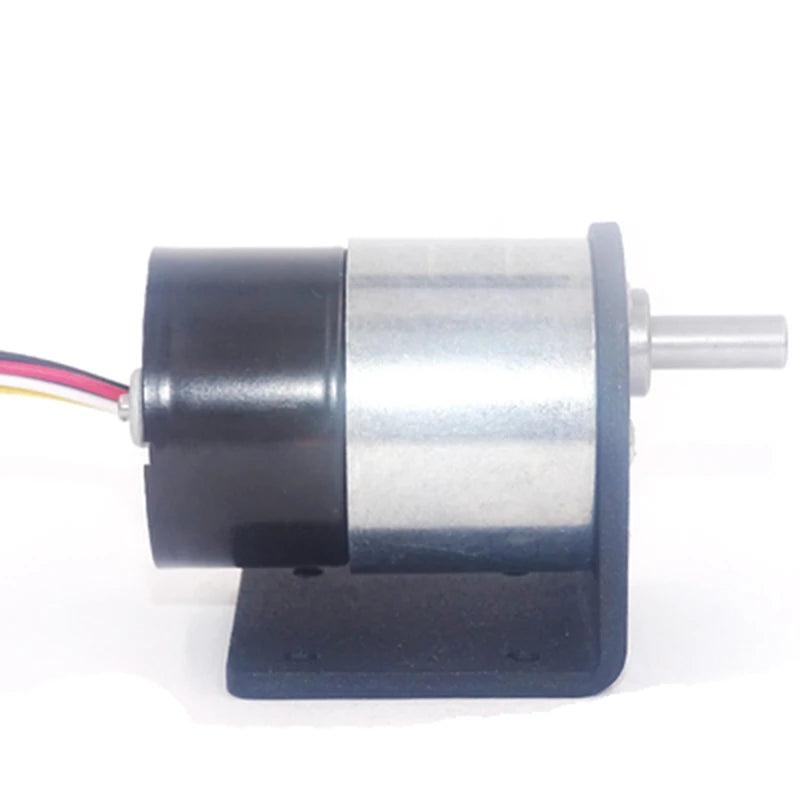

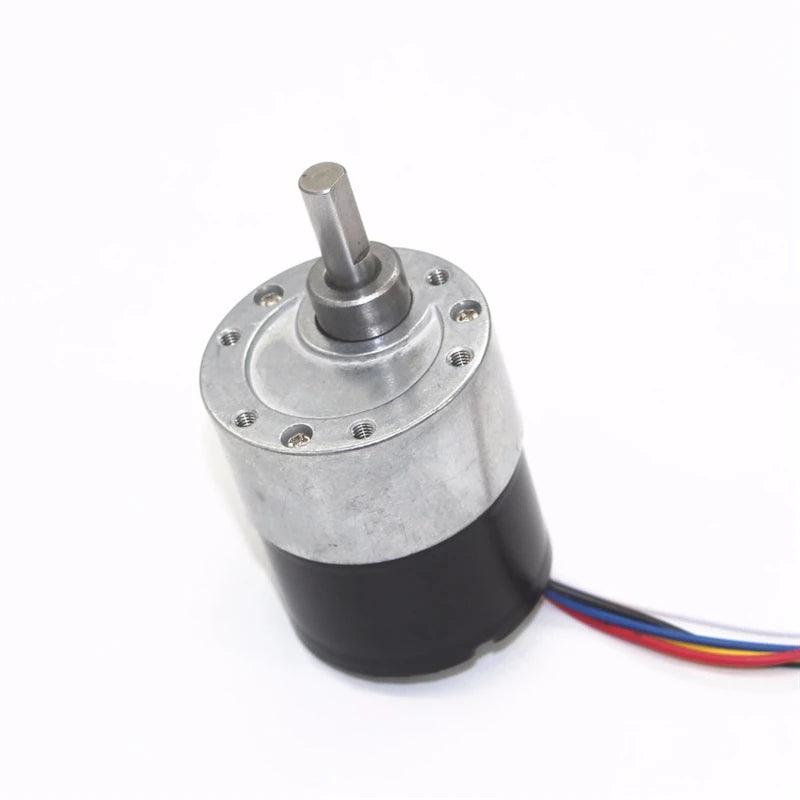

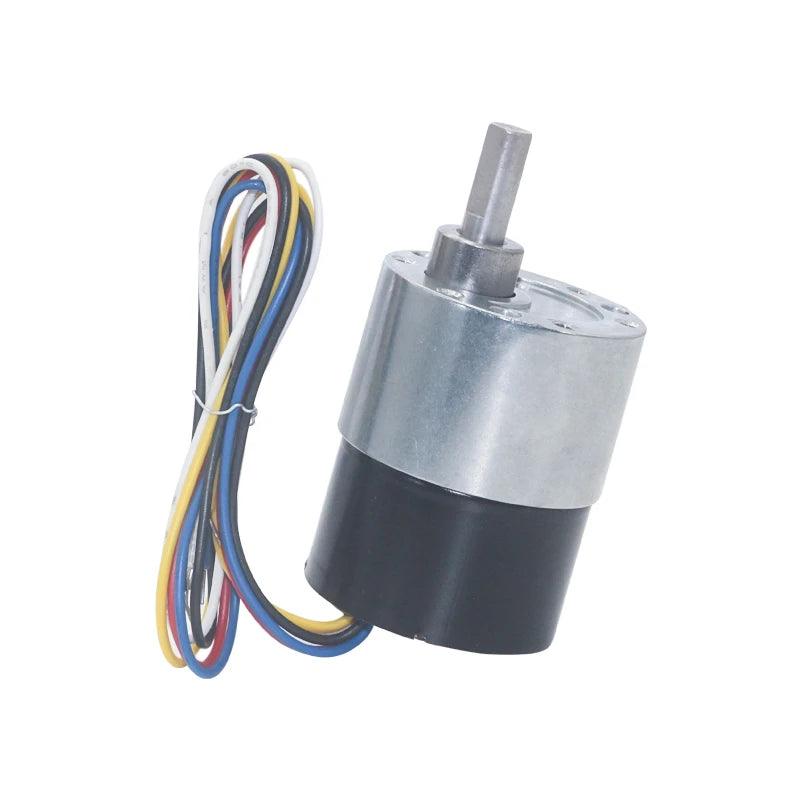

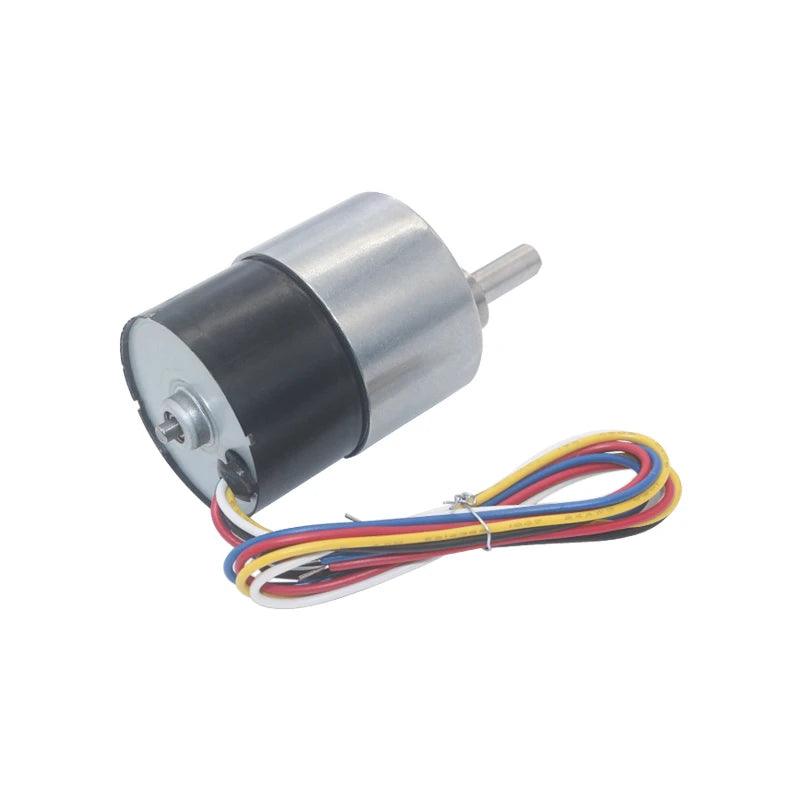

JGB37-3525 12V 24V Brushless DC Metal Gear Motor 7-960RPM High Torque BLDC PWM Adjust Forward Reversed Signal Feedback
Couldn't load pickup availability
SPECIFICATIONS
JGB37-3525 12V 24V Brushless DC Metal Gear Motor 7-960RPM High Torque BLDC PWM Adjust Forward Reversed Signal Feedback
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Continuous Current(A): 0.6A
Output Power: 7W-8W
Commutation: Brushless
Type: Gear Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Efficiency: IE 1
Model Number: JGB37-3525
Torque: max 35kg.cm
Low noise Long life Large Torque Positive and negative 12v 24v Brushless DC Gear Motor JGB37-3525
Specification:
-
Voltage:DC12V
No-load Speed:480rpm,300rpm,160rpm,100rpm,53rpm,33rpm,22rpm,17rpm,11rpm,6rpm,4rpm
-
Voltage:DC24V
No-load Speed:960rpm,600rpm,320rpm,200rpm,107rpm,66rpm,45rpm,35rpm,22rpm,12rpm,7rpm
-
Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
-
Motor Diameter: about 37mm
-
Motor Body Length: 25mm
-
Output Shaft Diameter: 6mm(D-Type)
-
Output Shaft Length: 12mm
-
Gearbox Length: see the table
Wire Connection Method:
-
Red line: power +
-
Black line: Power -
-
White line: CW / CCW control line,White line and black line together, you can change the motor direction
-
Blue line: PWM speed control line, then 0 ~ 5V pulse width governor
-
Yellow line: FG signal line
