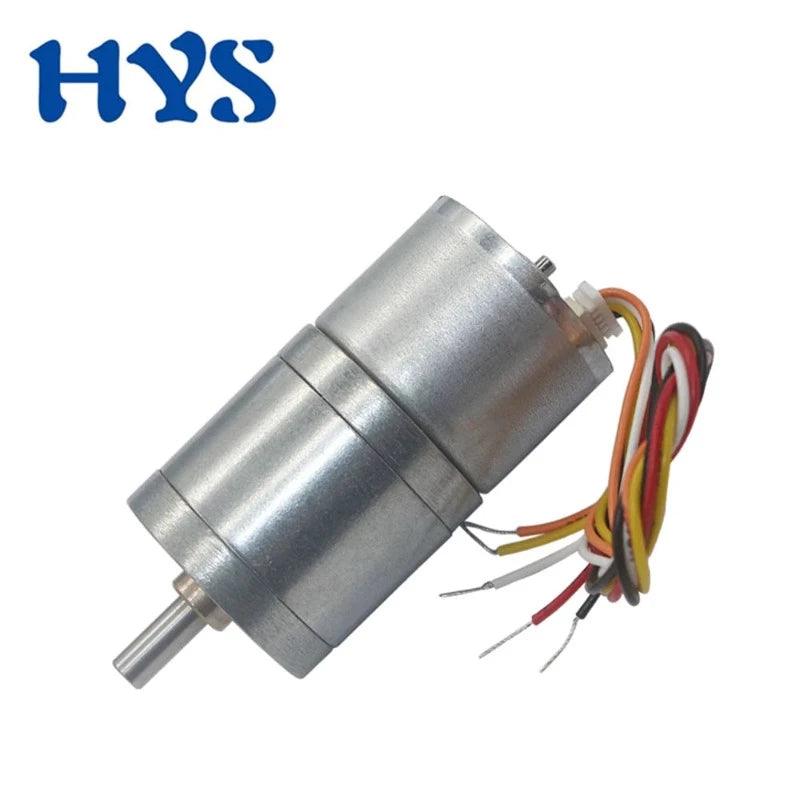

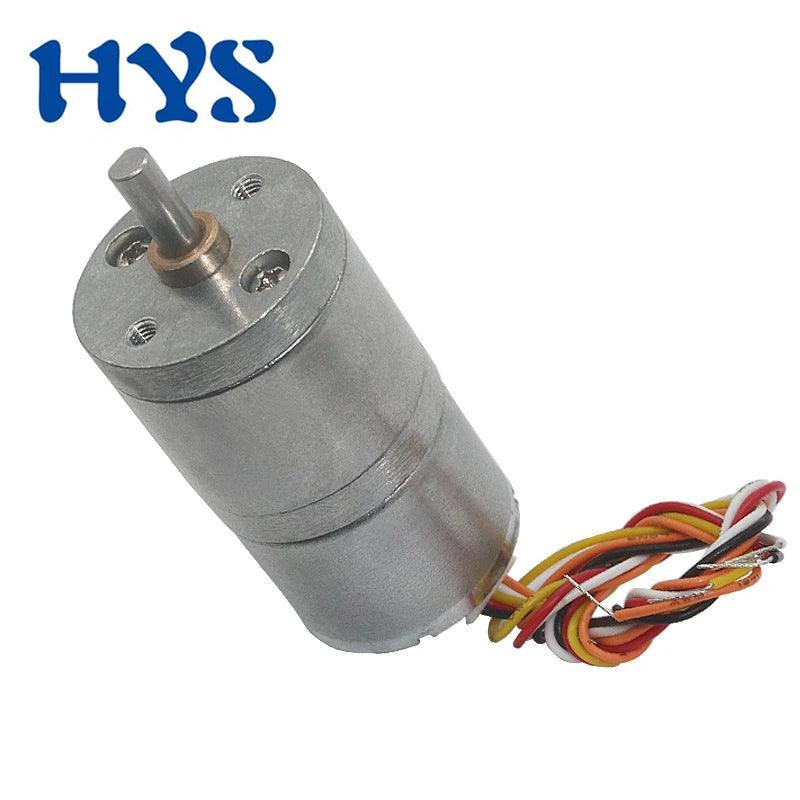

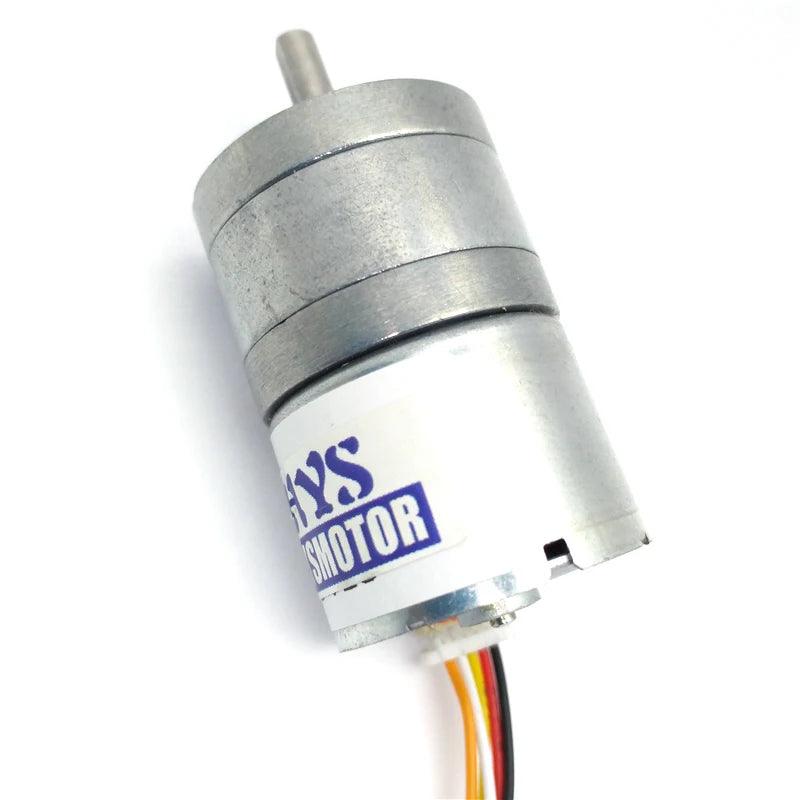

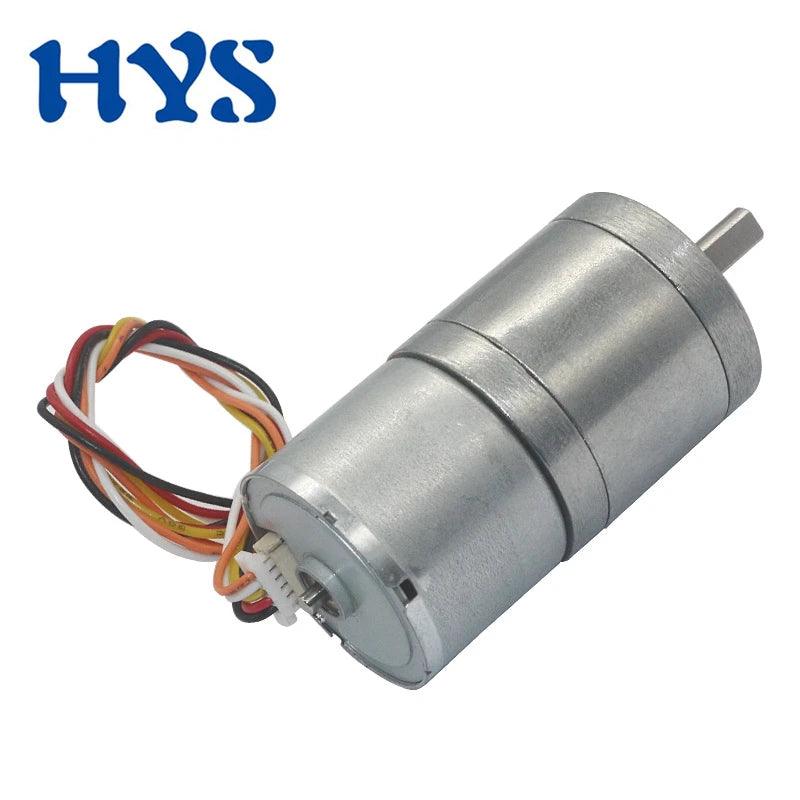

JGA25-2418 DC Brushless Gear Motor 12v 24v Hair Curler Motor BLDC Slow Speed Gearmotor Gearbox
Couldn't load pickup availability
SPECIFICATIONS
JGA25-2418 DC Brushless Gear Motor 12v 24v Hair Curler Motor BLDC Slow Speed Gearmotor Gearbox
Brand Name: HYSMOTOR
Certification: CCC
Certification: ROHS
Origin: Mainland China
Commutation: Brushless
Type: Gear Motor
Protect Feature: Totally Enclosed
Construction: Permanent Magnet
Usage: BoAt
Usage: car
Usage: Electric Bicycle
Usage: Fan
Usage: Home Appliance
Model Number: jga25-2418
-
Voltage:DC12V
No-load Speed:1000rpm,450rpm,210rpm,130rpm,100rpm,58rpm,45rpm,26rpm,20rpm,12rpm,9rpm
-
Voltage:DC24V
No-load Speed:2000rpm,930rpm,420rpm,260rpm,200rpm,115rpm,90rpm,52rpm,40rpm,24rpm,18rpm
-
Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
-
Motor Diameter: about 25mm
-
Motor Body Length: 18mm
-

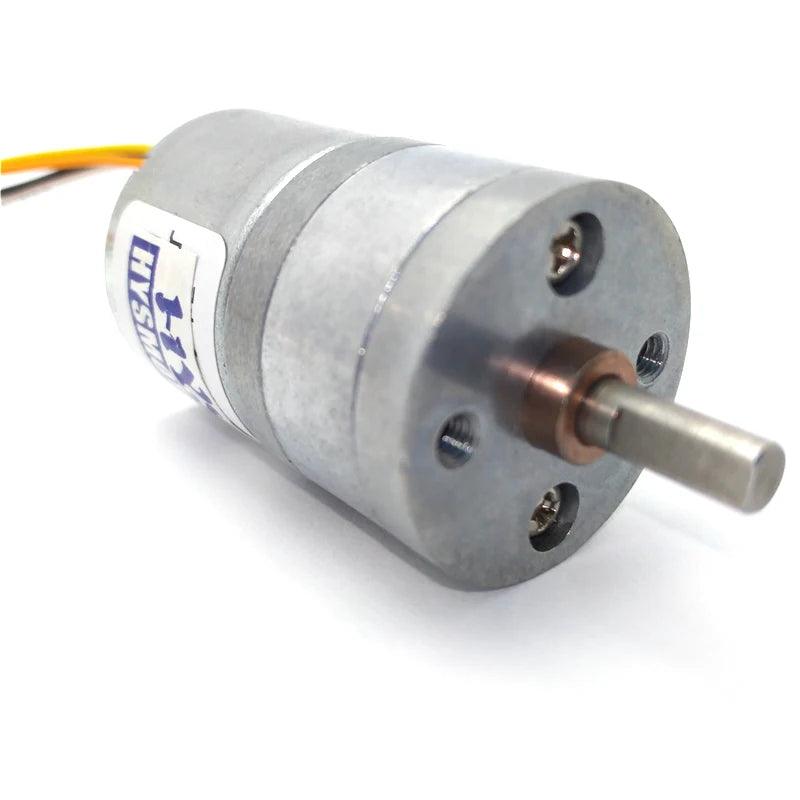

Output Shaft Diameter: 4mm(D-Type)
-
Output Shaft Length: 9.5mm
-
Gearbox Length: see the tab

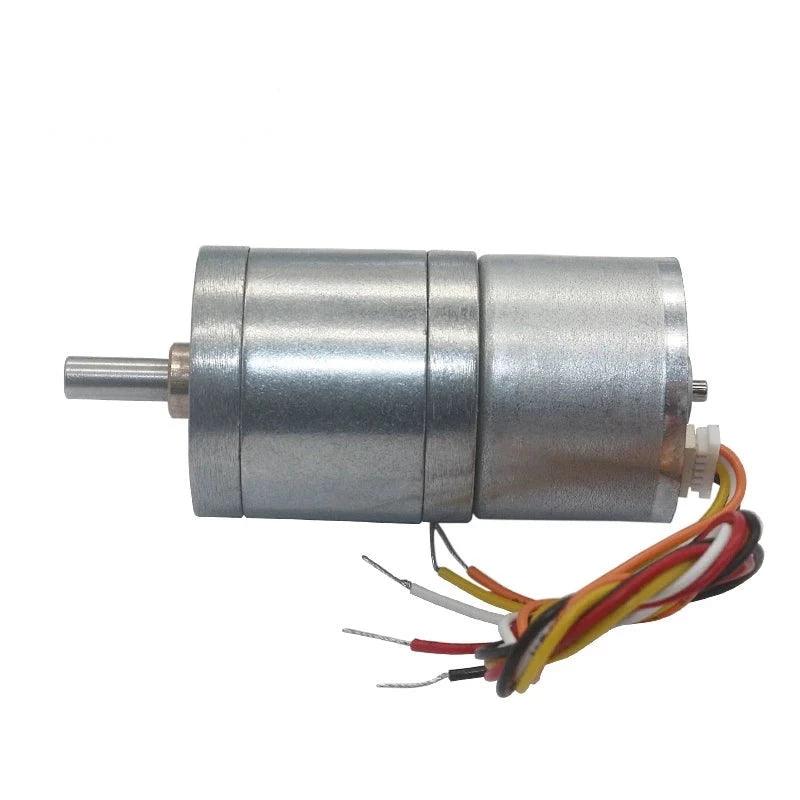

Wire Connection Method:
-
Red line:Power+
-
Black line:Power-
-
Yellow line:FG output,18singals/R
-
Orange line:CCW/CW control ,orange line Vacant motor is ccw,when orange line connect power-,motor is cw.
-
White line:speed adjust
