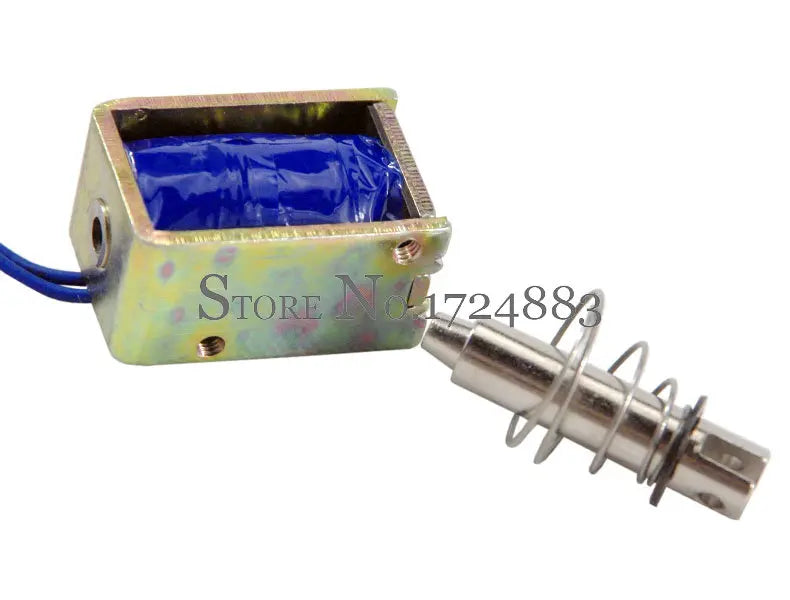

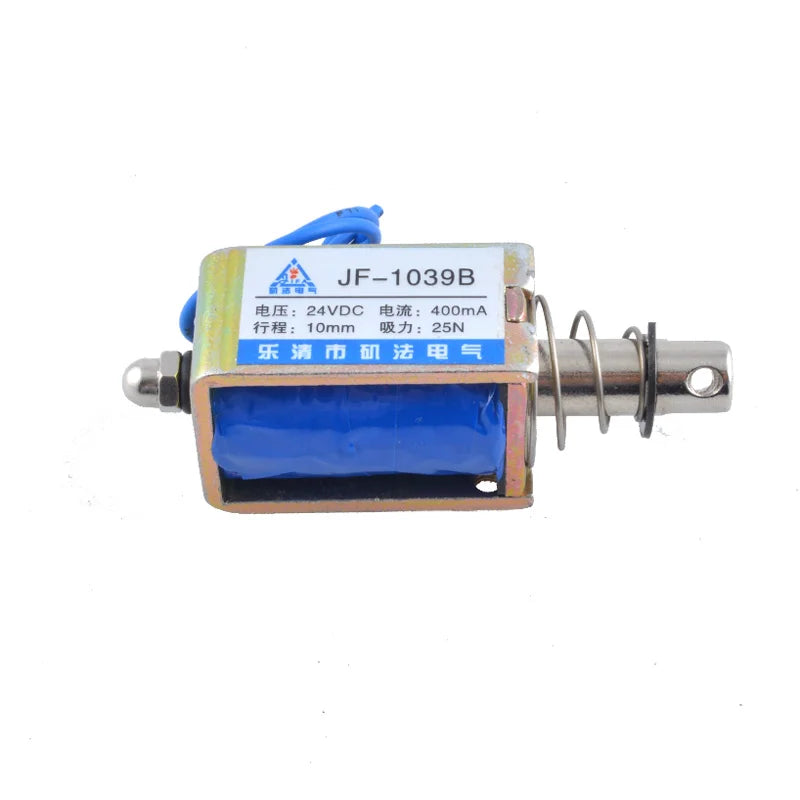

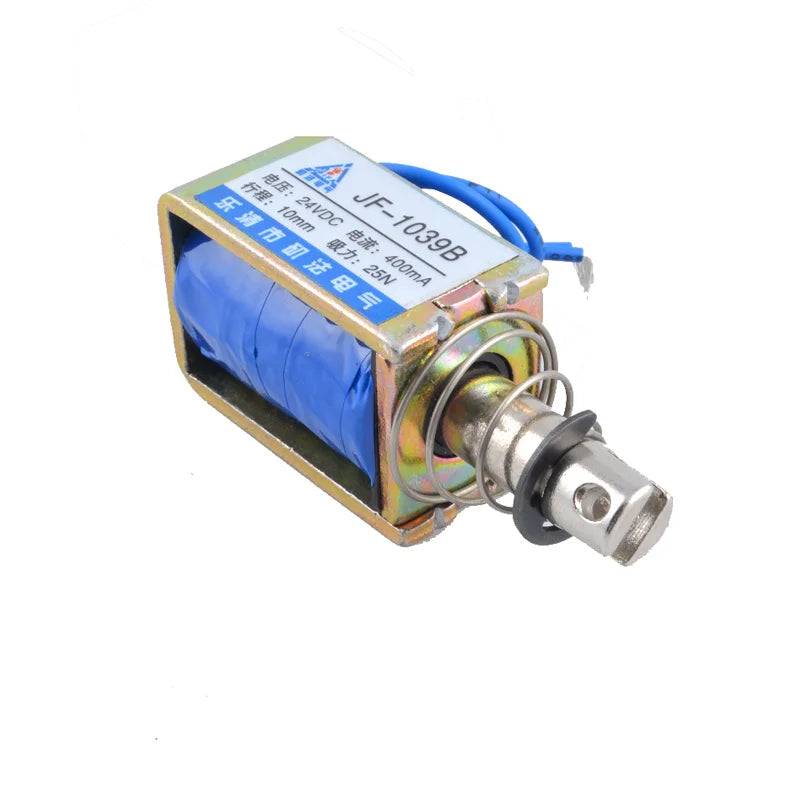

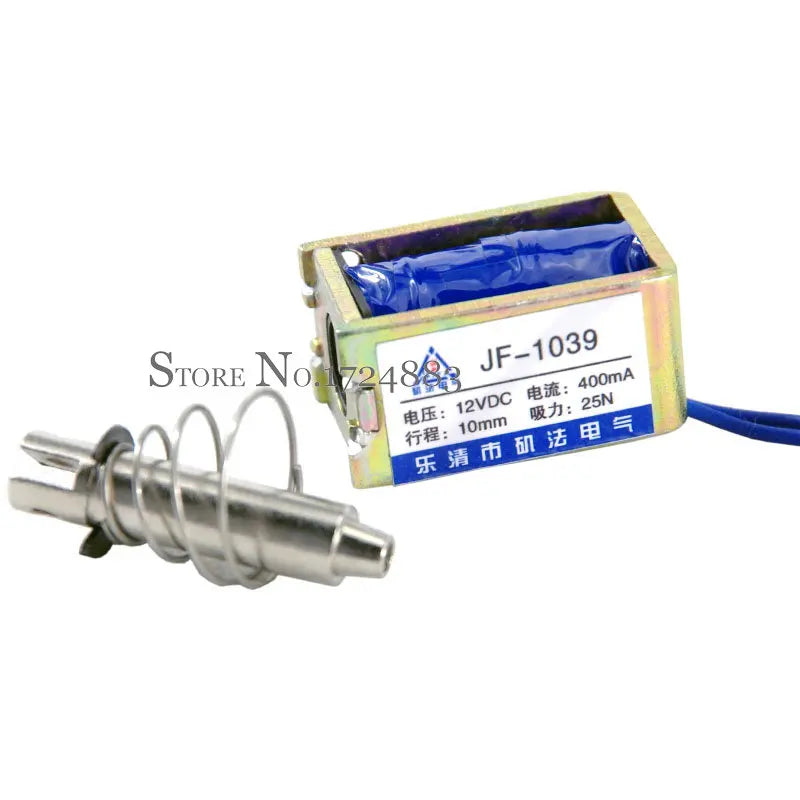

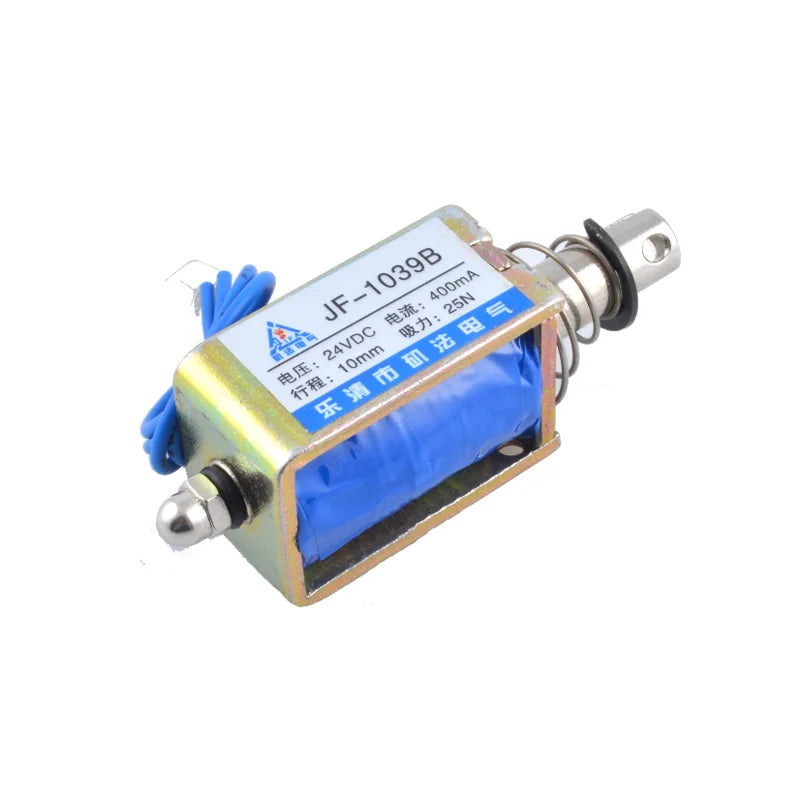

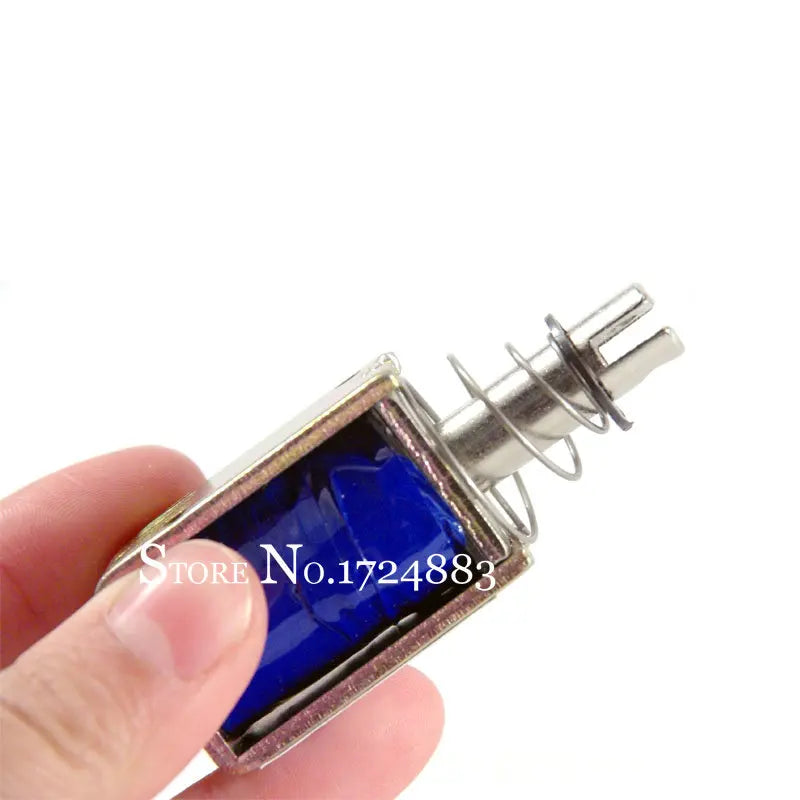

JF-1039 1039B DC 12V 25N Stroke 10mm Pull Push Type Linear Solenoid Electromagnet
Couldn't load pickup availability
JF-1039 solenoid, JF-1039B electromagnet, 25N pull push solenoid, 10mm stroke solenoid, dc12v frame solenoid, dc24v linear electromagnet, spring reset solenoid,
automation actuator solenoid, cabinet lock solenoid, push pull electromagnet
Brand Name: CNMAWAY
Certification: NONE
High-concerned chemical: none
Model Number: JF-1039/JF-1039B
Origin: Mainland China
Shape: COIL
SPECIFICATION
| Attribute | Value |
|---|---|
| Product Name | JF-1039 / JF-1039B Frame Pull-Push Solenoid Electromagnet |
| Model | JF-1039, JF-1039B |
| Rated Voltage | DC 12V, DC 24V |
| Force | 25N |
| Stroke | 10 mm |
| Operation Type | Pull-pull, built-in reset spring |
| Feature | Open frame design, two-wire connection, intermittent duty cycle |
| Application | Electric lock, vending machine, sorting device, automated machinery |
FAQ
Q1: What is the difference between JF-1039 and JF-1039B?
A1: Same force and stroke. The B version has a modified mounting structure for different installation requirements.
Q2: Is it spring auto reset?
A2: Yes. The plunger resets automatically once power is cut off.
Q3: Can it stay energized nonstop?
A3: No, it is for short intermittent operation. Continuous power supply will overheat and burn the coil.
Q4: What is the output force?
A4: 25N.
Dear friends:
The electromagnet only suitable for intermittent work, such as 1 seconds on and 1 seconds off. It's okay to work like this all day.
All of the electromagnet will raise the temperature when it's worked,don't worry, the temperature rises to a certain temperature, it will be stable.Of course,fast cooling environment is more conducive to service life.
Happy shopping!
If you need others Volage (6V 12V 24V 36V),please contact with us,or leave message for us
Product parameters
Model: JF-1039 / JF-1039B
Current: 12V-2.2A / 24V-0.8A
Voltage: 12V / 24V
Force: 25N
Stroke: 10mm
Widely used in automation equipment, such as Game machine,Slot machine,The ticket machine,The cash register, Automatic office equipment etc.
