M25 IP68 Waterproof Cable Connector, 1 In 2 Out T-Type Electrical Wire Splitter, Outdoor Underground Quick Wiring Terminal

SPECIFICATIONS

M25 T-Type 1 In 2 Out Waterproof Cable Connector, IP68 Underground Outdoor Electrical Cable Quick Splice Terminal, Screw / Push Lock Wiring

Product Description

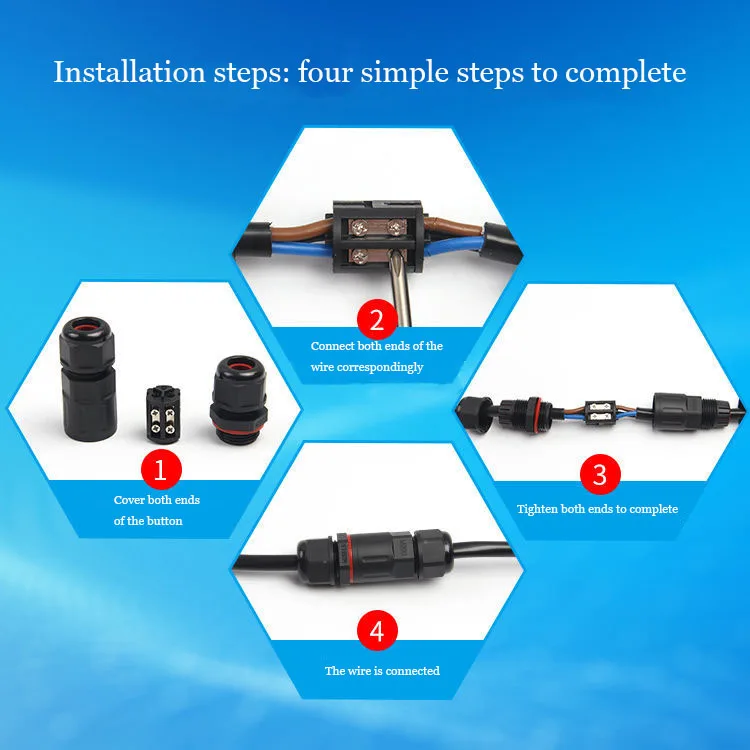

This M25 T-shape 1-in-2-out waterproof cable connector is designed for outdoor & underground electrical wiring projects. Two wiring options: Push-lock (press-fit) and Screw terminal wiring, easy and fast field installation without special tools. Multiple core options: 2Pin,3Pin,4Pin,5Pin. 3 cable range selections: 5-8mm,9-12mm,10-14mm to fit different outer diameter cables.

✅ IP68 Waterproof & Dustproof Double internal & external rubber gaskets for reliable sealing. Can be buried underground, submerged in water, stable during heavy rain, resistant to moisture and dust.

✅ Solid Thick Copper Conductor High conductivity copper insert, stable current transmission, supports high voltage & high current, safe for power distribution.

✅ Wide Temperature & Flame Retardant Housing Flame-retardant plastic shell, operating temperature range: -40℃ ~ +95℃. Works reliably under extreme cold and high temperature outdoor environments.

✅ Universal for Hard & Soft Wires Stable clamping structure, compatible with both solid hard cables and stranded flexible wires. T-type 1 input 2 output design for cable branching.

Application Scenarios: Garden landscape lights, street lamps, underground wiring, outdoor LED lighting, farm irrigation equipment, marine & wet environment electrical connections.

Notes: Please confirm cable outer diameter and core poles before purchase. Properly tighten the nut to guarantee IP68 waterproof performance.

Specification

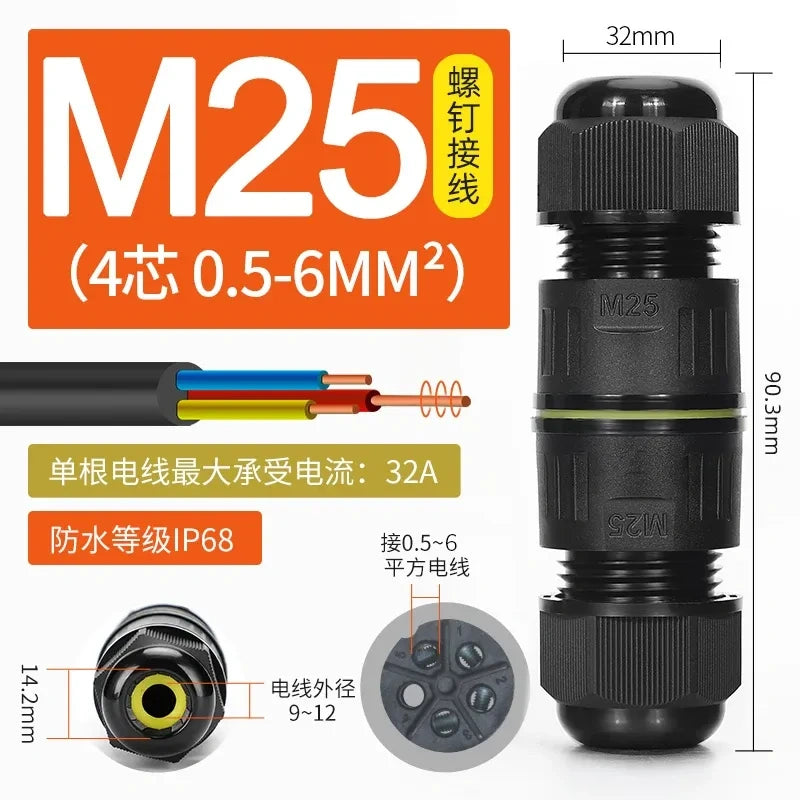

Product Name: M25 T-Type Waterproof Cable Connector
Series: M25
Style: Straight / Mini M25 / M25T T-type(1 In 2 Out)

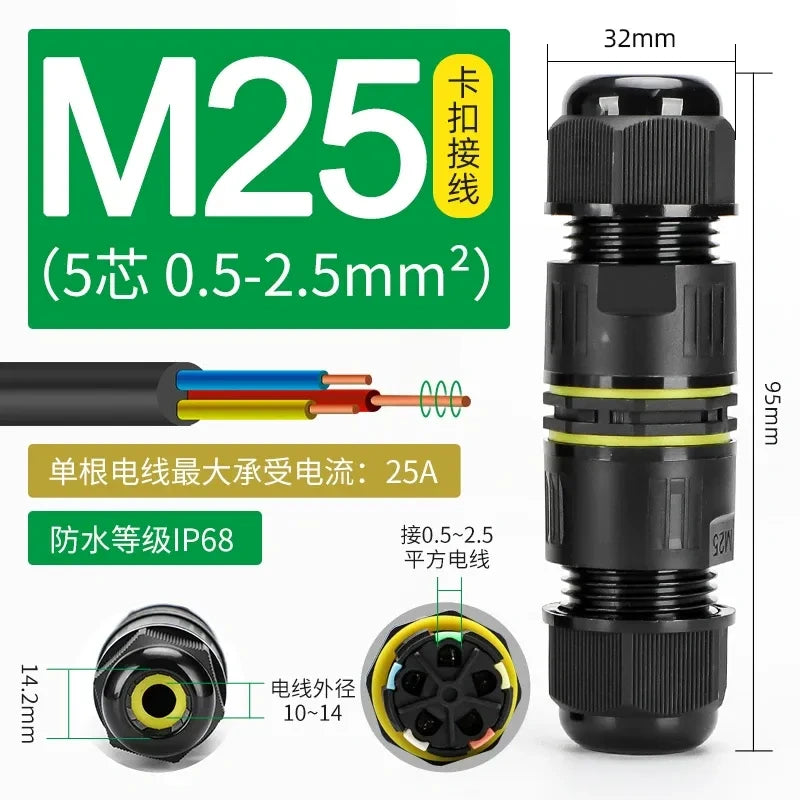

Connection Type: Push-lock Press Fit, Screw Terminal Wiring
Poles: 2 Core,3 Core,4 Core,5 Core
Cable OD Range: 5-8mm,9-12mm,10-14mm
Waterproof Rating: IP68
Conductor Material: Solid Thick Copper
Housing Material: Flame Retardant Plastic
Operating Temperature: -40℃ ~ +95℃
Sealing: Double Rubber O-Ring

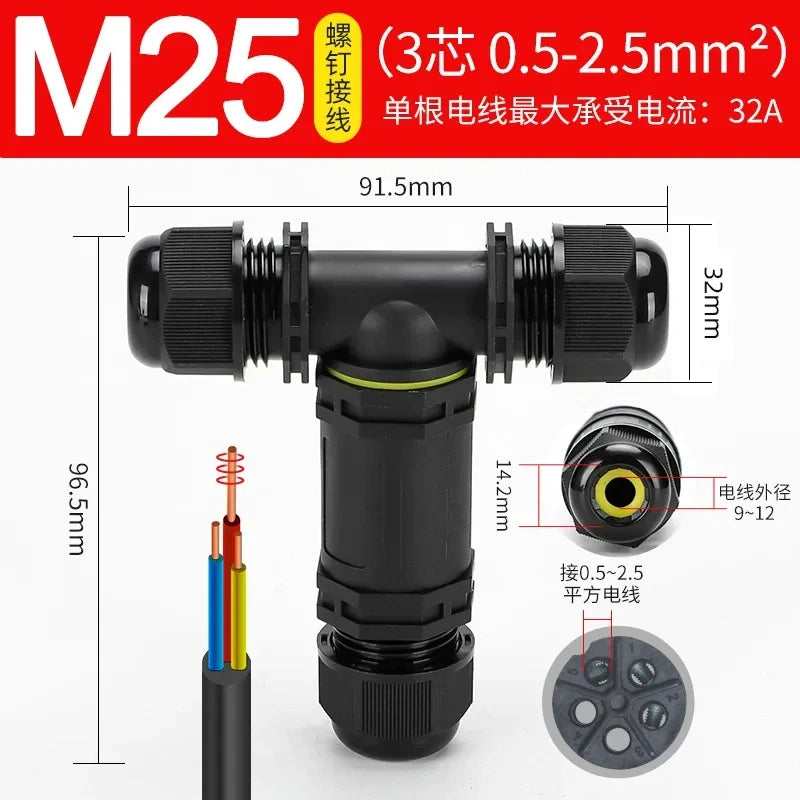

Structure: T Shape 1 In 2 Out Splitter
Feature: Underground usable, Outdoor, Dustproof, High Current, Quick Installation
Application: Landscape Light, Garden Wiring, Underground Cable, Outdoor Electrical

FAQs

Q1: What is the waterproof rating of this M25 connector?

A: IP68. It is fully dustproof and submersible, suitable for underground burial and heavy rain outdoor use.

Q2: What wiring methods are available?

A: Two types: push-lock(press-fit) quick connection and screw terminal wiring.

Q3: What cable sizes can this connector fit?

A: Three cable diameter options: 5-8mm,9-12mm,10-14mm. Please check your cable outer diameter before ordering.

Q4: How many cores/poles to choose?

A: 2Pin,3Pin,4Pin,5Pin available. Select cores according to your wire quantity.

Q5: What is the working temperature range?

A: -40℃ to +95℃, works well in extreme cold and high-temperature outdoor conditions.

Q6: Can it be buried underground?

A: Yes, IP68 sealing allows direct burial underground and wet environment installation.
