Integrated SSR DC-AC Solid State Relay

Name: Integrated SSR DC-AC Solid State Relay
Brand: electrical center b2c
SKU: DC to AC (Control Current 5-20mA) / SSR with Sink Base 10A
Price: 22.9 USD
Availability: InStock

$22.90 USD

Sale Sold out

Shipping calculated at checkout.

Control Type DC to AC (Control Current 5-20mA) AC to AC (Control Current 5-20mA) DC to DC (Control Current 5-20mA)

SSR Output Current SSR with Sink Base 10A SSR with Sink Base 25A SSR with Sink Base 40A SSR with Sink Base 60A SSR with Sink Base 80A SSR with Sink Base 100A SSR with Sink Base 120A

Product variants

Quantity

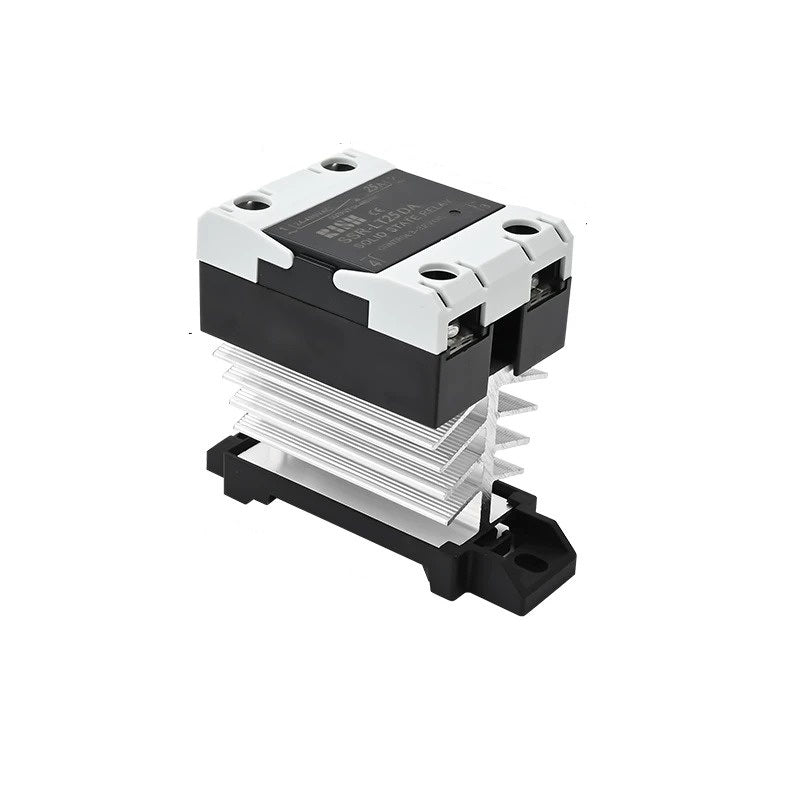

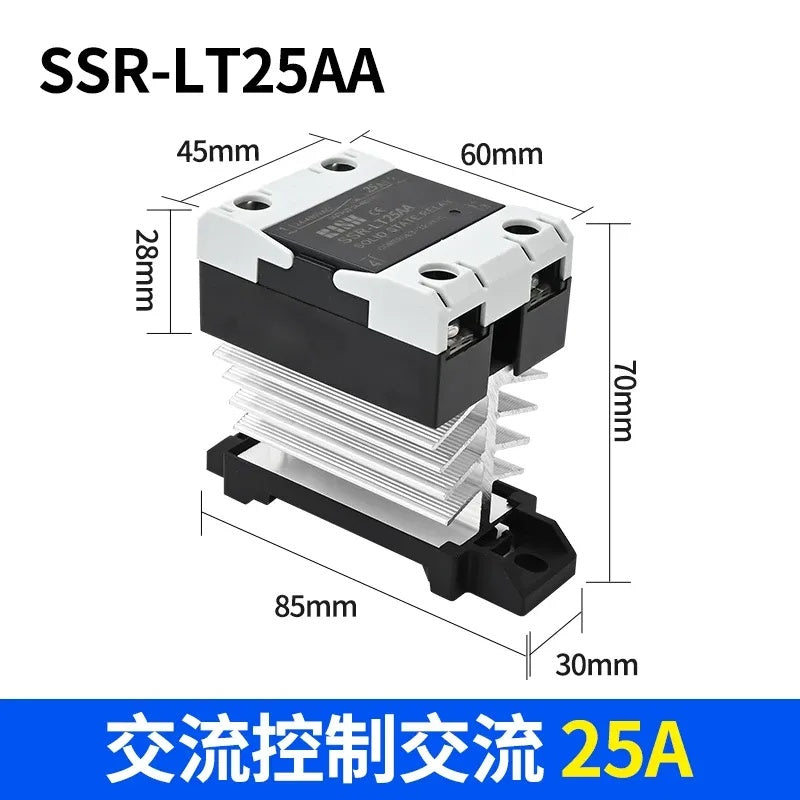

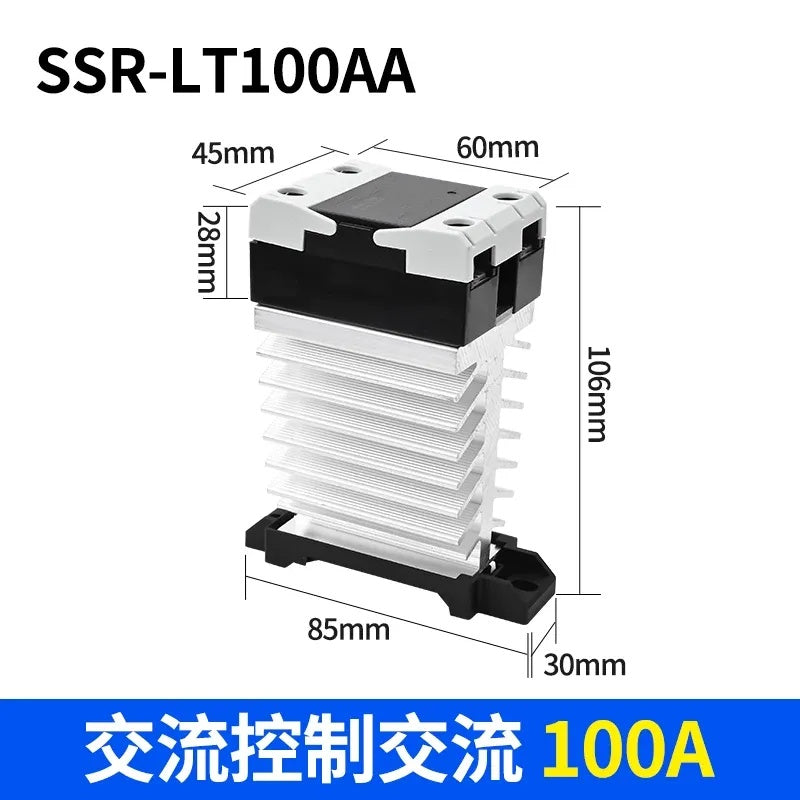

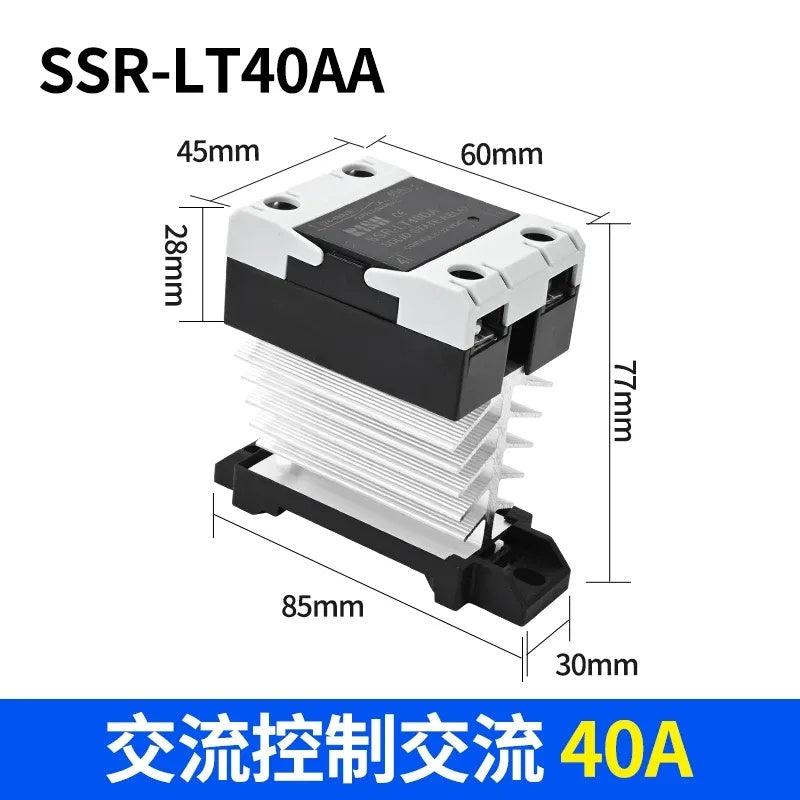

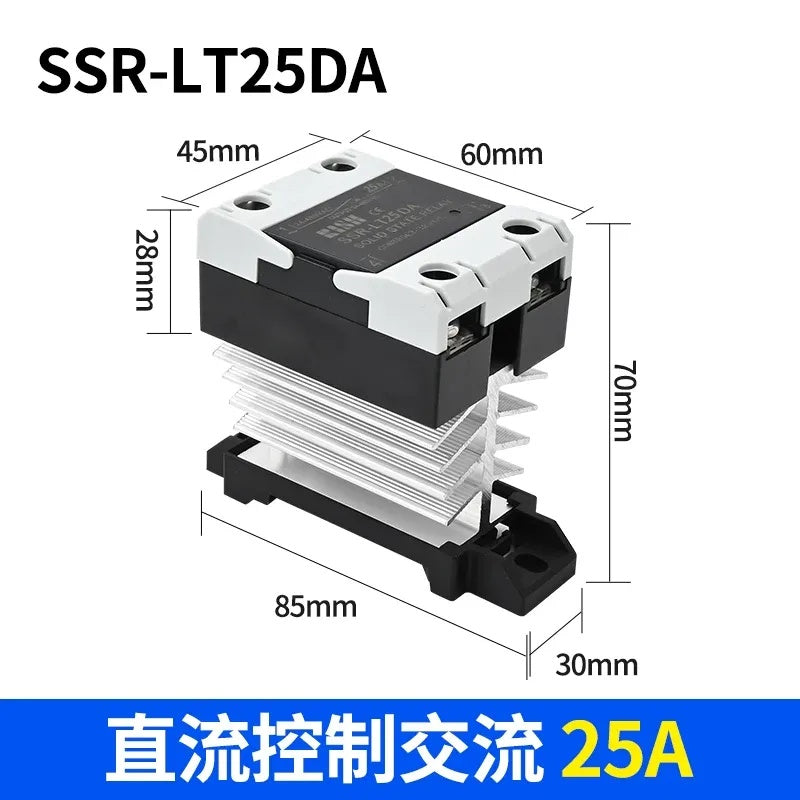

Din Rail Mounted Single Phase Solid State Relay SSR 10A/25A/40A/60A/80A/100A/120A

核心描述

This Din Rail Mounted Single Phase Solid State Relay (SSR) is an integrated industrial-grade contactor, available in DA (DC-AC), AA (AC-AC), and DD (DC-DC) control types, with current ratings from 10A to 120A. Designed for reliable, spark-free switching in industrial automation and power control systems.

关键特性

✅ Three Control Types: DA (DC to AC), AA (AC to AC), DD (DC to DC)

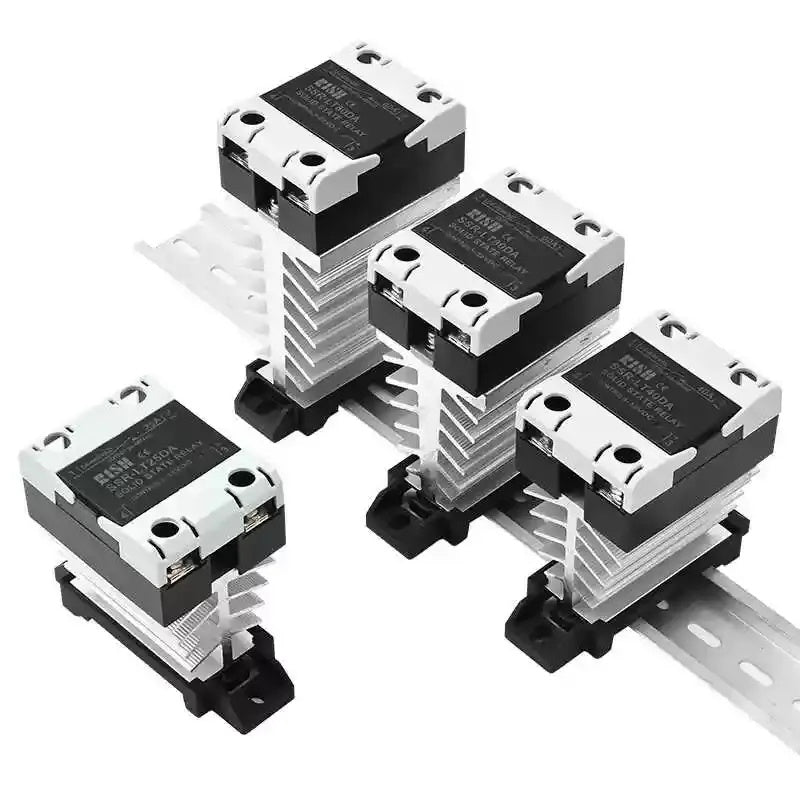

✅ Din Rail Mount: Standard 35mm rail installation for easy setup in control cabinets
✅ Wide Control Range: DC control current 3-25mA, control voltage up to 280VAC
✅ No Mechanical Contacts: Silent, spark-free operation with high shock/vibration resistance
✅ Wide Operating Temp: -30°C to +75°C, suitable for harsh industrial environments
✅ Compact Integrated Design: All-in-one module with built-in heat dissipation structure
✅ High Reliability: Fast response and low power consumption for long service life

规格说明

Product Name: Din Rail Mounted Single Phase Solid State Relay

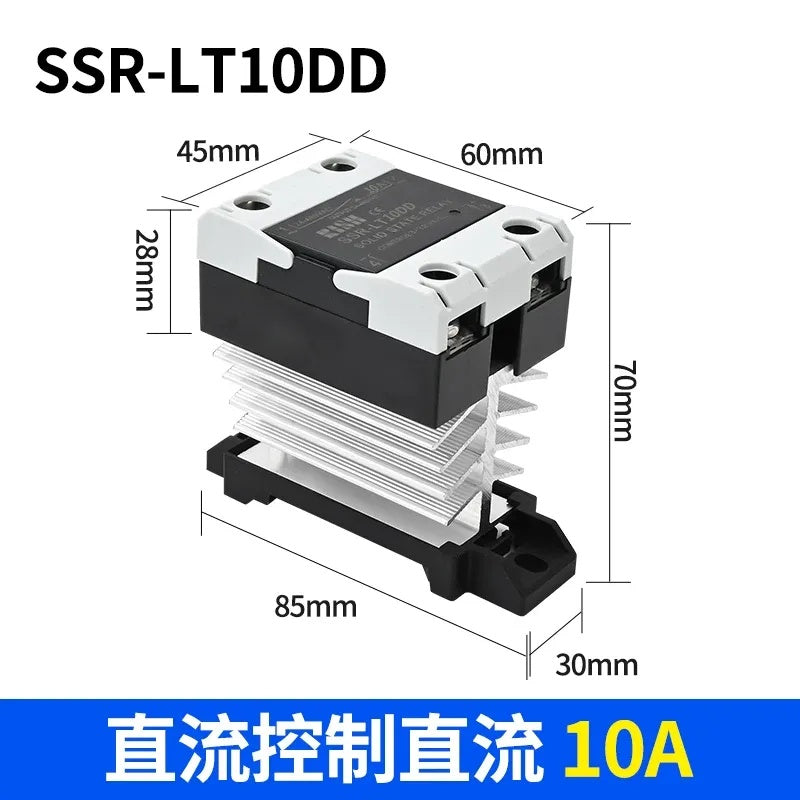

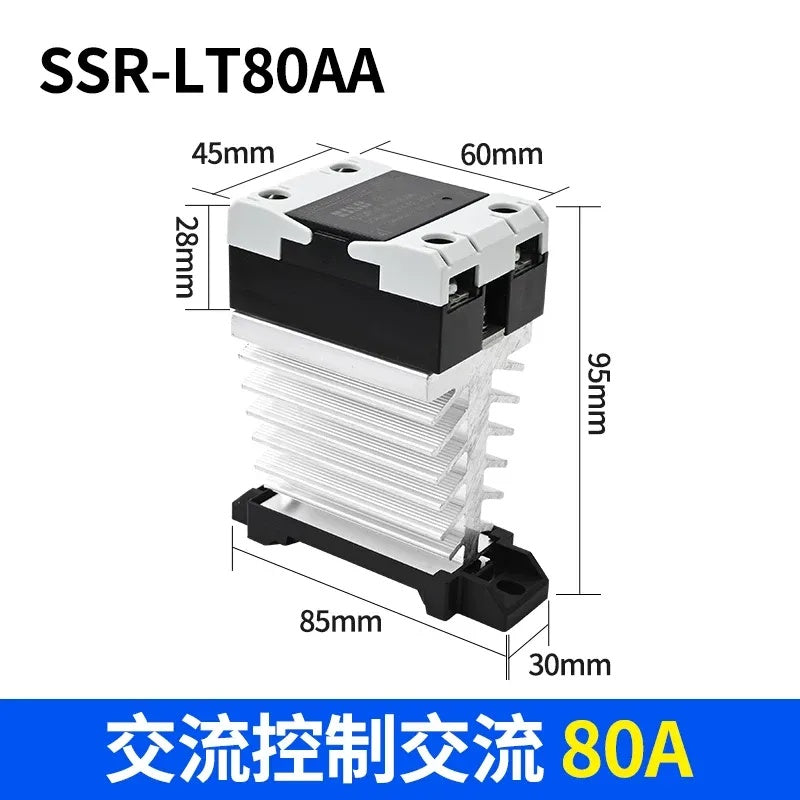

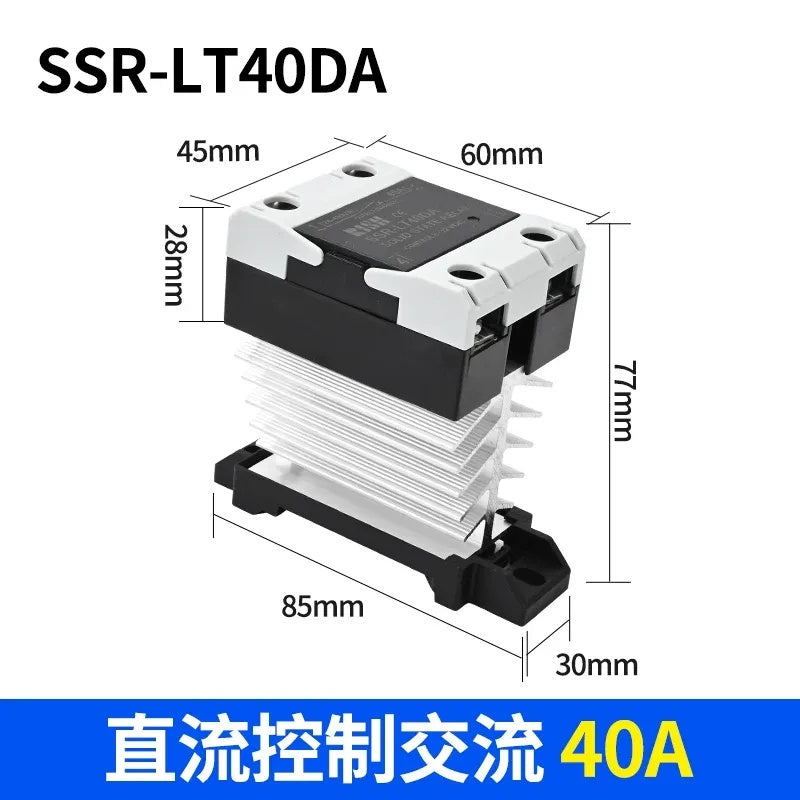

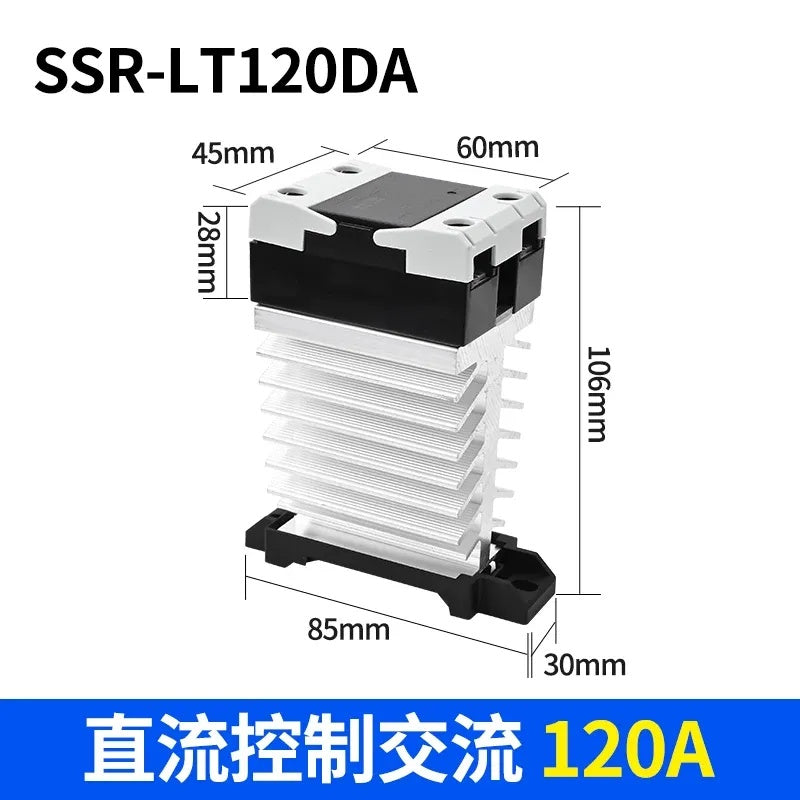

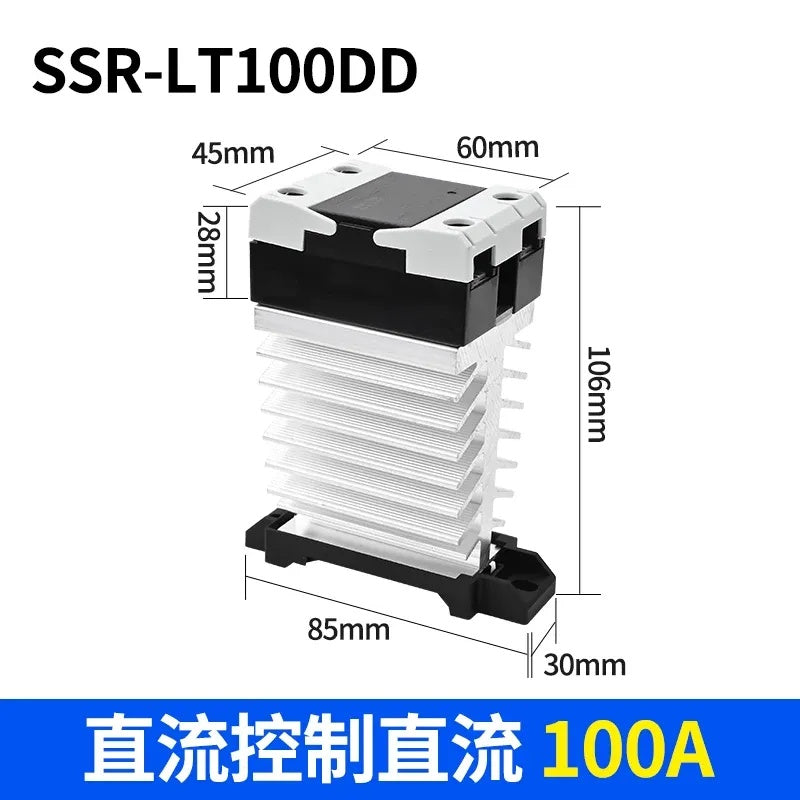

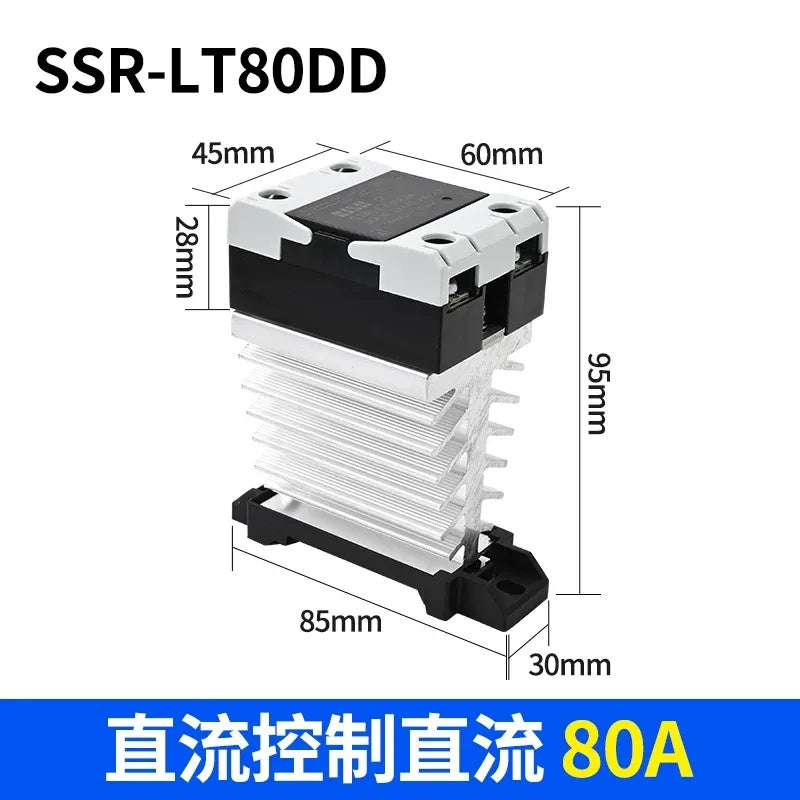

Model: SSR-LTXXDA / SSR-LTXXAA / SSR-LTXXDD (XX=10/25/40/60/80/100/120)
Control Type: DA (DC to AC), AA (AC to AC), DD (DC to DC)
Rated Current: 10A / 25A / 40A / 60A / 80A / 100A / 120A
Control Current: DC 3-25mA
Control Voltage: 24-280VAC
Operating Temperature: -30~+75°C
Mounting Type: Din Rail Mount (35mm standard rail)
Application: Industrial Automation, Temperature Control, Motor Control, Power Distribution

DATA SHEET

Attribute	Value
Product Name	Din Rail Single Phase Solid State Relay
Model	SSR-LT10DA / 25DA / 40DA / 60DA / 80DA / 100DA / 120DA / AA / DD
Type	Integrated Solid State Contactor
Control Type	DC-AC (DA) / AC-AC (AA) / DC-DC (DD)
Rated Current	10A / 25A / 40A / 60A / 80A / 100A / 120A
Control Current	DC 3-25mA
Control Voltage	24-280VAC
Mounting Type	35mm Din Rail Mount
Operating Temperature	-30°C ~ +75°C
Application	Industrial Control, Automation, Power Switching
