Hydrostatic Silicon throw in type Water Tank Level Sensor 0.5-4.5V output 5V Powered Liquid Level Transmitter for 20m Deep Well

$87.06 USD
$98.63 USD $87.06 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Hydrostatic Silicon throw in type Water Tank Level Sensor 0.5-4.5V output 5V Powered Liquid Level Transmitter for 20m Deep Well

Response time: ≤10mS

Product name: Submersible liquid level transmitter

Power supply: 5Vdc

Overload capacity: 150%FS

Output signal: 0.5V~4.5Vdc

Origin: Mainland China

Model Number: ELLT200

Measuring range: 0~0.5~500 metres

Long term stability: ±0.2%FS/year

Certification: CE,FCC

Brand Name: KEJUN

Accuracy: 0.2%FS

Hydrostatic Silicon throw in type Water Tank Level Sensor 0.5-4.5V output 5V Powered Liquid Level Transmitter for 20m Deep Well

This link is special for:
1. Measuring range: the one you choose
2. Output signal: 0.5~4.5Vdc
3. Power supply: 5VDC
4. Accuracy: 0.2%FS

LEVEL SENSOR DATA SHEET DOWNLOAD

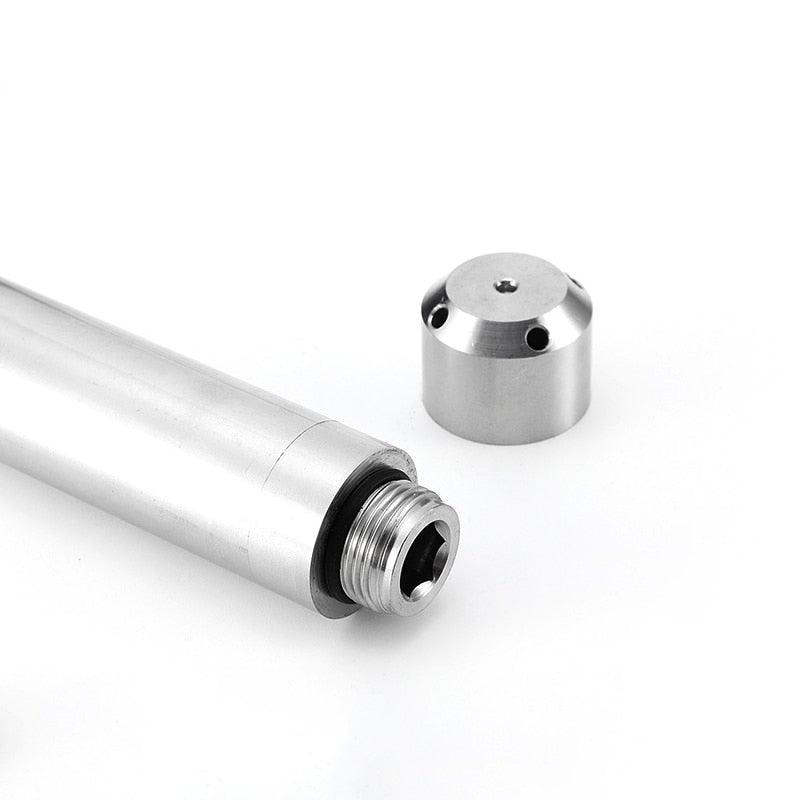

1>>. ELLT200 Submersible level transmitter(static pressure level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly.

2>>. ELLT200 transmitter adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement

liquid level is not affected by the change of external atmospheric pressure the measurement is accurate with long term stability and excellent performance.
