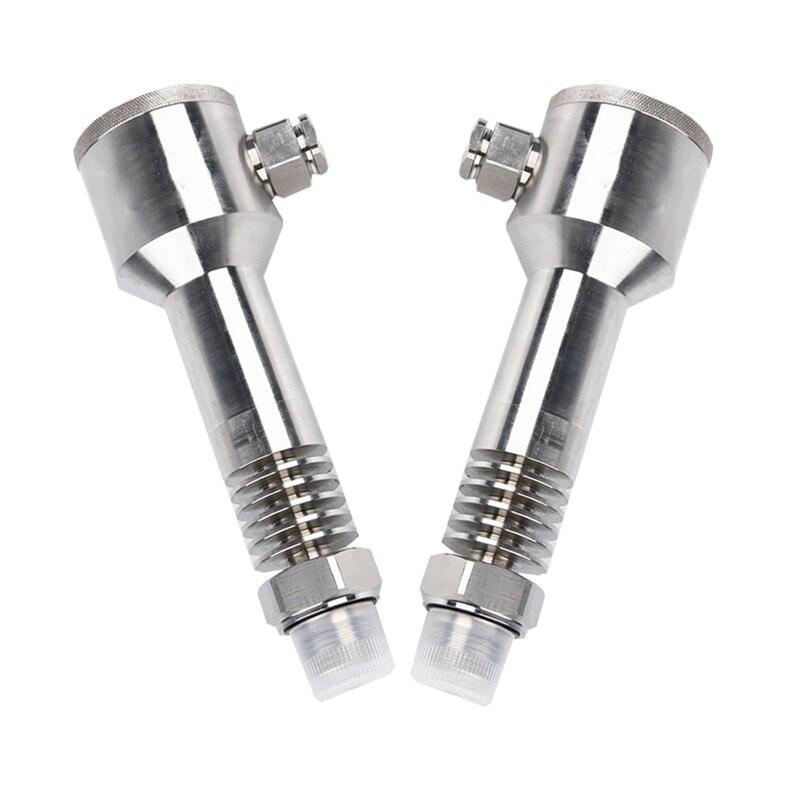

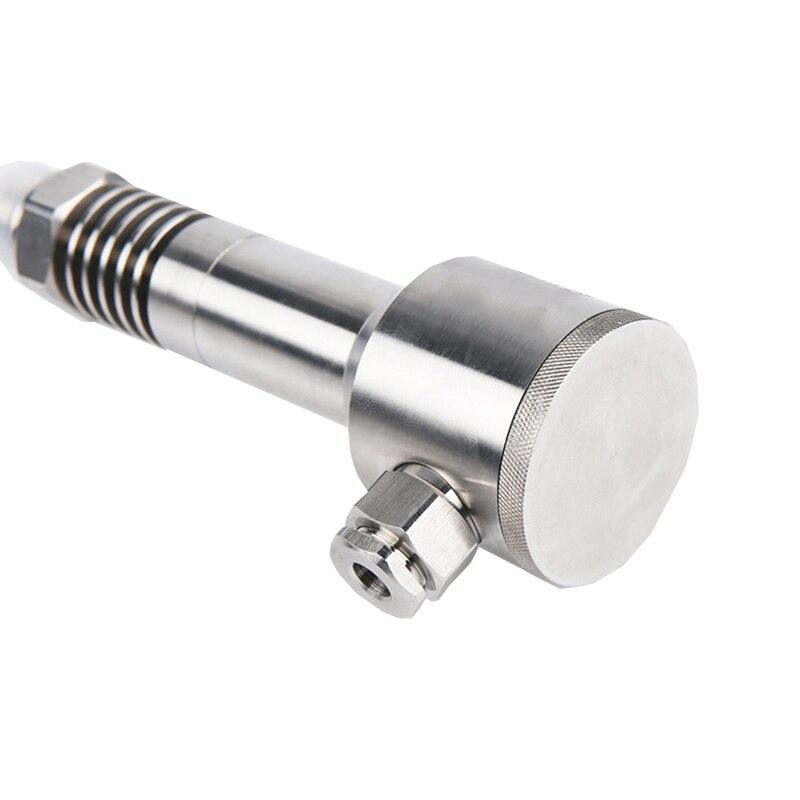

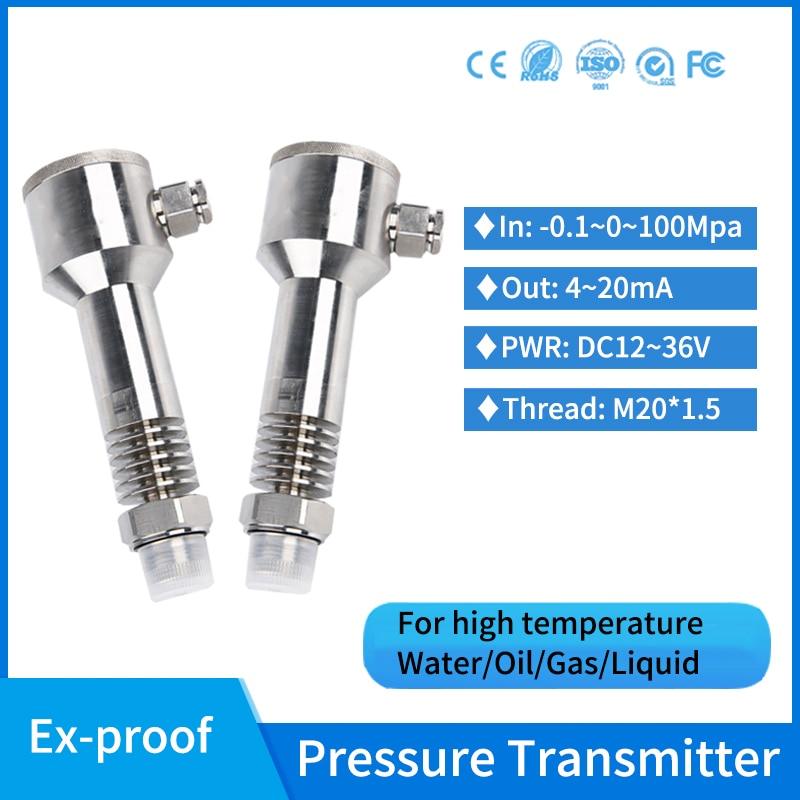

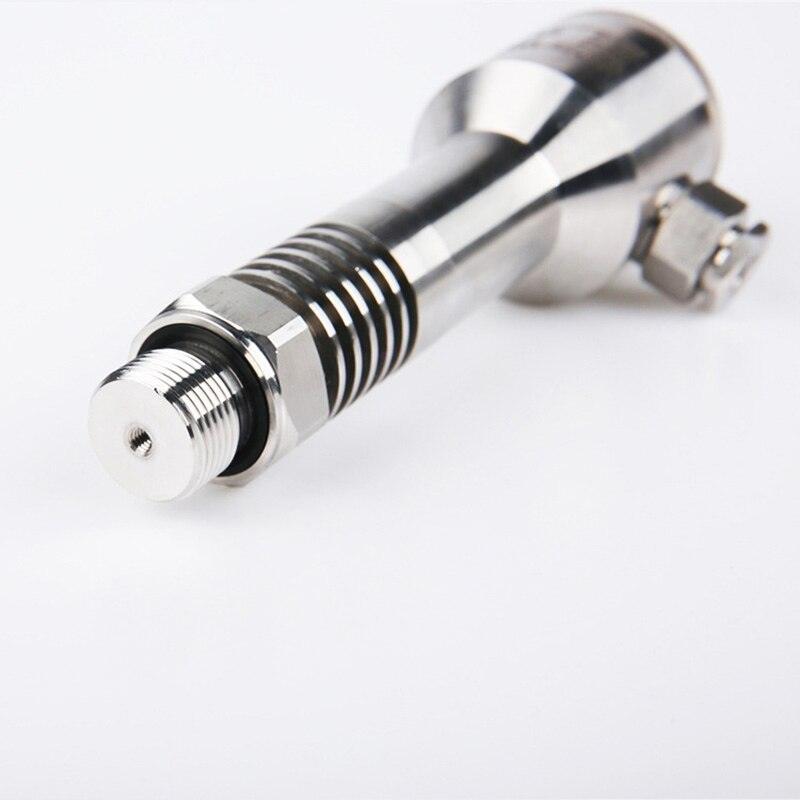

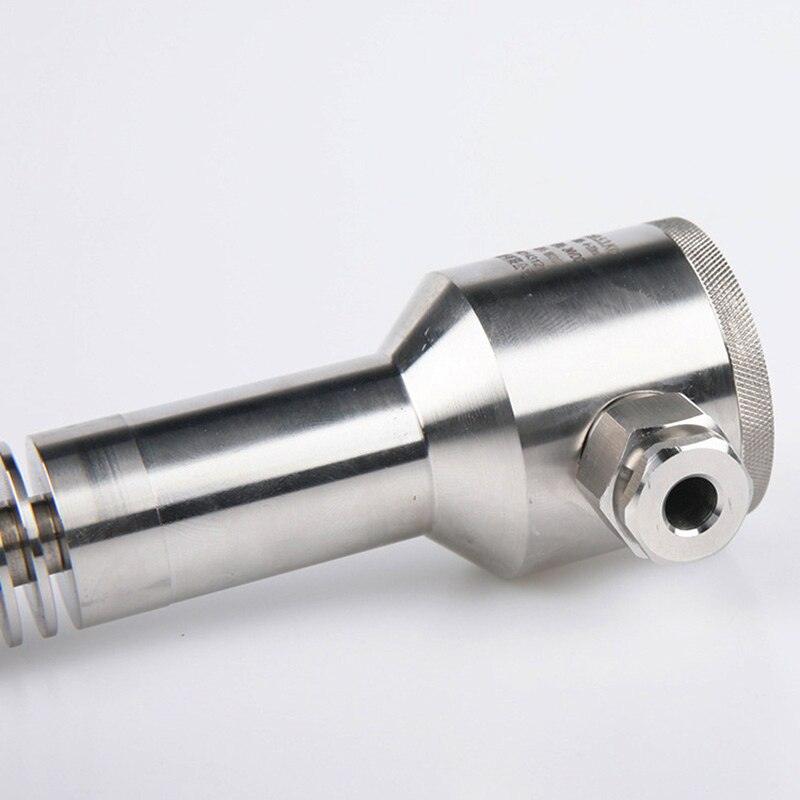

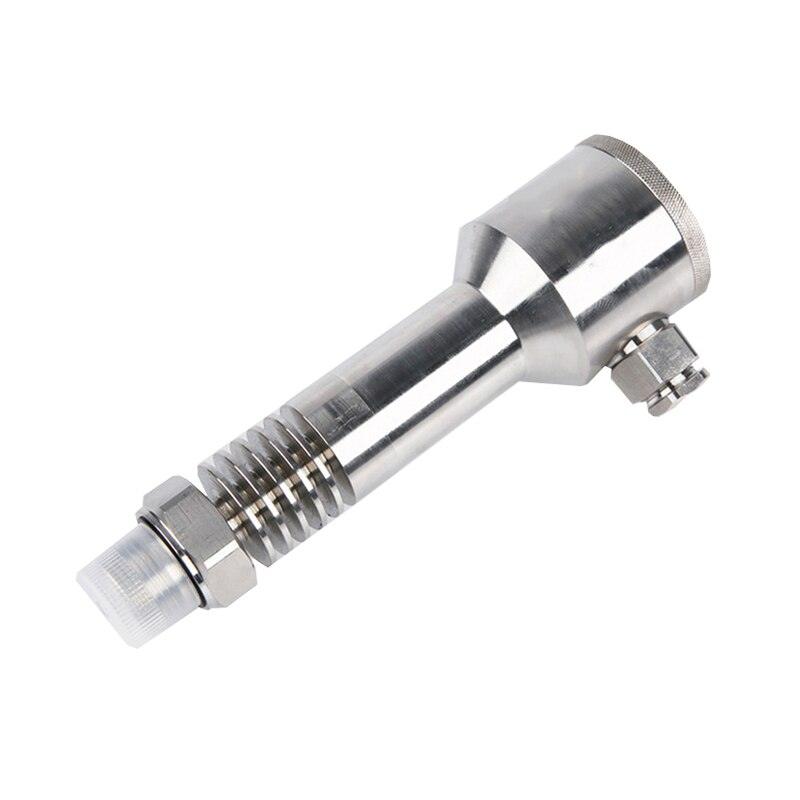

High Temperature Industry Anti-explosion Hydraulic Pressure Sensor Explosion-proof Oil Fuel Tank 4-20mA Pressure Transmitter
Couldn't load pickup availability
SPECIFICATIONS
High Temperature Industry Anti-explosion Hydraulic Pressure Sensor Explosion-proof Oil Fuel Tank 4-20mA Pressure Transmitter
Working temperature: -40℃ to 300℃
Sensor: Diffusion silicon chip
Product name: Pressure transmitter
Power supply: DC24V
Output signal: 4-20mA
Origin: Mainland China
Model Number: ELPT300
Measure range: -0.1~0~100MPa
Max Measuring Range: 400 Bar & Above
Material: Stainless Steel
Certification: CE,FCC
Brand Name: KEJUN
Accuracy: 0.2%FS
High Temperature Industry Anti-explosion Hydraulic Pressure Sensor Explosion-proof Oil Fuel Tank 4-20mA Pressure Transmitter
1>>. Explosion-proof pressure transmitter used sensitive & high performance diffusion silicon piezoresistive chip.
2>>. The internal circuit board converts the pressure signal into standard analog signal,users can directly connect the transmitter with computer interface card,control instrument,intelligent instrument or PLC.
3>>. This pressure transmitter has many good features,small volume,light weight,easy to install,all stainless steel sealing structure,high anti-vibration and anti-impact performance.
4>>. This pressure transmitter is widely used in process control, aviation, aerospace, automobile, medical equipment and many other fields.
