42BYGH NEMA17 Stepper Motor Series Body Length 23/34/38/40/48/60mm 12V‑24V

$24.86 USD
$31.00 USD $24.86 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.
Cover Color

42 Series Stepper Motor,NEMA17 Hybrid 2‑Phase 1.8° Stepper Motor

6 Body Length Options 23‑60mm, NEMA17 Hybrid 2‑Phase 1.8° Stepper Motor for 3D Printer CNC Router Automation

Features
  • Series: 42BYGH (NEMA17 / 17HS) hybrid stepper motor

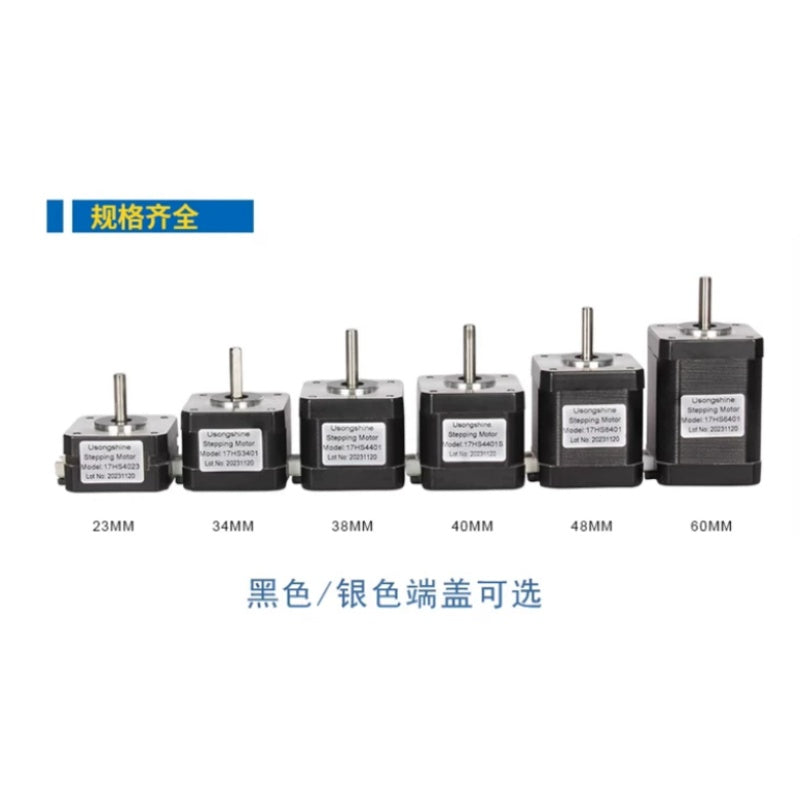

  • 6 body lengths available: 23 / 34 / 38 / 40 / 48 / 60mm — choose the right torque for your project

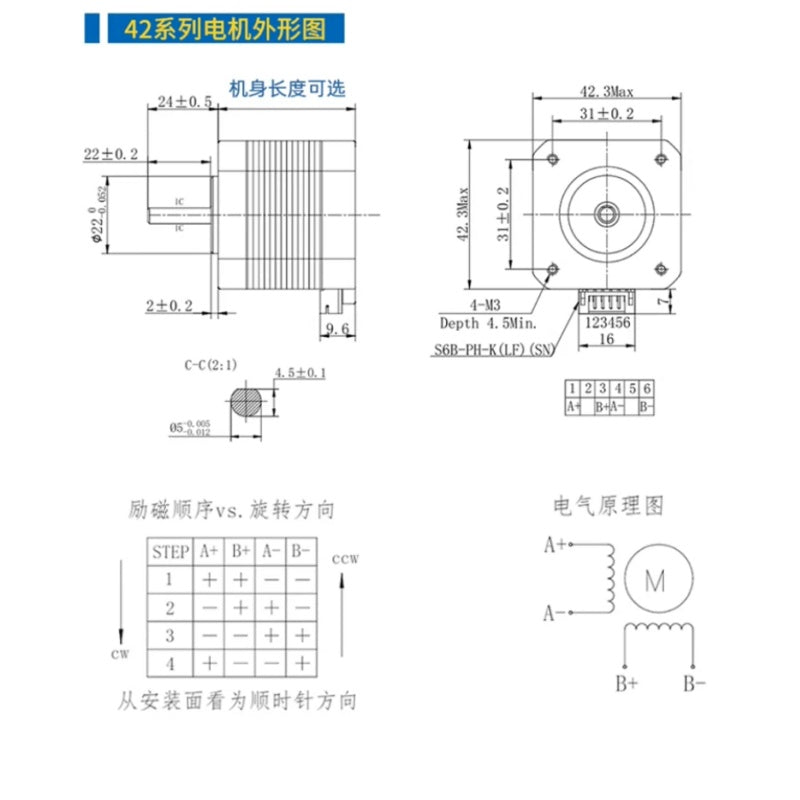

  • Frame size: 42×42mm, standard NEMA17 mounting holes
  • Step angle: 1.8° (200 steps per revolution), high precision positioning
  • 2‑phase, 4‑wire bipolar connection
  • Operating voltage: 12V~24V DC
  • Low noise, smooth running, excellent torque‑to‑volume ratio
  • Compatible with A4988, DRV8825, TMC2208, TMC2209 stepper drivers

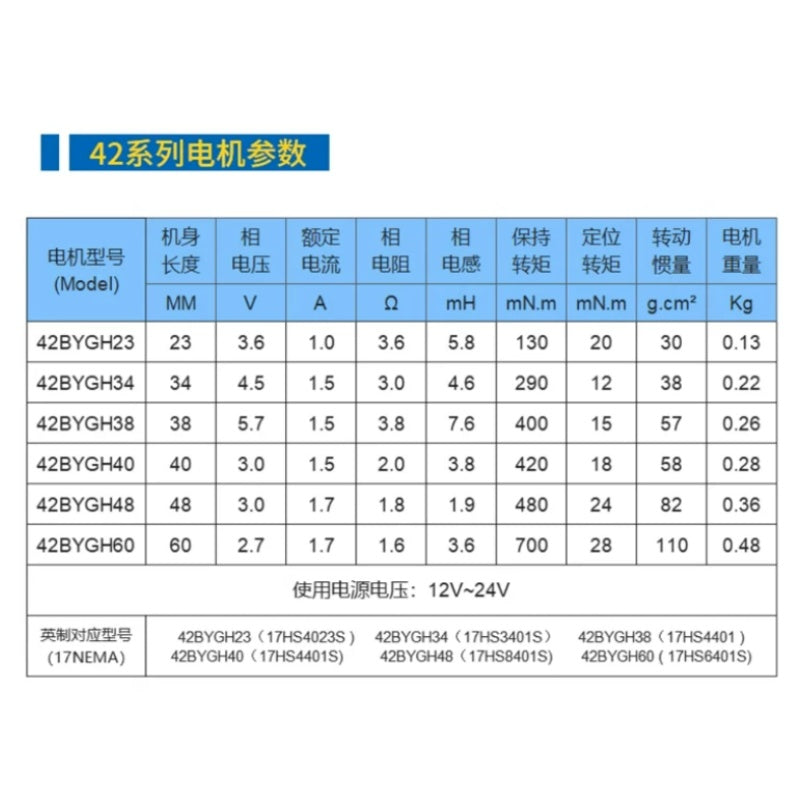

Model LIST

Body Length Model (CN) NEMA17 Code Rated Voltage Rated Current Holding Torque Weight

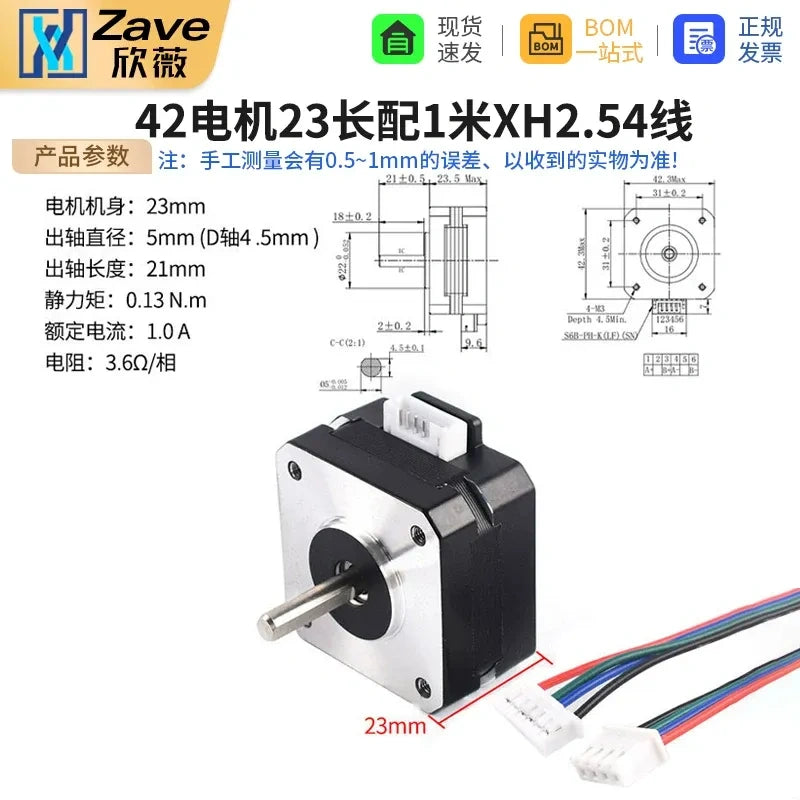

23mm 42BYGH23 17HS4023S 3.6V 1.0A 130 mN·m 0.13kg

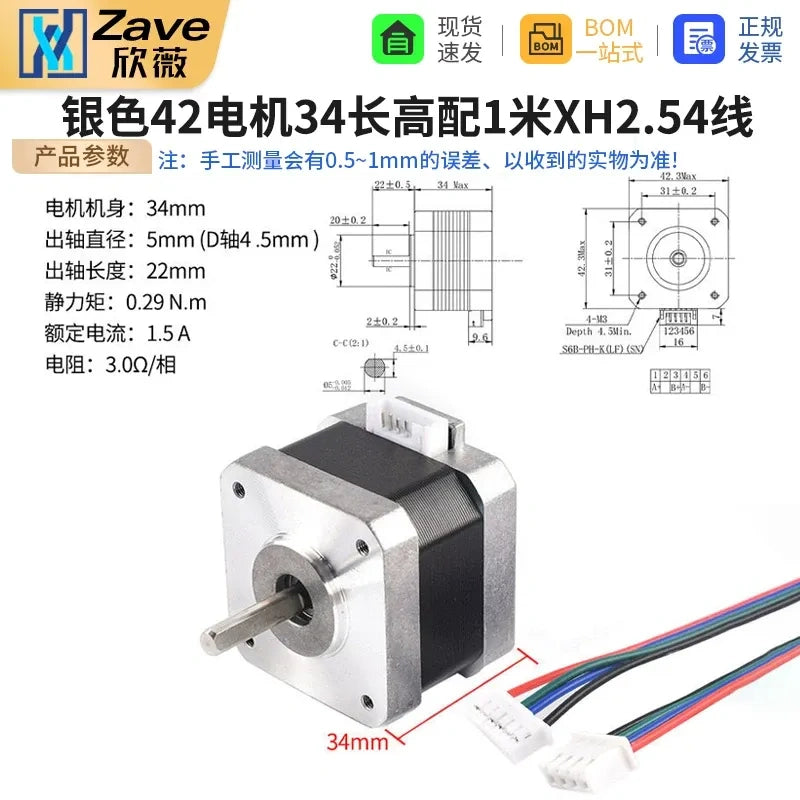

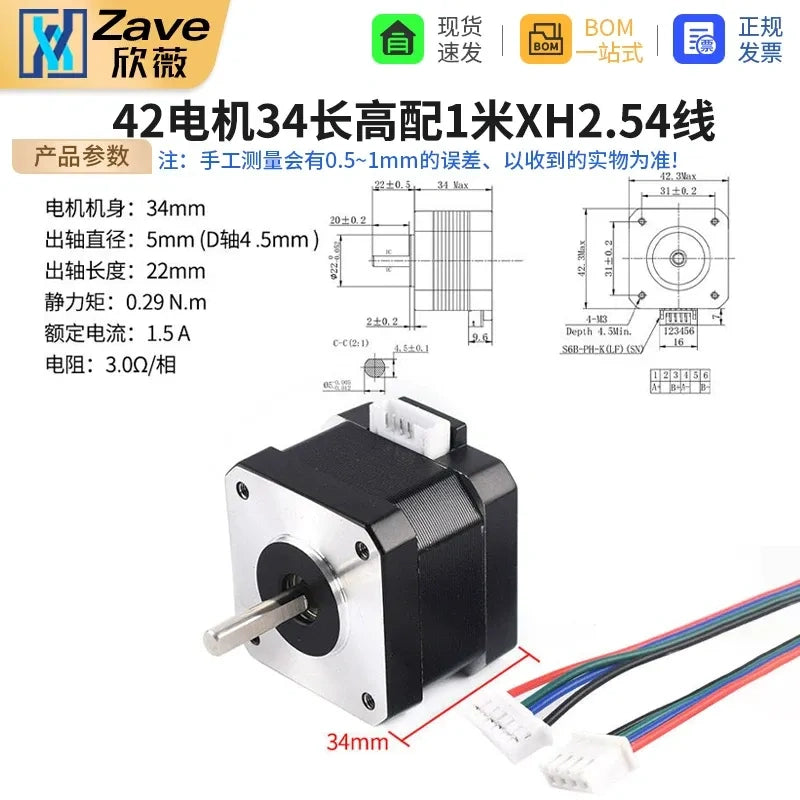

34mm 42BYGH34 17HS3401S 4.5V 1.5A 290 mN·m 0.22kg

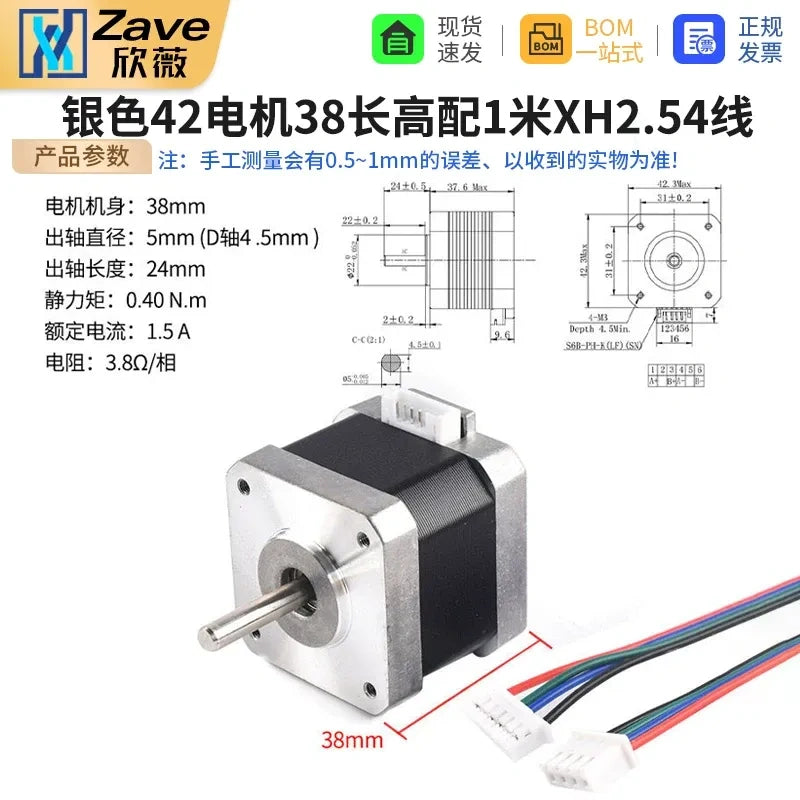

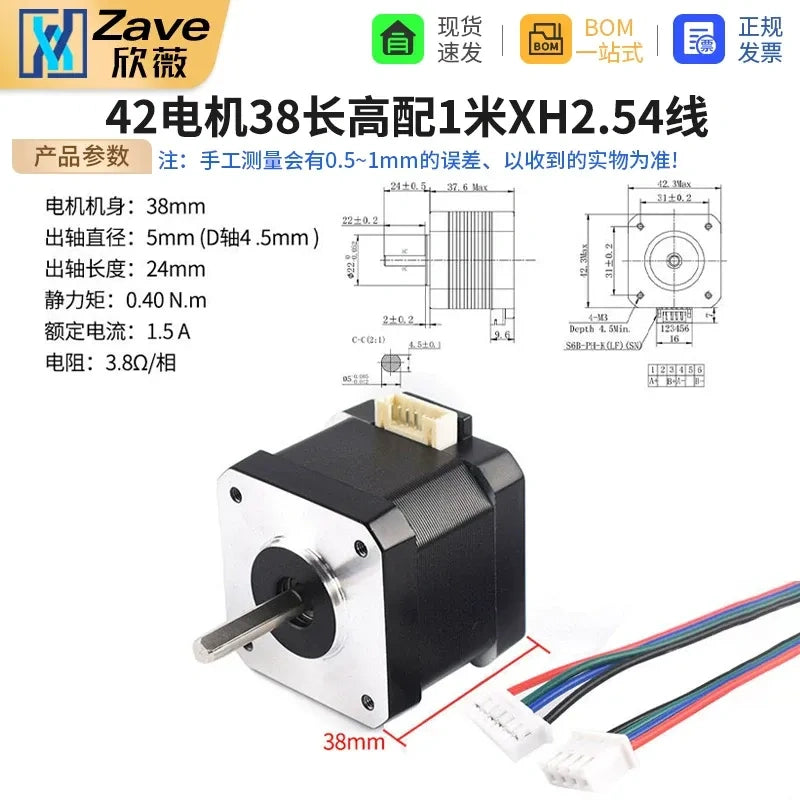

38mm 42BYGH38 17HS4401 5.7V 1.5A 400 mN·m 0.26kg

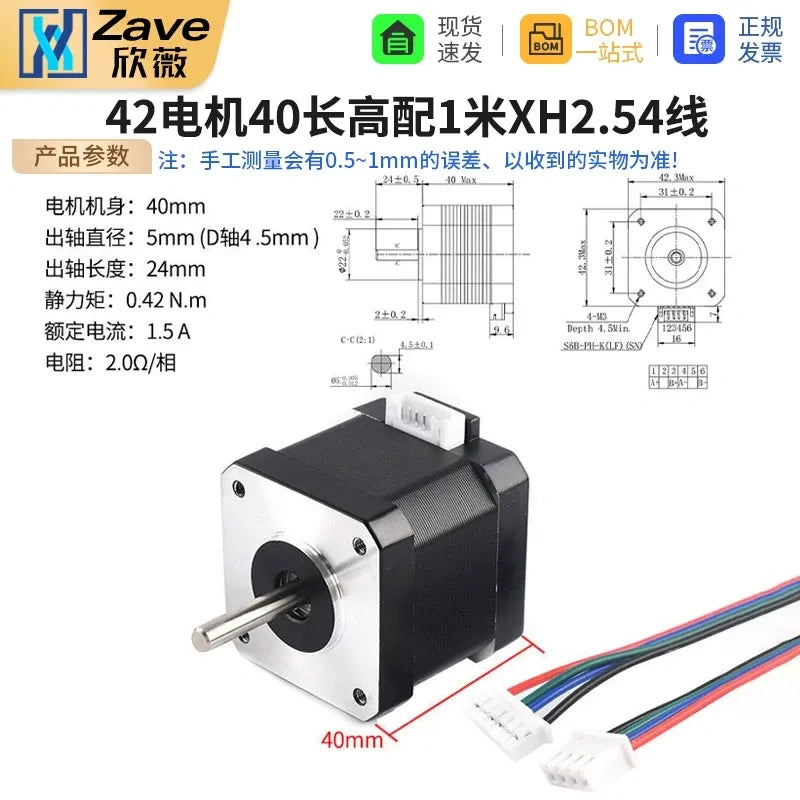

40mm 42BYGH40 17HS4401S 3.0V 1.5A 420 mN·m 0.28kg

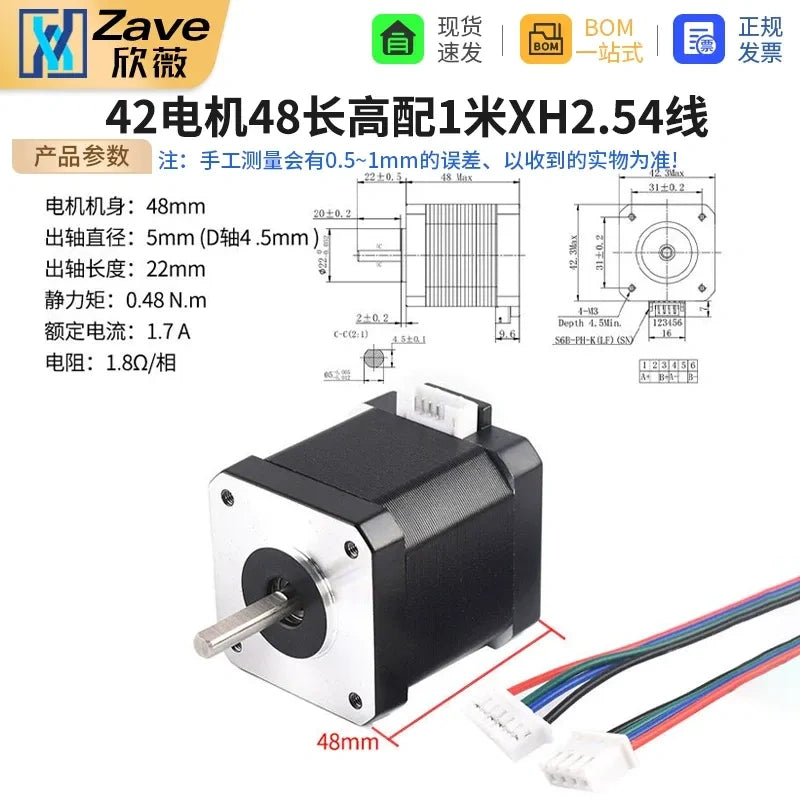

48mm 42BYGH48 17HS8401S 3.0V 1.7A 480 mN·m 0.36kg

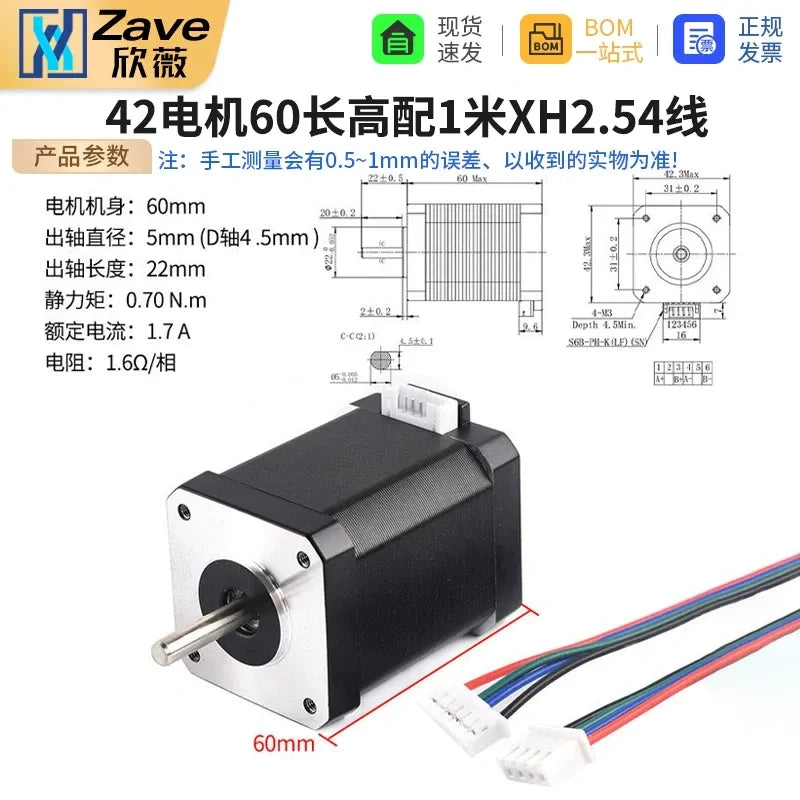

60mm 42BYGH60 17HS6401S 2.7V 1.7A 700 mN·m 0.48kg



Specification

Attribute Value
Product Name 42BYGH NEMA17 Stepper Motor Series
Series 42BYGH / 17HS
Frame Size 42×42mm (NEMA17)
Body Length Options 23mm / 34mm / 38mm / 40mm / 48mm / 60mm
Step Angle 1.8° (200 steps/rev)
Phases 2‑Phase, 4‑Wire Bipolar
Operating Voltage 12V~24V DC
Rated Current 1.0A ~ 1.7A
Holding Torque Range 130 ~ 700 mN·m
Models 17HS4023S, 17HS3401S, 17HS4401, 17HS4401S, 17HS8401S, 17HS6401S
Compatible Driver A4988, DRV8825, TMC2208, TMC2209
Google Product Category Industrial > Electrical Equipment > Motors > Stepper Motors
Weight Range 0.13 ~ 0.48kg
Application 3D Printer, CNC Engraver, Writing Machine, Laser Engraver, Robotics, Automation
Certification CE, RoHS
