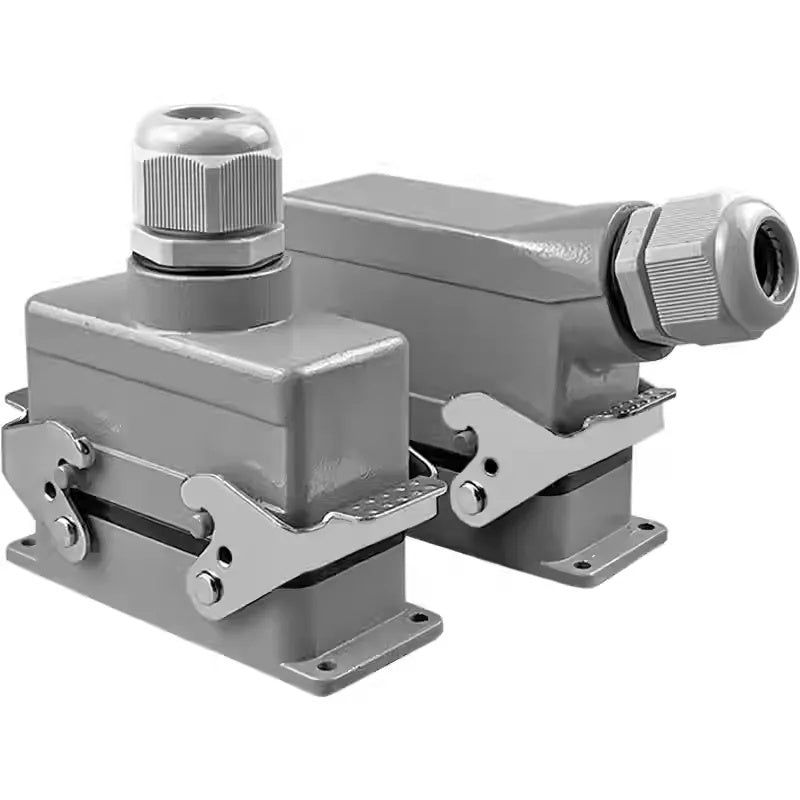

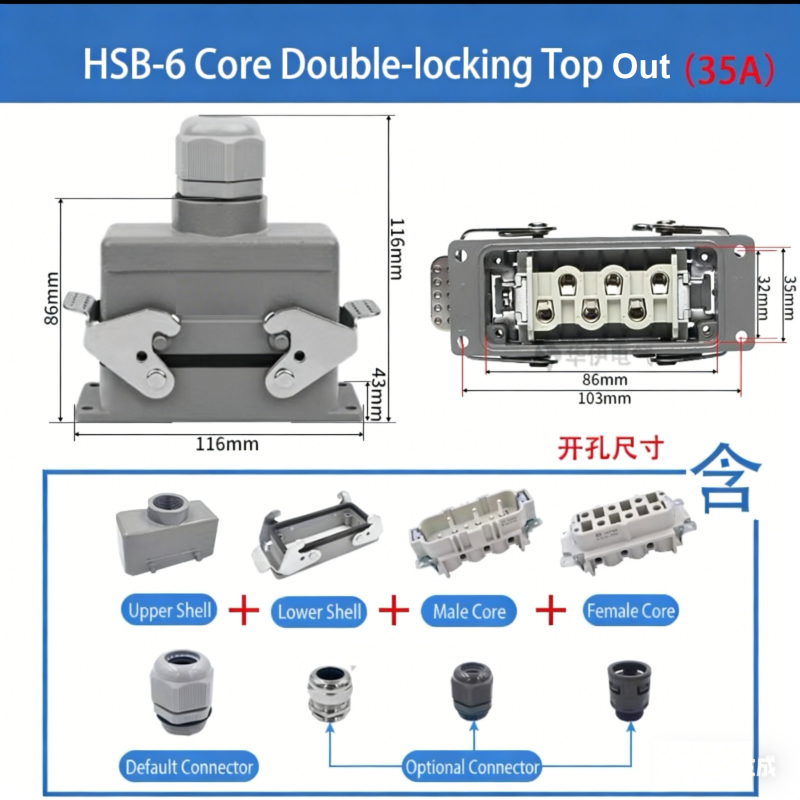

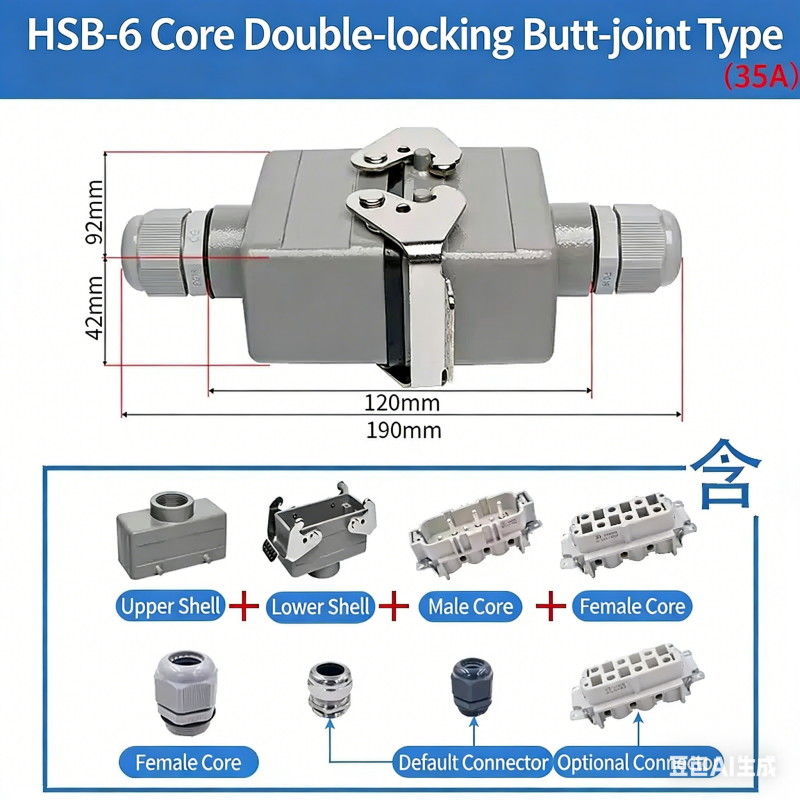

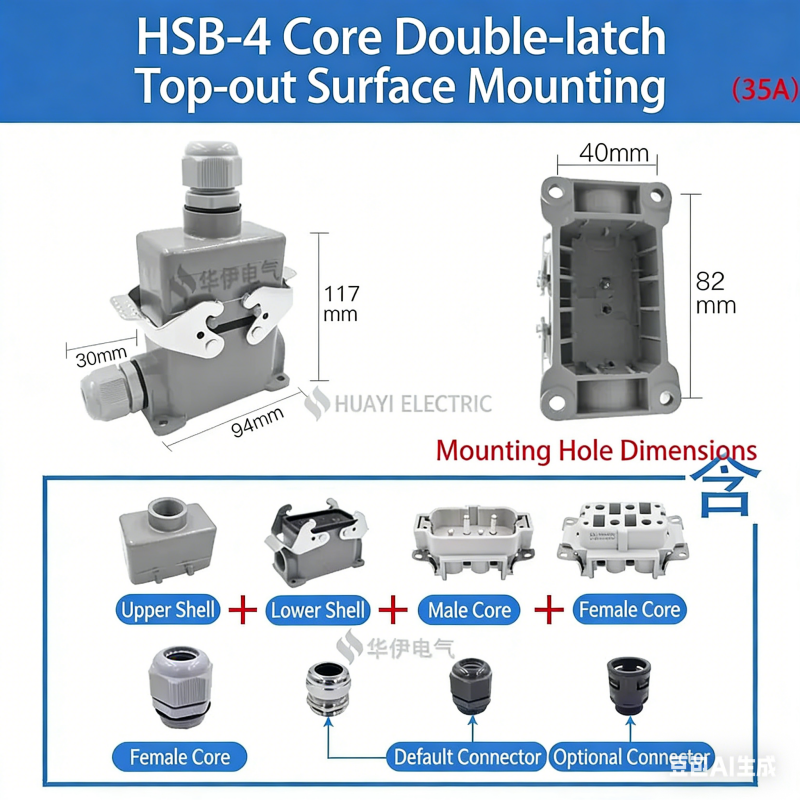

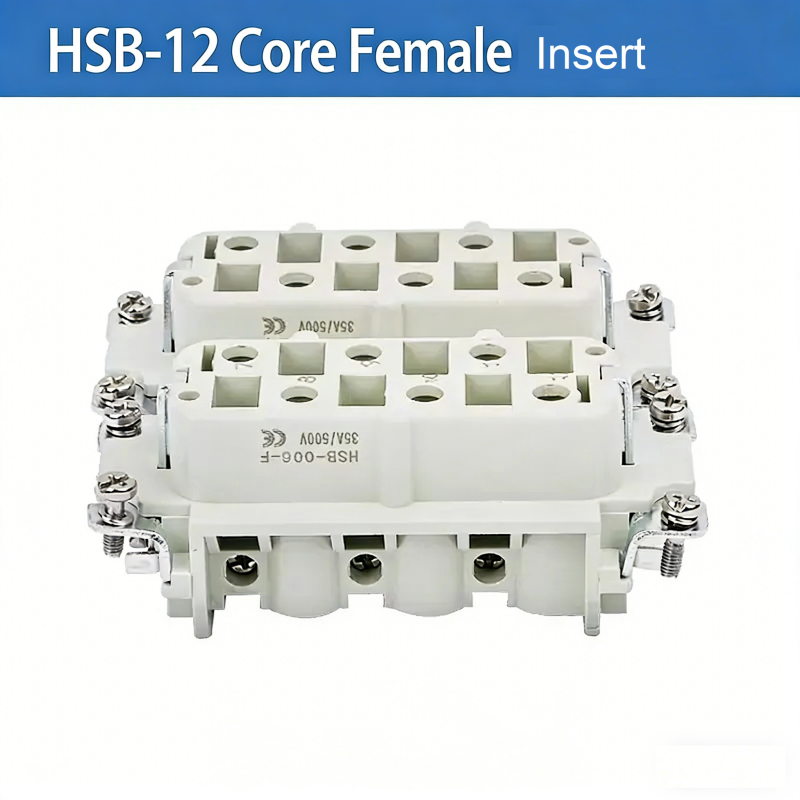

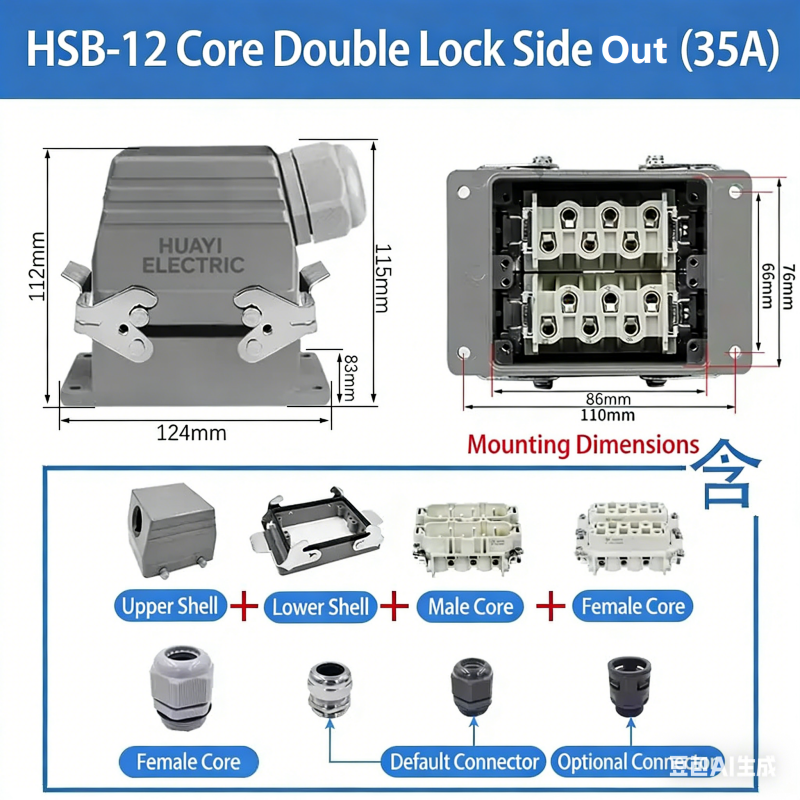

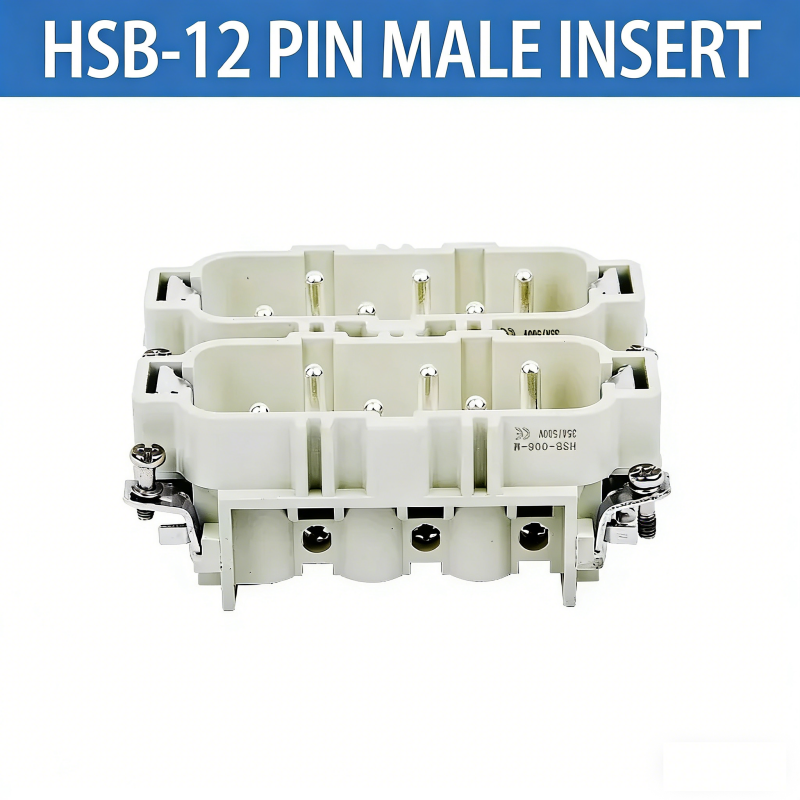

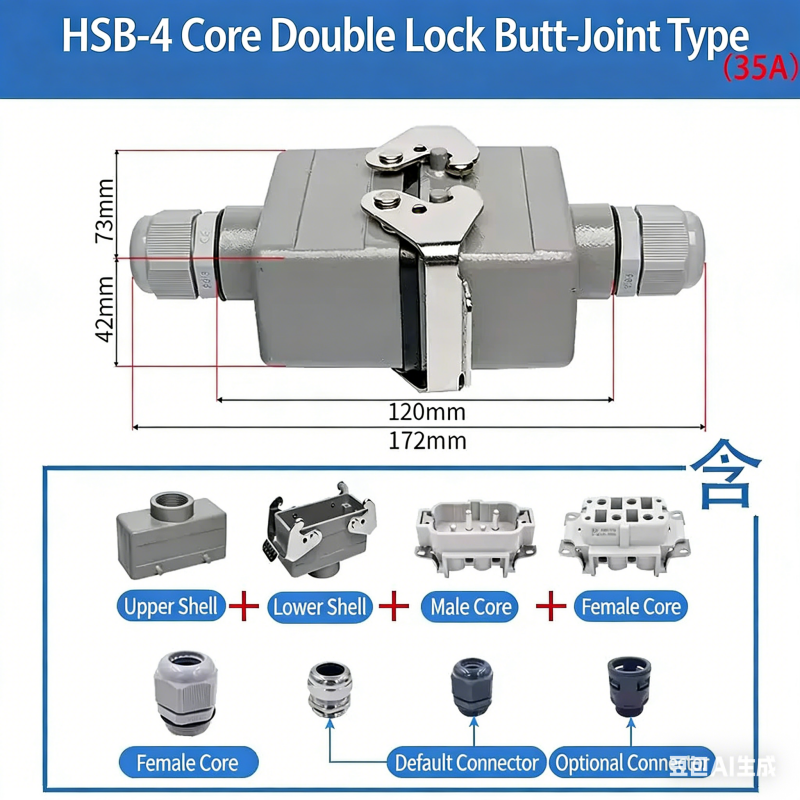

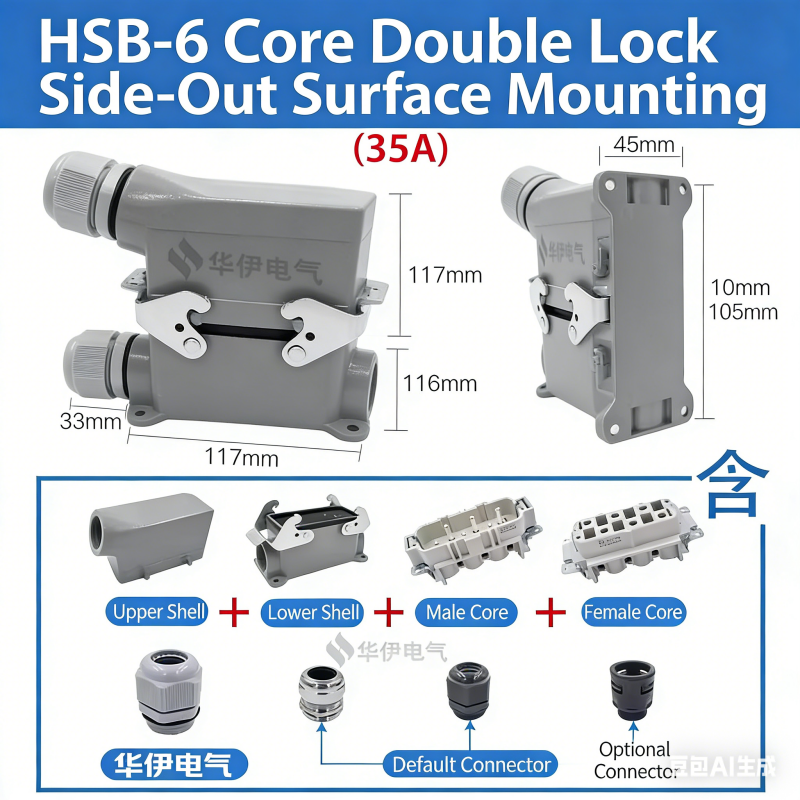

Rectangular Heavy Duty Connector HSB-4/6/12 Pin 35A High Current Waterproof Aviation Plug & Socket

$28.53 USD
$17.25 USD $28.53 USD
Sale Sold out
Shipping calculated at checkout.
HSB Connector Specification

SPECIFICATIONS

Heavy Duty Connectors HDC-HSB-006-1/2/3/4 F/M 6pin 35A Screw connection Industrial rectangular Aviation connector plug,hdc connector

Product Description

This rectangular heavy-duty connector (HSB series) is available in 4-pin, 6-pin, and 12-pin configurations, with a rated current of 35A per pin. It features a robust double-latch design and IP65/IP67 waterproof protection, making it ideal for industrial automation, machinery, and power distribution applications.

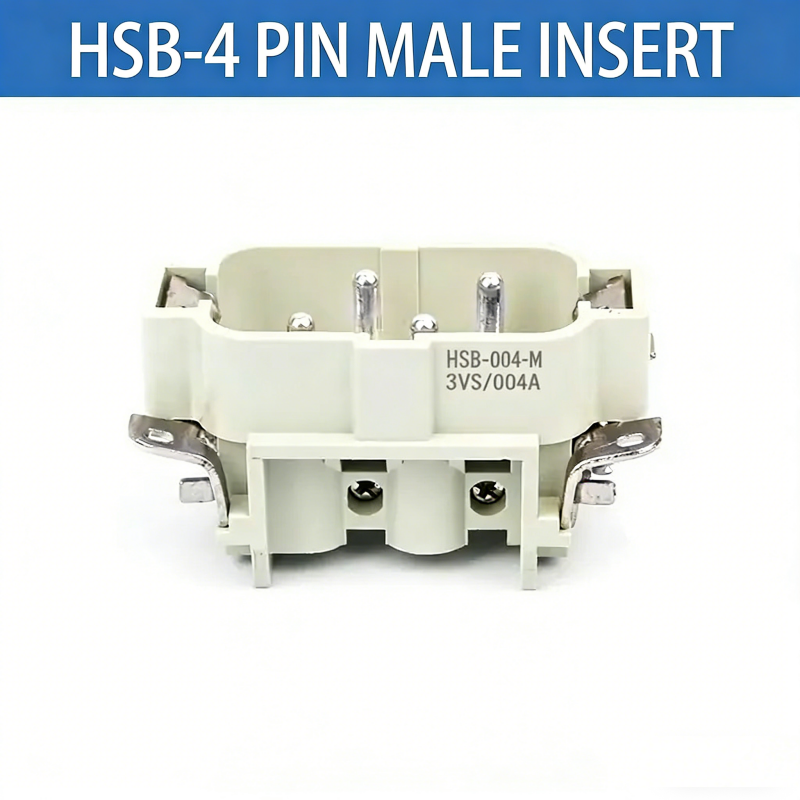

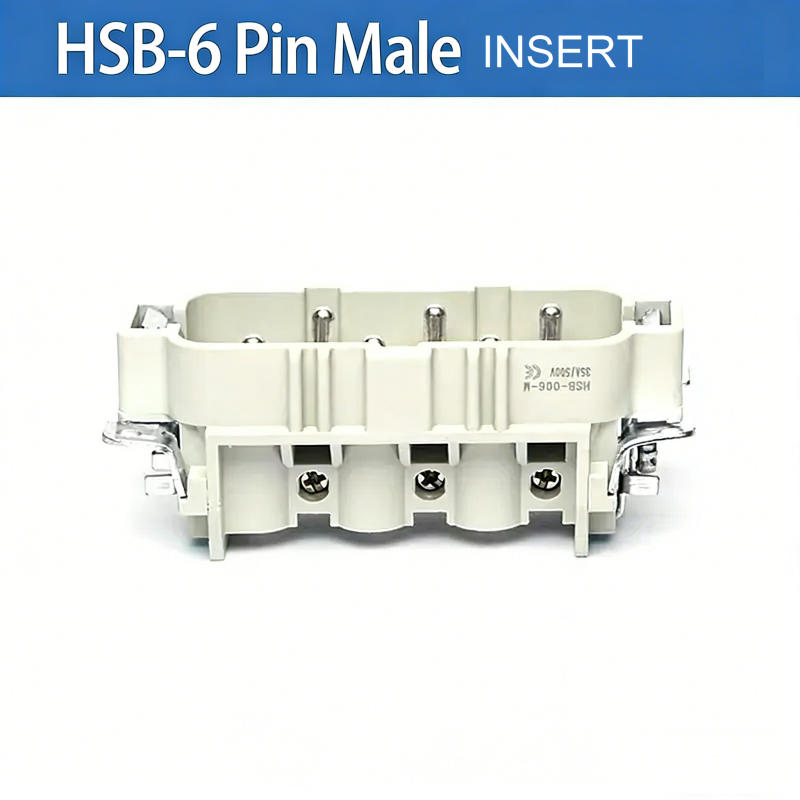

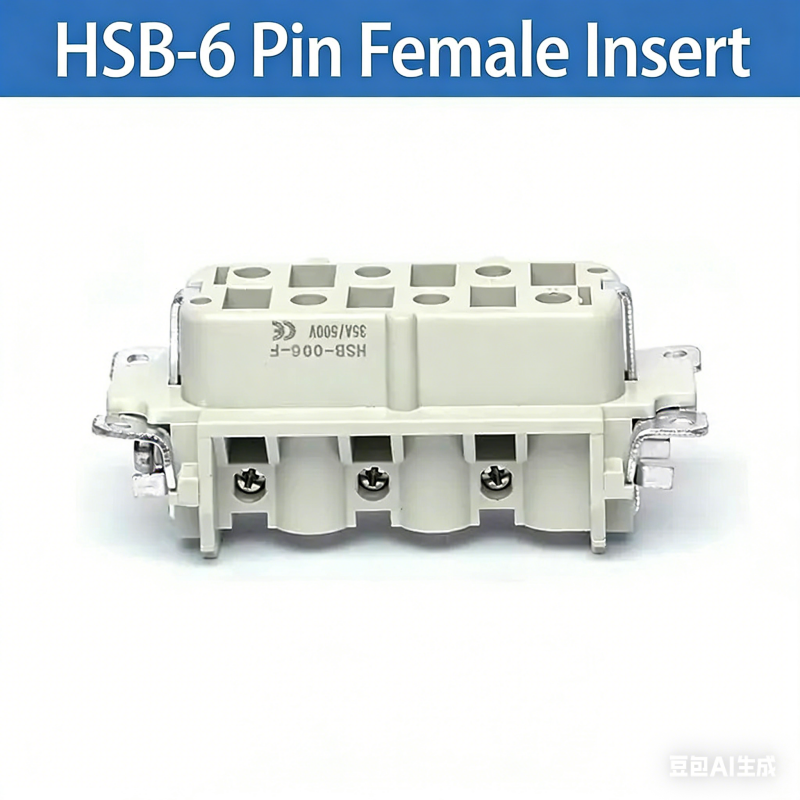

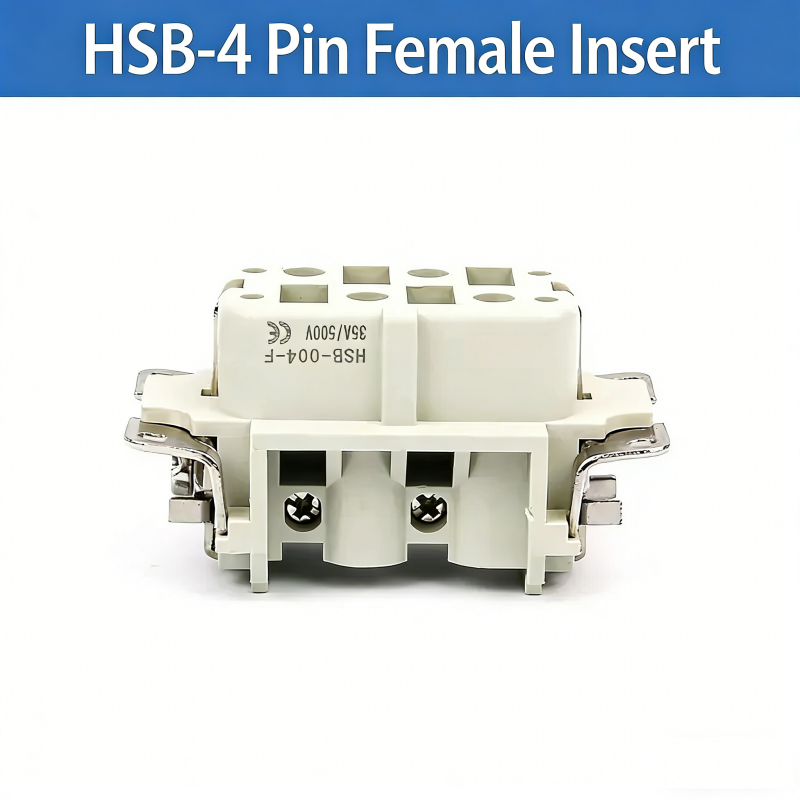

  • Model: HSB-004/006/012 (4/6/12 pins)
  • Rated Current: 35A per contact
  • Rated Voltage: 500V AC/DC
  • Protection Class: IP65/IP67 (dustproof & waterproof)
  • Housing Material: High-strength die-cast zinc alloy
  • Insulation Material: Thermoplastic (high temperature resistance)
  • Termination Type: Screw terminal

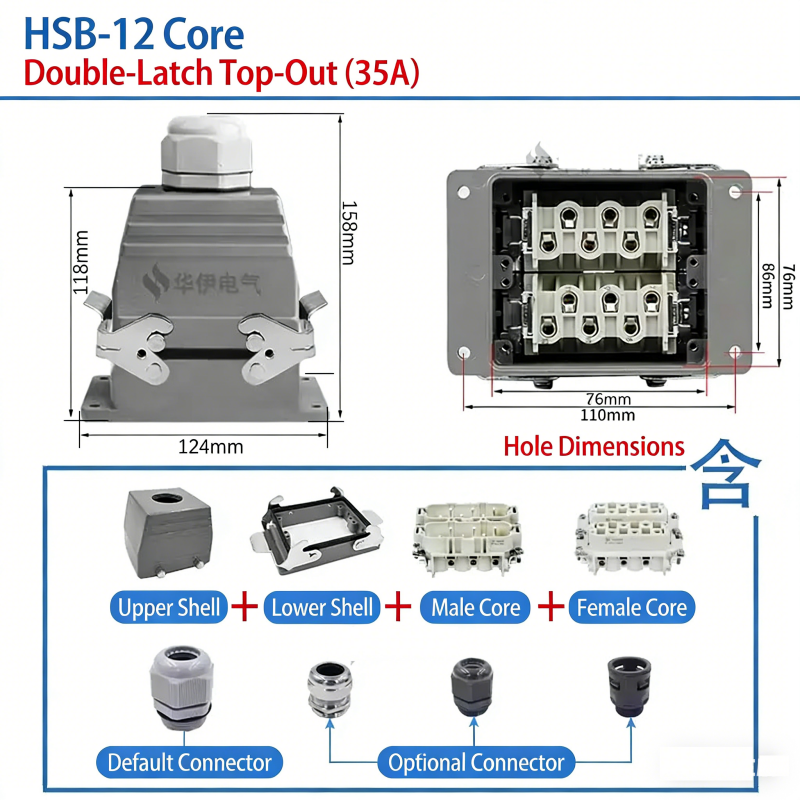

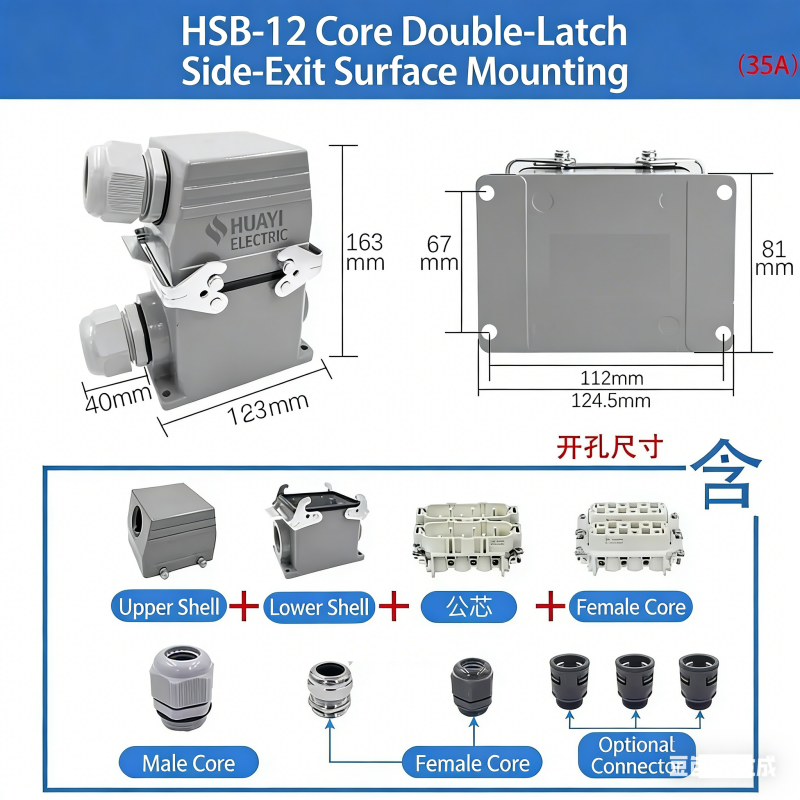

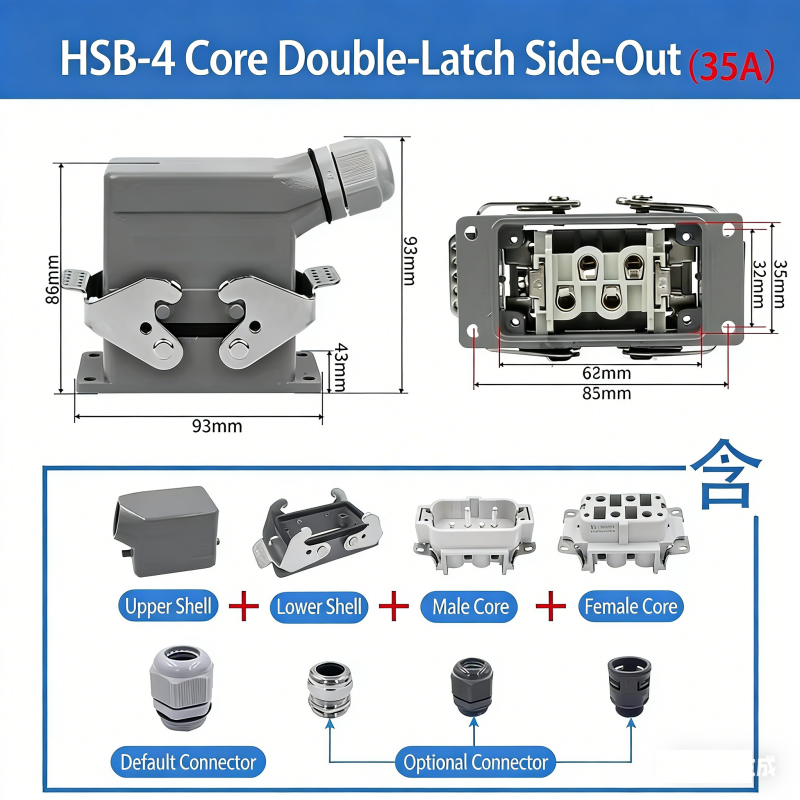

  • Mounting Options: Surface mount, side entry, top entry, bulkhead mount
  • Application: Industrial machinery, robotics, power cabinets, outdoor equipment

Product Parameters

Item Specification Item Specification
Rated Current 35A Metal Upper Housing/Base
Rated Voltage 500V Material Cast Aluminum Alloy
Withstanding Voltage 6KV Surface Treatment High Temperature Powder Coating
Number of Poles 3 Locking Device Stainless Steel or...
Insulation Resistance ≥10Ω Operating Temperature Range -40℃ ~ +...
Housing Material Polycarbonate Protection Grade IP65
Temperature Range -40℃ ~ +125℃ Insert
Flammability (UL94) V0 Material
Rated Voltage 500V Surface Treatment
Number of Pins 4/6/12 pins Contact Resistance
Mounting Type Flush Mount / Surface Mount Wiring Method
Screw Tightening Torque / Test Torque
