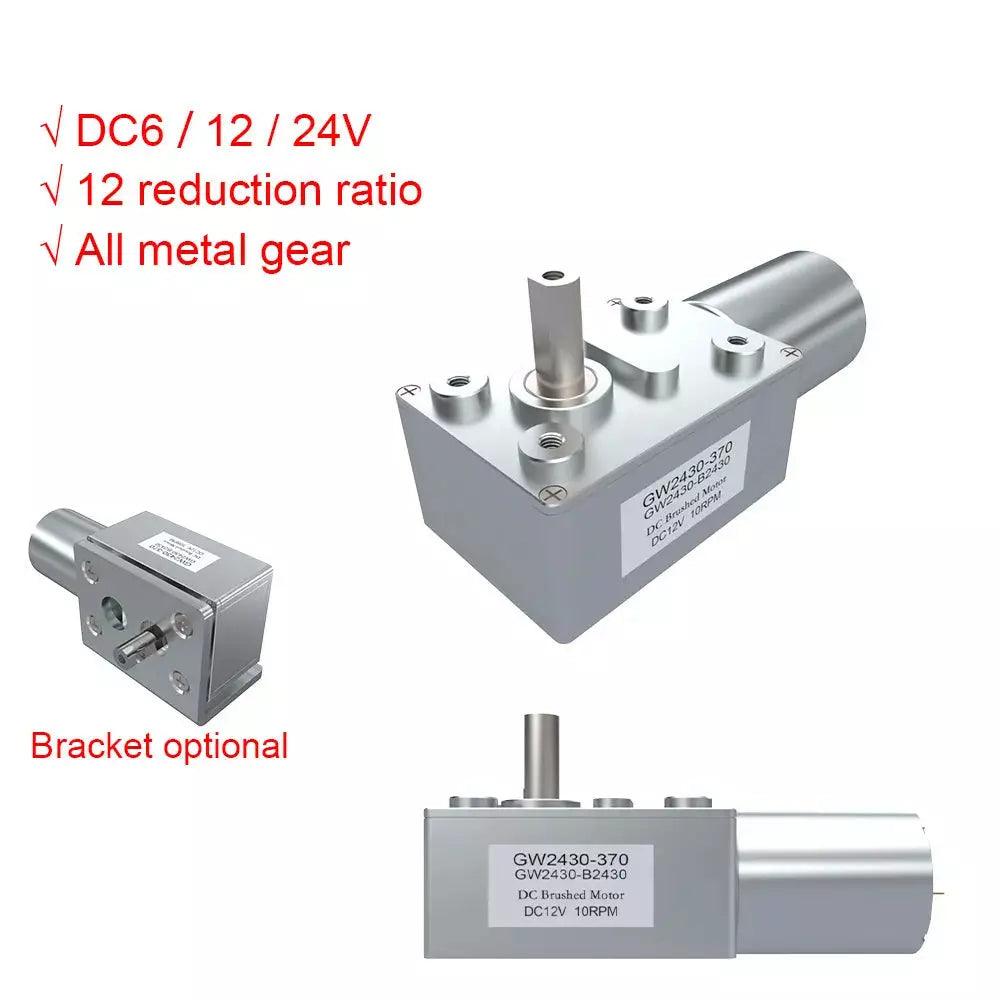

GW4632-370 6V 12V 24V 5W Initial 8500RPM Reducer 3 to 210PRM DC Brush Motor
Couldn't load pickup availability
SPECIFICATIONS
GW4632-370 6V 12V 24V 5W Initial 8500RPM Reducer 3 to 210PRM High Torque DC Brush Metal Worm Gear Low Speed Motor(GW4632-B2430)
Brand Name: Anmiy
Certification: NONE
Origin: Mainland China
Output Power: 5W
Commutation: Brush
Type: Micro Motor
Protect Feature: Drip-proof
Construction: Permanent Magnet
Usage: Home Appliance

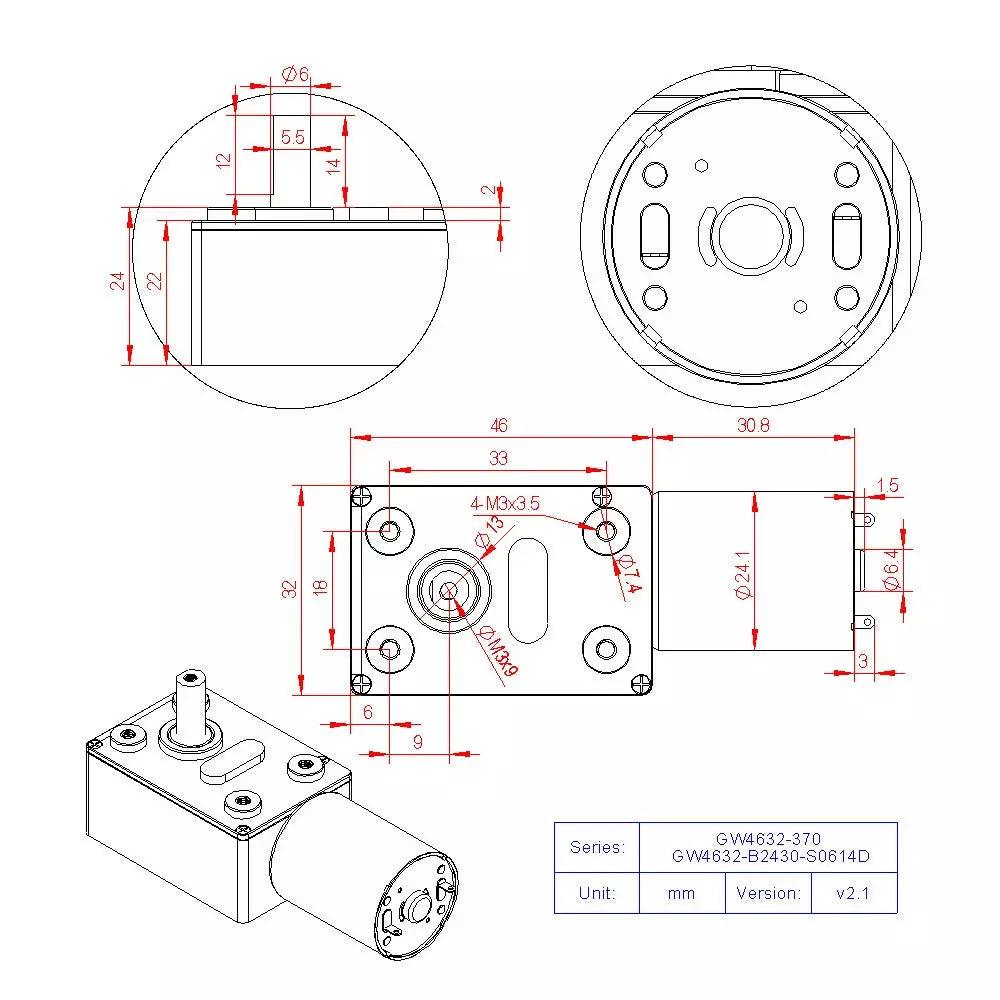

Model Number: GW4632-370-S0614D
2) GA25-370 (GA25-B2430): Common Gear
3) GW4632-370 (GW4632-B2430): Worm Gear

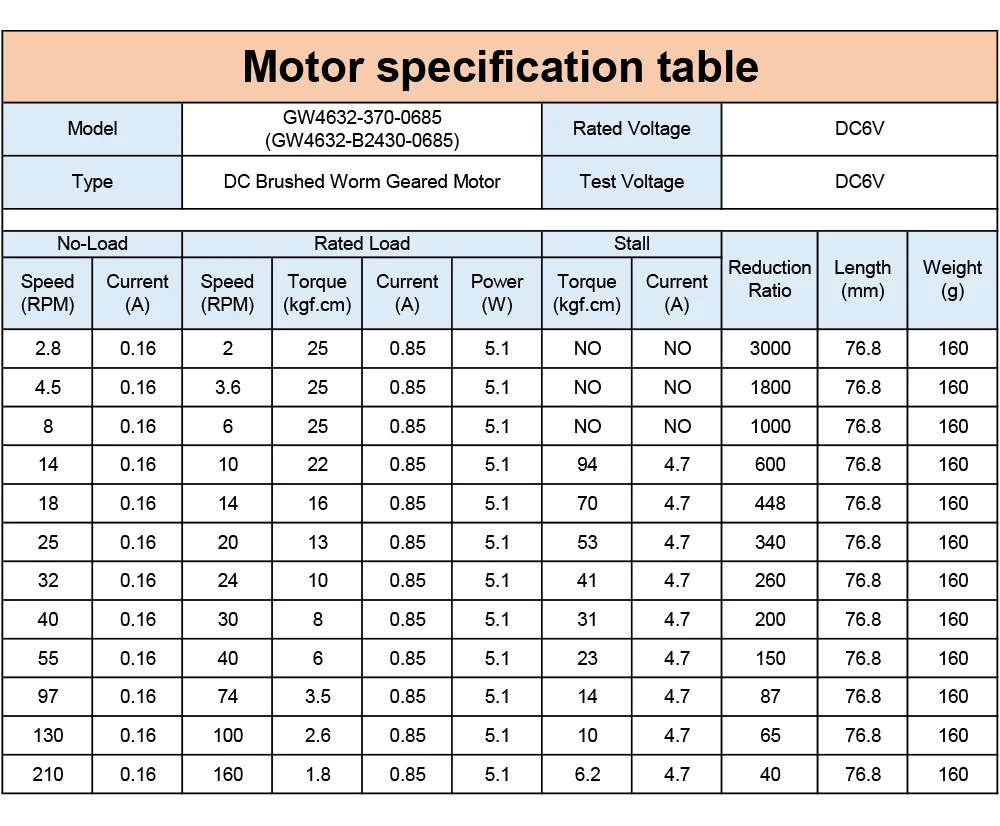

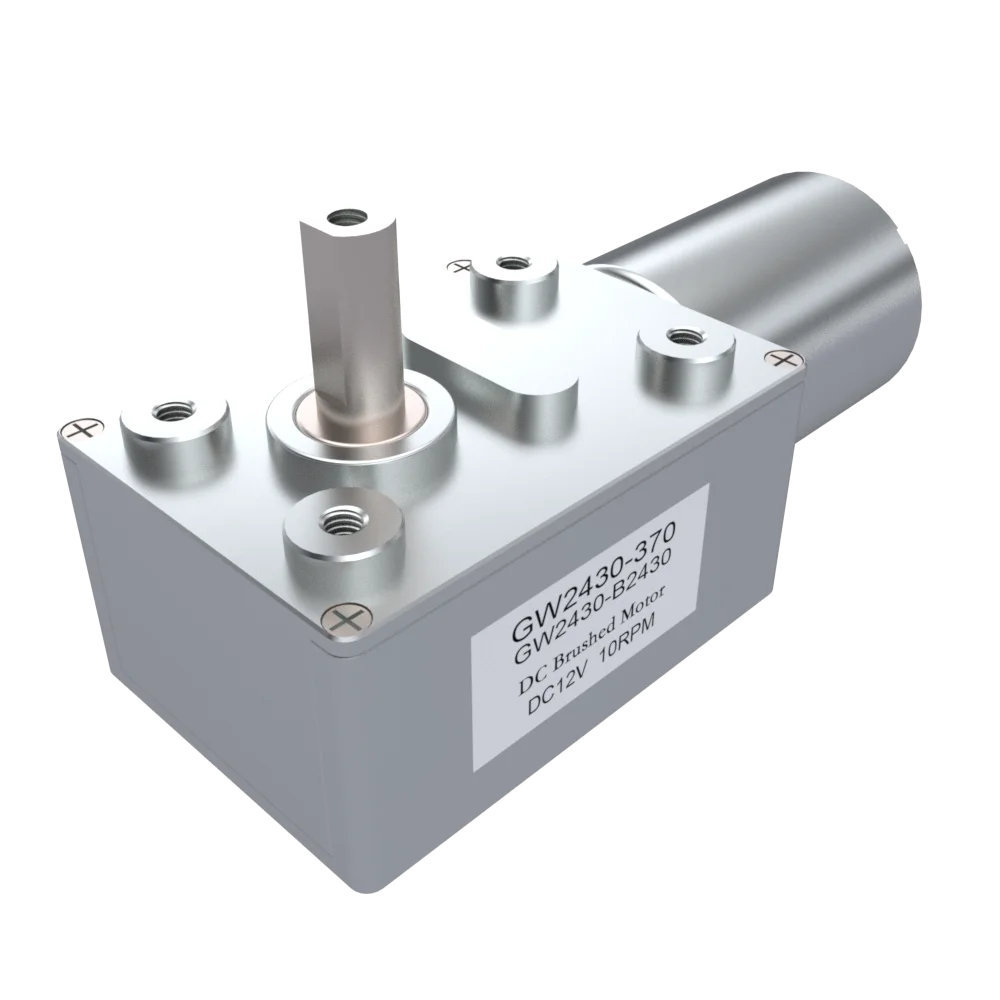

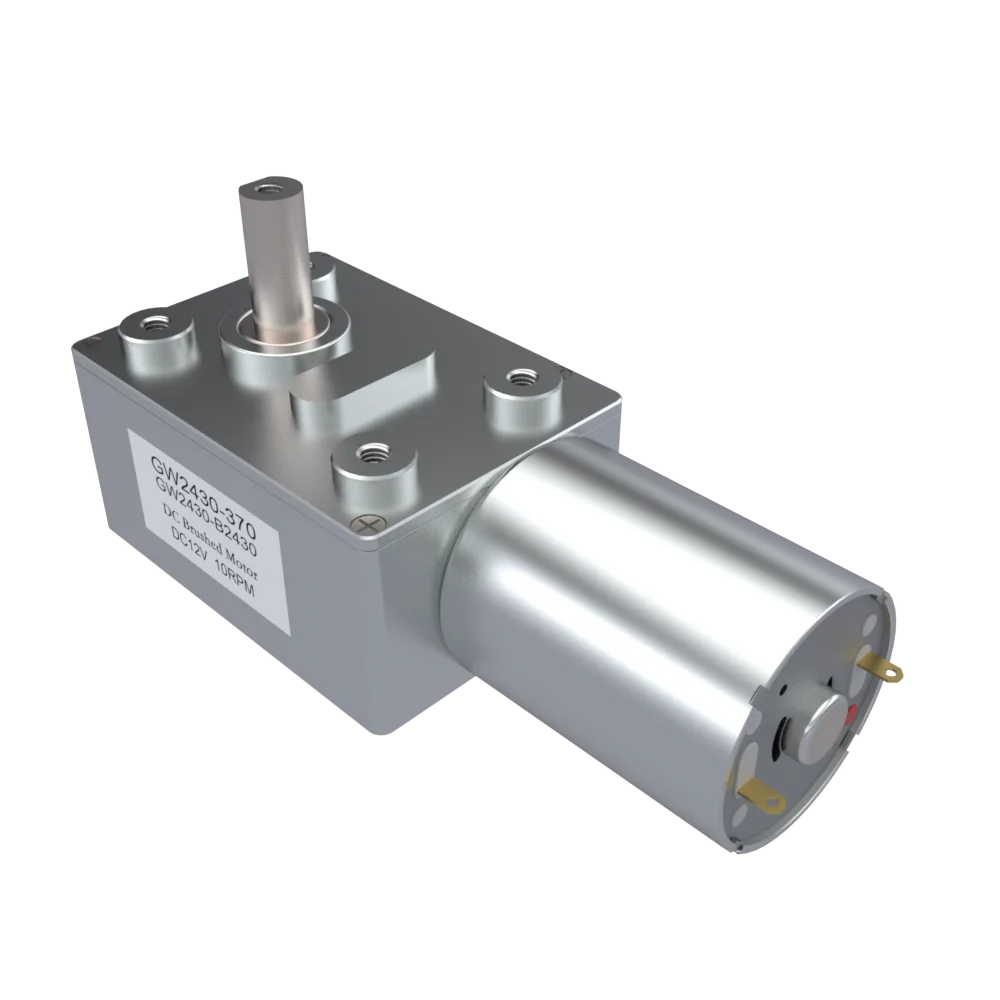

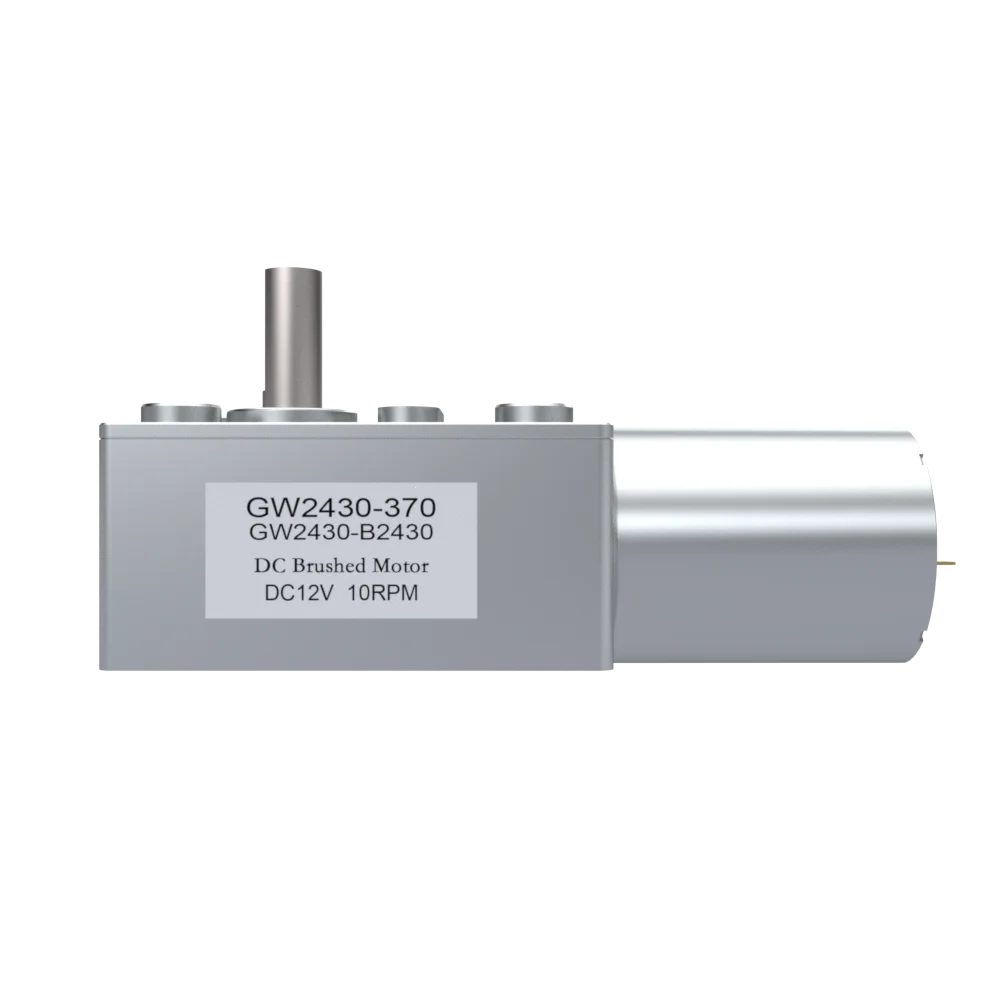

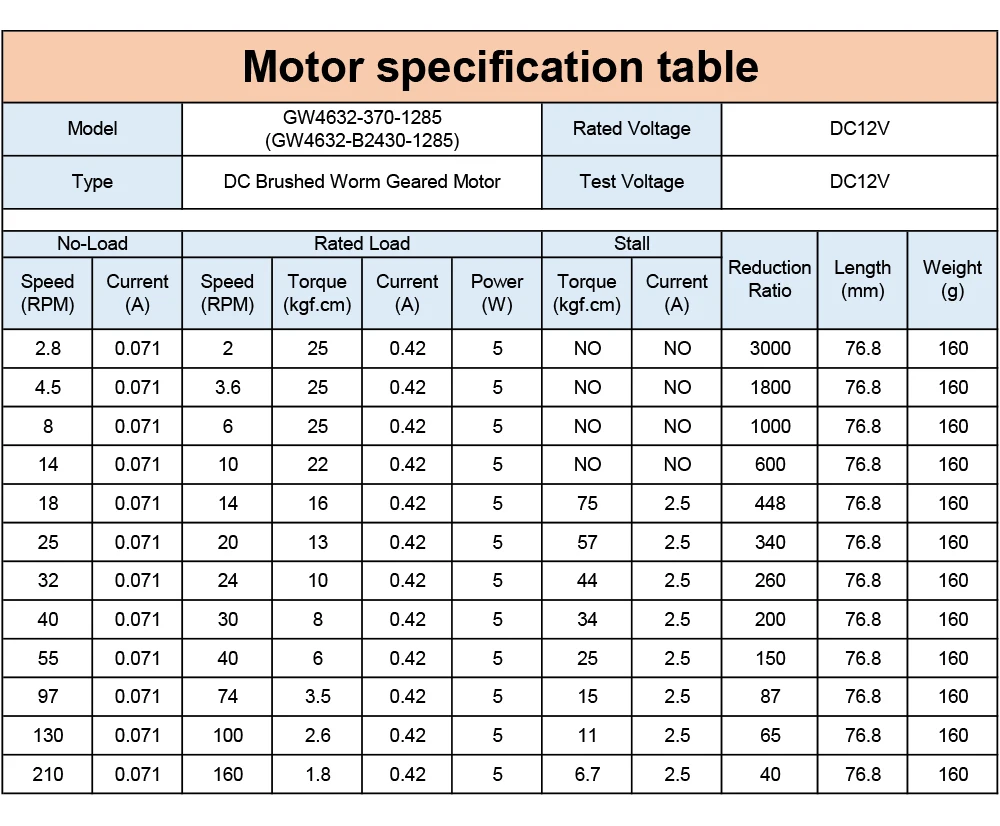

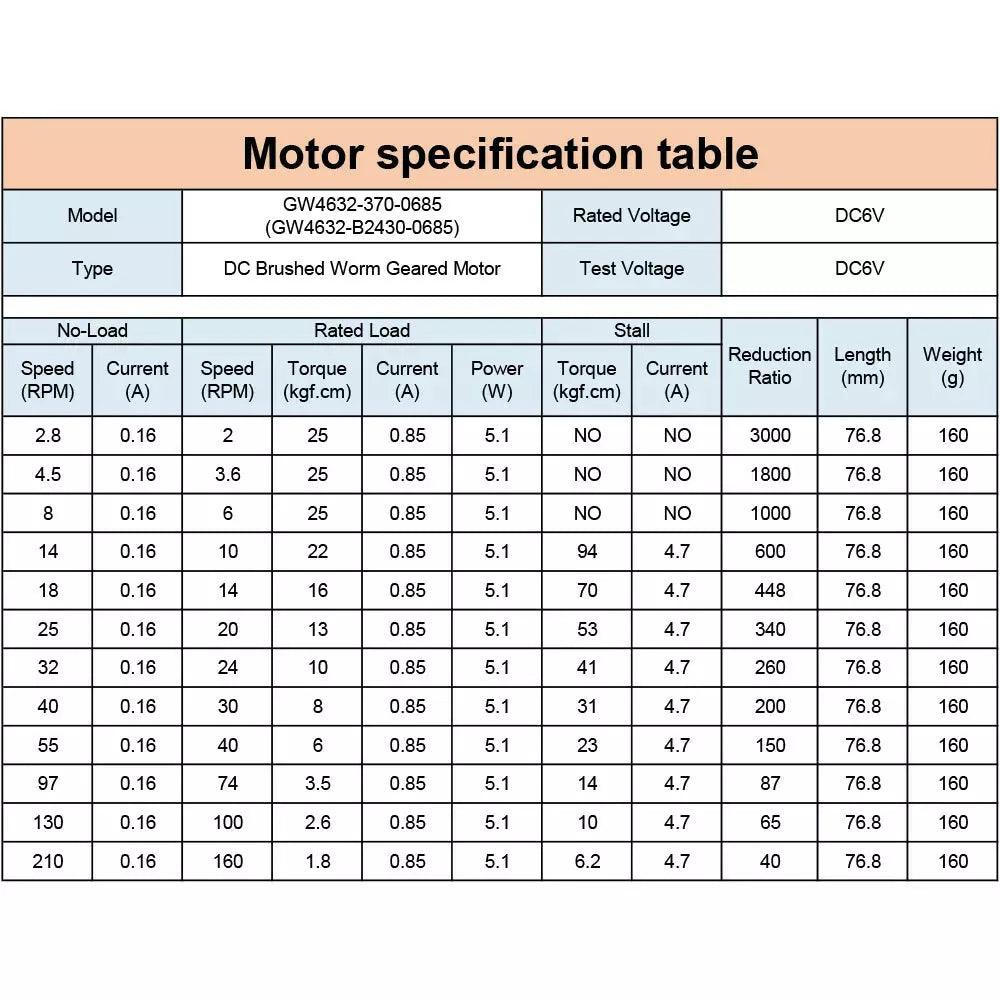

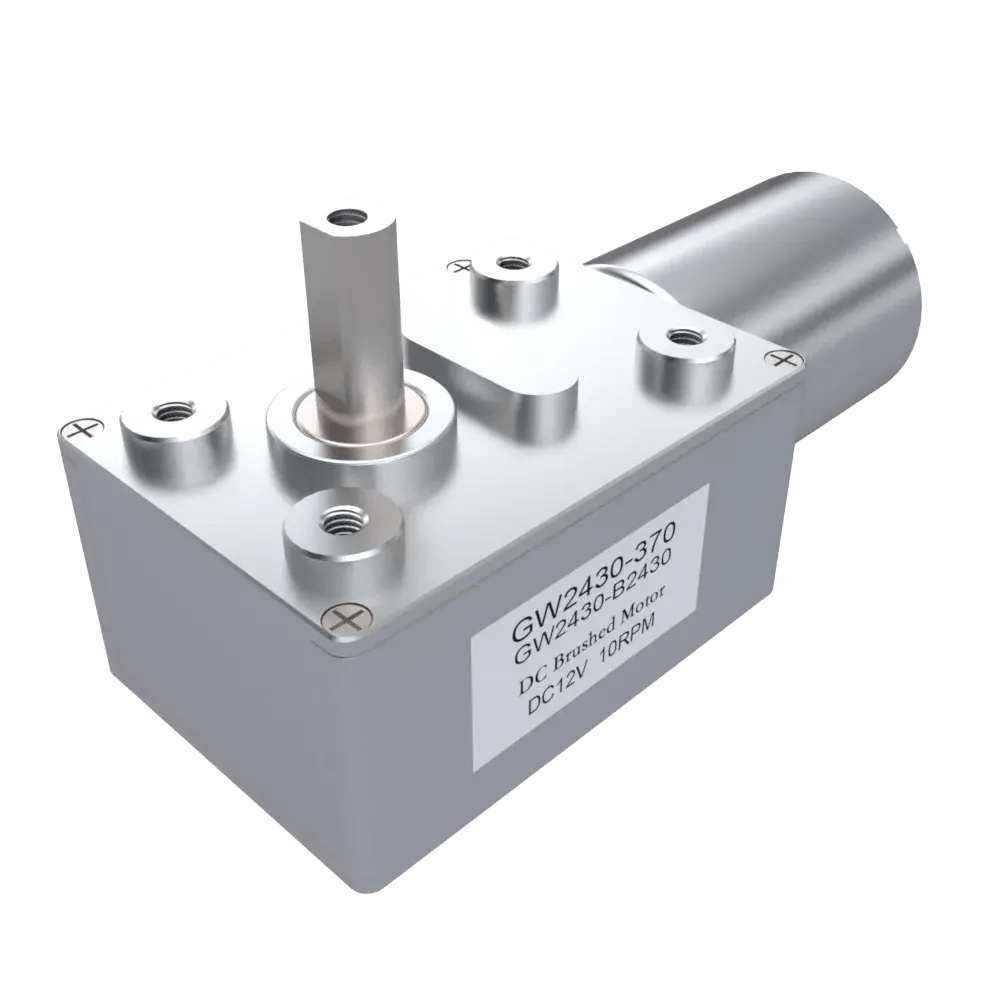

GW4632-370(GW4632-B2430) DC brushed worm geared motor with rated voltage DC6V, 12V, 24V. The motor body has a variety of initial no-load speed (speed without gear reducer).

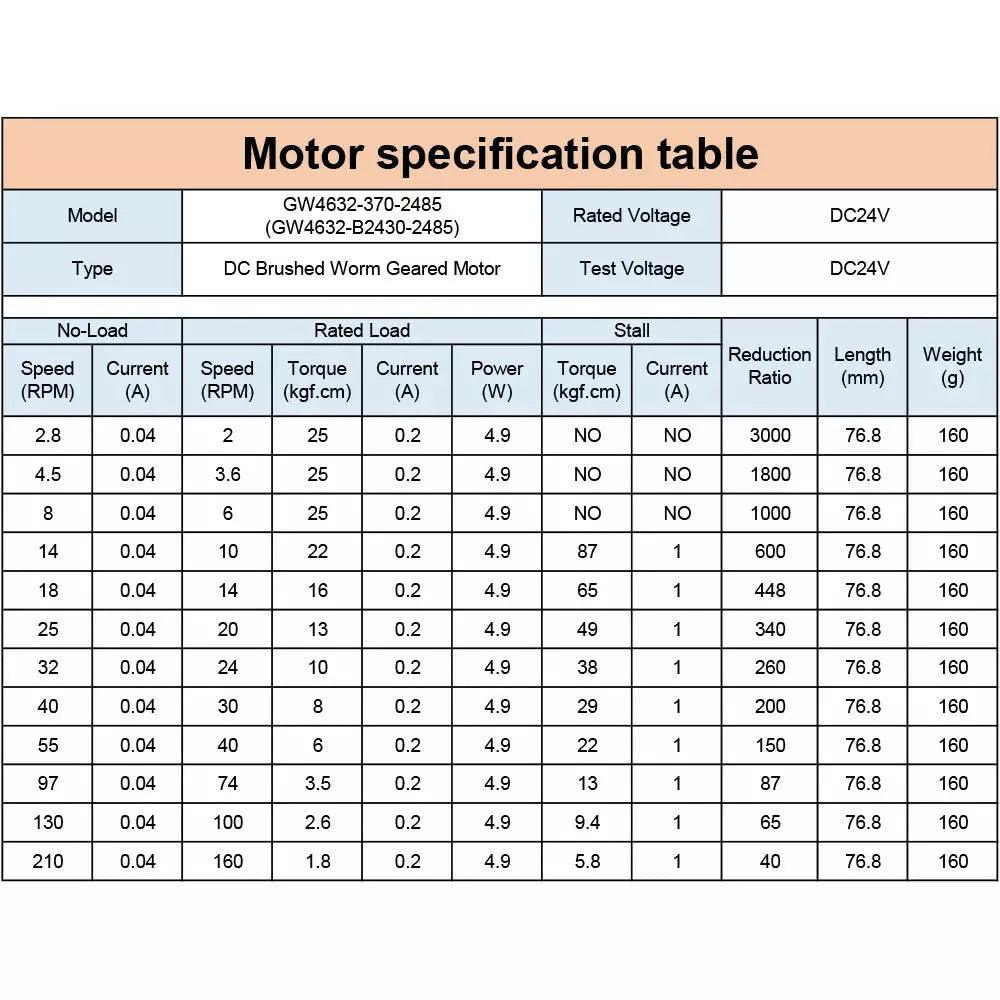

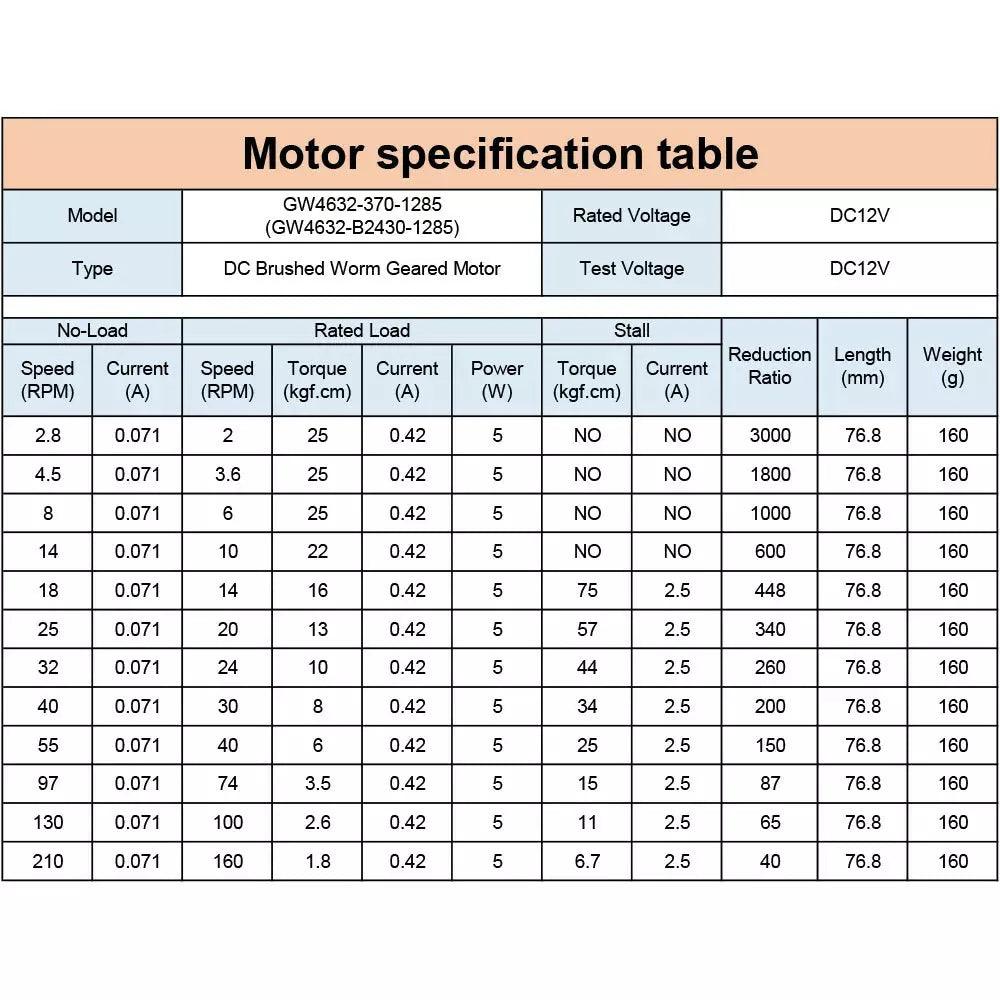

After the initial no-load speed is decelerated by the gearbox, a series of decelerated no-load speeds are obtained, usually the decelerated no-load speed (unit: RPM, r/min) are:
1) At initial no-load speed of 8500 RPM (DC6V, 12V, 24V):
2.8, 4.5, 8, 14, 18, 25, 32, 40, 55, 97, 130, 210 RPM (This listing)
2) At initial no-load speed of 6000 rpm (DC6V, 12V, 24V):
2, 3.3, 6, 10, 13, 18, 23, 30, 40, 68, 90, 150 RPM (Click for details)
More speed can also be customized according to your needs, please contact customer service for details.
Package:
- 1 x GW4632-370 motor

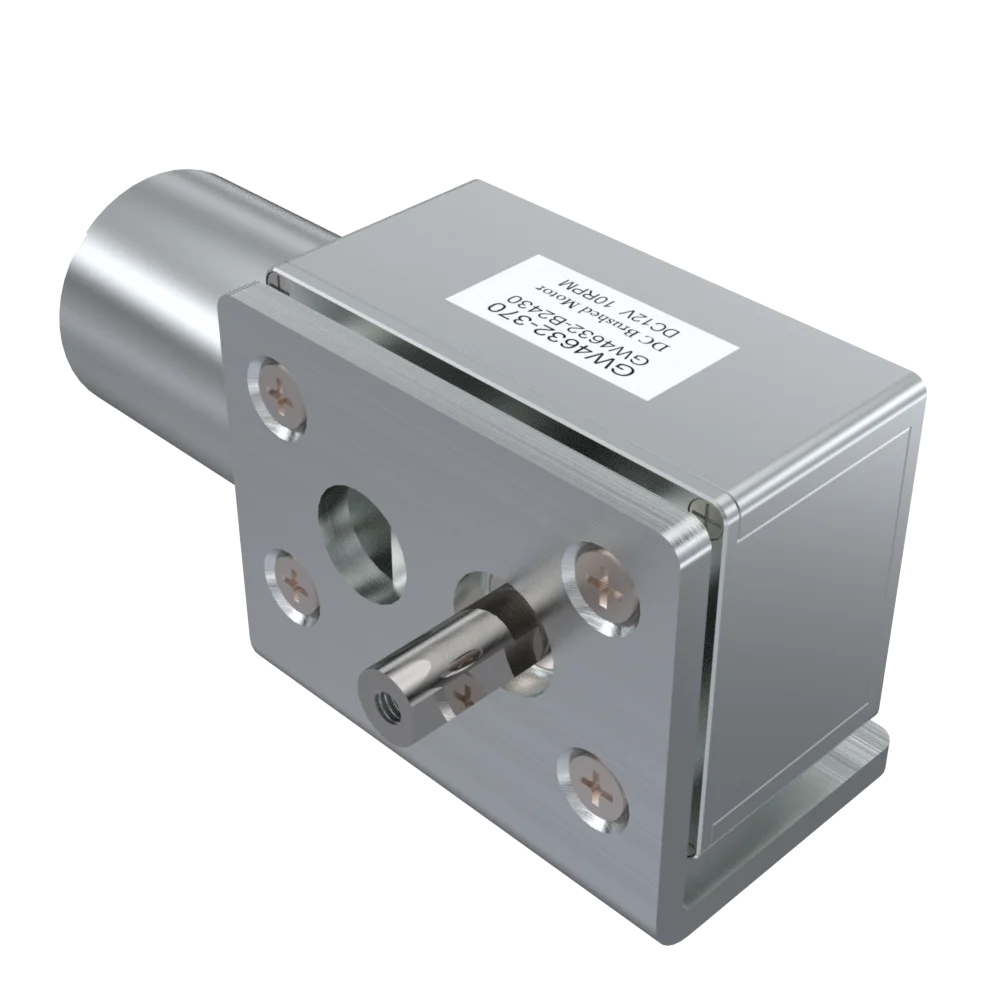

GW4632 series DC geared motors bracket (Click image below for details)
