Name: N20-1218 Worm Gear DC Motor with Hall Encoder | 3V 6V 12V
Brand: electrical center b2c
SKU: Motor with Short Shaft(D3*8mm) / 3V 7rpm/min
Price: 22.6 USD
Availability: InStock

SPECIFICATIONS

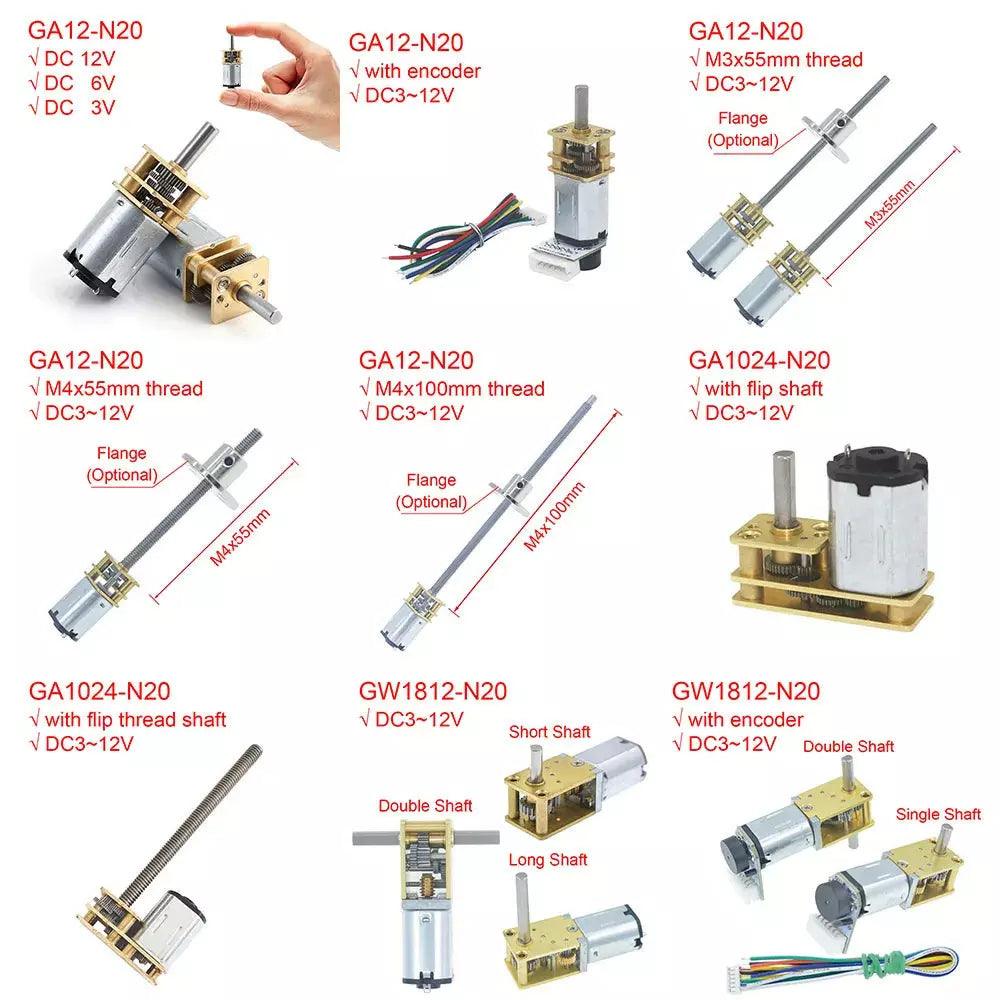

GW1812-N20-E Encoder DC 12V (Compatible 6V 3V) Micro High Torque Worm Gear Reducer Motor Double Shaft 16-381RPM Hall Sensor 7PPR,n20 dc motor double shaft,n20 motor with encoder

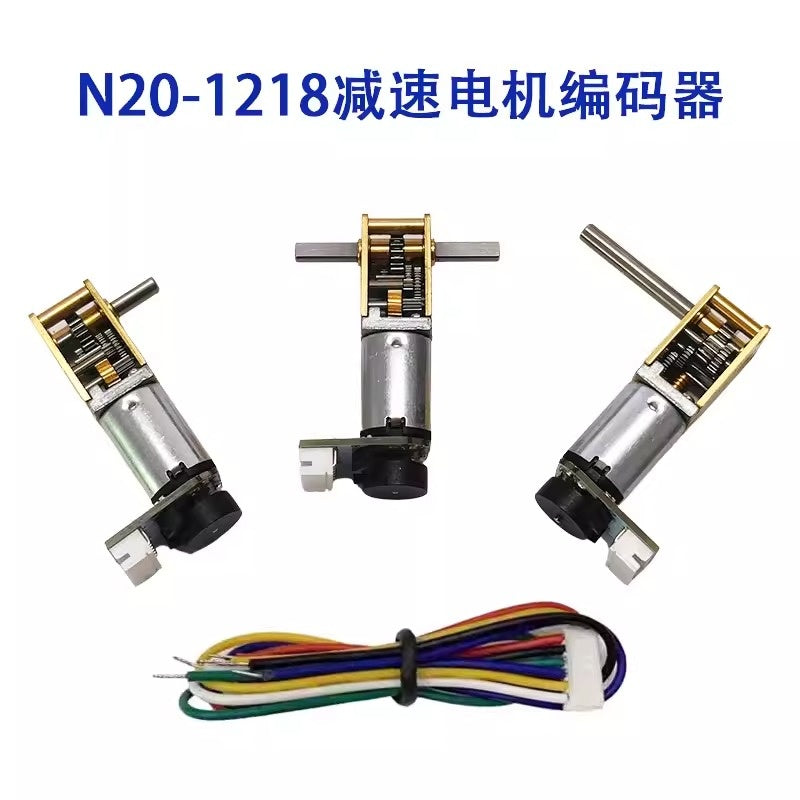

N20-1218 Worm Gear DC Motor with Hall Encoder | 3V 6V 12V Micro Gear Reduction Motor for Smart Car Robot

Product Overview

The N20-1218 Worm Gear DC Motor is equipped with a high-precision Hall encoder, integrating self-locking worm gear, reduction transmission and position feedback functions. It is a compact, high-torque micro motor designed for smart cars, small robots, DIY electronic projects and precision motion control equipment. Compatible with 3V, 6V, 12V DC power supply, it provides stable low-speed operation and accurate position detection, meeting the needs of various small-scale drive scenarios.

Key Features

Built-in Hall Encoder: Equipped with high-precision Hall encoder, which can accurately detect the rotation speed, angle and position of the motor, realizing precise motion control and closed-loop feedback.
Self-Locking Worm Gear Design: Adopts worm and worm gear transmission structure, which has excellent self-locking performance, can prevent reverse rotation and hold position stably when the power is cut off, suitable for scenarios requiring position retention (such as robot arms, smart car steering).
Wide Voltage Compatibility: Supports 3V, 6V, 12V DC power input, flexible to match different power supplies, applicable to various DIY projects and small electronic devices.
Low Speed & High Torque: Optimized gear reduction ratio ensures stable low-speed output and strong torque, effectively improving the load capacity of the motor, suitable for precision drive and heavy-load small mechanisms.
Compact & Durable: Miniature N20 size, small volume and light weight, easy to install and integrate into space-limited devices (such as smart cars, micro robots); high-quality metal gears and motor core, wear-resistant and durable, ensuring long service life.
Easy to Use: Simple wiring, matching standard connectors, convenient for quick assembly and debugging, suitable for both beginners and professional DIY enthusiasts.

Applications

Smart robot cars, AGV small vehicles, and remote control cars
DIY robots, robotic arms, and precision motion control mechanisms
Electronic teaching aids, scientific research experimental equipment
Small medical equipment, precision instruments, and automatic control devices
Various DIY electronic projects and small mechanical drive systems

DC Gear Motor Performance Specifications

Voltage (V)	Reduction Ratio	Motor Speed (rpm)	No-load Speed (rpm)	No-load Current (mA)	Load Current (mA)	Load Speed (rpm)	Starting Voltage (V)	Stall Current (mA)	Stall Torque (gf·cm)	Rated Torque (gf·cm)	Power (W)
12	59	32000	540	85	145	440	1.5	800	546	512	1.5
12	118	32000	272	85	145	240	1.5	800	524	640	1.5
12	236	32000	136	85	145	120	1.5	800	1048	800	1.5
12	300	32000	106	85	145	90	1.5	800	1342	1000	1.5
12	600	32000	54	85	145	46	1.5	800	2143	1250	1.5
12	1168	32000	26	85	145	22	1.5	800	3773	1563	1.5
6	59	16000	270	40	90	220	1.5	400	492	320	1
6	118	16000	136	40	90	119	1.5	400	472	400	1
6	236	16000	68	40	90	59	1.5	400	944	500	1
6	300	16000	53	40	90	46	1.5	400	1208	625	1
6	600	16000	27	40	90	23	1.5	400	1929	781	1
6	1168	16000	13	40	90	11	1.5	400	3396	1000	1
3	59	8000	135	30	70	110	1.5	200	442	96	0.4
3	118	8000	68	30	70	60	1.5	200	424	120	0.4
3	236	8000	34	30	70	30	1.5	200	849	150	0.4
3	300	8000	26	30	70	23	1.5	200	1087	188	0.4
3	600	8000	13	30	70	11	1.5	200	1736	234	0.4
3	1168	8000	7	30	70	5	1.5	200	3056	293	0.4
