Self-Locking Worm Gear DC Motor | 3V/6V/12V
Regular price
$15.38 USD
Regular price
$17.28 USD
Sale price
$15.38 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping on Orders $30+
Couldn't load pickup availability
SPECIFICATIONS

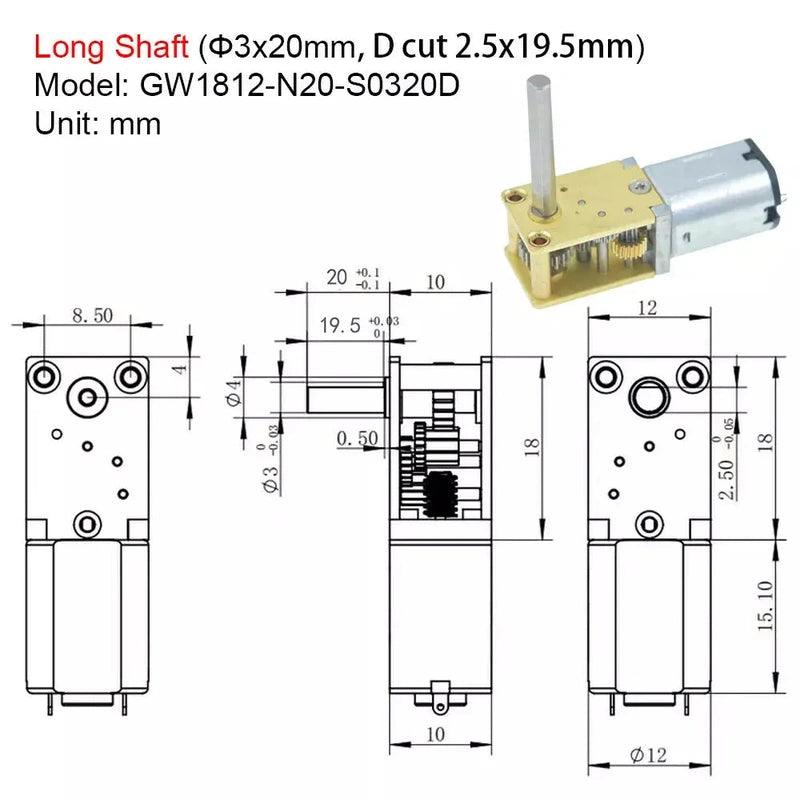

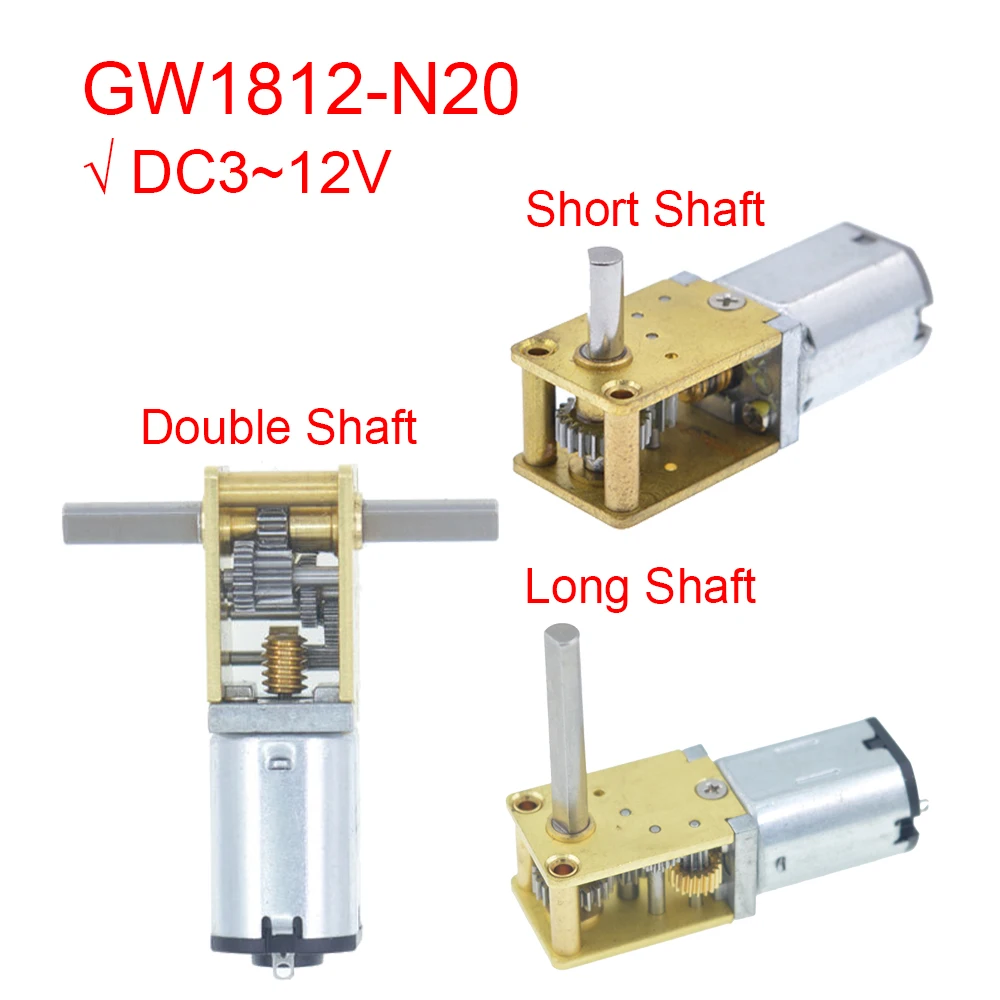

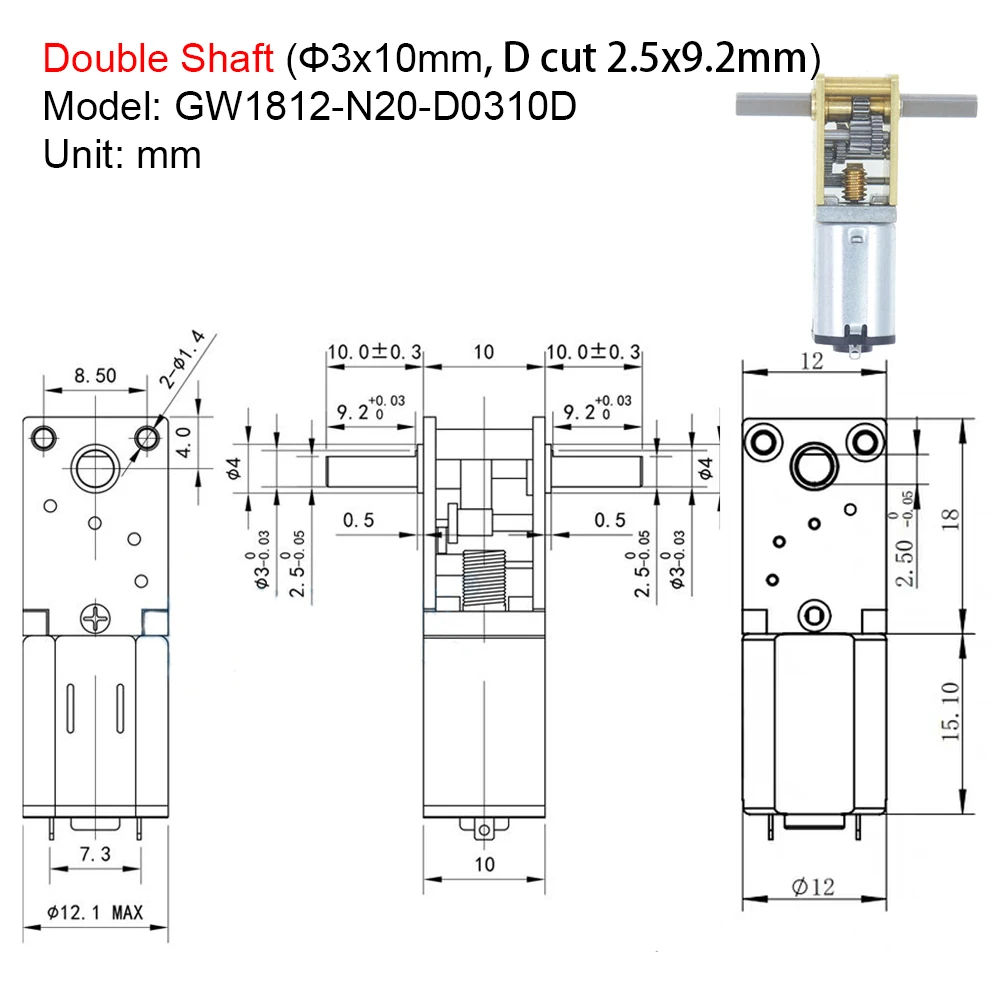

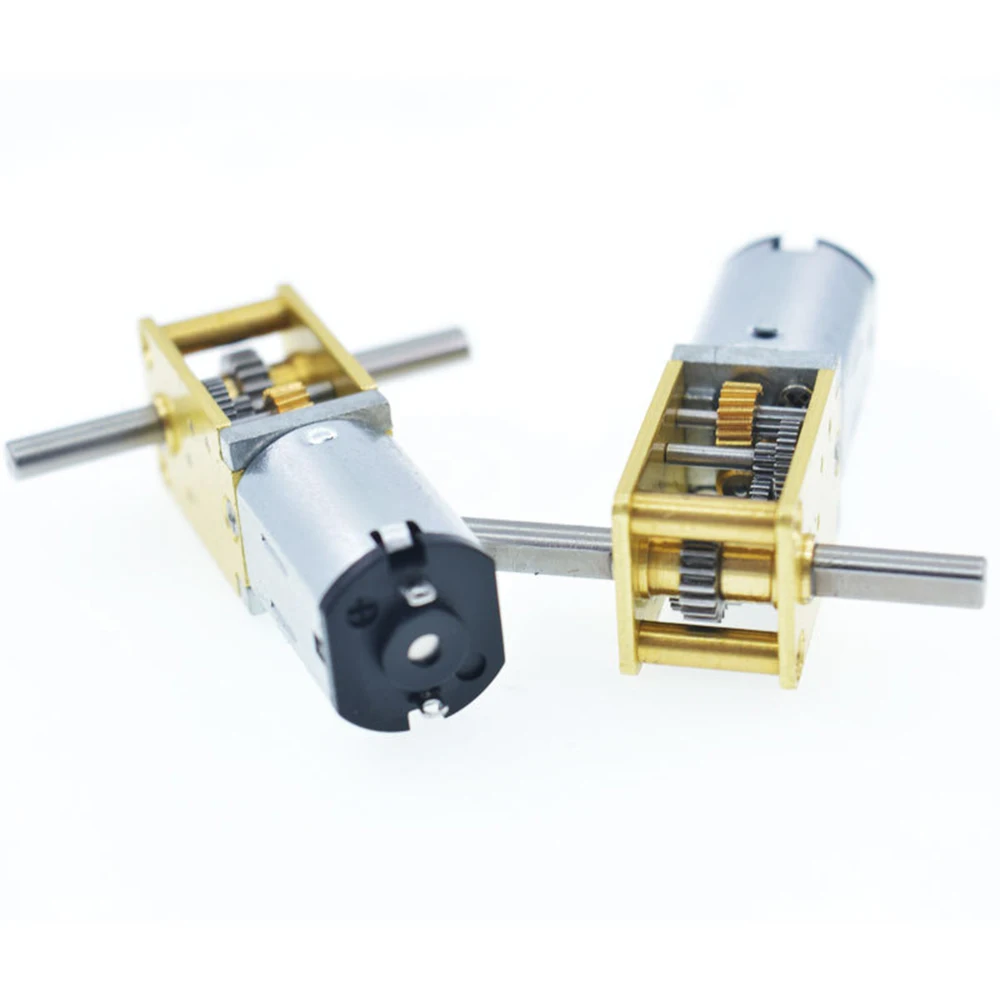

DC 12V (to 6V 3V) Micro Metal Slow Speed High Torque Worm Gear DC Motor Long Dual Shaft 16-381RPM Robot Eleltric Lock,n20 dc motor double shaft

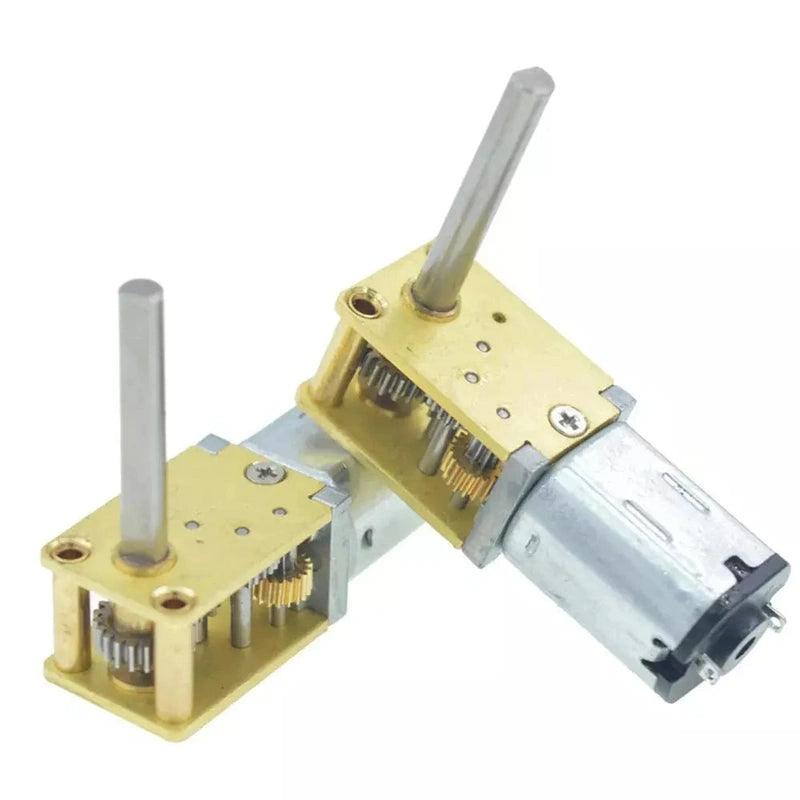

N20-1218 Self-Locking Worm Gear DC Motor | 3V/6V/12V Micro Low-Speed Motor for Smart Robots & Cars
Product Overview
The N20-1218 self-locking worm gear DC motor is a compact, high-torque micro motor designed for smart vehicles, robotics, and precision low-speed drive systems. It supports 3V, 6V, and 12V DC power inputs, delivering stable low-speed rotation with reliable self-locking capability.
Key Features
- Self-Locking Worm Gear Design: Prevents back-driving, holds position when power is off, ideal for robotic arms and smart car steering systems.
- Wide Voltage Compatibility: Works with 3V, 6V, and 12V DC power supplies, flexible for various small-scale electronic projects.
- Low-Speed & High Torque: Optimized gear reduction provides steady low-speed output with strong torque, suitable for precise motion control.
- Compact Size: Miniature N20 form factor, easy to integrate into smart cars, robots, and other space-limited devices.
- Durable Construction: Sturdy metal gears and high-quality motor core ensure long service life under continuous operation.
Applications
- Smart robot cars & AGV vehicles
- Robotic arm joints & precision actuators
- DIY electronic projects & educational robotics
- Small mechanical drives & slow-motion mechanisms
DC Gear Motor Specification Table
| Voltage (V) | Reduction Ratio | Motor Speed (rpm) | No-load Speed (rpm) | No-load Current (mA) | Load Current (mA) | Load Speed (rpm) | Start Voltage (V) | Stall Current (mA) | Stall Torque (gf·cm) | Rated Torque (gf·cm) | Power (W) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 118 | 16000 | 136 | 30 | 85 | 119 | 0.5 | 700 | 472 | 142 | 1.02 |
| 12 | 236 | 16000 | 68 | 30 | 85 | 59 | 0.5 | 700 | 944 | 283 | 1.02 |
| 12 | 302 | 16000 | 53 | 30 | 85 | 46 | 0.5 | 700 | 1208 | 362 | 1.02 |
| 12 | 603 | 16000 | 27 | 30 | 85 | 23 | 0.5 | 700 | 1929.6 | 579 | 1.02 |
| 12 | 42 | 16000 | 381 | 30 | 85 | 333 | 0.5 | 700 | 235.2 | 71 | 1.02 |
| 12 | 1030 | 16000 | 16 | 30 | 85 | 14 | 0.5 | 700 | 3296 | 989 | 1.02 |
| 6 | 118 | 8000 | 68 | 20 | 60 | 51 | 0.5 | 350 | 206.5 | 62 | 0.36 |
| 6 | 236 | 8000 | 34 | 20 | 60 | 25 | 0.5 | 350 | 413 | 124 | 0.36 |
| 6 | 302 | 8000 | 26 | 20 | 60 | 20 | 0.5 | 350 | 528.5 | 159 | 0.36 |
| 6 | 603 | 8000 | 13 | 20 | 60 | 10 | 0.5 | 350 | 1055.25 | 317 | 0.36 |
| 6 | 42 | 8000 | 190 | 20 | 60 | 143 | 0.5 | 350 | 73.5 | 22 | 0.36 |
| 6 | 1030 | 8000 | 8 | 20 | 60 | 6 | 0.5 | 350 | 1802.5 | 541 | 0.36 |
| 3 | 118 | 4000 | 34 | 10 | 40 | 21 | 0.5 | 150 | 88.5 | 27 | 0.12 |
| 3 | 236 | 4000 | 17 | 10 | 40 | 11 | 0.5 | 150 | 177 | 53 | 0.12 |
| 3 | 302 | 4000 | 13 | 10 | 40 | 8 | 0.5 | 150 | 226.5 | 68 | 0.12 |
| 3 | 603 | 4000 | 7 | 10 | 40 | 4 | 0.5 | 150 | 452.25 | 136 | 0.12 |
| 3 | 42 | 4000 | 95 | 10 | 40 | 60 | 0.5 | 150 | 31.5 | 9 | 0.12 |
| 3 | 1030 | 4000 | 4 | 10 | 40 | 2 | 0.5 | 150 | 772.5 | 232 | 0.12 |
