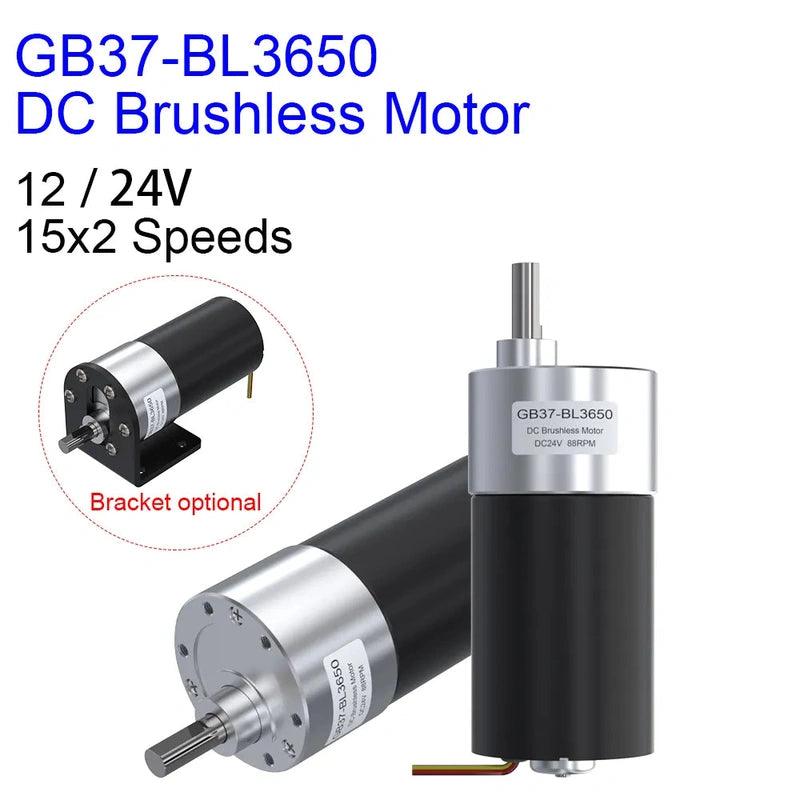

GB37-BL3650 DC Brushless 12V 24V High Torque Low RPM Micro BLDC Geared Motor 10 to 1280RPM for Automation Awning Camping Car

Regular price $57.30 USD
Regular price $57.06 USD Sale price $57.30 USD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)
Ships From

SPECIFICATIONS

GB37-BL3650 DC Brushless 12V 24V High Torque Low RPM Micro BLDC Geared Motor  10 to 1280RPM for Automation Awning Camping Car

Brand Name: Anmiy

Origin: Mainland China

Output Power: 15W

Commutation: Brushless

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: Home Appliance

Model Number: GB37-BL3650-8000-S0621D

BL3650 DC Brushless Motor Series, Include 4 Family, click for details:

1) BL3650: High-speed (No Gearbox)

2) GB37-BL3650: Common Gearbox

3) GP36-BL3650: Planetary Gearbox

4) GW5840-BL3650: Worm Gearbox

More DC Brushless Motor Series (BL3650 series's brothers), click for details.

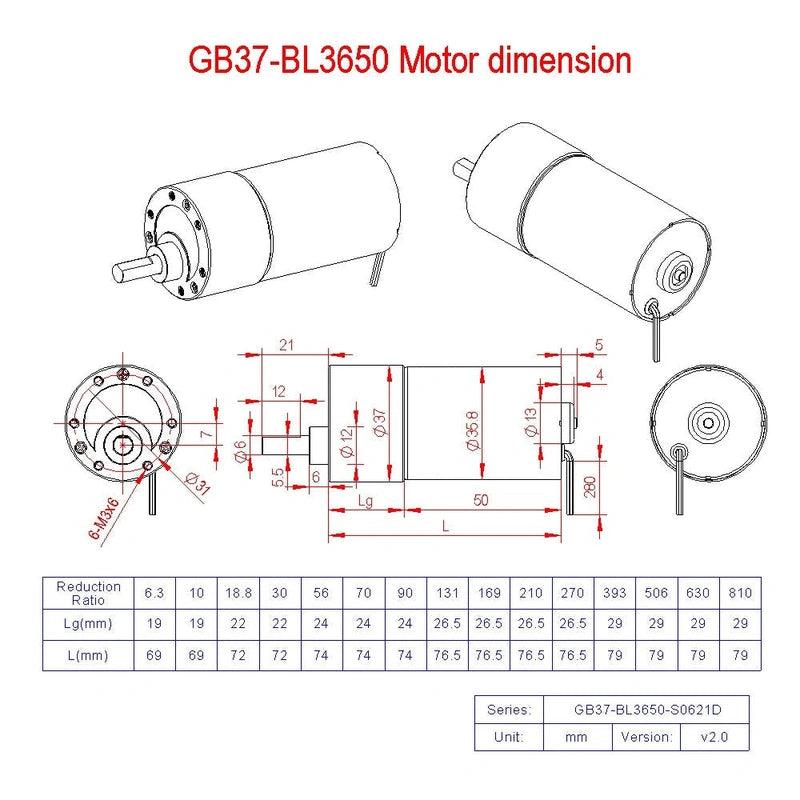

Model: GB37-BL3650-S0621D
Gear Box Name: GB37
Gear Box Type: Common Gear
Motor Body Name: BL3650
Motor Body Type: DC Brushless Motor (BLDC)
Shaft Number: Single
Shaft Size: 6mm(diameter) * 21mm(length)
Shaft Shape: D-Cut, 5.5mm(thickness) * 12mm(length)
Rated Voltage: DC12/24V (can be reduced)
Motor Weight: 290g (approx.)
Motor Use Temperature: 0℃-70℃
Motor Storage:
- Temperature: 0℃-40℃
- Humidity: 15%-90% RH

The GB37-BL3650 is DC Brushless Gear Motor with high torque, low RPM (low speed), and long life.

The motor's rated voltage is DC 12/24V, and it can be reduced.

When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

Usually when the voltage is reduced to 6/12V (the 1/2 of DC12/24V), then the speed, current and torque are about 1/2 of those of 12/24V.

The Speed (RPM) in the purchase option is rated voltage DC12/24V.

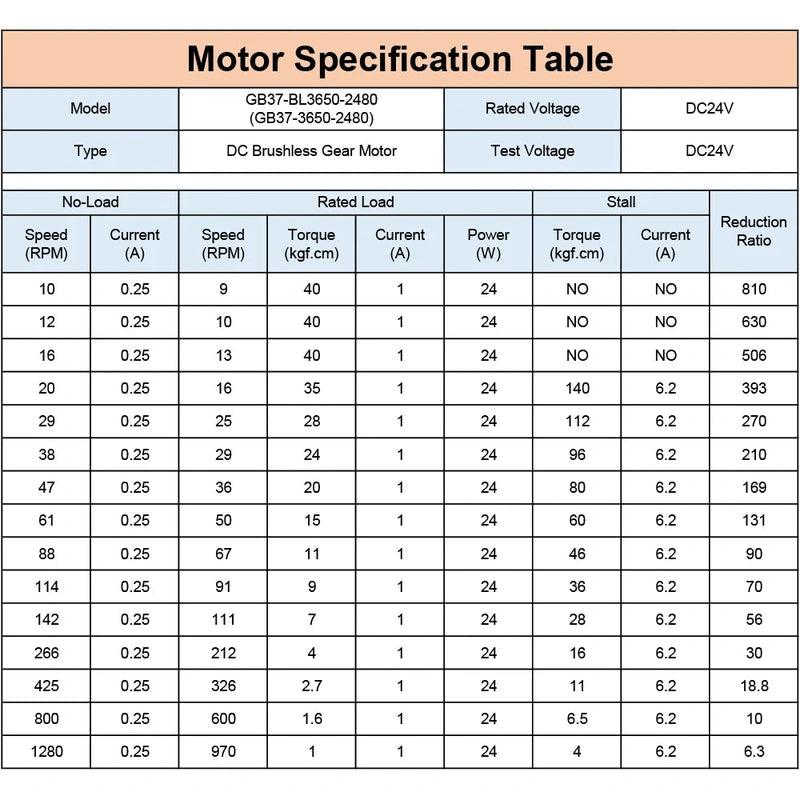

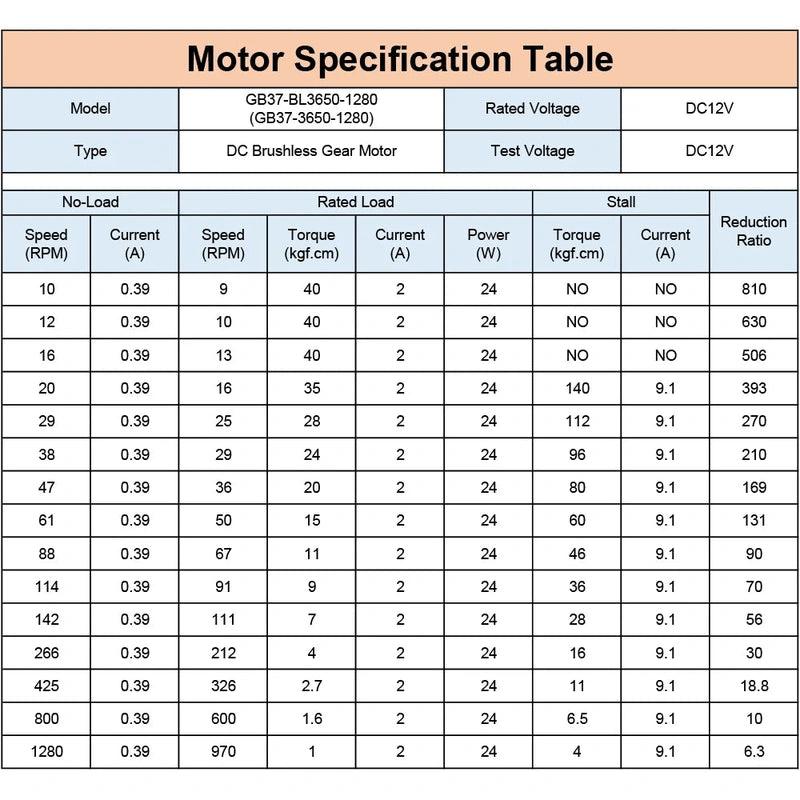

The No-load Speed at rated voltage DC 12/24V (Speeds in purchase options) is:
10 12 16 20 29 38 47 61 88 114 142 266 425 800 1280 RPM

The No-load speed at reduced voltage DC 6/12V is (Speeds in purchase options divided by 2):
5 6 8 10 14.5 19 23.5 30.5 44 57 71 133 212.5 400 640 RPM

For more voltages and speeds, please contact us.

Package included:
- 1 x Motor with Wire (about 280mm length)

Notes:
1. VCC and GND must not be misconnected.
2. CW/CCW, PWM, BRAKE could not be connected to VCC.
3. Prohibit CW/CCW signal while the motor is running. When you need to switch the direction, please stop the motor first, then set the correct CW/CCW according to the expected motor rotation direction, and then start the motor.
4. For gear motors, the FG output pulse must to be multiplied by the reduction ratio of the gearbox.

Notes: Pin connect for DC brushless motor describes how the motor's pins are connected when the motor is started, and how the speed and brakes are controlled.

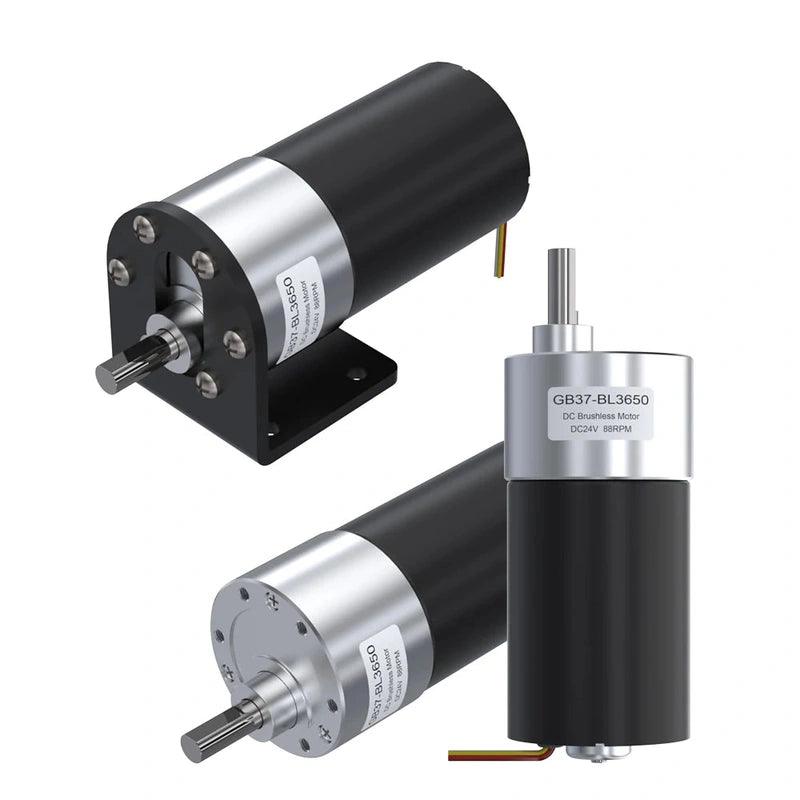

GB37 series DC geared motors bracket (Click image below for details)
